4 Row Aluminum Radiator for 1977-1987 Chevy Nova C/K/G/P Series C10 C20 C30 K10 K20 K30 & Suburban - Compatible with Buick Century, GMC C/K/G 15 25 35 K1500 K2500 K3500 - Includes CU162 Radiator Electric Fan Shroud Kit - Perfect for Engine Cooling & Performance Upgrades

Product Description

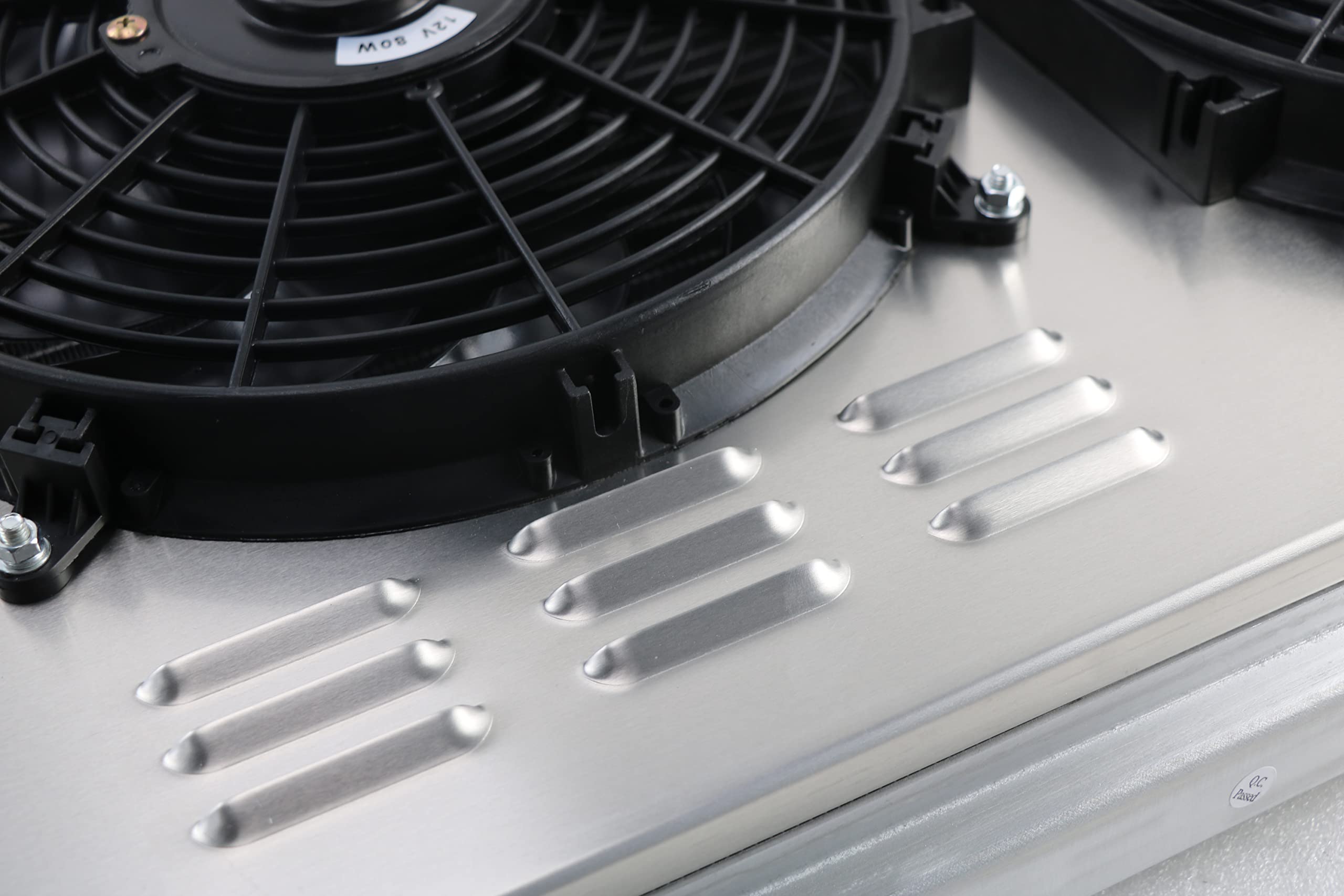

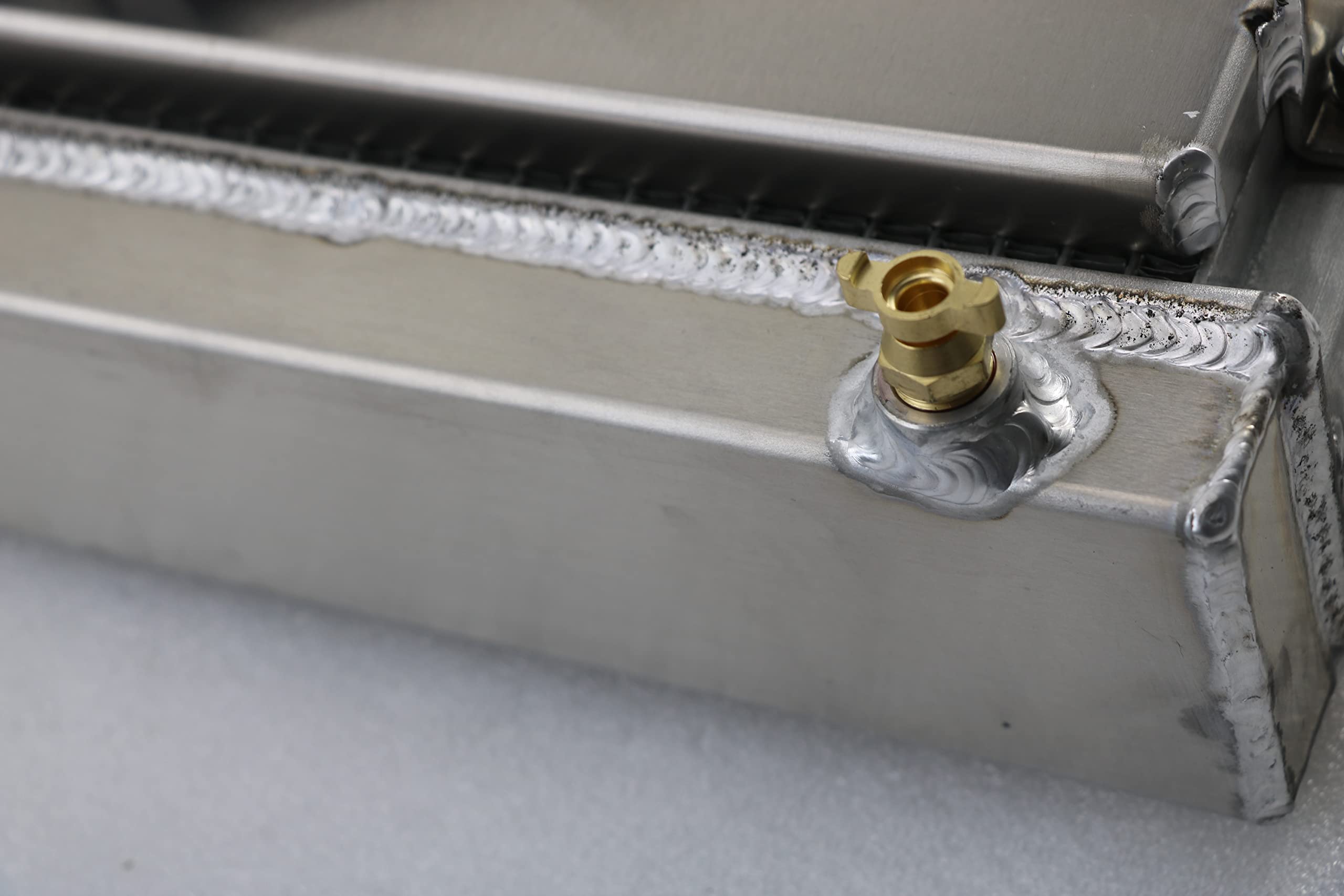

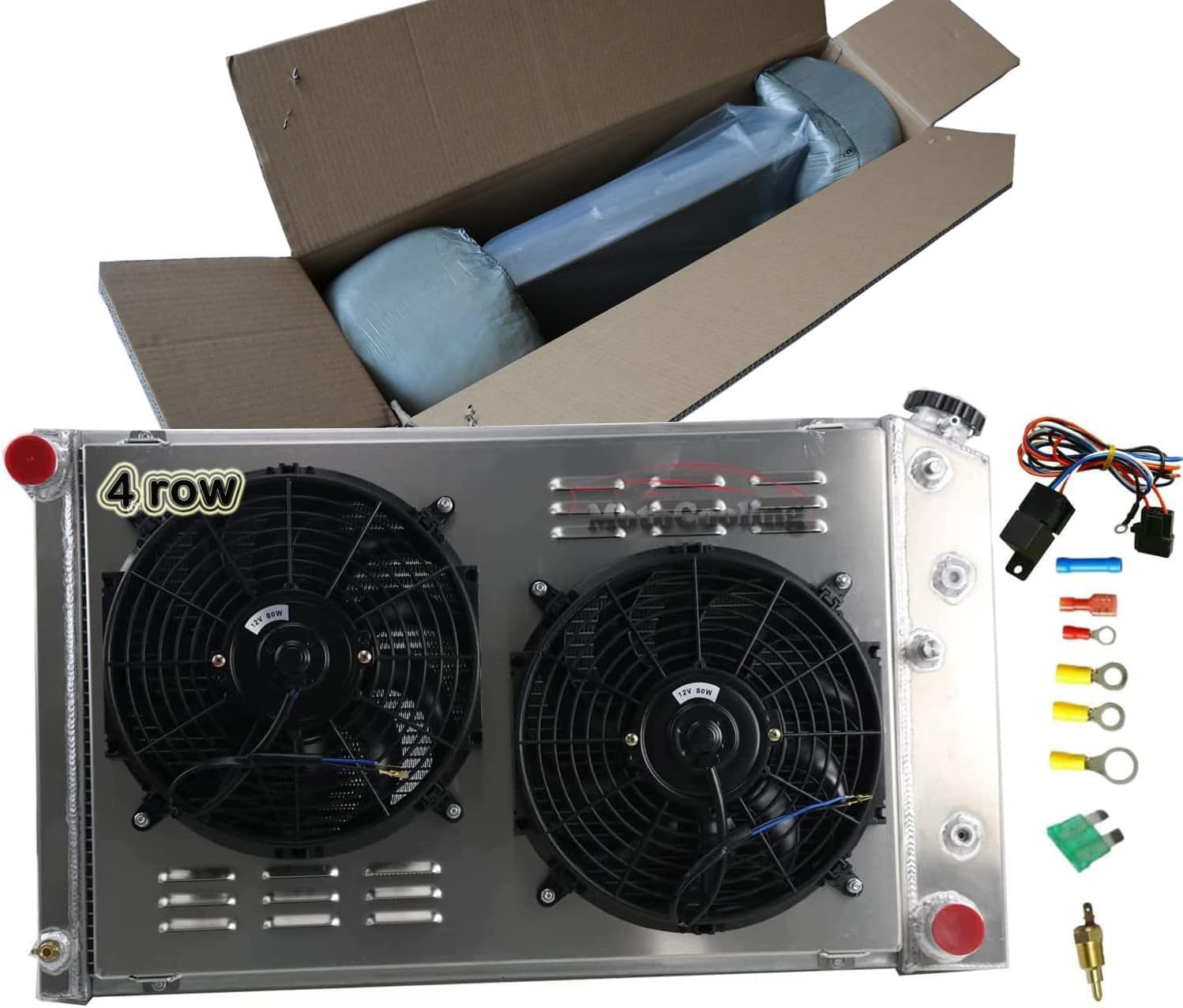

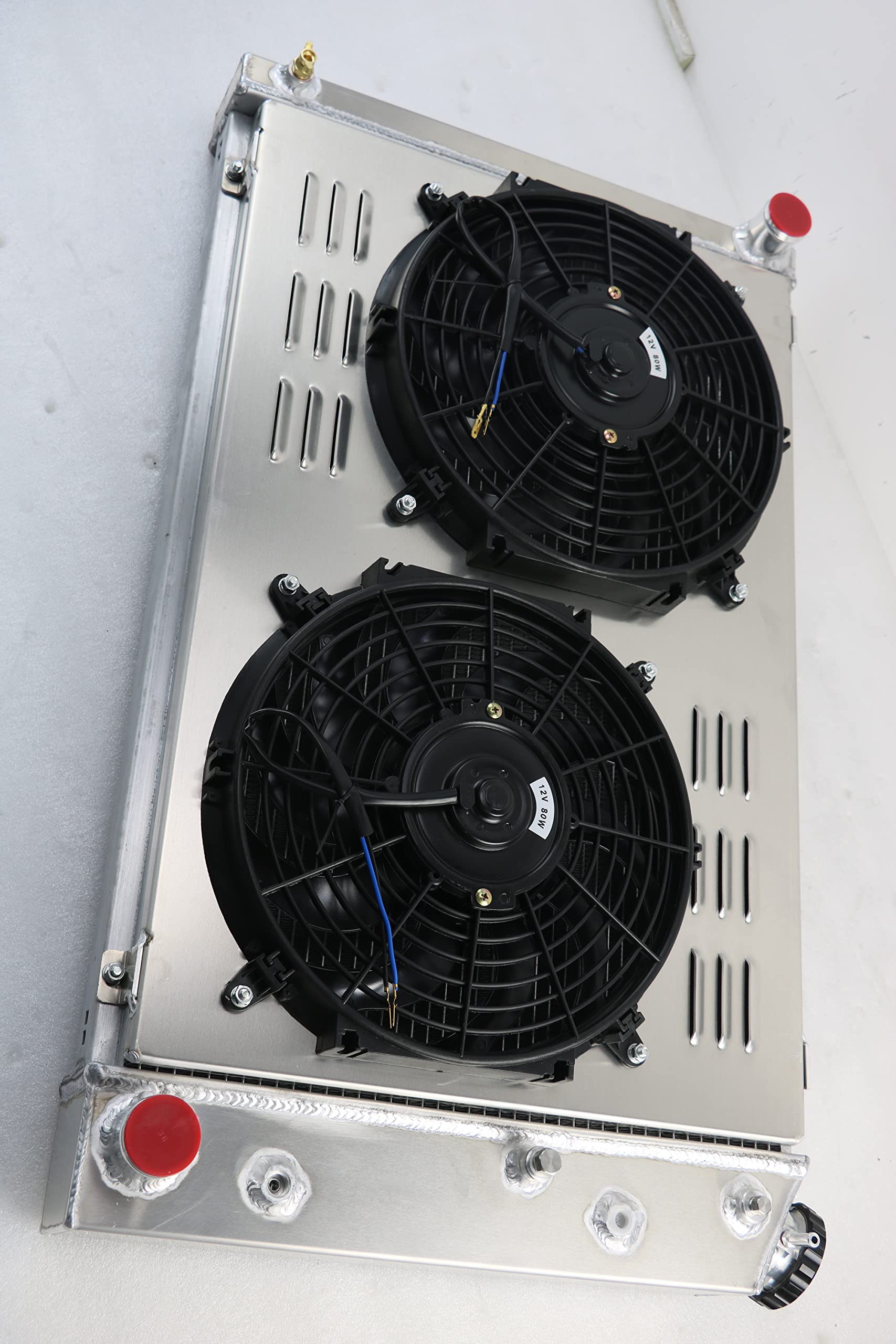

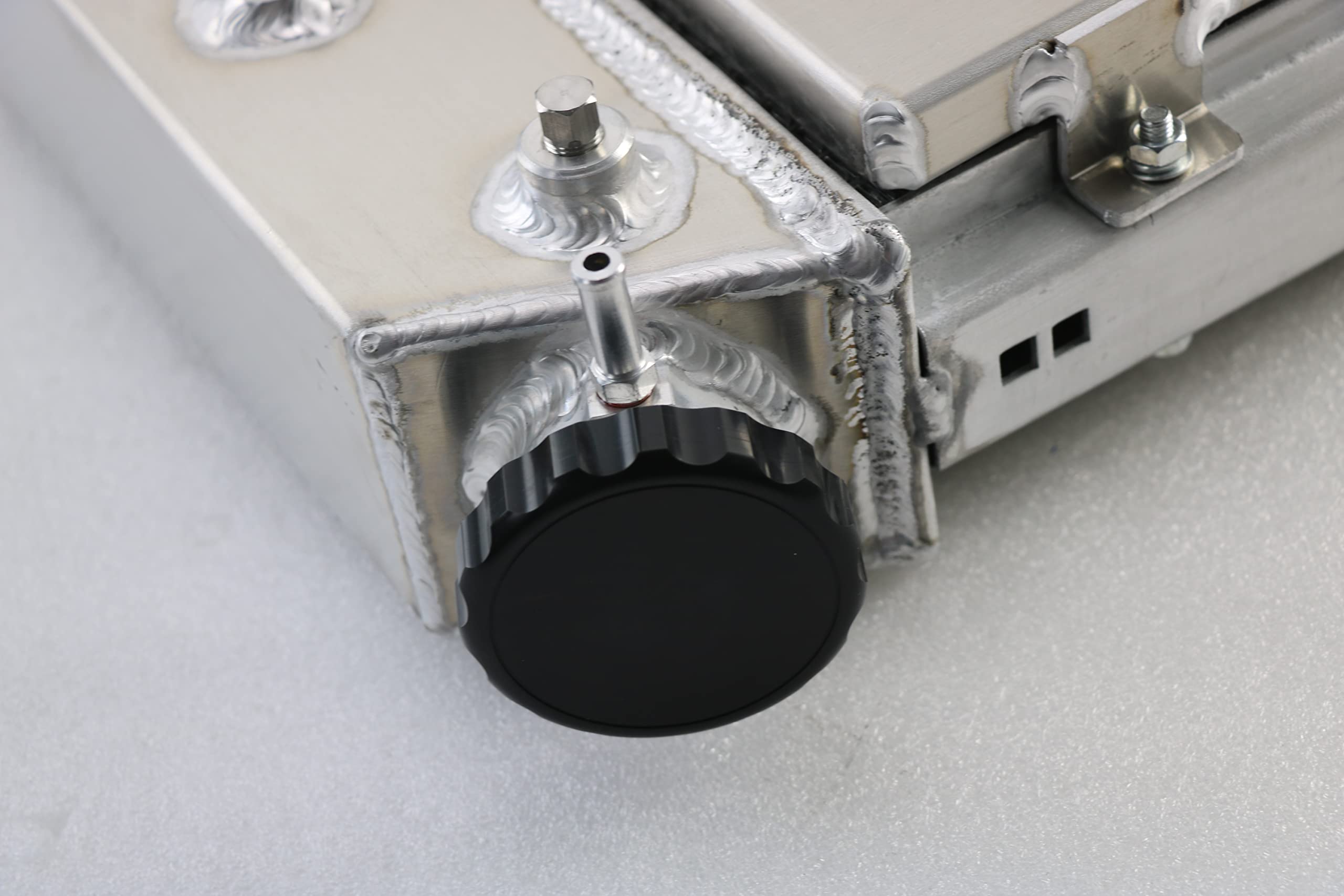

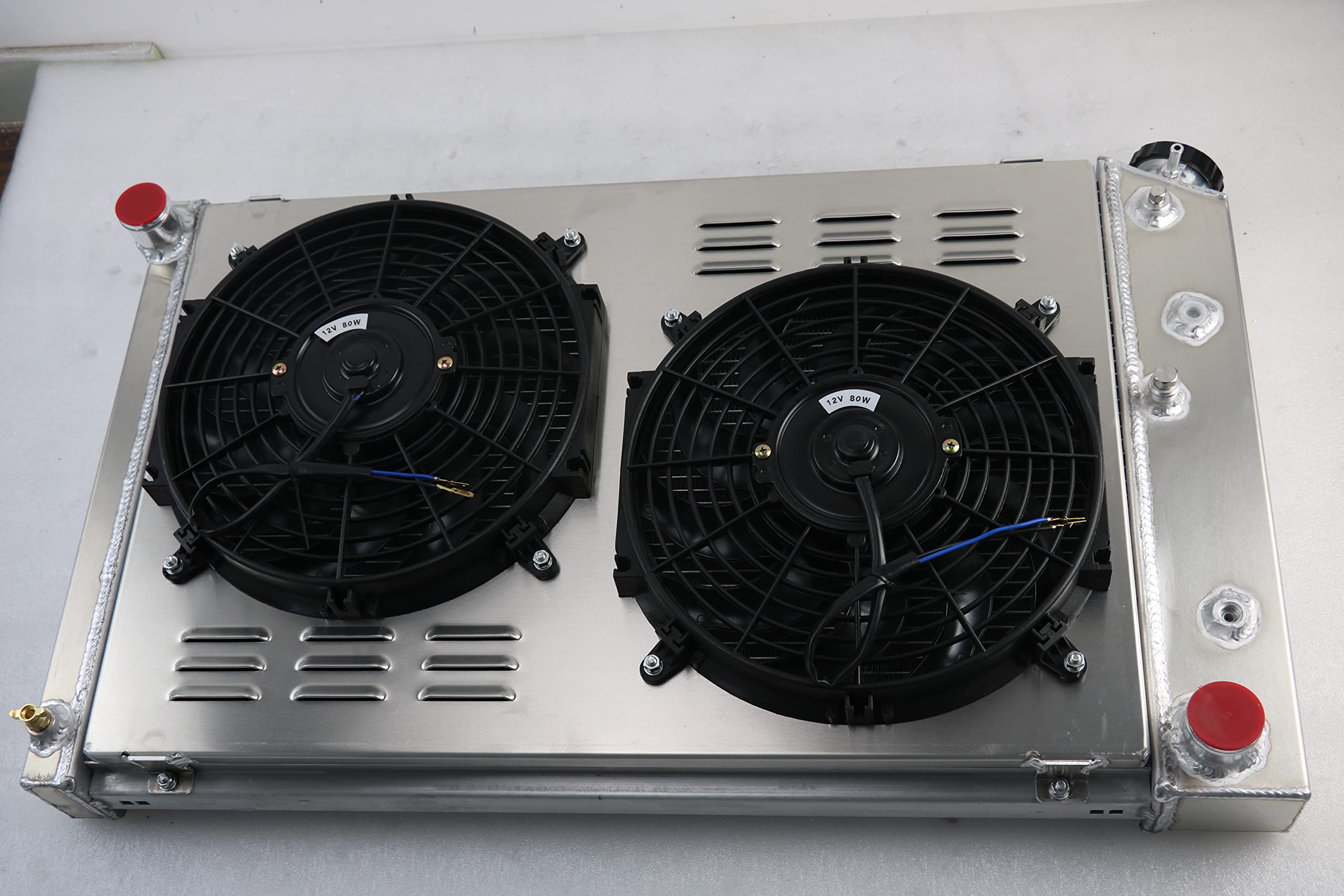

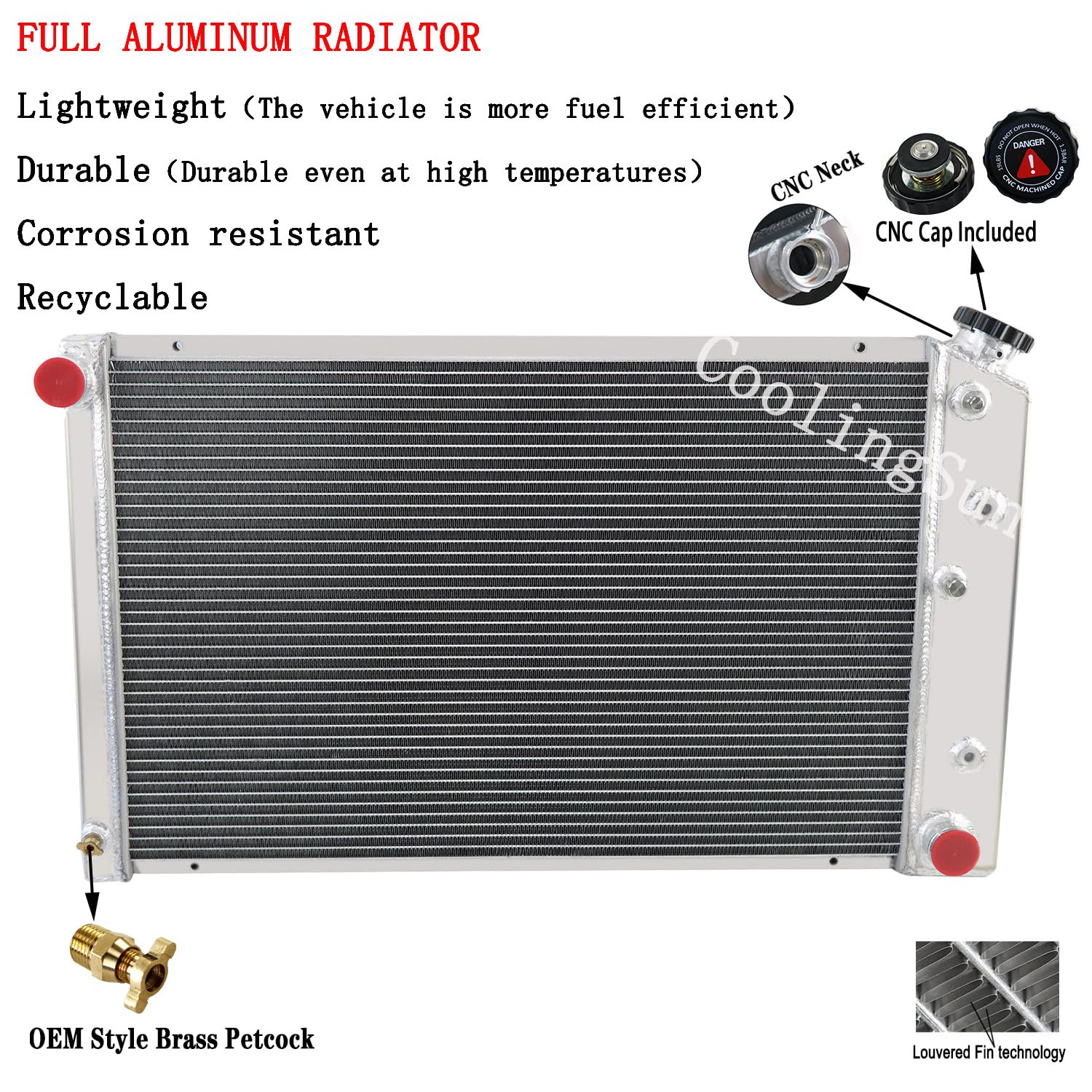

Compatible with: Chevy El Camino 78-1987/ Impala 1980-1985 Chevy Blazer 1973-1985/Suburban 1976-1980 Chevy Nova 1975-1979 / Chevy El Camino 1970-1987 Chevy/GMC C/K/G-Series C10-C20 C25-C3500 1970-1985 Chevy Monte Carlo 1978-1987/ Olds Cutlass 1978-1988 Radiator Details: Type: 4 Core Radiator+Shroud+2x12"Fan+Thermostat Kits Core Thickness: 2.44" CNC Machined Filler Neck and Cap OEM Style Brass Petcock Drain FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans.MotoCooling Radiador: 1.Shuttered design T-5052 fan shroud to guaranteed airflow passes high efficiently. Make your engine bay perfect! 2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material. 3. Additional with thermostat,professional matching advice, consider for every detail and needed.
