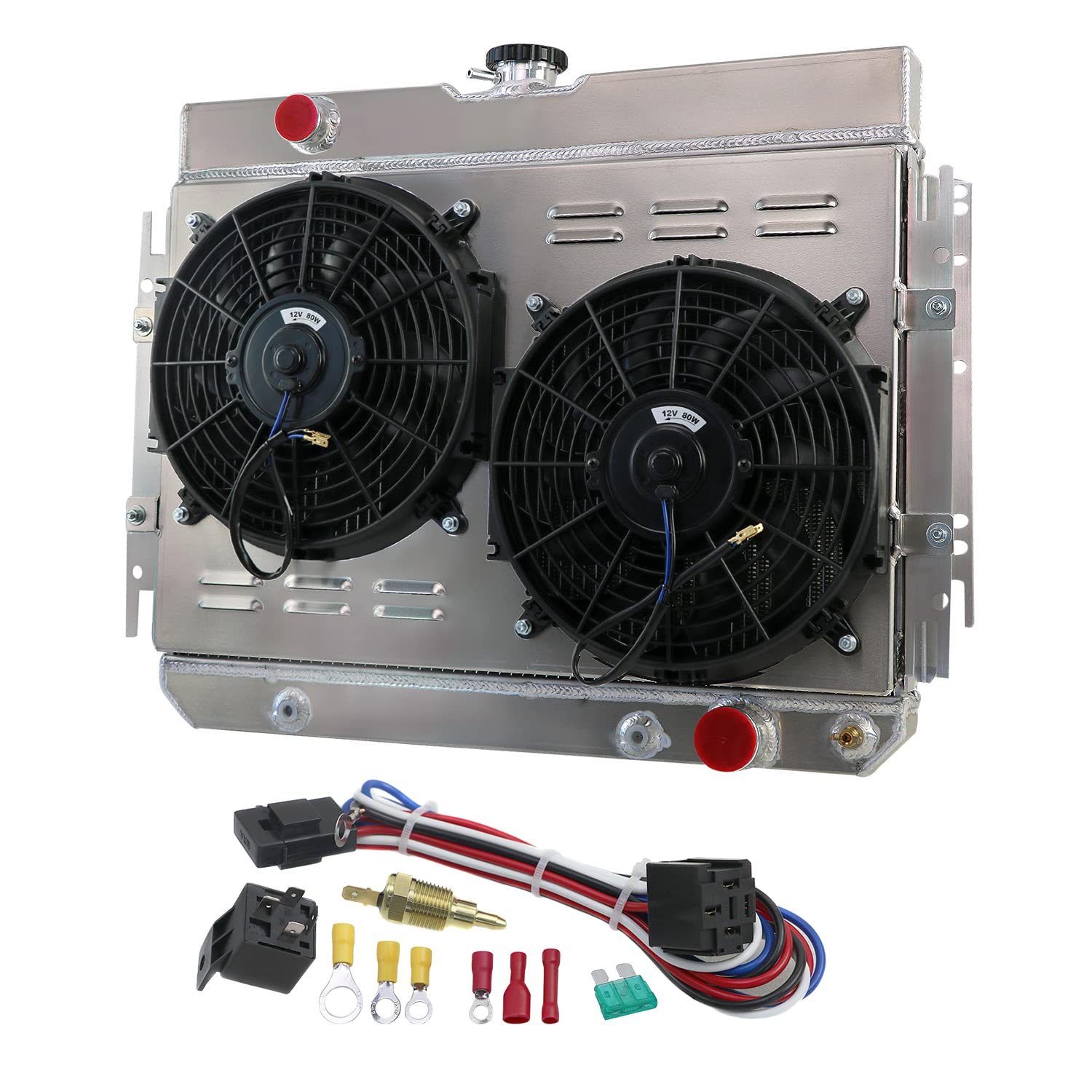

High-Performance Aluminum Radiator for 1959-1968 Chevy Impala/Bel Air/Chevelle/Caprice/Biscayne - 4 Row Cooling System with Shroud, Fan & Relay - Perfect for Classic Car Restoration & Hot Rod Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:9 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:98982836
Product Description
This Radiator Compatible with: Chevy Bel Air, 1963-1968 Chevy Biscayne, 1963-1968 Chevy Caprice, 1967-1968 Chevy Chevelle, 1964-1965 Chevy El Camino, 1959-1960, 1964-1965 Chevy Impala, 1963-1968 Chevy Kingswood, 1959-1961 OE / Part #: CC289 CU289 DPI289 289 SBR289 KKS289 Pls double check OEM radiator core/overall size & inlet/outlet location before ordering PLS use AmazonConfirmedFit to check whether this radiator fit your vehicle before order 12" Fan Spec: Maximum Fan CFM: 2300±200 Fan Diameter (Inch): 12 x 12 x 2.5 Number of Blades: 10 blades (plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2250 rpm Includes the mounting tabs for an easy zip tie installation Relay kit instruction: * Red to battery * White to ignition power * Black to the temp sensor * Blue to the fan Activates by grounding electric fans at preset temperature 180F / 165F turn on/off temperature Radiator Arrived Damaged? All aluminum radiator is easy got damage during shipping, we offer full refund or replacement if your order arrived damaged. (clear pics of damaged radiator and packing box is required before we resend or refund) Radiator Leaking/Not Working after Installed? 12 Months warranty. (clear pics of leaking details is required before we offer solution) Contact us if you have any question! Your message will be replied within 12 hours!
Product Features
Core/Overall Size（Inch) 16 * 24.7 * 2.44 / 22.9 * 28 * 6.5 ; 4 row cores
Inlet/Outlet Diameter (Inch) 1.5 / 1.75 ; Inlet/Outlet at driver / passenger side
Internal transmission oil cooler type G1/4
Leak/durability tested; No drilling or modifications needed for installation
Complete aluminum radiator assembly with no plastic end tanks or rubber gaskets
Louvered core fins increase airflow and accelerate heat transfer to keep your engine running cool
Buy with no worry-12 months warranty
Factory sized cooling hose inlet and outlet connections
Controlled atmosphere furnace brazed core with TIG welded tanks and brackets
Radiator features factory style mounting brackets
Customer Reviews
Without using thermo switch:-White is the switch power-Black is ground for fans and relay-Blue is power to fans-Red is constant 12vUsing thermo switch:-Bond red and white to constant 12v power-Land both blacks coming from fans to ground-use black wire coming from relay to thermo switch or override switch-override switch and thermo connected to ground on other side-blue wire to power for fans
