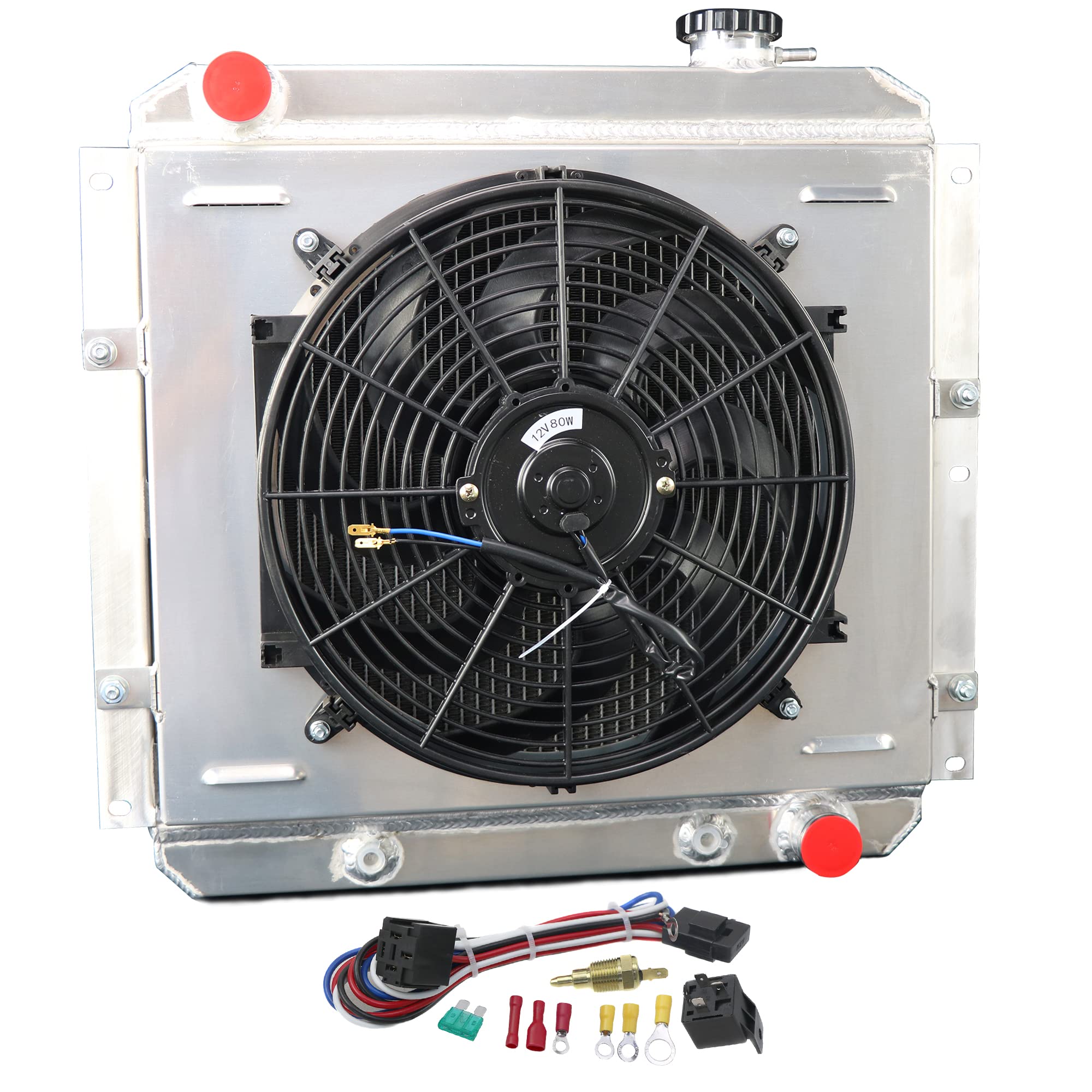

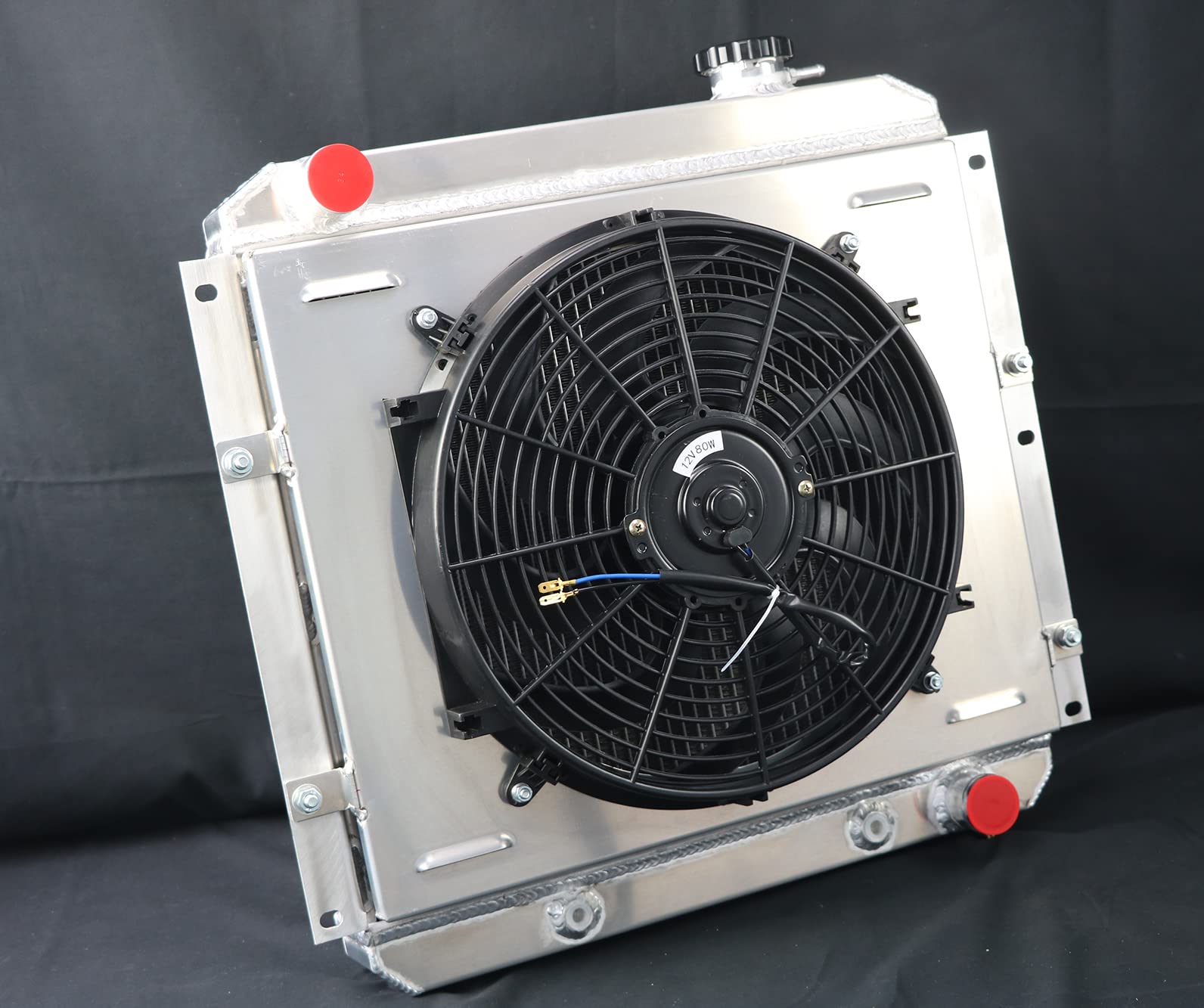

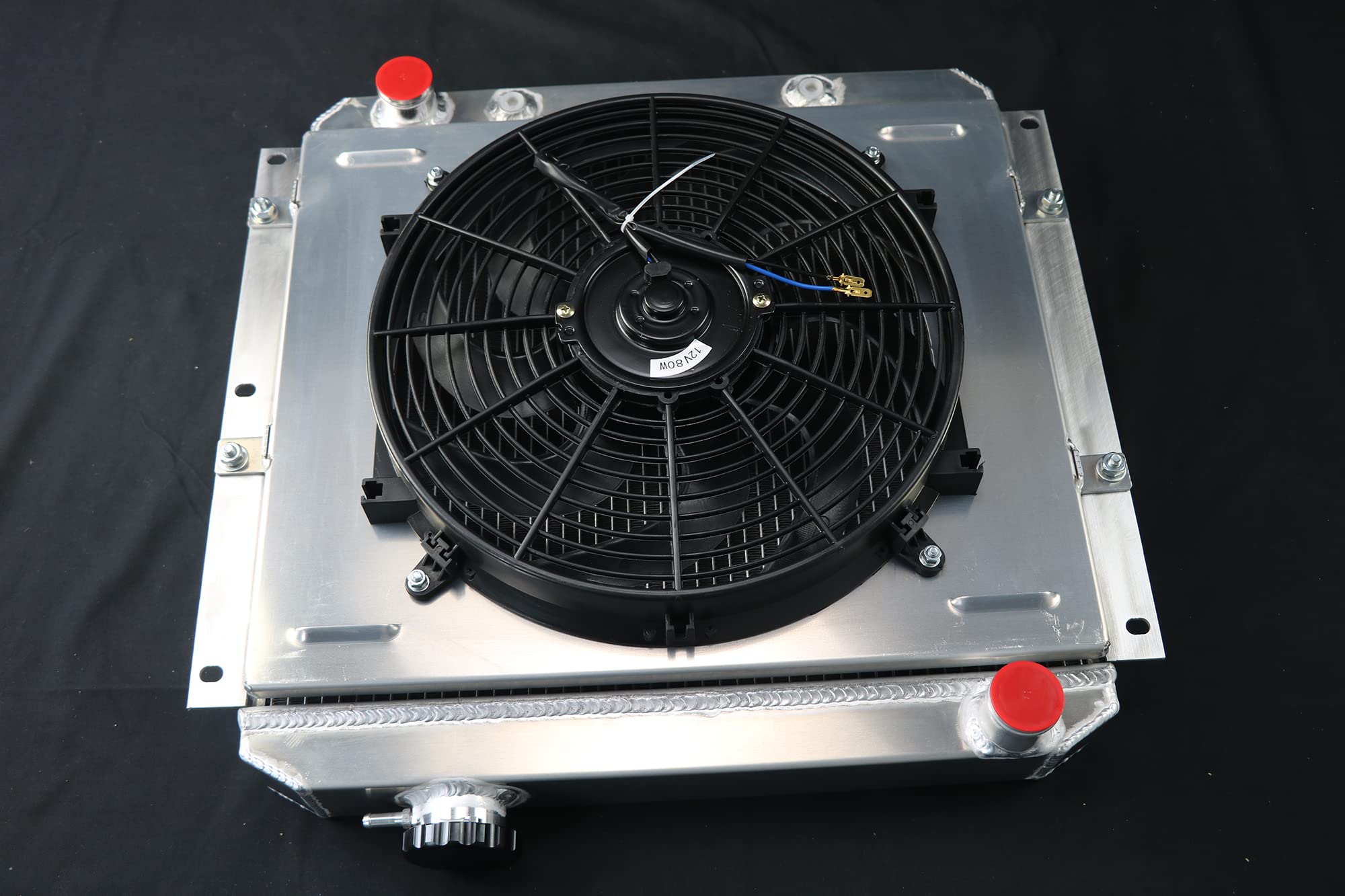

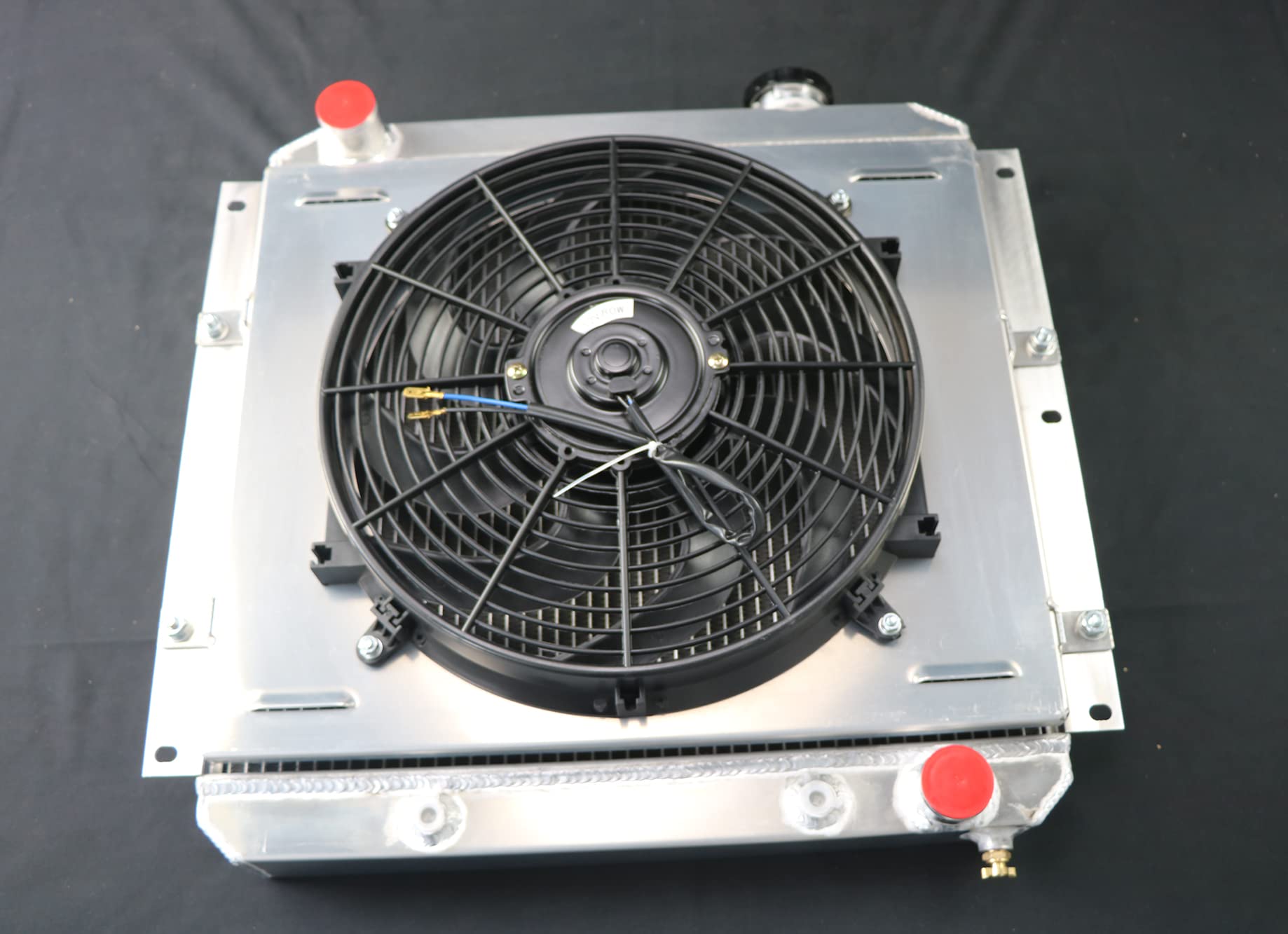

CU180 Aluminum Radiator Compatible with 1960-1984 Toyota Land Cruiser FJ40 FJ60 3.9L 4.2L L6 Engine - 3 Row Heavy Duty Cooling System with Fan Shroud & Relay Kit - Perfect for Off-Roading, Overlanding & Extreme Weather Conditions
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:17 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:97961803
Product Description

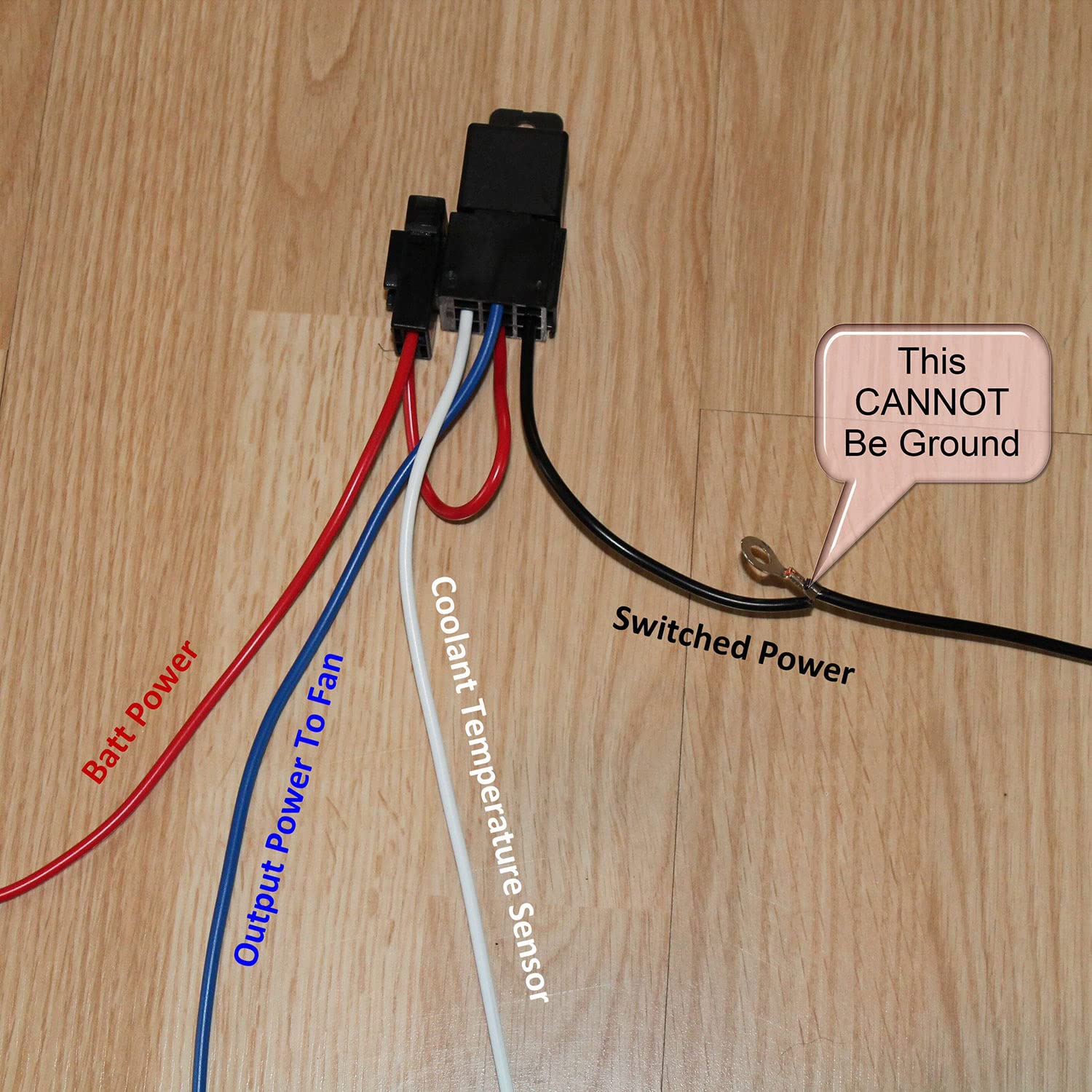

This Radiator Compatible with: 1975-1984 Toyota Land Cruiser 4.2L L6 1960-1974 Toyota Land Cruiser 3.9L L6 PLS double check OEM radiator core/overall size & inlet/outlet location before ordering. Thermostat Relay Kit Instructions: * Activates by grounding electric fans at preset temperature. * 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. 14'' FAN Spec: Maximum Fan CFM: 2200±200 Fan Diameter: 14.05" X 14.05" X 2.5" Number of Blades: 8 S-Type blades Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Radiator Arrived Damaged? All aluminum radiator is easy got damage during shipping, we offer full refund or replacement if your order arrived damaged. (clear pics of damaged radiator and packing box is required before we resend or refund) Radiator Leaking/Not Working after Installed? 12 Months warranty. (clear pics of leaking details is required before we offer solution) Contact us if you have any question! Your message will be replied within 12 hours!
Product Features
Core/Overall Size (Inch) 16.1 x 19.2 x 1.73 / 22 x 21.6 x 5.8
1.5'' INLET at upper driver side ; 1.5'' OUTLET at lower passenger side
Internal transmission oil cooler included G1/4（Z)
Leak/durability repeated tested; No drilling or modifications needed during installation
Complete aluminum radiator assembly with no plastic end tanks or rubber gaskets
Buy with no worry-12 months warranty
High density serpentine fins deliver optimum airflow across core tubes for better cooling
Controlled atmosphere furnace brazed core with TIG welded tanks and brackets

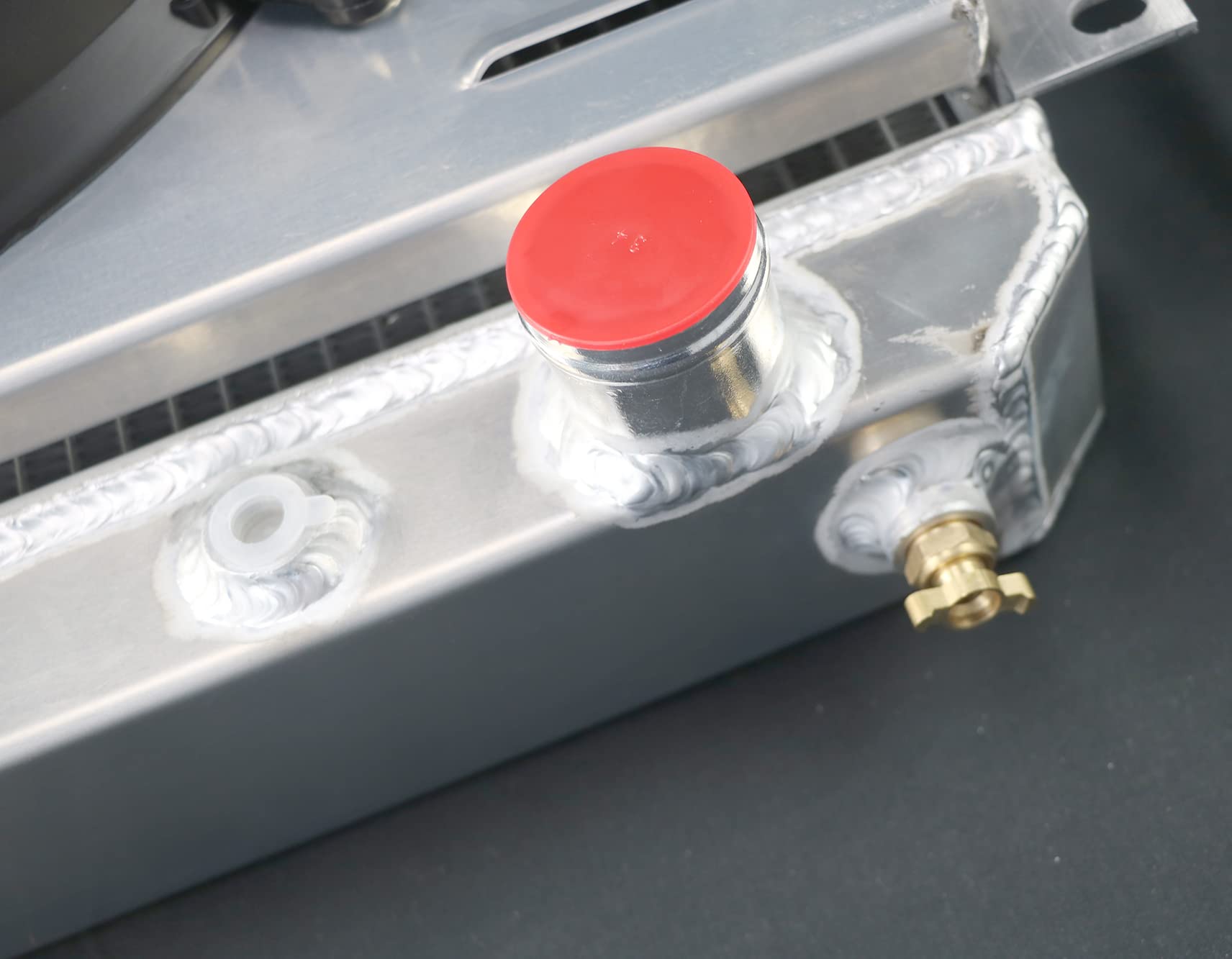

OEM style brass petcock drain included

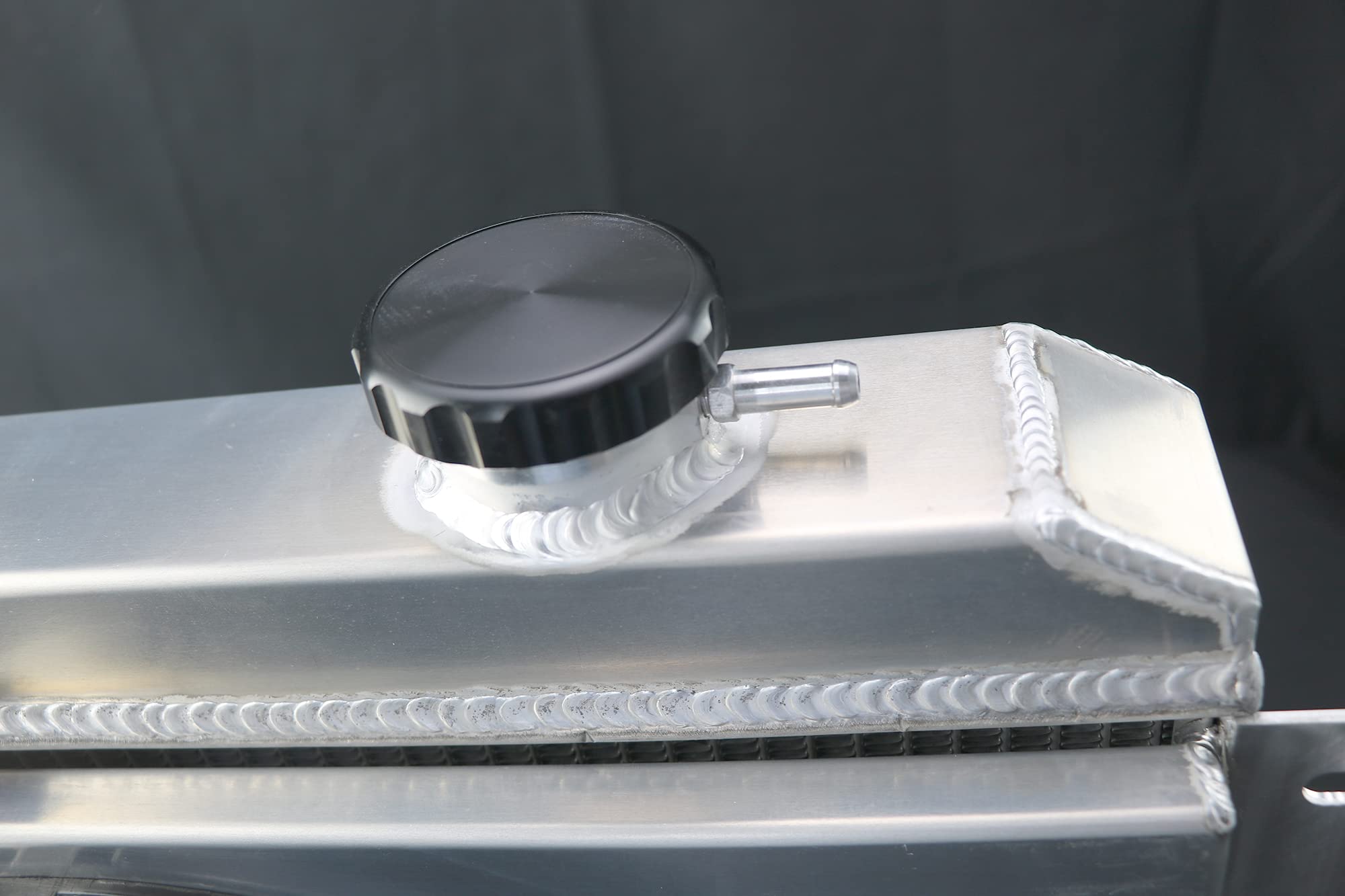

CNC machined cap with Engraved craftsmanship & anodized treatment
Customer Reviews
Very nice replacement aluminum radiator, bolts directly to the original mounts. The fan shroud does not work with the original 1F Land Cruiser engine, it will not clear the water pump pulley. I had to remove the shroud and attach the electric fan directly to the radiator which is the reason I did not give this 5 stars.
