SKU:97678920

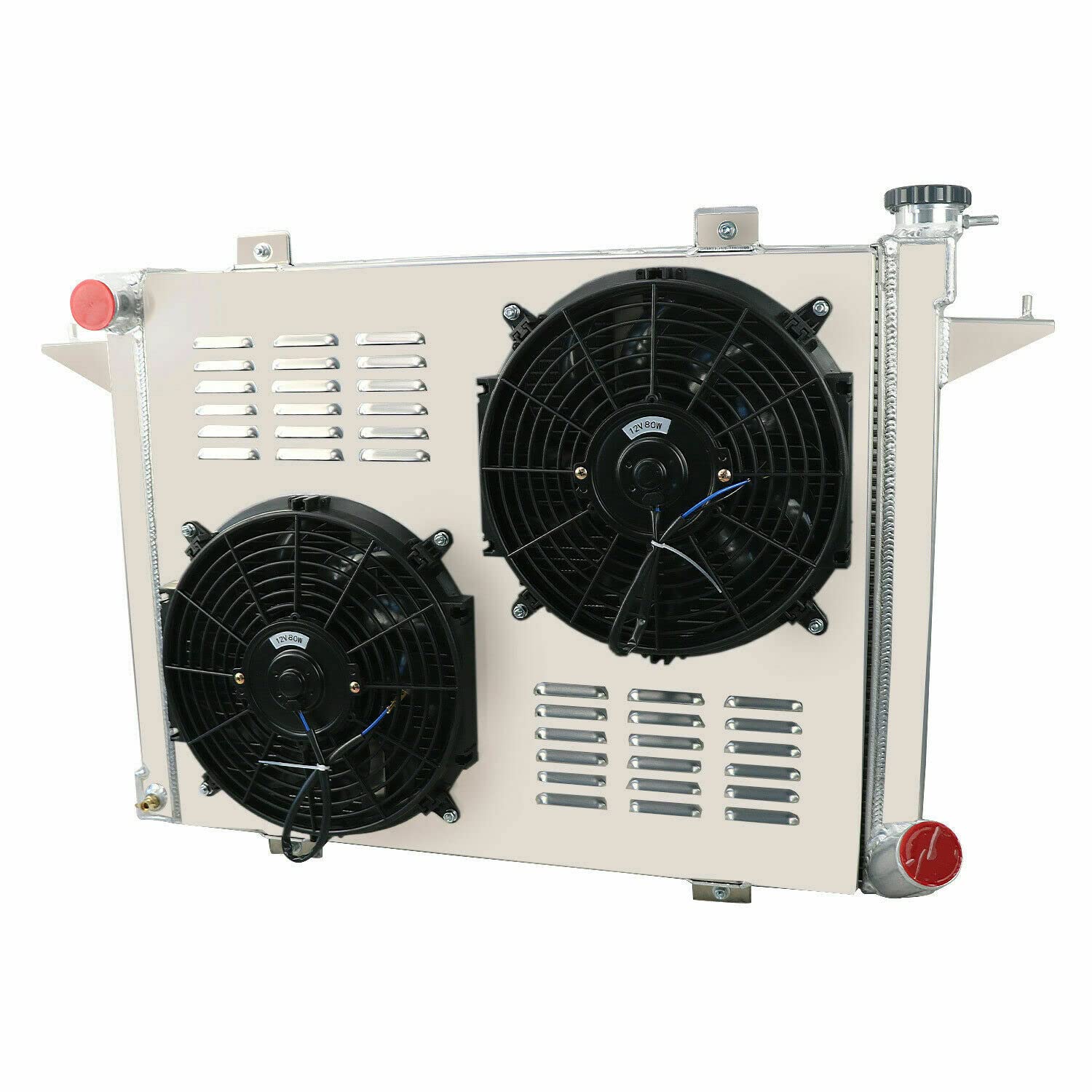

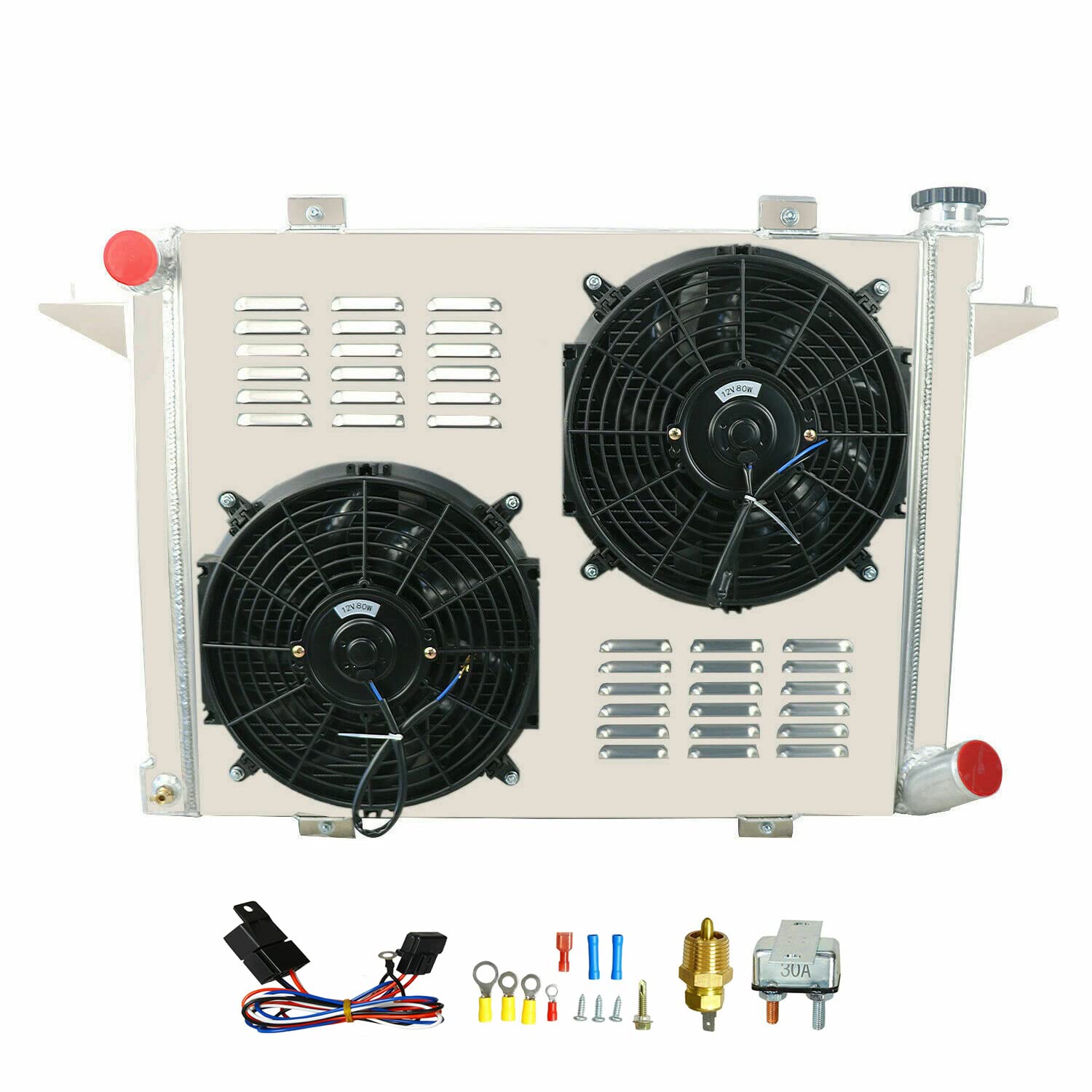

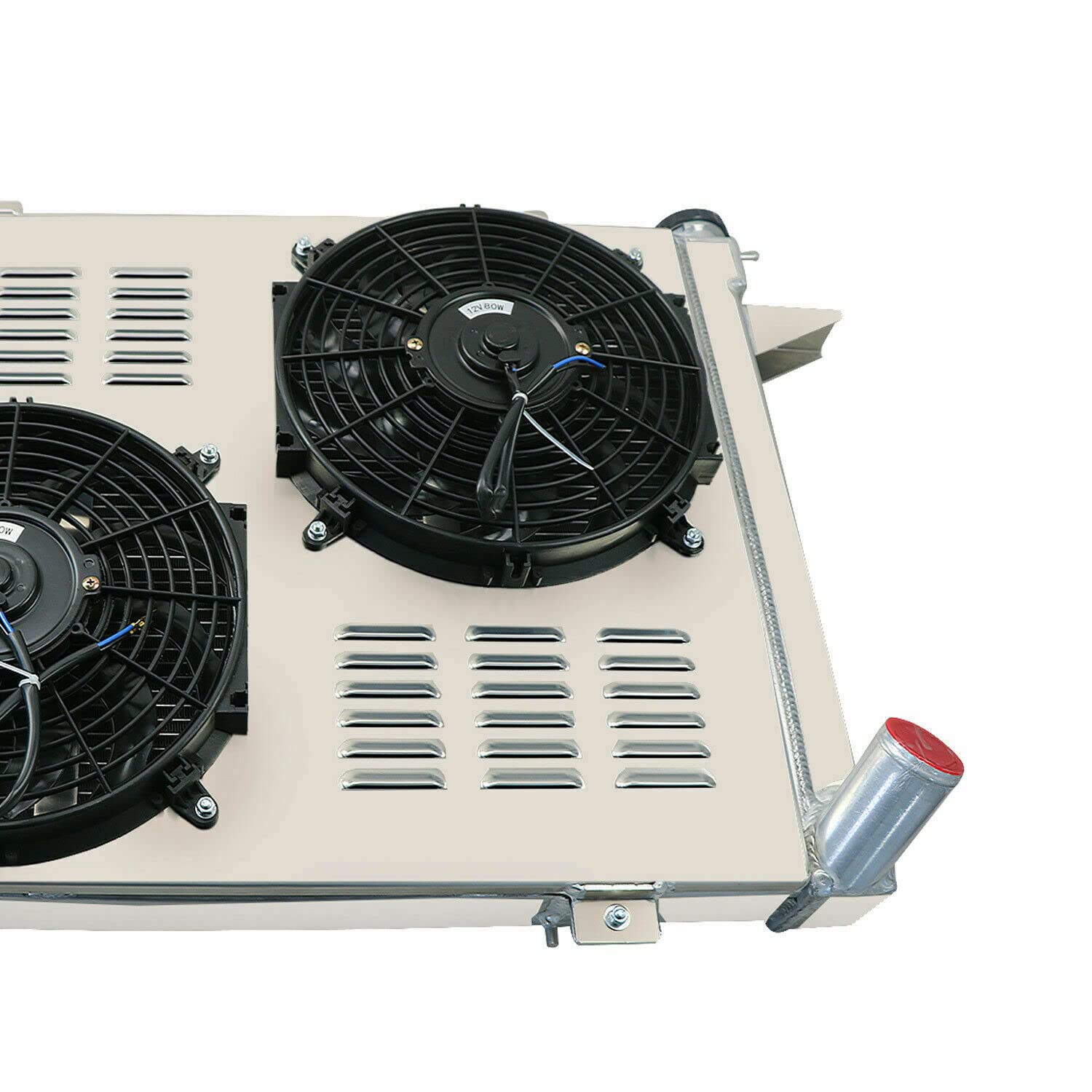

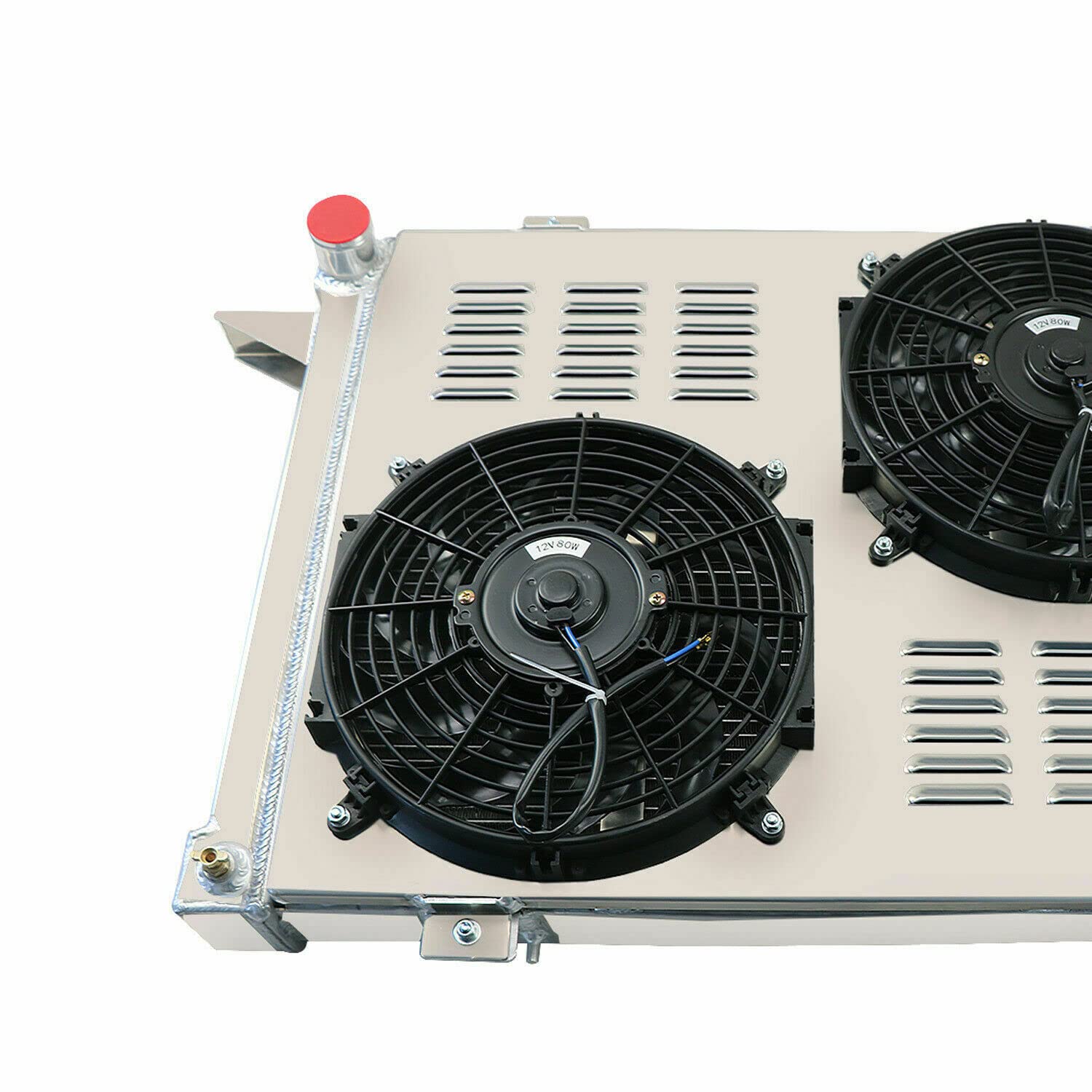

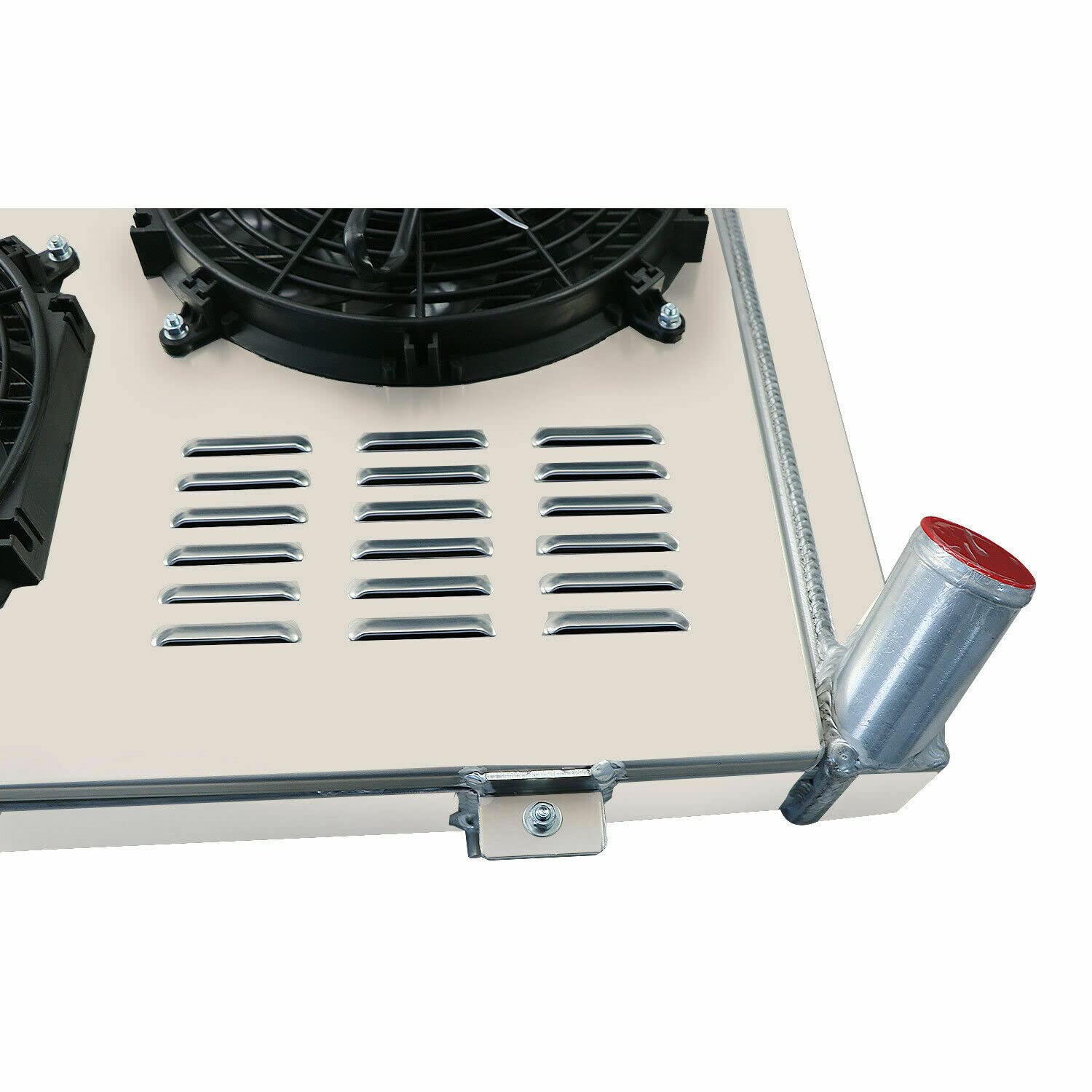

Product Includes: 1 X 3 Row Aluminum Radiator (includes radiator cap) 1 X Aluminum Shroud 2 X 12inch Fans (Includes mounting kits) 1 X Thermostat Relay Kits Radiator Specs: DPI# 1198 Core Material: Aluminum Tank Material: Full Aluminum Flow Type: Crossflow Radiator Cap: Included Fitment Type: Direct Replacement Radiator Crafts: 100% Tig welded Petock Drain:OEM style brass petcock drain Radiator Cap:CNC machined filler neck and cap Fan Details: Maximum Fan CFM: 2300±200 FAN Diameter(inch): 12.05 X 12.05 X 2.5 Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans OEM/Substitute Numbers: CC1198, 1198, MC1198, EC1198, CU1198, AE1198, EC1198, RA1198, RK1198, CSF1198, DPI1198, AE1198, RAD1198, KKS1198, SPTU1198, Q1198 This Radiator Compatible with: For 91-93 Dodge D250 w/ 5.9L Cummins Engine For 91-93 Dodge D350 w/ 5.9L Cummins Engine For 91-93 Dodge W250 w/ 5.9L Cummins Engine For 91-93 Dodge W350 w/ 5.9L Cummins Engine For 90-91 Dodge Ramcharger w/ 5.2L/5.9L Gas Engine PLS check core/overall/inlet/outlet SIZE carefully before you order
Core Size(inch) 25.82 H x 20.78 W / Overall Size(inch) 22.3 H x 36.3 W / Rows 3
Inlet(inch) 2 / Outlet(inch) 1.75 / Core Thickness(inch) 1.74
Stronger & higher capacity for coolant than stock one, Exclusive design that dramatically increases 35% cooling
All-aluminum 3-row core, which is Noculoc-brazed for extra durability Lightweight core is welded in vacuum brazing furnace, no epoxy
This listing is including the aluminum radiator+ fan shroud combo+ relay thermostat kits
Local Delivery, Please check compatibility before purchasing.Any Issues, Email Us
