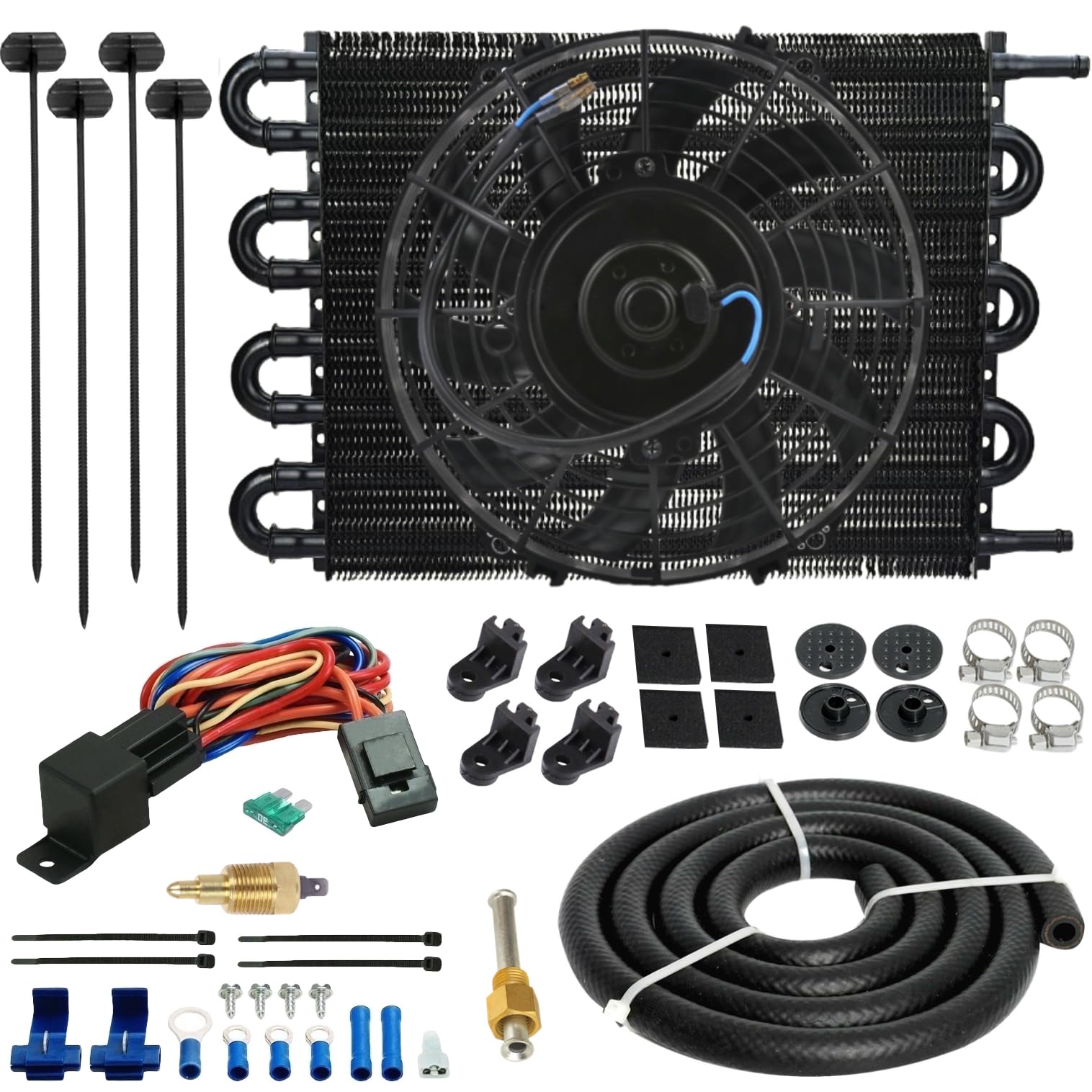

High Performance Aluminum 8 Row 6AN Transmission Oil Cooler with Electric Fan - 3/8" NPT Threaded, 180°F Thermostat & Relay Wiring Kit for Car, Truck & Off-Road Vehicles - Perfect for Engine Cooling & Transmission Protection in Hot Weather & Heavy Duty Towing

Product Description

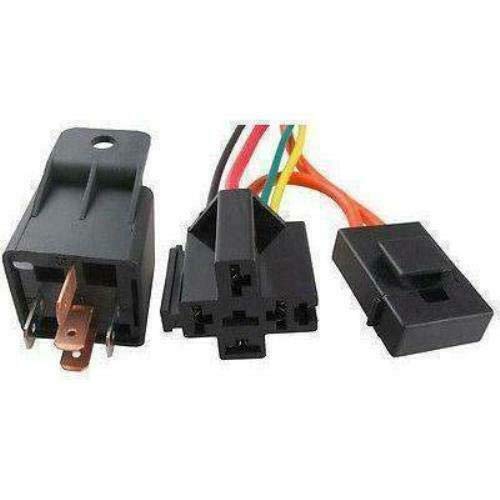

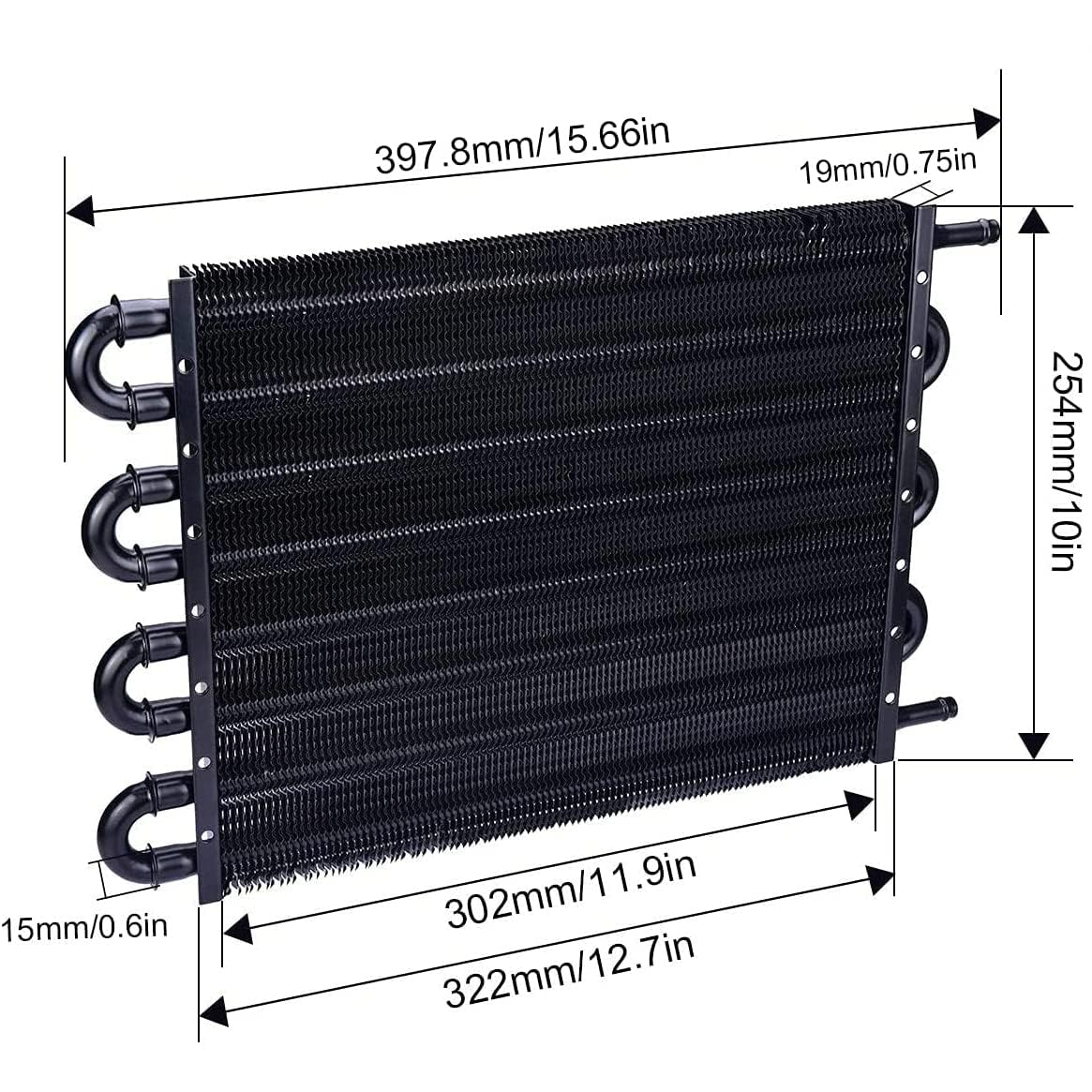

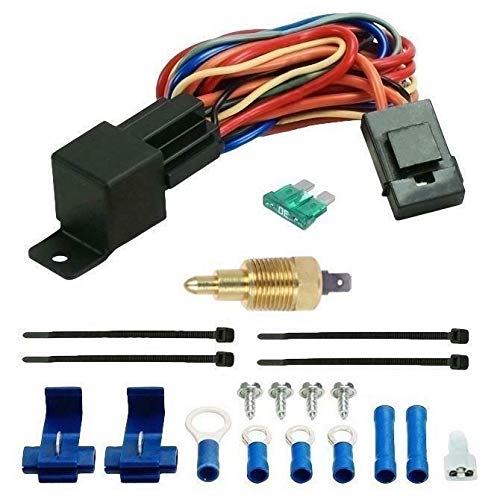

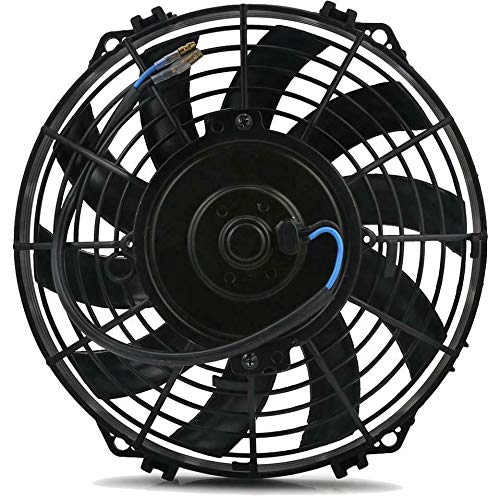

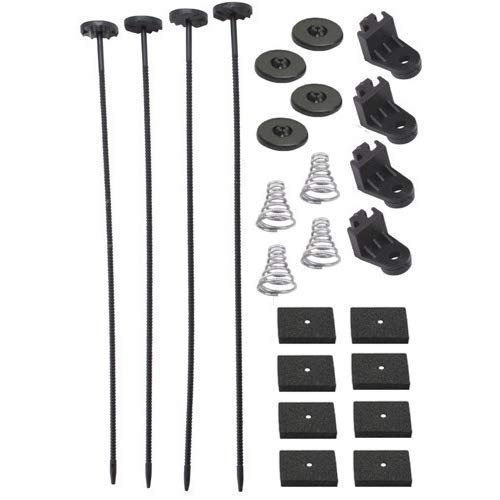

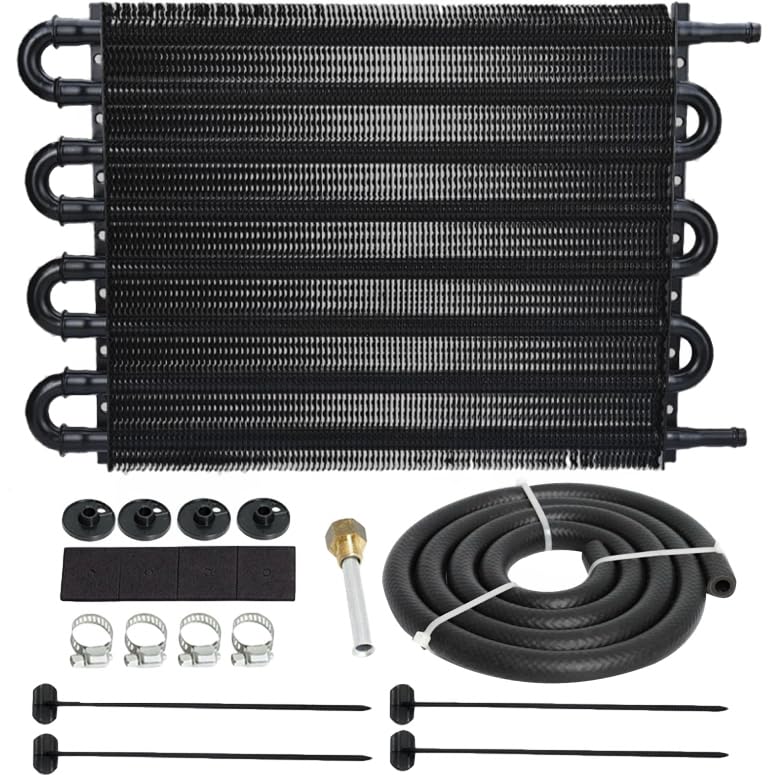

Fluid Cooler:Universal 8 row tube and fin all-aluminum heavy duty transmission cooler kit.Extend transmission life by helping prevent heat-related transmission failures.Perfect for highly-stress full-size car, truck and RV automatic transmissions.High efficiency turbulation and ultrasonically soldered for the best reliability.Dimensions: 0.75" x 10" x 15.87" with 3/8" hose barb inlets, GVW 26000 lbs.Electric Fan:Universal 12 volt high performance 9" inch slim electric cooling fan.Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.Configured as an air puller by default or reversible to an air pusher.Includes mounting bracket feet and complete cooler fin tie strap kit.Measures 9.75" x 9.75" x 2.4" thickness at center and 1.1" at edge.Wiring Kit:Universal automotive electric fan 5-pin 40A relay switch harness kit.14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.Maximum 30 amp continuous draw with 30A in-line fuse protection.A/C override or manual toggle switch wire built directly into harness.Installation instructions, wiring diagram and components included.Thermostat:Universal single pin electric cooling fan grounding thermostat switch.Standard 3/8" NPT solid brass thread-in temperature probe sensor.Preset to power fan at 180'F turn-on and 165'F turn-off temperature.Threads into block port, radiator, engine cooler or tapped hose line.Measures temp of any liquid including oil, water and coolant fluid.
