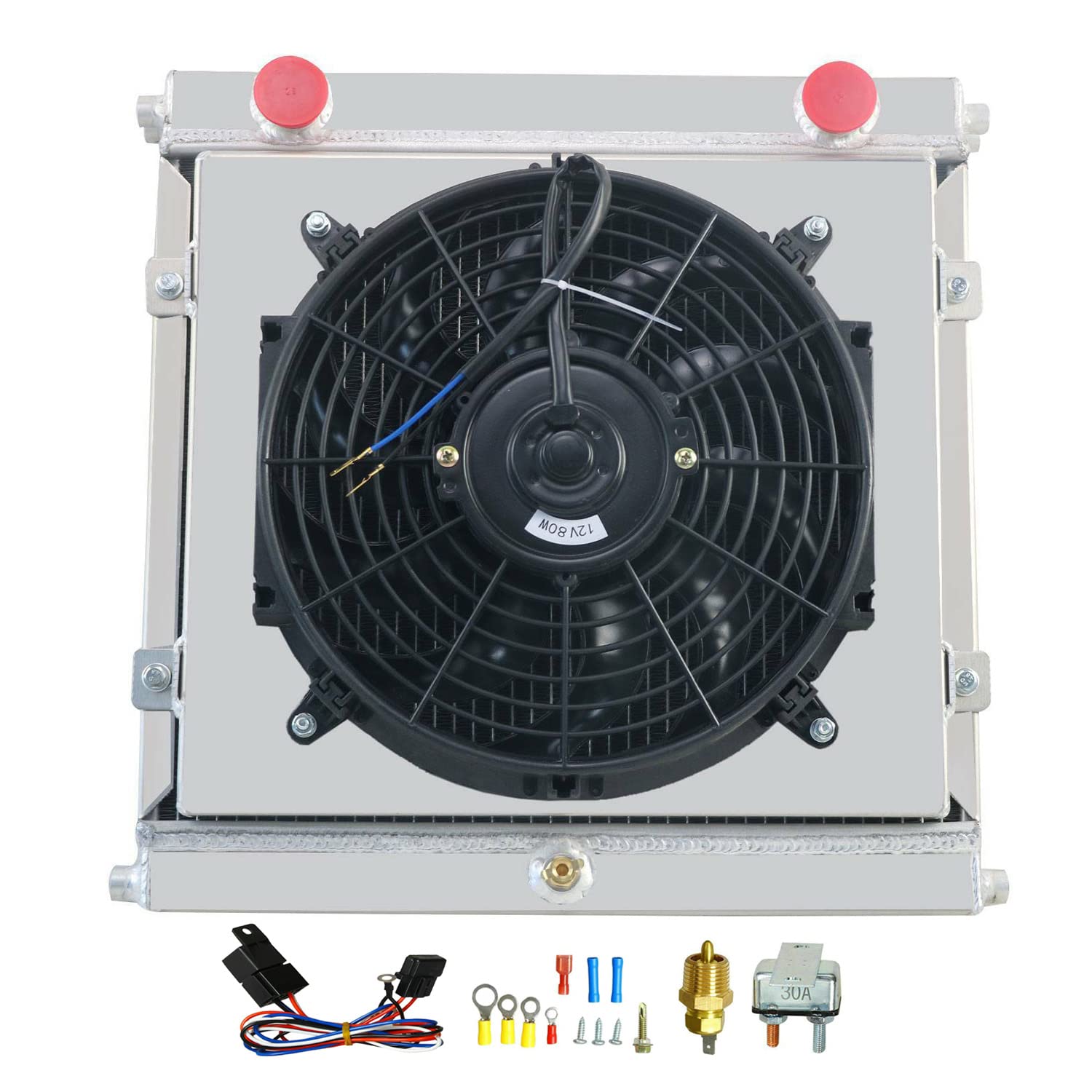

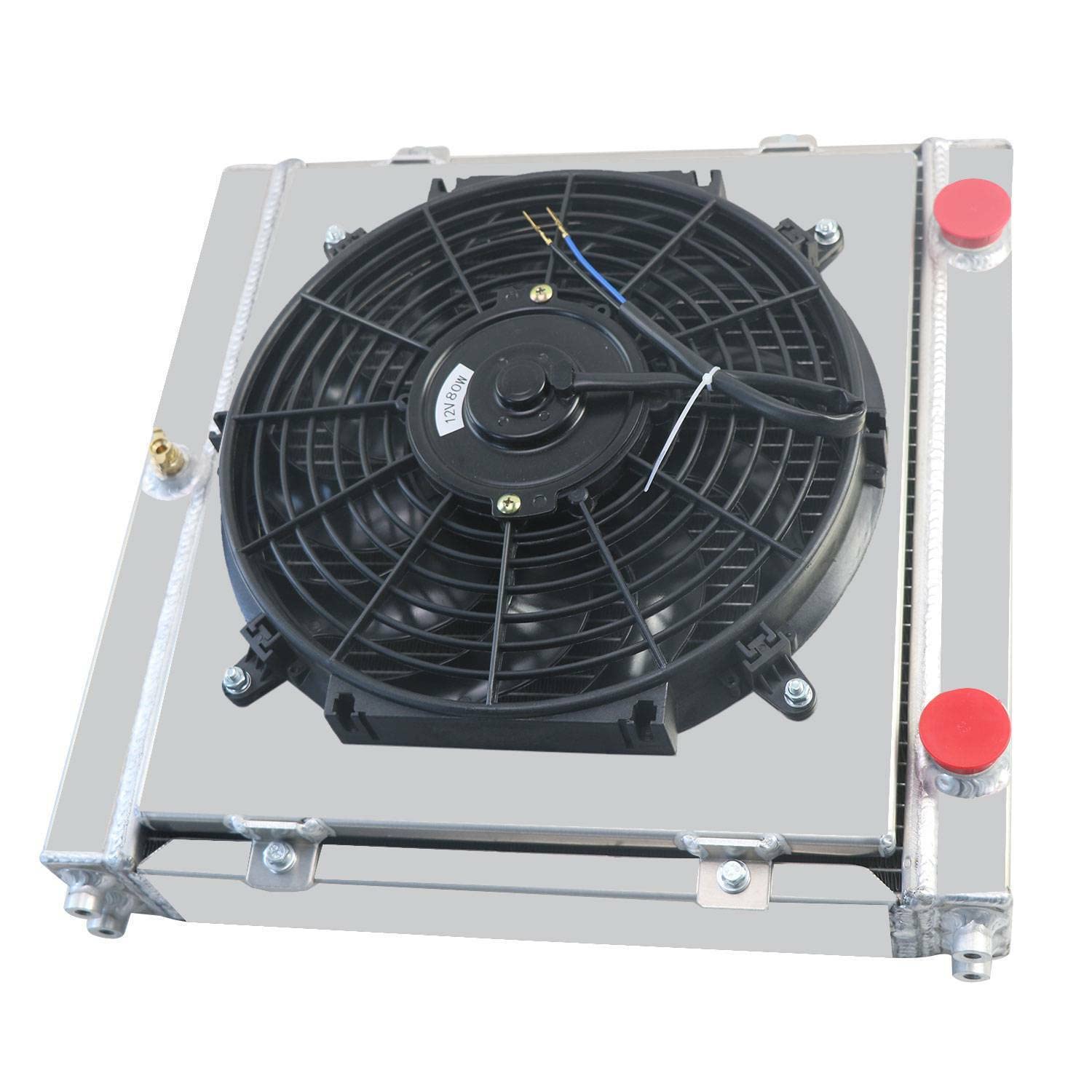

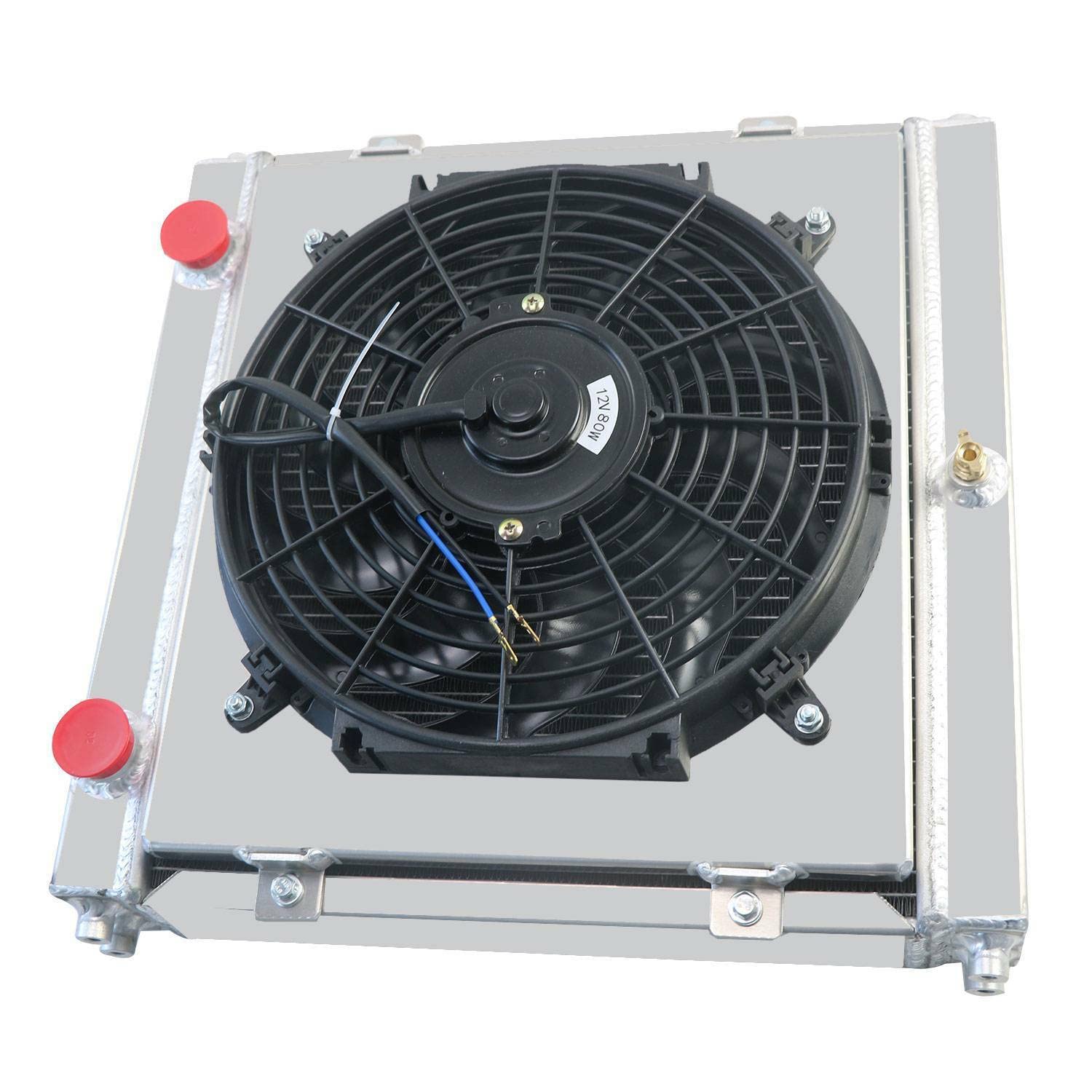

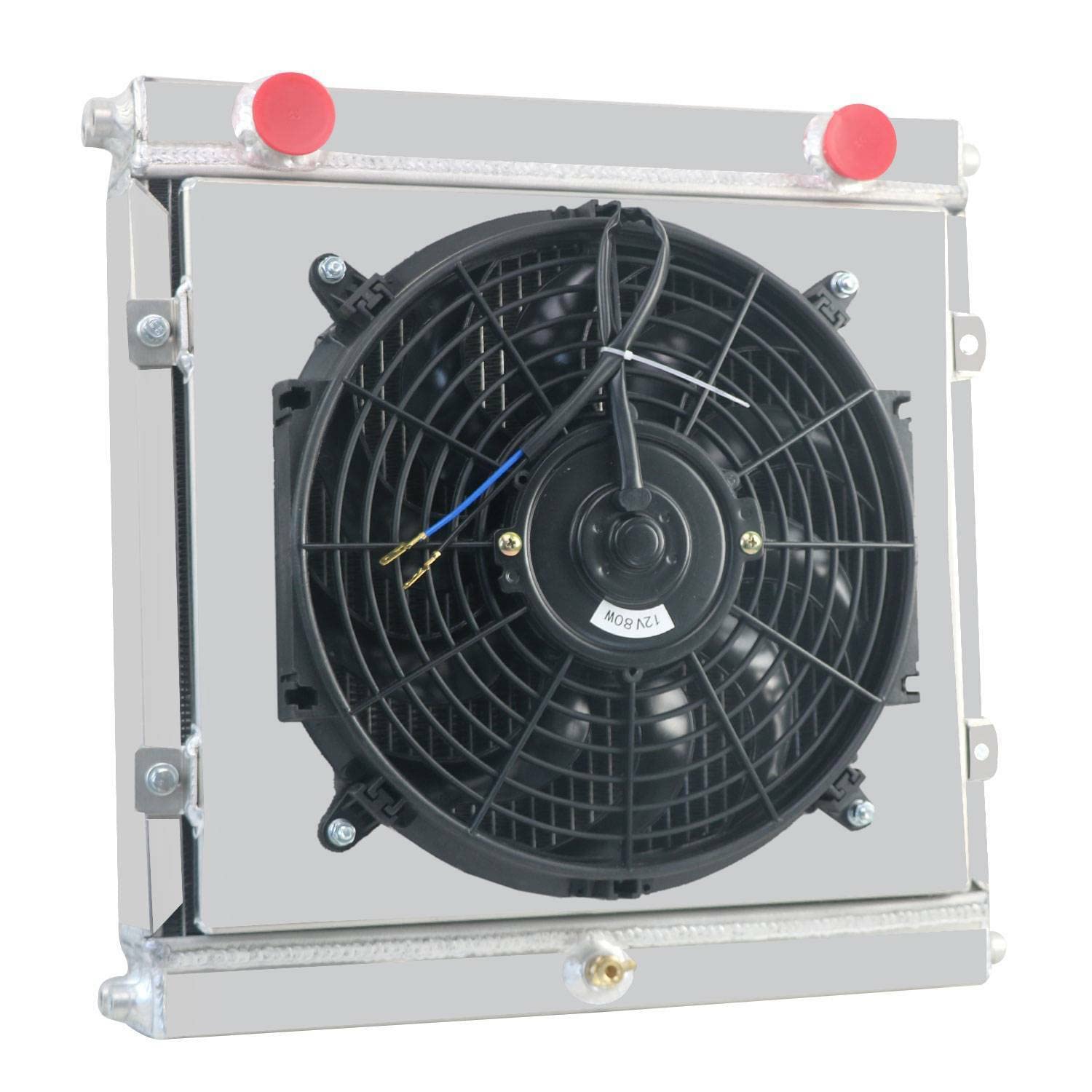

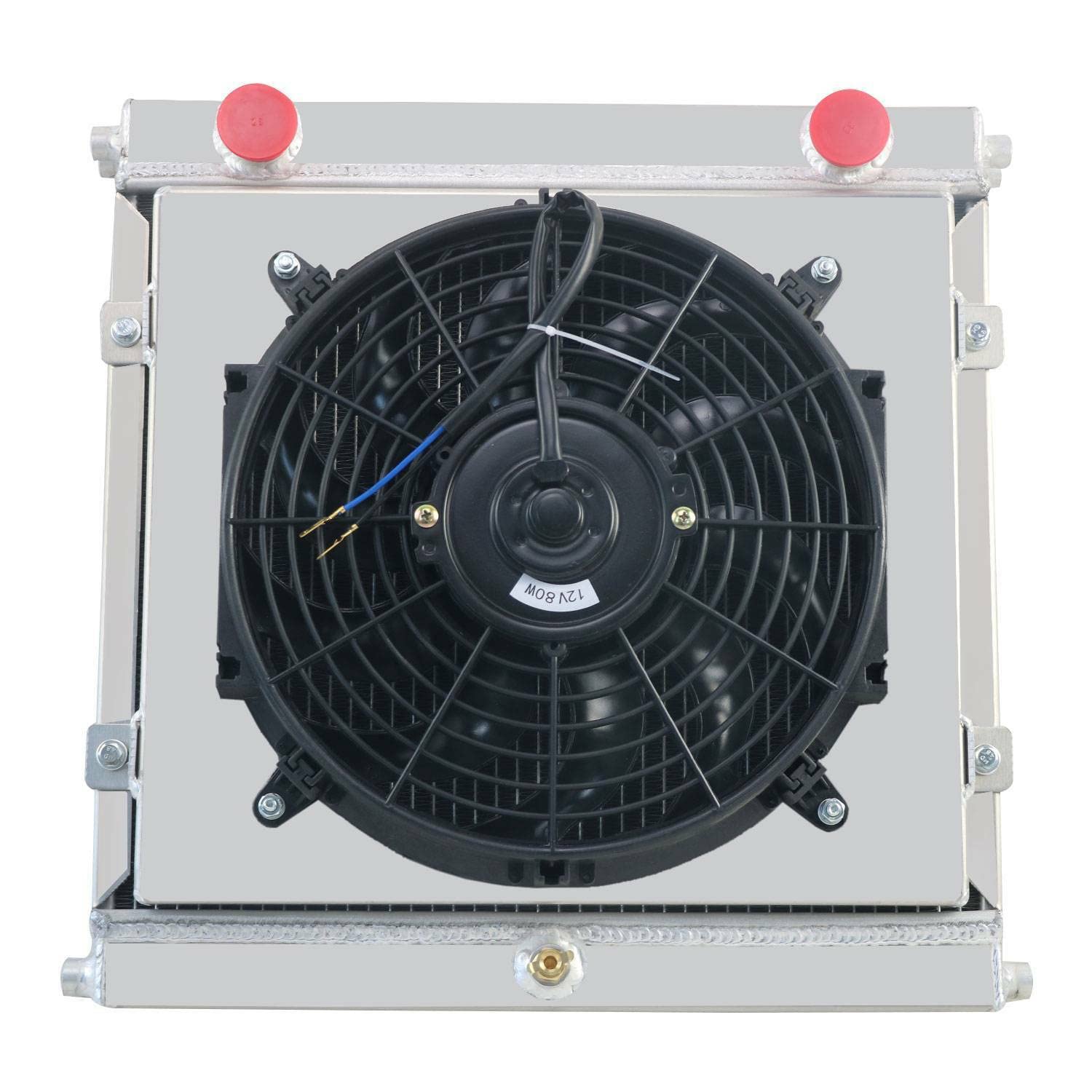

High-Performance Aluminum Radiator for Double Pass Dragster & Roadster - 3 Row Core Cooling with Electric Fan Shroud & Thermostat Kit - Perfect for Racing, Hot Rods & Performance Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:22 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:93758838
Product Description

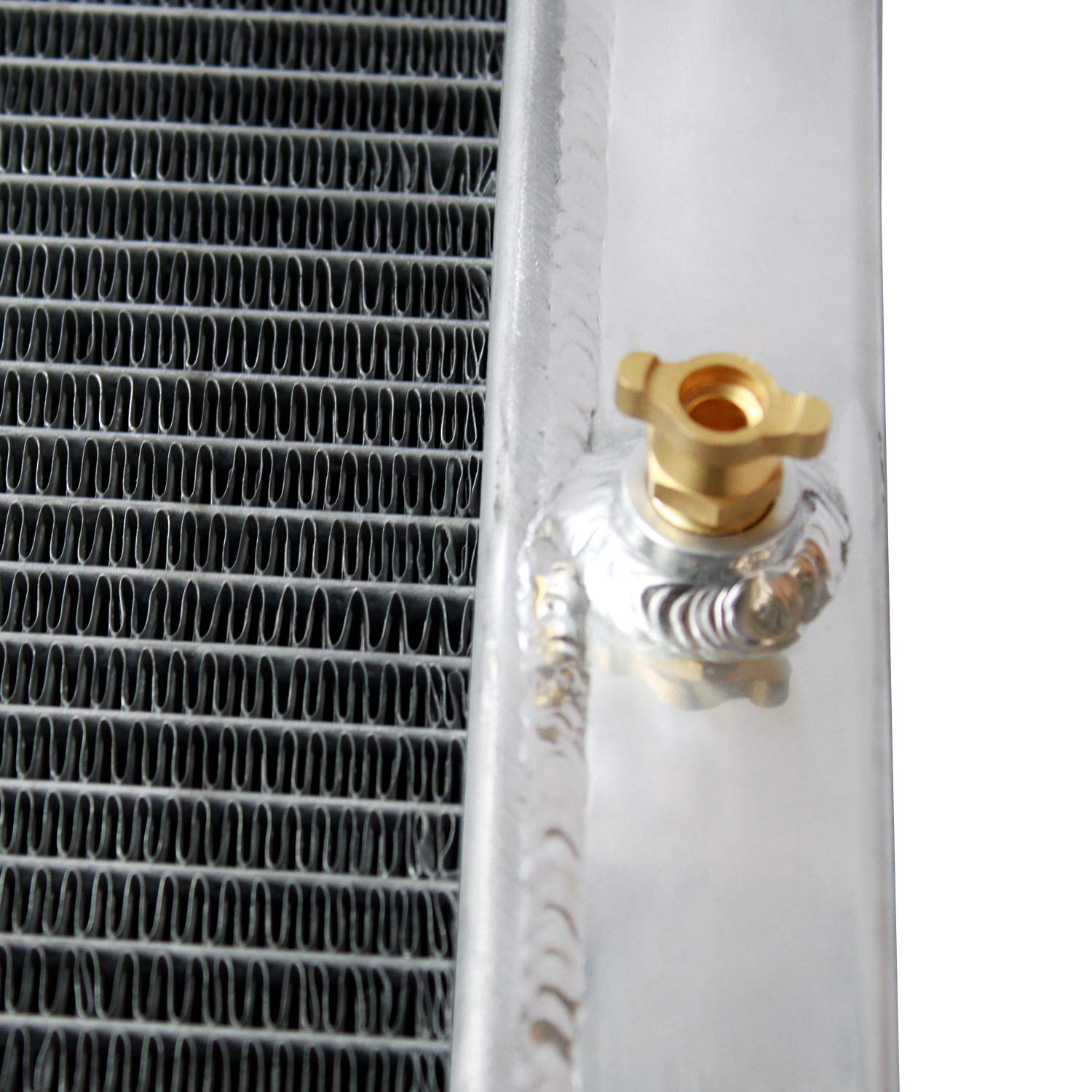

This Radiator Compatible with: Fits for Double Pass Dragster/Roadster Style Racing Radiator OEM/Substitute Numbers: 51963, 535-50029 Radiator Specs: High Performance Racing Spec. 3-Row of tubes Core Racing Design Radiator Style Scirocco Core Material: Full Aluminum Tank Material: All Aluminum Transmission Cooler: No Engine Oil Cooler: No Flow Type: Downflow Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Please Check the Size Before You Buy! Fan Details: Volt :12v Maximum Fan CFM: 1730 cfm Fan Diameter (inch): 12.050 Thickness (inch): 2.500 Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature Probe typically threads into radiator, water outlet or manifold RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans
Product Features

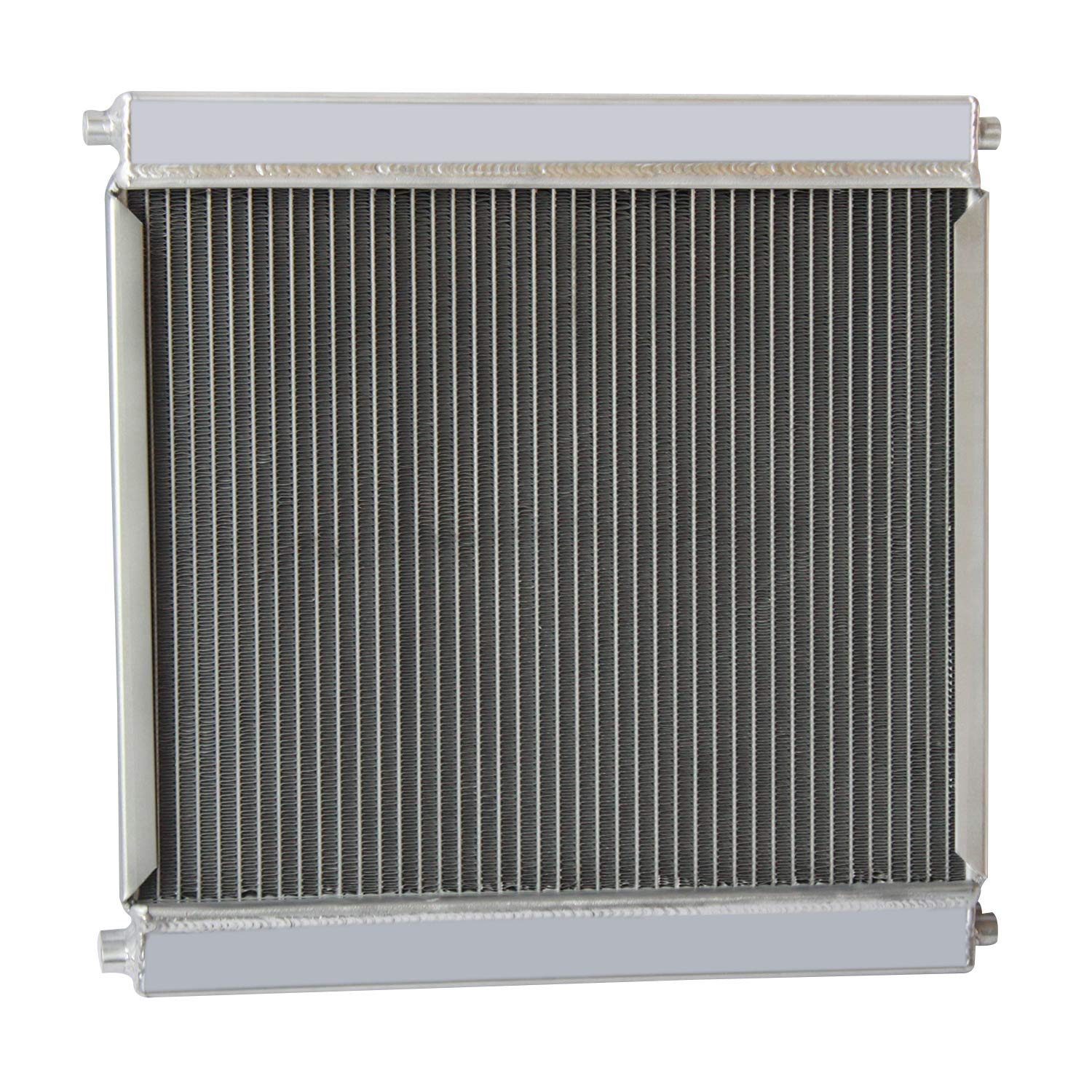

Core Size15 5/9 x 13 3/8 x 1.74 Thickness / Overall Size17 2/5 x 16 8/9 / Rows 3
Inlet(inch) 1 1/4 Upper driver side / Outlet(inch) 1 1/4 Upper passenger side
[Max Cooling Function & Warranty] - Come with durable 3 row core design radiator & upgraded fan set which can improve engine cooling efficiency by 35-45% temp

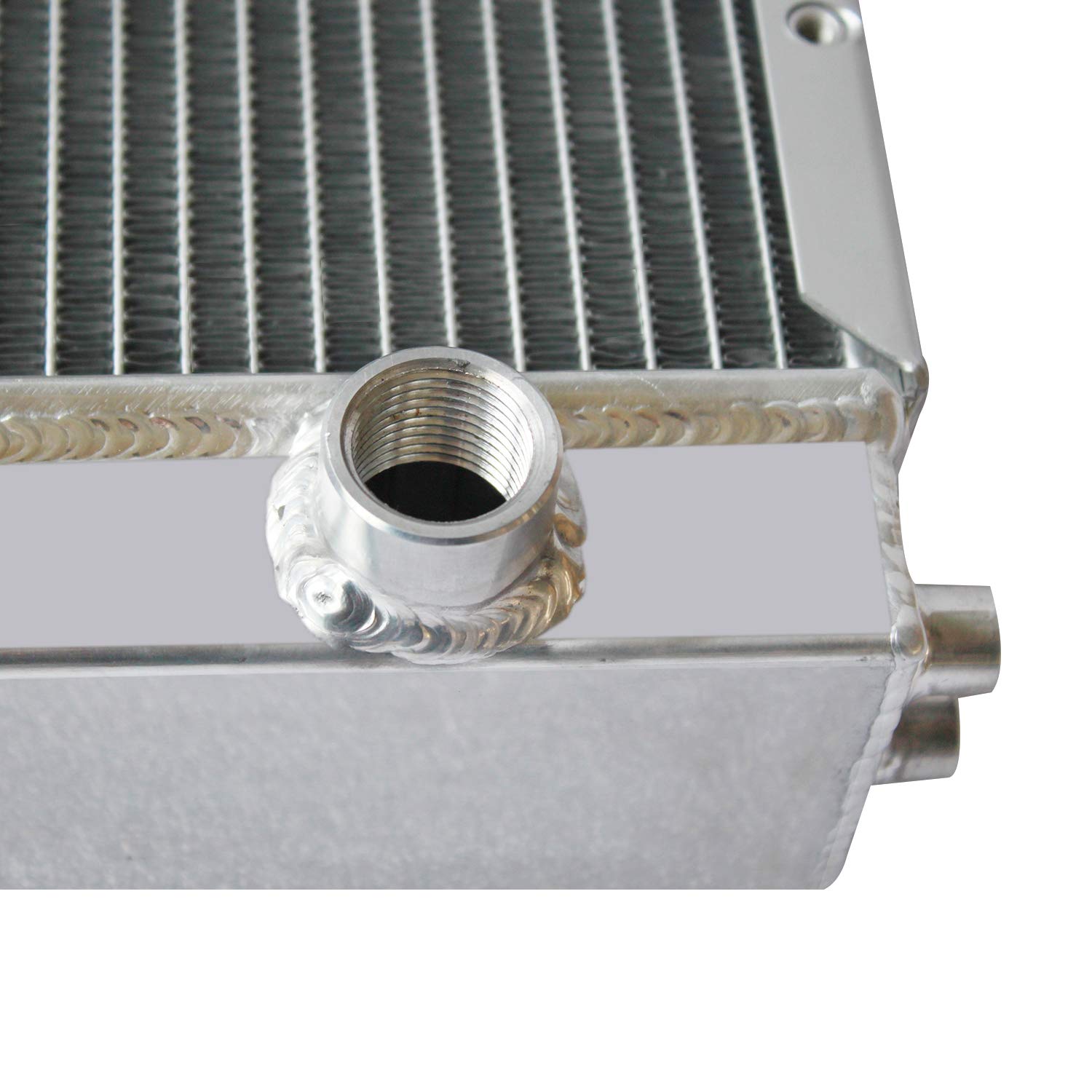

[High Quality Construction] - All brazed aluminum core, TIG-welded to aluminum end tanks. Use of Nitrogen during welding in the furnace for maximum strength
[Brilliant Performance] - Built with high density multi-louvered fins for maximum cooling efficiency, to ensure durability in extreme cold weather
[Simple Installation] - Direct bolt-on OE fitment or replacement for factory unit, fast and simple installation design. Stringently tested to guarantee optimum efficiency and dependability
