1967-1972 Chevy GMC C/K Series Pickup Truck 3-Row Aluminum Radiator with Electric Fan Relay Kit - High Performance Cooling Upgrade for Classic Truck Restoration & Hot Weather Driving
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:27 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:92776347
Product Description

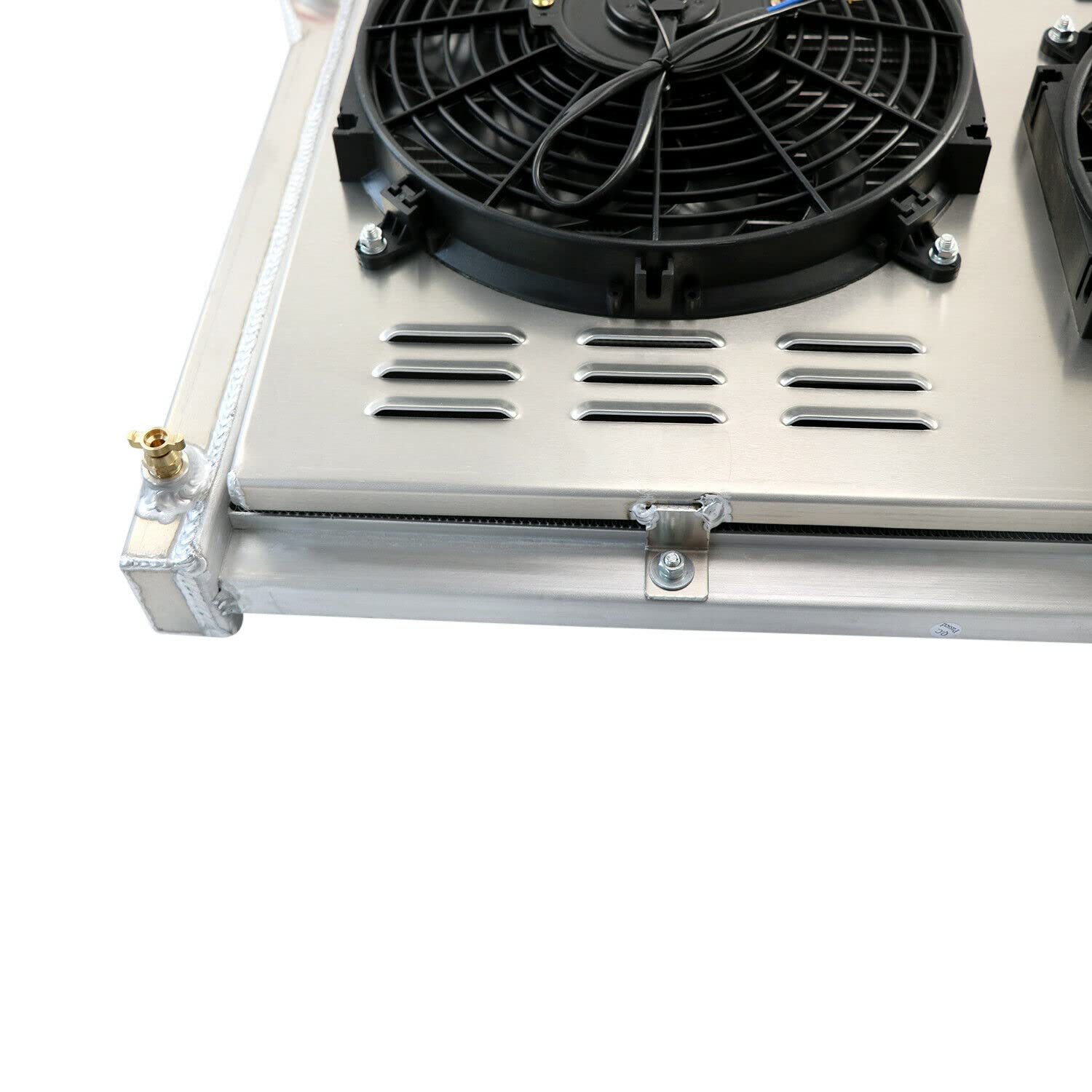

Application: 1967-1972 Chevy C/K Series C10/C20/K10/K20/K30 Pickup 1968-1972 Chevy C/K Truck C10 C20 Suburban 1970-1972 Chevy Suburban Chevy Truck 1969-1972 Chevy K5 Blazer 1970-1972 Chevy Blazer 1970-1972 Chevry Jimmy 1967-1972 Chevy GMC S/T Pickup Trucks 1967-1972 Chevy Blazer & GMC Jimmy 1967-1971 Chevy G10 Van 4.1L / 5.0L / 5.7L 1967-1971 Chevy G20 Van 4.1L / 5.0L / 5.7L 1970-1971 Chevy G30 Van 4.1L / 5.7L 1968-1972 GMC 35/3500 Pickup Truck 1968-1972 GMC K15/K1500 Pickup Fits L6 V6 V8 Models with 28.25" Wide Core Radiators Interchange Part Number: DPI369 CC369 CU369 0369AA 369 Other Part Number: KKS369 CUC369 R369 RR369 DRMC369 MC369 OEM Part Number: RA-CK67-3 RA-CK67-2 8010369 433366 Radiator: 3 Row Radiator Size Core Material: All Aluminum Surface Finish: Aircraft Grade Raw Aluminum Core Dimensions: 17" high x 28-1/4" wide Overall Dimensions: 19-1/4" h x 33-7/8" w Upper inlet: 1-1/2" located Driver Side Lower outlet: 1-3/4" located Passenger Side Fan Specification: Diameter : 12'' (Blade to Blade) Voltage: DC 12 Volts Wattage: 80W Fan Thickness: 2.5" Number of Blades: 10 S-Type blades Maximum Fan CFM(Cubic Feet per Minute): 2150cfm Maximum Fan RPM(Revolution(s) Per Minute): 2000±10% S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect Powerful 80 watt motor will keep your engine cool. Thermostat Kit: Work with any 12 volt system. Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 185'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Gentle Hint: Parameters Meticulous Prior to Ordering. Pls compare the overall width with your original radiator. Warranty: 1 year warranty against manufacture defect and damage in transit. Professional installation is highly recommended! No Fitting Instructions Supplied! Please contact us for installation video or other any problem.
Product Features
[Applications] - For 1967-1972 CHEVY Blazer C/K Pickup C10 C20 C30 K10 K20 K30 L6 V8; For 1969-1972 CHEVY G/P 10 20 Van 3.8L 4.1L L6; For 1967-1972 GMC C15 C1500 C25 C2500 C35 C3500 K15 K1500 K25 K2500 K35 K3500 Suburban Pickup; For 1972 GMC Jimmy 4.1L L6.
[Dimensions] - Core Dimensions 17"Height x 28-1/4" Width; Overall Dimensions 19-1/4" H x 33-7/8" W; Upper Inlet 1-1/2" located Driver Side; Lower Outlet 1-3/4" located Passenger Side; Transmission Oil Cooler ￠26×305×G1/4(Z).

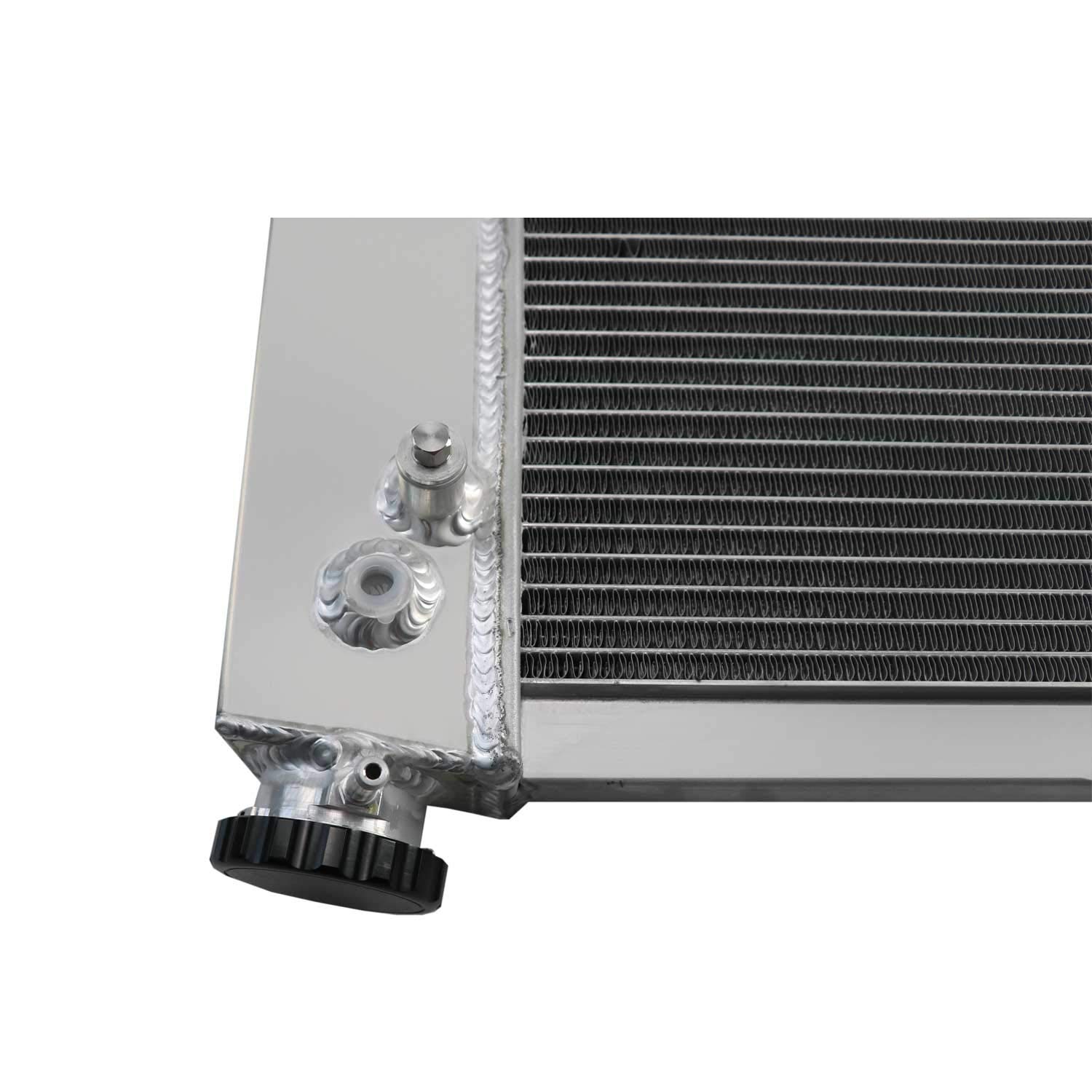

[Premium Aluminum Radiator] - The radiator is made of Aircraft AA5052 aluminum, constructed with 100% welded seams by TIG, brazed core technology and no epoxy. Direct fit and built to last long with high quality aluminum core.
[Extraordinary Quality] - It is constructed of high quality Aircraft grade aluminum construction to ensure an extremely long lasting operate life.
[Brilliant Performance] - Built with high density multi-louvered fins for maximum cooling efficiency, to ensure durability in extreme cold weather.
[Easy to Install] - A quick installation with no drilling or modifications is possible now because this brand-new radiator is engineered and manufactured to meet the original specifications. CNC turret punch machine ensures the accuracy of the radiator size.
[Customer Support] - Our Radiator comes with a 1-Year Unlimited-Mileage Warranty.
