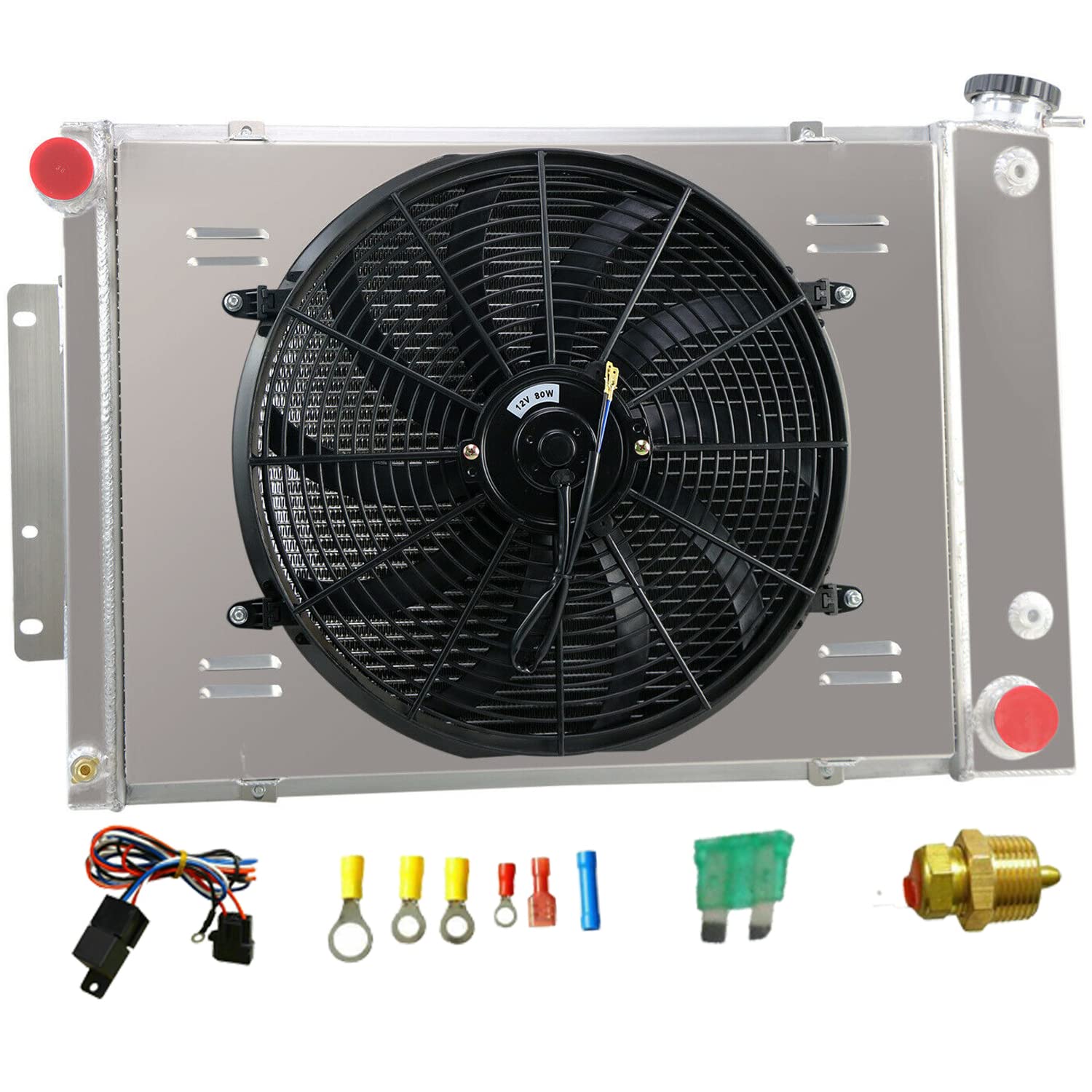

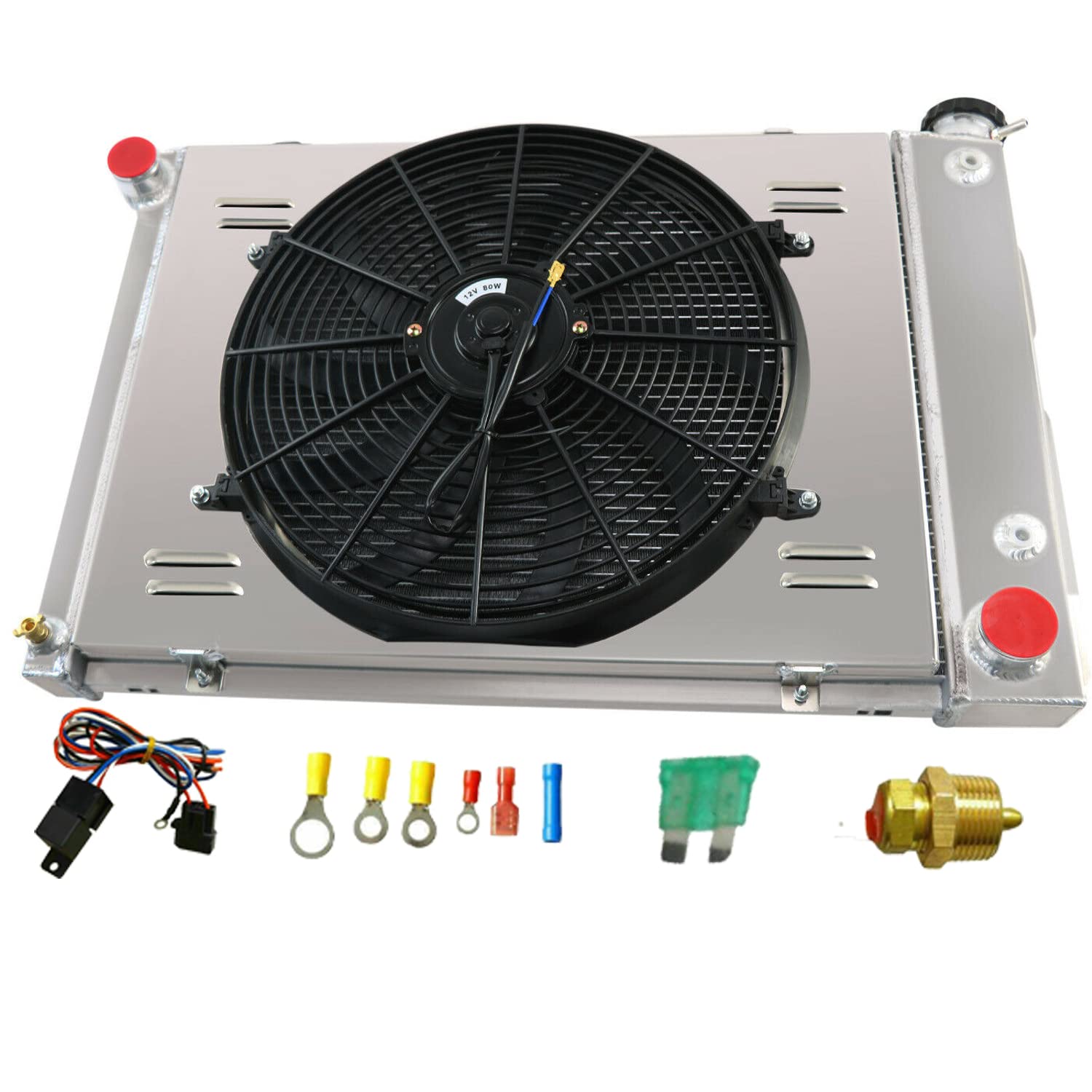

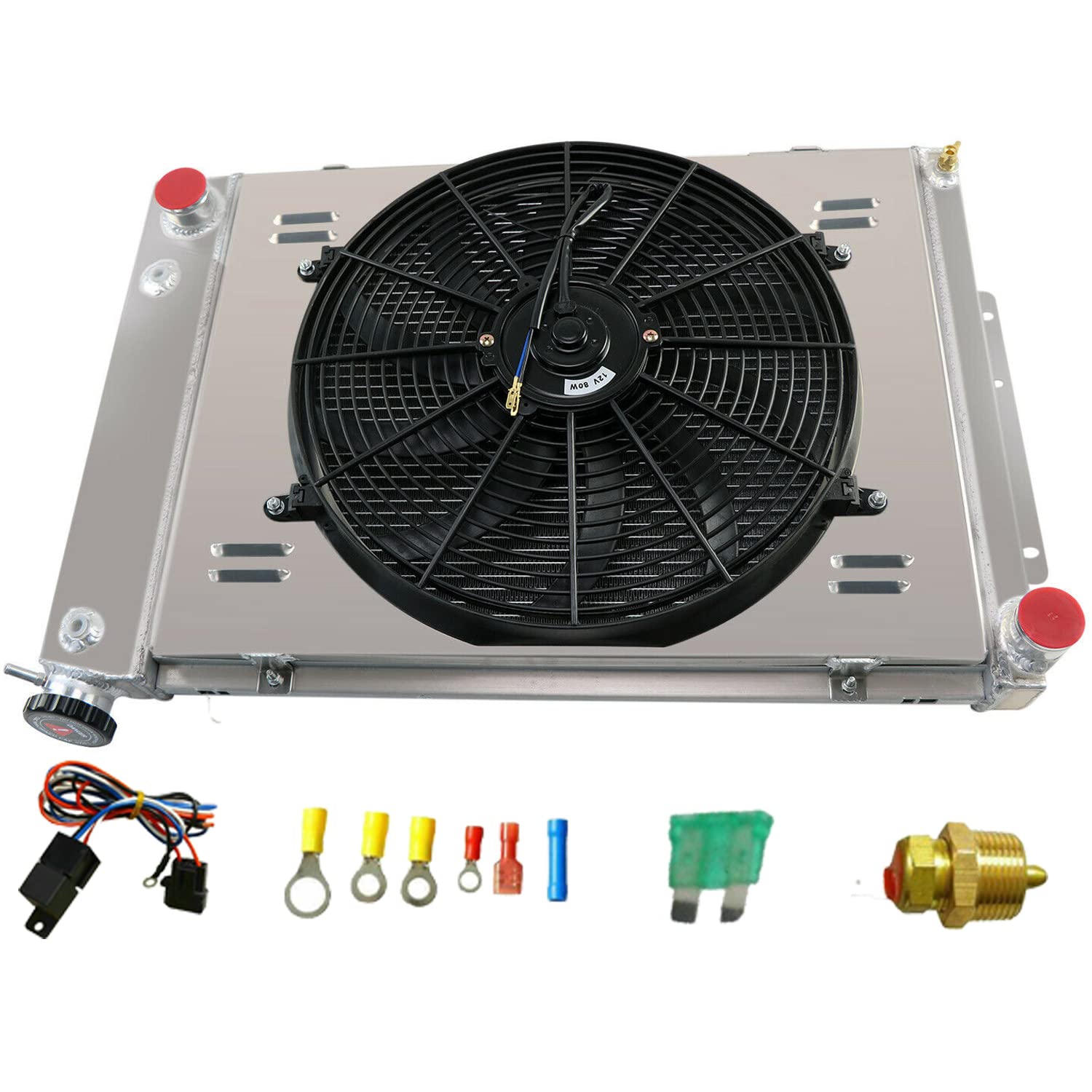

High-Performance CC370 Aluminum Radiator for 1967-1969 Chevy Camaro & Pontiac Firebird - Big Block 23" W Core, L6/V8 3-Row Cooling System with Shroud, Fan & Thermostat Relay Kit - Perfect for Classic Car Restoration & Hot Rod Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:14 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:91231255
Product Description
Fitment: For Chevy Camaro 3.8L l6 GAS 1967-1969 For Chevy Camaro 4.1L l6 GAS 1967-1969 For Chevy Camaro 4.9L/5.0L V8 GAS 1969 For Chevy Camaro 5.3L V8 GAS 1967-1969 For Chevy Camaro 5.4L V8 GAS 1968-1969 For Chevy Camaro 6.5L V8 GAS 1967 For Chevy Camaro 7.0L V8 GAS 1969 For Pontiac Firebird 3.8L l6 GAS 1967 For Pontiac Firebird 4.1L l6 GAS 1968-1969 For Pontiac Firebird 5.3L V8 GAS 1967 For Pontiac Firebird 5.7L V8 GAS 1968-1969 For Pontiac Firebird 6.6L V8 GAS 1967-1969 This Listing Is Including: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Radiator Details: Placement on Vehicle: Engine Compartment Features: Crossflow Radiator Mounting System: Bracket Interchange Part Number: 370 0370 DPI370 CC370 CU370 MC370 R0370 R370-ACP R370-LKQ Other Part Number: 040876433700 3010101 3010180 3010181 3010183 3014093 OEM Part Number: 3014094 3014095 3014096 675-01080B Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Product Features

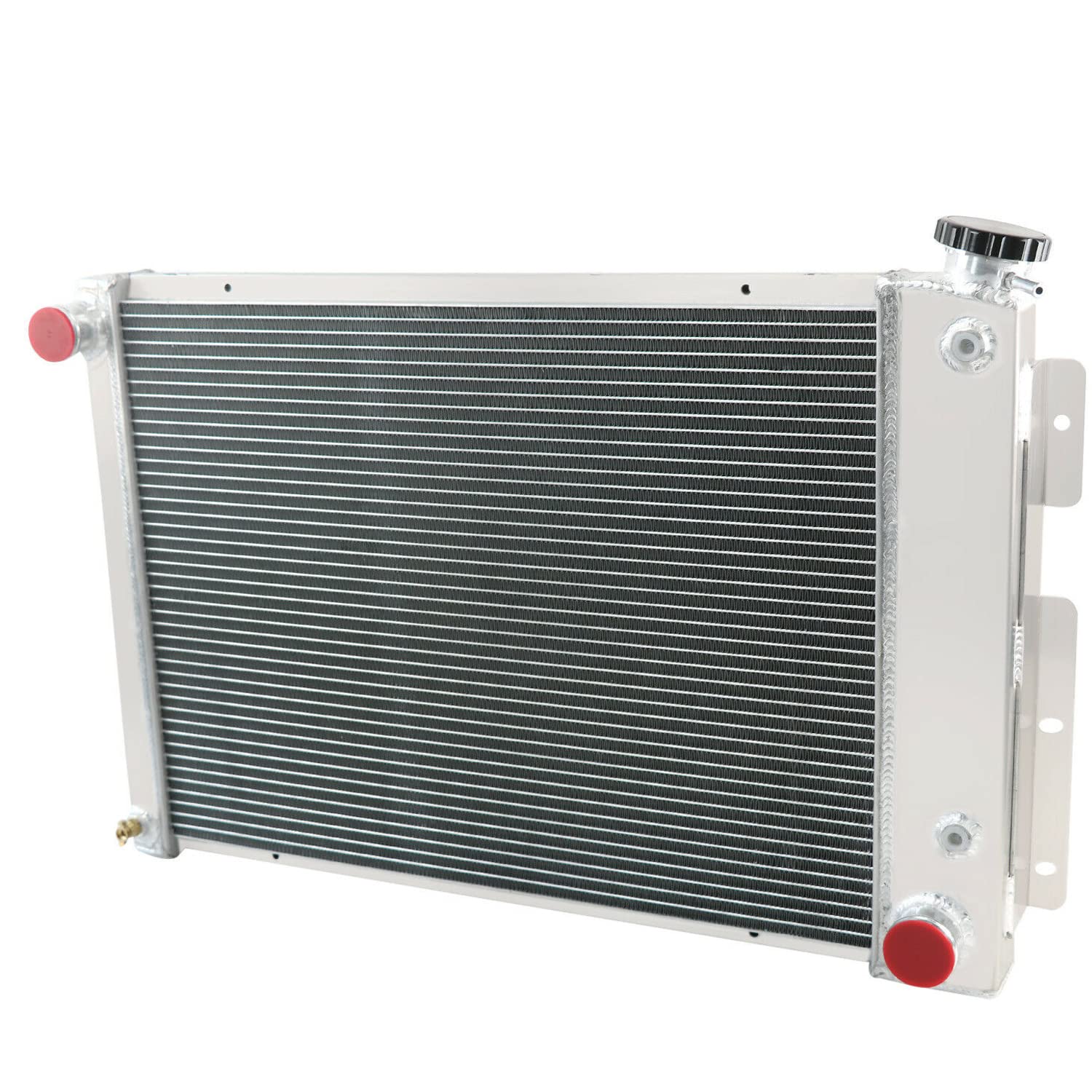

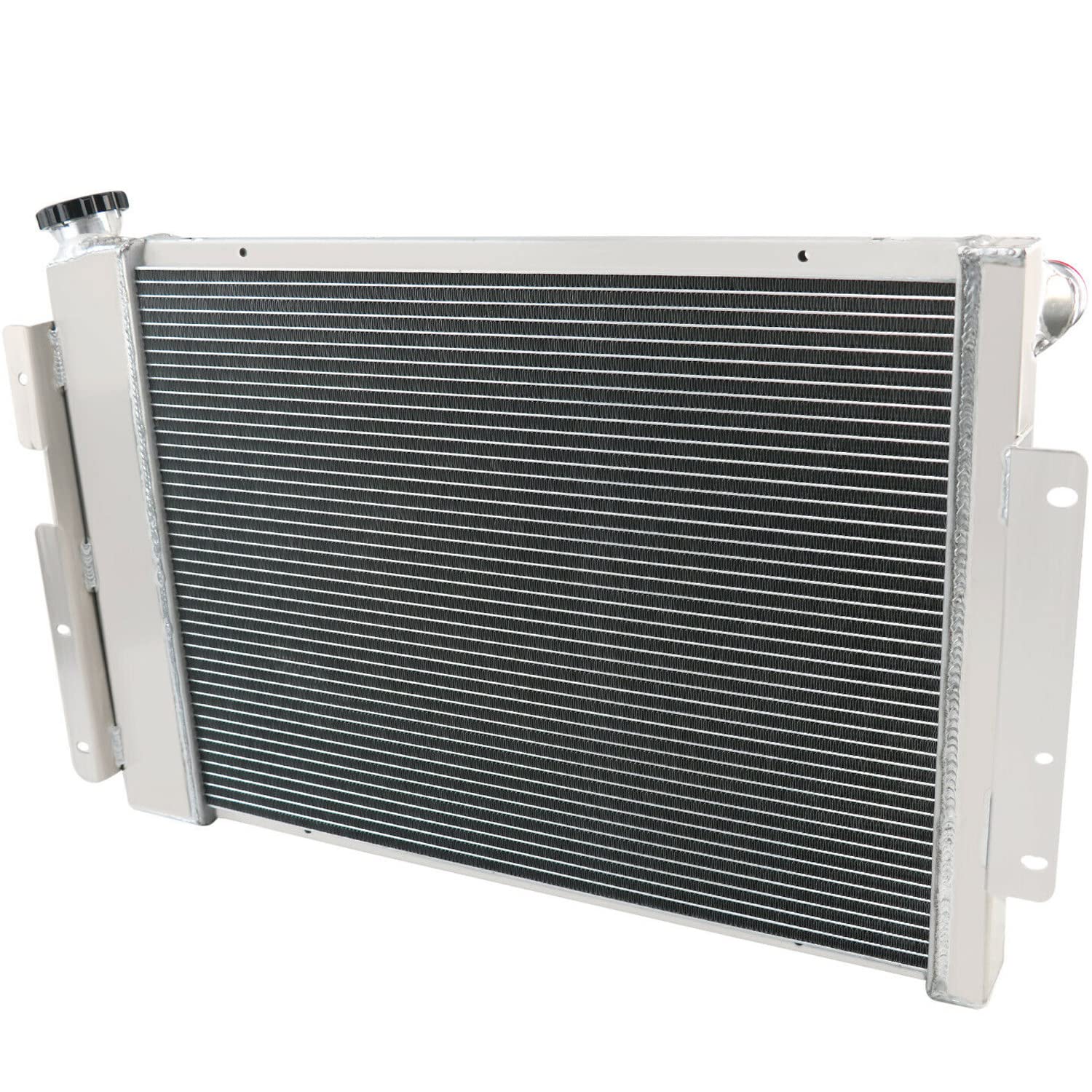

Core Size 22.76" H x 16.85" W x 1.73" T ; Overall Size 30.24" H x 19.29" W x 4.37" T ; Upper Inlet 1.58" located on the DRIVER side ; Lower Outlet 1.77" located on the PASSENGER side.

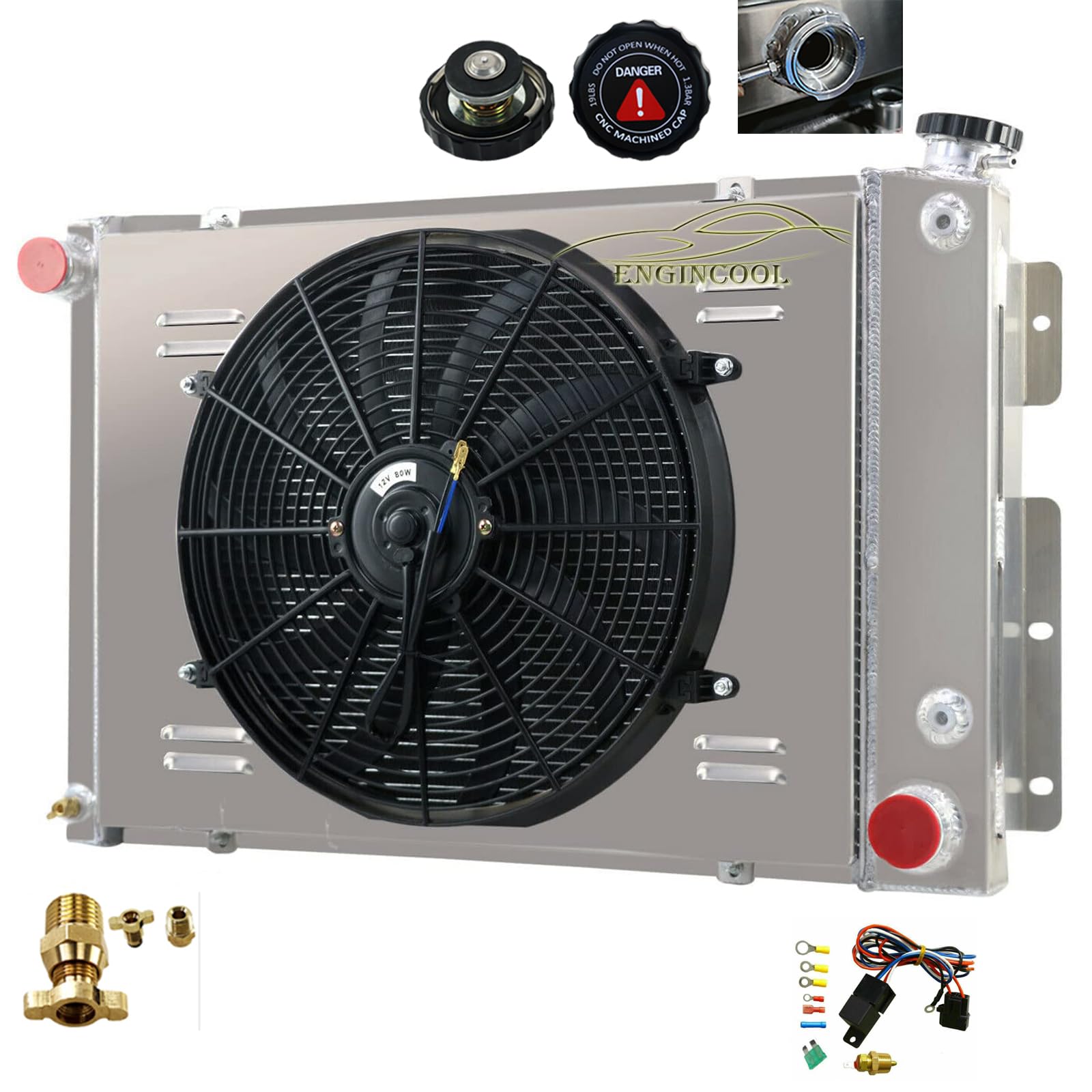

Transmission Cooler ￠26×315×G1/4（Z）; Transmission Automatic and Manual ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
For Chevy BB Camaro/Firebird/Trams Am 1968 67-69 ; For Camaro Big Block 23"core 67-69 ; For Camaro/Firebird 67-69 ; For Pontiac Firebird Big Block ; For Pontiac Firebird / Trans Am 67-69 ; For CHEVY CAMARO BIG BLOCK / FIREBIRD TRANS AM 67-69 ; For CHEVY CAMARO/FIREBIRD T/A 5.7L V8 1967-69
Easy To Install Light weight direct bolt-on replacement, stronger & higher capacity for coolant
12 Months warranty ; If you have any questions, please feel free to contact us, we will solve it for you
