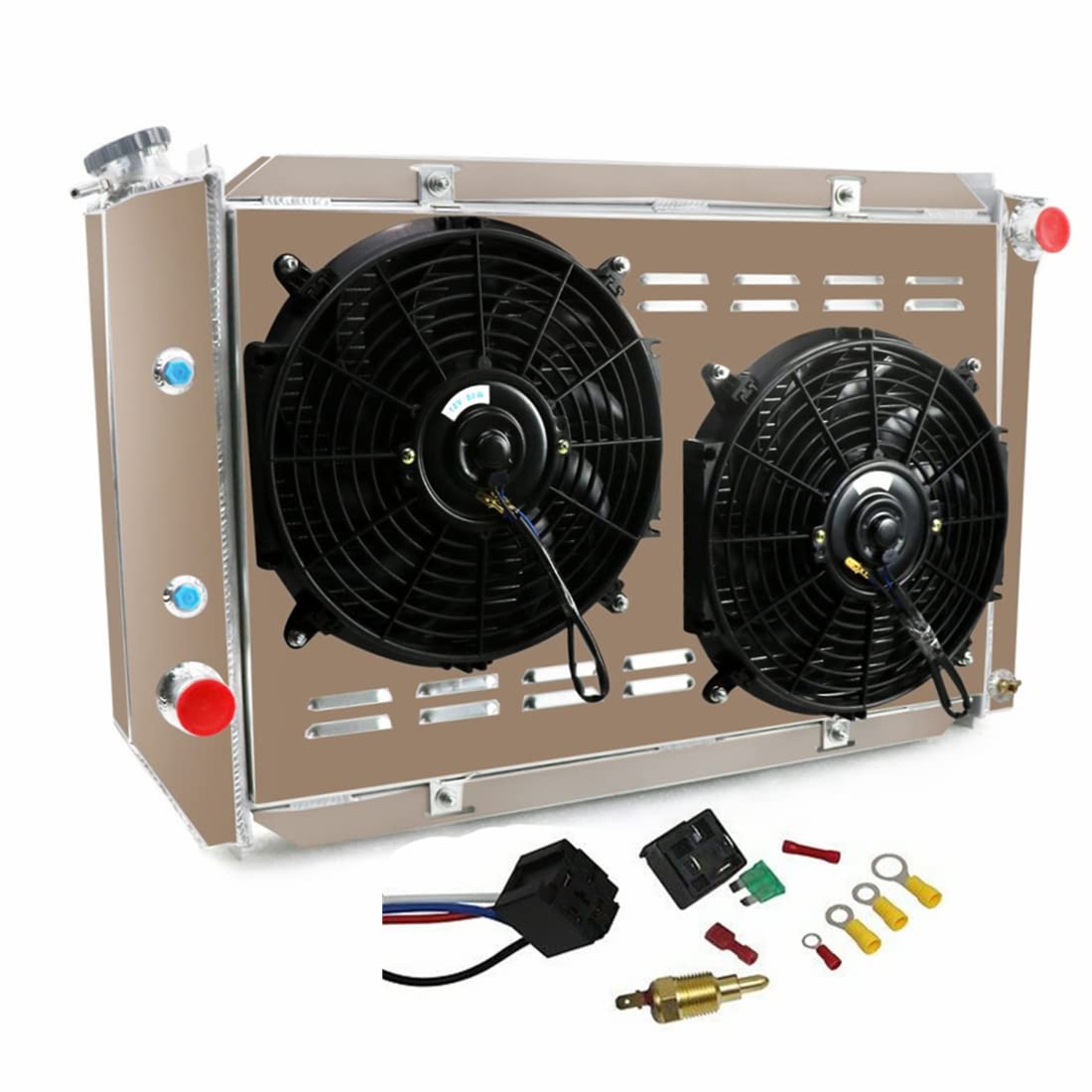

High-Performance 3 Row Full Aluminum Radiator & Fan Shroud Kit for 1969-1973 Ford Mustang/Torino/Fairlane & 1969-1971 Mercury Cougar/Marquis/Montego V8 - Includes Thermostat Relay | Perfect for Engine Cooling & Restoration Projects

Product Description

Kamashaa Motor radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. It's a lightweight construction, 100% brazed aluminum, polished end tank. The radiator showed a 20degF drop in outlet temp compared to the OEM. Every Performance Radiator is a direct OEM fit, making installation effortless, no cutting or modification is required. 3 Rows Raditor Size Core Size:17 7/8" H x 26" W Overall Size:20" H (top of cap) x 31-5/8" W (Incl. Brackets) Upper Inlet :1 1/2" located in the PASSENGER side Lower Outlet :1 1/2" located on the DRIVER side OEM Style Brass Petcoke Drain Fans Size Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Relay kit Instructions RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans & pull air in through radiator. Vehicle Fitment 1 Compatible for Below Ford Model 1969-1971 Country Sedan 5.0 5.8 6.4 6.6 7.0L V8 1969-1971 Country Squire 5.0 5.8 6.4 6.6 7.0L V8 1969-1970 Fairlane 5.0 5.8 6.4 7.0L V8 1969-1971 LTD 5.0 5.8 6.4 6.6 7.0L V8 1971-1973 Mustang 5.0 5.8 7.0L V8 1970-1971 Torino 5.0 5.8 6.4 7.0L V8 Vehicle Fitment 2 Compatible for Below Mercury Model 1969-1971 Colony Park 5.8 6.4 6.6 7.0L V8 1971 Cougar 5.8 7.0L V8 1969-1971 Marquis 5.8 6.4 6.6 7.0L V8 1970-1971 Montego 5.0 5.8 7.0L V8 1971 Monterey 5.8 6.6 7.0L V8 Package Include 1 X 3 Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12"Fans (Includes mounting kits) 1 X Thermostat Relay Kit
