1967-1970 Ford Mustang 4 Row Aluminum Radiator Kit with Fan Shroud & Thermostat Relay - Compatible with 67-68 Falcon, 67-69 Fairlane Ranchero & 68-70 Mercury Cougar - Perfect for Engine Cooling System Upgrades & Restoration Projects

Product Description

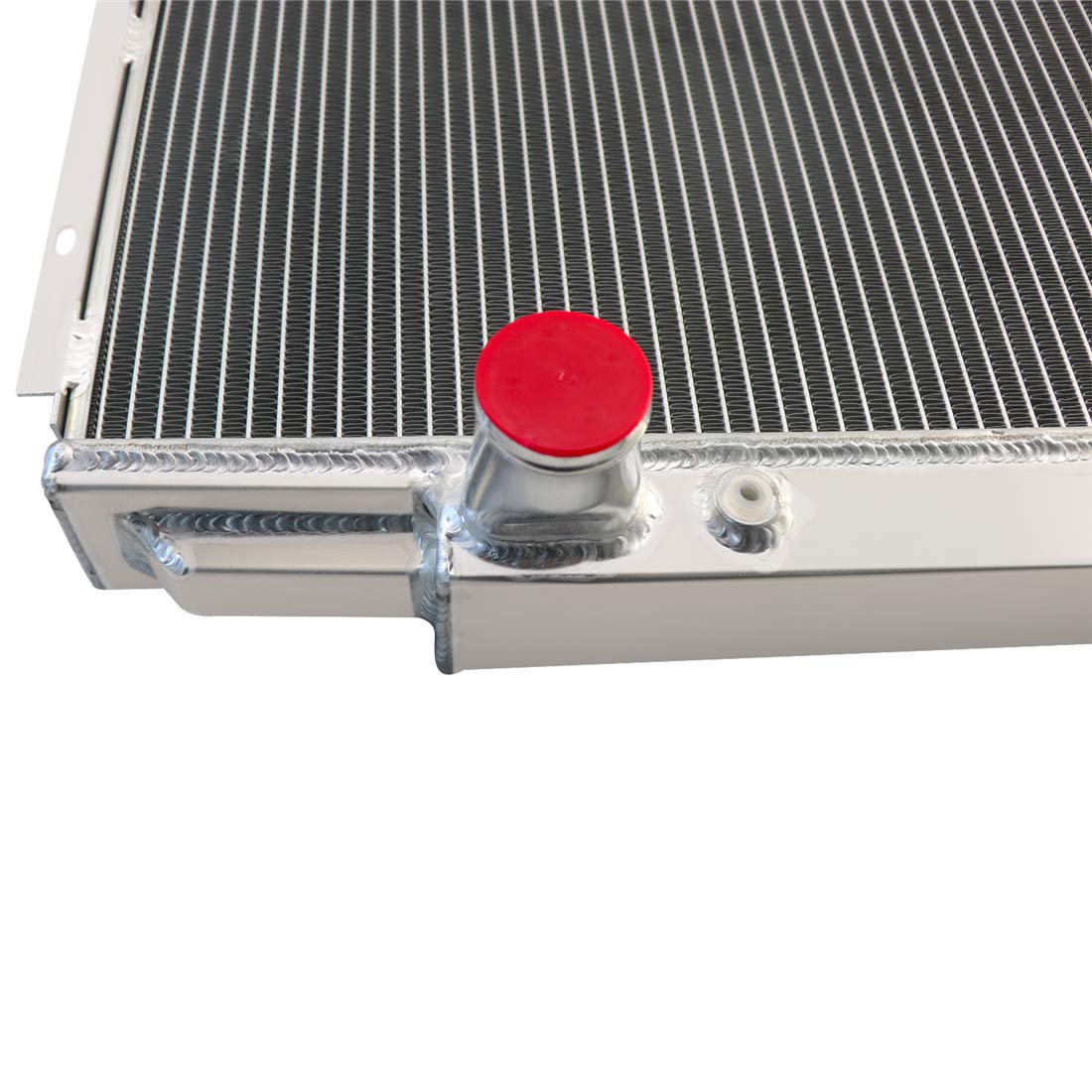

The radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. It's a lightweight construction, 100% brazed aluminum, polished end tank. The radiator showed a 20degF drop in outlet temp compared to the OEM. Every Performance Radiator is a direct OEM fit, making installation effortless, no cutting or modification is required. Radiator Details: Core size approx: 24" wide x 16-5/8" tall Overall size approx: 25-1/2" wide x 21-5/8" tall Row: 4 rows Upper inlet: 1-1/2" located on passenger side. Lower outlet: 1-3/4" located on driver side. OEM Style Brass Petcoke Drain CNC machined filler neck and cap Aircraft 5057 grade aluminum and with raw aluminum finish Fans Details: Volt: 12v Maximum Fan CFM: 1730 cfm Fan Diameter (in): 10.050” Thickness (in): 2.500” Number of Blades: 8 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Fit for both Automatic and Manual Transmission ! Package Include: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 10" Fans (Includes mounting kits) 1 X Thermostat Relay Kit
