4 Row Aluminum Radiator Shroud with Fan Relay - Compatible with 1991-2001 Jeep Cherokee XJ, Comanche, Wagoneer (2.5L L4 & 4.0L L6, AT/MT) - Perfect for Off-Roading, Overheating Protection & Engine Cooling

Product Description

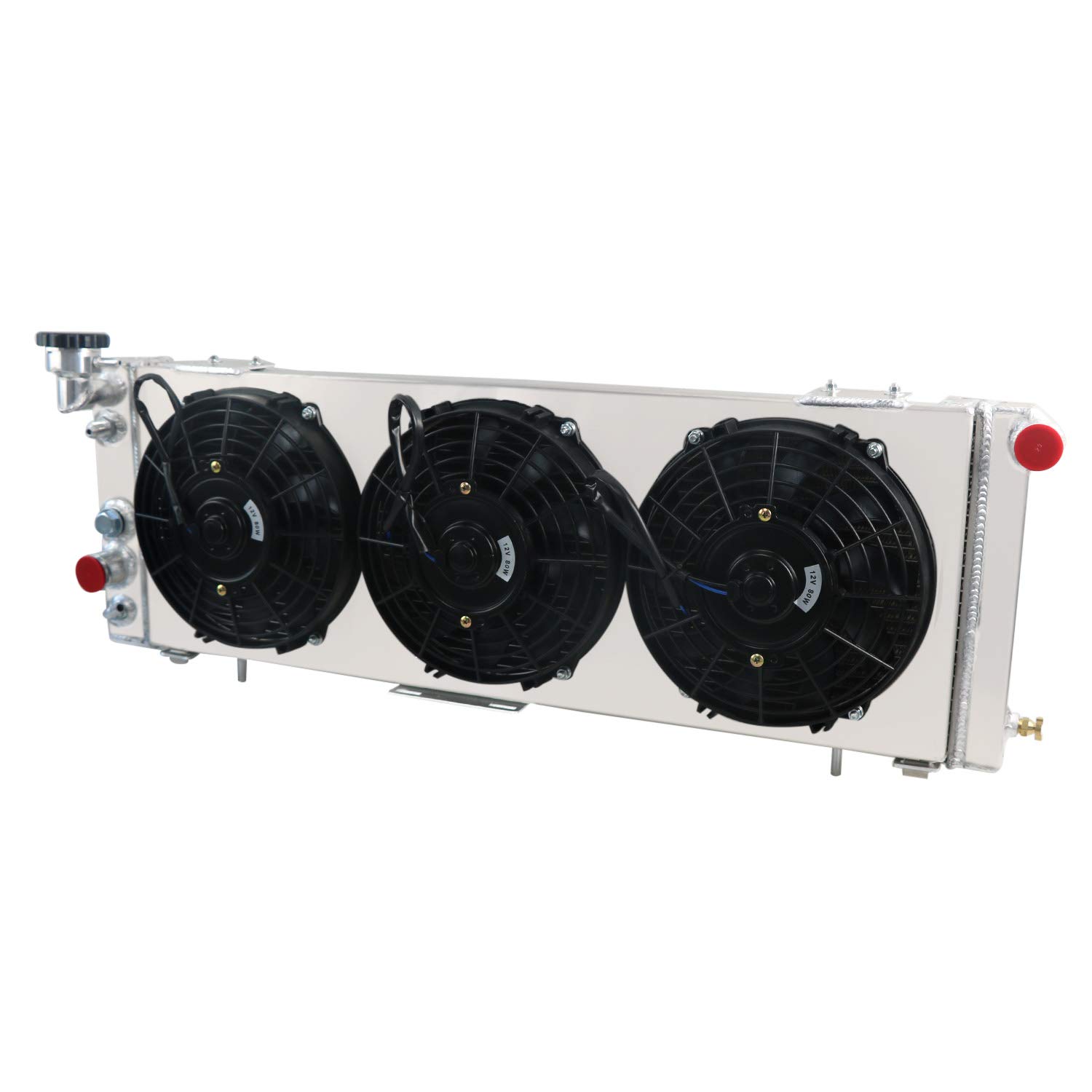

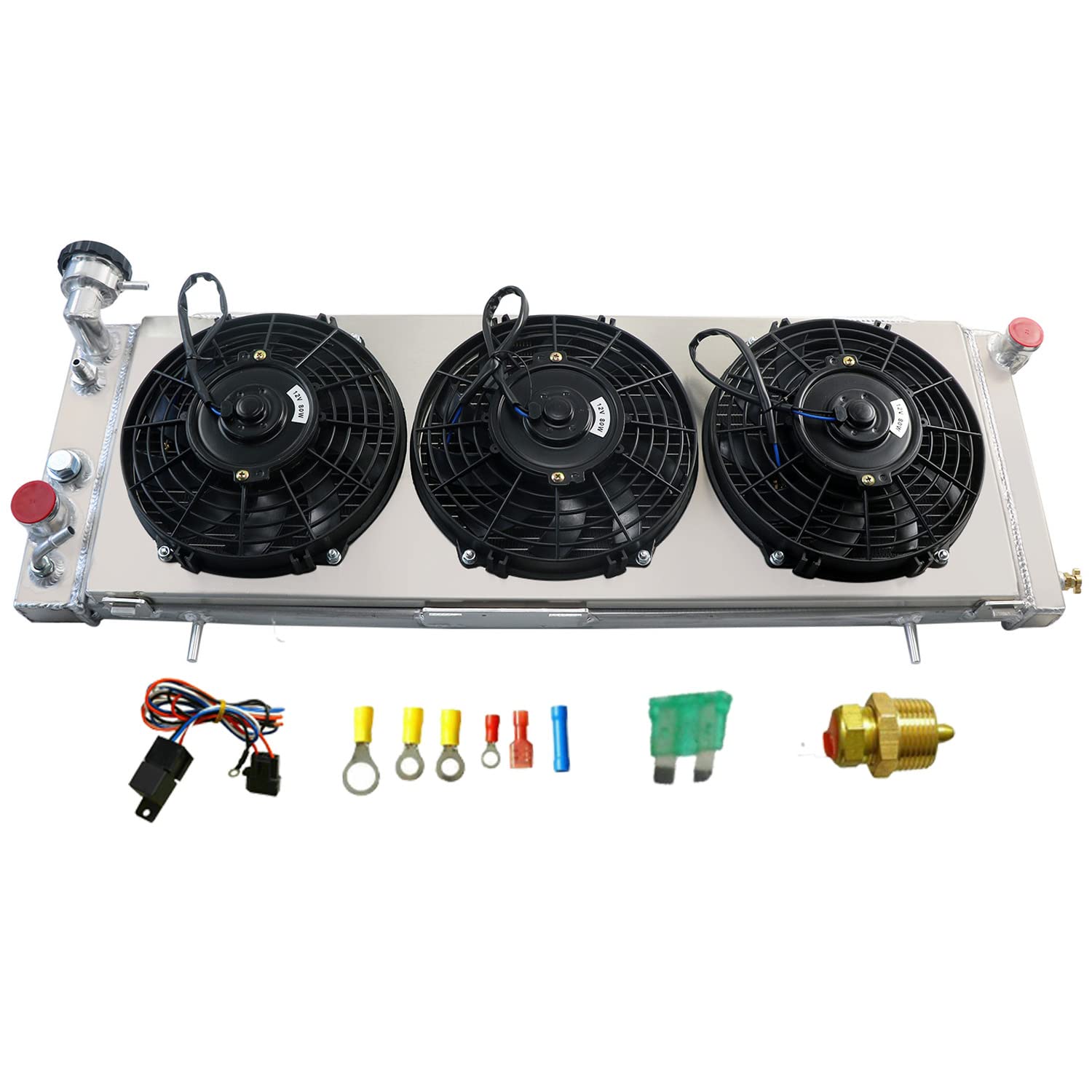

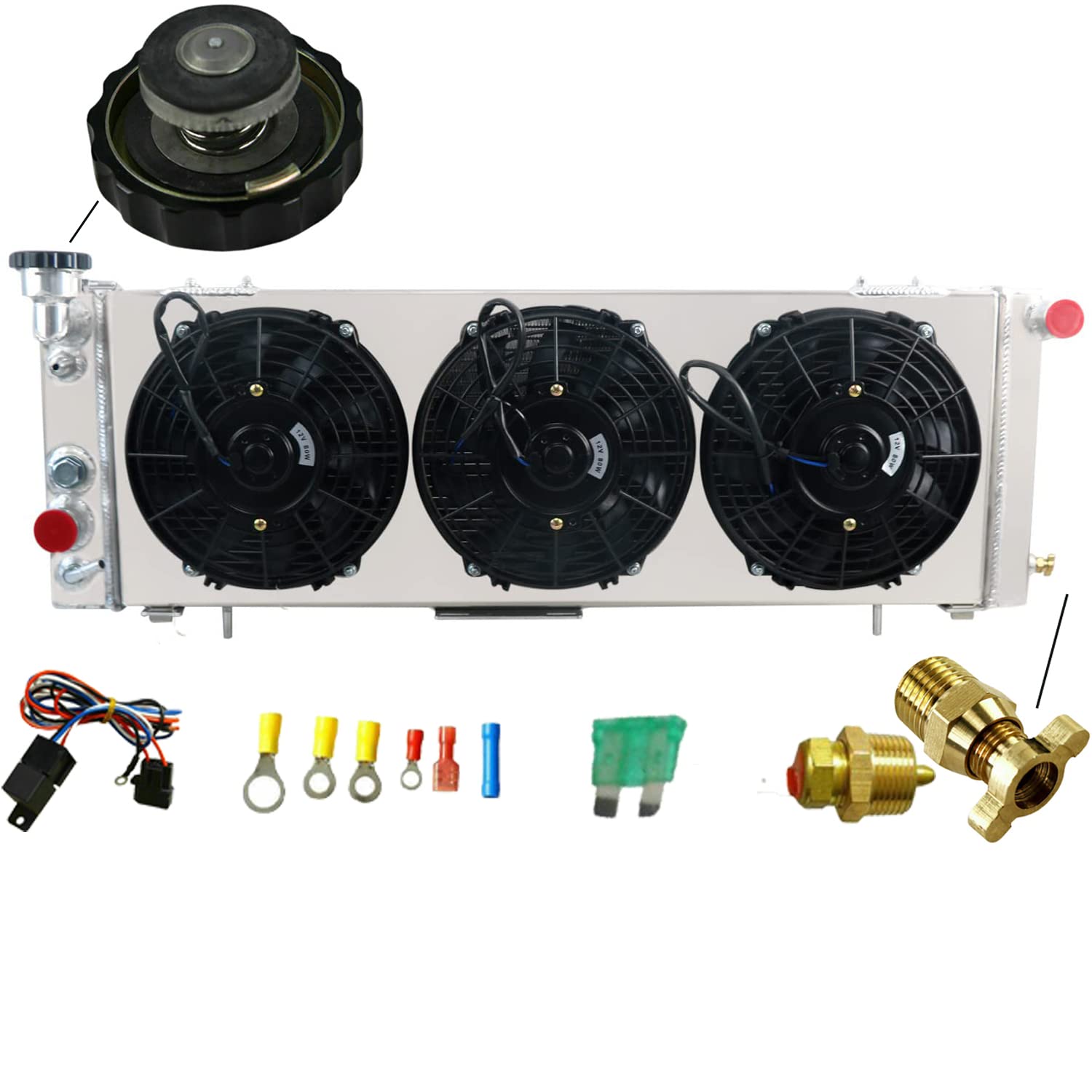

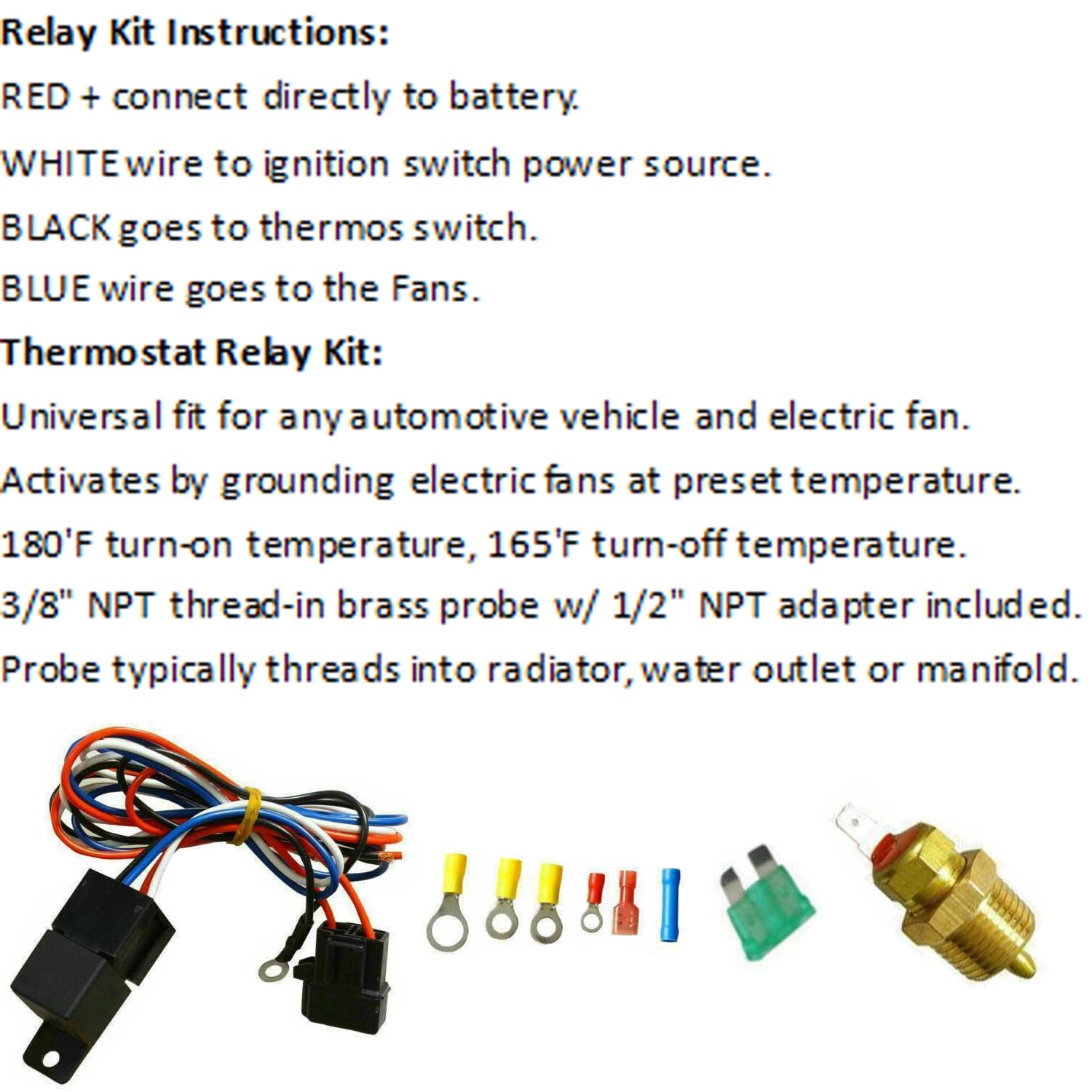

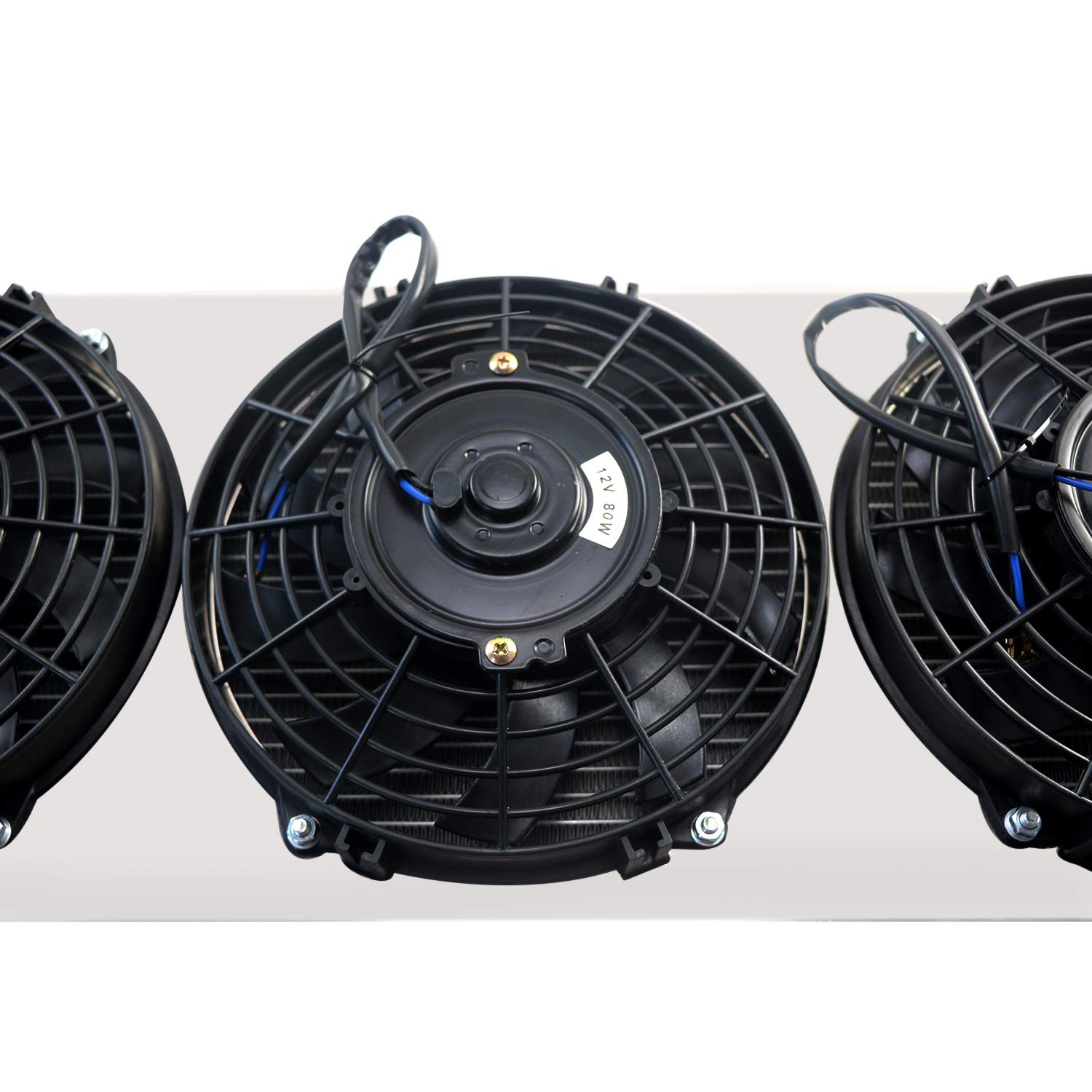

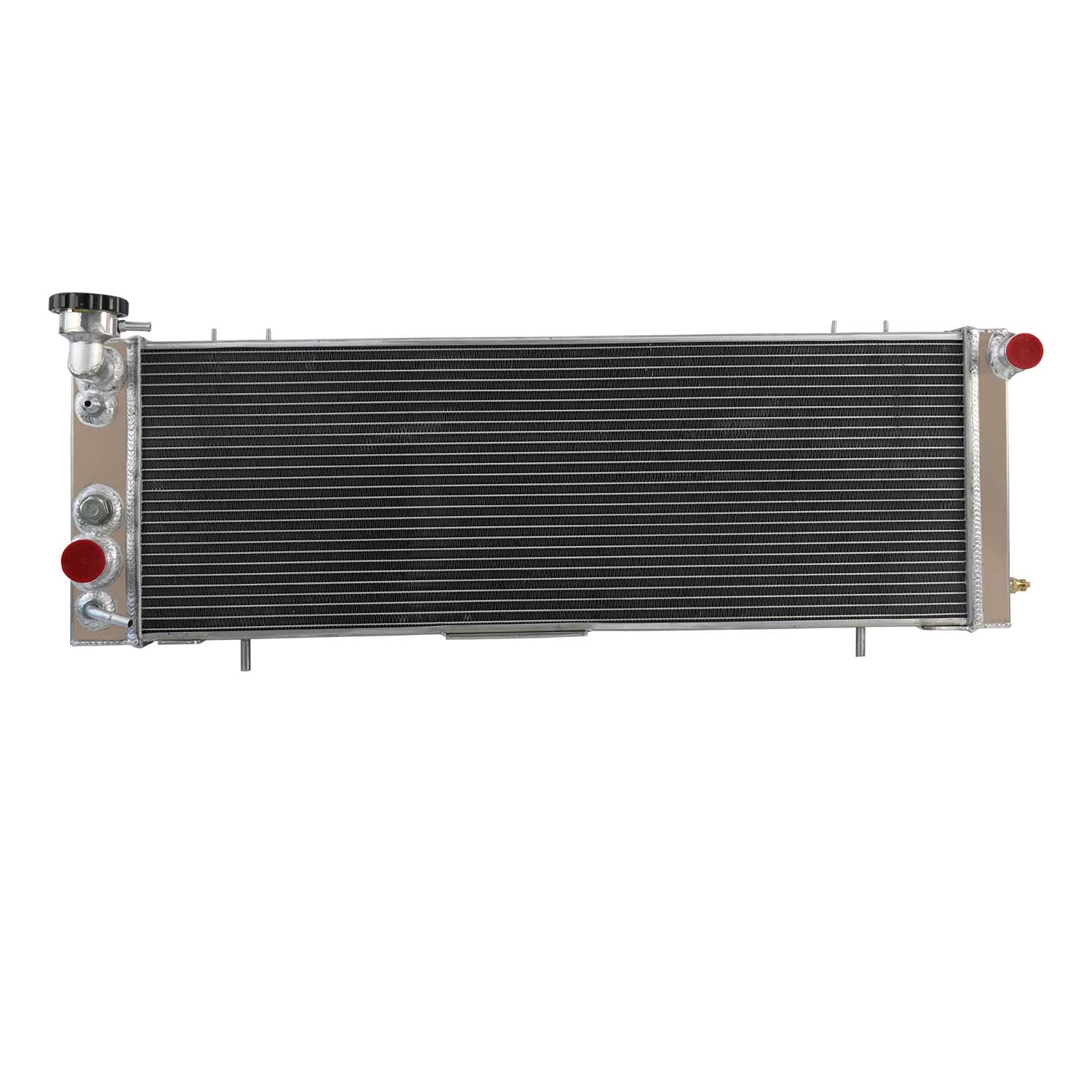

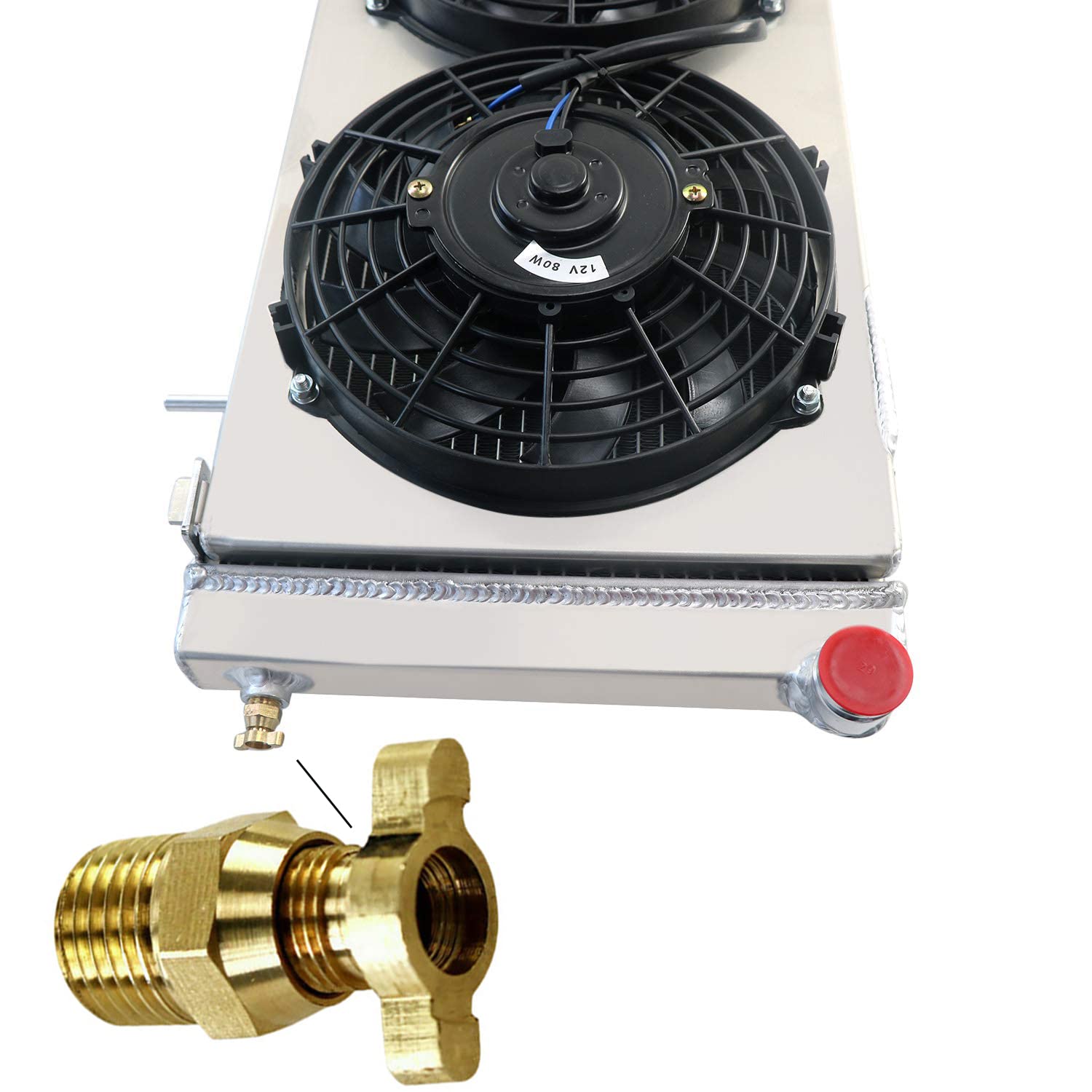

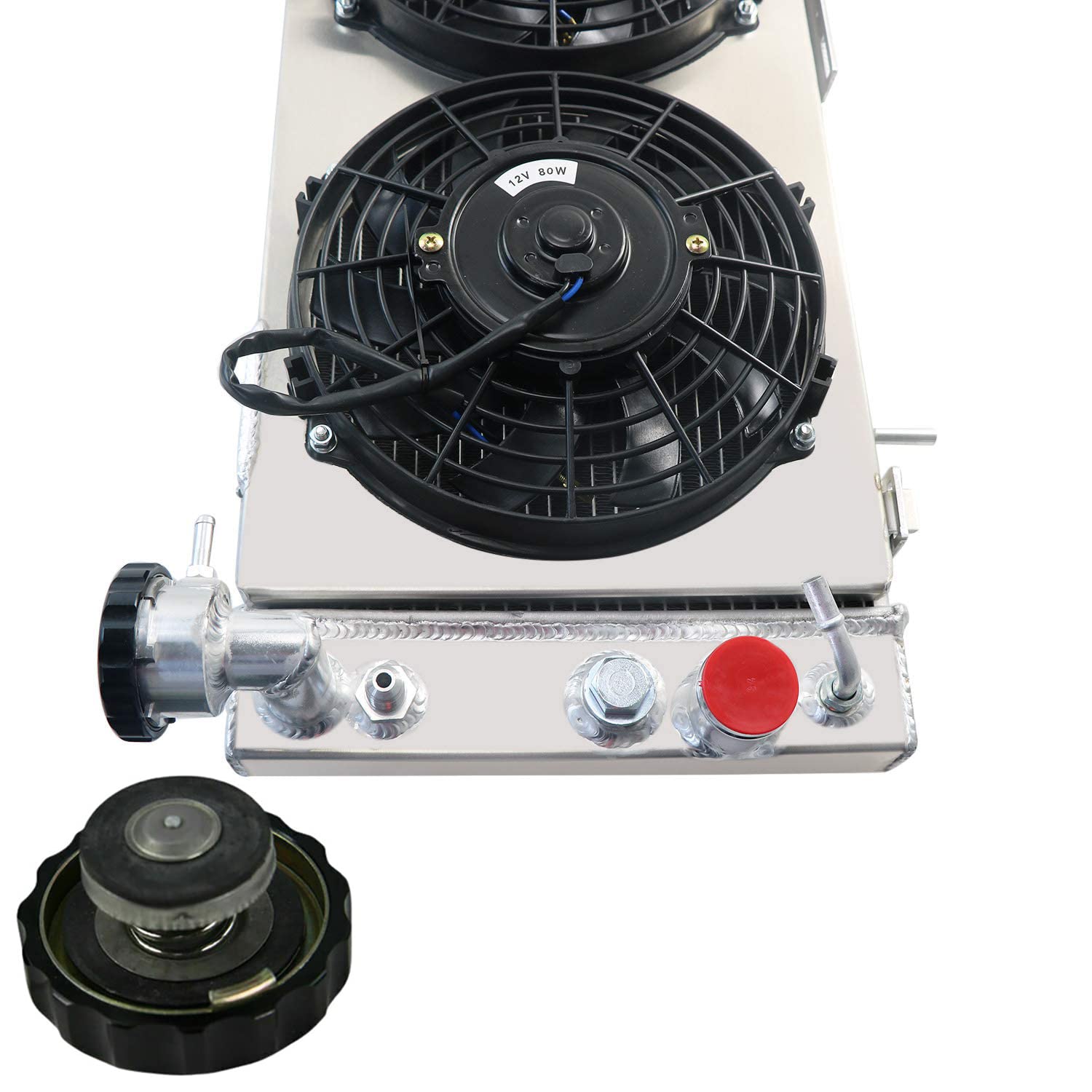

Fitment: For Jeep Cherokee l6 1991-2001 For Jeep Cherokee SE Sport l4 1995-2000 For Jeep Comanche 4.0L l6 1991-1992 For Jeep 91-01 Cherokee 2.5L 4.0L 91-92 Comanche 4.0L For Jeep Cherokee XJ 6 Cylinder 1991-96 97-2001 For Jeep Cherokee Comanche l4 l6 2.5 4.0 6 Cylinder 1991-2001 (Fits Automatic and Manual Transmission Models with 2.5L 150Cu In. l4 or 4.0L 242Cu In. l6 OHV Engines ONLY)Please be Sure to Check Compatibility Chart Package Include: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 3 X 9" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN DETAILS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 9.75" Fan Height (in): 9.75" Thickness (in): 2.25" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Radiator Details: Material : all aluminum 4 Rows Core Radiator Flow: CROSS FLOW Upper Hose Fitting: PASS Lower Hose Fitting: DRIVER Trans Cooler Details: 5/8-18 Straight Thread Mounting Type: PIN MOUNT Part Number: 1605-291885 2AMR1193AA,RA 1193C 52079693AD 52079682AF, 1193,3251,8011193,2671,2670,432335, SBR1193,CC1193,CU1193,DPI1193,78,CC78,CU78,DPI78 Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
