ALLOYWORKS 4-Row Aluminum Radiator with Shroud, Fan & Thermostat Kit for 1967-1969 Chevy Camaro/Pontiac Firebird V8 - High Performance Cooling System for Classic Muscle Cars & Hot Rods
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:11 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:88307989
Product Description
Packed Including: 1 X Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16"Fan (Includes mounting kits) 1 X Thermostat Relay Kit Application: Radiator Fits: For Chevy Big Block Camaro/Pontiac Firebird L6 V8 1967-1969 Radiator Configurations: Material: Full Aluminum High Performance Racing Spec. 4-Row of tubes Core Racing Design Core Size: 17" High x 23" Wide x 2-5/8" Thick. Overall Size: 19-1/4" High (top of cap) x 30-1/4" Wide (Incl. Brackets) Upper Inlet: 1-1/2" located on the Driver side. Lower Outlet: 1-3/4" located on the Passenger side. Mounting System: Bracket Transmission Cooler: Included Transmission Cooler: 1/2 20 Straight Thread G1/4 Mounting Type: Bracket Mount
Product Features
【High Performance】4 Row Core racing design, 40% more cooling capacity than standard radiator.
【Radiator Sizes】Overall Size 19-1/4" High (top of cap) x 30-1/4" Wide (Incl. Brackets). Core Size 17" High x 23" Wide x 2-5/8" Thick. Packed Including 4 Row Aluminum Radiator+Shroud+16" Fans (Includes mounting kits)+Relay Kit.

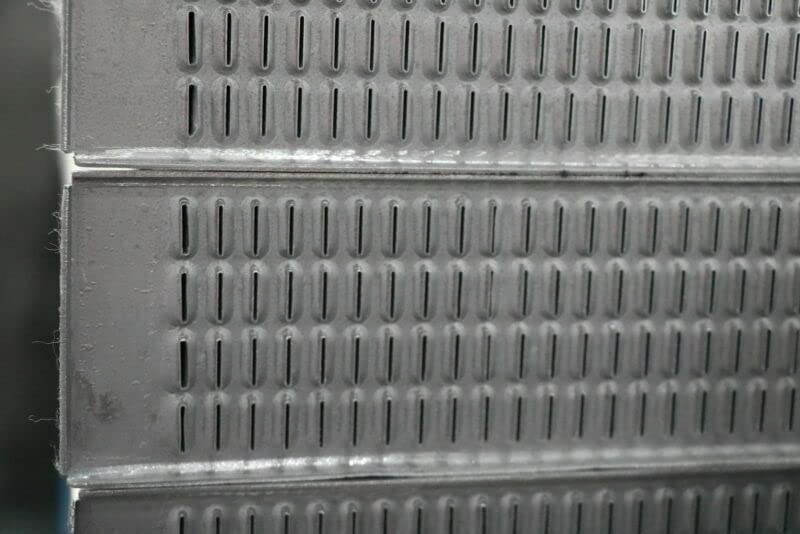

【Core and Tank】 Material Full Aluminum. The tanks are 100% welded by TIG. The core of the radiator is welded in vacuum brazing furnace, no epoxy.
【Mounting Configurations】 Upper Inlet 1-1/2" located on the Driver side; Lower Outlet 1-3/4" located on the Passenger side. Bracket Mount. Radiator Included Transmission Cooler. 1/2 20 Straight Thread G1/4 Transmission Cooler.
【Vehicle Fitment】Fits For Chevy Big Block Camaro/Pontiac Firebird L6 V8 1967-1969.
