SKU:87689826

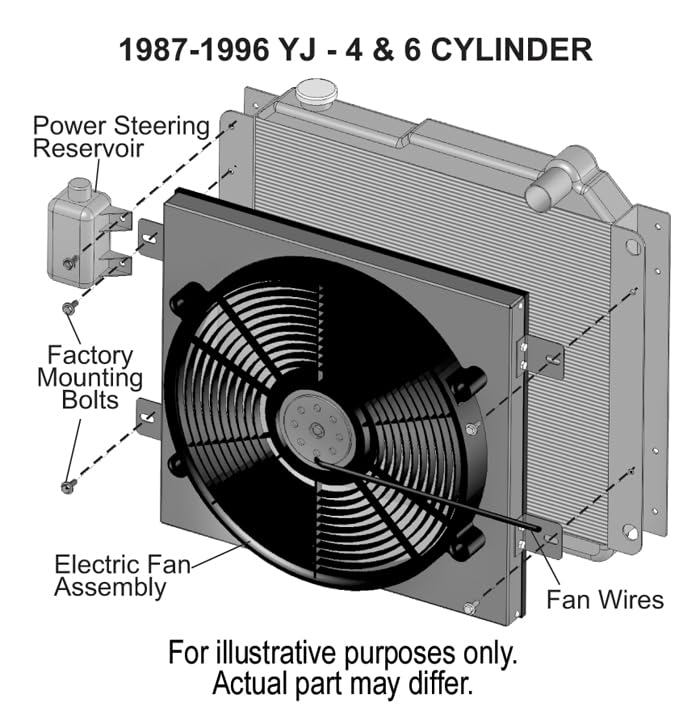

This direct fit electric cooling fan assembly is the same as all of our products: the kit comes complete from the factory without the need to spend extra on necessities such as power steering reservoir brackets or coolant recovery tank brackets. Everything you MIGHT need is included, except of course the tools. Leave your drill in your toolbox, you won feett need it here. We take a thermostatically-controlled high performance 17 inch skewed blade electric fan motivated by a 265 watt Bosch motor and a black powder coated, laser-cut heavy duty metal shroud, along with all necessary brackets, fittings, relay harness, and mounting hardware to create the ultimate direct fit electric fan on the market. Fits ALL 4 and 6 cylinder Jeep Wrangler YJ's and TJ's.
Replaces fan clutch, fan shroud and new shroud mounts to factory locations
Complete kit includes everything you need for a do-it-yourself installation
Radiator reservoir remount brackets included (used on some 4 and 6 cylinder applications)
Powder coated metal shroud
I installed this fan on my 97 2.5l tj.The kit does come with everything needed to install it although I did use some extra parts to secure the wires and hide them a bit better.First off the passenger side lower bracket does need to be hogged out a bit to line up with the bolt hole in the radiator like others have said. The kit comes with a 50amp breaker which I mounted next to the air box on the fender inner structure. Make sure you read the markings on it one side is marked battery and the other aux(fan side). The relay has 2 wires comming off of the one terminal one goes to the thermostatic switch which is installed between the thermostat housing and the original coolant temp sensor. The other wire is a green wire with a diode in it that gets connected to the power 12v wire of the ac compressor which turns the fan on when the compressor turns on. The other wire from the thermastic sqitch goes to switched 12v. This wire I ran from the switch to the under hood fuse box next to the battery. I pulled the fuse box out and removed the bottom half and taped into the red black wire going to the rear window defroster relay which was at the front of the box and not being used. I mounted the new fan relay to the side of the air box as this was the only spot the wires would reach.I would suggest spending some time and soldering and shrink tubing all connections as the supplies butt connectors aren't vibration and water resistant and will probably come apart at a bad time. As for the 2 brackets that come with it, they fit perfectly and mounted my ps res and coolant res in the stock locations.This fan is a direct bolt in and can be installed with the supplied parts but do it right and solder and secure all wires.
