SKU:83339683

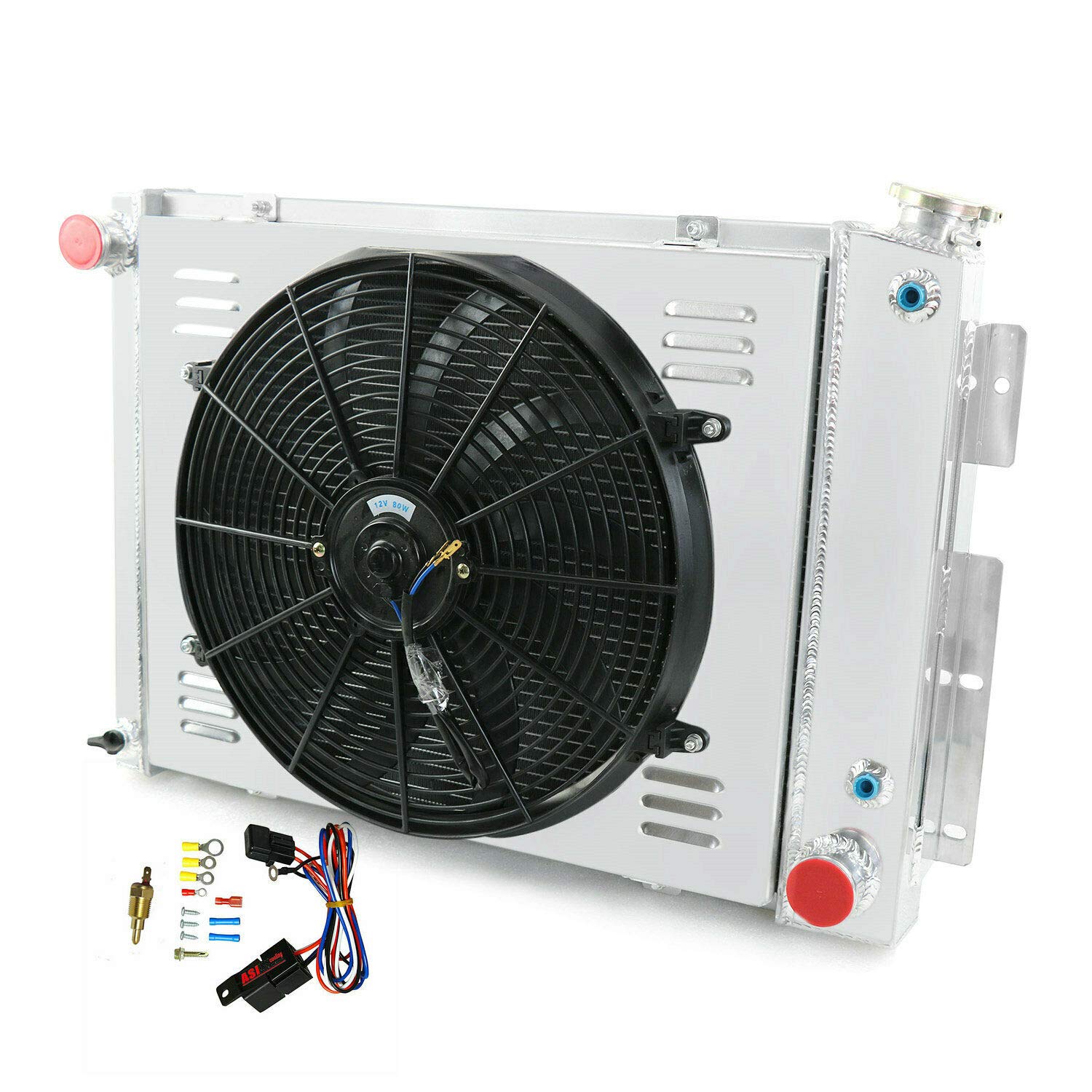

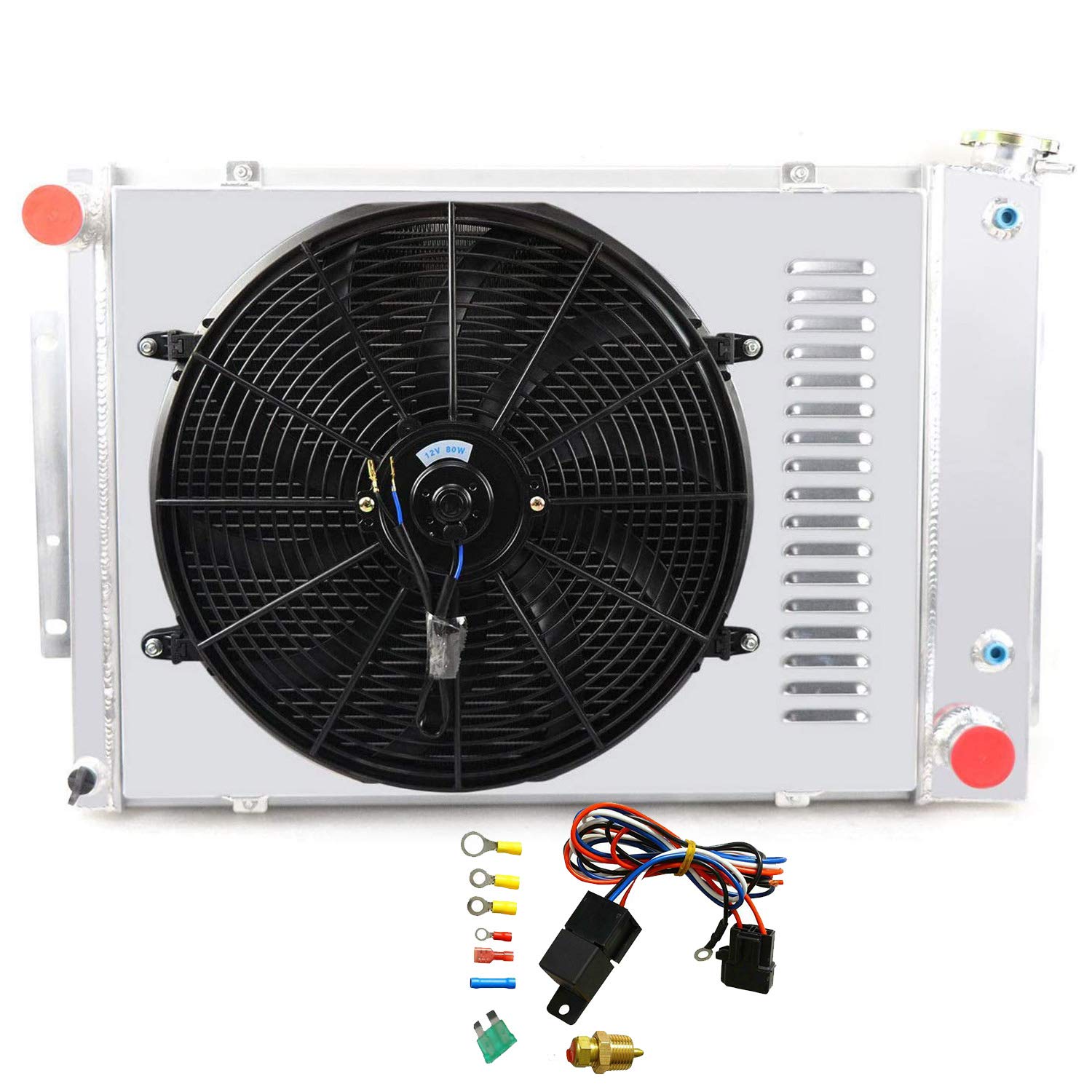

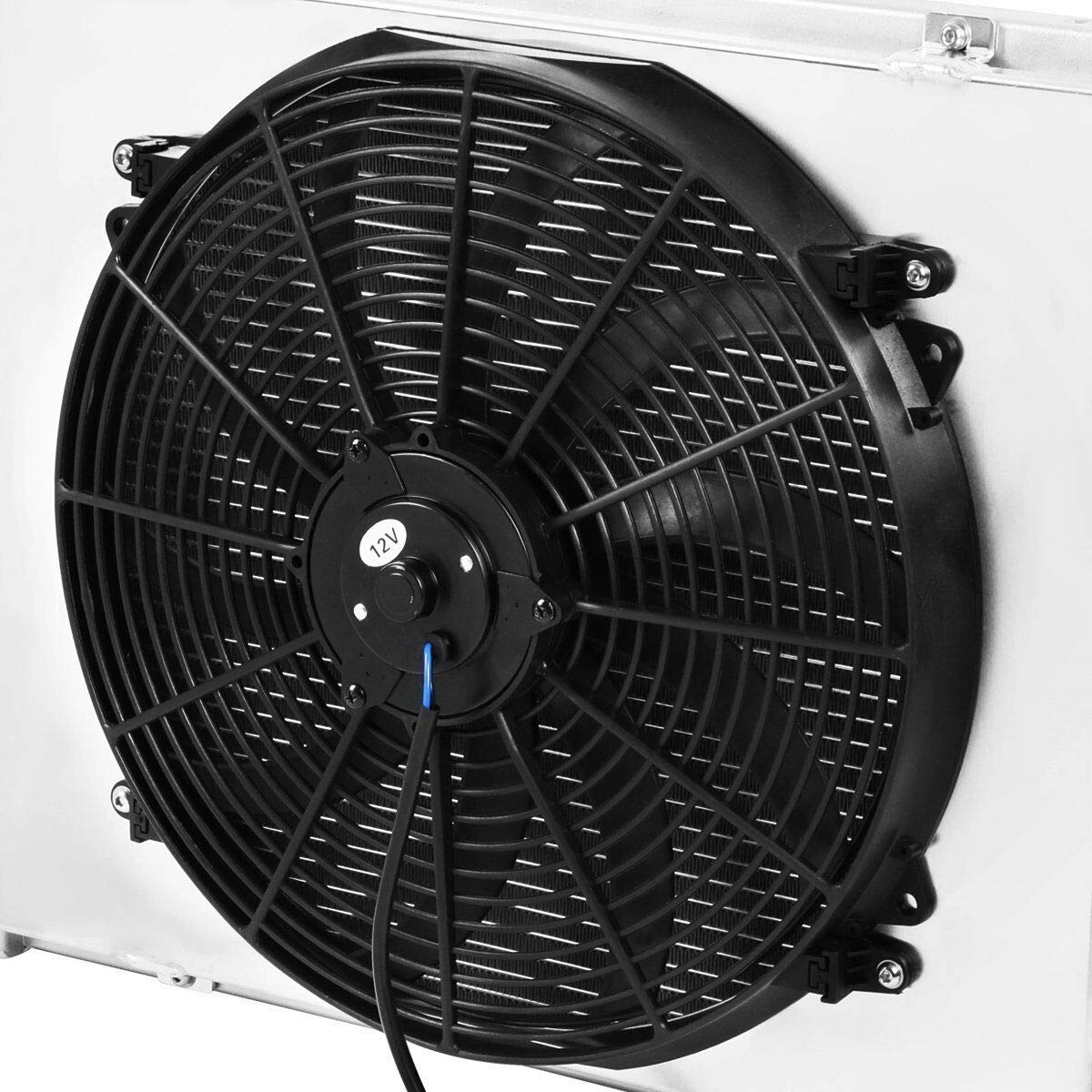

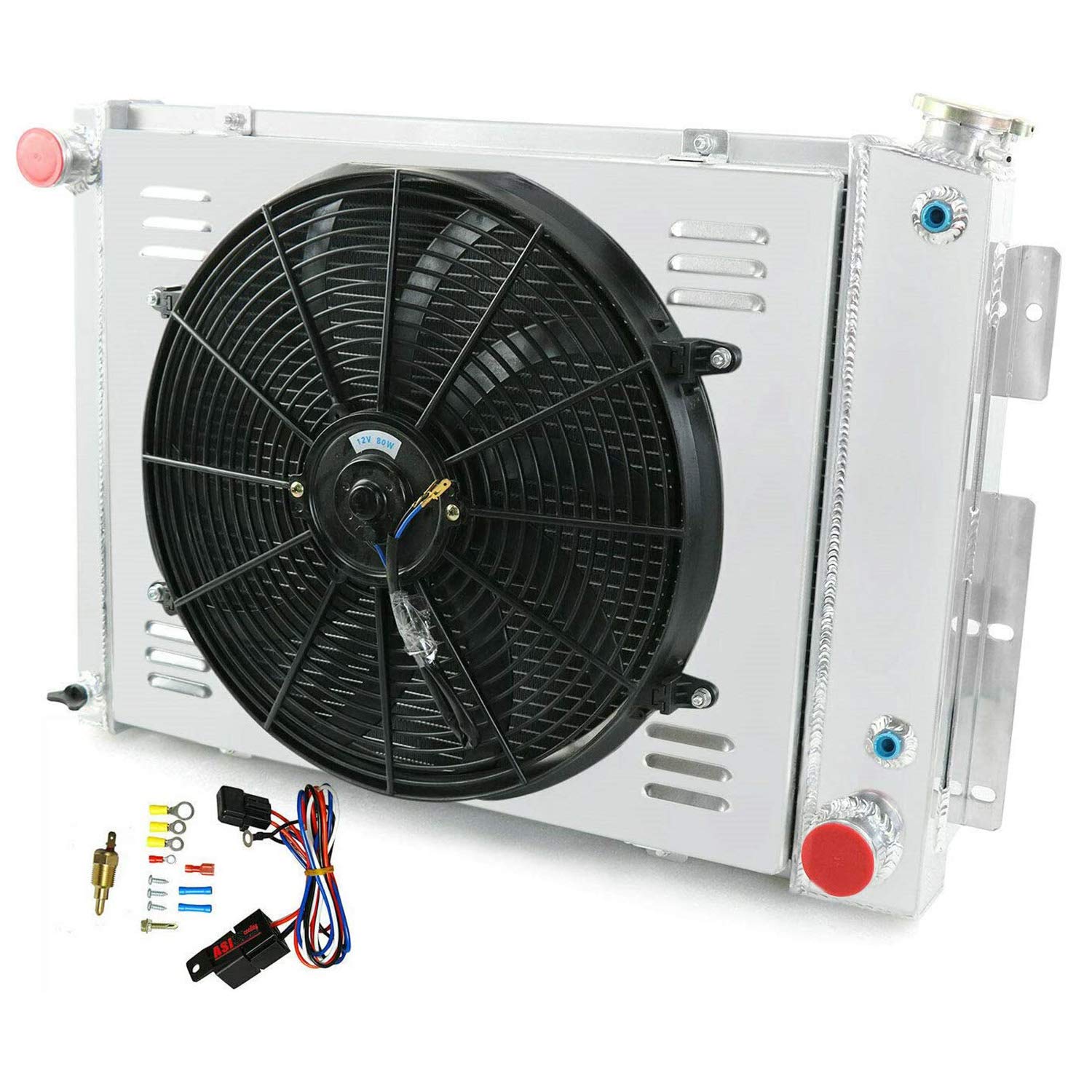

Product Description: Radiator Size Row: 3 Row Core Material: Full Aluminium Radiator Cap: included Core and Tank: All Aluminum Radiator Flow: Cross Flow Core Size: 17 H x 20 3/4 W Overall Size: 19 1/4 H x 28 3/4 W Inlet Diameter: 1 1/2 Outlet Diameter: 1 3/4 Upper Hose Fitting: Driver Lower Hose Fitting: Passenger Trans Cooler Details: 1/2" 20 Straight thread G1/4 Mounting Type: Flanges Fitment For 67 68 69 Small block Chevy Camaro Z28 For 67 68 69 CHEVY CAMARO/FIREBIRD T/A 5.7L V8 For 67 68 69 CHEVY CAMARO 21" WIDE CORE Fits Automatic and Manual Transmission Models with 5.3L-5.7L 326Cu. In.350Cu.In.Small Block Engines Only FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation. Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold. Packed Including: THE RADIATOR + SHROUD + ONE 16" FAN+ THERMOSTAT KITS!
■ Made from full aluminum materials for prolonged lifespan, High Performance Racing Spec.

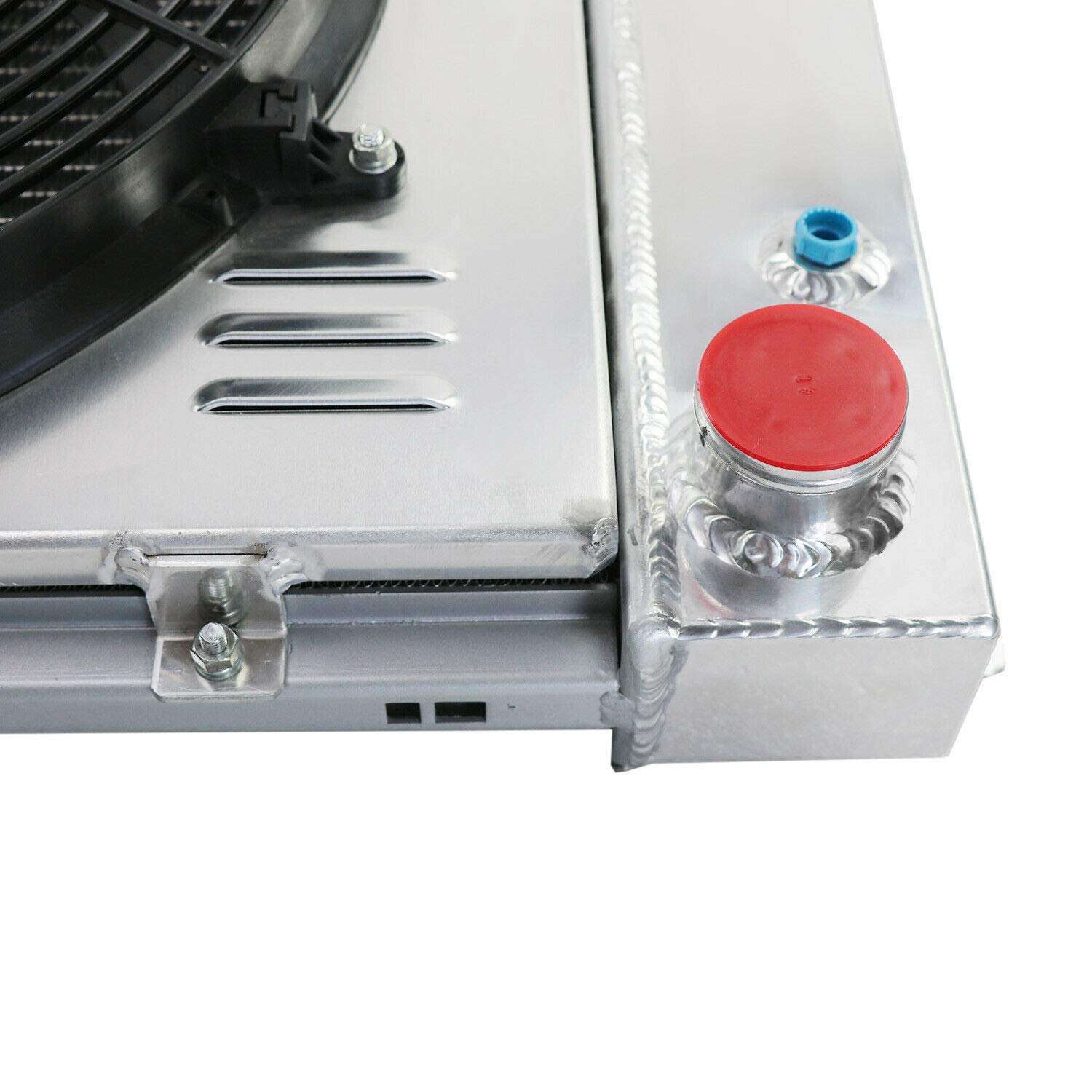

■ The core of the radiator is welded in vacuum brazing furnace, no epoxy. The tanks are 100% welded by TIG.
■ Core Size 17'' x 20 3/4'' x 2''; Overall Size 19 1/4'' x 28 3/4''; Inlet Diameter 1 1/2''; Outlet Diameter 1 3/4''
■ Improves cooling by 35% to 45% temperature
■ Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity!
