High-Performance Aluminum Radiator for 1968-1974 AMC AMX, Javelin, Marlin, Rambler SST V8 - 4 Row Core with 10-Inch Electric Fan & Relay Kit - Perfect for Classic Car Restoration & Hot Rod Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:30 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:81030957
Product Description

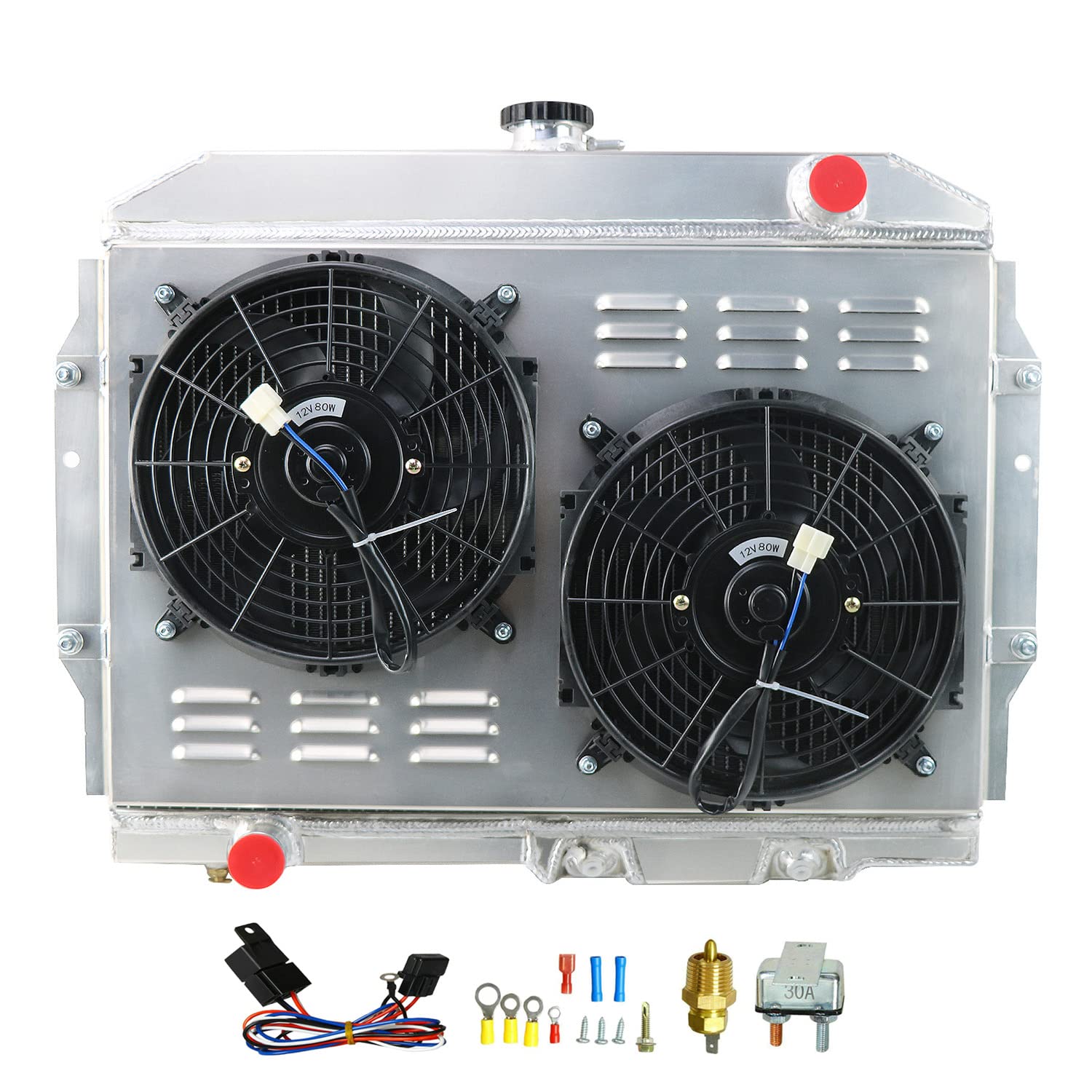

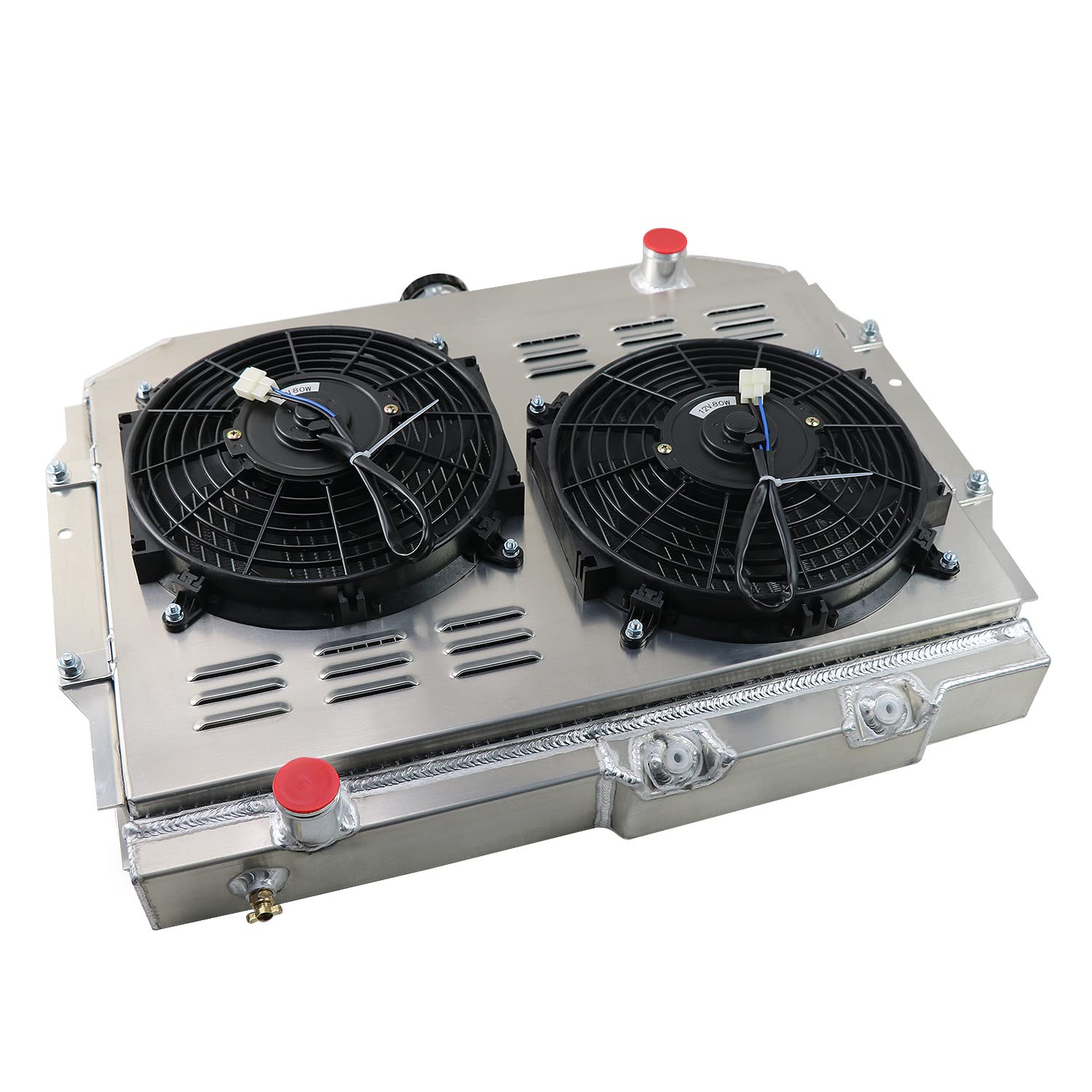

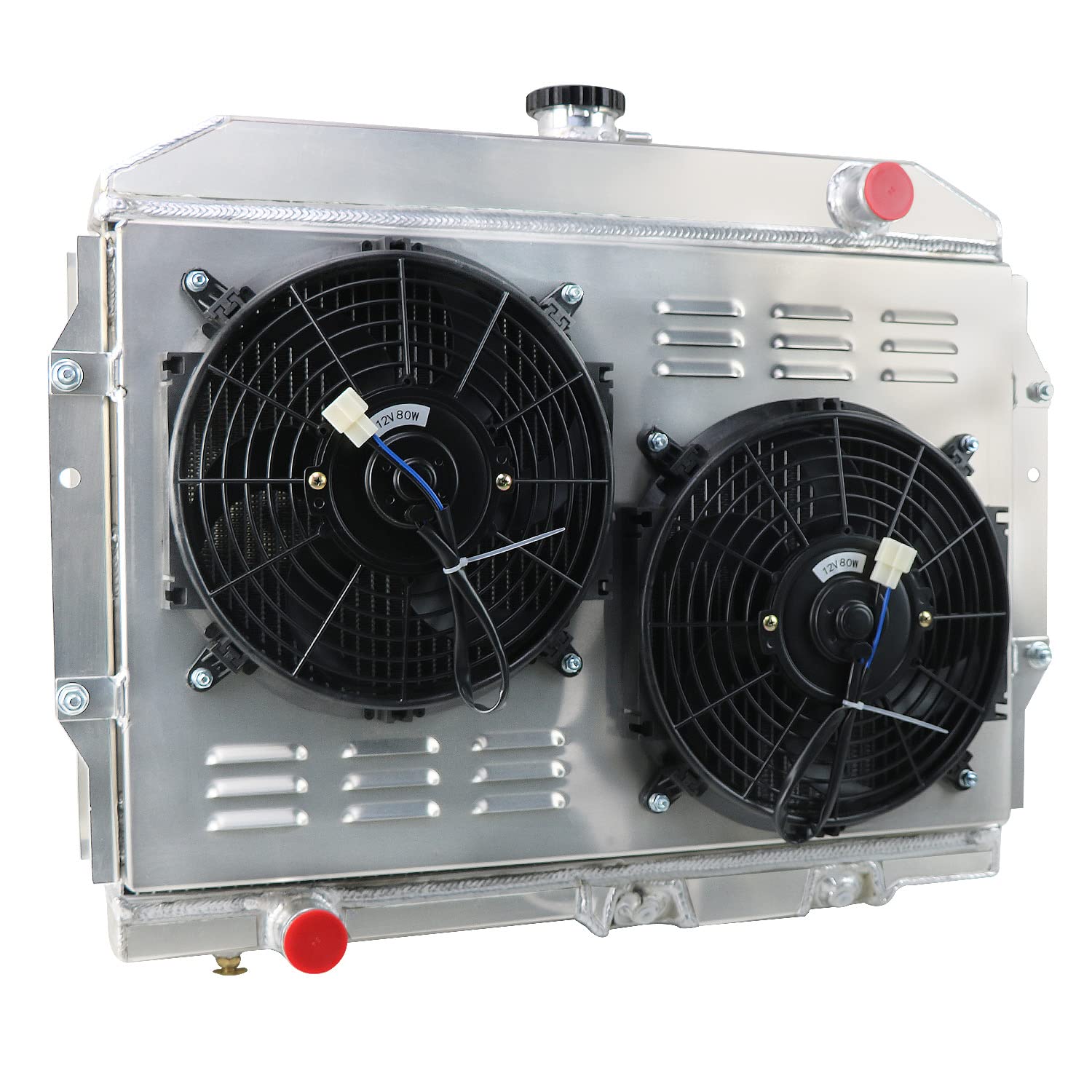

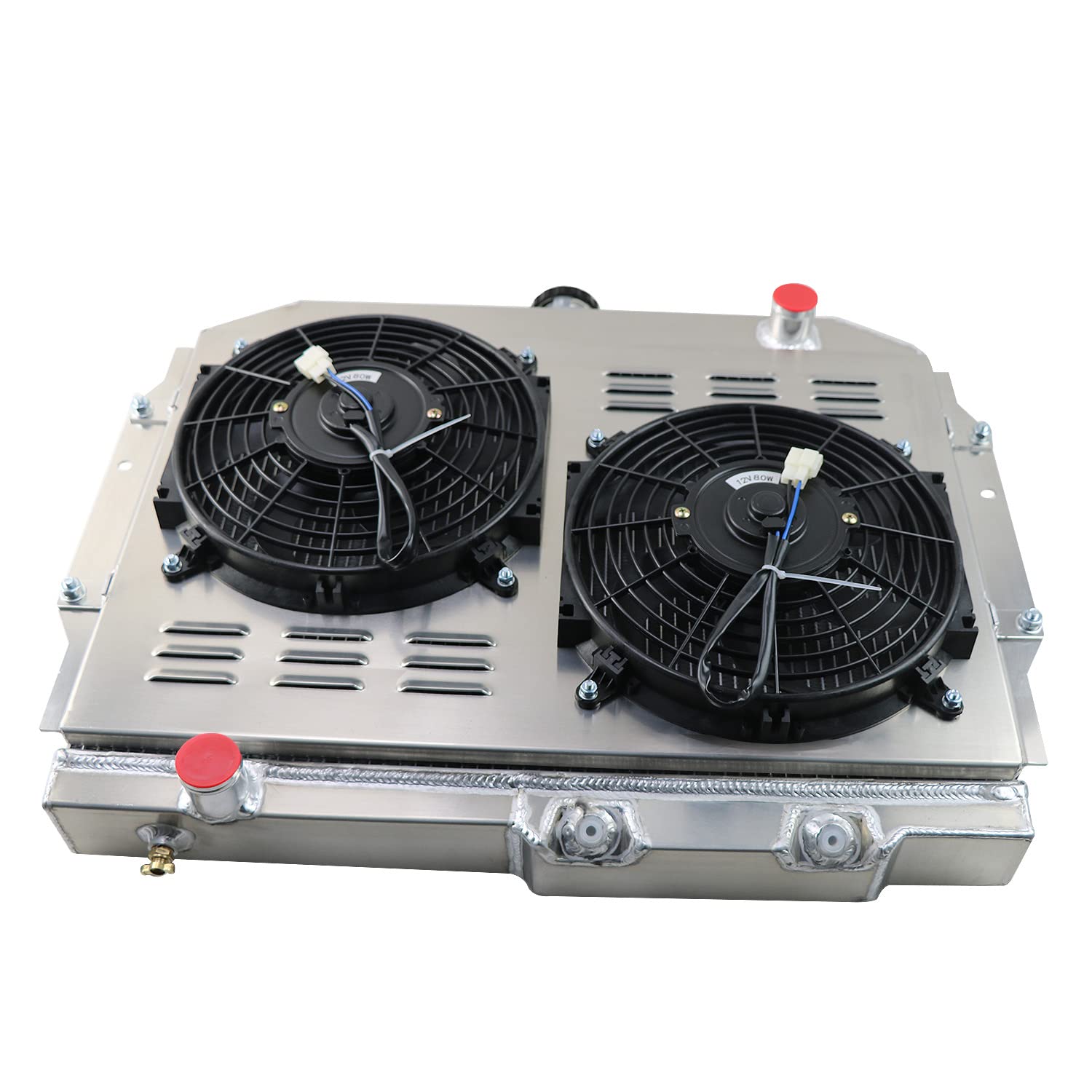

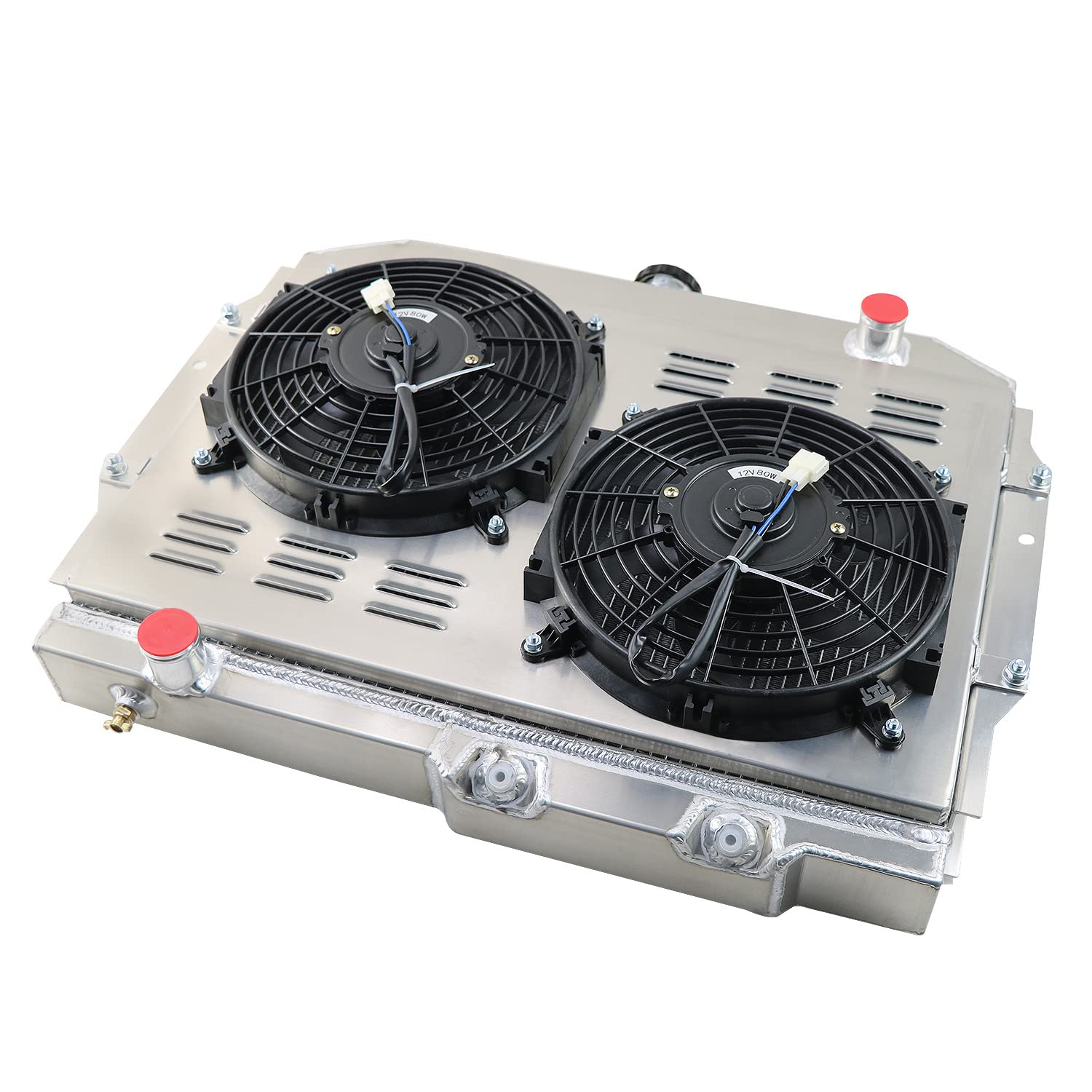

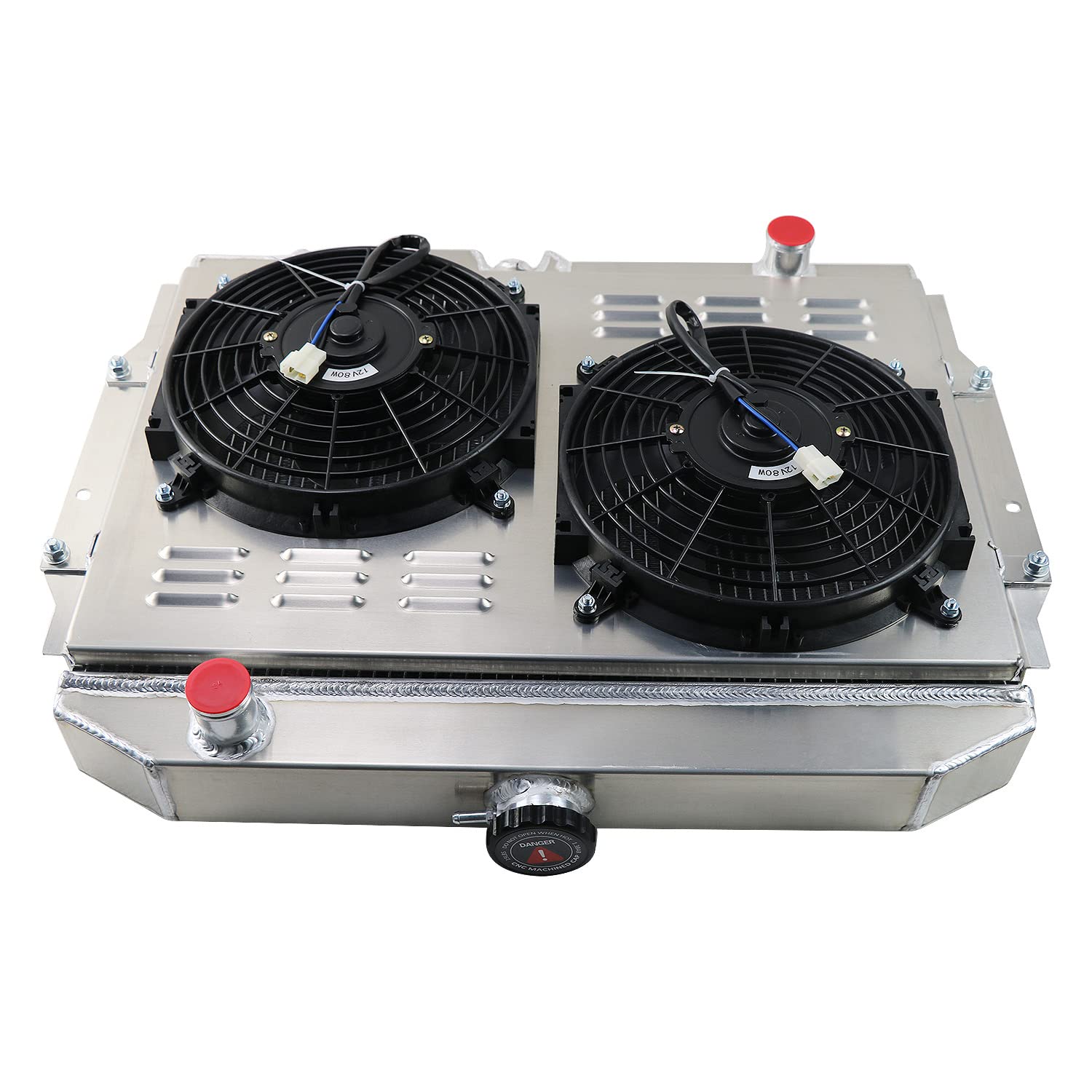

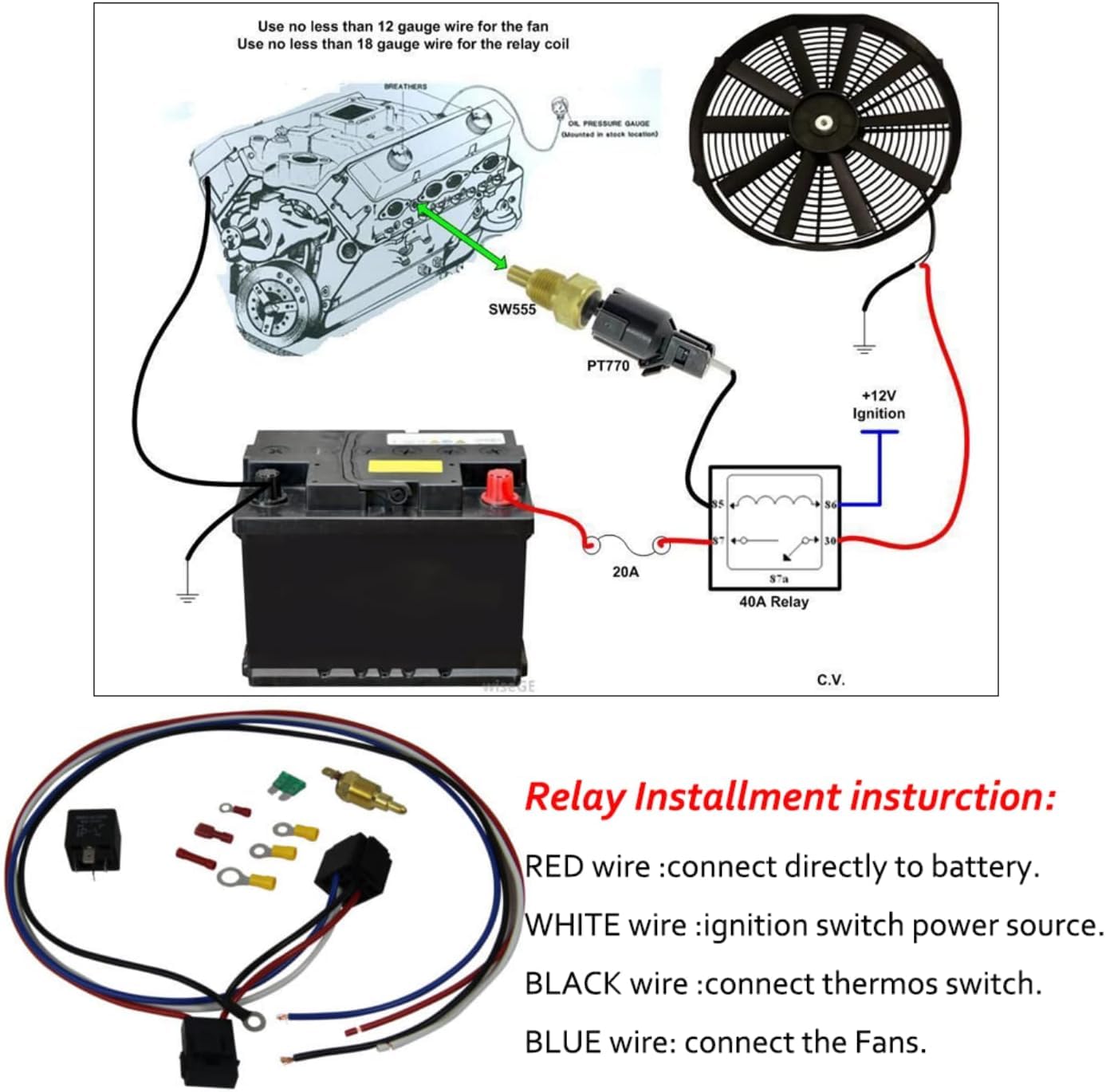

Product Includes: 1 X 4 Row Aluminum Radiator (includes radiator cap) 1 X Aluminum Shroud 2 X 10inch Fans (Includes mounting kits) 1 X Thermostat Relay Kits Radiator Specs: Upper Inlets: Located on the passenger side Lower Outlets: Located on the driver side Core Material: Full Aluminum Tank Material: AA5052 Aircraft Grade Aluminum Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Flow Type: Downflow Delivery: Local Delivery Fan Specification Maximum Fan CFM: 1730 cfm Fan Diameter (in): 10.050” Thickness (in): 2.500” Number of Blades: 6 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans OEM/Substitute Numbers: 407,CC407,CU407,DPI407,KKS407,SBR407,AE407,MC407,EC407,R407,RR407,SPTCU407 This Radiator Compatible with: 68-74 American Motors AMC Javelin 68-74 American Motors AMC AMX 60-62 American Motors AMC Rambler 65-66 American Motors AMC Marlin 58-70 American Motors AMC Rebel 68-71 American Motors AMC SST 68-74 American Motors AMC Wagon PLS check core/overall/inlet/outlet SIZE carefully before you order
Product Features
【Vehicle Fitment】62MM 4 Row Core Performance Aluminum Radiator Replacement for 1968-1974 AMC Javelin/AMX/Wagon, for 1958-1971 AMC Rambler/Marlin/Rebel/SST, for 1958-1974 AMC Ambassador Gremlin Hornet Matador American 3.8L 4.2L 3.2L 3.3L L6 4.7L 4.8L 5.0L 5.9L 5.6L 5.1L 4.7L 5.3L 6.6L 6.4L V8 1958 1959 1960 1961 1962 1963 1964 1965 1966 1967 1968 1969 1970 1971 1972 1973 1974
【Radiator Size】Core Size(inch) 15 7/8" x 24 1/8" x 2.44'' Thickness ; Overall Size(inch) 23 1/4" x 27 1/4" ; Inlet Location Passenger ; Inlet Diameter 1 1/2" ; Outlet Location Driver ; Outlet Diameter 1 1/2" ; Build-in Transmission Oil Cooler size 150×3/8-24UNF（T）; Rows 4 Cores Radiator
【 Excellent product】All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum)
【Big cooling upgrade!】Built with high density multi-louvered fins for maximum cooling efficiency, to ensure durability in extreme cold weather
【Easy To Install】Light weight direct bolt-on replacement, stronger & higher capacity for coolant
