CU162 Aluminum Radiator with Electric Fan - Compatible with 1970-1988 Chevy GMC Buick Blazer Camaro Malibu Monte Carlo Nova Caballero Jimmy Century Skylark - 3 Row Radiator with Shroud & Fan - Perfect for Engine Cooling & Performance Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:80759465
Product Description

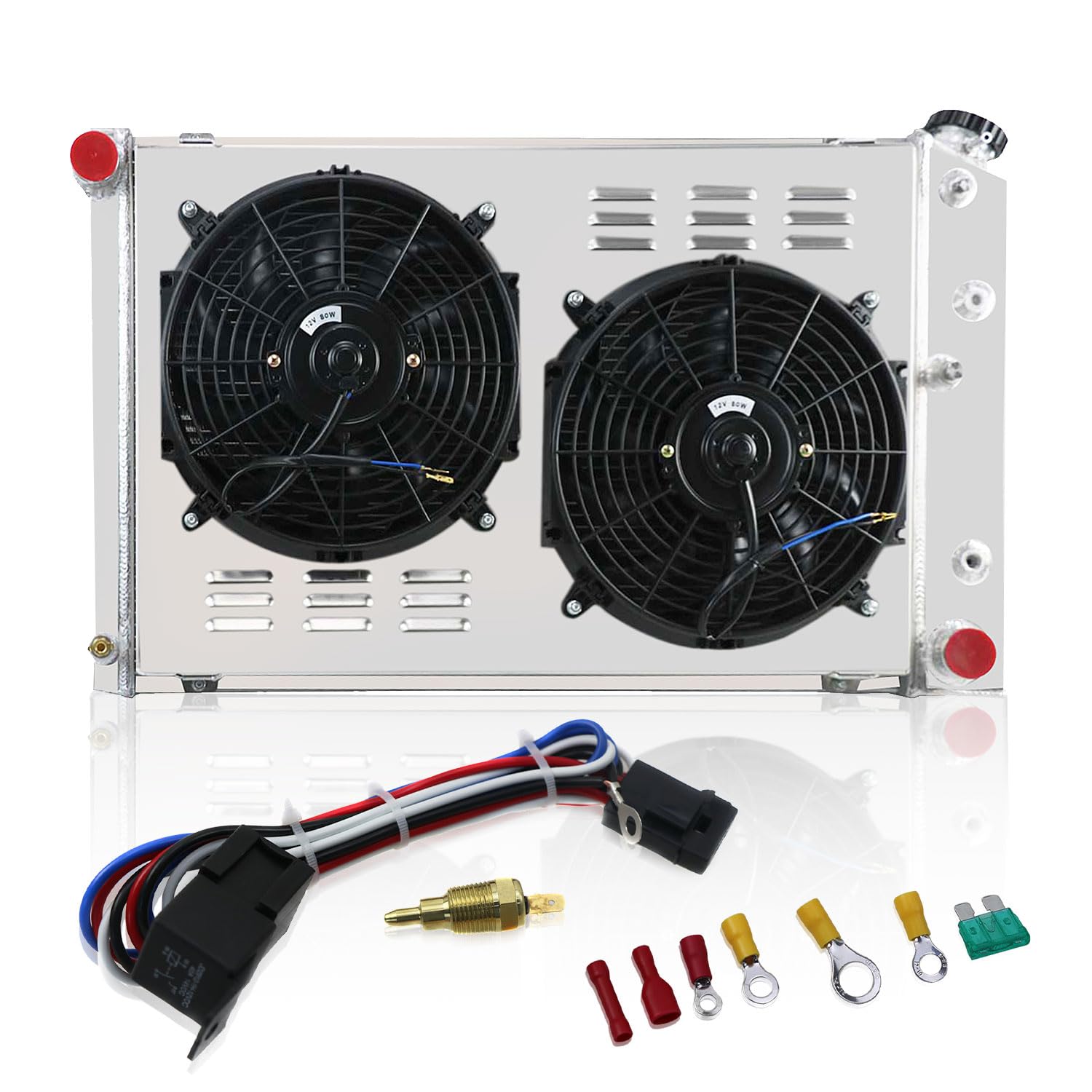

Product Includes: 1 x 3 Row Aluminum Radiator (includes radiator cap) 1 x Aluminum Shroud 2 x 12inch Fans 1 x Thermostat Relay Kits Radiator Specs: Upper Inlets: Located on the driver side Lower Outlets: Located on the passenger side Core Material: Full Aluminum Tank Material: All Aluminum Transmission Oil Cooler: Included Flow Type: Crossflow 12inch Fan Size: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050 inches Thickness (in): 2.500 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans OEM/Substitute Numbers: 162,8010162,1605-370064,40387,REA41162A,2511,8010162,1605-370064,40387,SBR162,DPI162,CC162,CU162,KKS162 This Radiator Compatible with: 1970-1981 Chevy Camaro/75-79 Nova/68-73 Chevelle El Camino 1980 Buick Century 4.3L 4.9L 5.0L 1979-1980 Buick Regal 3.8L 4.9L 1979 Buick Estate Wagon 5.7L 1979-1980 Chevy C10 / C20 /C30 /G10 4.1L 4.8L 5.7L 1979 Chevy C10 Suburban / C20 Suburban/ G20 / G30 4.1L 5.0L 5.7L 1979 Chevy Camaro /El Camino 3.3L 4.1L 4.4L 5.0L 5.7L 1980 Chevy Impala / Monte Carlo /P30 5.0L 5.7L 1979-1980 Chevy K10/K20 /K30 4.1L 4.8L 5.7L 1979 Chevy K10 Suburban / K20 Suburban 5.0L 5.7L 1979-1980 Chevy Malibu 3.3L 3.8L 4.4L 5.0L 5.7L 1980 GMC C1500/ G1500 /C1500 Suburban / C2500 /Jimmy/ K1500 Suburban/K2500 Suburban 1980 OLDS Cutlass/Cutlass Cruiser/ Delta 88 5.0L 4.3L 1980 Pontiac Catalina / Grand LeMans/ LeMans PLS check core/overall/inlet/outlet SIZE carefully before you order
Product Features
Core Size(inch) 16.9" H x 26.2" W x 1.74'' T / Overall Size(inch) 18.5" H x 31.7" W
Inlet Diameter(inch) 1.57 / Outlet Diameter(inch) 1.5 / Rows 3-Row of tubes Core Racing Design
Build-in Transmission Oil Cooler φ32*215*G1/4（Z) / Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
3 Row Core Radiator &Shroud fan+Relay Compatible with Chevy El Camino 78-1987/ Impala 1980-1985; For Chevy Blazer 1973-1985/Suburban 1976-1980; For Chevy Nova 1975-1979 / Chevy El Camino 1970-1987; For Chevy/GMC C/K/G-Series C10-C20 C25-C3500 1970-1985

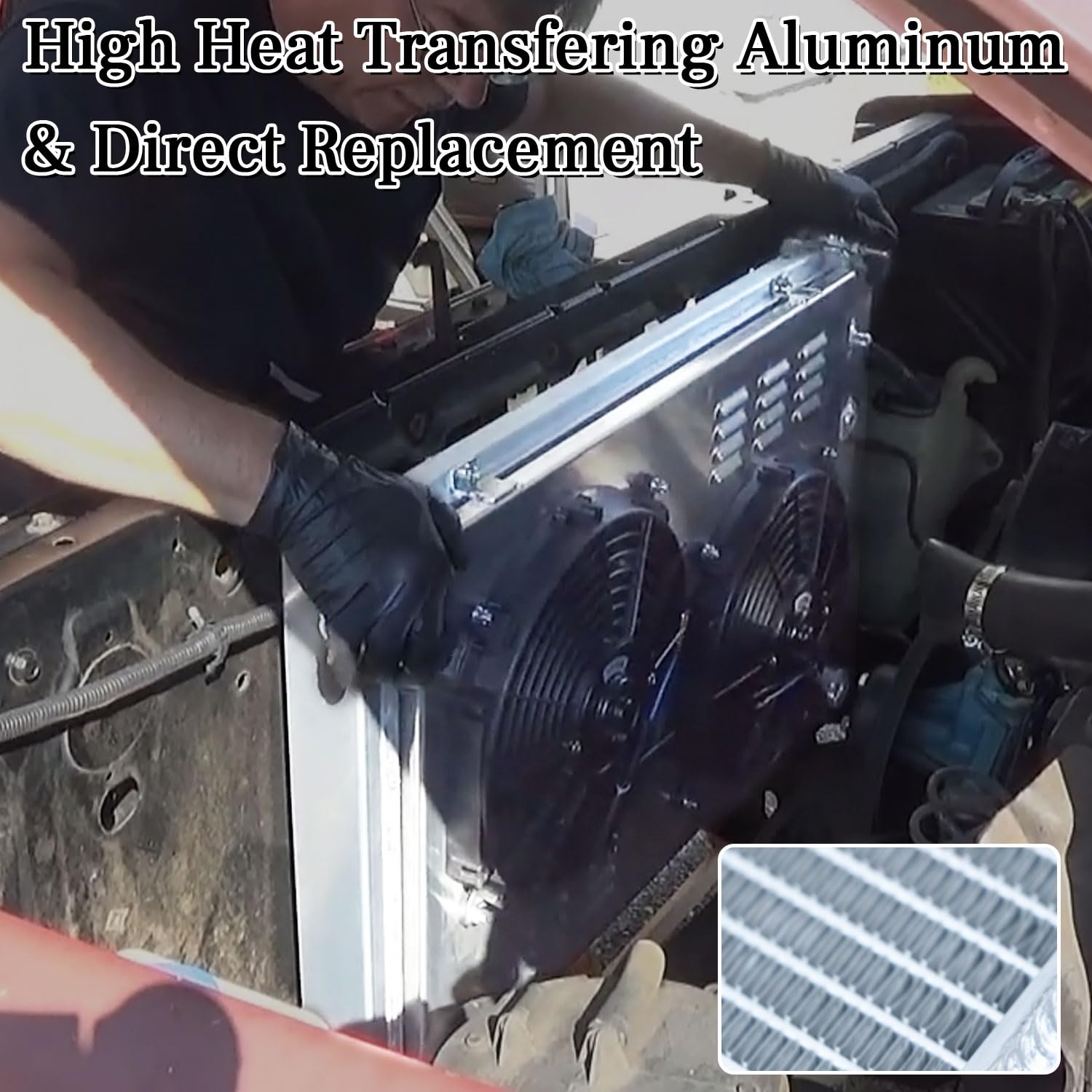

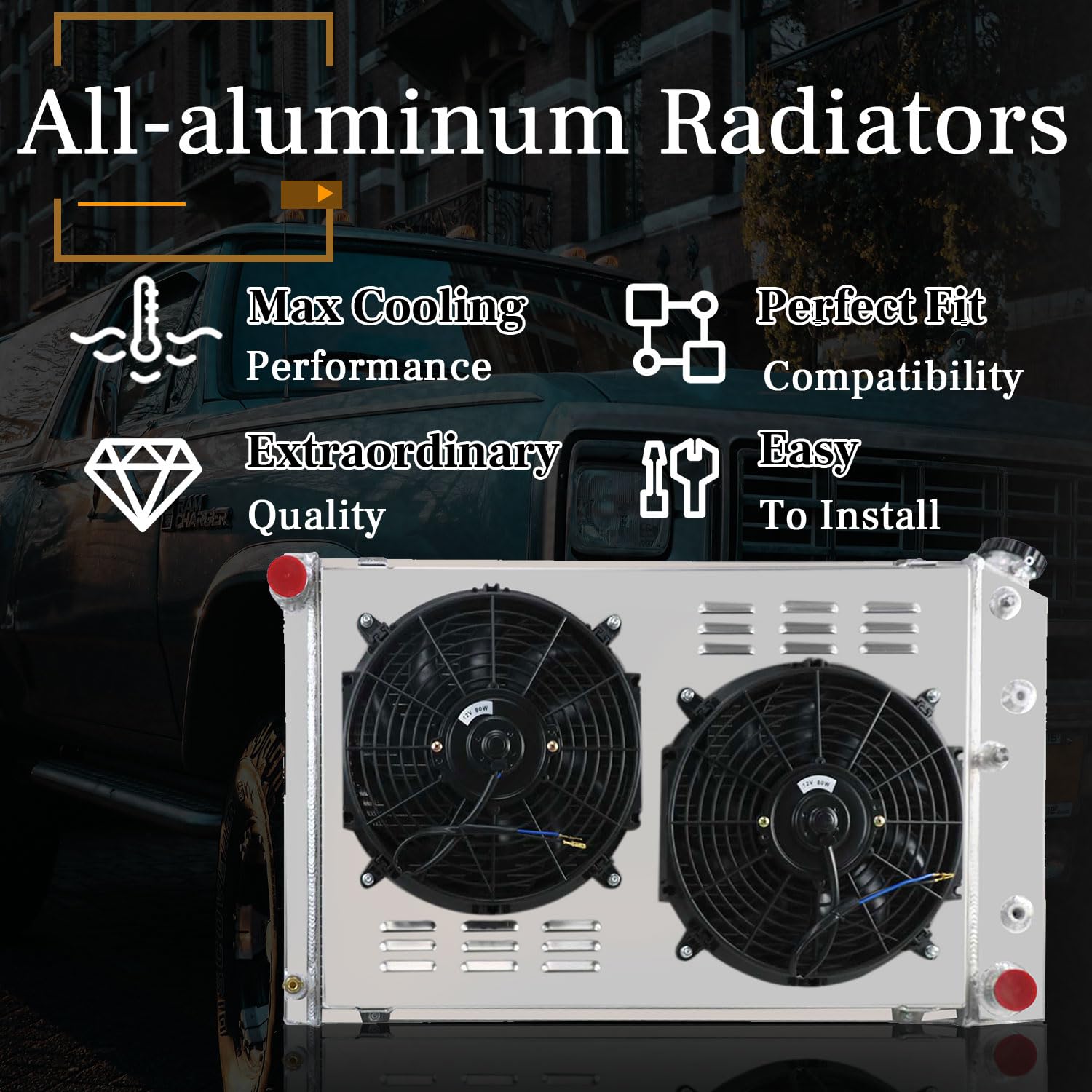

All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum) ;High performance racing design, improves cooling by 35 -45% Temp.
High Performance Radiator, Superior fin waves provide a higher heat transfer, thin-tube construction assures maximum cooling efficiency
Perfect fit, Light weight direct bolt-on replacement,stronger & higher capacity for coolant
