30 Row Heavy Duty Transmission Oil Cooler Fan with Adjustable Thermostat Switch Kit - Universal Fit for Trucks, SUVs & RVs | Engine Cooling System Upgrade for Towing & Off-Road Performance

Product Description

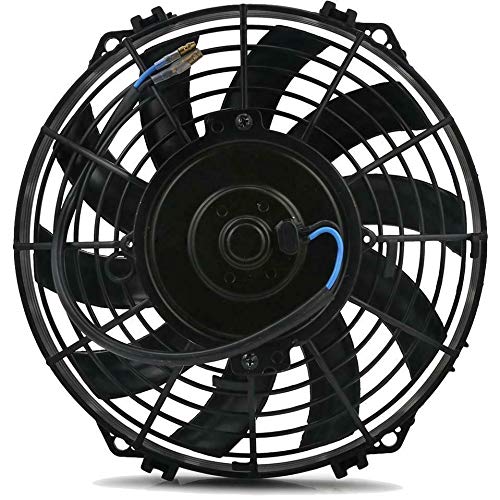

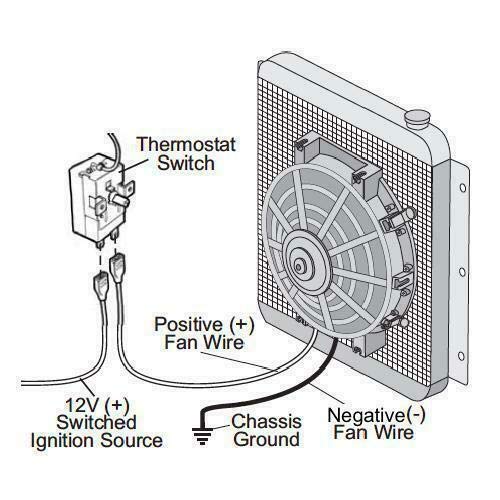

Fluid Cooler: Universal 30 row plate and fin aluminum heavy duty transmission cooler kit. Extend transmission life by helping prevent heat-related transmission failures. Perfect for any car, truck or SUV with heavy duty use and consistent towing. 78 inch wide plates, 34 inch embossed turbulators which maximizes heat transfer. Dimensions: 0.75 inch x 11 inch x 11.625 inch with 38 inch hose barb inlets, GVW 30000 lbs. Electric Fan: Universal 12 volt high performance 9 inch inch slim electric cooling fan. Upgraded 90 watt motor draws 8 amps, producing over 702 CFM. Configured as an air puller by default or reversible to an air pusher. Includes mounting bracket feet and complete cooler fin tie strap kit. Measures 9.75 inch x 9.75 inch x 2.4 inch thickness at center and 1.1 inch at edge. Wiring Kit: Universal automotive 12 volt electric fan switch relay wire harness. Safely powers one 12 volt cooling fan or accessory without splicing. Maximum continuous draw with 40 amp circuit breaker protection. Simple 4 pin relay 40A and 6 feet of 14AWG wiring allows flexibility. Installation wiring diagram and all pictured components included. Thermostat: Universal adjustable automotive electric fan thermostat switch sensor. Turn-on range of 32-248 ftF with turn-off always set at 15 degrees less. 3 pin design allows for wiring as a normally open or closed circuit. Probe pushes between radiator fins or inserts into coolant hose line. Detailed install instructions, wiring diagram and hardware included.
