Primecooling 3 Row Aluminum Radiator with Dual 12" Fans & Shroud - Compatible with Ford F-150 F-250 F-350 & Bronco V8 (1985-1997) - Heavy Duty Cooling Upgrade for Off-Road, Towing & High-Performance Use

Product Description

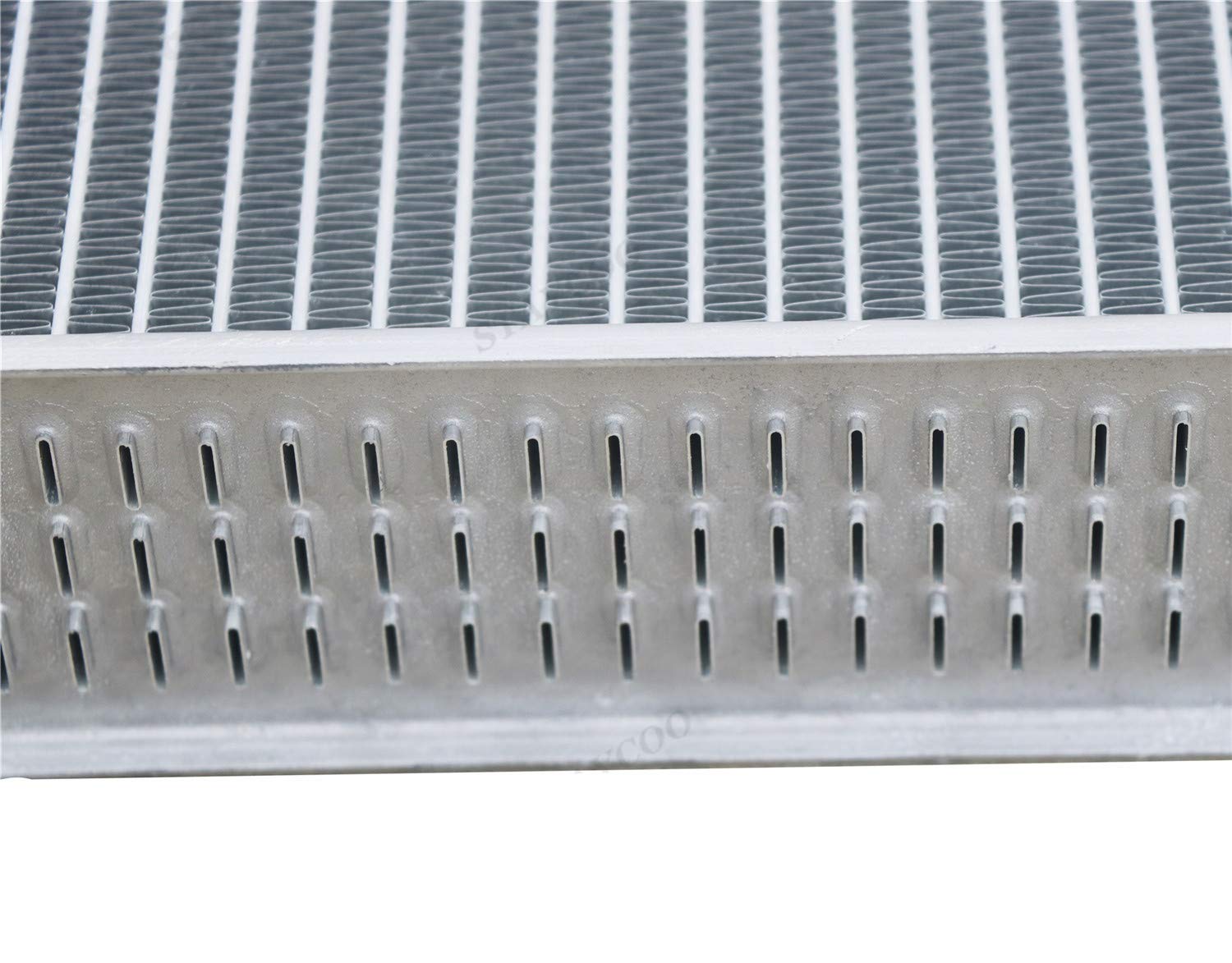

The aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight,and high heat transferring aluminum features a tube and fin design that,dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly,it has a much higher capacity for coolant than stock ones,which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications. RADIATOR SPEC: Core Dimensions: 17 3/4'' H x 27 1/2'' W x 2 1/8'' T Overall Dimensions: 21 1/4'' H x 37 3/4'' W Upper Inlet: 1-3/4" located on the passenger side Lower Outlet: 1-3/4" located on the driver side Transmission Cooler Is Included (1/4-18NPT) Bracket Mount FAN SPEC: Maximum Fan CFM :1730 cfm FAN DIAMETER X HEIGHT X THICKNESS :12.05" X 12.05" X 2.5" Number of Blades :10 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Applications: For FORD BRONCO, 5.0L 5.8L V8 1985-1996 For FORD F-150 / F-250 / F-250 HD / F-350, 4.9L 5.0L 5.8L 7.5L V8 1985-1997 For FORD F53 / F SUPER DUTY 7.5L V8 1988-97
