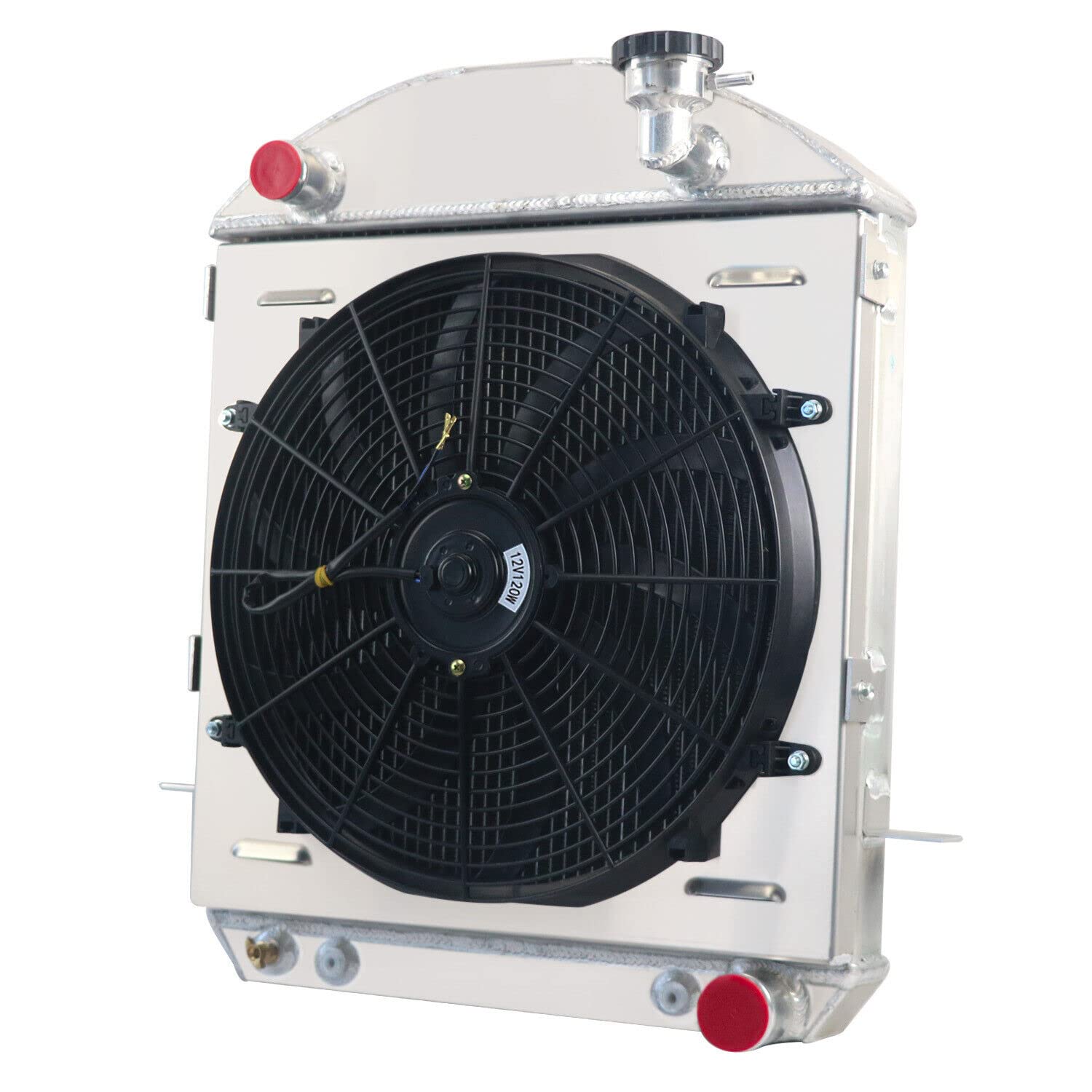

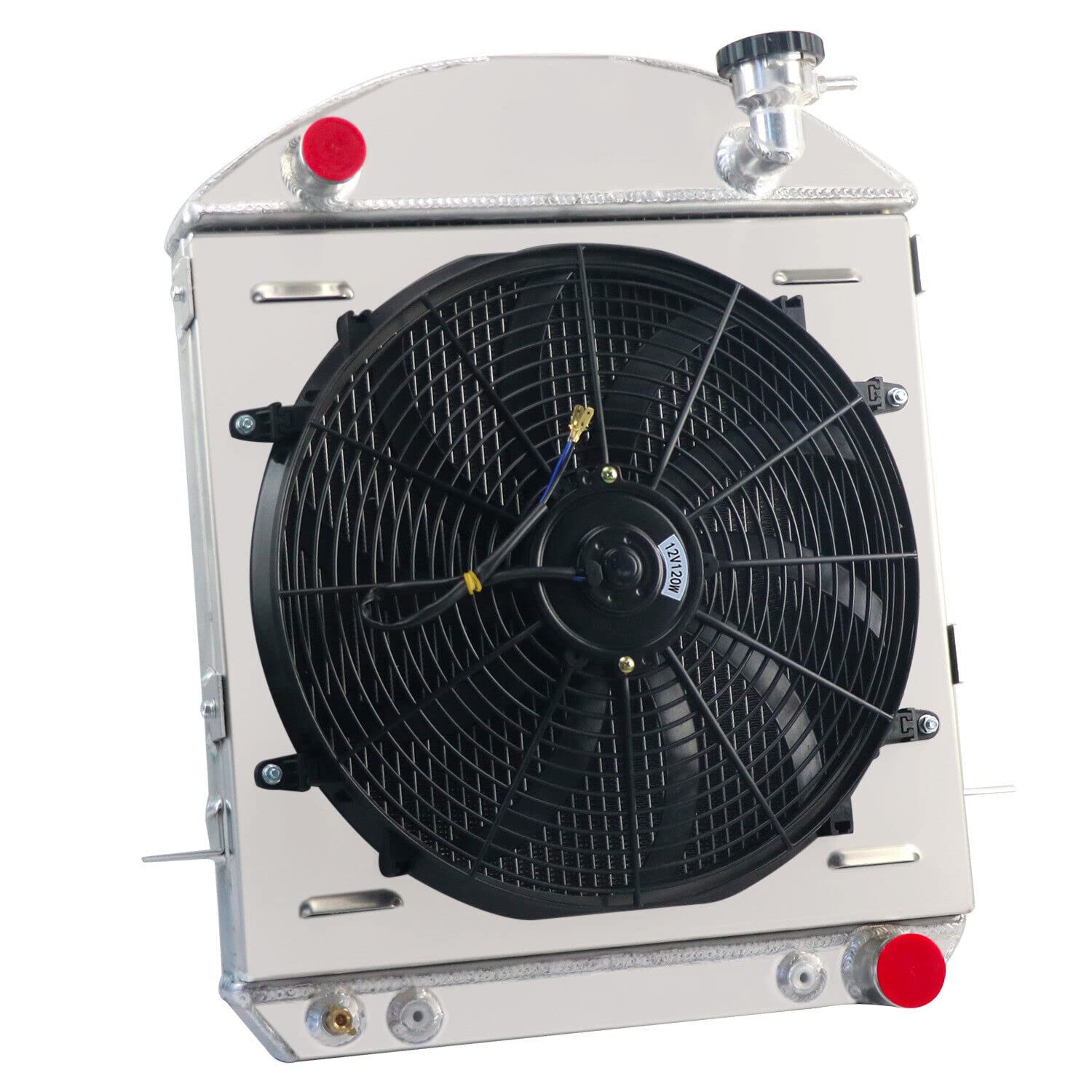

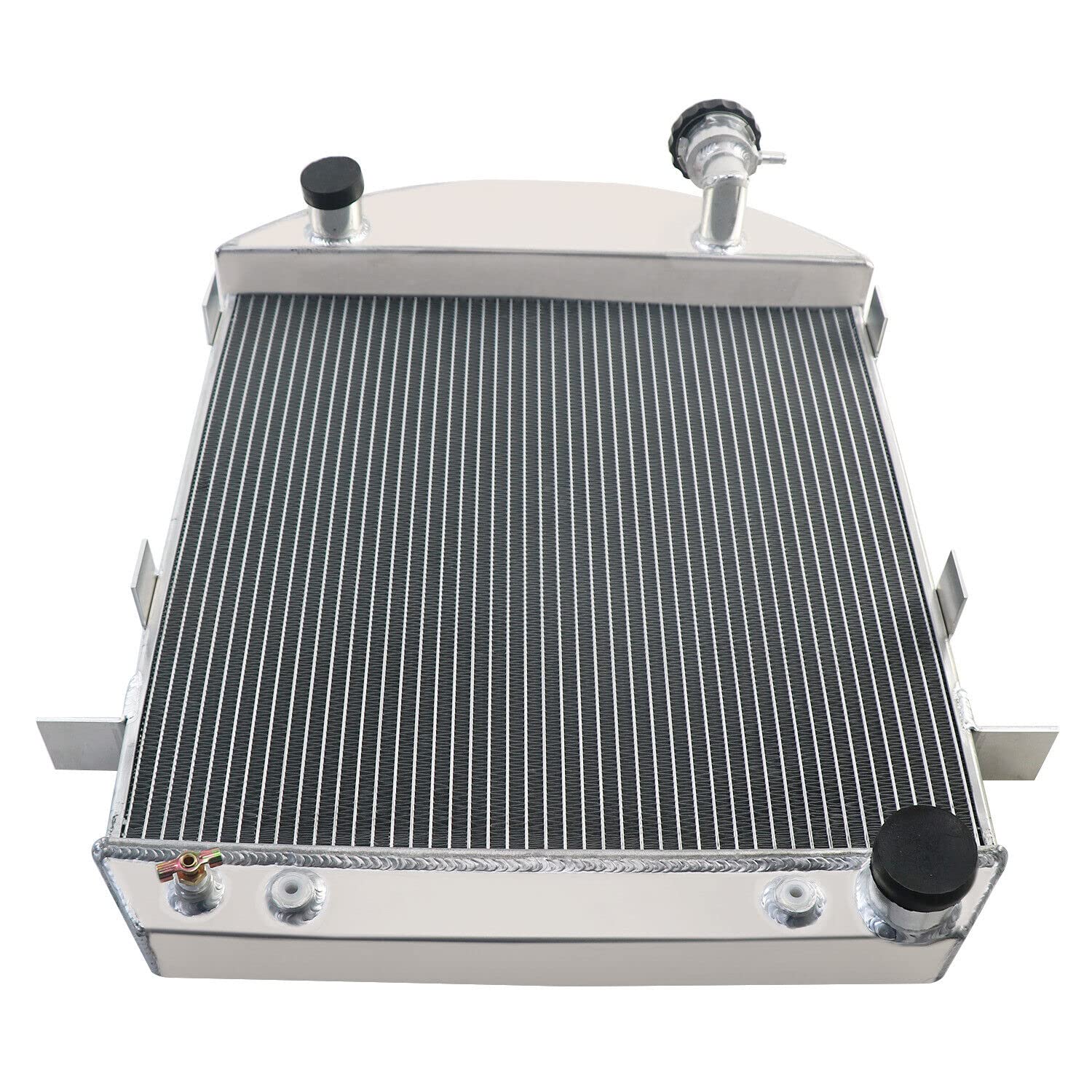

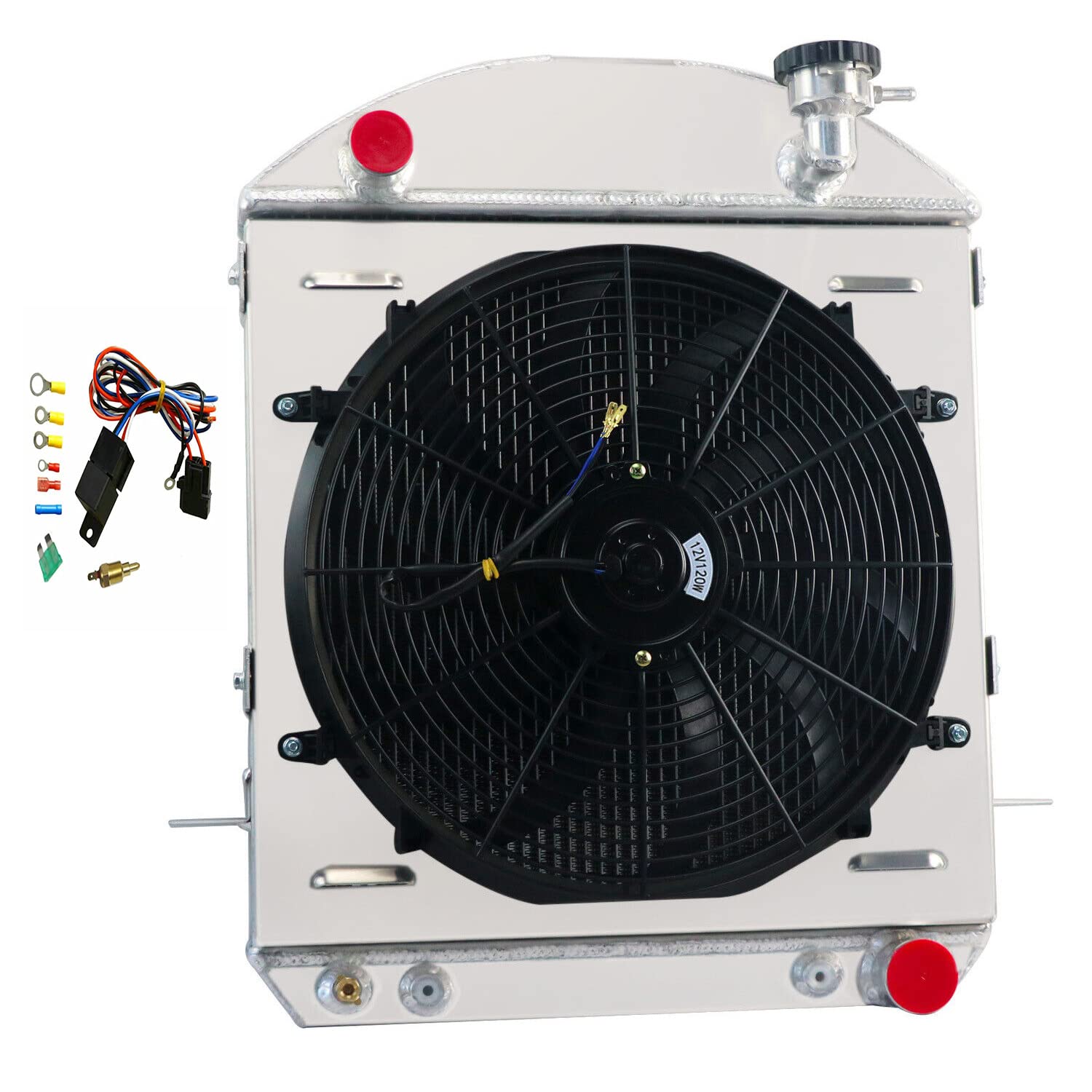

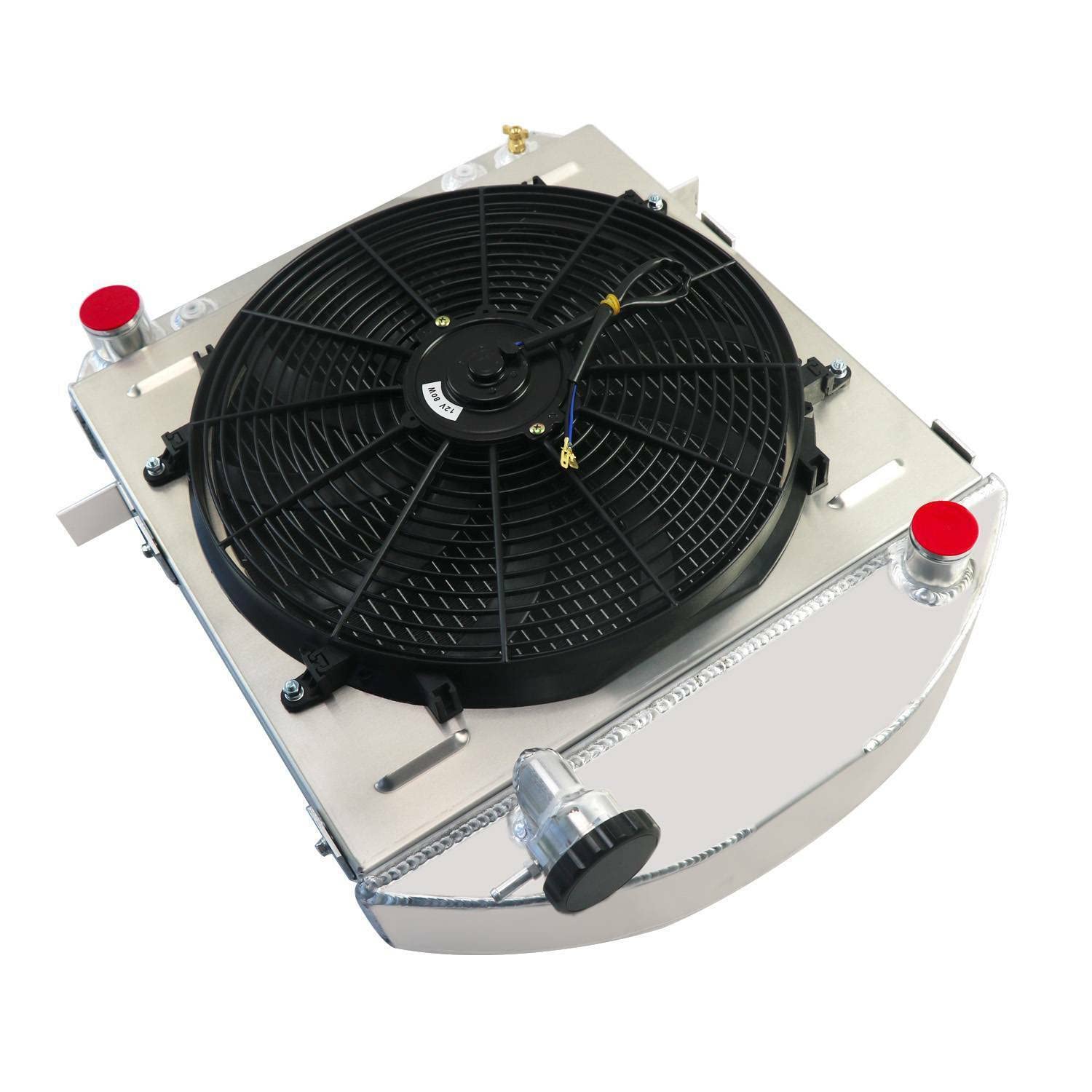

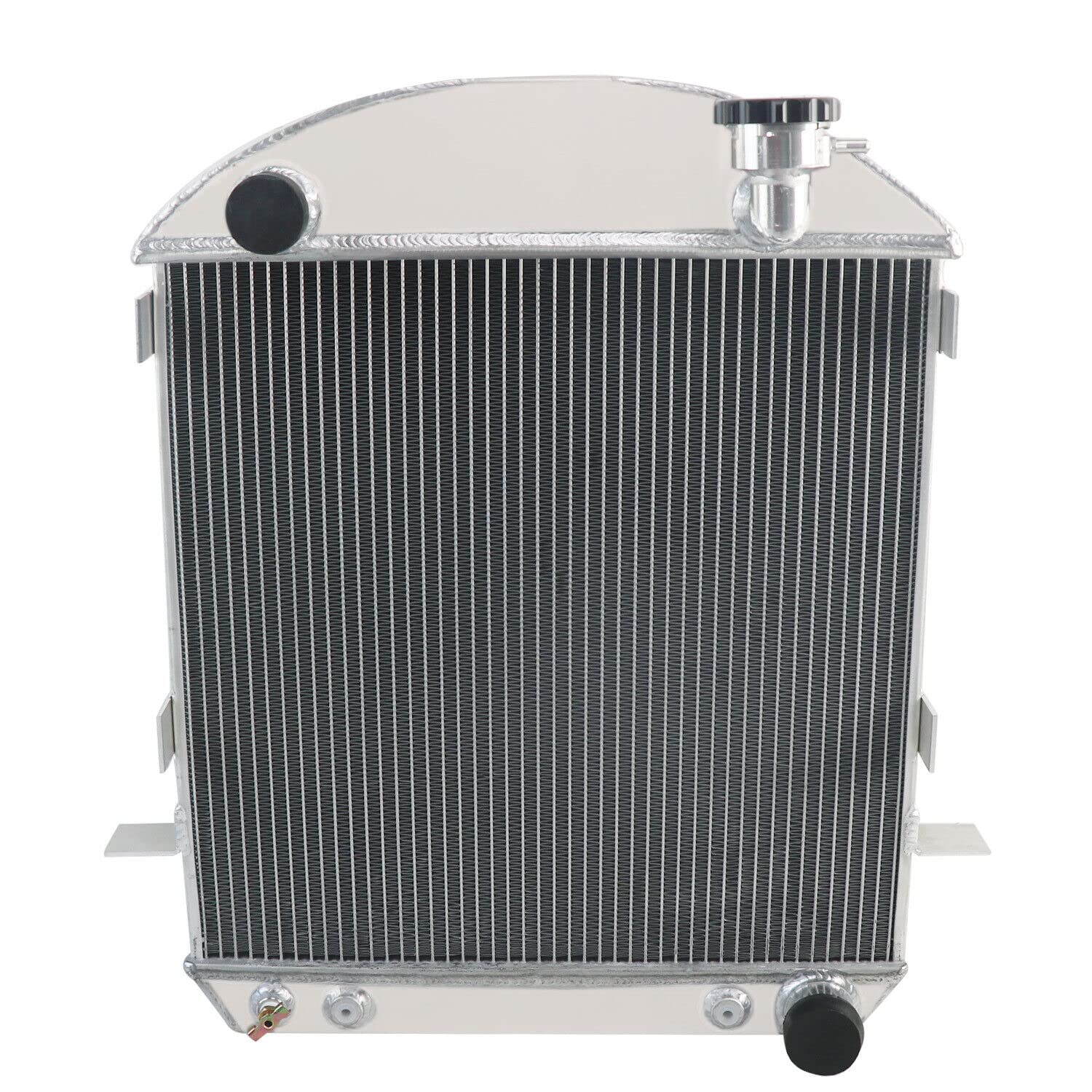

4 Row Full Aluminum Radiator with Fan Shroud & Thermostat Relay Kit - Compatible with 1917-1927 Ford Model T-Bucket & Chevy V8 Engines - Perfect for Classic Car Restoration & Hot Rod Upgrades

Product Description

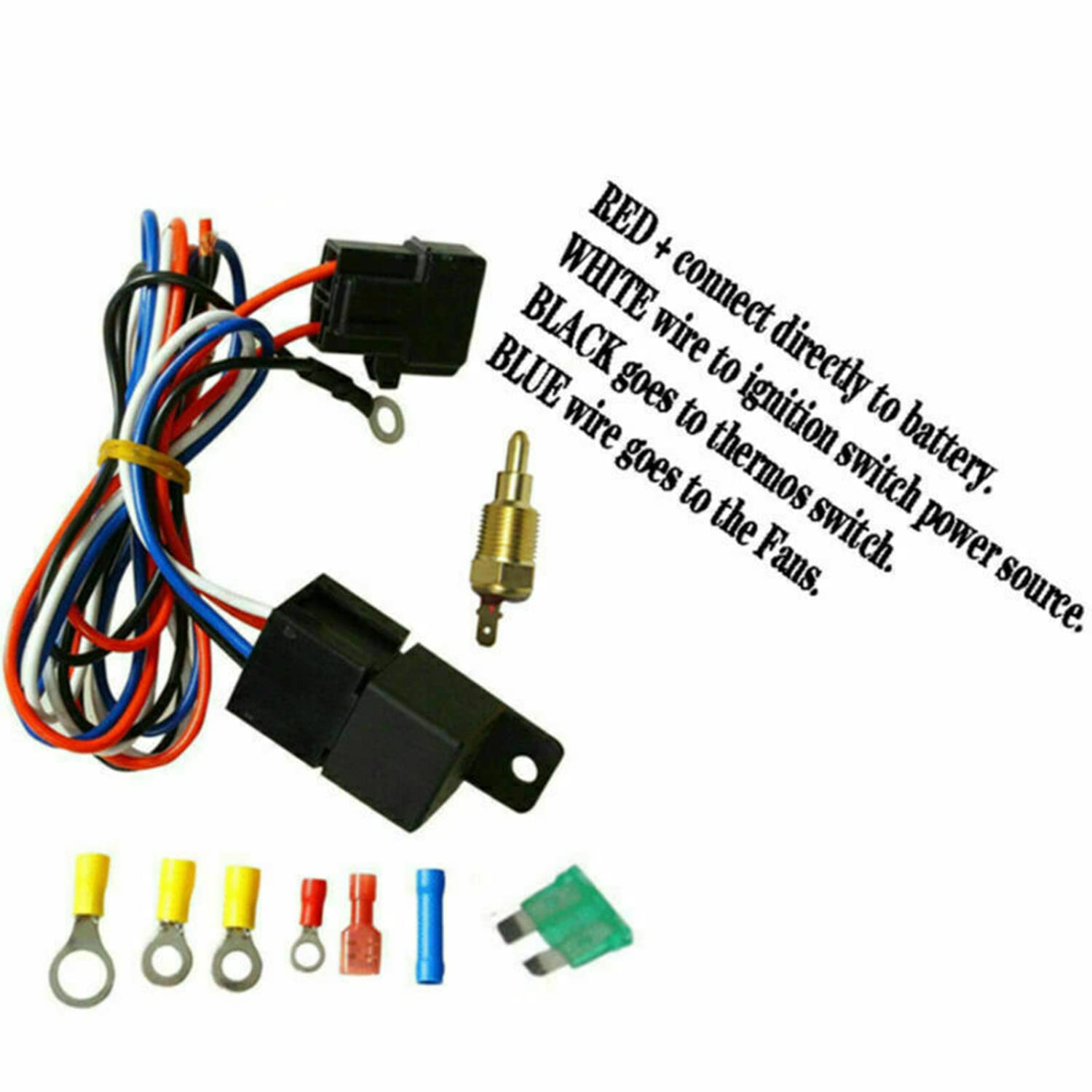

The radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. It's a lightweight construction, 100% brazed aluminum, polished end tank. The radiator showed a 20degF drop in outlet temp compared to the OEM. Every Performance Radiator is a direct OEM fit, making installation effortless, no cutting or modification is required. Radiator Size: Core Row: ( 4 Row Core) Radiator cap included Core Dimensions: 18" (H) x 18-1/2" (W) Overall Dimensions: 24" (H) x 22-1/2" (W) Inlet Location: On Driver Side Outlet Location: On Passenger Side Inlet: 1-1/2" Out: 1-3/4" OEM Style Brass Petcoke Drain CNC machined filler neck and cap Aircraft 5057 grade aluminum and with raw aluminum finish Fans Details: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans & pull air in through radiator. Radiator Fits: 1917-1927 T-Bucket with Chevy Configuration Package Include: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16" Fans (Includes mounting kits) 1 X Thermostat Relay Kit
