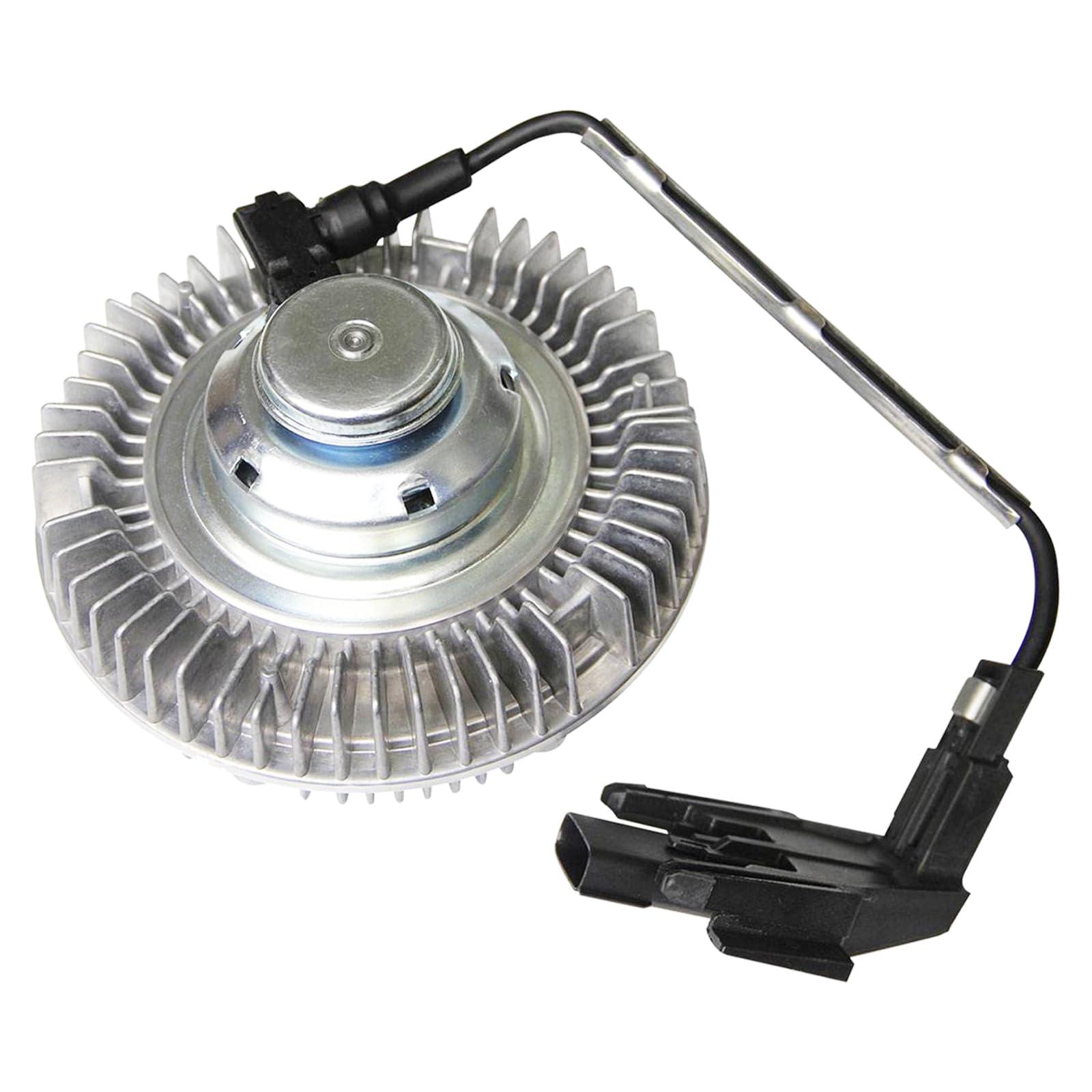

TOPAZ Automotive 3265 Premium Engine Cooling Fan Clutch for 2008-2010 Ford F-250 F-350 Super Duty Powerstroke Diesel 6.4L V8 - Heavy Duty Truck Cooling System Replacement Part for Towing & Off-Road Use

Product Description

How to inatall Electric Engine Cooling Fan Clutch? 1. Remove the bolts and push pins that attach the intake air baffle to the radiator support, then remove the baffle. (On 2002s only) 2. Disconnect the transmission cooler lines at the engine bracket and fan shroud. 3. Disconnect the electro-viscous clutch electrical connector from the shroud. 4. Remove the upper radiator hose from the radiator; be prepared for coolant spillage. 5. Remove the fan clutch hub from the water pump by turning it counterclockwise. 6. Unclip the shroud from the radiator side panels then tilt the condenser and radiator forward. This will be easier if someone assists you. 7. Remove the fan and shroud as one unit by lifting straight up as the condenser and radiator are being held in the forward position. 8. The fan can now be unbolted from the clutch, if necessary. Be sure to tighten the fan-to-clutch bolts to the torque listed in this chapter's specifications(20 Ft.-lb.) 9. Installation is reverse removal, Tighten the fan hub nut to the torque listed in this chapter's specifications(41 FT.-Lbs)! 10. Check the coolant level, adding as necessary to bring it to the appropriate level. OEM Part Numbers: 3265, 7C3Z-8A616-F, 7C3Z8A616F, 9252380, 925-2380 Electric Engine Cooling Fan Clutch Package Included: 1 x Fan Clutch Material: Aluminum Brand New
