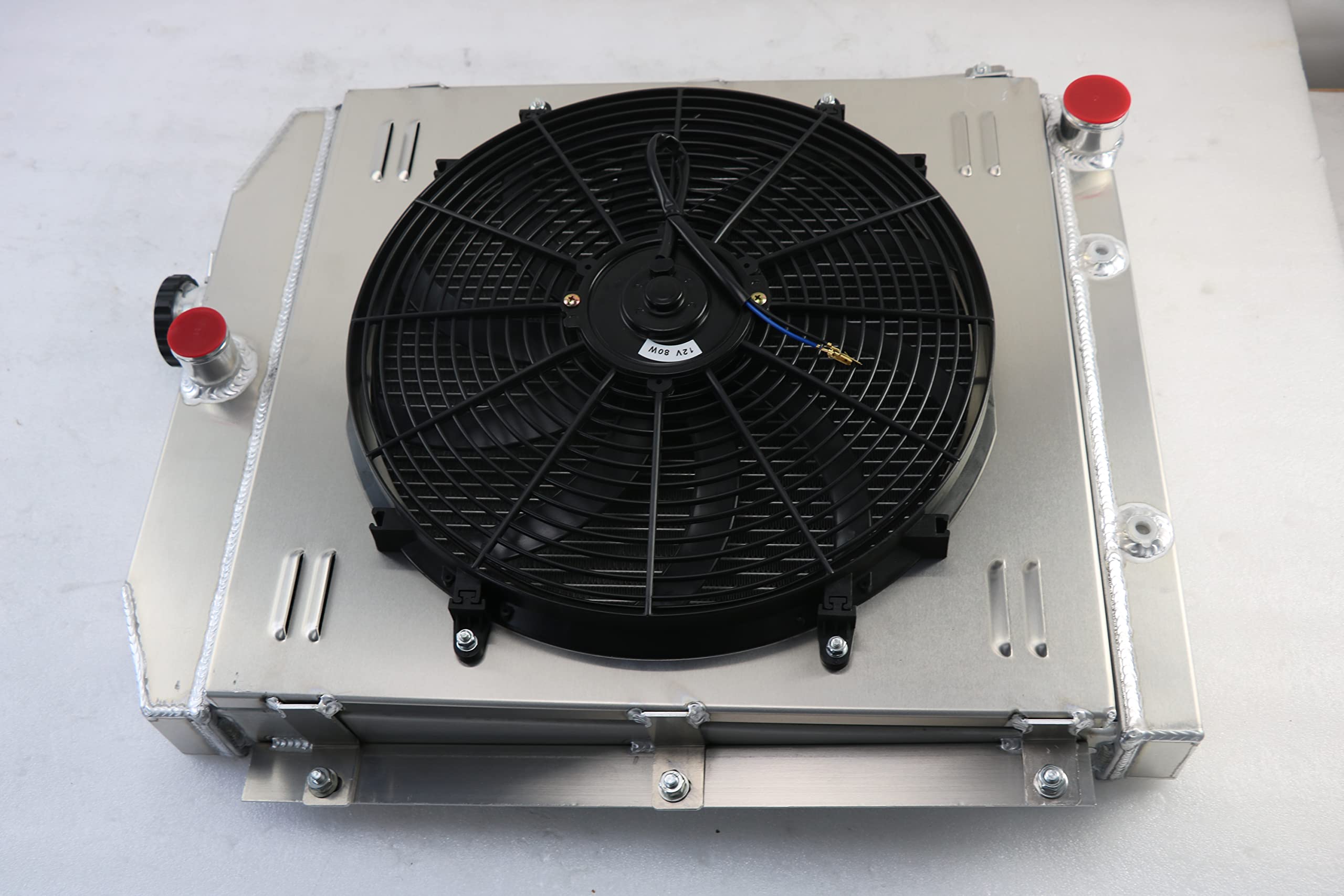

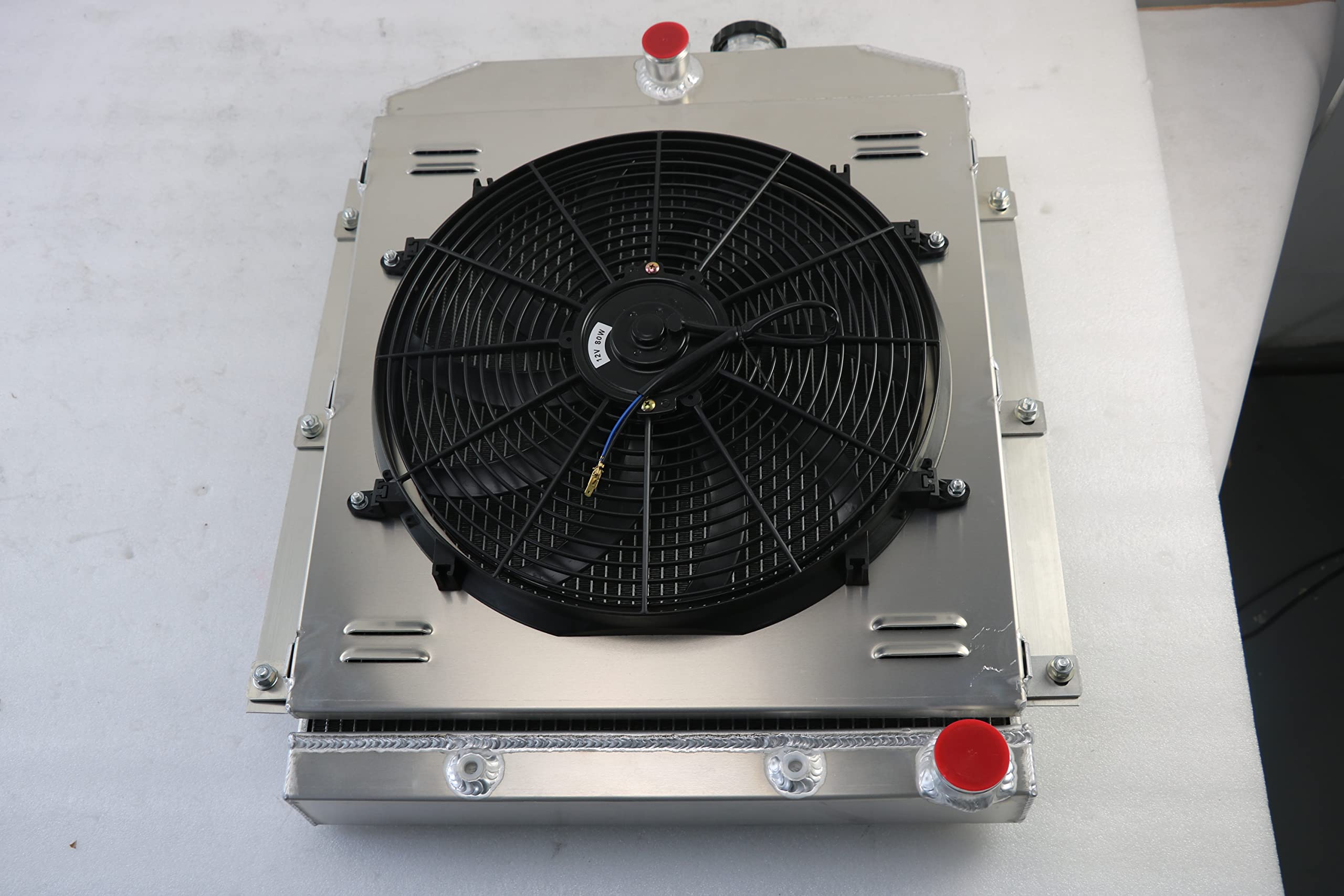

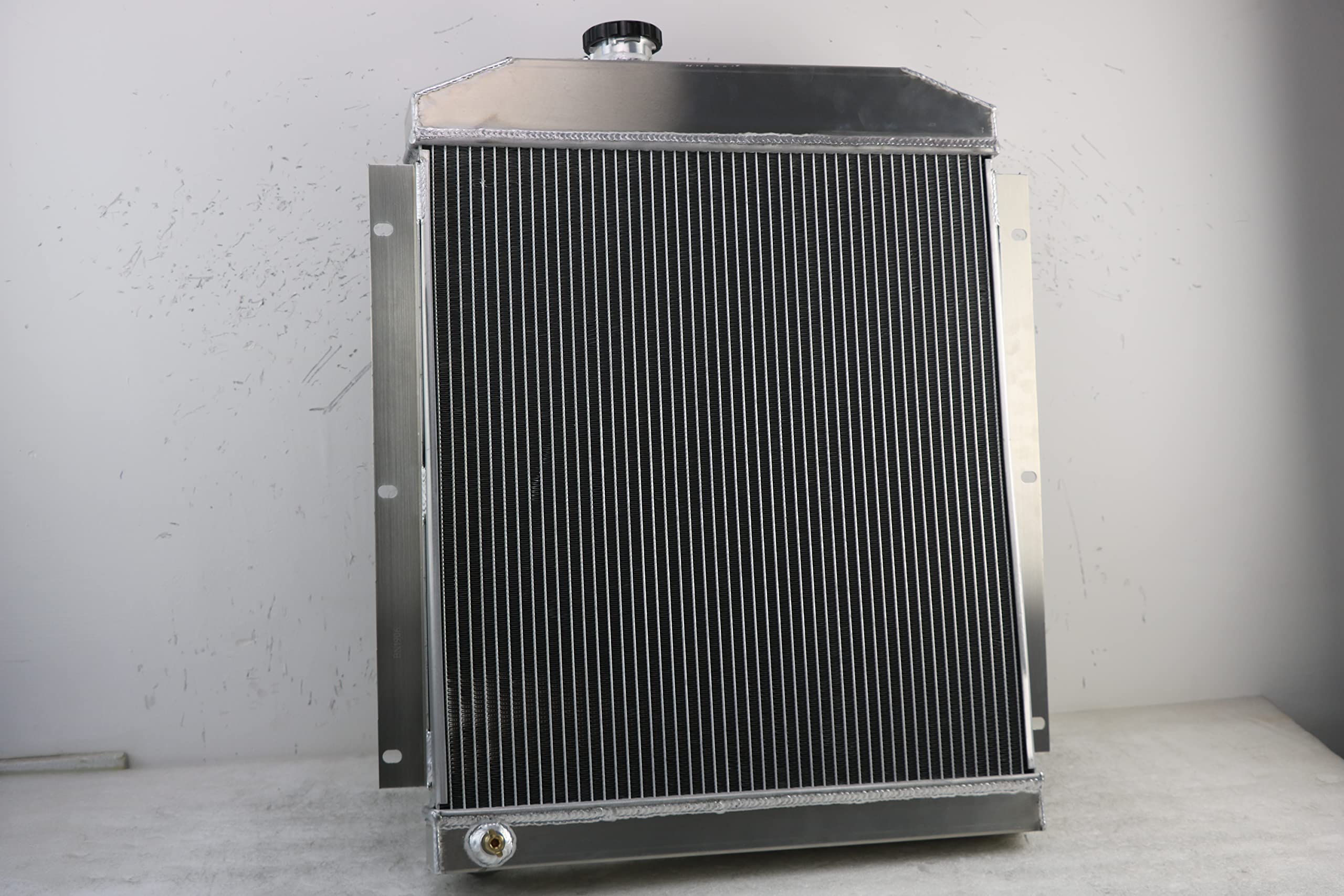

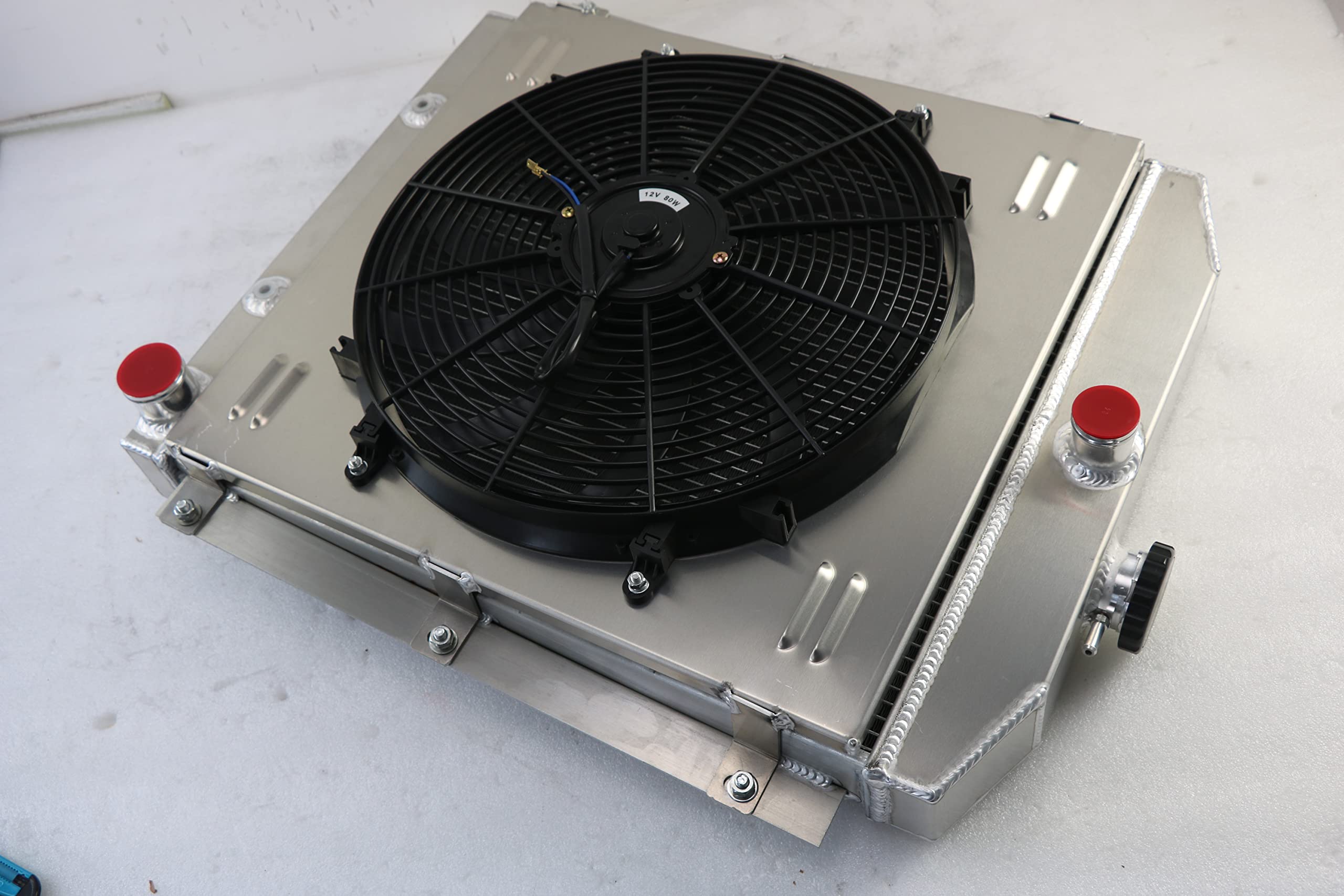

High-Performance Aluminum Radiator for 1948-1953 Chevy C/K 3100-3900 Pickup Trucks - 3.5L/3.8L/4.3L L6 Engine - 4-Row Cooling + 16" Electric Fan Shroud & Relay Kit - Perfect for Restoration & Hot Rod Upgrades

Product Description

Compatible with: 1947-1952 Chevy Fleetline Truck 1947-1948 Chevy Fleetmaster Truck 1947-1953 Chevy Truck 3.5L L6 1947-1954 Chevy Truck 3.8L L6 1954 Chevy Truck 4.3L Radiator Details: Type: 4 Core Core Thickness: 2.44" Core/ Tank Material: All Aluminum CNC Machined Filler Neck and Cap OEM Style Brass Petcock Drain With Transmission Oil Cooler Delivery: Local Delivery Fitment Type: Direct Replacement Style: Downflow FAN SPEC: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16"Fan (Includes mounting kits) 1 X Thermostat Relay Kit If you need detailed installation instructions for fans and relays, please feel free to contact me! MotoCooling Radiador: 1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently. Make your engine bay perfect! 2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material. 3. Additional with thermostat,professional matching advice, consider for every detail and needed.
