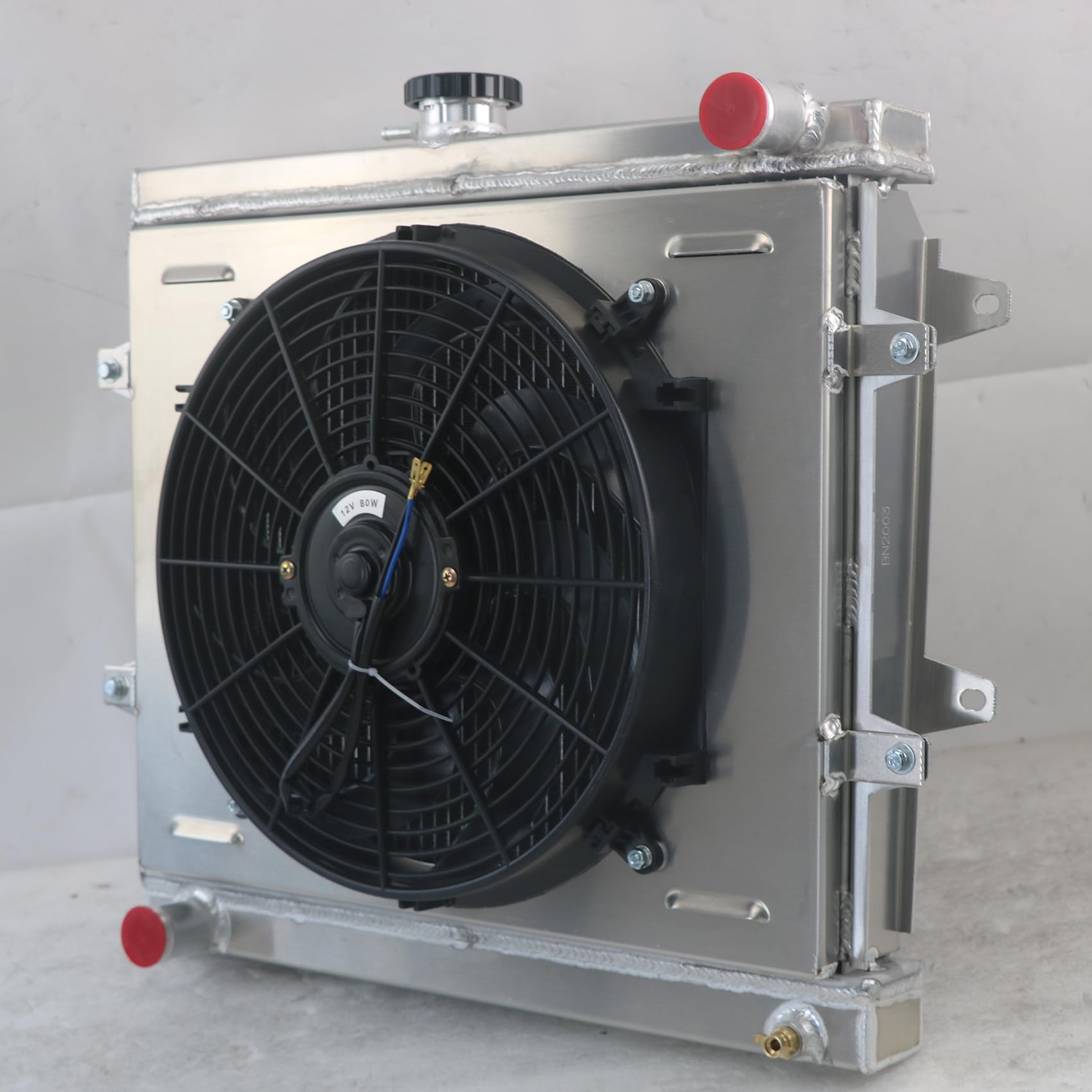

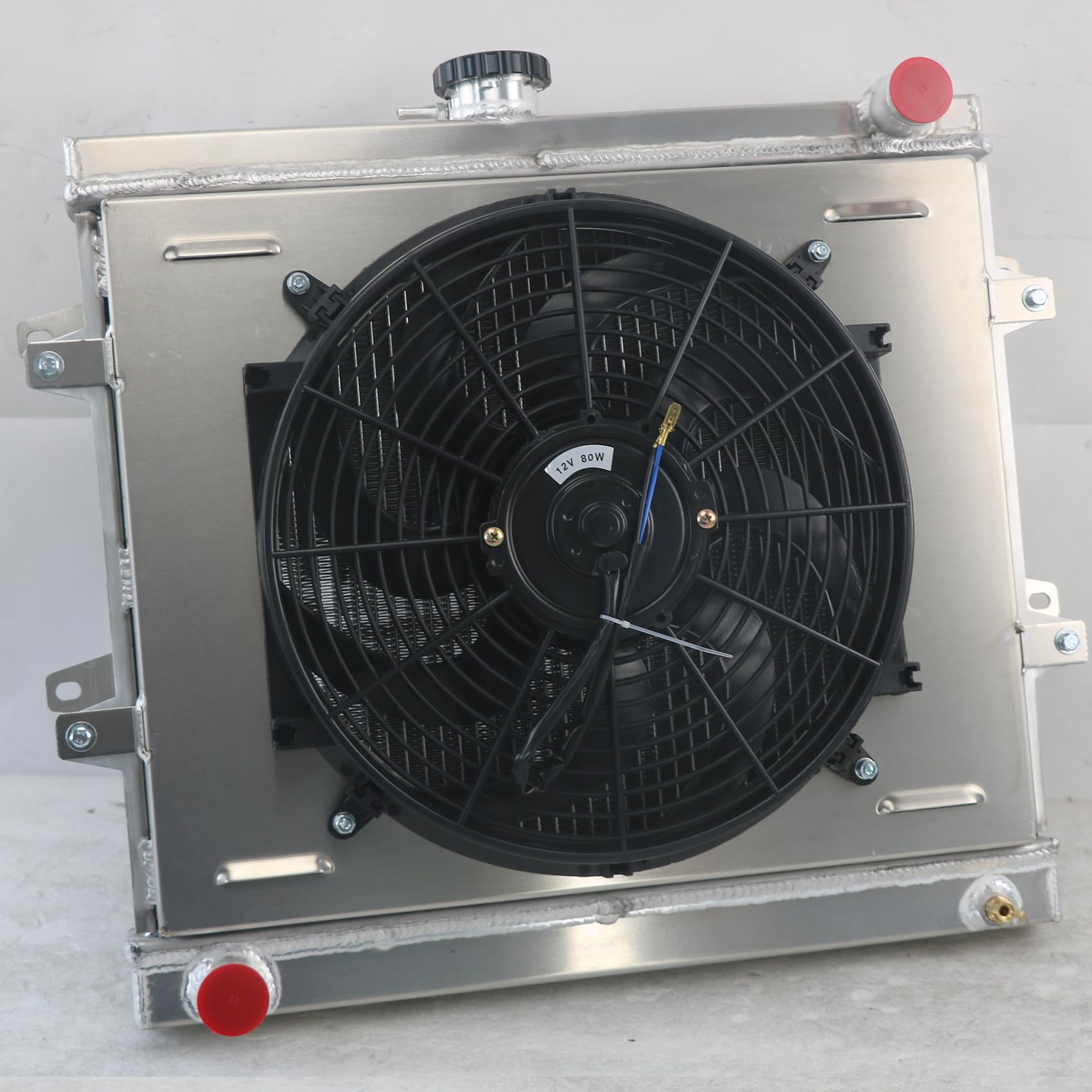

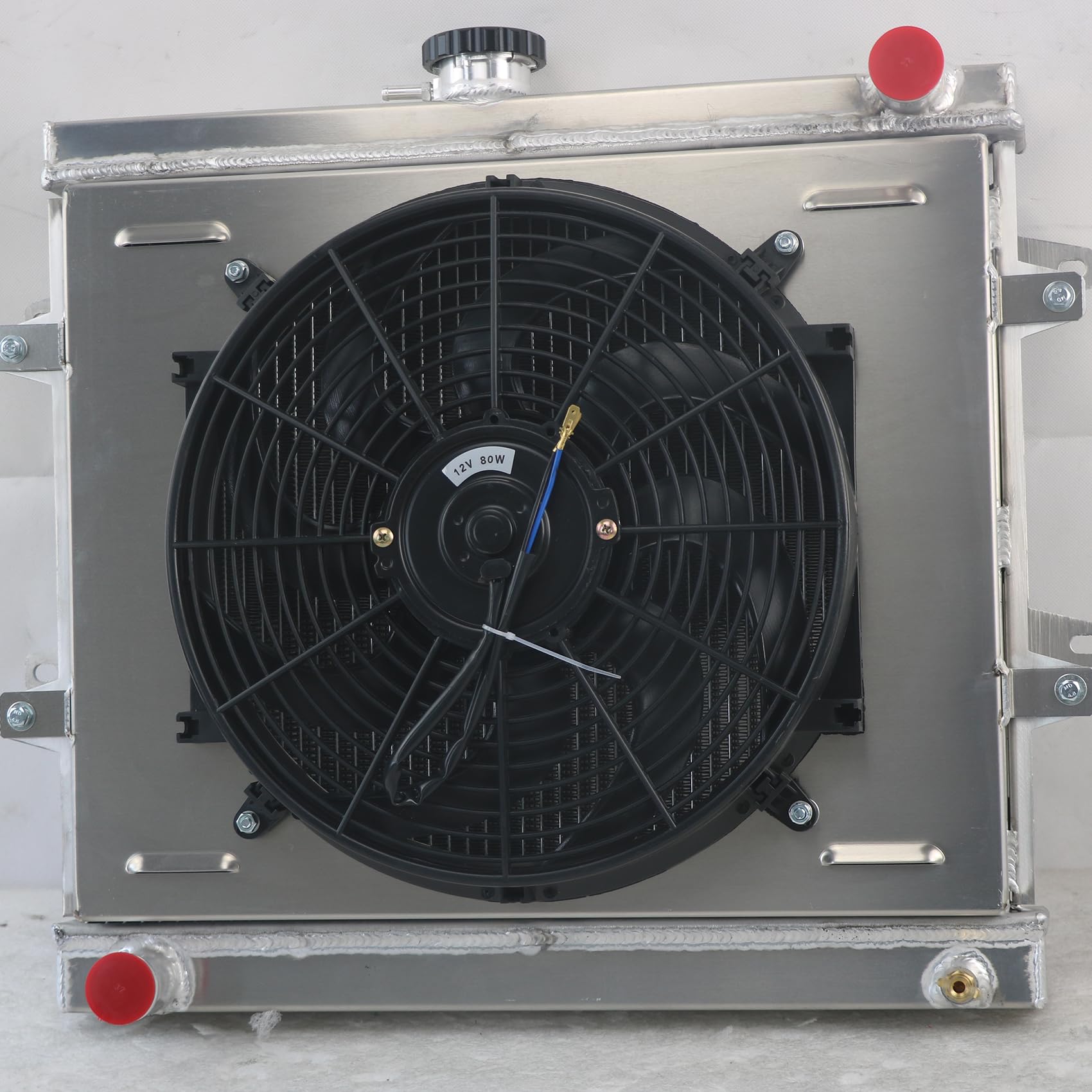

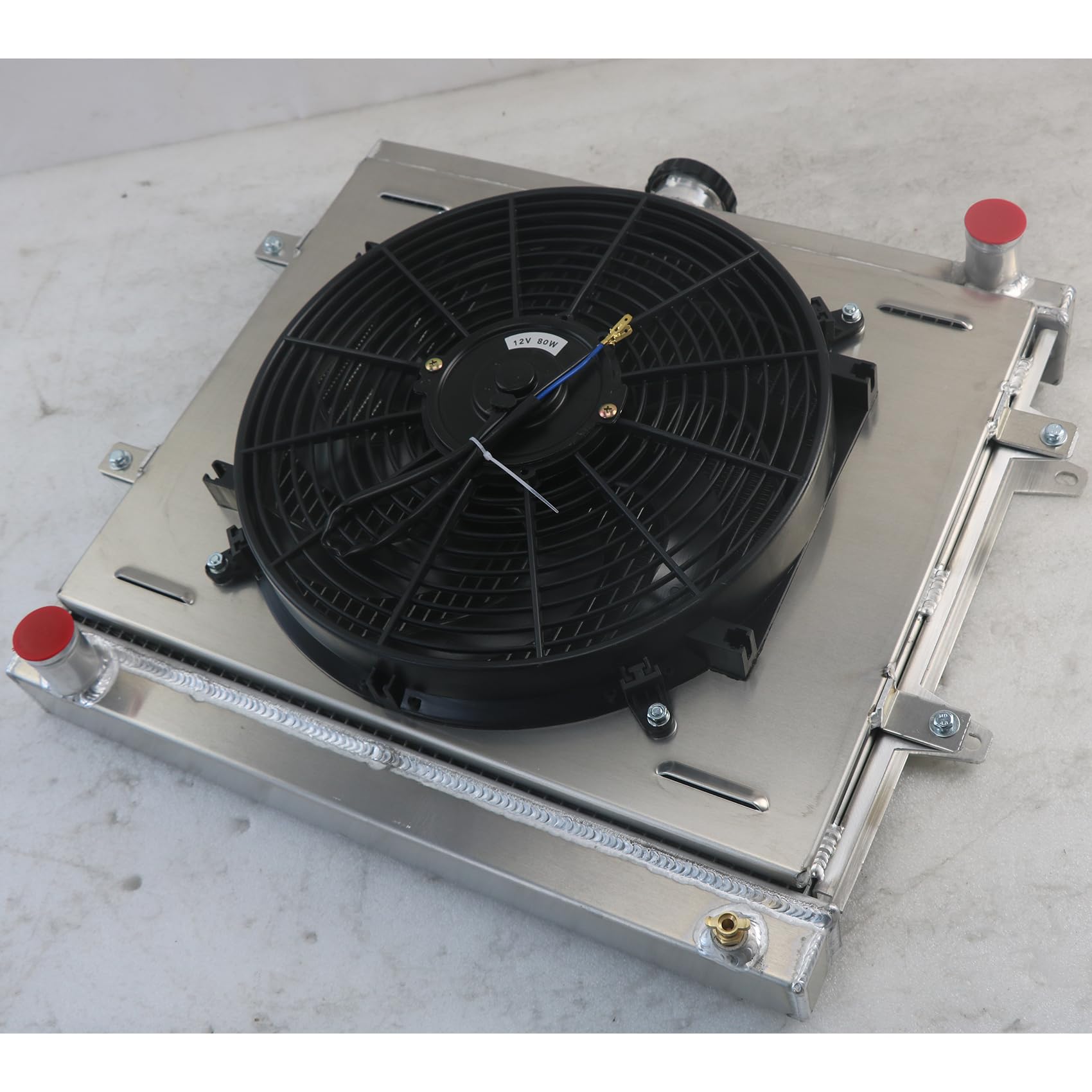

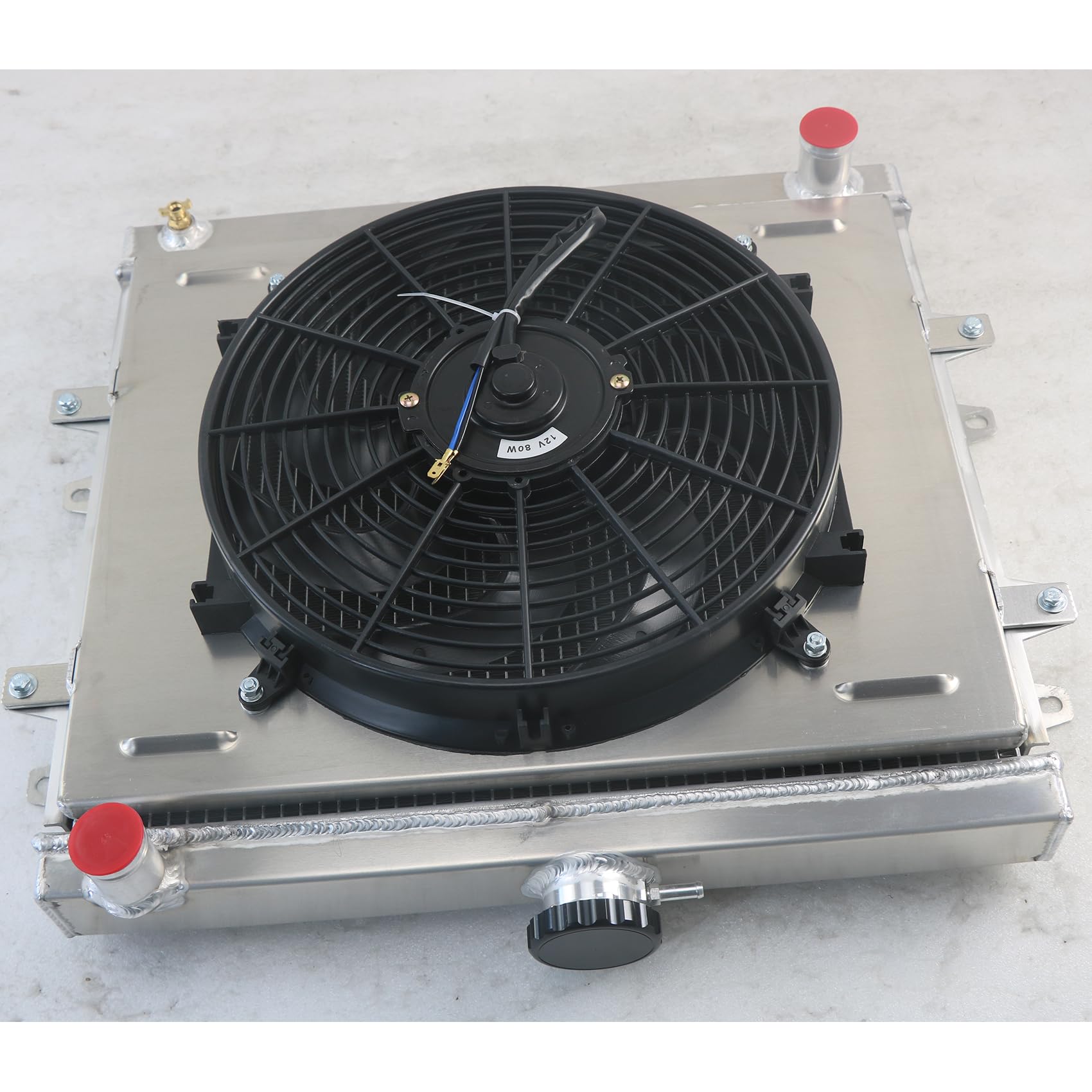

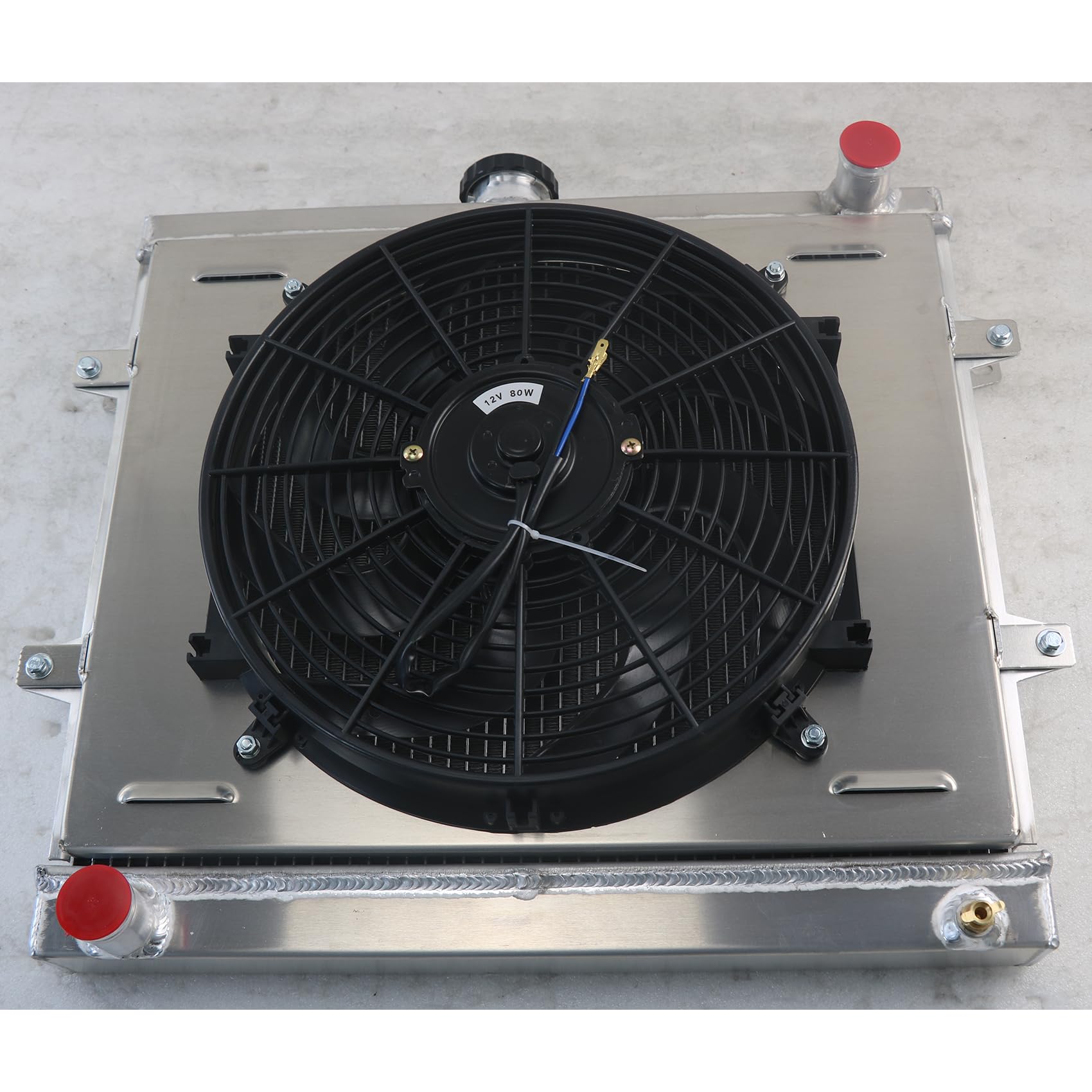

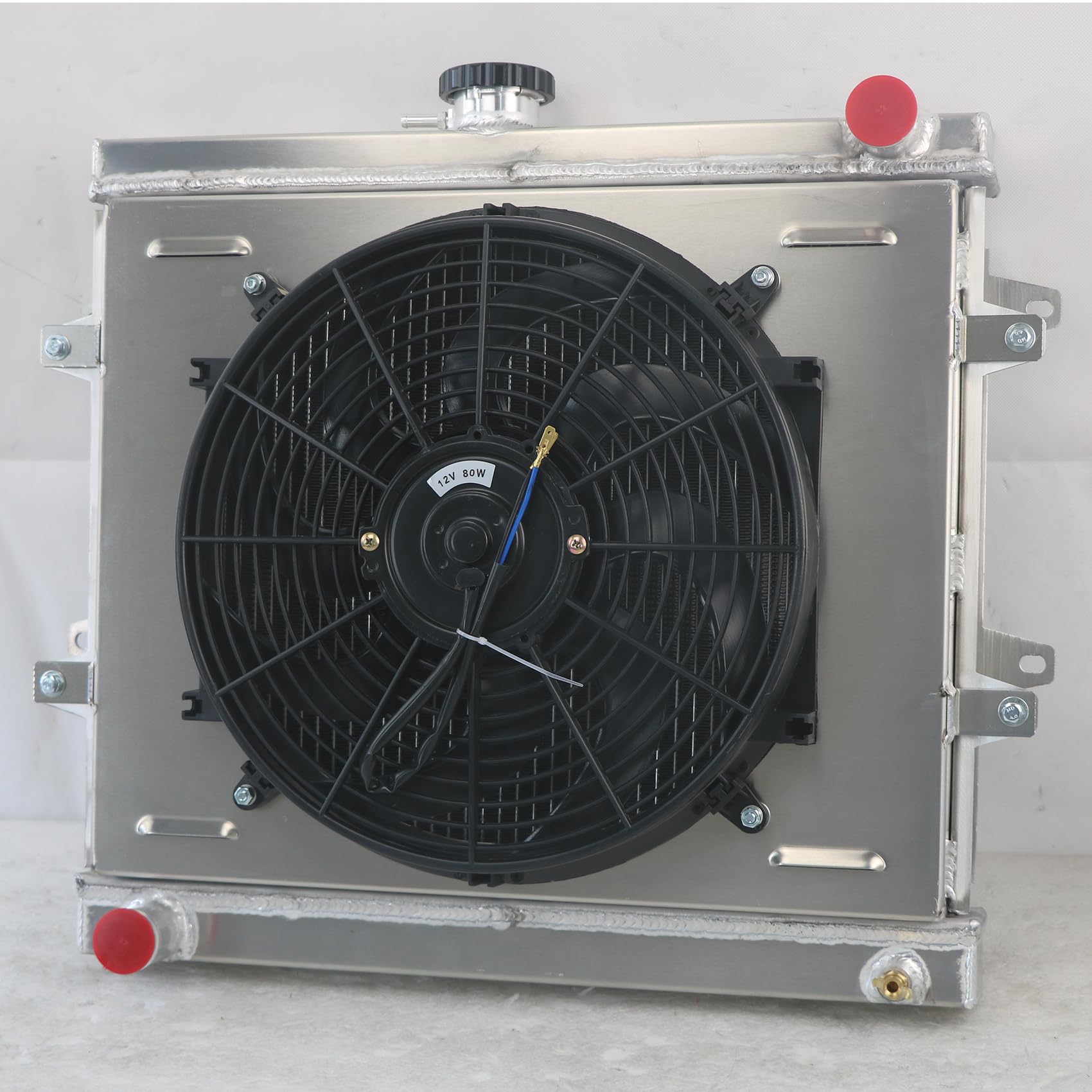

High-Performance Aluminum Radiator for Toyota 4Runner & Pickup 2.4L L4 (1984-1995) - 3-Row Cooling System with 14" Fan, Shroud & Thermostat Relay Kit - Perfect for Off-Roading, Towing & Hot Climate Driving

Product Description

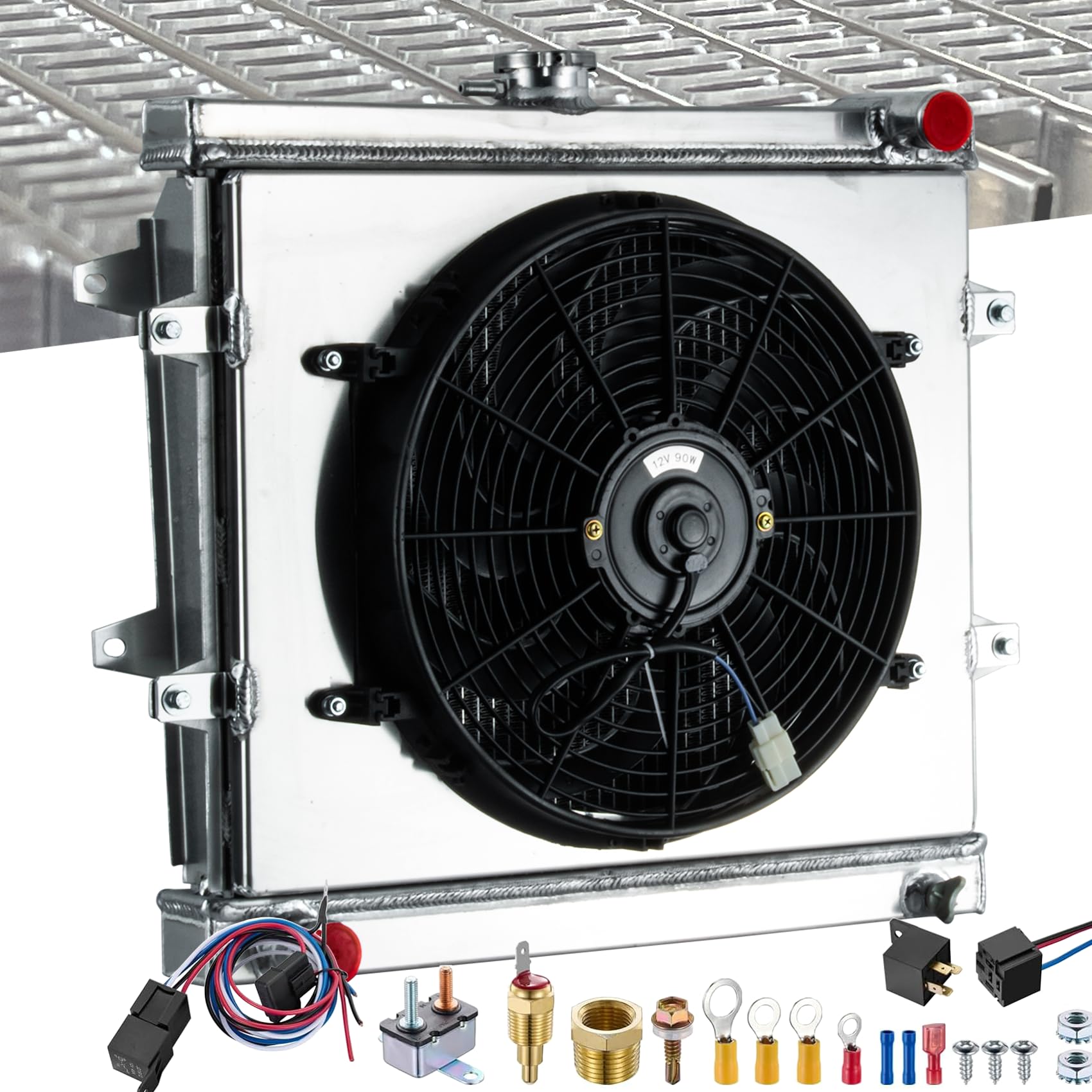

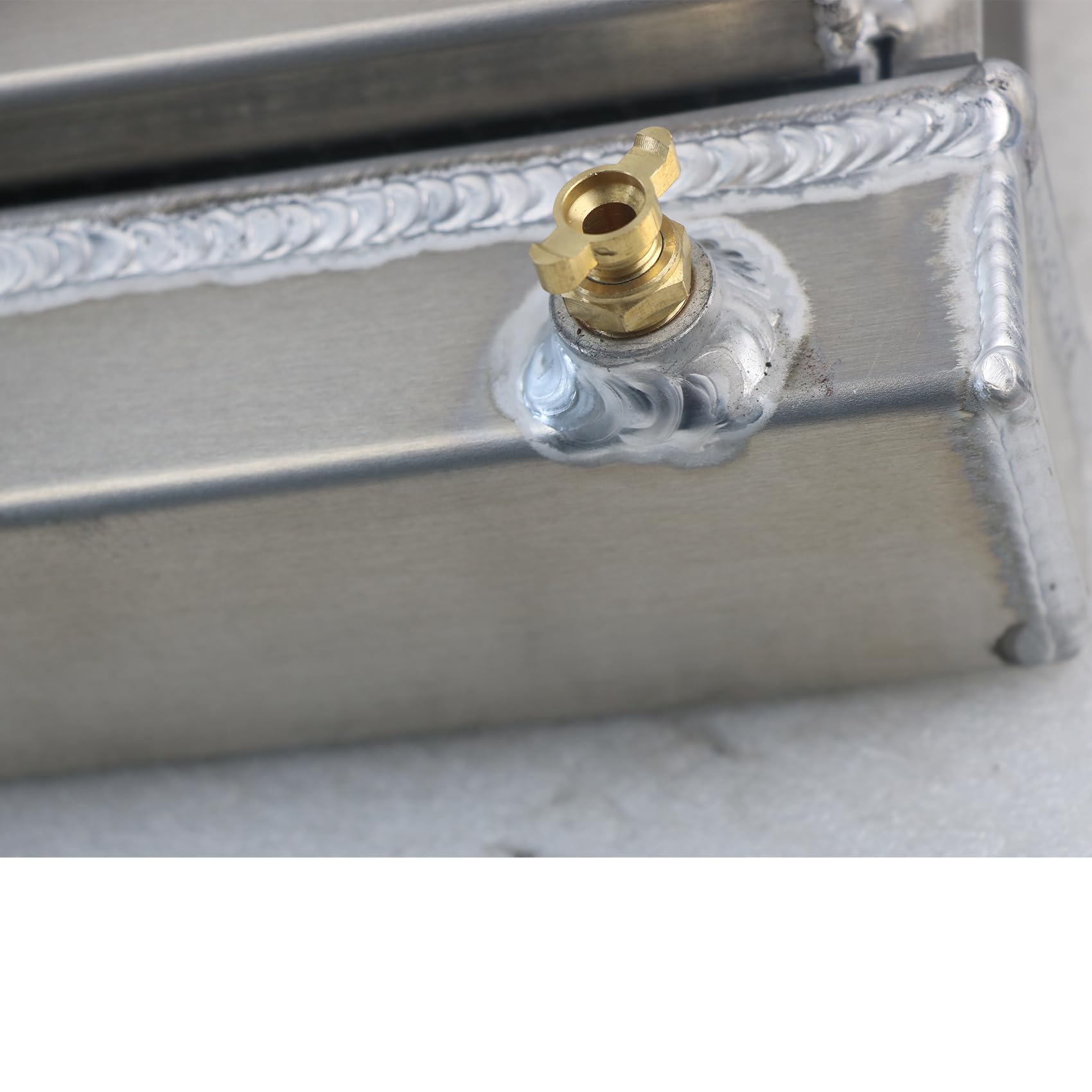

Radiator Specifics: Condition: 100% Brand New Material: Aircraft T-5052 grade aluminum tank & core Row: 3 Row Core Size: 15.7'' H x 19.2'' W x 1.73'' Thickness Overall Size: 20.5''H x 23.4''W x 6.3'' T Top Hose Location & Size: Passenger 1.3 inch Bottom Hose Location & Size: Driver 1.3 inch OEM Style Brass Petcock Drain CNC Machined Filler Neck and Cap Fan Spec: Maximum Fan CFM: 2200±200 FAN Diameter: 14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1992-1995 Toyota 4Runner SR5 L4 2.4L 1984-1995 Toyota Pickup Base L4 2.4L 1984-1995 Toyota Pickup DLX L4 2.4L 1986-1987 Toyota Pickup LN55 DLX L4 2.4L 1987 Toyota Pickup LN67 L4 2.4L 1986 Toyota Pickup LN76 L4 2.4L 1993 Toyota Pickup RN02 L4 2.4L 1985 Toyota Pickup RN60 L4 2.4L 1986-1987 Toyota Pickup RN63 L4 2.4L 1984-1990 Toyota Pickup SR5 L4 2.4L PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized.
