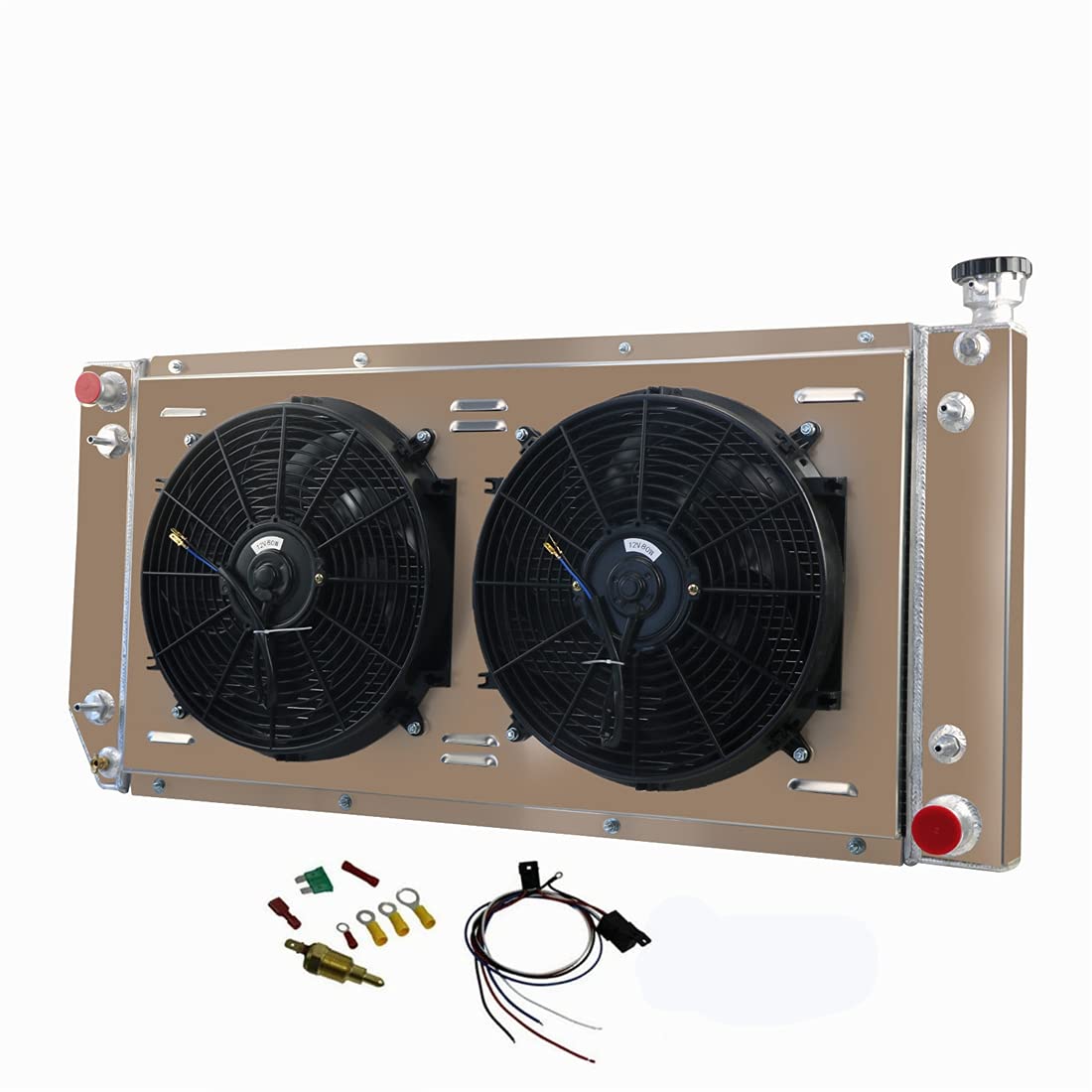

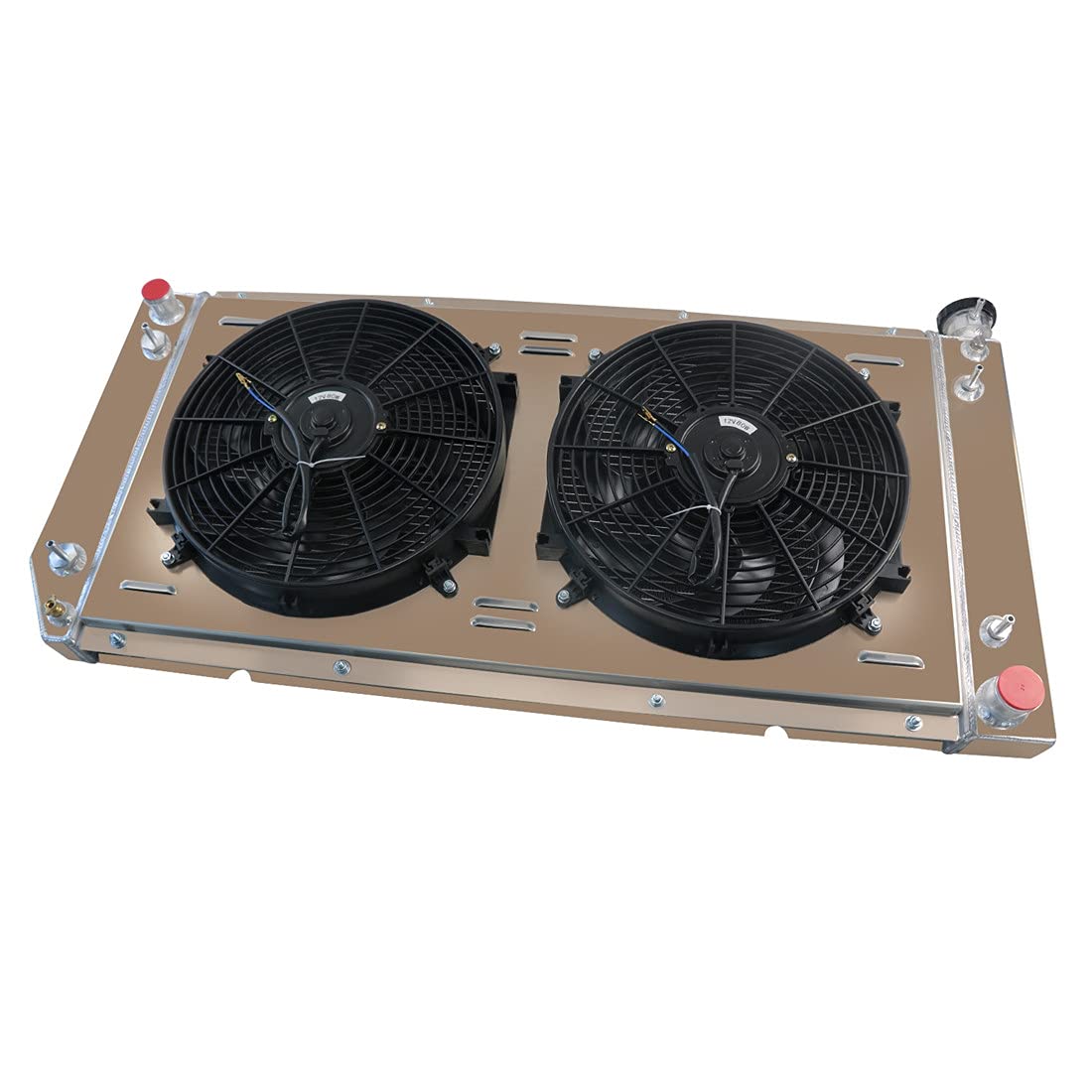

88-99 Chevy/GMC C/K 1500 2500 3500 34" 3 Row Full Aluminum Radiator with Fan Shroud & Thermostat Relay Kit for 5.7L-7.4L V8 Engines - Heavy Duty Cooling Upgrade for Towing & Off-Road Use

Product Description

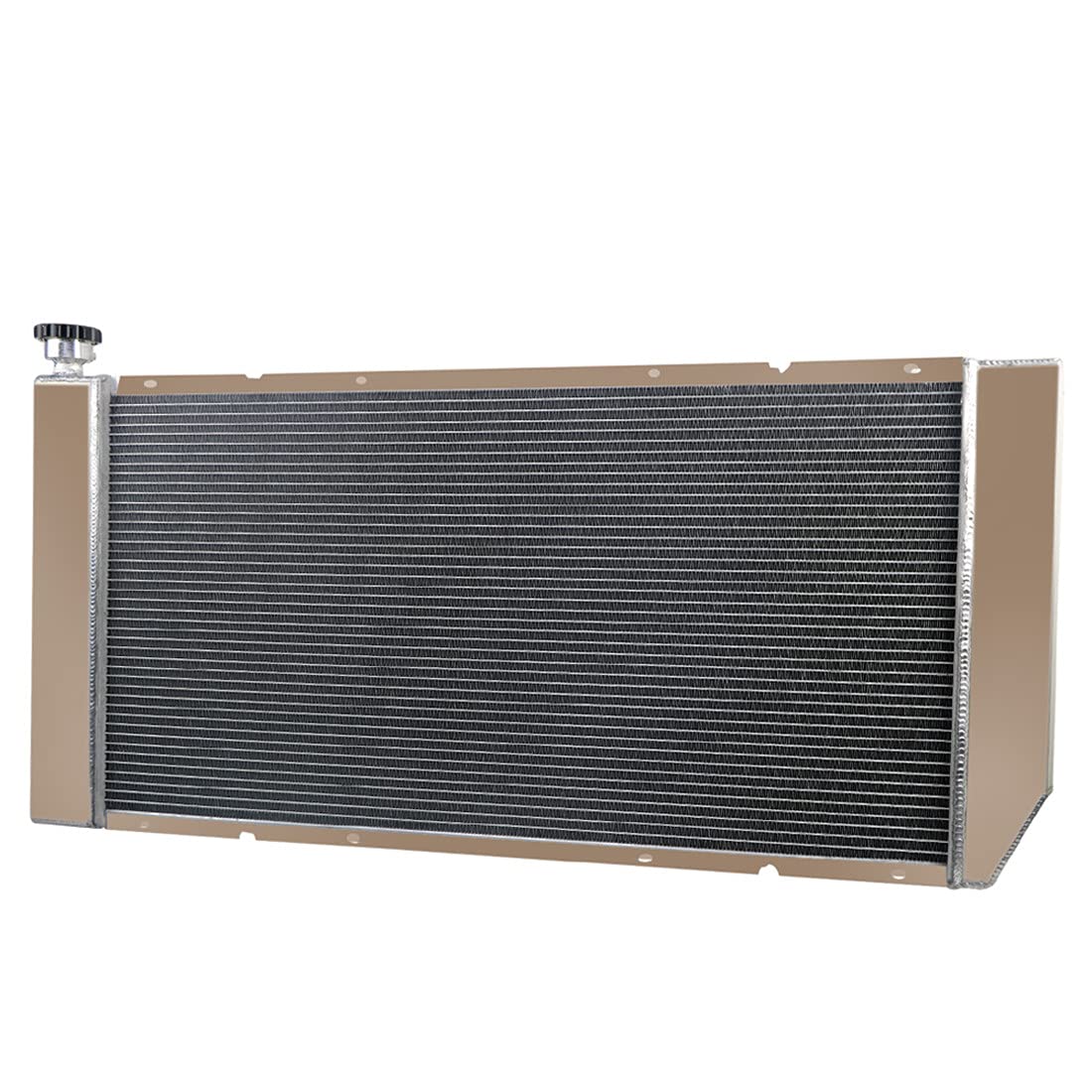

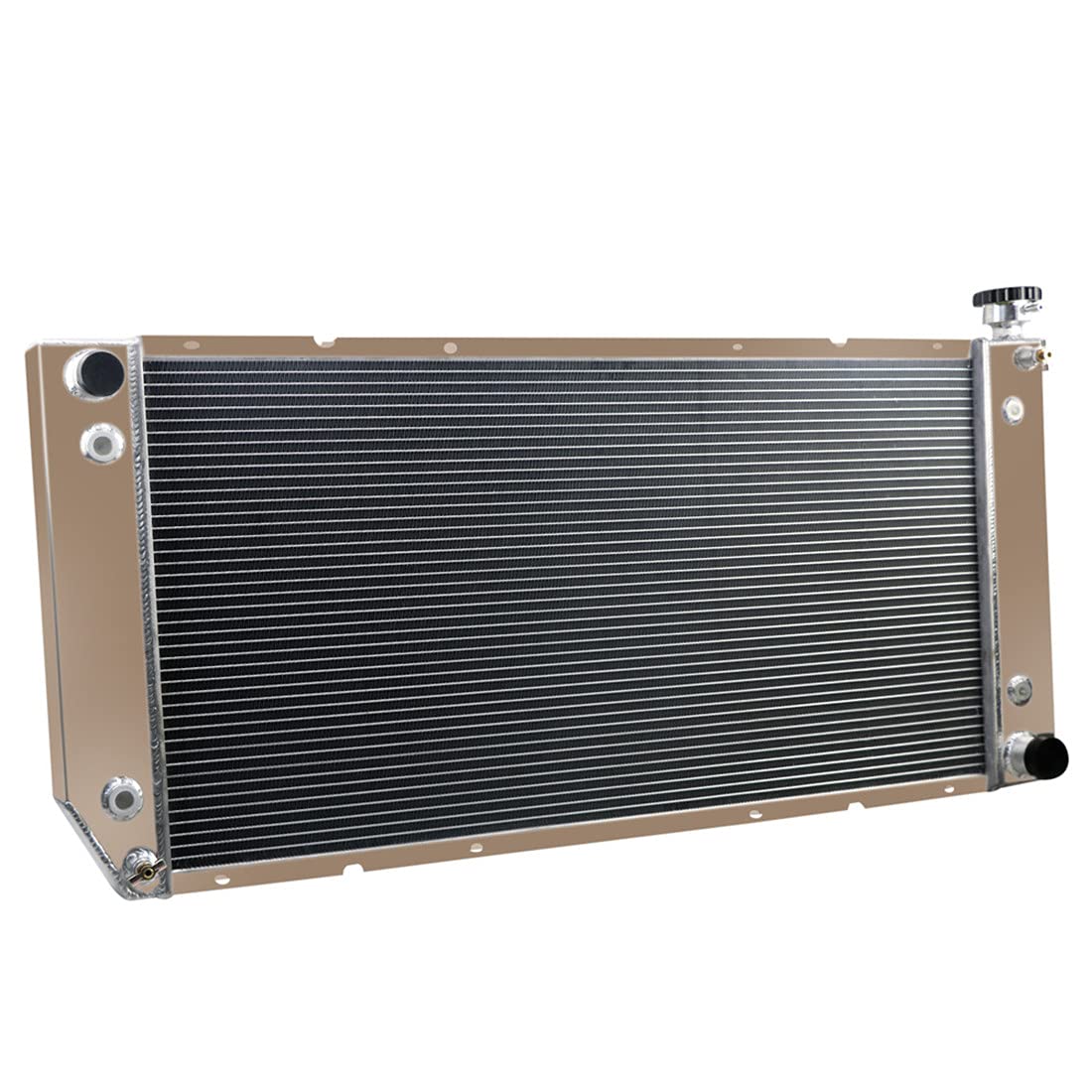

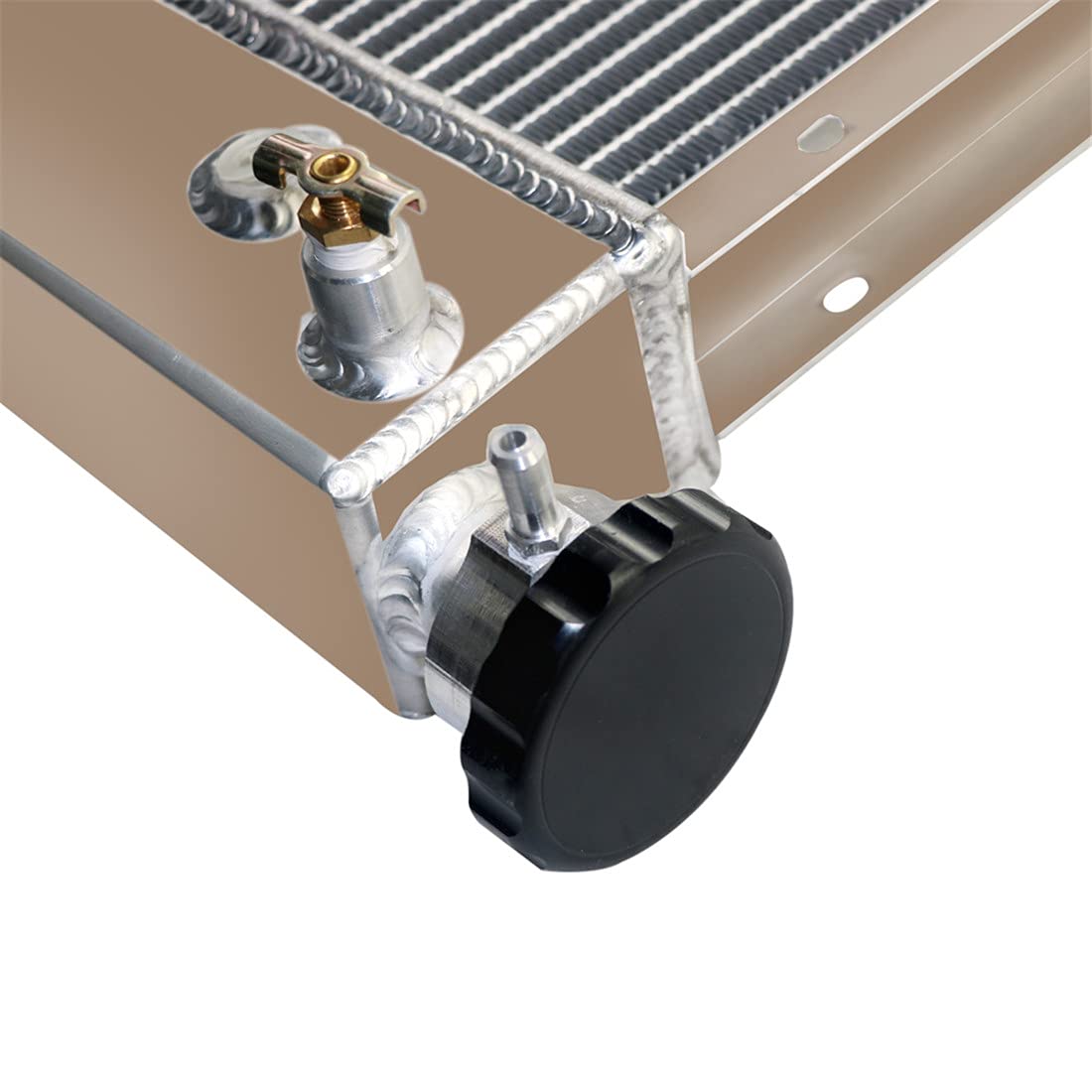

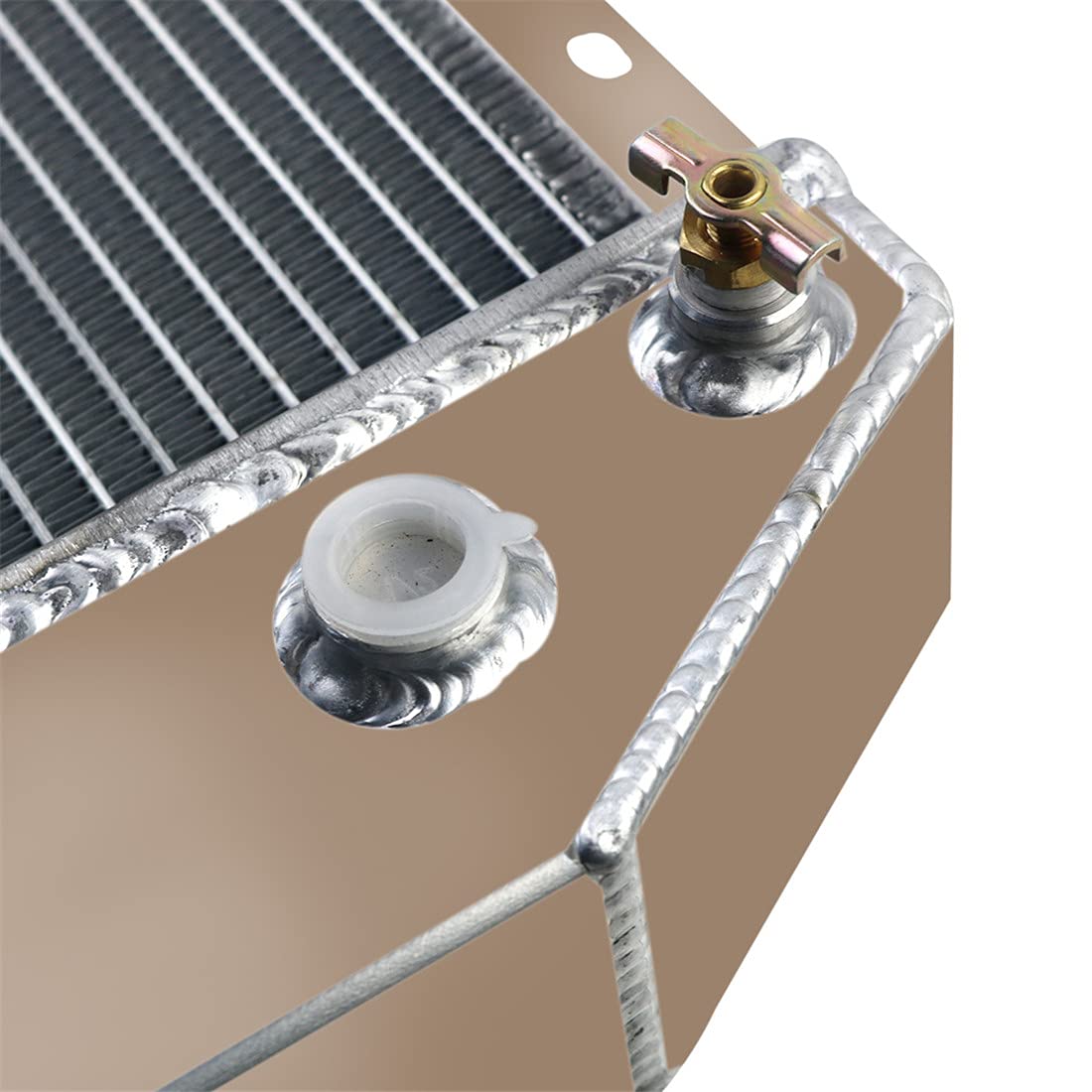

The radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. It's a lightweight construction, 100% brazed aluminum, polished end tank. The Prime Cooling radiator showed a 20degF drop in outlet temp compared to the OEM. Every Prime Cooling Performance Radiator is a direct OEM fit, making installation effortless, no cutting or modification is required. RADIATOR SIZE: Material:Full Aluminium High Performance Racing Spec. 3-Row of tubes Core Racing Design Core Dimensions: 34" Wide X 17 1/4" High Overall Dimensions: 40 5/8 " Wide X 20 3/8" High Tank Dimensions: 3 1/4" X 18 1/2" Inlet Hose Connection:1 5/16" Driver Side Outlet Hose Connection:1 9/16" Passenger Side Transmission Cooler: YES Engine Oil Cooler: YES CNC Precision Machined Radiator Cap OEM Style Brass Petcock Drain. Fans Details: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 8.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 14" Fans (Includes mounting kits) 1 X Thermostat Relay Kit
