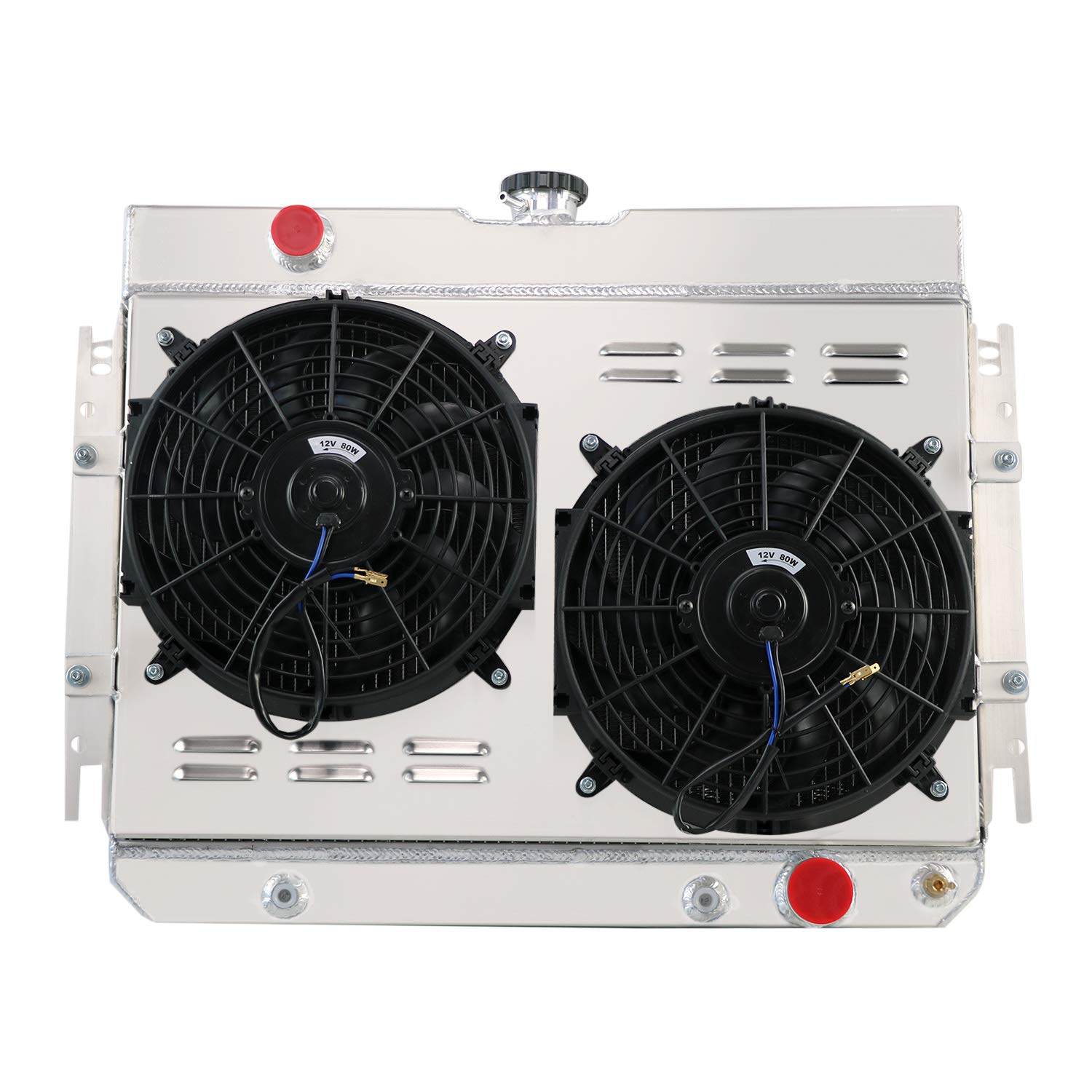

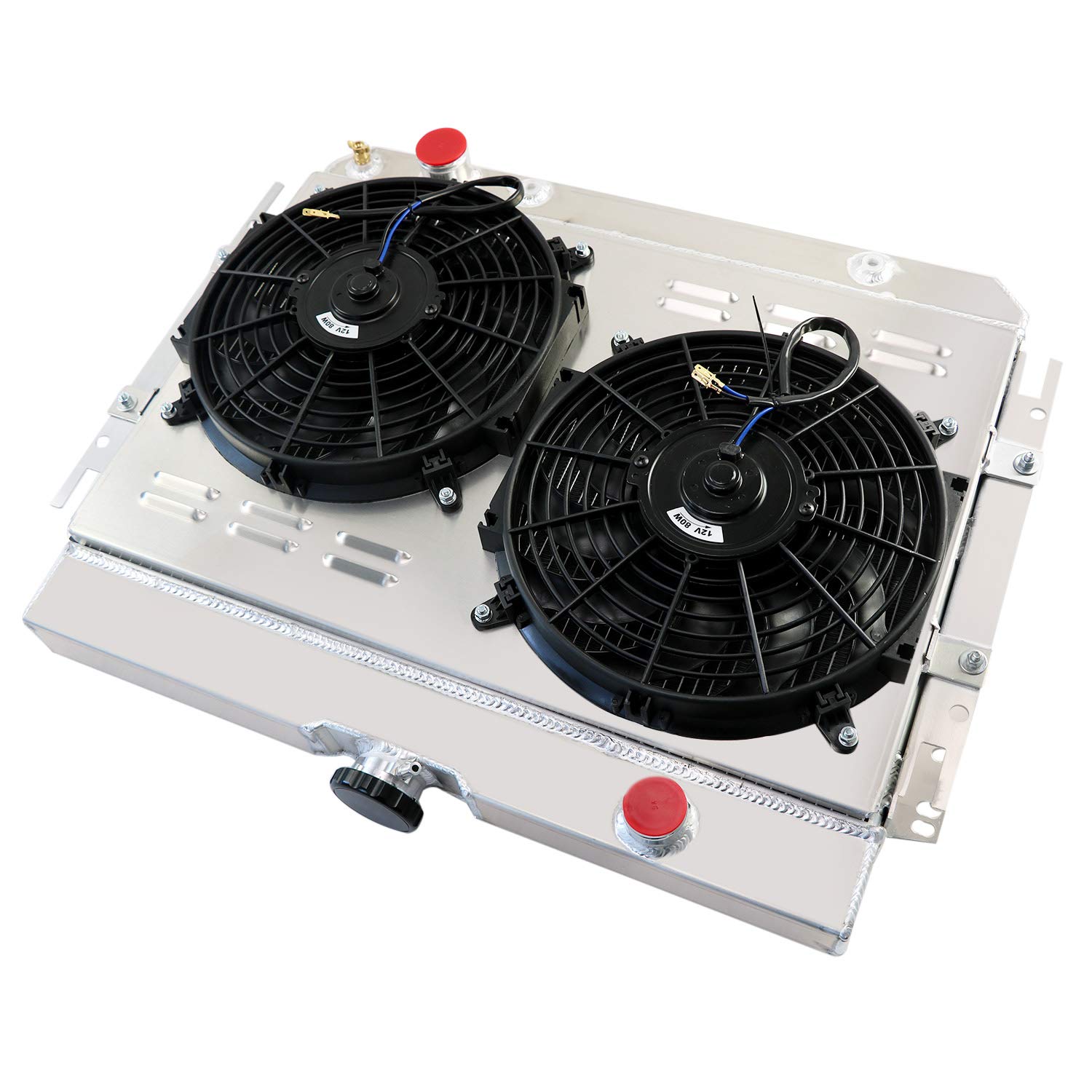

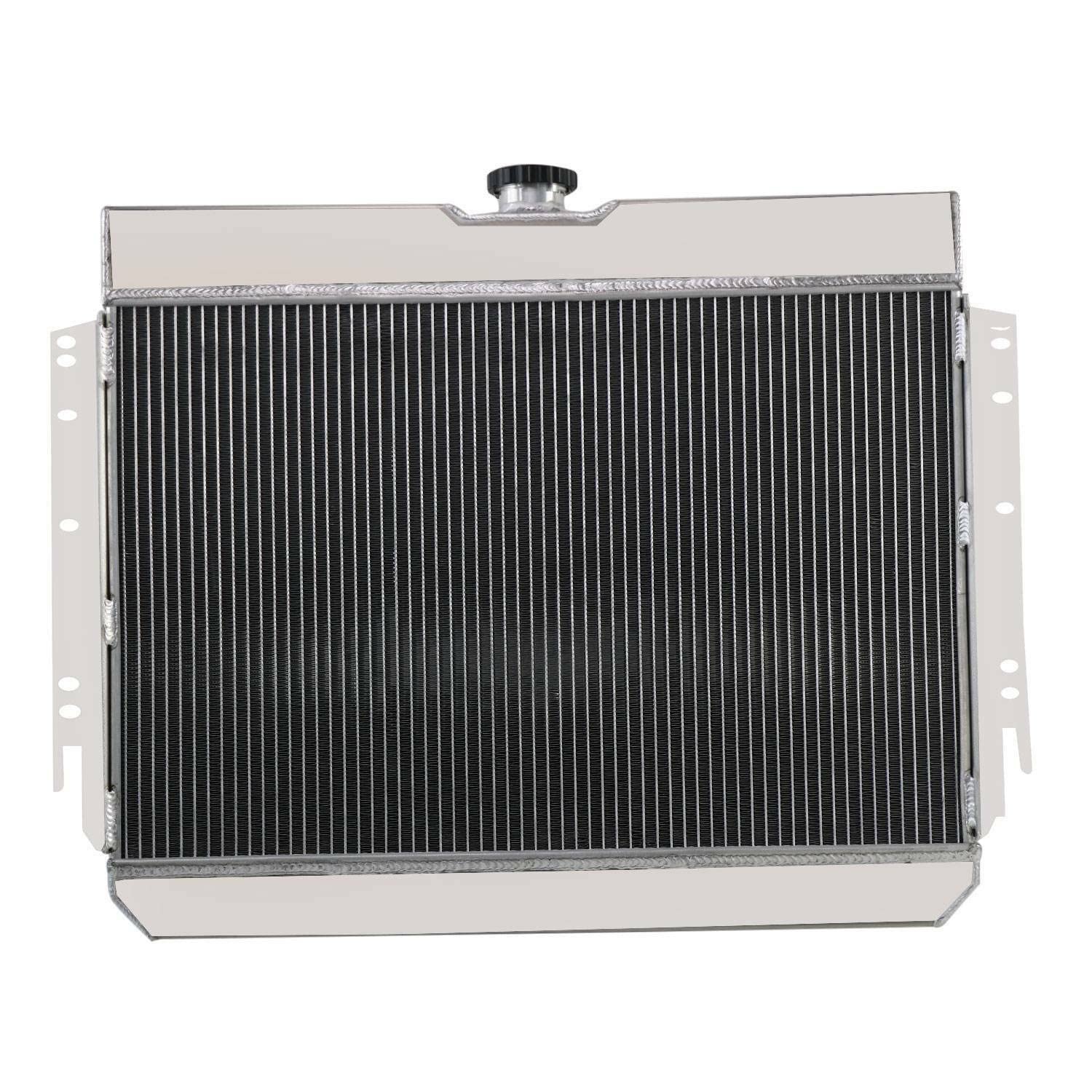

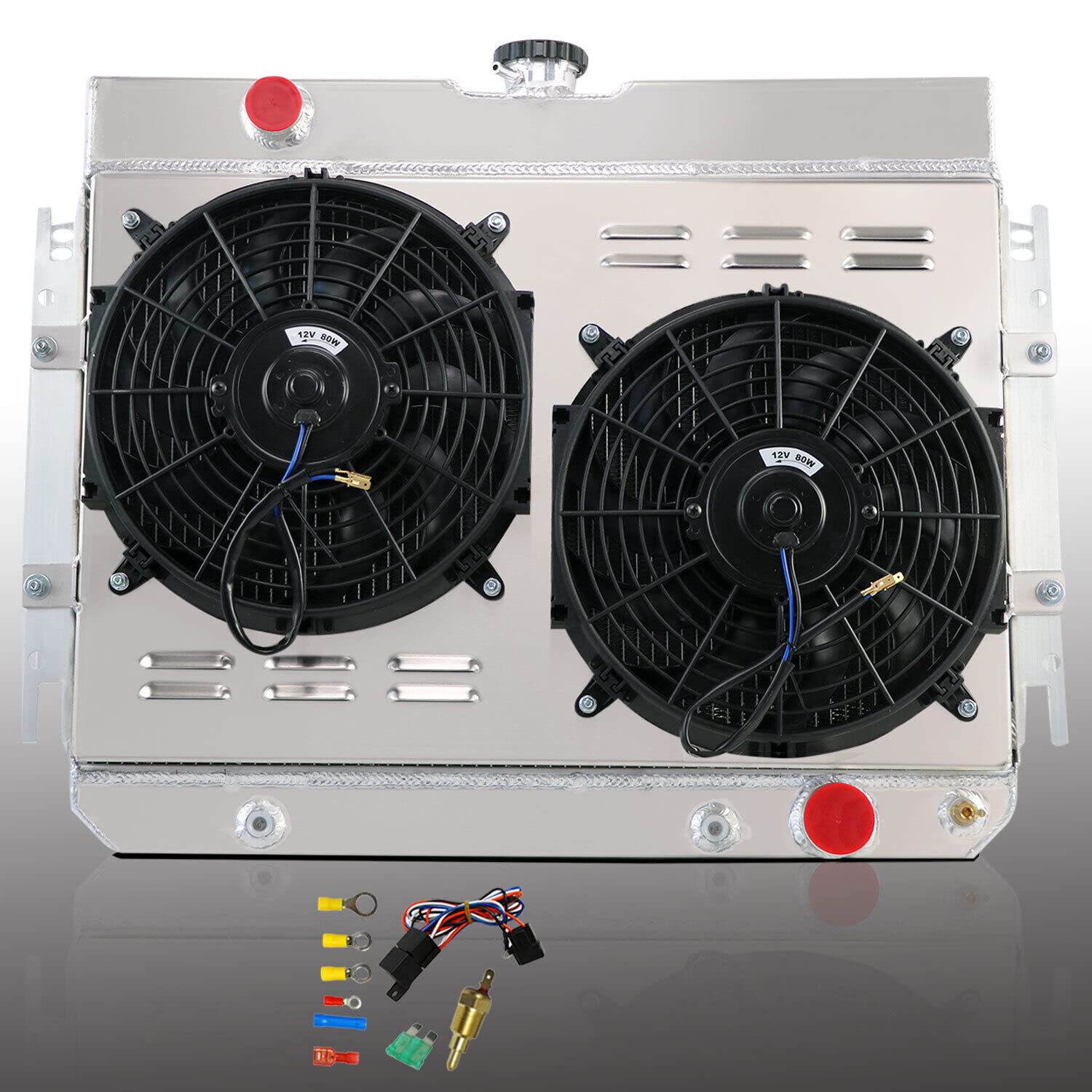

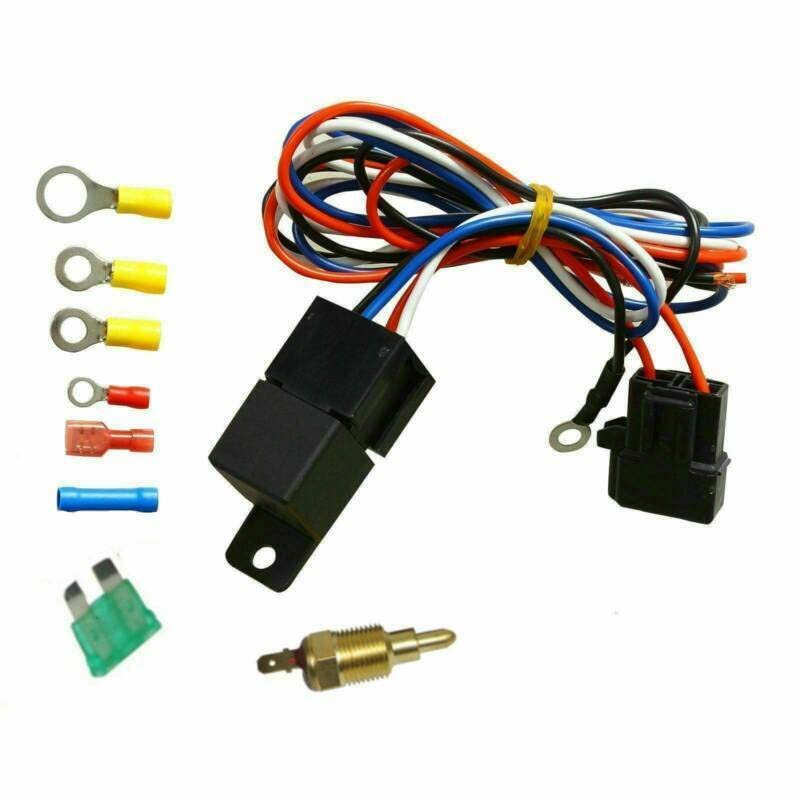

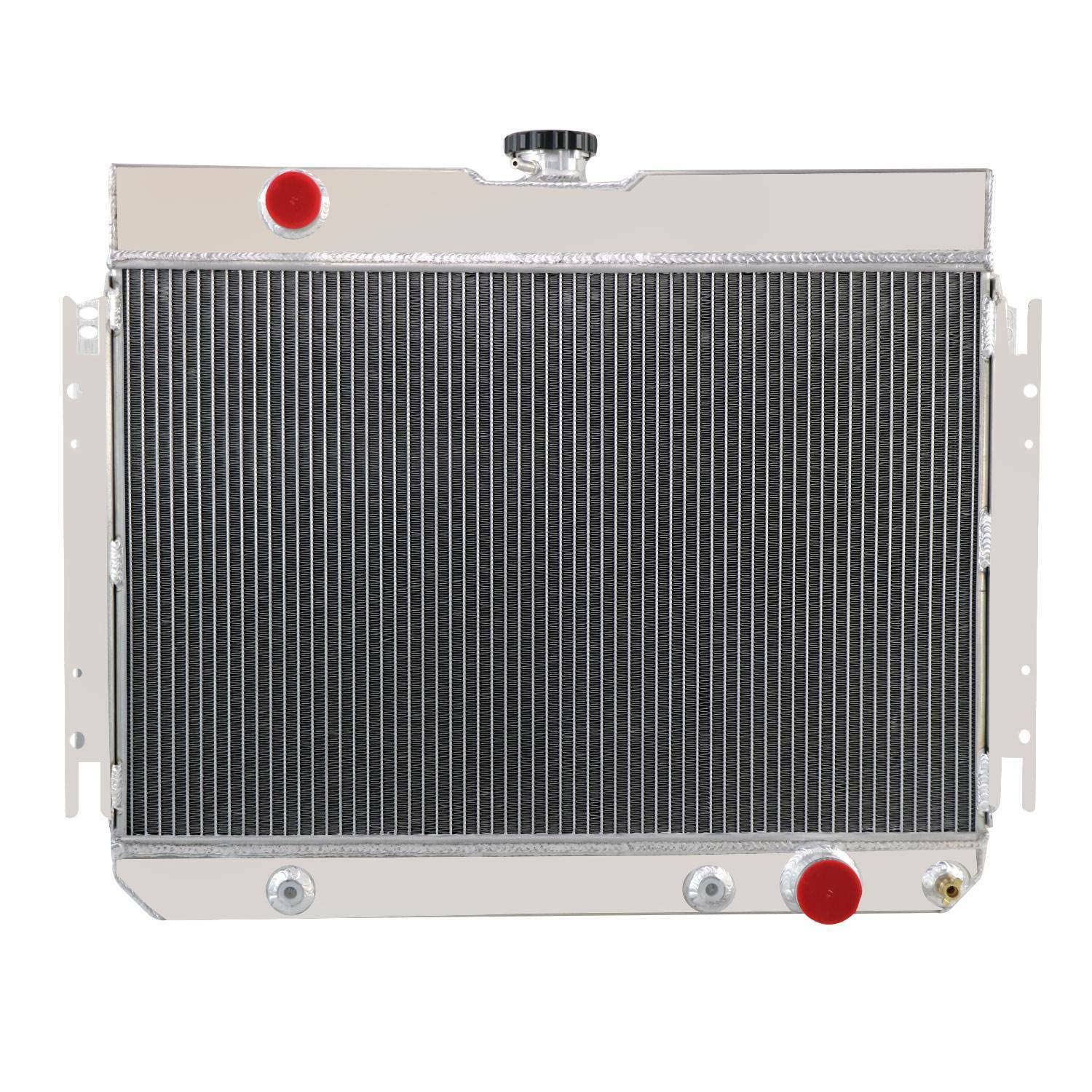

THIS LISTING INCLUDES THE RADIATOR AND THE SHROUD AND 2X12"FANS+THERMOSTAT KITS! Radiator Size: Row: 3 Row Core Material: Full Aluminum Radiator Cap: included Core and Tank: All Aluminum Radiator Flow: Down Flow Core Dimensions: 16" H x 25-1/4" W Overall Dimensions: 22-1/4" H x 27-3/4" W Upper Inlet: 1-1/2" located on the Driver side Lower Outlet: 1-3/4" located on the Passenger side Trans Cooler Included Mount Type: Bracket Trans Cooler Details: 1/2" 20 Straight Thread G1/4 Mounting Specs: Vert - 10 1/2 / Horizontal - 26 3/4 Transmission: Automatic and Manual. Vehicle Fitment: FOR 1964-1967 CHEVY CHEVELLE/EL CAMINO I6/V8 FOR 1963-1968 IMPALA MANY CHEVY GM CARS FOR 1964-1967 Chevelle FOR 1963-1968 CHEVY CHEVELLE/ IMPALA FOR 1963-1968 Chevrolet Chevy Bel-Air For 1963-1968 Chevrolet Impala/Bel Air/Chevelle FOR 1964-1967 Chevy Chevelle Malibu FOR 1963-1968 Chevy Biscayne FOR 1966 1967 Chevy Caprice FAN Specifics and Benefits: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.
For 1963-1968 Chevy El Camino/Impala/Bel Air/Biscayne/Cappice
Core Size 16" H x 25-1/4" W; Overall Size 22-1/4" H x 27-3/4" W
Upper Inlet 1-1/2" located on the Driver side; Lower Outlet 1-3/4" located on the Passenger side
Trans Cooler Details 1/2" 20 Straight Thread G1/4; Mounting Specs Vert - 10 1/2 / Horizontal - 26 3/4
Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity!
Fits perfect
