High Performance Aluminum Radiator for 1985-1997 Ford F-Series Super Duty & Bronco (F150 F250 F350 F53) - Fits 5.0L 5.8L 7.3L 7.5L V8 Engines - 3 Row Cooling System with Dual 12" Fans & Relay Kit - Perfect for Off-Roading, Towing & Heavy-Duty Use
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:27 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:53910647
Product Description

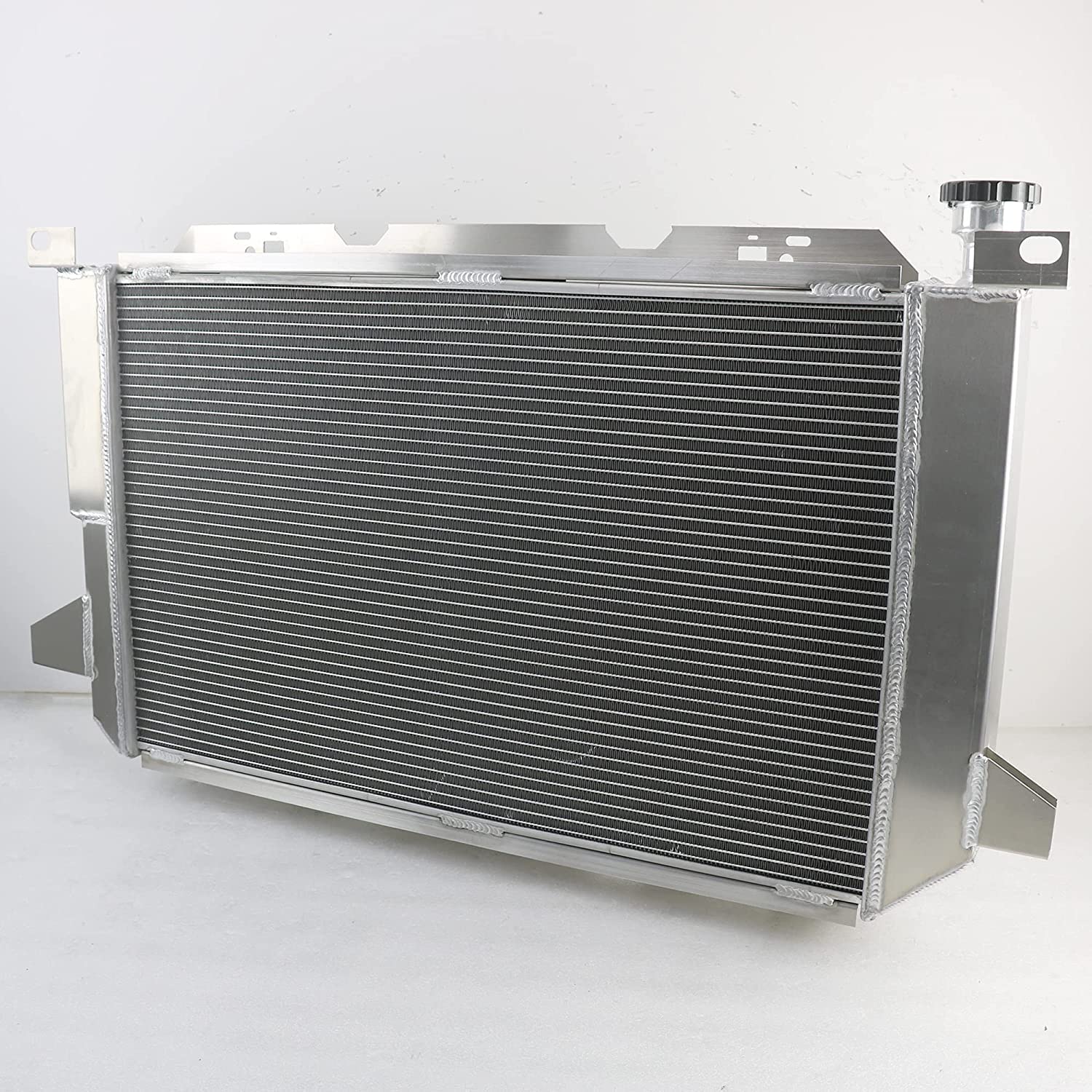

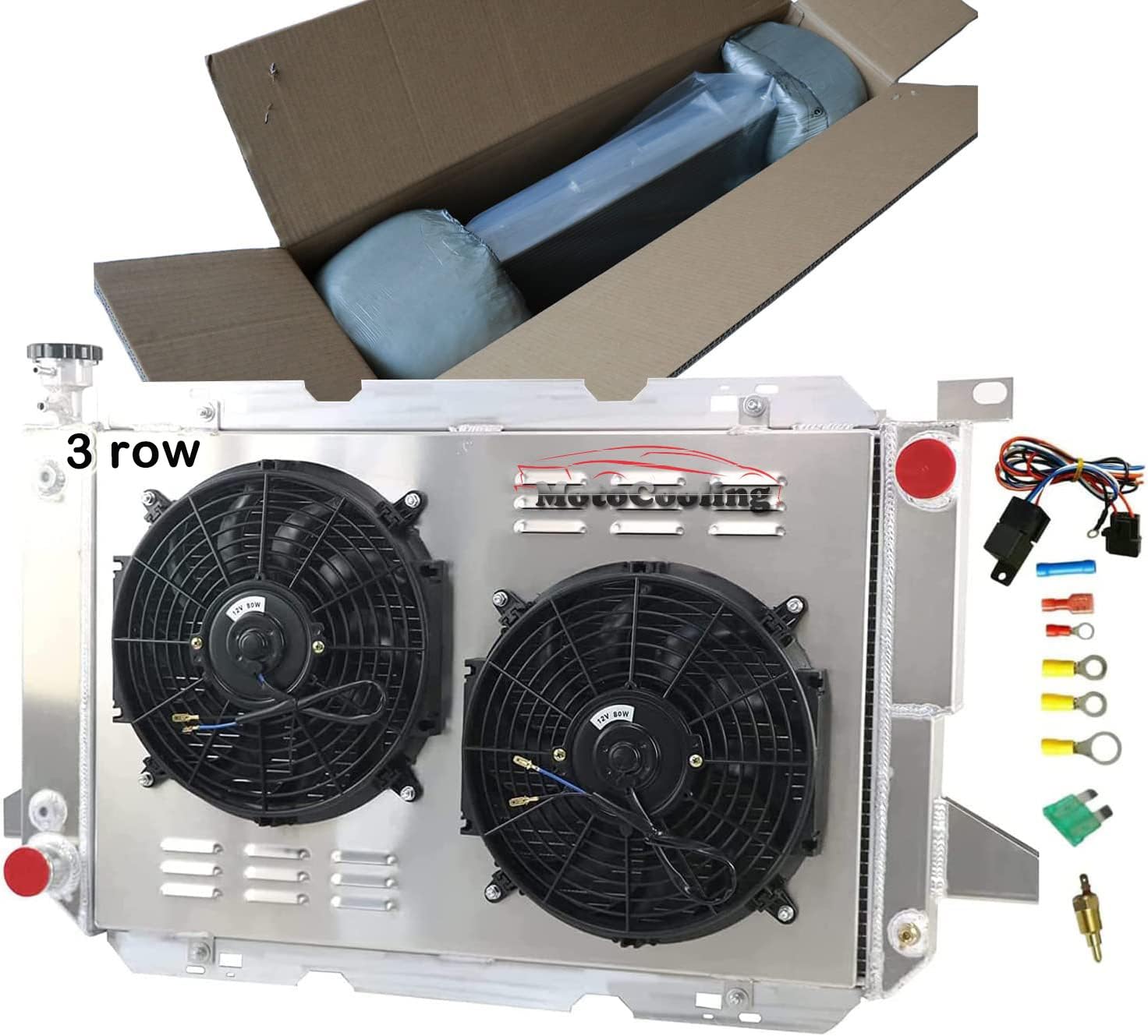

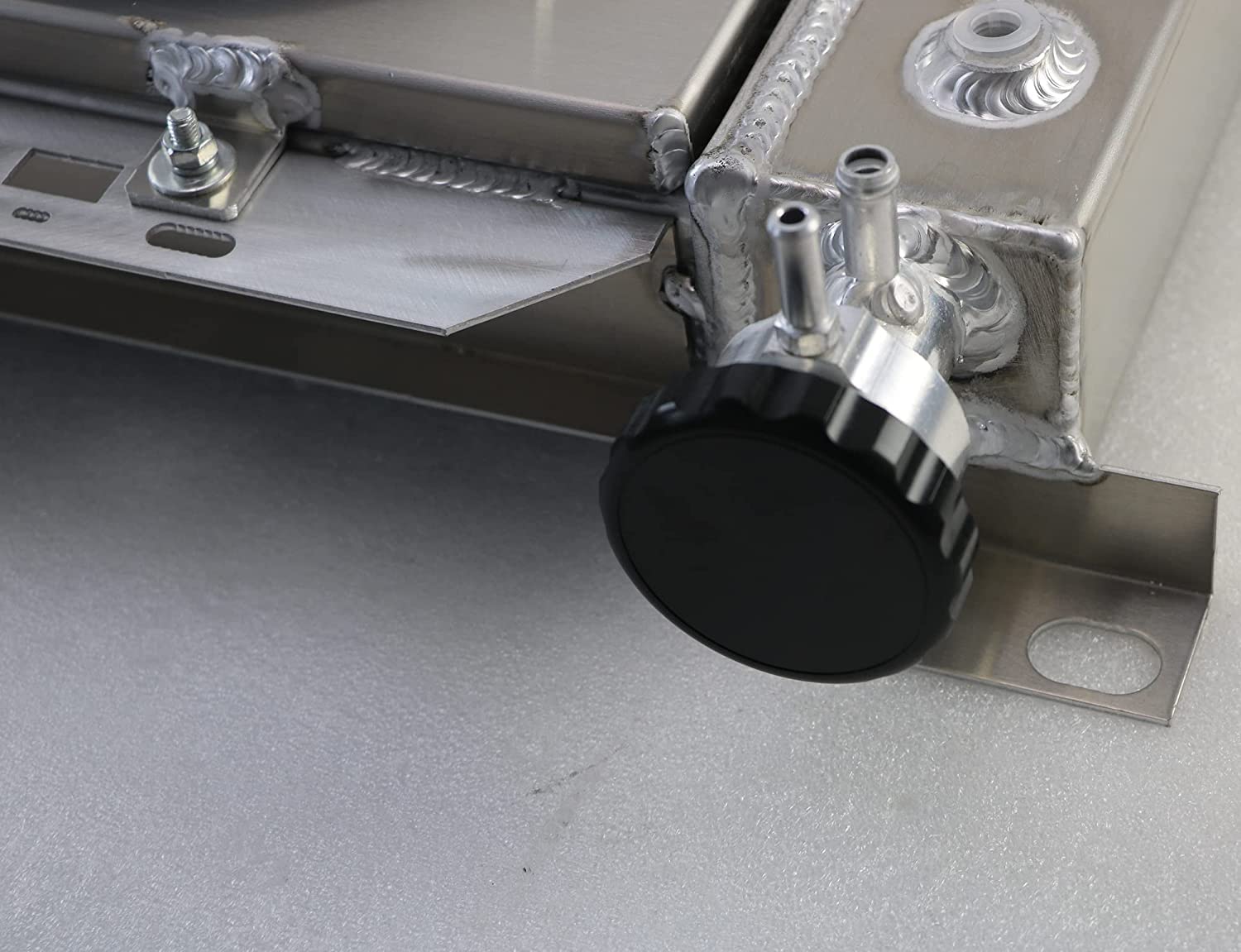

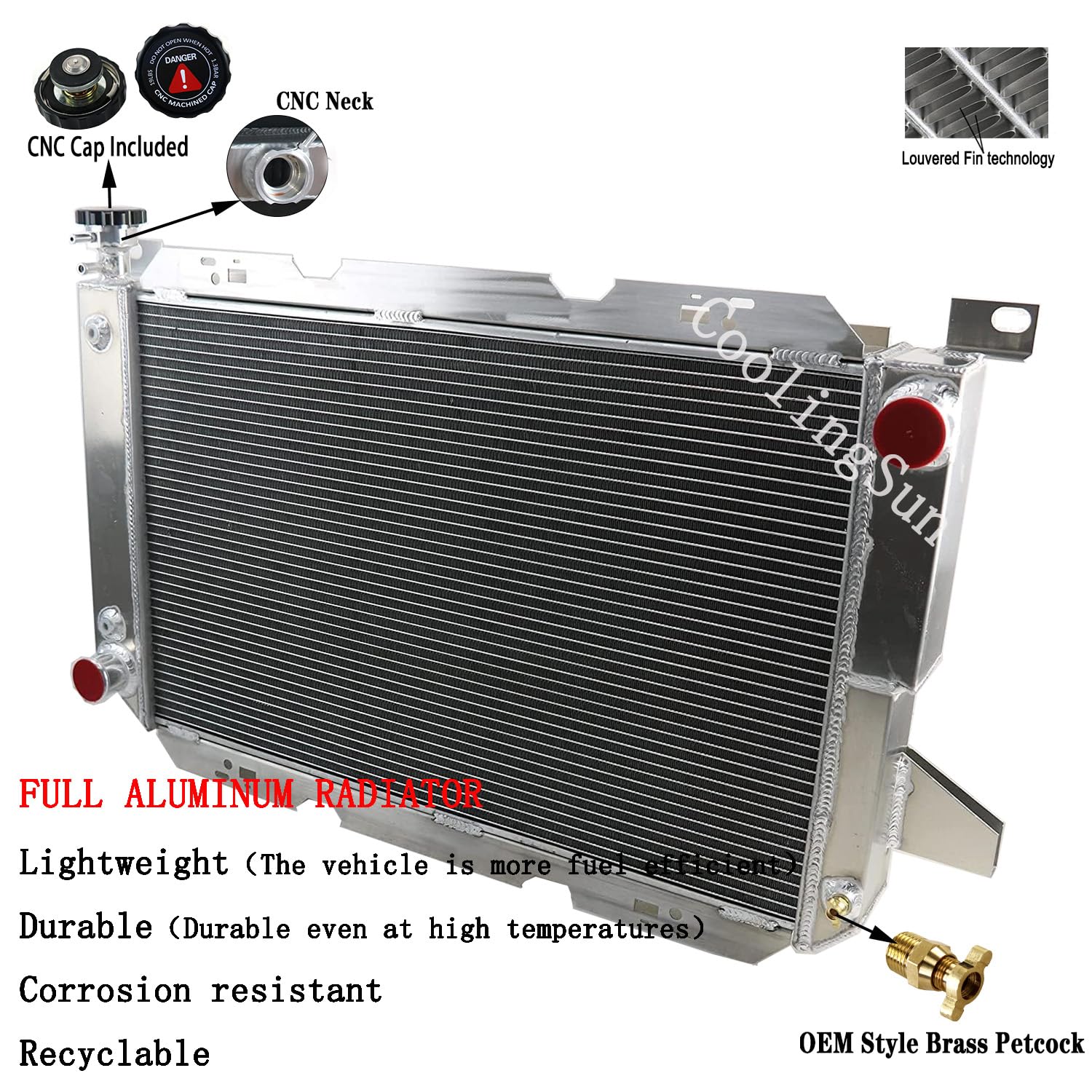

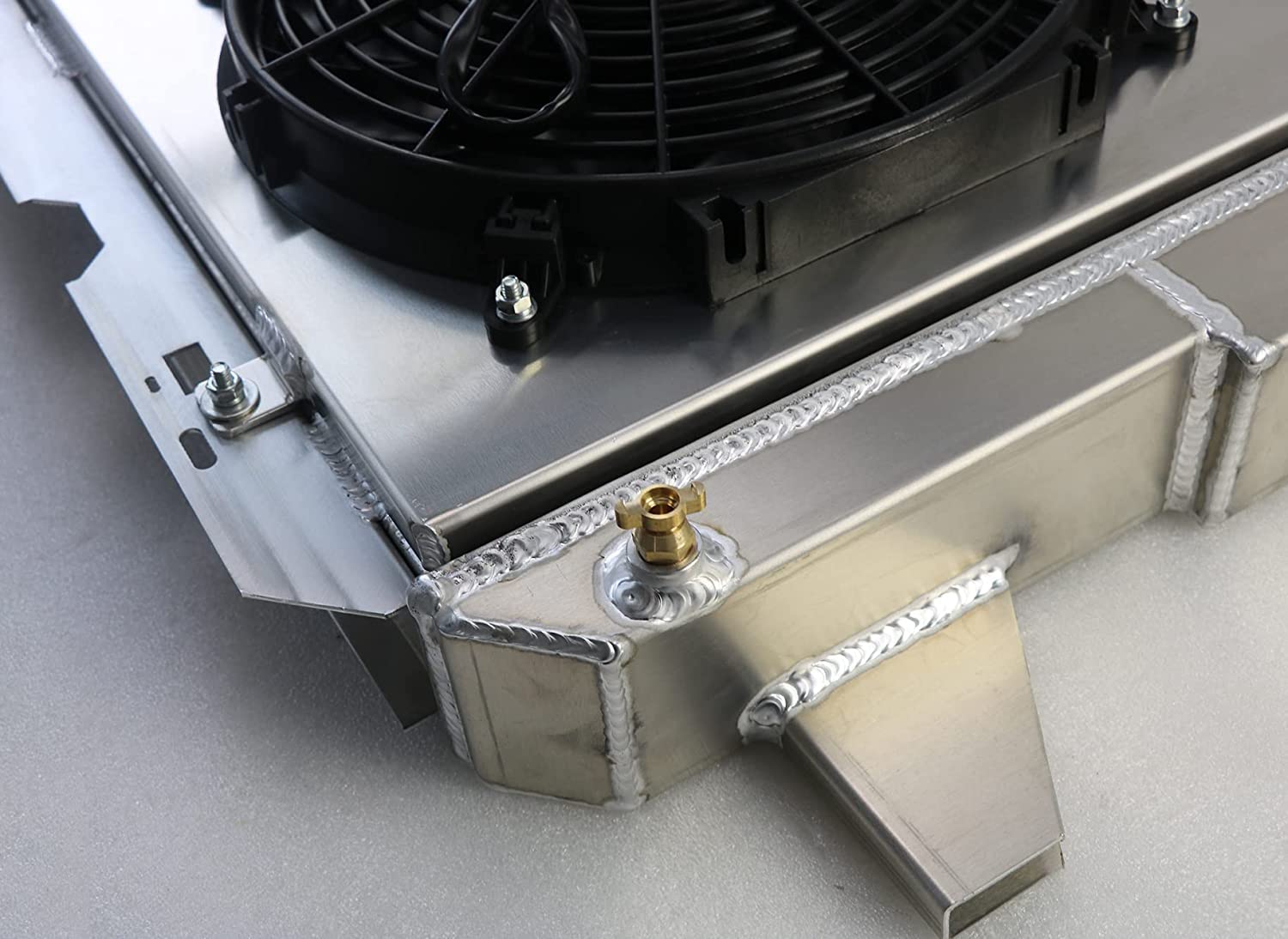

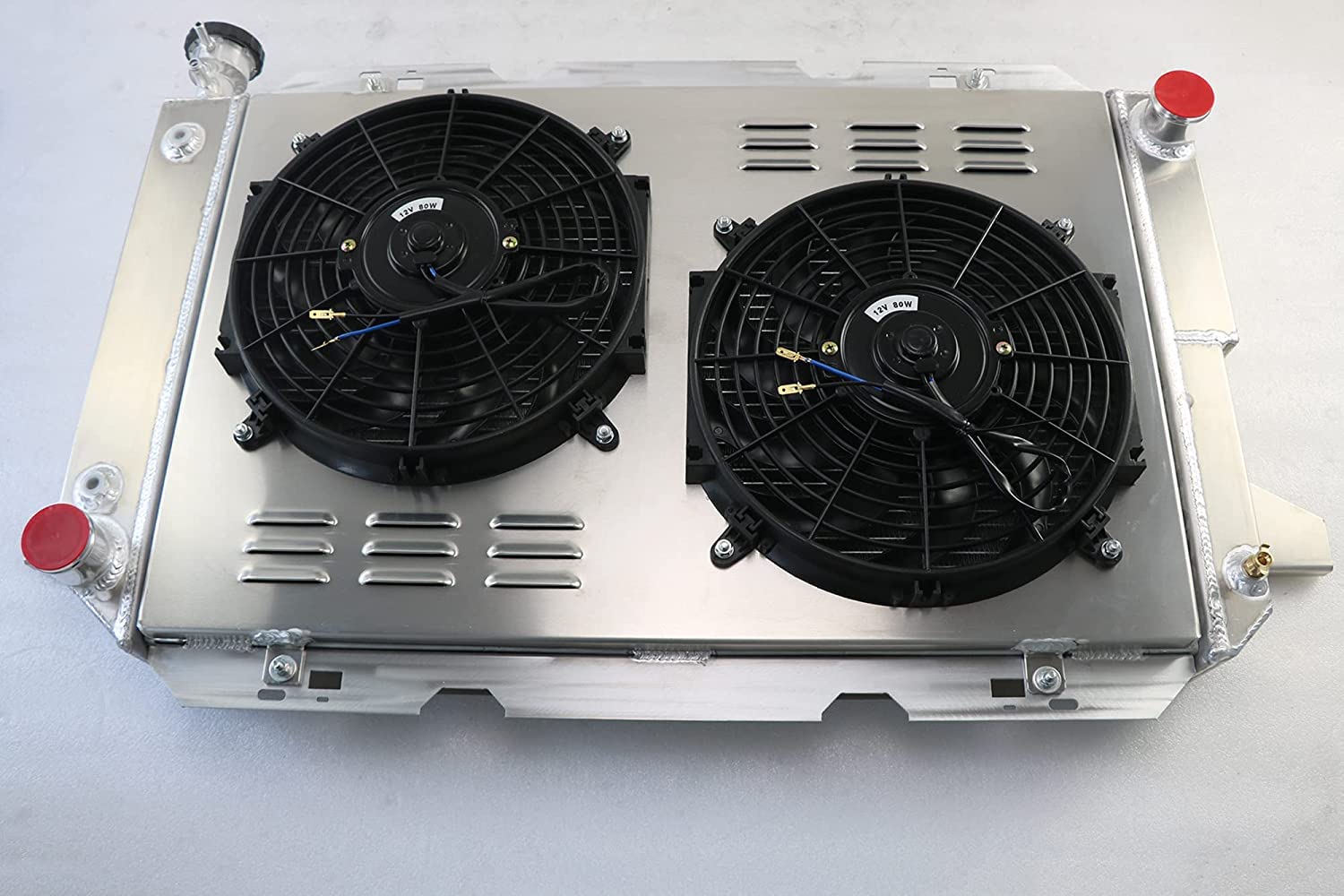

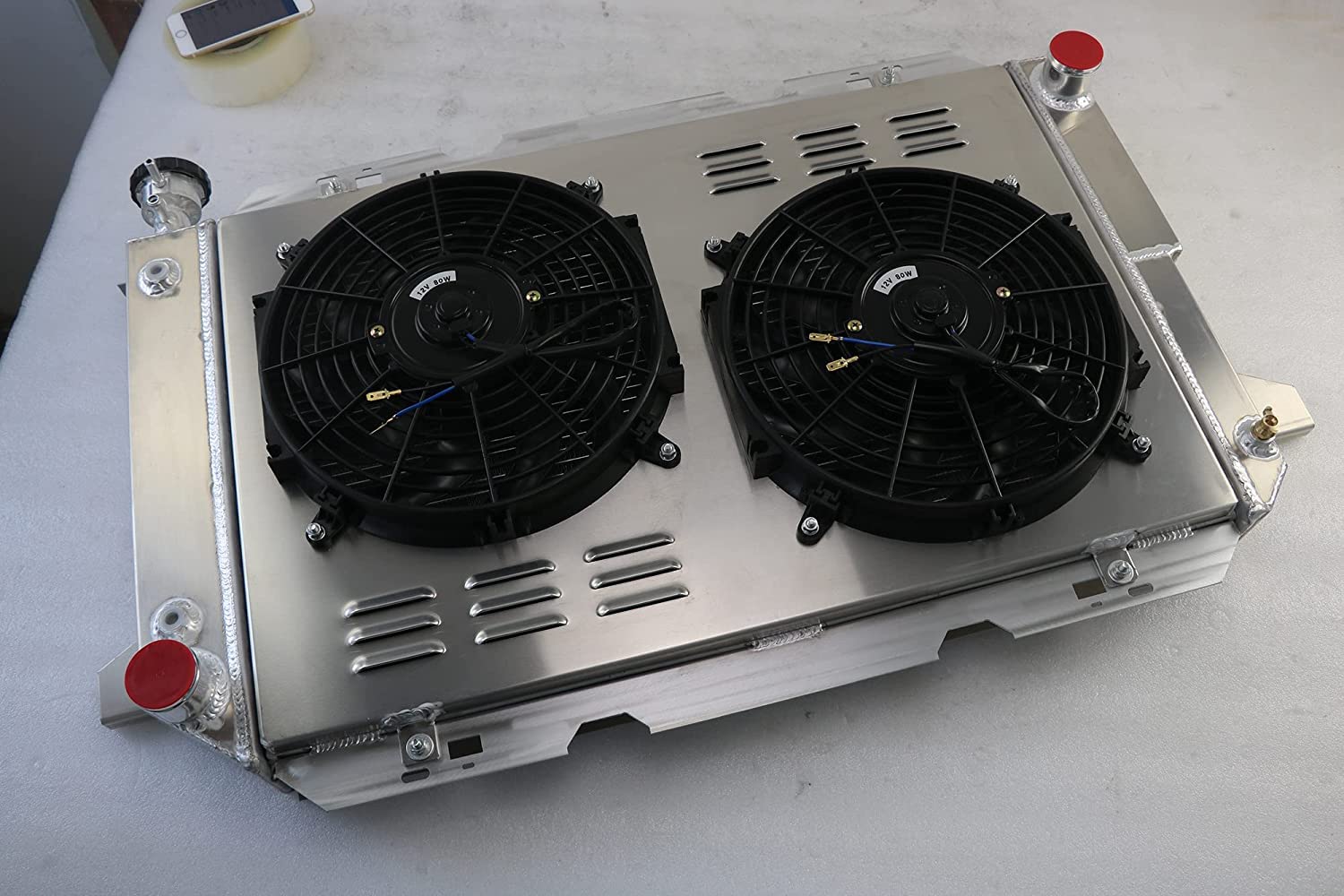

MotoCooling Radiators: Thin Aluminum Fins: Overall durability & corrosion-free property Fan Shroud: Help shield the radiator from the engine heat, increases and directs the airflow. Electric Fan: Save horsepower, be mounted directly, be automatically controlled by a thermostatic temperature switch Compatible with: Ford Bronco 5.0L 1985-1996 Ford Bronco 5.8L 1985-1996 Ford F-150 5.0L 1985-1996 Ford F-150 5.8L 1985-1996 Ford F-250 5.0L 1985-1996 Ford F-250 5.8L 1985-1997 Ford F-250 7.5L 1985-1997 Ford F-350 5.8L 1985-1997 Ford F-350 7.5L 1985-1997 Ford F-450 7.5L 1997 Radiator Details: Type: 3 Core Core Thickness: 1 3/4" Core/ Tank Material: All Aluminum Upgraded Cap: CNC Machined Filler Neck and Cap Upgraded Drain Plug: OEM Style Brass Petcock Drain Transmission Cooler: Included (1/8-27NPT) Automatic and Manual Delivery: Local Delivery Fitment Type: Direct Replacement Performance: Up to 35%-45% Cooling FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12"Fan (Includes mounting kits) 1 X Thermostat Relay Kit
Product Features
Direct fit for 85-96 Ford Bronco 5.0L 5.8L, 85-97 Ford F150 F250 F350 5.0L 5.8L 7.5L V8
Core Size 17 5/8'' W x 27 5/9'' H; Overall Size 20 1/3'' W x 37 5/7'' H; Core Thickness 1 3/4'' ; Inlet/ Outlet Size 1 7/9'' / 1 7/9''
Trans oil cooler specifications 38×305×1/4-18NPT(T)
Direct OE replacement with drop-in precise fitment and easy installation
Part number CoolingSun-0037-2
Fit type Vehicle Specific
Customer Reviews
The trans fittings are wrong and super thin threads. Very easy to strip or cross .I ended up using a external trans cooler. The fans are barely enough. On a hot day can't use the ac on full in traffic. Scrapped all the wiring and installed a better adjustable fan controller and now it's ok. But if I had to do it again I would just buy an aluminum rad.
