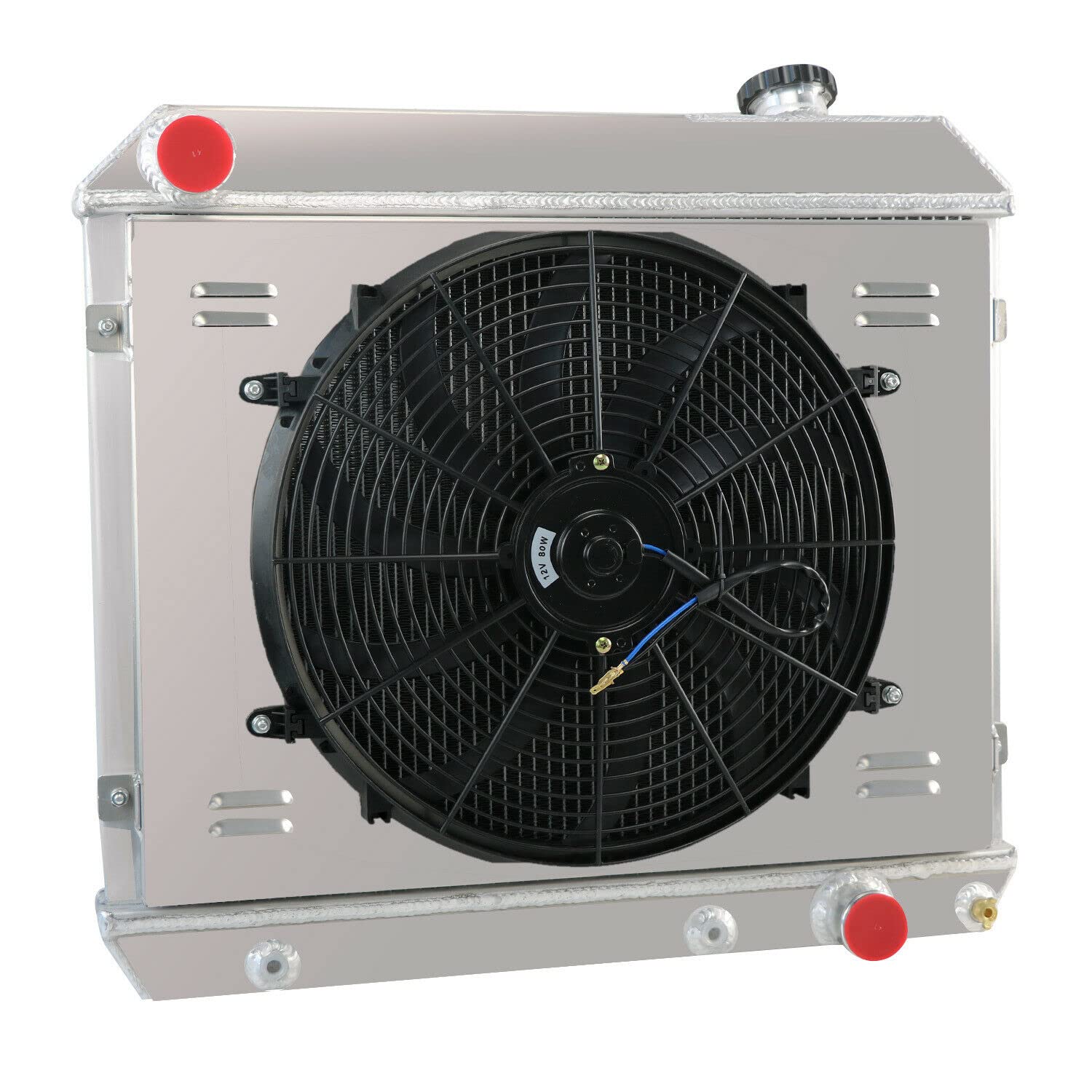

ALLOYWORKS 4-Row Aluminum Radiator with Shroud, Fan & Relay Kit for 1961-1966 Chevy C10 C20 C30 Truck - High-Performance Cooling Upgrade for GM C/K Series - Perfect for Hot Rods, Restorations & Off-Road Adventures
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:14 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:49729439
Product Description
THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND ONE 16" FAN! Radiator Size: Row: 4 Row Core Material: Full Aluminum Radiator Cap: included Core and Tank: All Aluminum Core Dimensions: 17 1/2" high x 22 3/4" wide x 2.44" Thick. Overall Dimensions: 22 1/2" High x 25 1/4" wide x 4.72" Thick. Upper inlet: 1 3/4" located on driver side. Lower outlet: 1 3/4" located on passenger side. Auto trans cooler: Yes. OEM mount system. Transmission: Automatic and Manual. Vehicle Fitment: For Oldsmobile 1961 1962 Olds Dynamic FOR 63-66 CHEVY TRUCK PICKUP SUBURBAN 1963-1966 FOR Oldsmobile 61-62 FOR CHEVY PICKUP SUBURBAN 63 64 65 66 FOR Pontiac Bonneville 61-66 FOR Chevy Truck C10 C20 C30 63-66 FOR CHEVY TRUCK C/K SERIES/PONTIAC PICKUP 61-66 FOR CHEVY GM C/K Truck 61-66 Interchange Part Number:0284,CC284,MC284,899284,B284 Other Part Number: 8010284,CU284,433284,SPTCU284,284 FANS: Direct Bolt-On Installation, Requires No Modification Performance JDM Spec. Racing Design OE Fitment or Replacement, Push or Pull Type Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.
Product Features
◆ Package Include 1pc Aluminum Radiator+Shroud fan+Relay replacement for 1961 1962 1963 1964 1965 1966 Chevy C10 C20 C30 Truck GM C/K
◆ Radiator Core Size 17 1/2" high x 22 3/4" wide x 2.44" Thick.
◆ Radiator Overall Size 22 1/2" High x 25 1/4" wide x 4.72" Thick.
◆ Radiator Inlet 1 3/4" located on driver side; Radiator Outlet 1 3/4" located on passenger side.
◆ Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity
Customer Reviews
I have had this truck since high school. 3 on the column and a 250 straight 6. I have worked on this since before high school. Or, the 67 Ford F100 with a built 390 I am restoring, I need to decide where this radiator will go. Everything you need is included for installation. I think it will fit the F100 with a few modifications. I have been working on this truck for 20 years. One day I will see how it runs again. This one is an automatic and the radiator has fittings for transmission lines. I look forward to driving this truck once again. A 4 core radiator has a large capacity for pulling loads and larger engines. Most standard radiators are only two core so we are looking at twice the cooling capacity. I think you will be impressed. ????
