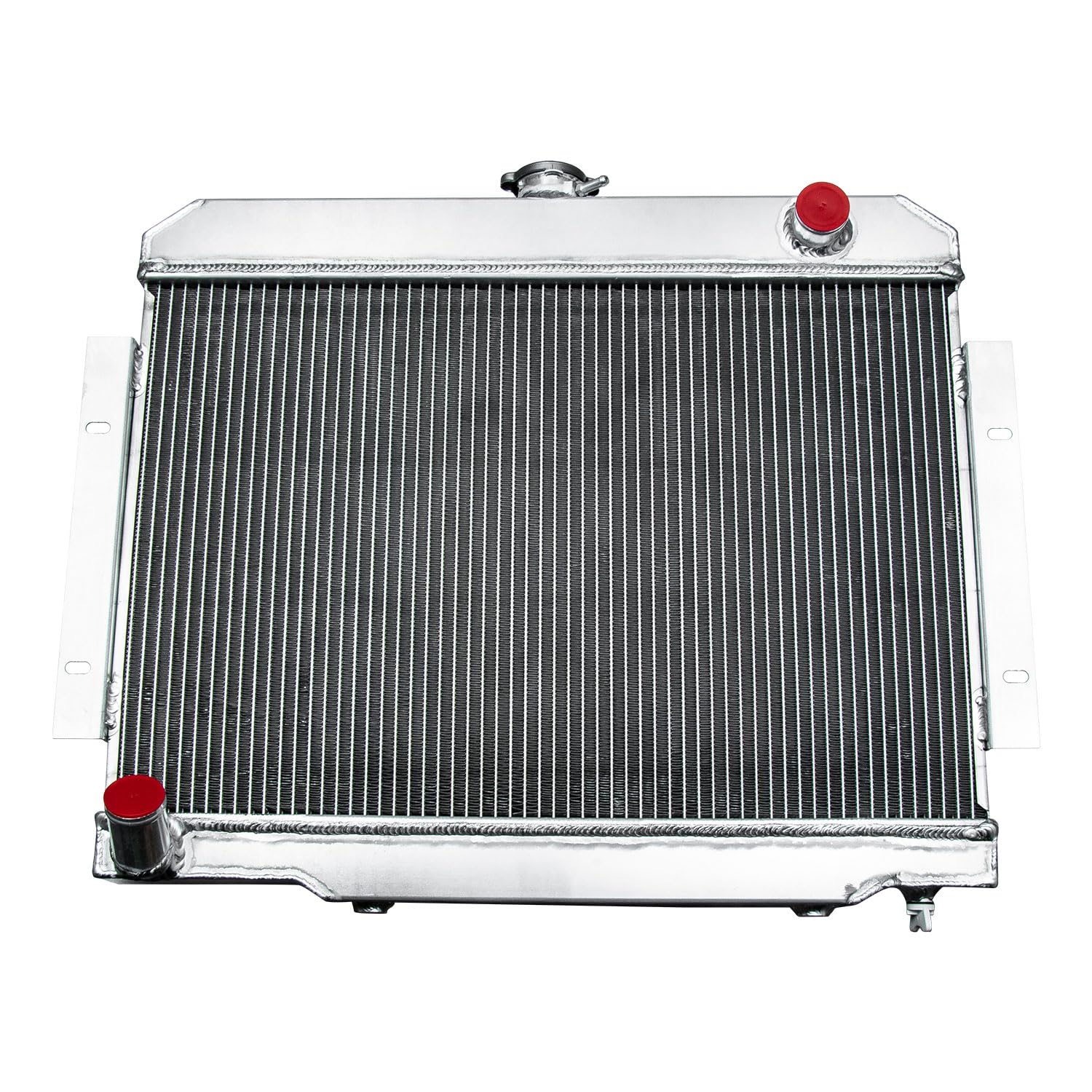

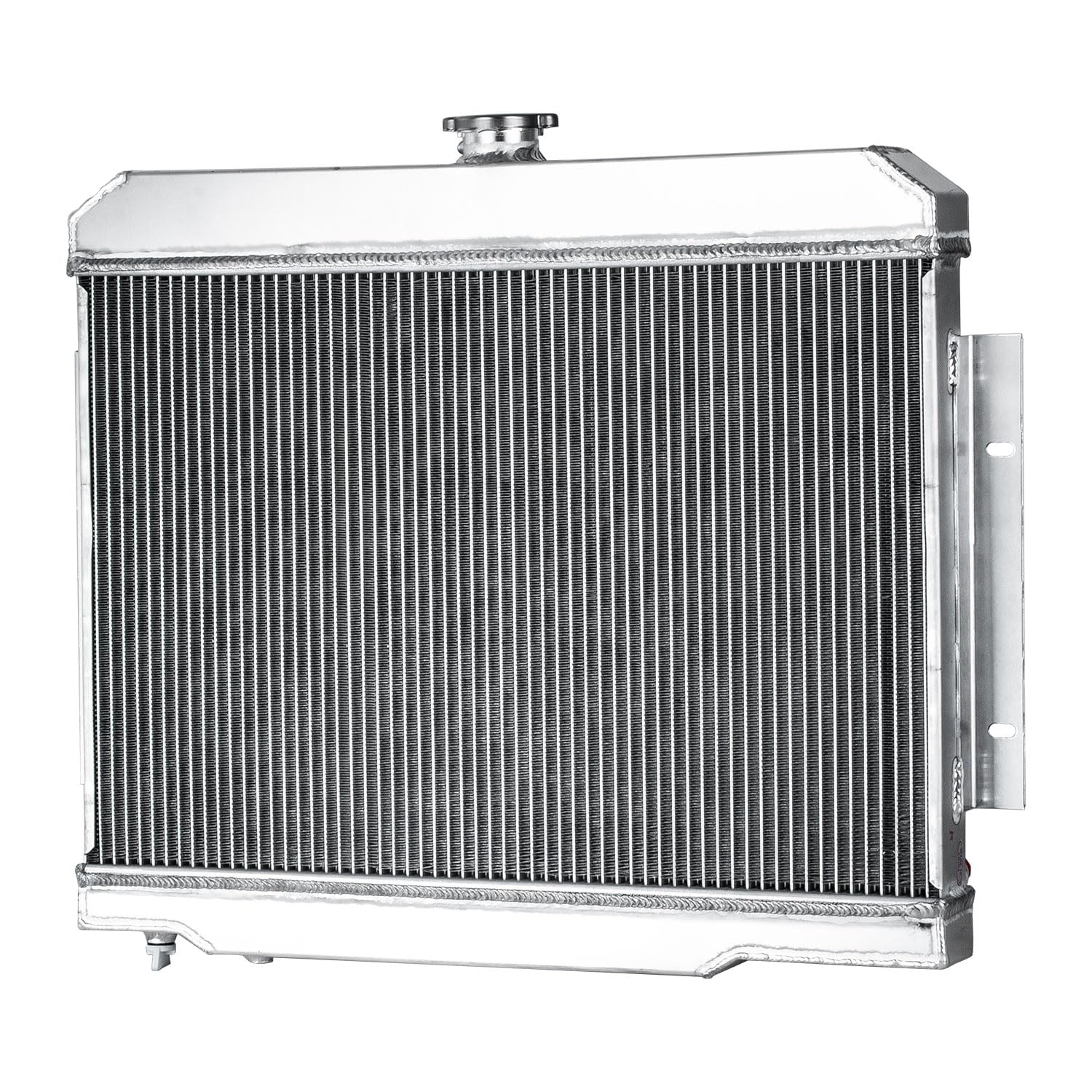

Alloyworks 3 Row Aluminum Radiator with Dual 12" Fans & Relay Kit - Compatible with 1972-1986 Jeep CJ5/CJ6/CJ7/Scrambler (3.8L 4.2L 5.0L L4 L6) & Chevy V8 - OEM CU583 Replacement - Perfect for Off-Roading & Engine Cooling Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:12 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:47133805
Product Description

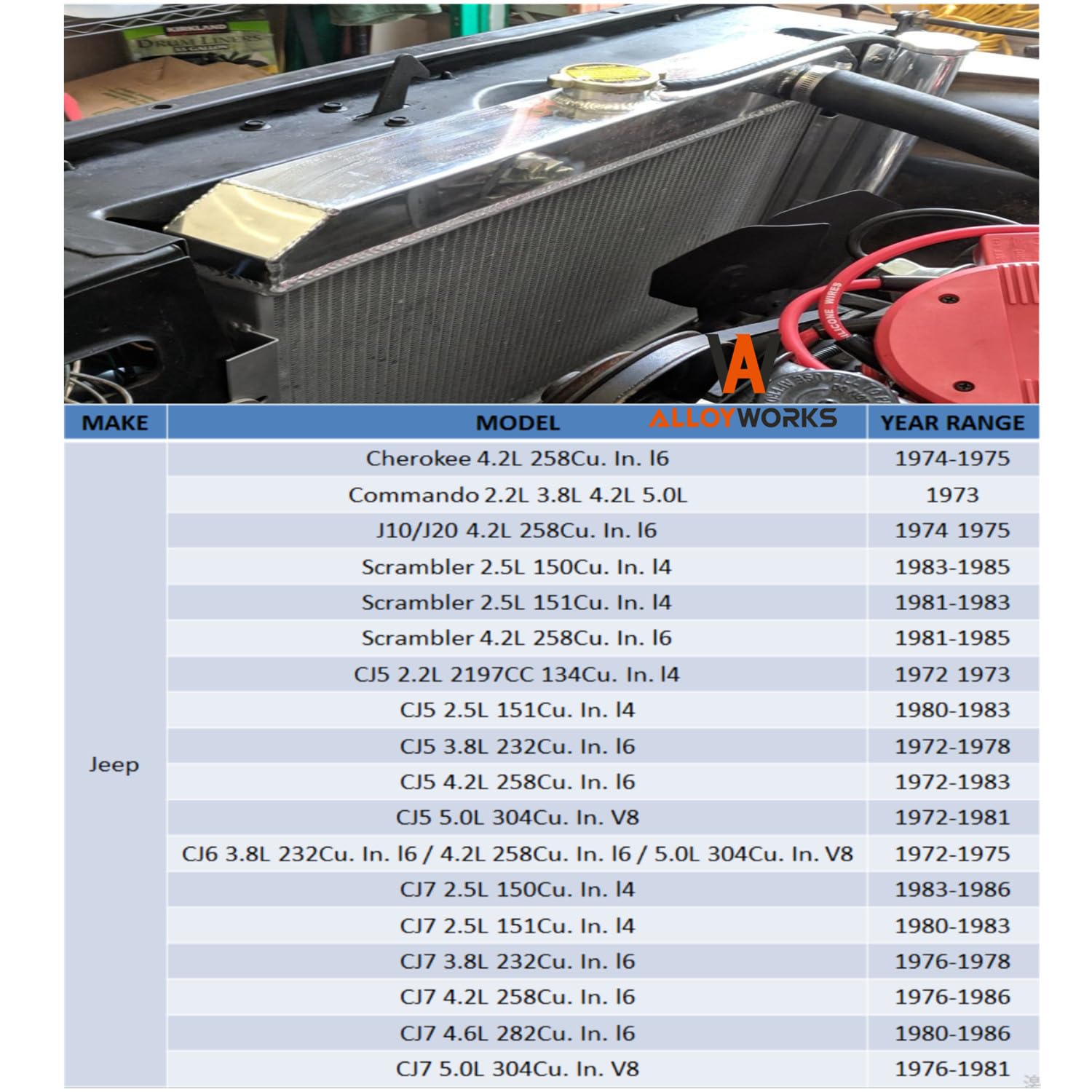

Application:For 1972-1973 Jeep CJ5 2.2L 134Cu. l4For 1980-1983 Jeep CJ5 2.5L 151Cu. l4For 1972-1978 Jeep CJ5 3.8L 232Cu. l6For 1972-1983 Jeep CJ5 4.2L 258Cu. l6For 1972-1981 Jeep CJ5 5.0L 304Cu. V8For 1972-1975 Jeep CJ6 3.8L 232Cu. l6 / 4.2L 258Cu. l6 / 5.0L 304Cu. V8For 1980-1986 Jeep CJ7 2.5L 151Cu. l4For 1976-1978 Jeep CJ7 3.8L 232Cu. l6For 1976-1986 Jeep CJ7 4.2L 258Cu. l6For 1980-1986 Jeep CJ7 4.6L 282Cu. l6For 1976-1981 Jeep CJ7 5.0L 304Cu. V8For 1972-1986 Jeep Chevy ConversionOEM: AE583,CC583,EC583,MC583 DPI583,CU583Package Include:1 X 3 Row AA5052 Aluminum Radiator1 X CNC Machined Radiator Cap1 X AA5052 Aluminum Shroud2 X 10" Fans (Includes mounting kits)1 X Thermostat Relay KitRadiator Size:High Performance Racing Spec.3 Row of tubes Core Racing DesignPetock Drain:OEM style brass petcock drainCore Size: 23.9" Wide x 15.75" HeightOverall Size: 26.85" Wide x 21.77" HeightInlet Size：1 1/2" On Passenger SideOutlet Size:1 1/2"On Driver SideTransmission Oil Cooler: ￠38×305×1/8-27NPT（T）Color: SilverTank Material: AA5052 AluminumCore Material: AA5052 AluminumMounting Style: Screw-OnRadiator style: DownflowFit type: Vehicle SpecificCrafts: 100% Tig weldedDelivery: Local DeliveryFitment Type: Direct ReplacementPerformance: Up to 30%~45% more coolingPlacement on Vehicle: Engine CompartmentSurface Finish: Aircraft Grade Raw AluminumPetock Drain: OEM style brass petcock drainRadiator Cap: CNC machined filler neck and capTransmission Cooler: Automatic and ManualPlease Check the Size Before You Buy!FANS:Volt :12vMaximum Fan CFM: 1730 cfmFan Diameter (in): 10.050”Thickness (in): 2.500”Number of Blades: 6 S-Type bladeMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie InstallationThermostat Kit Installation:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.Probe typically threads into radiator, water outlet or manifold.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.
Product Features
■ [Vehicle Fitment] This ALLOYWORKS radiator for 1973-1975 Jeep CJ6 all models, for 1976-1986 Jeep CJ7 3.8L, 4.2L and 5.0L and also for 1972-1983 Jeep CJ5.

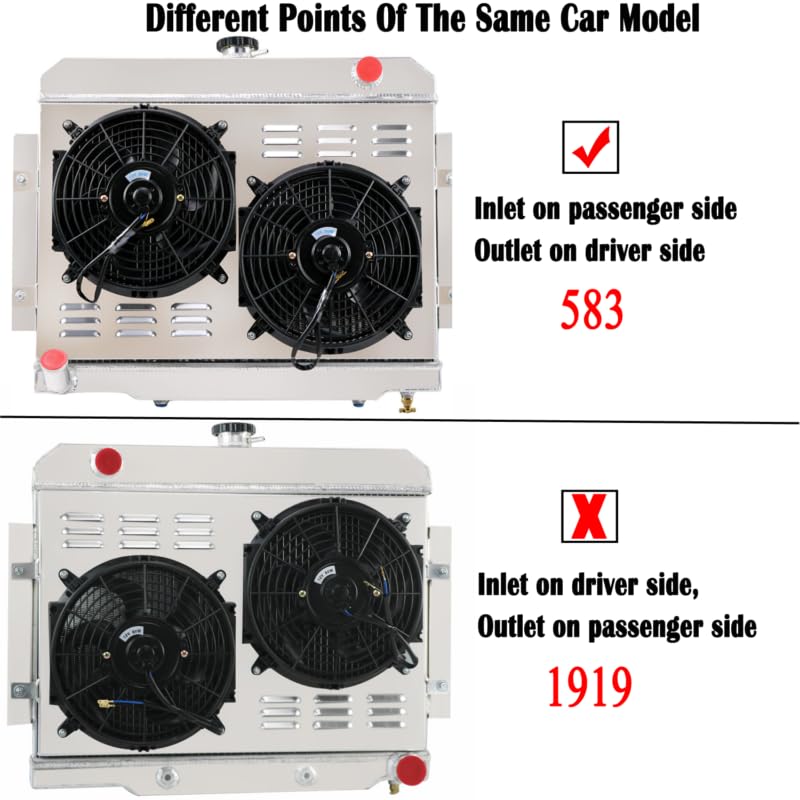

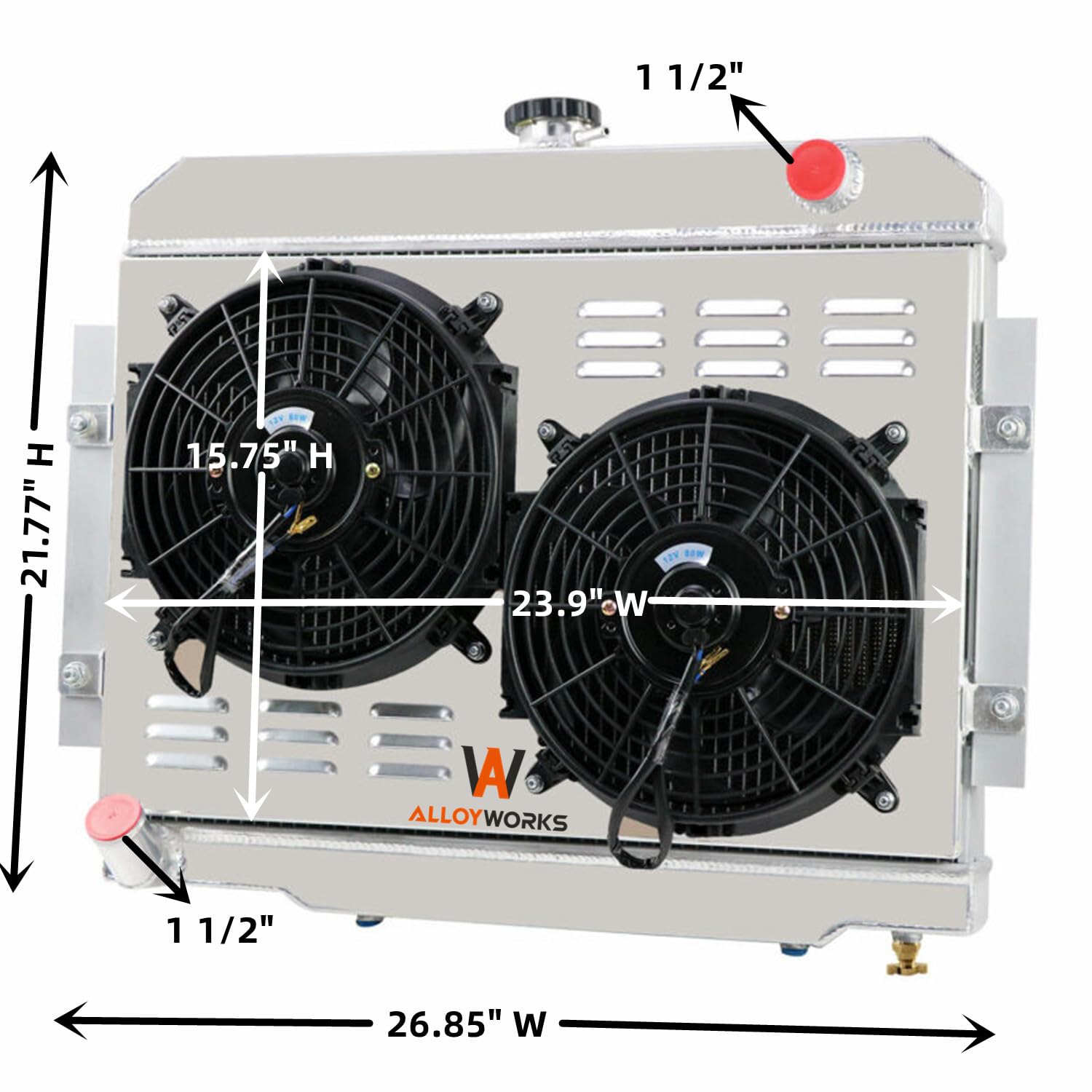

■ [Dimensions] Core Size 23.9" Wide x 15.75" Height; Overall Size 26.85" Wide x 21.77" Height; Inlet Size：1 1/2" On Passenger Side; Outlet Size1 1/2"On Driver Side; Transmission Oil Cooler ￠38×305×1/8-27NPT（T）;

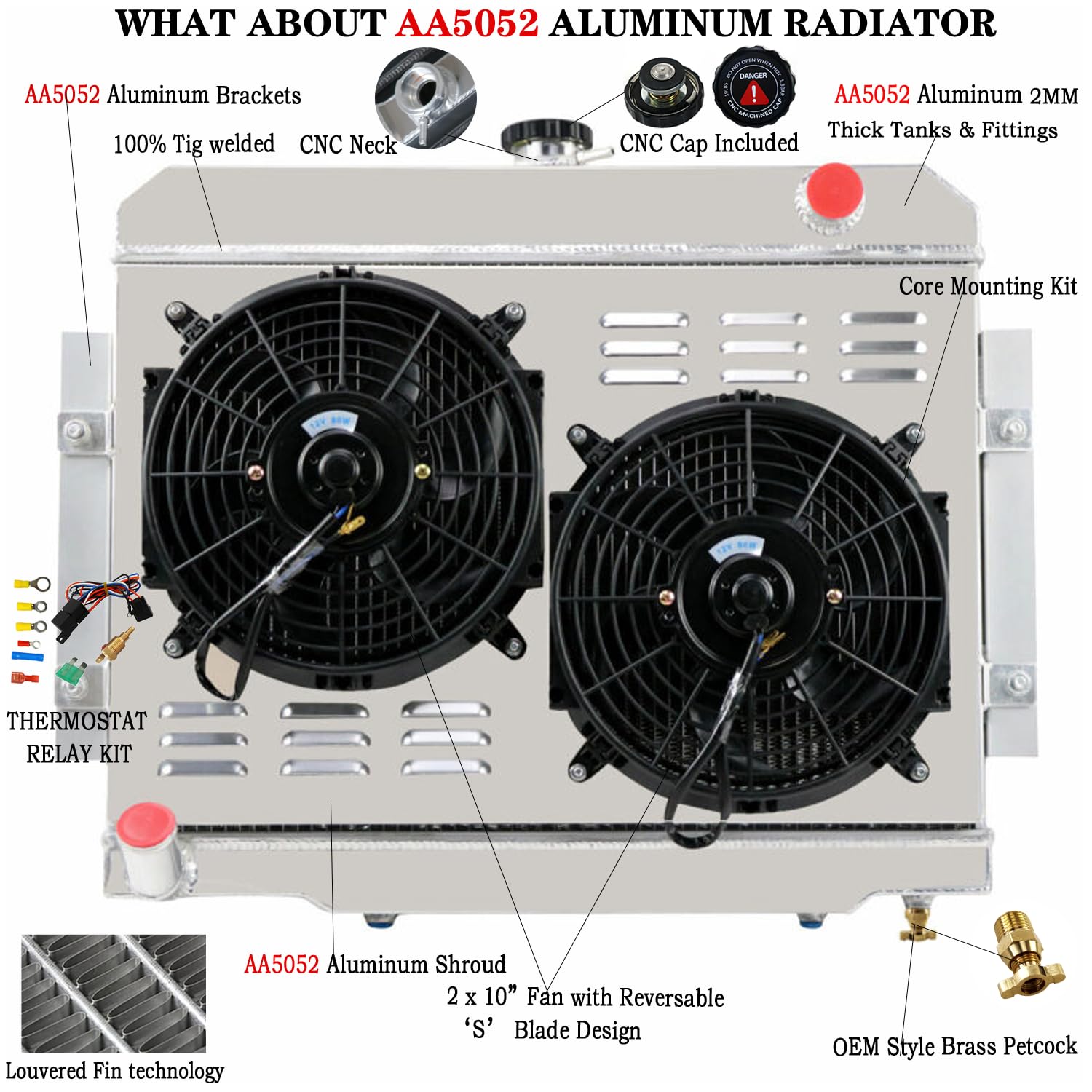

■[Material] It is made of a full T-6061 aluminum structure of the highest quality. For ALLOYWORKS, we only utilize materials of the highest quality to guarantee the durability of our products.
■ [Cooling Feature] the radiator is made of an improved cooling by 35% to 40% temperature.

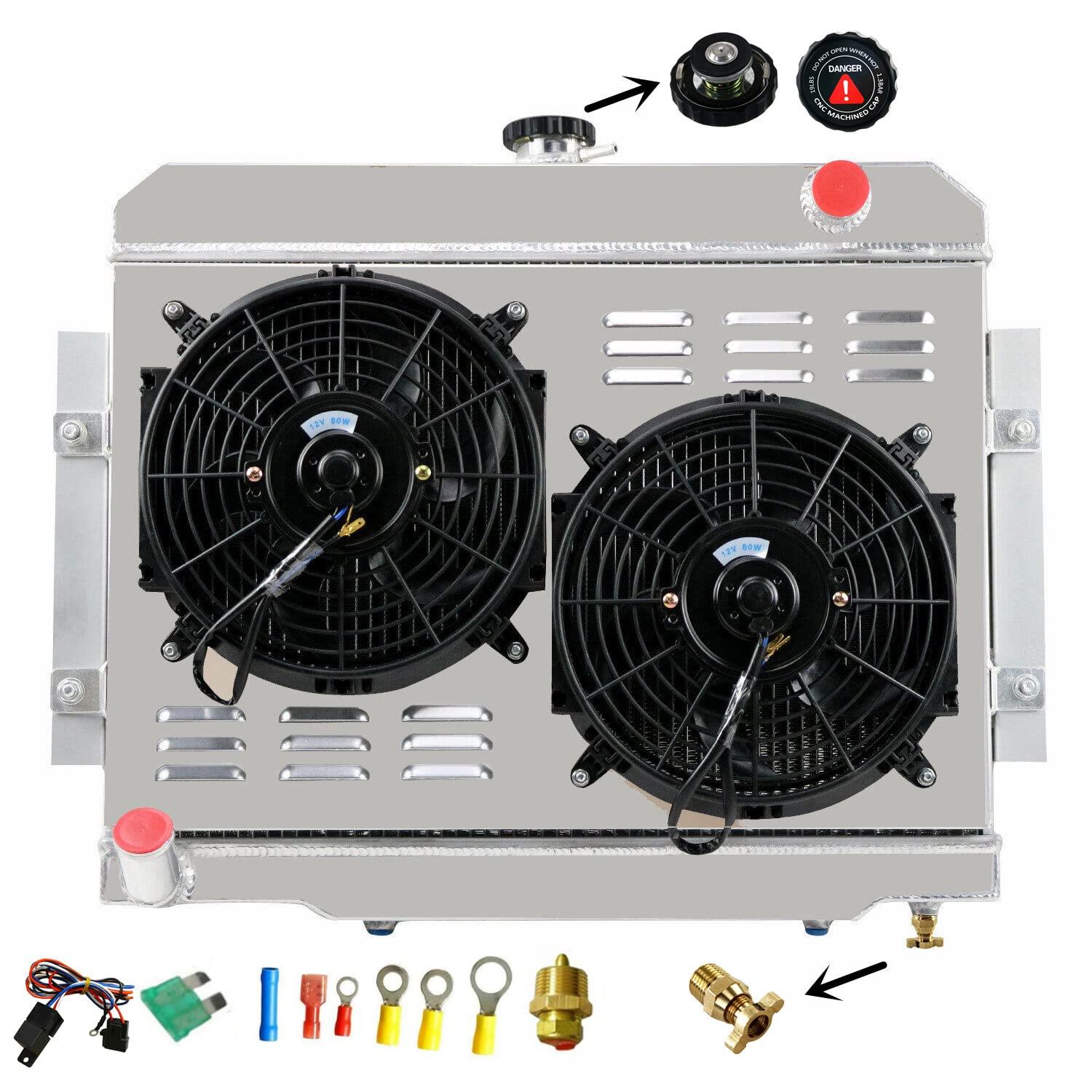

■ [Package Content] The package includes 1 X 3 row aluminum radiator (Includes Radiator Cap), 1 X aluminum shroud, 2 X 12" fans (includes mounting kits) and 1 X thermostat relay kit.
Customer Reviews
This a great radiator is 24 inches wide by 21 inches tall fits perfectly on my uncles 84 Jeep says its perfect now he dosent have to worry about it over heating very easy to install and great value for your money made of great quality with safe tempereture definitely was worth the purchase i highly recommened.
