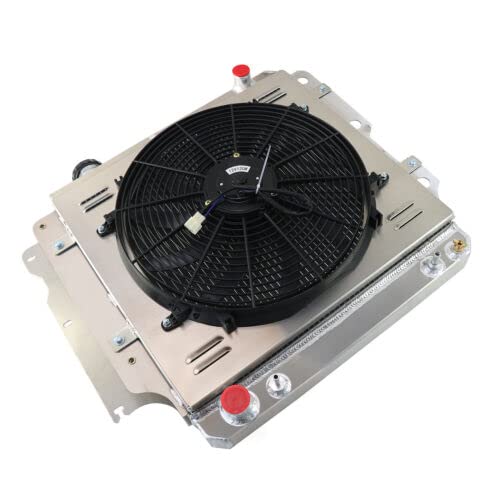

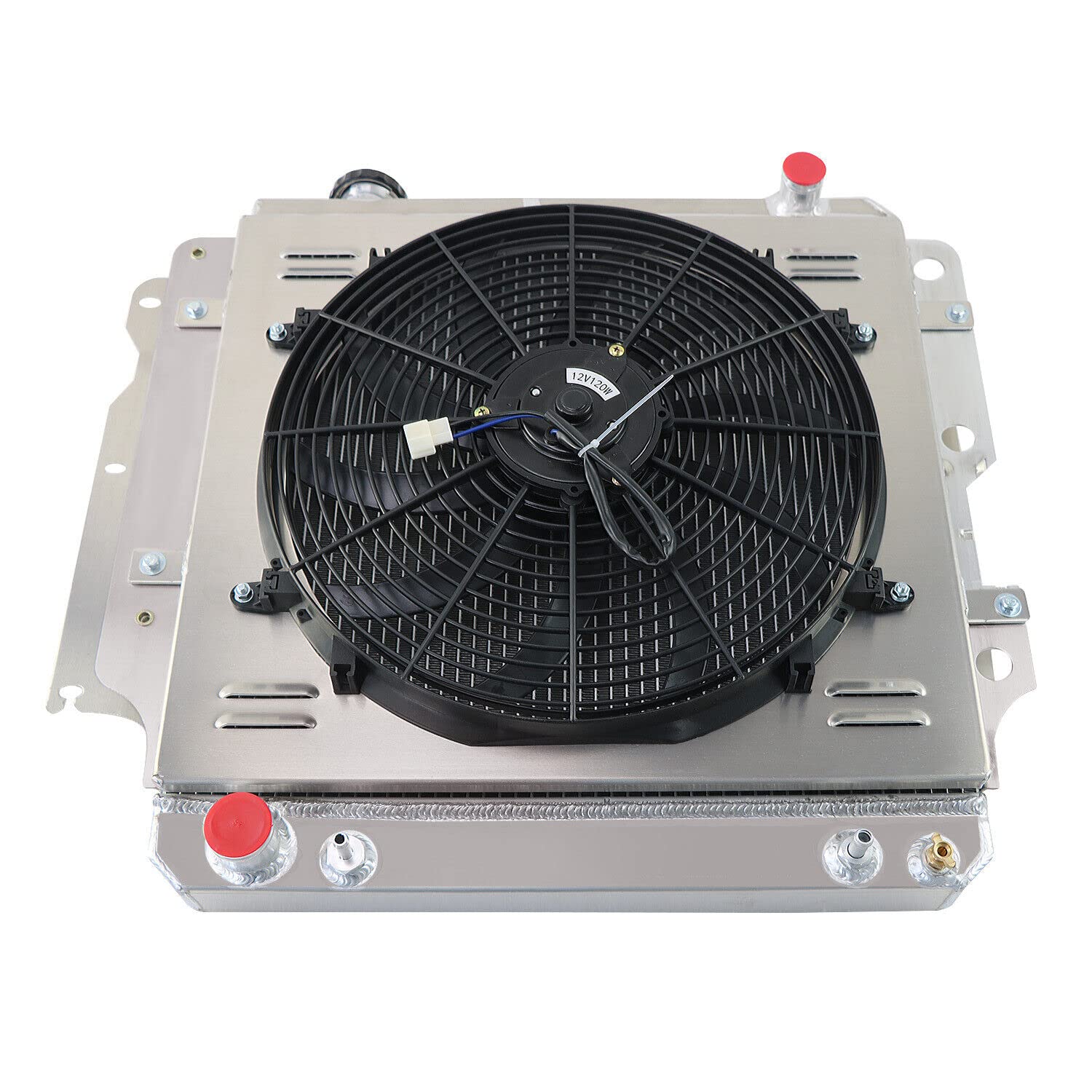

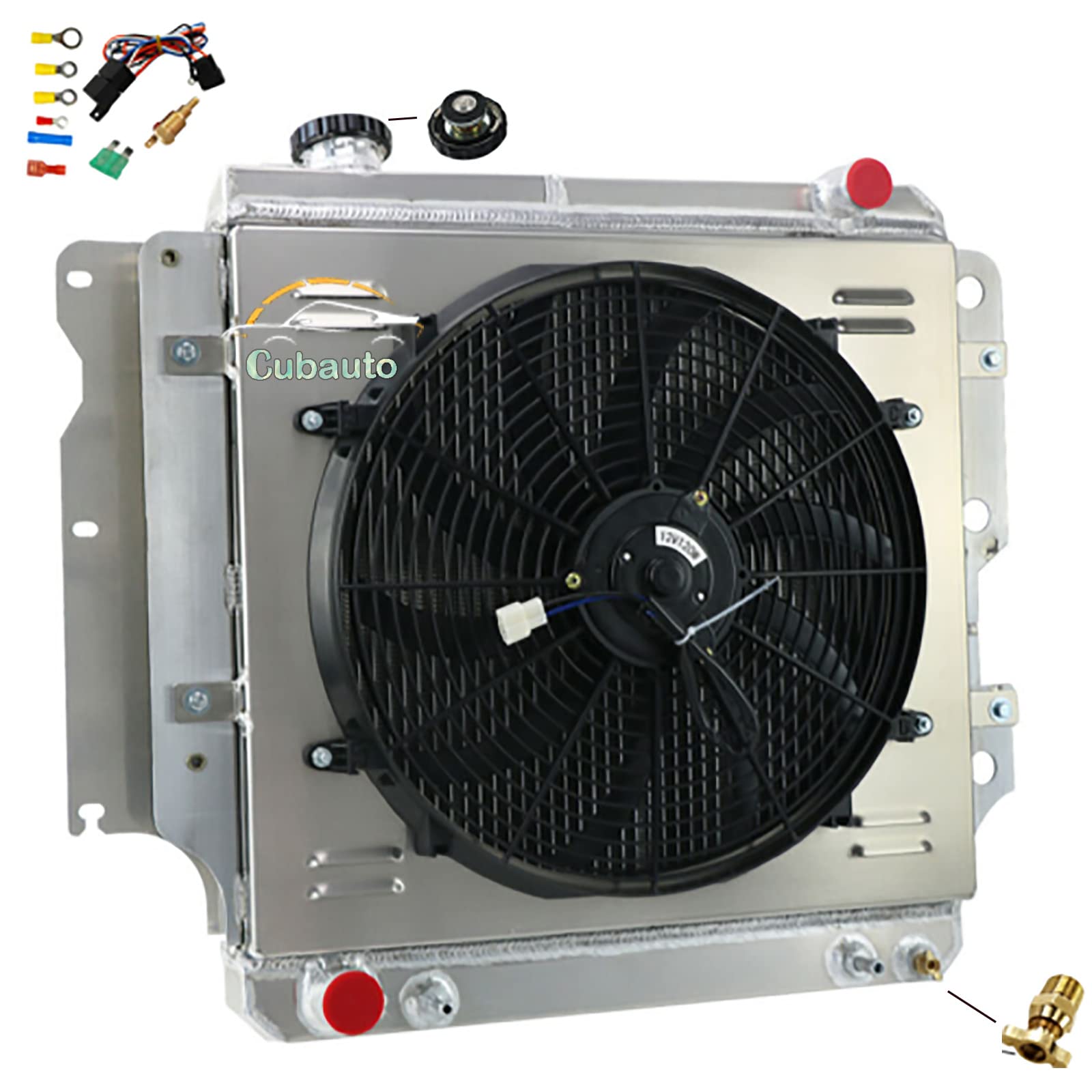

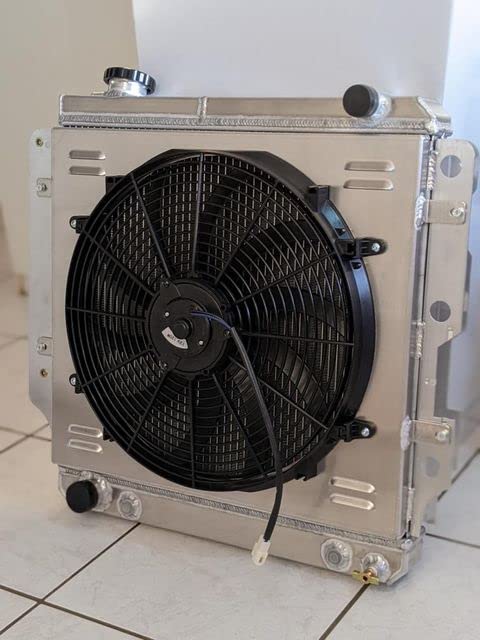

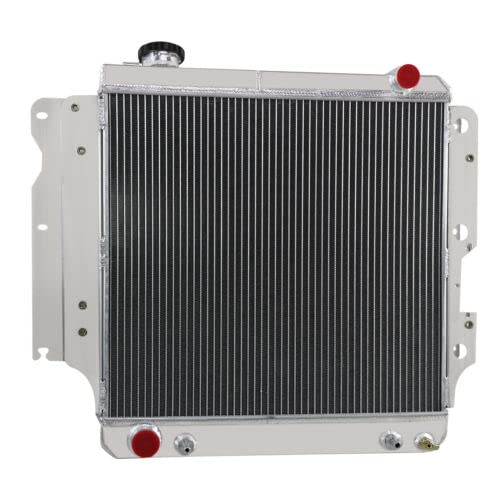

3 Row Aluminum Radiator for 1987-2006 Jeep Wrangler YJ/TJ 2.4L 2.5L 4.2L 4.0L Engine - Full Aluminum Cooling System with Shroud Fan & Relay Kit - Perfect for Off-Roading, Overheating Prevention & Engine Performance Upgrade

Product Description

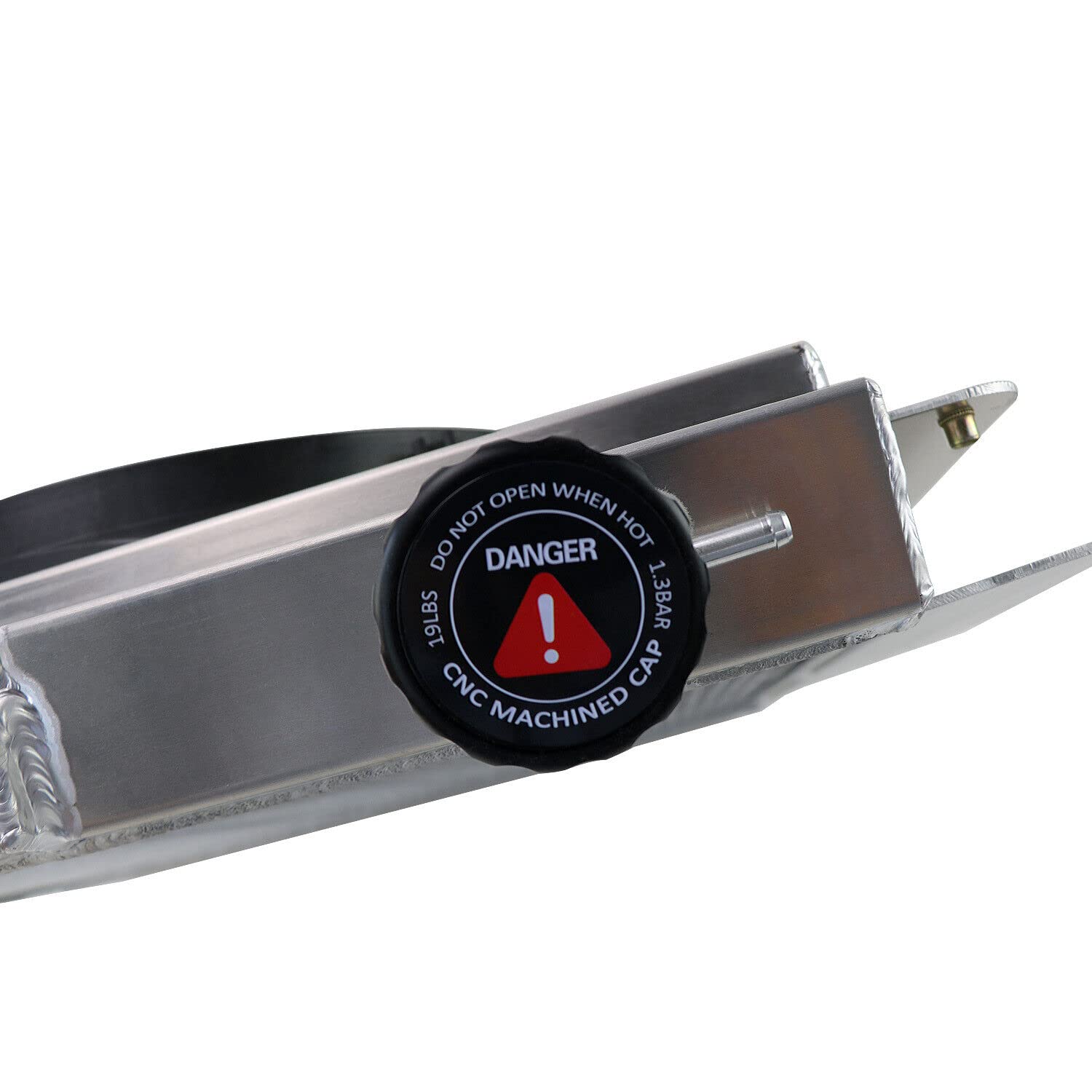

This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications. RADIATOR: Row : 3 rows Core size : 18 1/2" H x 20" W x 2 1/4" T Overall Size : 23 1/2" H x 25 1/2" W Inlet/Outlet Diameter: 1 1/4" / 1 1/2" Transmission Oilcooler: yes Surface finish ：Aircraft 5057 grade aluminum tank & core Petcock Drain ：OEM style brass petcock drain Radiator Cap ：CNC machined filler neck and cap Fans Details： Maximum Fan CFM: 2000±200 cfm Fan Diameter (in): 16.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Fitment : Compatible For 1987- 2006 Jeep Wrangler YJ (2.4, 2.5,V4, 4.0, 4.2, V6) Compatible For 87-06 JEEP WRANGLER YJ/TJ 2.4L 2.5L 4.0L 4.2L Compatible For 87-06 JEEP WRANGLER YJ/TJ L4/L6D Compatible For 2002-2004 Jeep Wrangler X 6Cyl 4.0L 242CID
