4 Row Aluminum Radiator for 1955-1959 Chevy GMC Pickup Truck 3400 3600 3800 - V8 Engine Cooling System with Fan Shroud & Relay - Perfect for Restoration Projects & Hot Rod Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:18 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:41649971
Product Description

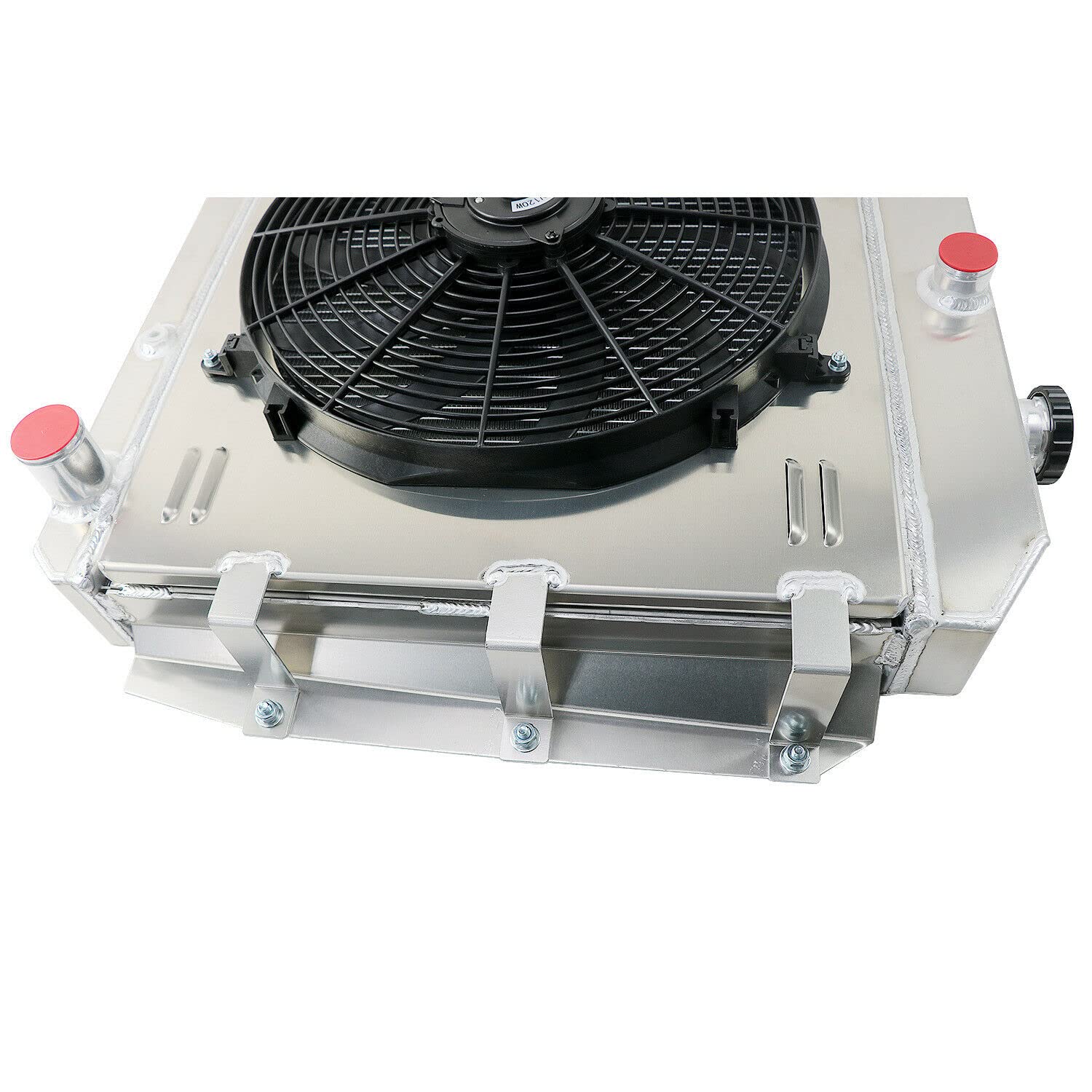

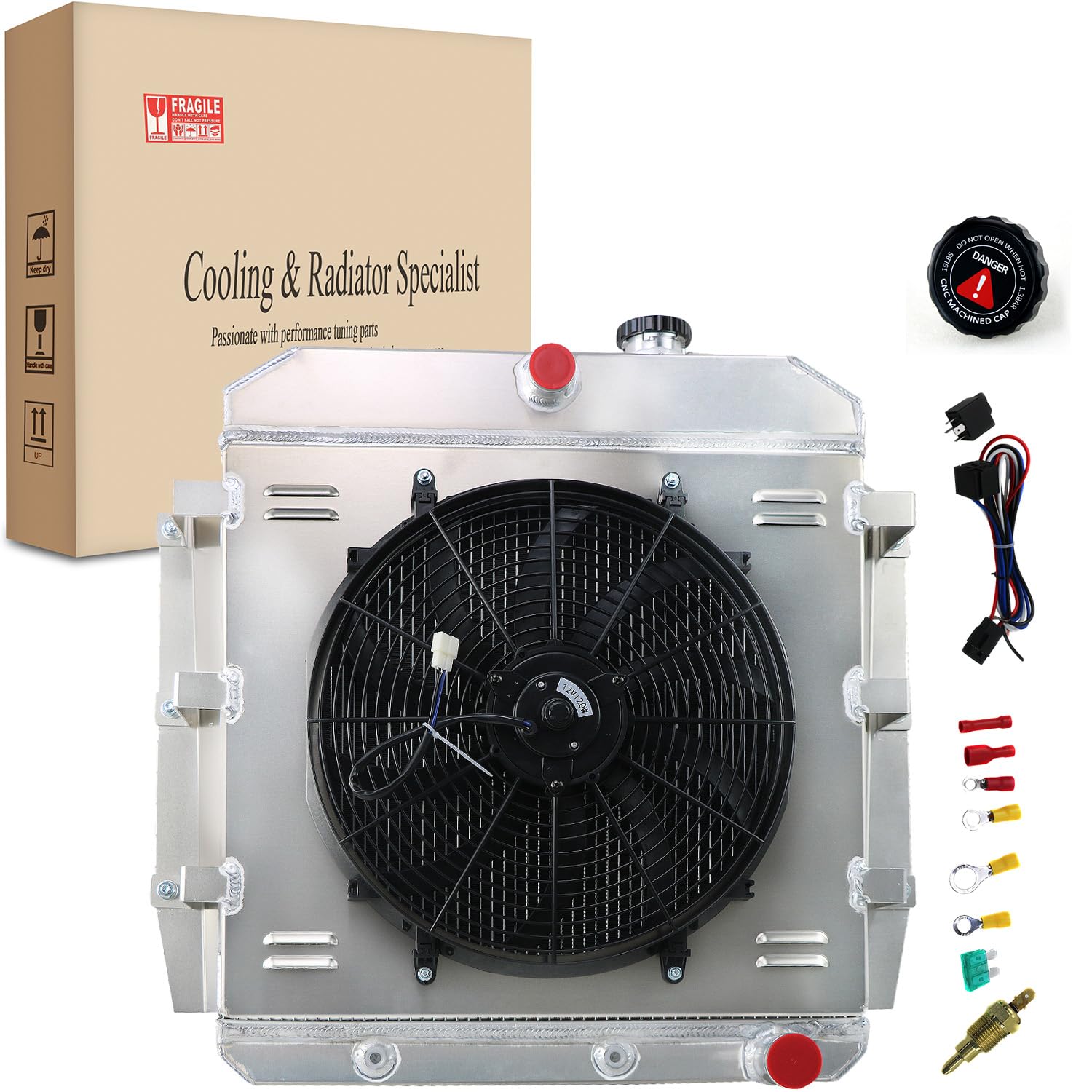

Vehicle Fitment For 1955 - 1959 Chevy Pickup Truck For 1955-1959 GMC Truck For 55 56 57 58 59 Chevy Apache Truck For 55 56 57 58 59 Chevrolet Truck pickup For 55-59 GMC Pickup Truck For 55-59 Chevy 3100 Pickup Truck For 1955-1959 CHEVY TRUCK PICKUP SUBURBAN PANEL FOR CHEVY TRUCK GMC 55-59 For CHEVY 3100 3200 3400 3500 3600 3800 55-59 Radiator Details Row: 4 Row Core Material: Full Aluminum Radiator Cap: Included Core and Tank: All Aluminum Auto trans cooler: yes OEM mount system Transmission: Automatic and Manual. Fitment Type: Performance/Custom Placement on Vehicle: Engine Compartment Fan Details Fan Size: 16" Volts: 12 V Watts: 120 W Number of Fan Blades: 10 Maximum Fan FAN CFM＞=1000 CFM Maximum Fan RPM=2000±10% RPM OE Fitment or Replacement, Push or Pull Type Easy direct installation, require NO modification Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans & pull air in through radiator. Part Number Manufacturer Part Number: 5559,CC5559,CU5559,RAD5559,DPI5559 Interchange Part Number: SDD-RA-CHEVYT55-3,RA-CHEVYT55-3,RA-CHEVYT55-2 OE/OEM Part Number: 5559,CC5559,EC5559,DREC5559.MC5559 Why Choosing HonorPower Radiator Covers vast selection of import and domestic applications Stringently tested to guarantee optimum performance and dependability Straightforward installation guaranteed Carefully crafted to exceptional OE standards for precise fit Made from high-grade materials for prolonged lifespan
Product Features
[Vehicle Fitment] For 1955-1959 Chevy 3100 Truck Pickup 3.8 l6 4.3 4.6 V8; For 1959 Chevy 3B 3200/3C 3400/3D 3500/3E 3600 /3F 3700/3G 3800 3.8 l6 4.6 V8; For 1955-1958 Chevy Truck 3100 3200 3400 3500 3600 3800 3.8 l6 4.6 5.7 V8
[Specifications] Core Dimensions 19 3/8" high x 21 3/4" wide; Overall Dimensions 26 3/4" high x 26 1/2" wide. Upper inlet 1 1/2" located in center; Lower outlet 1 3/4" located on passenger side.
[Reference Number] Manufacturer Part Number 5559,CC5559,CU5559,RAD5559,DPI5559; Interchange Part Number SDD-RA-CHEVYT55-3,RA-CHEVYT55-3,RA-CHEVYT55-2; OE/OEM Part Number 5559,CC5559,EC5559,DREC5559.MC555;

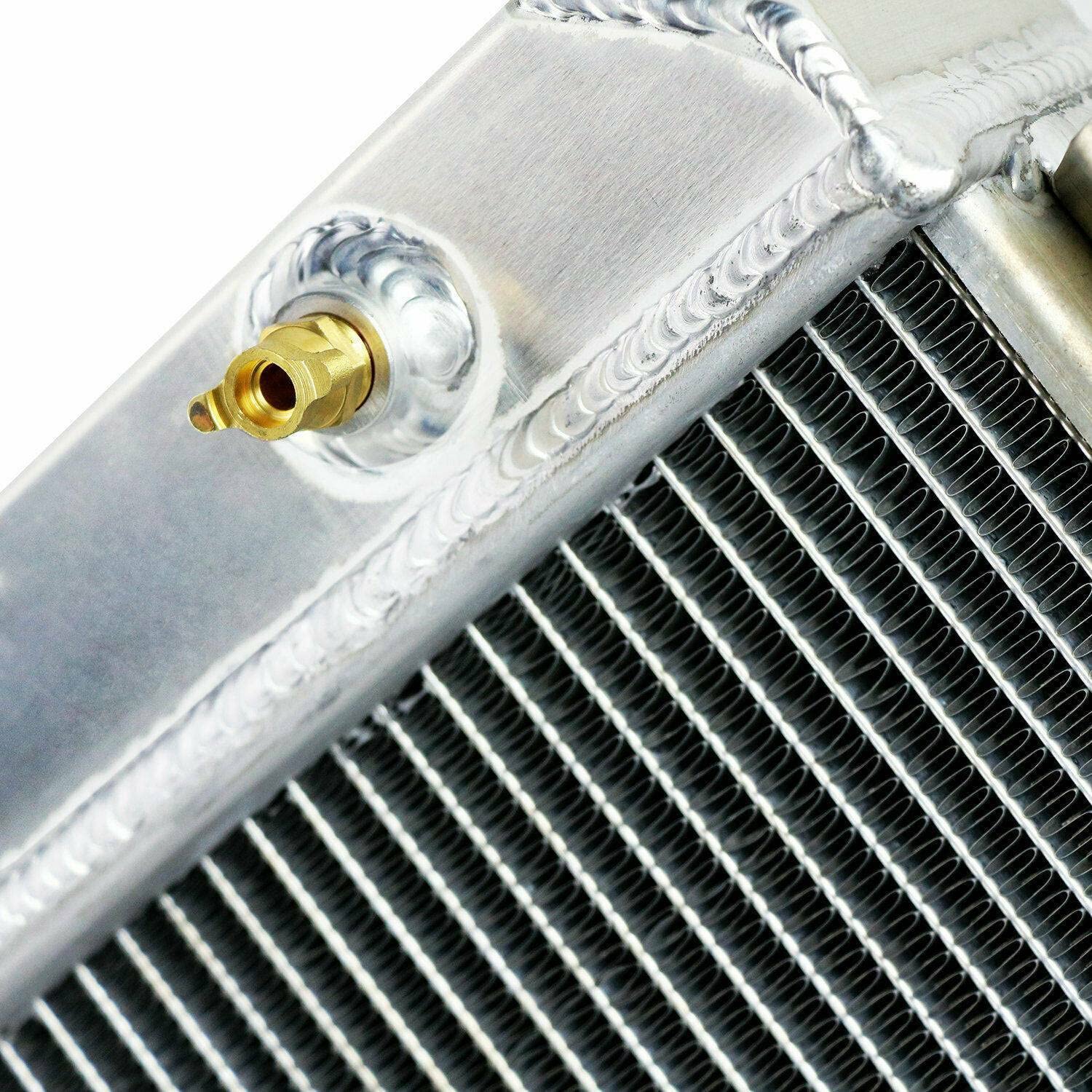

[Advantage] Full aluminum construction with durable, TIG-welded end tanks, increased durability over the factory plastic end tank radiator. All aluminum construction & TIG-welded craftsmanship fully. High performance design, improves cooling by 30%+ temp
[Customer Support] If you have any questions, never mind contact our friendly,helpful,and knowledgeable customer service representatives,we will be glad to address any questions or concerns promptly.
Customer Reviews
Packaged very well. Great product with all you need to install
