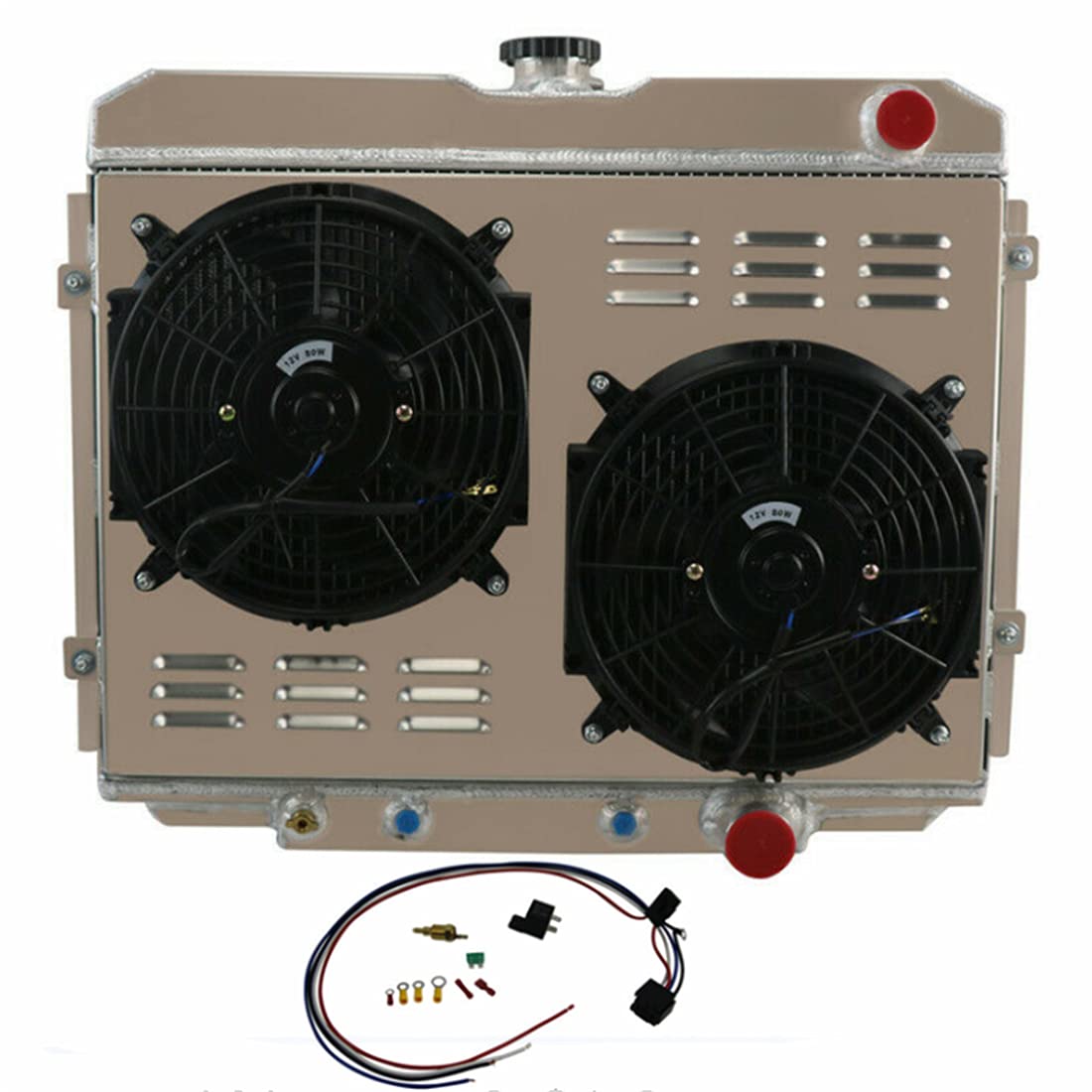

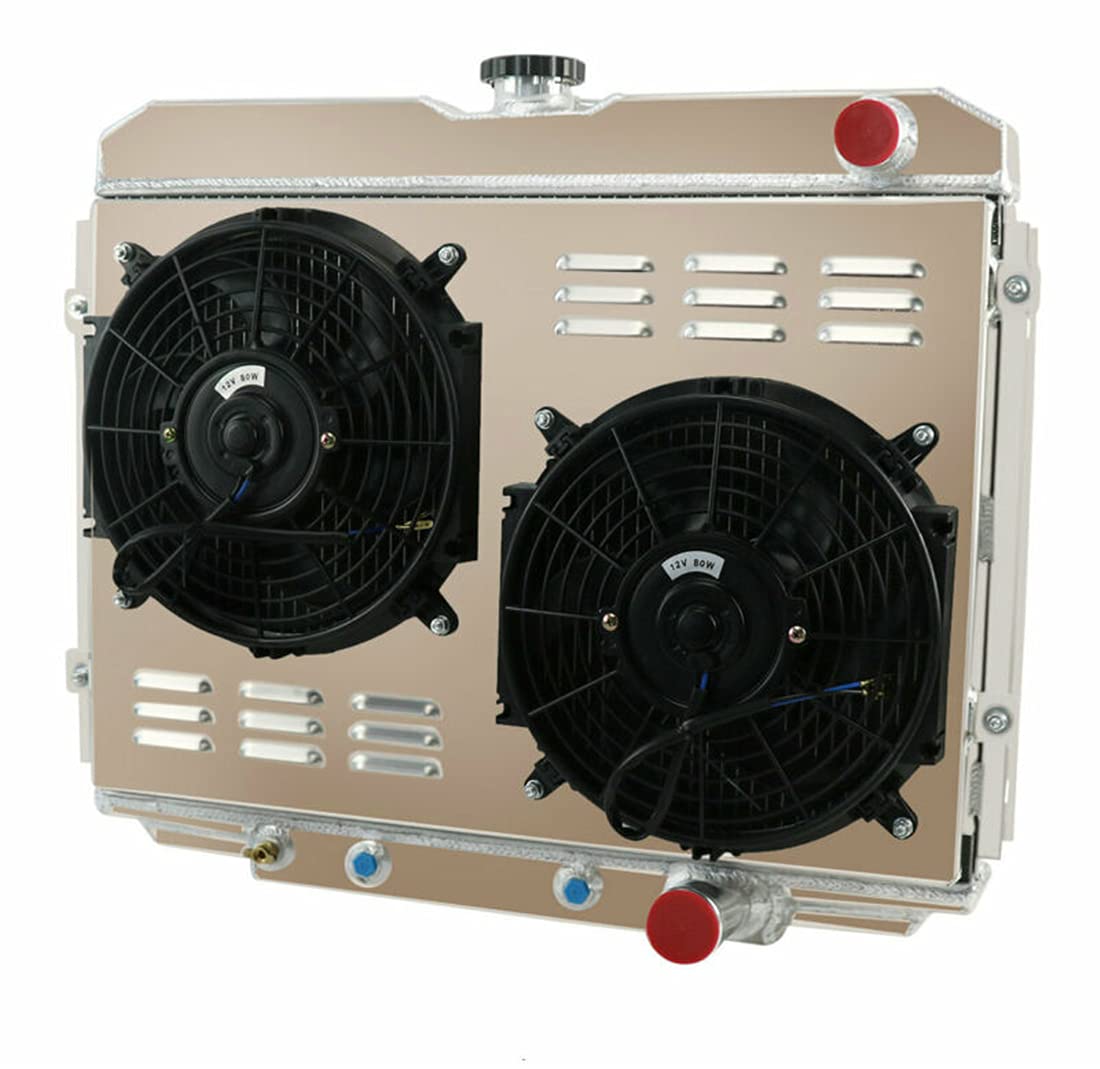

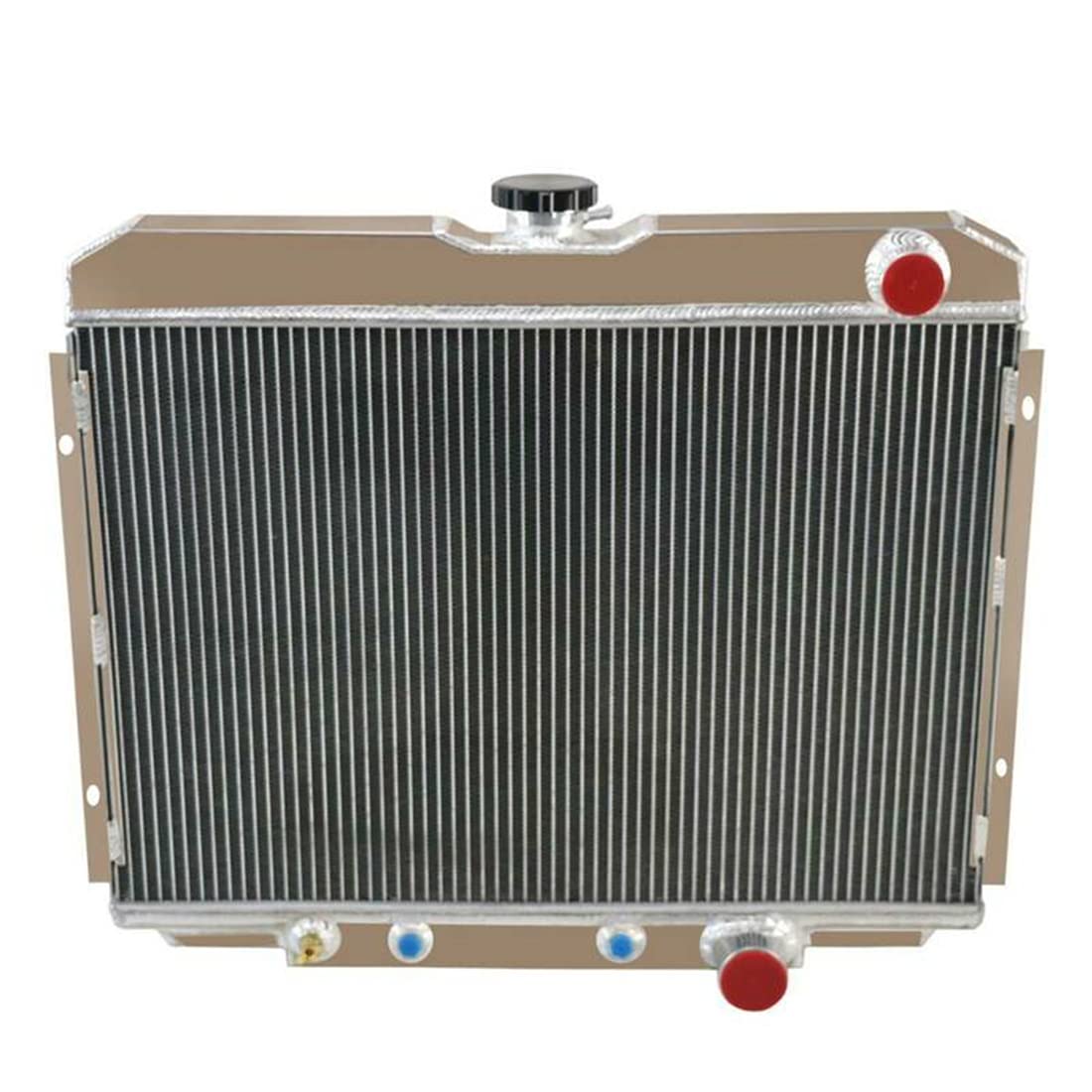

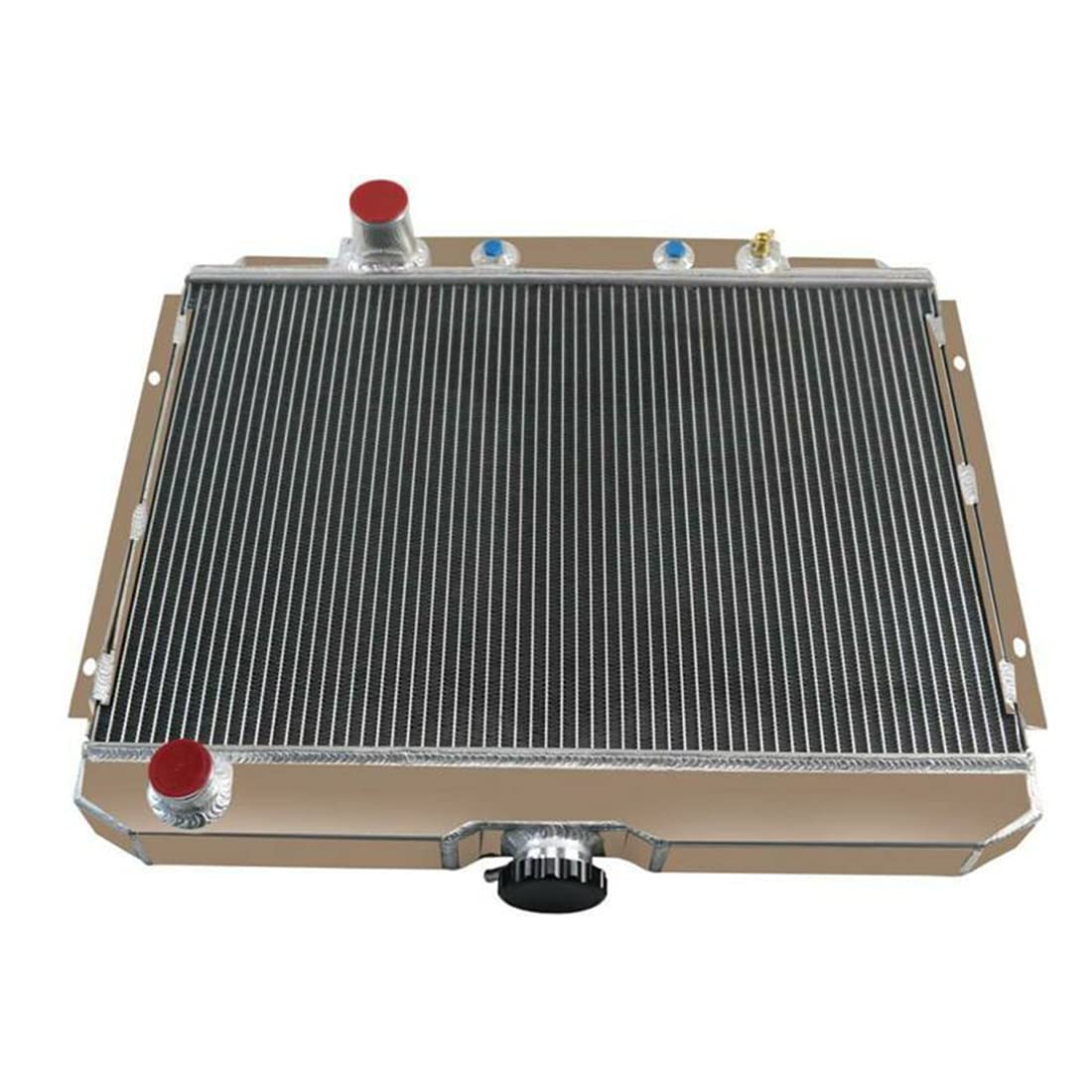

4 Row Full Aluminum Radiator with Fan Shroud & Thermostat Relay Kit - Compatible with 1967-1970 Ford Mustang, 1969 Fairlane/Ranchero, 1967-1970 Mercury Cougar XR-7 V8 Engine - High-Performance Cooling Upgrade for Classic Muscle Cars & Restoration Projects

Product Description

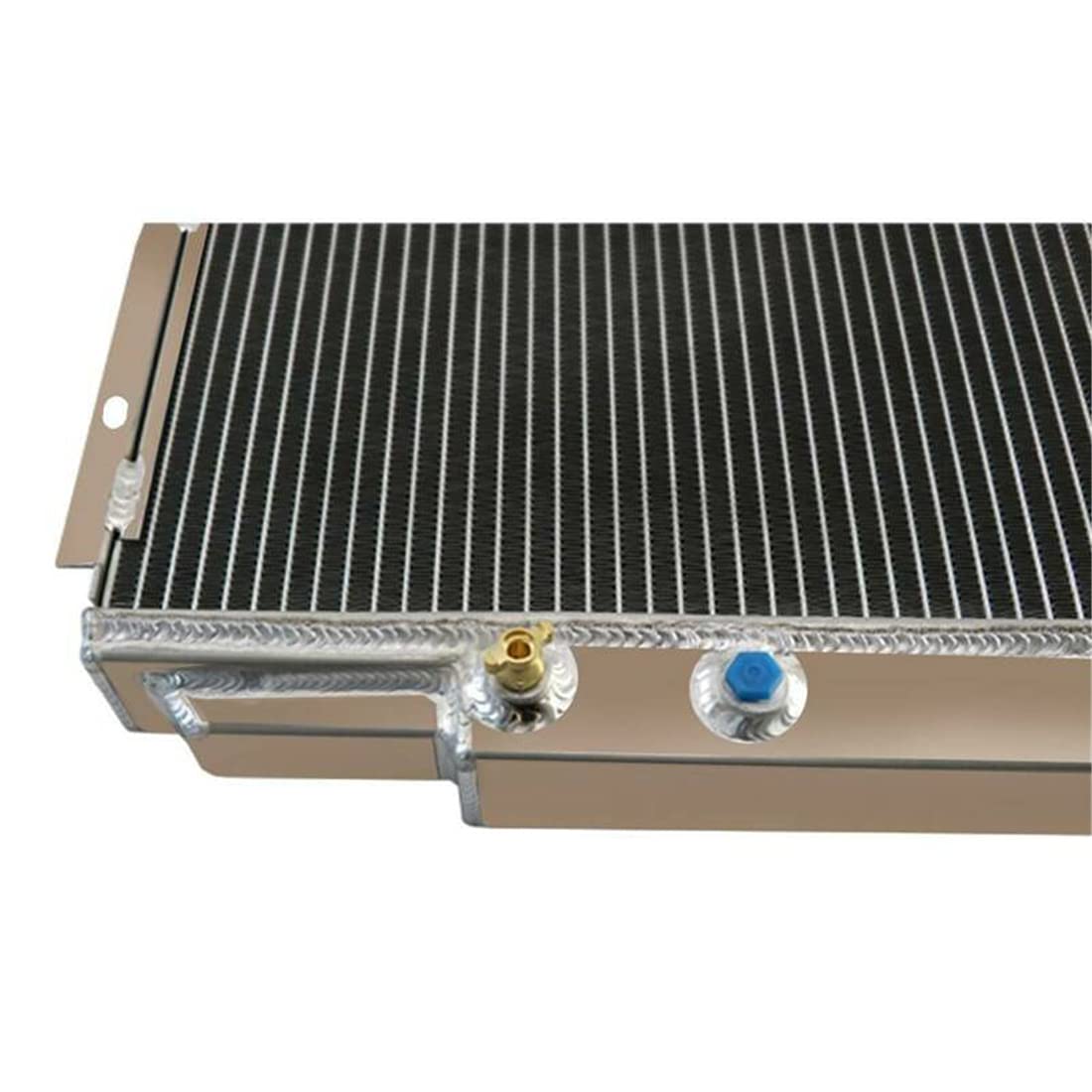

The radiator is designed and specifically engineered to maximize cooling efficiency by up to 30%, boost engine functions and protect your car from overheating. It's a lightweight construction, 100% brazed aluminum, polished end tank. The Prime Cooling radiator showed a 20degF drop in outlet temp compared to the OEM. Every Prime Cooling Performance Radiator is a direct OEM fit, making installation effortless, no cutting or modification is required. Radiator Size Row: 4 Row Core Radiator Cap: included Core and Tank: All Aluminum Radiator Flow: DOWN FLOW Core Dimension (H x W): 16 x 24 1/4 Overall Dimension (H x W): 21 3/4 x 25 3/8 Hose Locations: IN: Passenger / OUT: Passenger Hose Fittings: IN: 1 1/2 - OUT: 1 3/4 Trans Cooler: 1/8-27NPT Mounting Type: FLANGES Transmission：Automatic and Manual. FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 10.050” Thickness (in): 2.500” Number of Blades: 6 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold. THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND 2X10" FANS+ THERMOSTAT KITS!
