Aluminum Radiator for 1979-1993 Dodge D100 D150 D200 D250 D300 D350 Ramcharger Pickup Truck - 3 Row Full Aluminum Radiator with 16" Fan, Shroud & Relay Kit - Compatible with 3.9L 5.2L 5.9L V8 Engines - Perfect for Off-Roading, Towing & High-Performance Cooling

Product Description

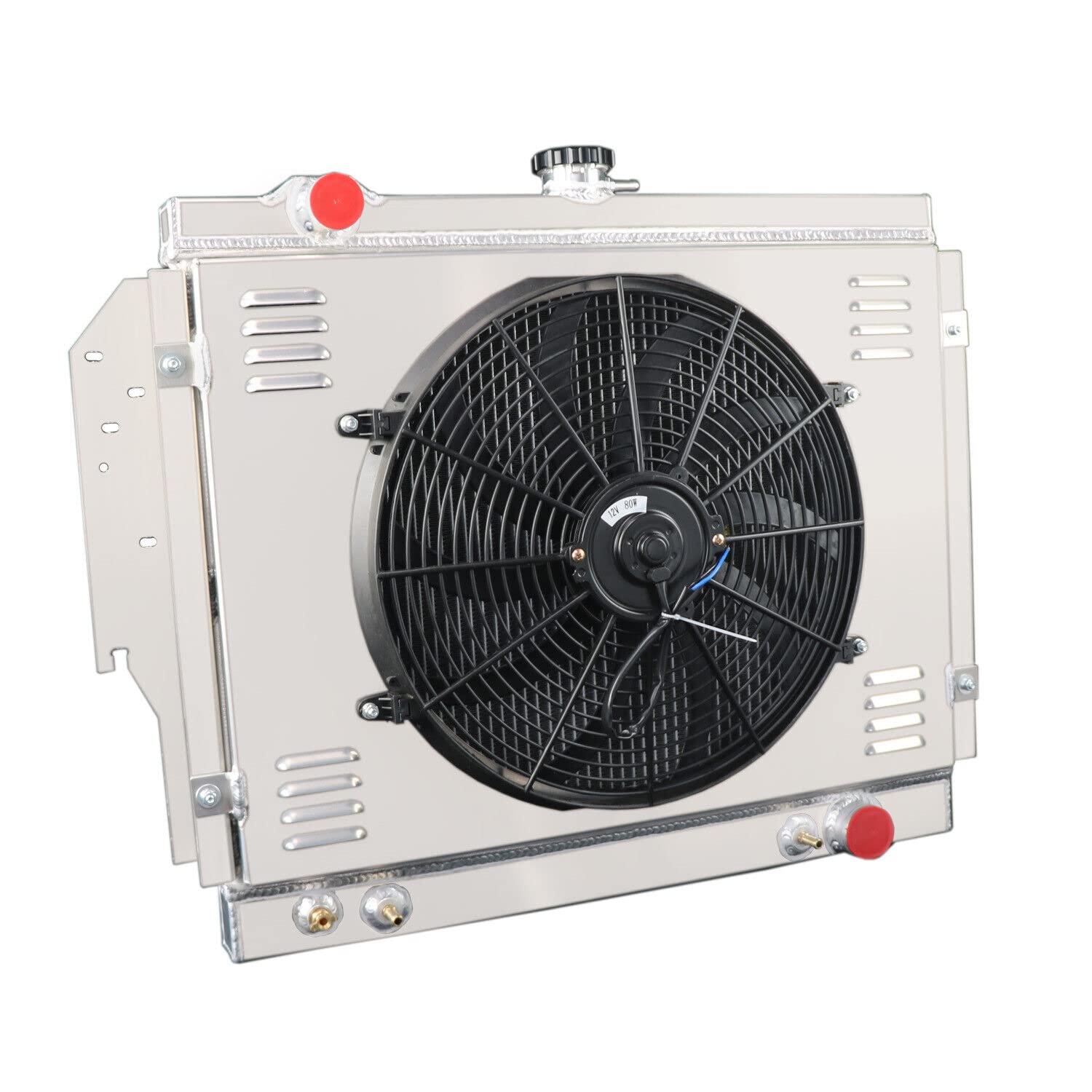

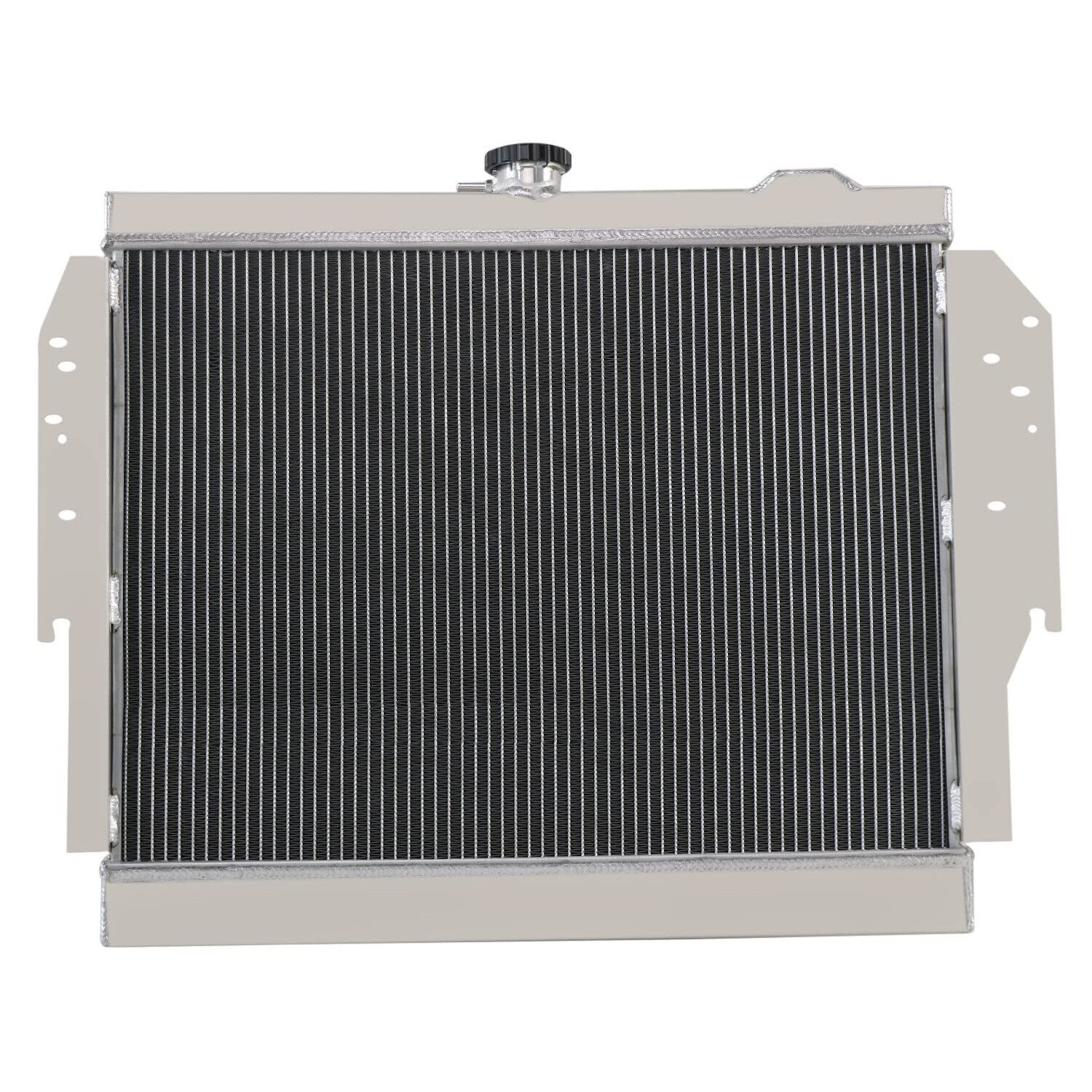

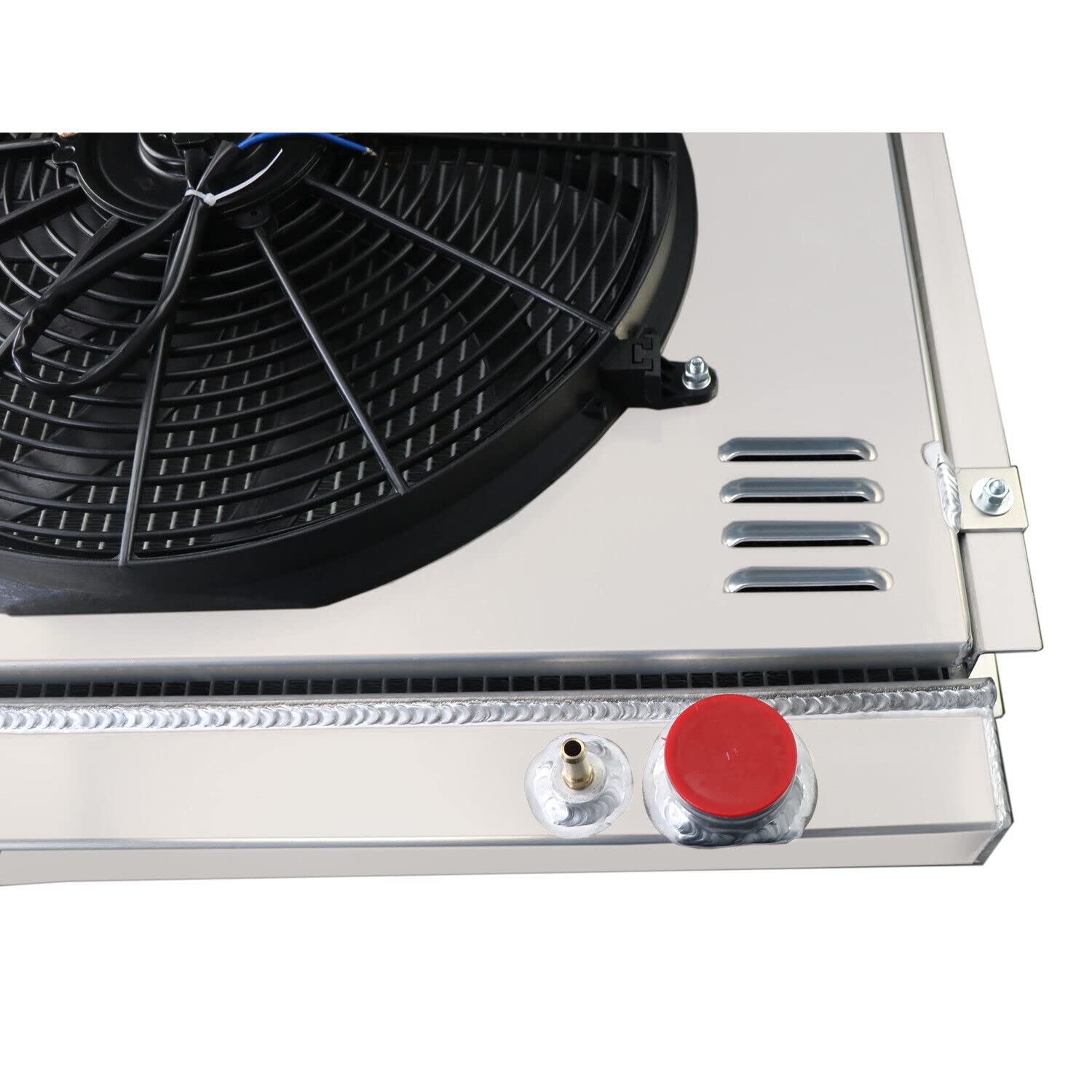

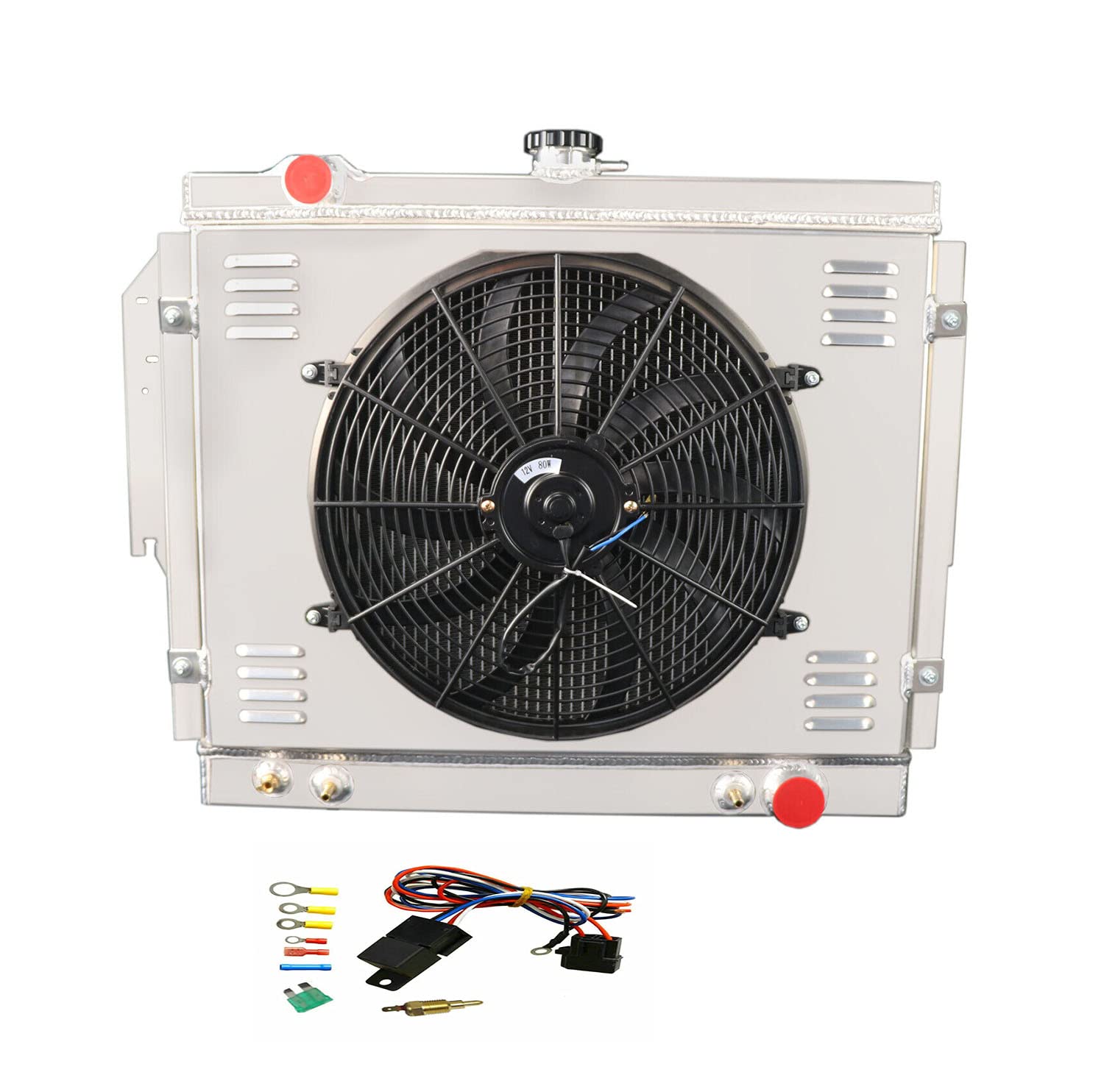

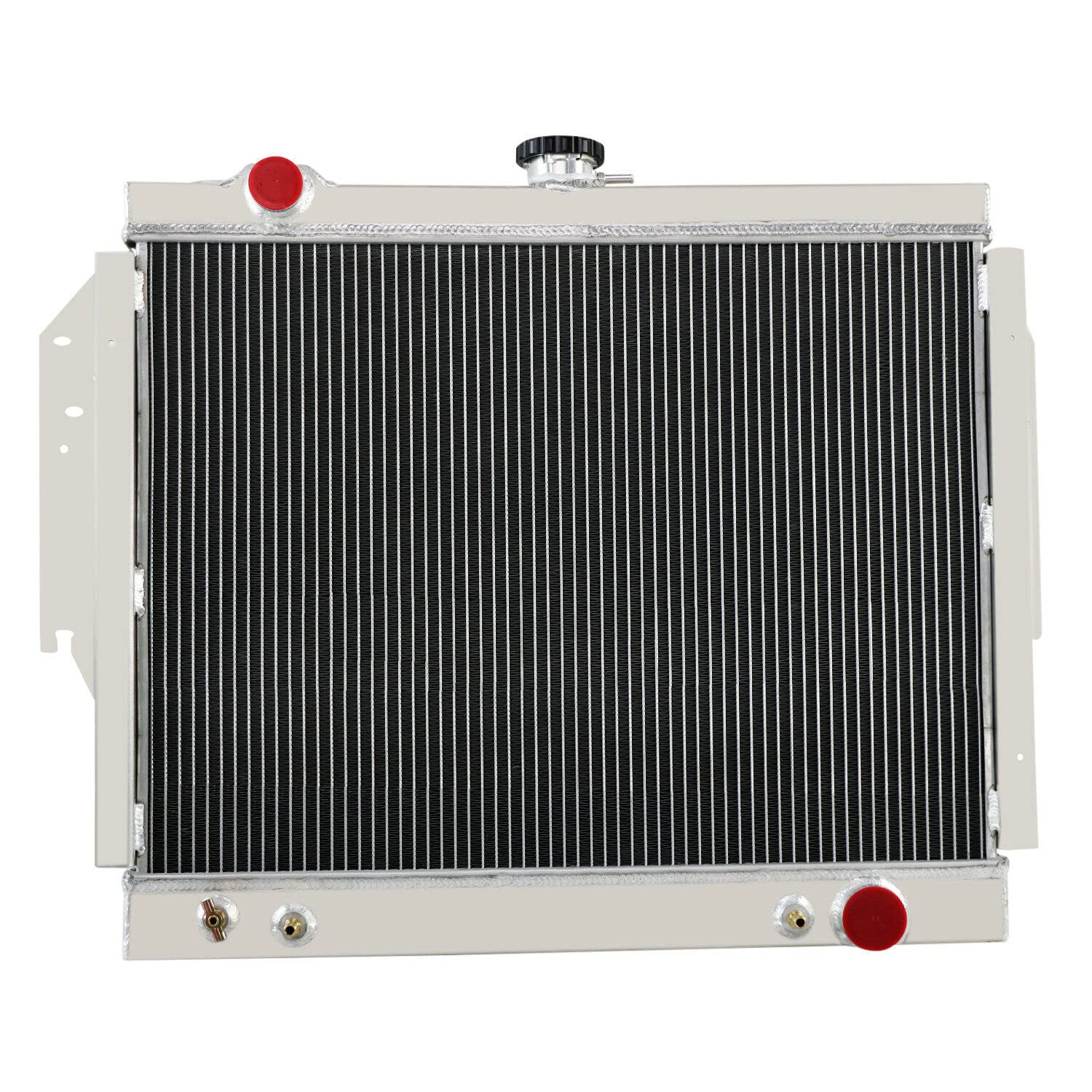

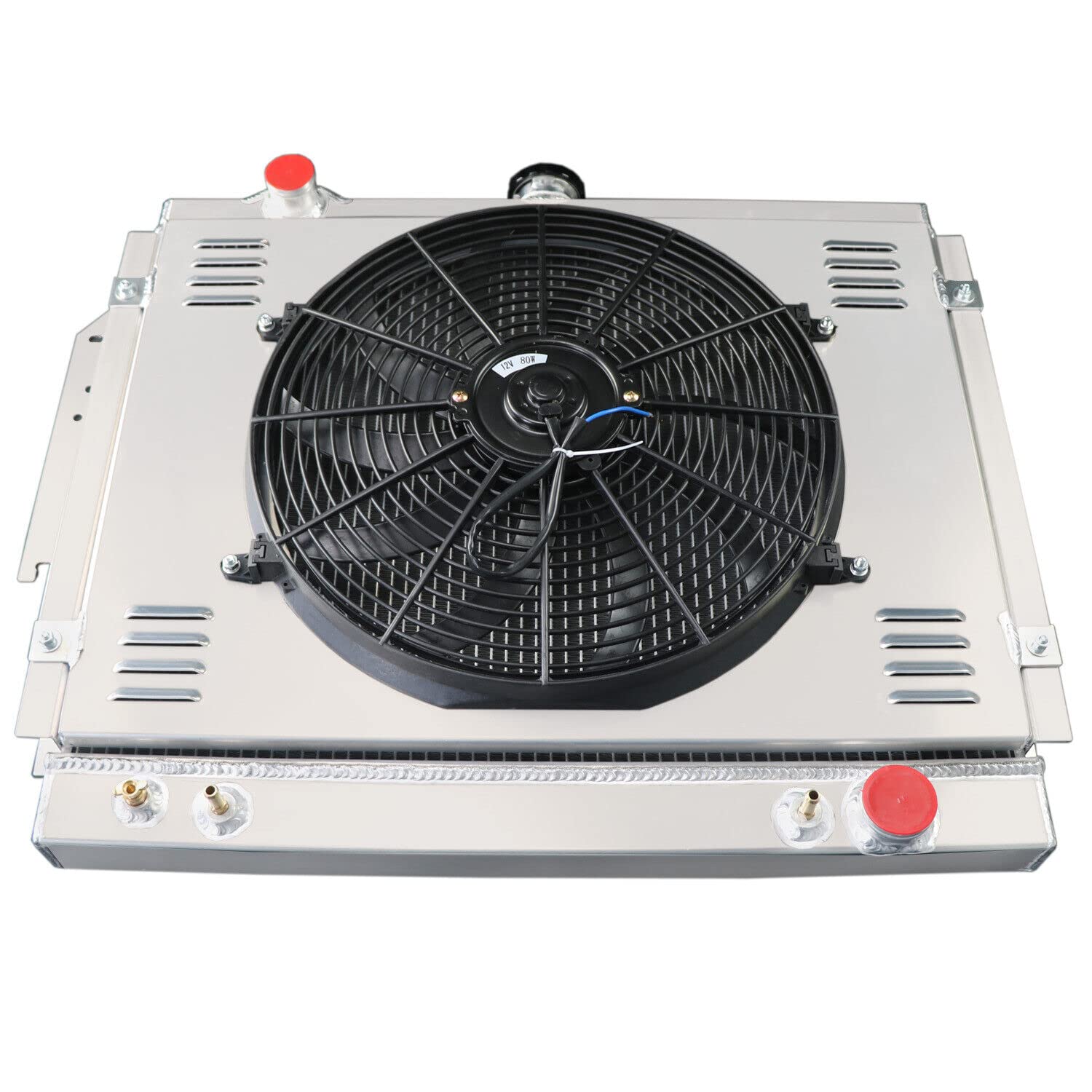

Radiator Specifics: Condition: 100% Brand New Material: Aircraft T-5052 grade aluminum tank & core Row: 3 Row Core Size: 18.1'' H x 24.7'' W x 1.73'' Thickness Overall Size: 23.2''H x 29.9''W x 6.1'' T Inlet Diameter: 1.5 inch Driver Side Outlet Diameter: 1.77 inch Passenger Side Transmission Oil Cooler: 26x365x1/8-27NPT(P) Engine oil cooler: Without Engine Oil Cooler CNC machined filler neck and cap OEM Style Brass Petcock Drain Fan Spec: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1980 Dodge CB300 5.9L V8 1979 Dodge D100 (5.2L 5.9L V8) With Ac Or Heavy Duty Cooling 1986-1989 Dodge D100 / W100 (3.9L V6)(5.2L 5.9L V8) 1979-1993 Dodge D150 / W150 (3.9L V6)(5.2L 5.9L V8) 1979-1980 Dodge D200 / D300 / RD200 / W200 / W300(5.2L 5.9L V8) 1981-1993 Dodge D250 (3.9L V6)(5.2L 5.9L V8) 1981-1993 Dodge D350 / W250 / W350(5.2L 5.9L V8) 1979-1991 Dodge Ramcharger (5.2L 5.9L V8) PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the
