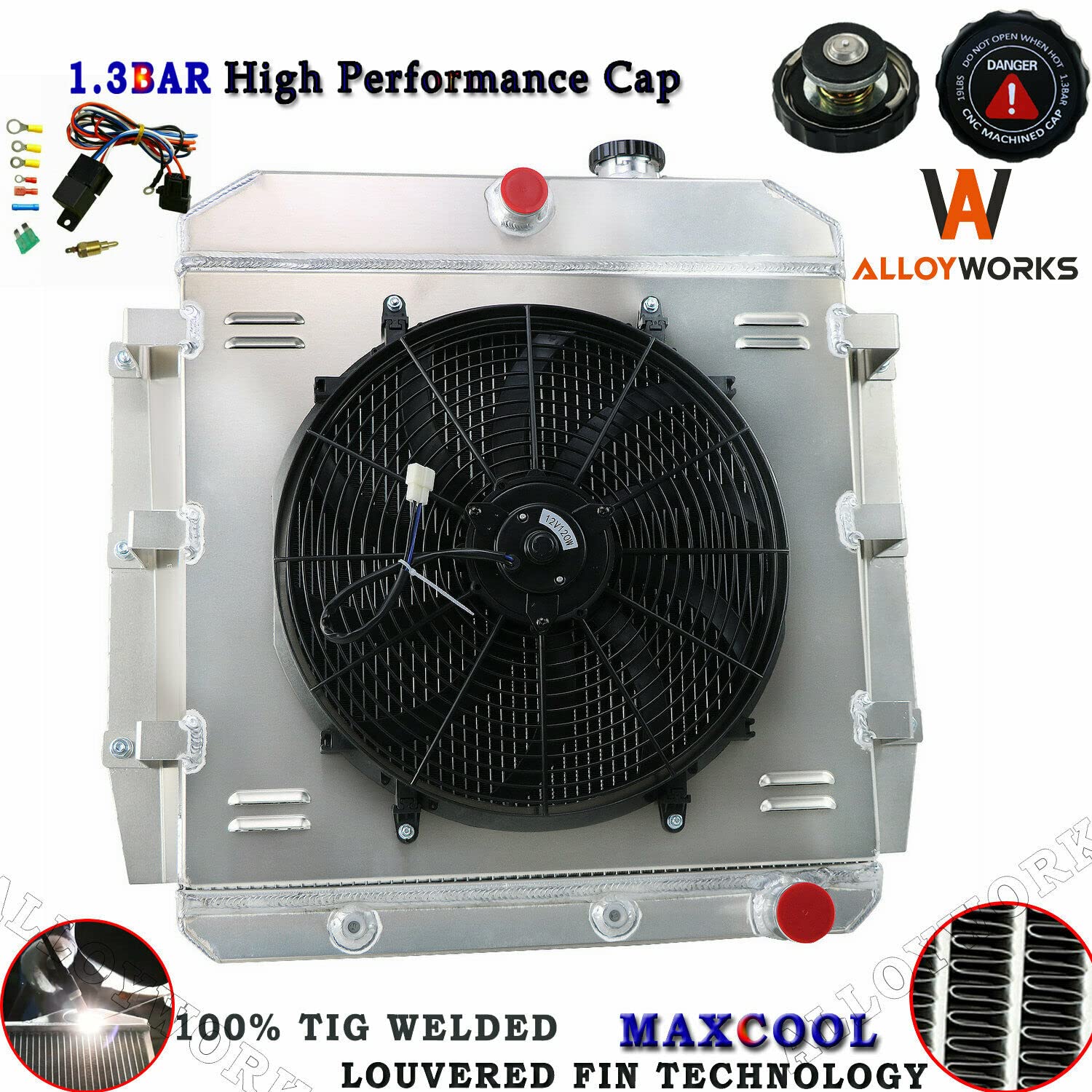

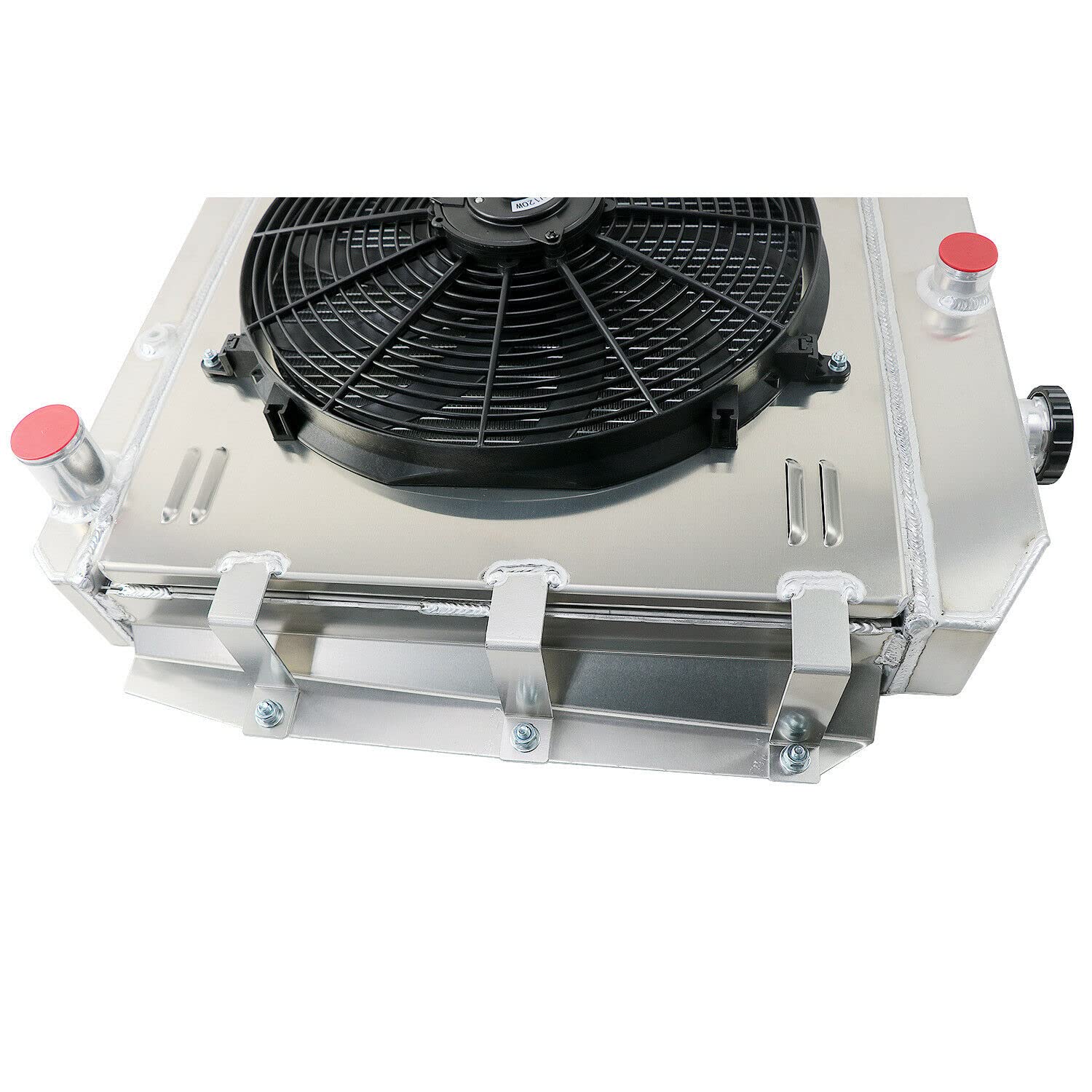

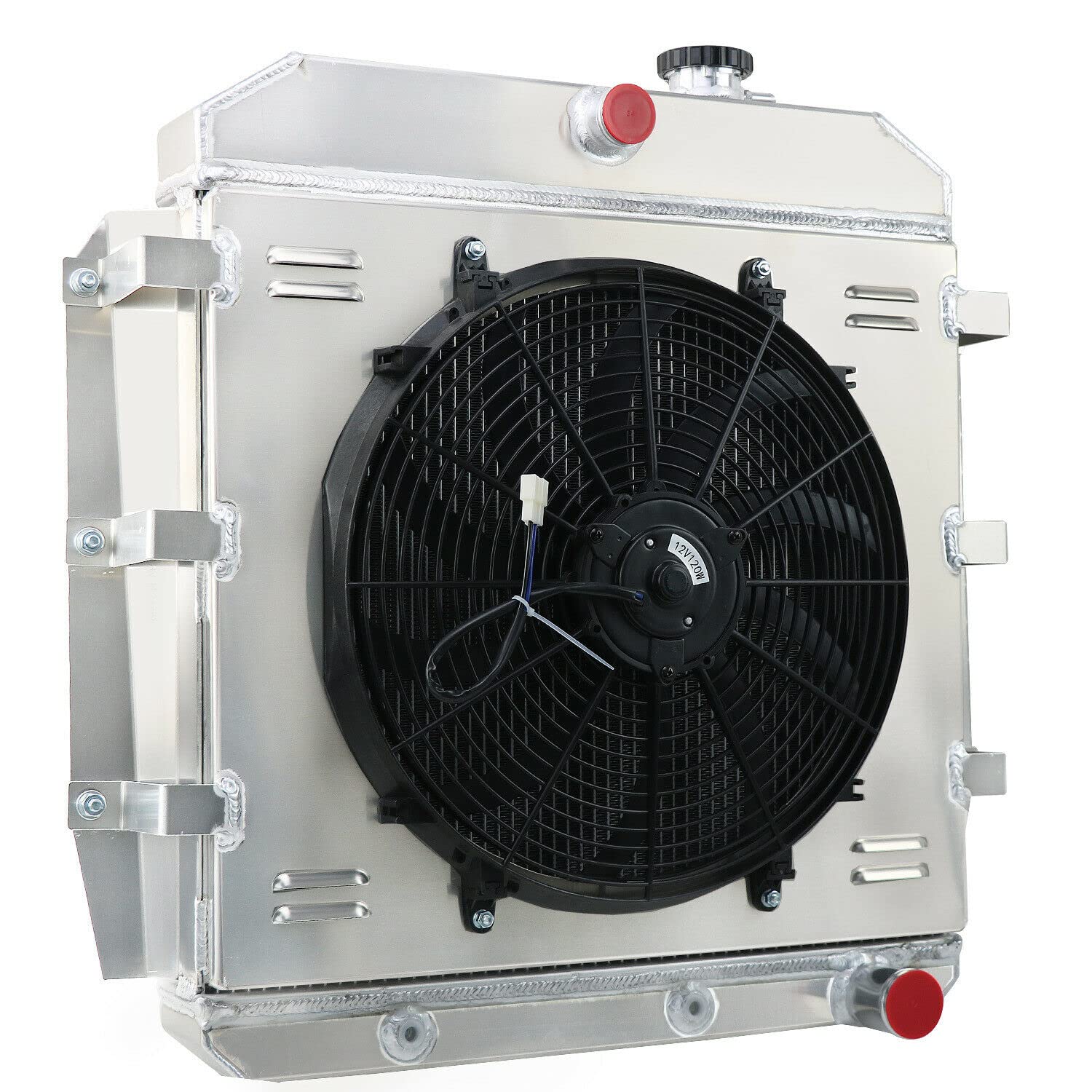

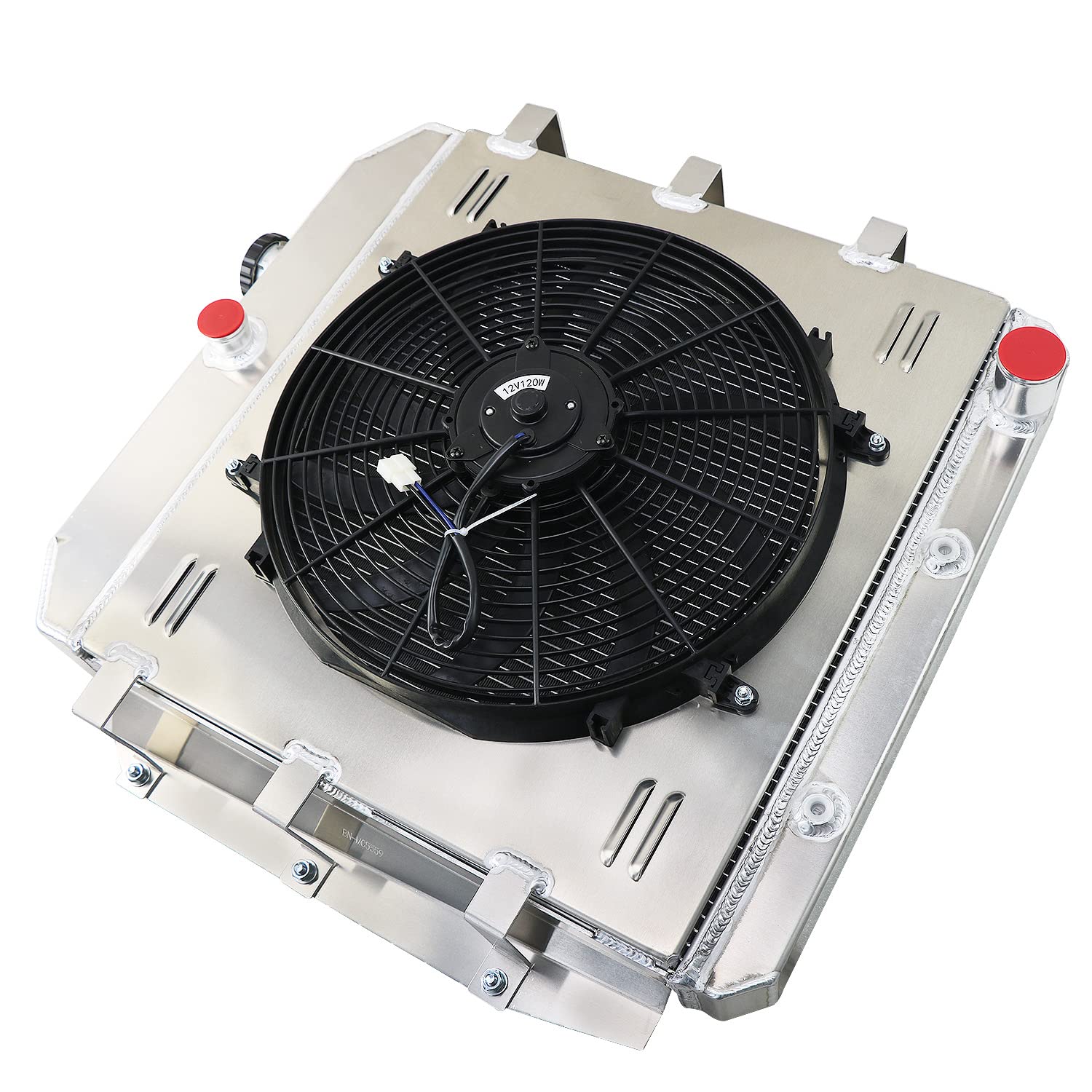

ALLOYWORKS 3-Row Aluminum Radiator with Shroud Fan & Relay Kit - Compatible with 1955-1959 Chevy GMC Truck, Chevrolet Apache (L6/V8 Engines) | Heavy-Duty Cooling for Classic Pickup Restoration & Off-Road Performance

Product Description

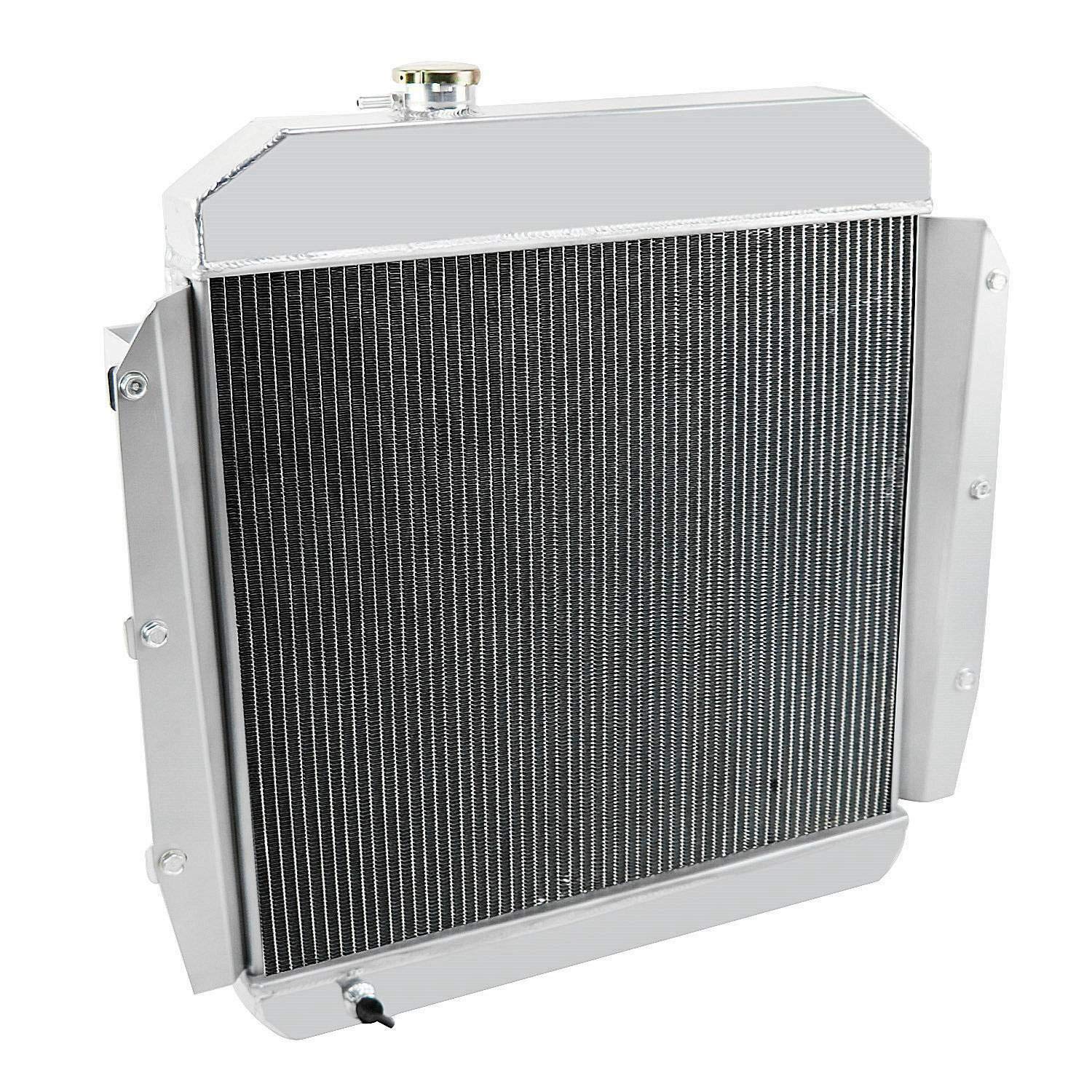

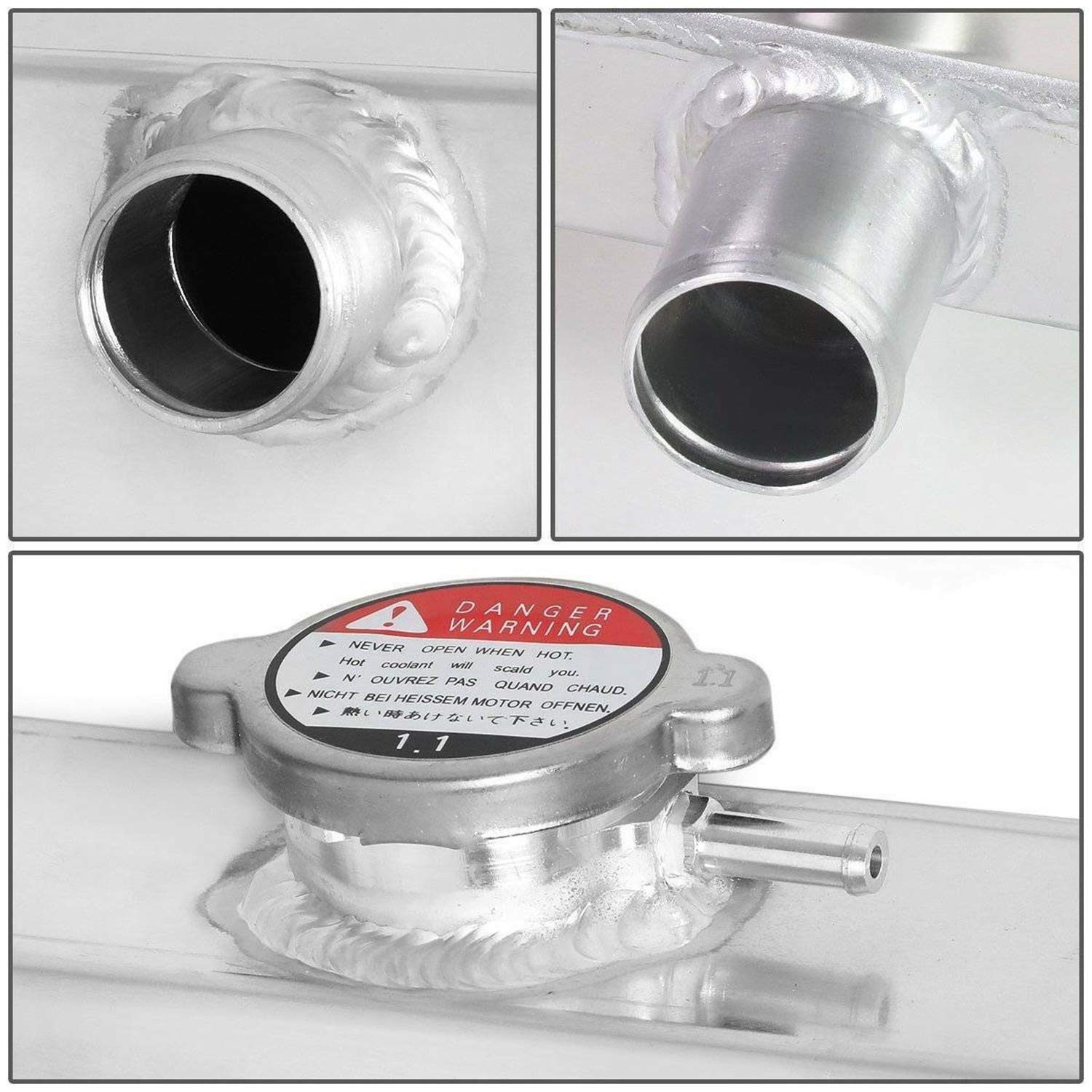

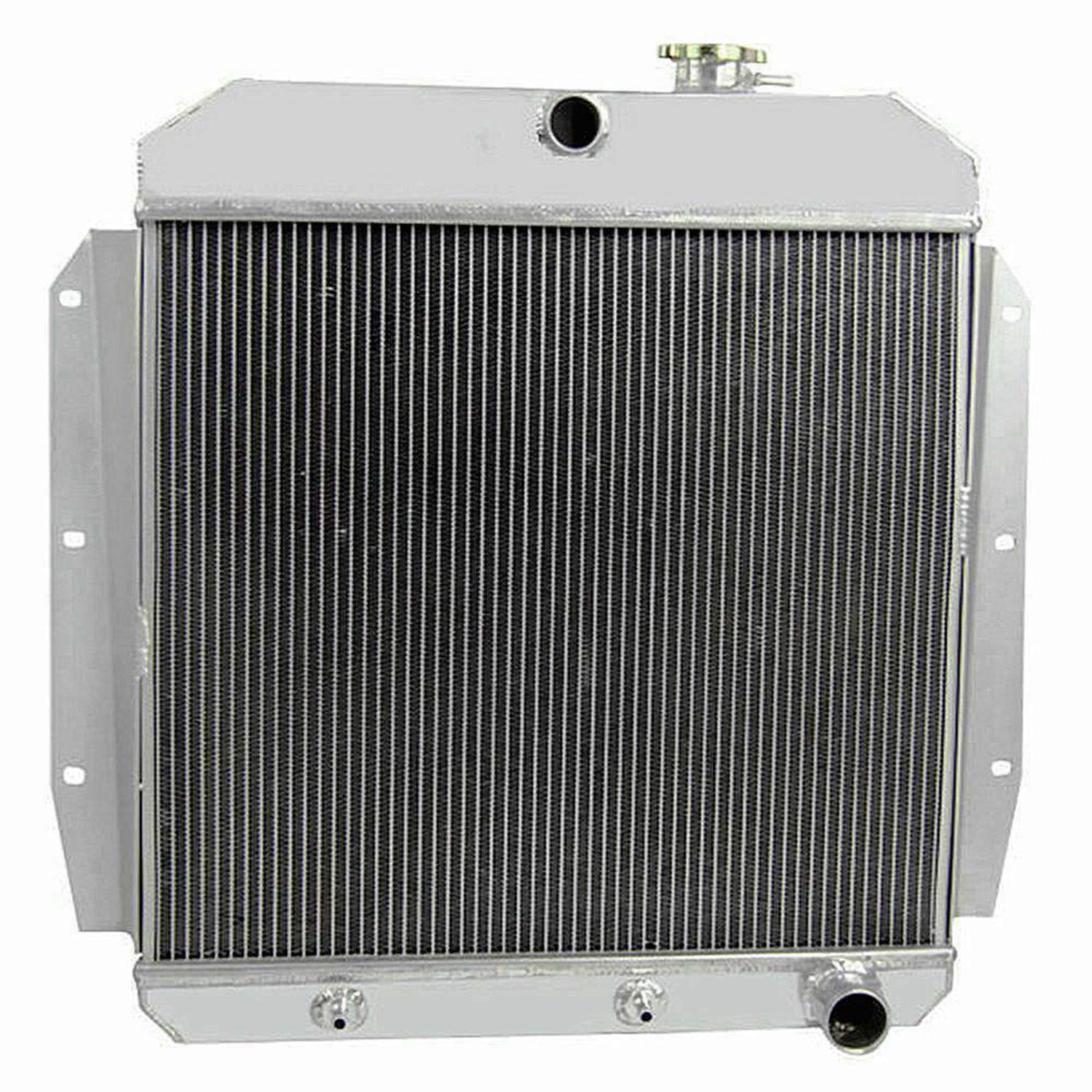

This Listing Is Including:1 X 3-Row Aluminum Radiator (Includes Radiator Cap)1 X Aluminum Shroud1 X 16" Fans (Includes mounting kits)1 X Thermostat Relay Kit RADIATOR SIZE:Material : Full Aliuminum3 row coreCore Dimensions: 19 3/8" high x 21 3/4" wide Overall Dimensions: 26 3/4" high x 26 1/2" wideUpper inlet: 1 1/2" located in center.Lower outlet: 1 3/4" located on passenger side.Auto trans cooler: yesOEM mount systemOEM Style Brass Petcoke DrainCNC machined filler neck and capAircraft 5057 grade aluminum and with raw aluminum finish FAN Specification:Fan Size: 16"Volts: 12 VWatts: 120 wNumber of Fan Blades: 10Maximum Fan FAN CFM＞=1000 CFMMaximum Fan RPM=2000±10% RPMOE Fitment or Replacement, Push or Pull TypeEasy direct installation, require NO modification Thermostat Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.This set up will run Fans & pull air in through radiator. Application:For 1955-1958 Chevy C/K-Series Truck/ Pickup/SuburbanFor 1955-1959 Chevy 3100 3200 3400 3500 3700 3800For 1955-1959 GMC 100For 1955-1959 GMC 150
