1968-1977 Ford Early Bronco Wagon Roadster 5.0L V8 3-Row Aluminum Radiator with Shroud Fan & Thermostat Relay Kit - High Performance Cooling System for Off-Roading, Towing & Hot Weather Driving
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:20 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:33236741
Product Description

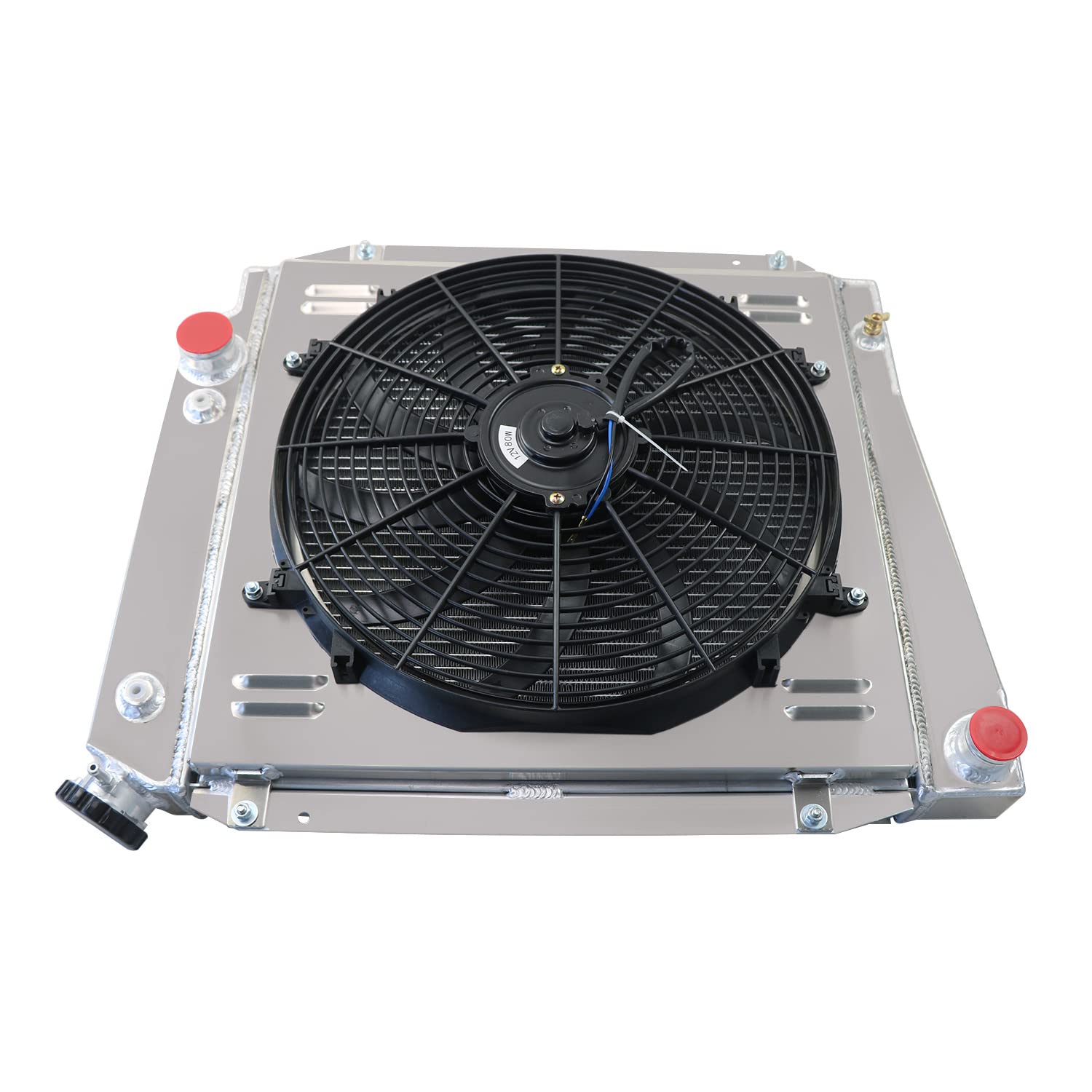

This Listing Is Including 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16" Fan (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Details Core Row: 3 Row Core Material: Full Aluminum Tank Material: Full Aluminum Radiator Cap: Included Radiator Flow: Down Flow Mounting Type: Bolt-On Fitment Type: Direct Replacement The tanks are 100% welded by TIG CNC machined filler neck and cap OEM style brass petcock drain High Performance Racing Spec Fan Specification Maximum Fan CFM: 2000±200 cfm Fan Diameter (in): 16.050” Thickness (in): 2.790" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Relay Kit Instructions RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans Why Choose CoolingSnow Radiator? 1. Maximum cooling efficiency 2. High security and performance 3. Excellent aluminum material 4. Stability and durability 5. Drop-in installation 6. High temperature resistance 7. Enhanced protection package Part Number 521, CC521, EC521, DPI521, MC521
Product Features
Core Size 19 1/4" W x 18 1/4" H x 1 3/4" T; Overall Size 25 1/4" W x 20 3/4" H
Inlet Details 1 1/2" Drivers Side; Outlet Details 1 3/4" Passenger Side;Transmission Oil Cooler YES

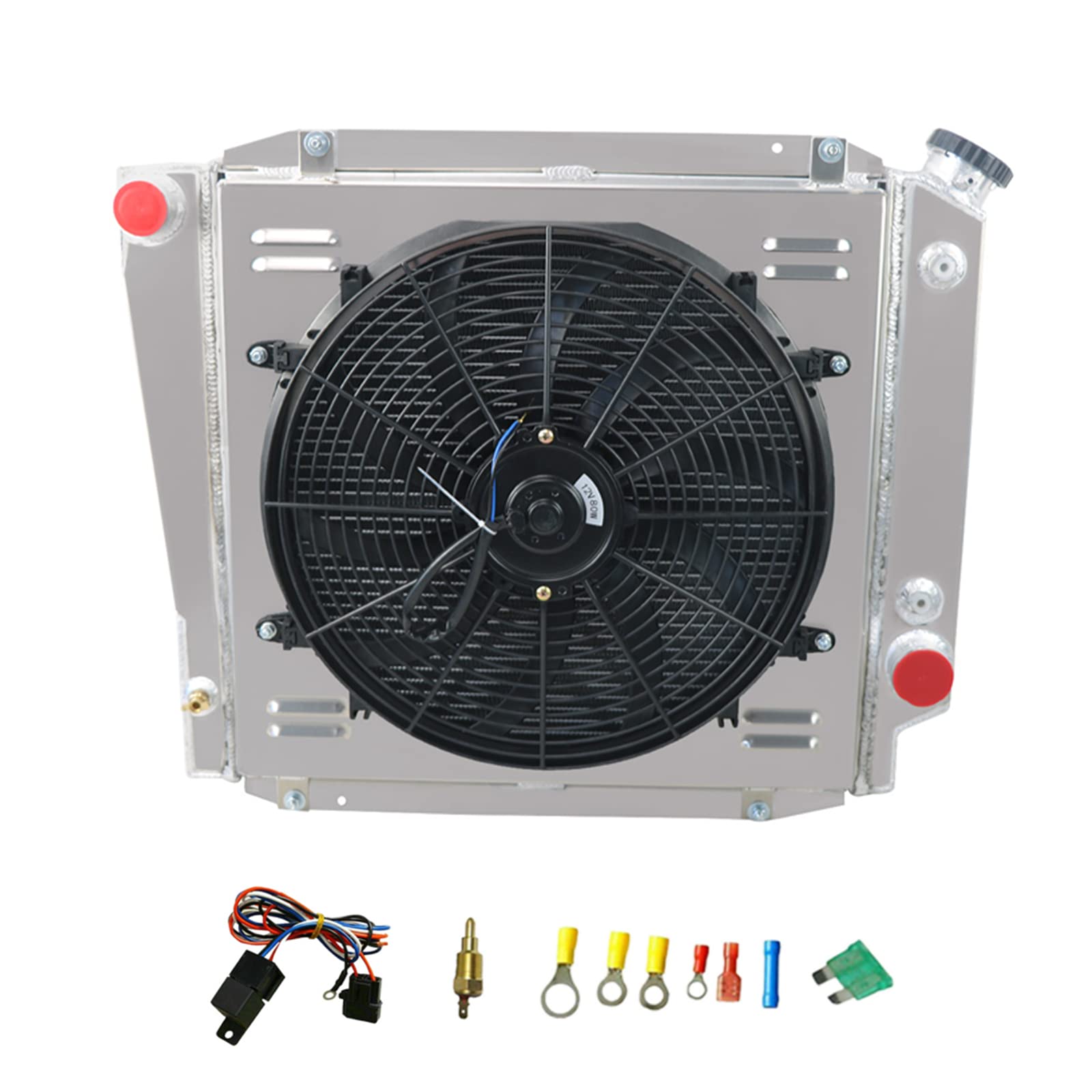

Package Include 1 X 3-Row AA5052 Aluminum Radiator; 1 X CNC Machined Radiator Cap; 1 X AA5052 Aluminum Shroud; 1 X 16" Fans (Includes mounting kits); 1 X Thermostat Relay Kit
Performance Made of high quality Aircraft AA5052 grade aluminum Construction. At least 35% more efficient than stock one.
Leading-edge welding craftsmanship, CE approval. Innovative engineering, manufacturing technology and quality control ensure superior quality
