CU622 Aluminum Radiator for 1988-1999 Chevy GMC C/K 1500 2500 3500 V6 V8 GAS CNG DIESEL - 3 Row Core Radiator with Shroud & Fan Relay Kit - Heavy Duty Cooling Solution for Trucks & Off-Road Vehicles
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:32607582
Product Description

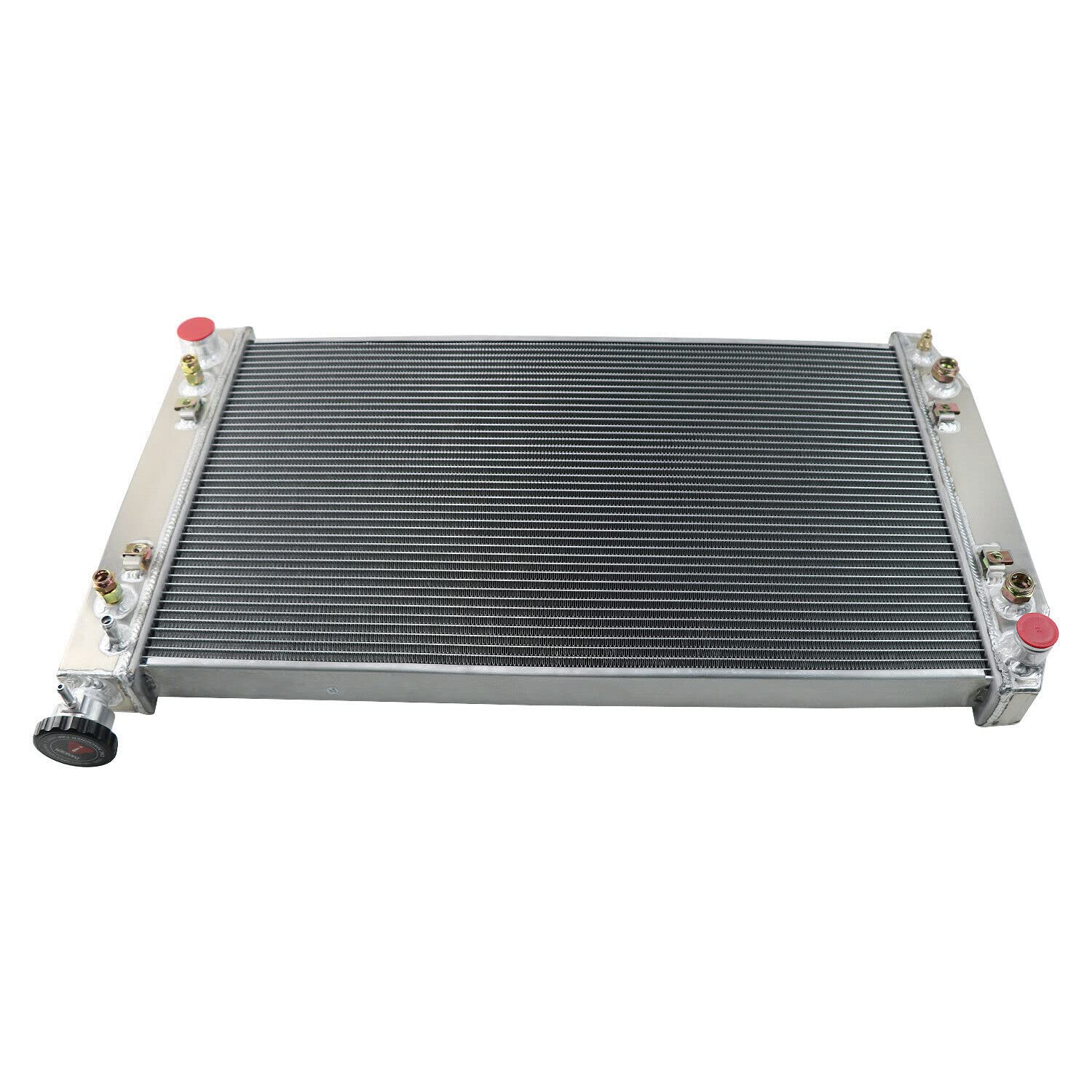

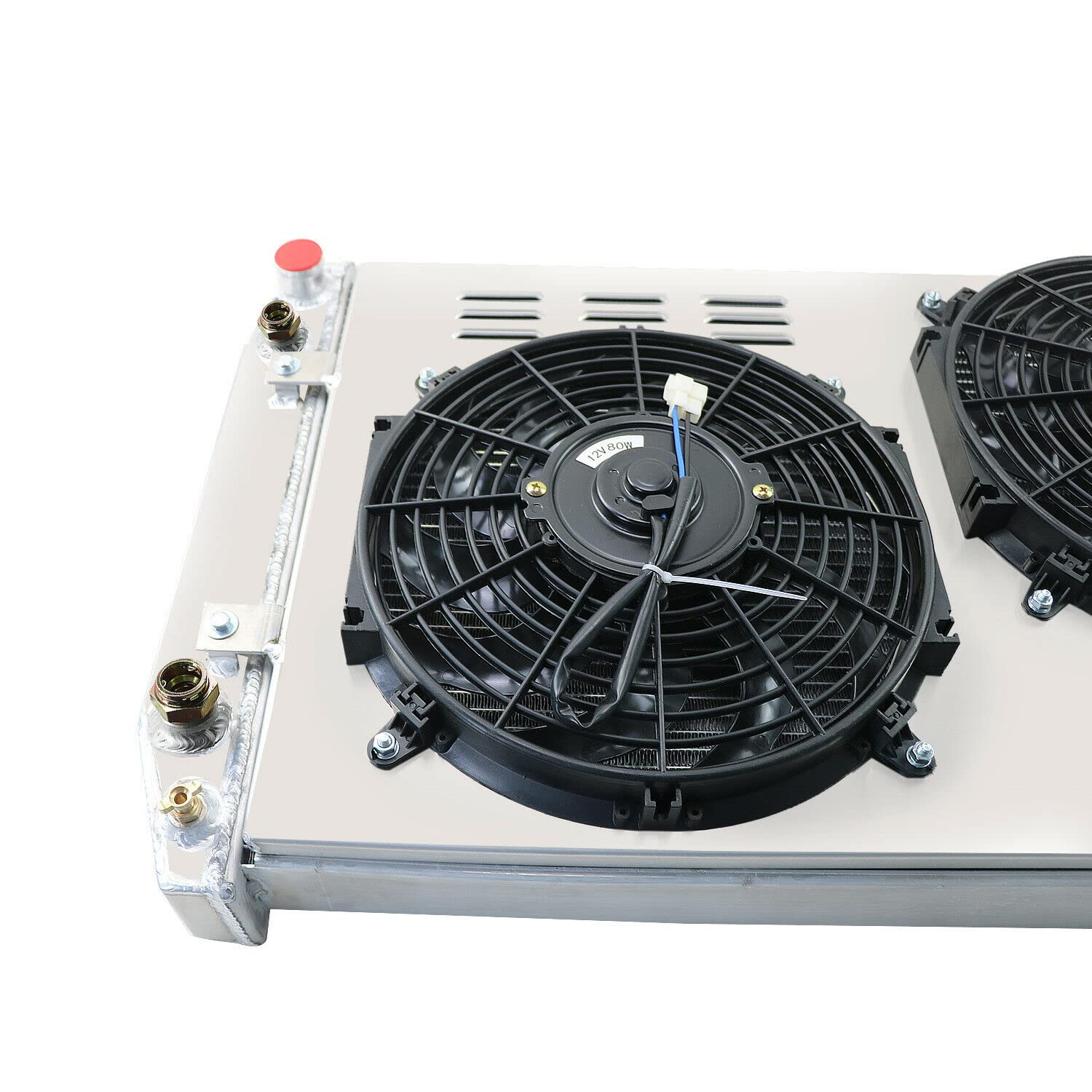

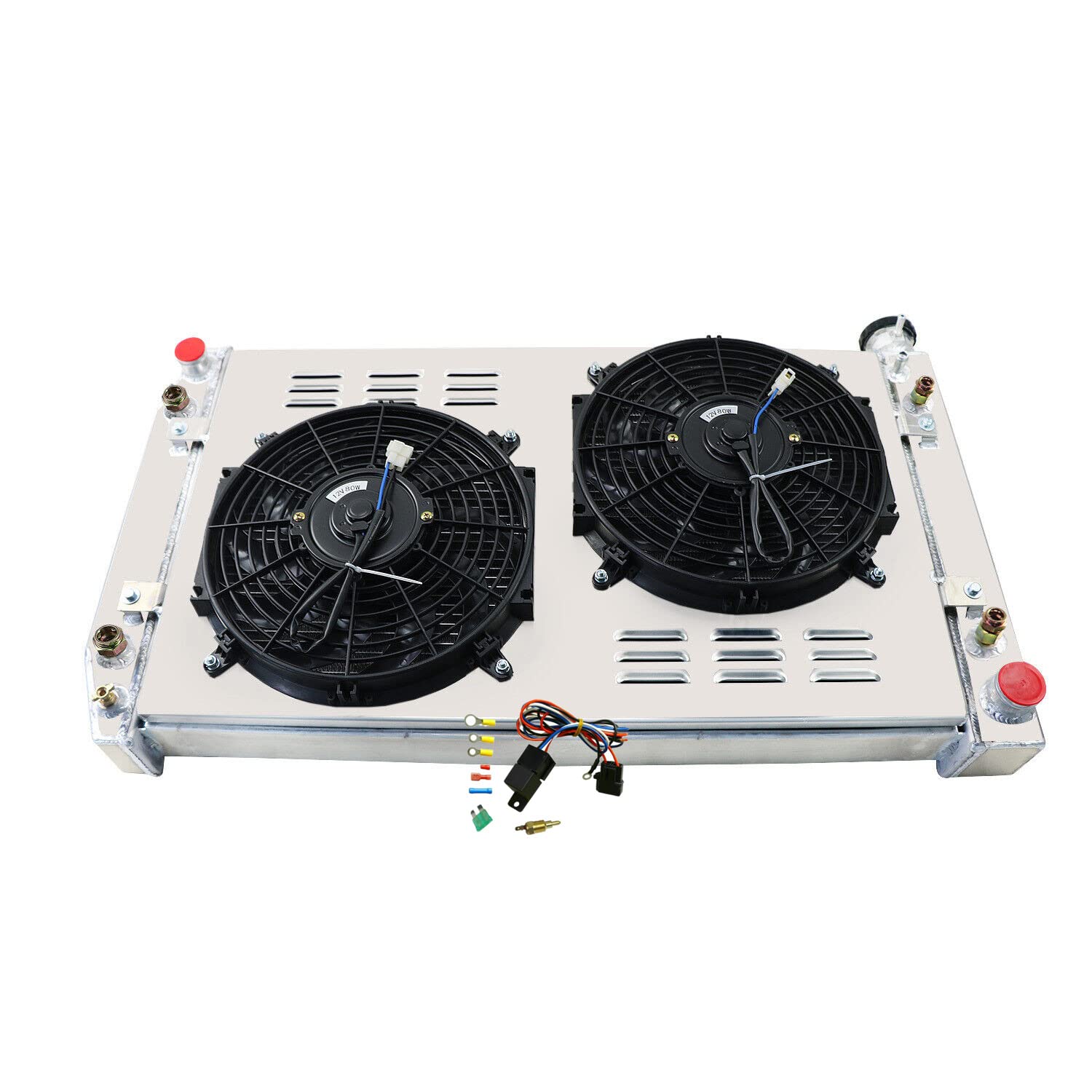

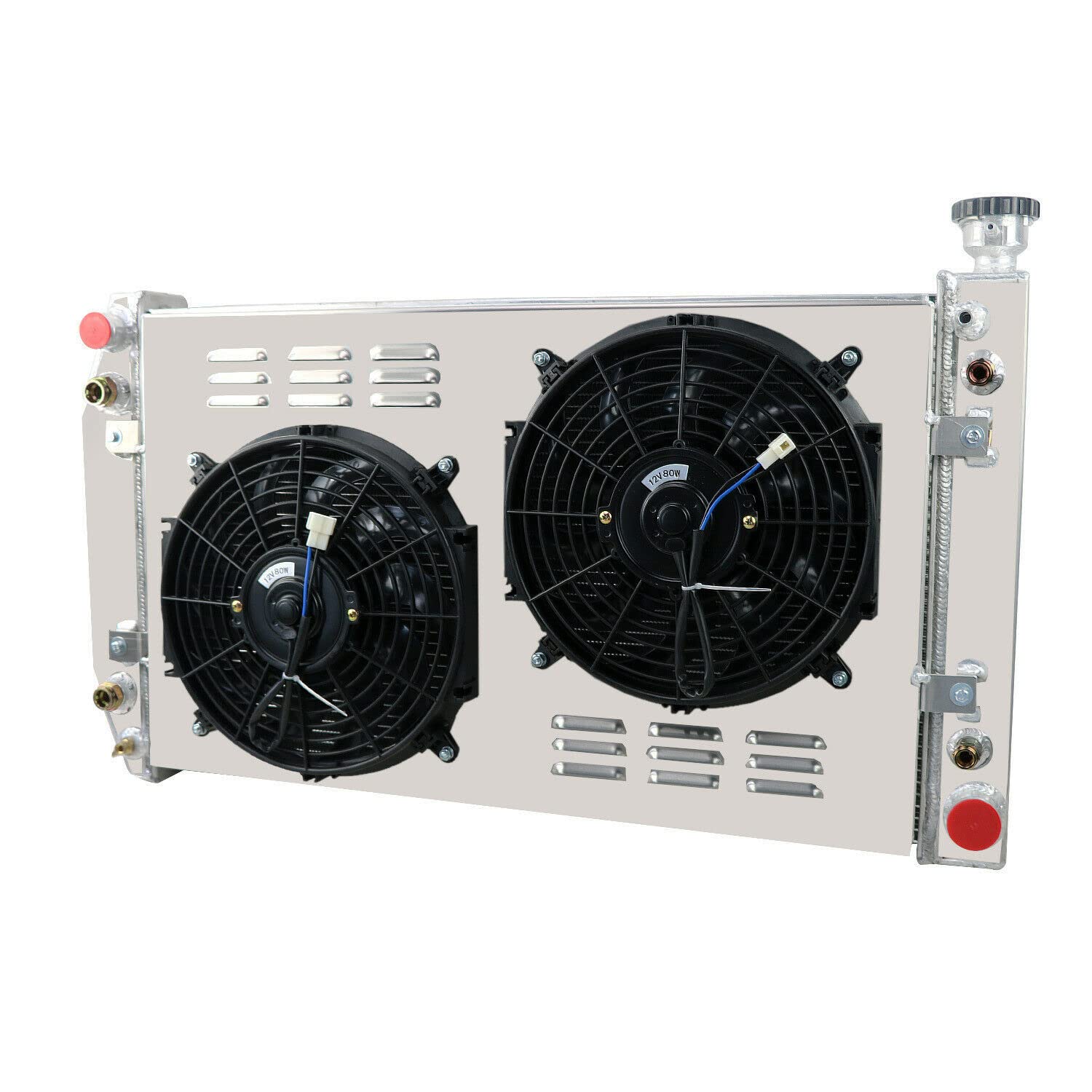

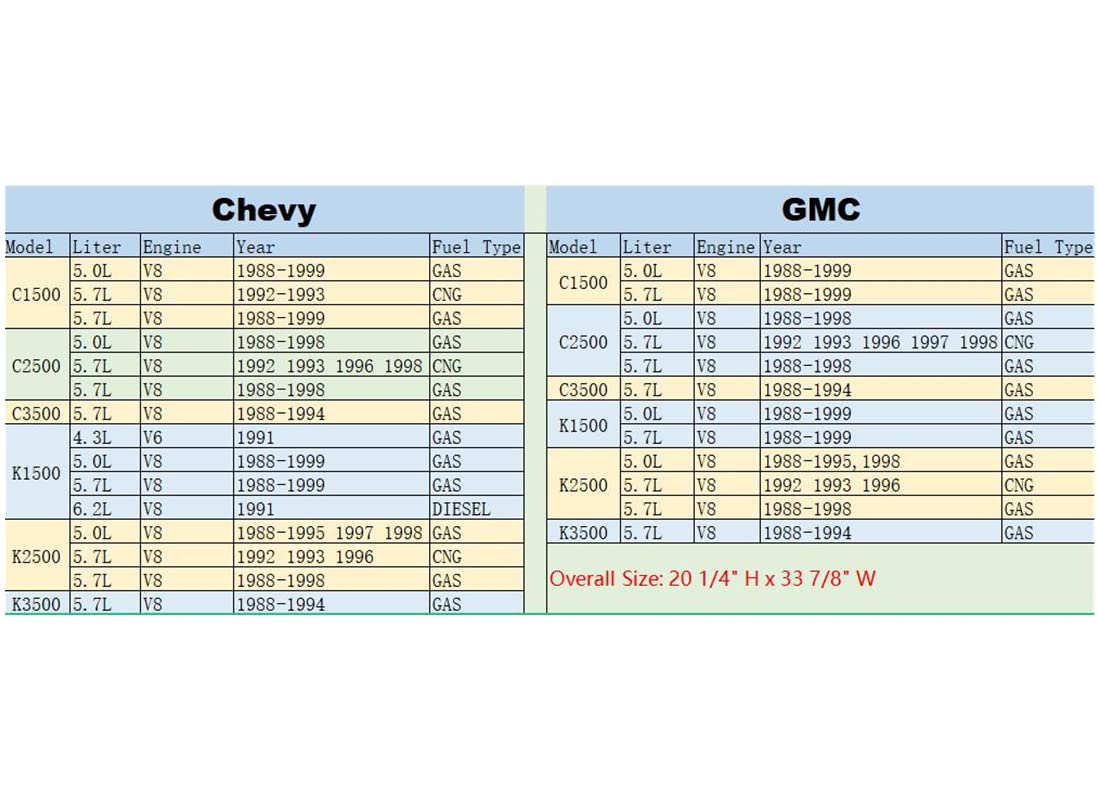

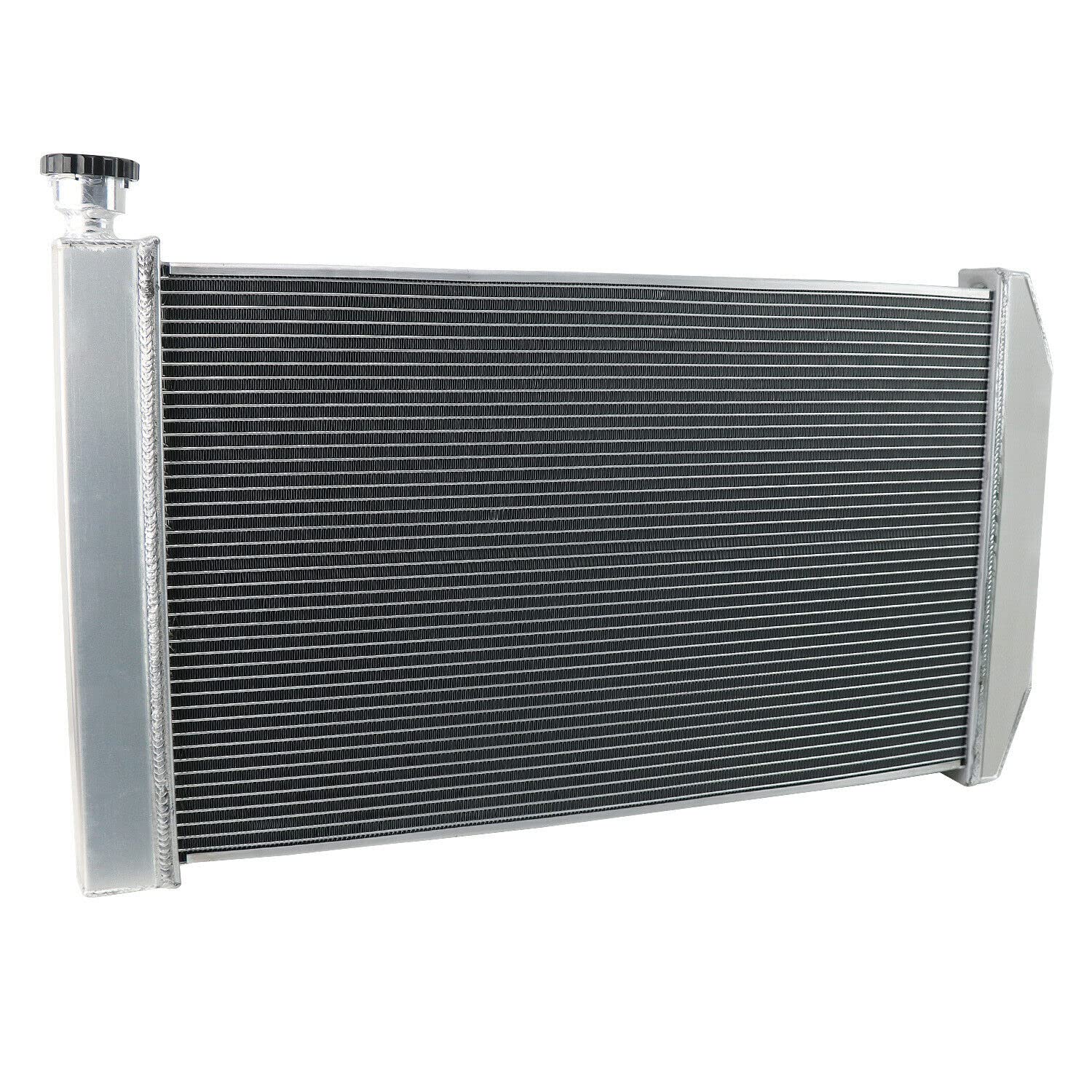

This Listing Is Including 1 X 4 -Row Aluminum Radiator(Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Details Core Row: 4 Row Core Material: All Aluminum Tank Material: All Aluminum CNC machined filler neck and cap OEM Style Brass Petcock Drain High Performance Racing Spec Fans Details Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This Radiator Compatible with 1988-1999 Chevy C1500 5.0L 1988-1999 Chevy C1500 5.7L 1988-1999 Chevy C2500 5.0L 1988-1999 Chevy C2500 5.7L 1988-1994 Chevy C3500 5.7L 1988-1999 Chevy K1500 5.0L 1988-1999 Chevy K1500 5.7L 1988-1999 Chevy K2500 5.0L 1988-1999 Chevy K2500 5.7L 1988-1994 Chevy K3500 5.7L 1988-1999 GMC C1500 5.0L 1988-1999 GMC C1500 5.7L 1988-1999 GMC C2500 5.7L 1988-1999 GMC C2500 5.0L 1988-1994 GMC C3500 5.7L 1988-1999 GMC K1500 5.0L 1988-1999 GMC K1500 5.7L 1988-1999 GMC K2500 5.7L 1988-1999 GMC K2500 5.0L 1988-1994 GMC K3500 5.7L 1992-1993 Chevy C1500 Suburban 5.7L 1992-1993 Chevy C2500 Suburban 5.7L 1992-1993 Chevy K1500 Suburban 5.7L 1992-1993 Chevy K2500 Suburban 5.7L 1992-1993 GMC C1500 Suburban 5.7L 1992-1993 GMC C2500 Suburban 5.7L 1992-1993 GMC K1500 Suburban 5.7L 1992-1993 GMC K2500 Suburban 5.7L Part Number 622, CU622, 8010622, A622, TYC622, DPI622, 3C3Z8005DF, 4C3Z8009BACP, 4C3Z8009BA, CR622, RA1217, RA1217-11B1, REA41622A, SPTCU622, 622, 1605-370188, 1804, 20807, 2383, 43-2057, 432057, 731889
Product Features
Core Size 28.27" H x 17.24" W x 2.44" T; Overall Size 33.94" H x 18.78" W ; Inlet Diameter 1.25" On Driver Side ; Outlet Diameter 1.57" On Passenger Side ; Transmission Oil Cooler：φ26*292*1/2-20UNF(Z) ; Engine Oil Cooler φ32*292*M20*1.5(P)
OE/OEM Part Number 622 CU622 8010622 A622 TYC 622 DPI 622 622,1605-370188,1804,20807,2383,43-2057,432057,731889,8010622,CR622, RA1217, RA1217-11B1, REA41622A, SPTCU622
Features 100% Leak Tested, 4 Rows, Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation ; Placement on Vehicle Engine Compartment, front ; Mounting Style Bolt-On
Warranty 12 months!!! local delivery!!! ; Easy To Install Light weight direct bolt-on replacement, stronger & higher capacity for coolant

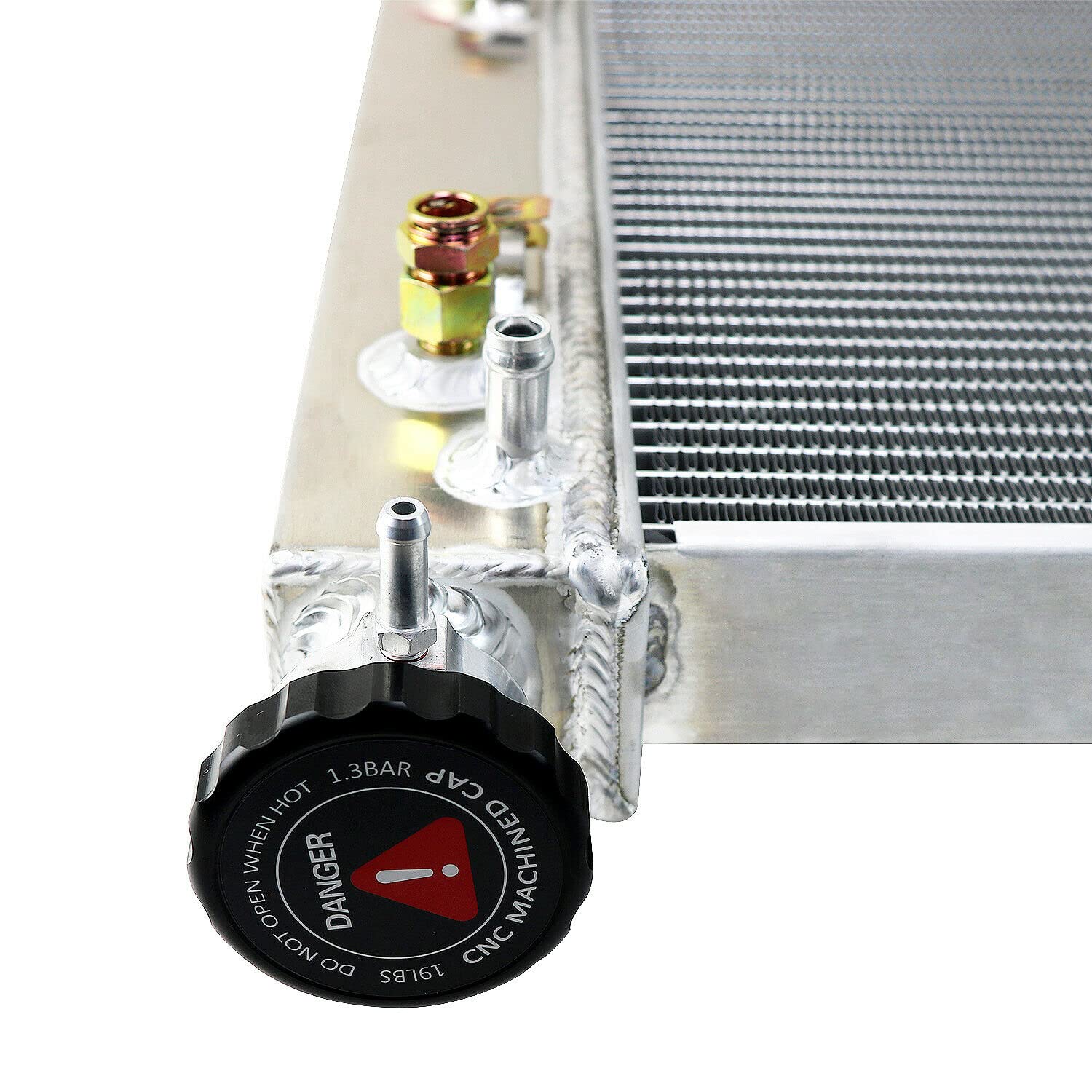

Billet Aluminum CNC machined fill neck rugged and durable ; CNC machined cap with Engraved craftsmanship, anodized treatment.
