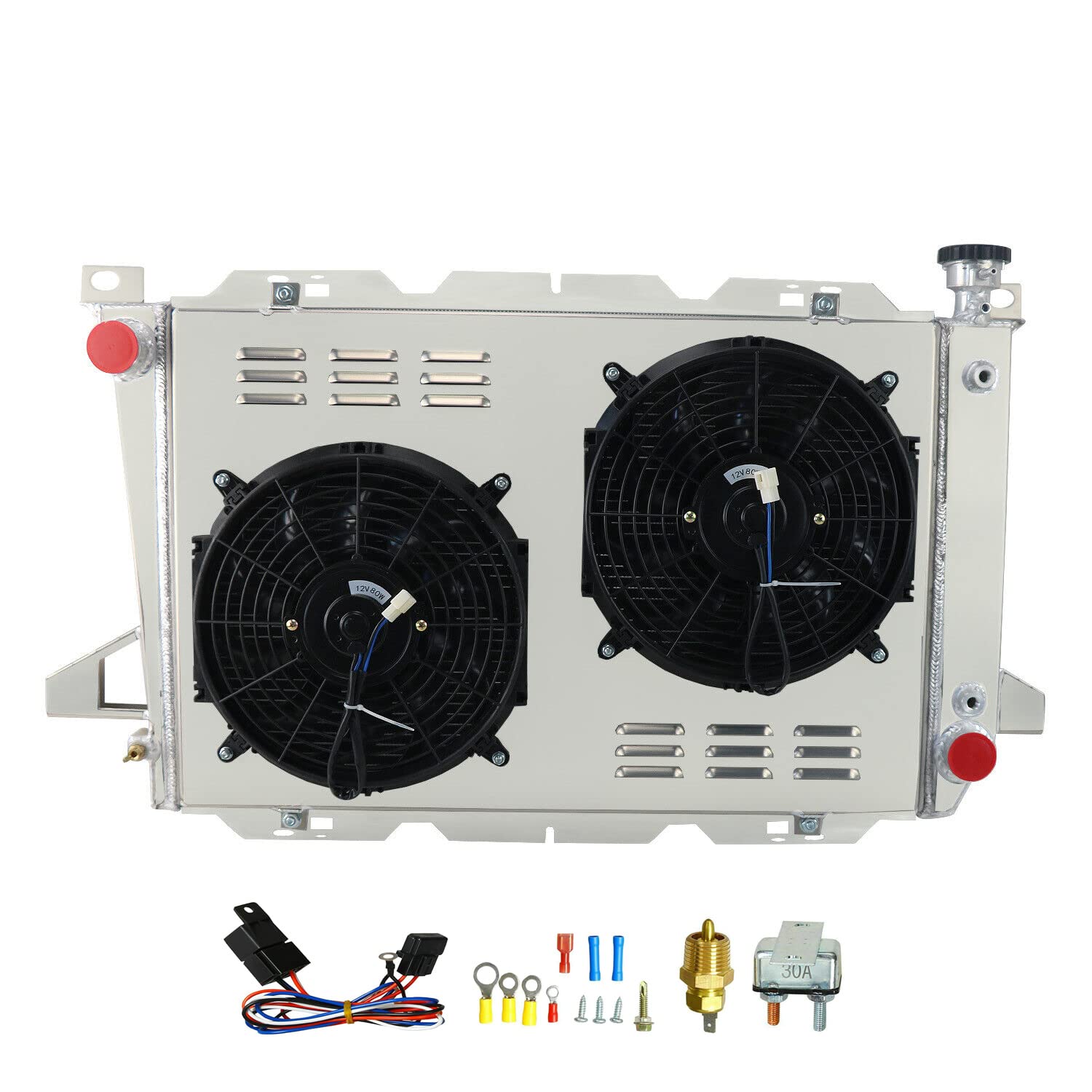

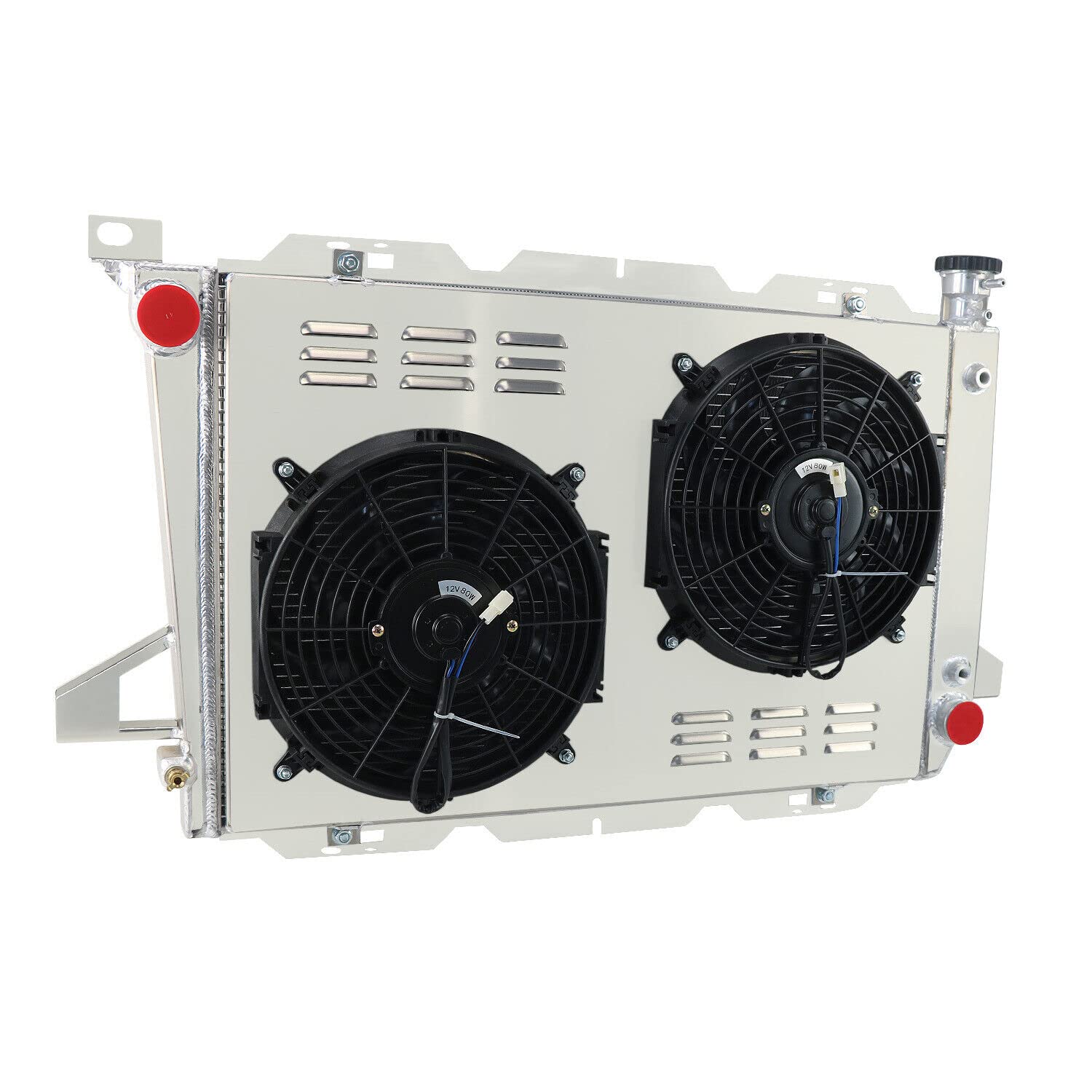

1985-1997 Ford Bronco F150 F250 F350 4.9L L6 4-Row Aluminum Radiator with Shroud, Fan & Relay Kit - Heavy Duty Cooling Upgrade for Off-Roading, Towing & Hot Weather Driving

Product Description

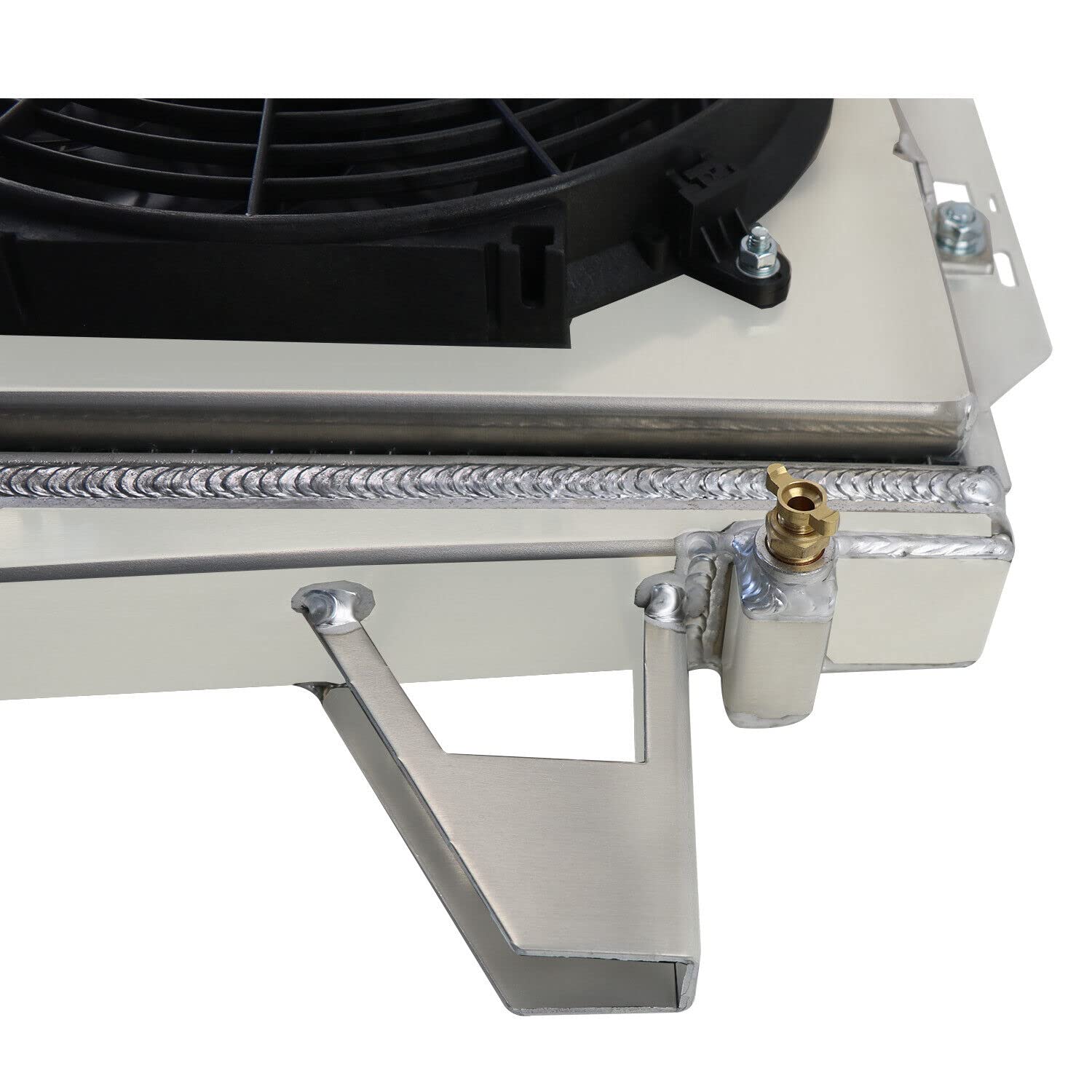

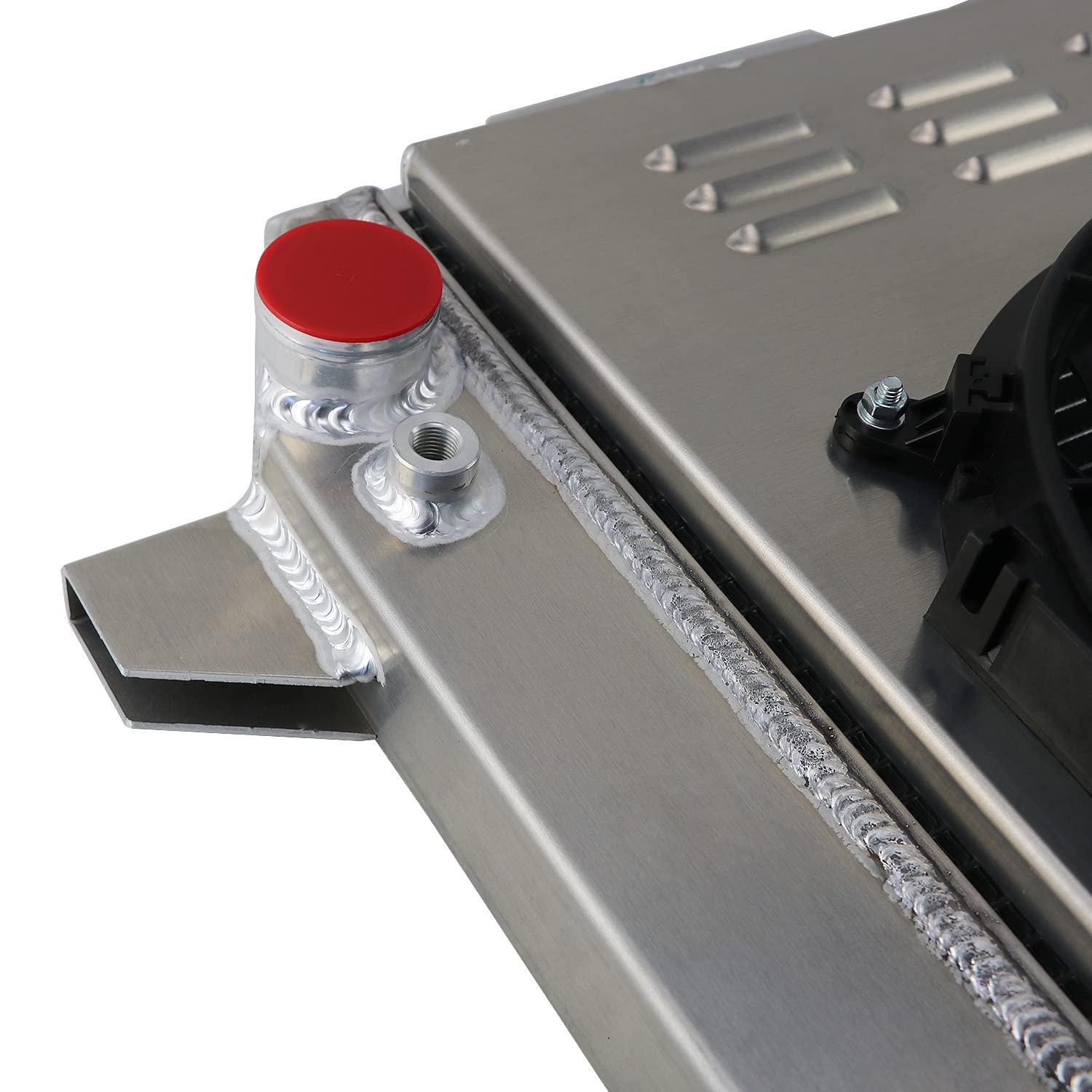

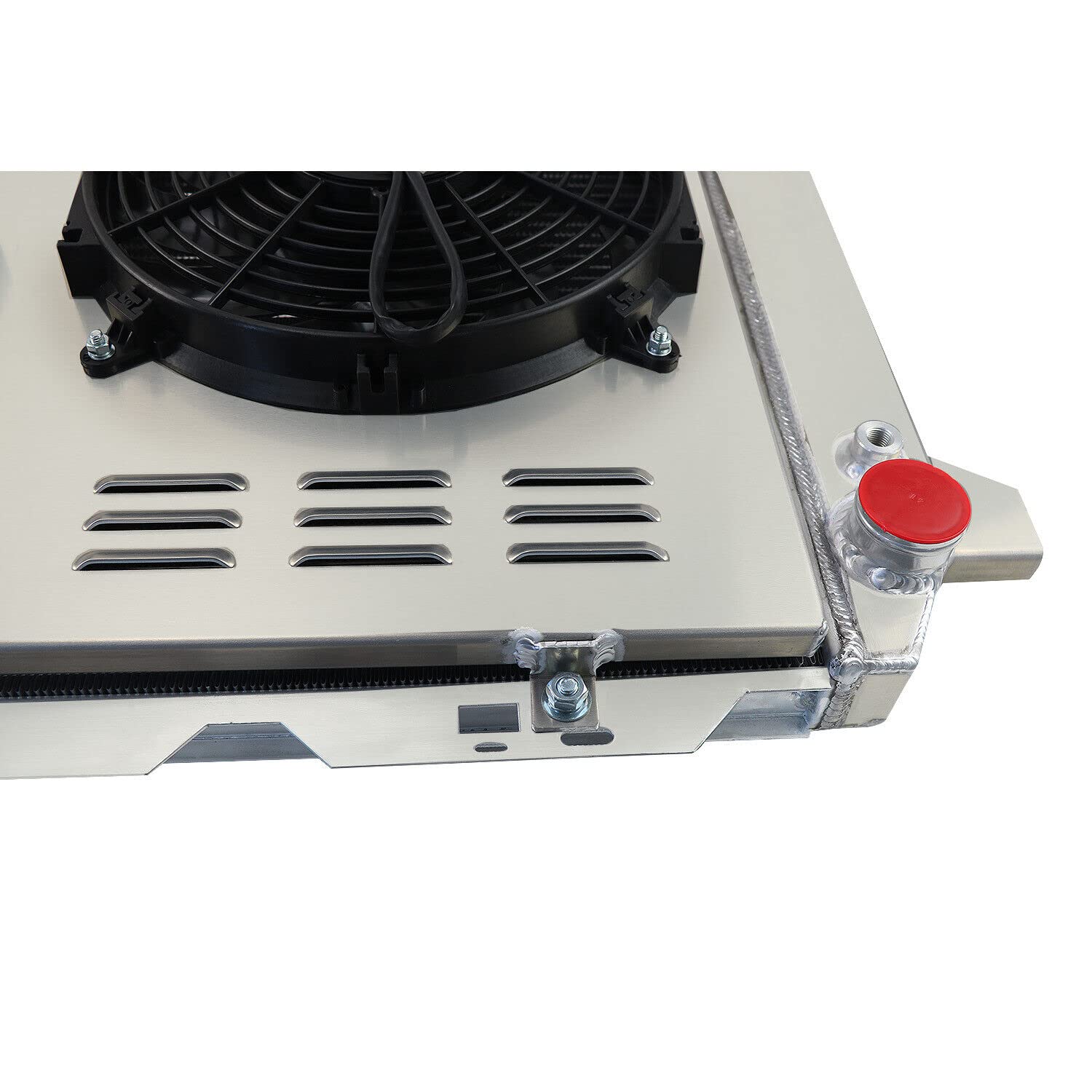

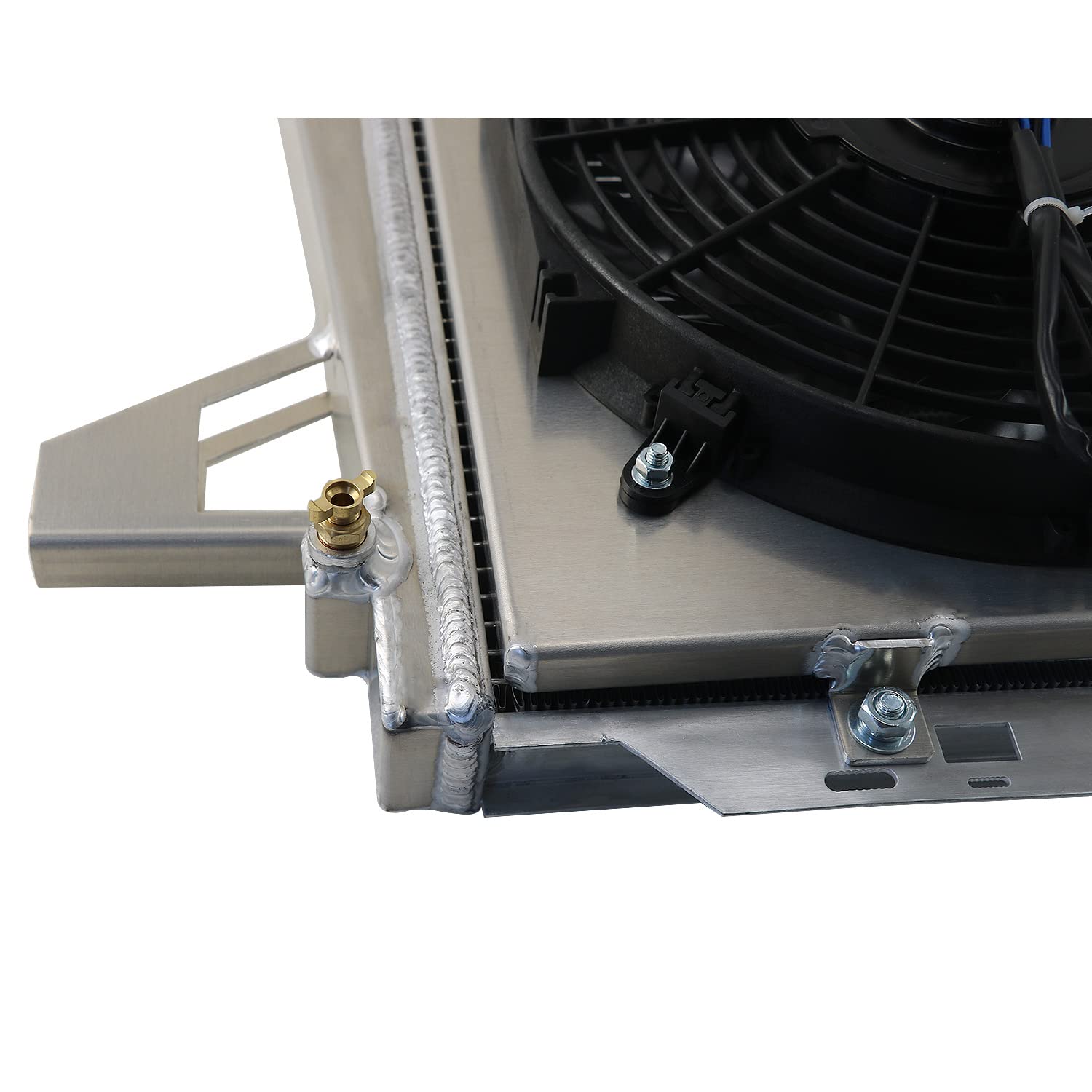

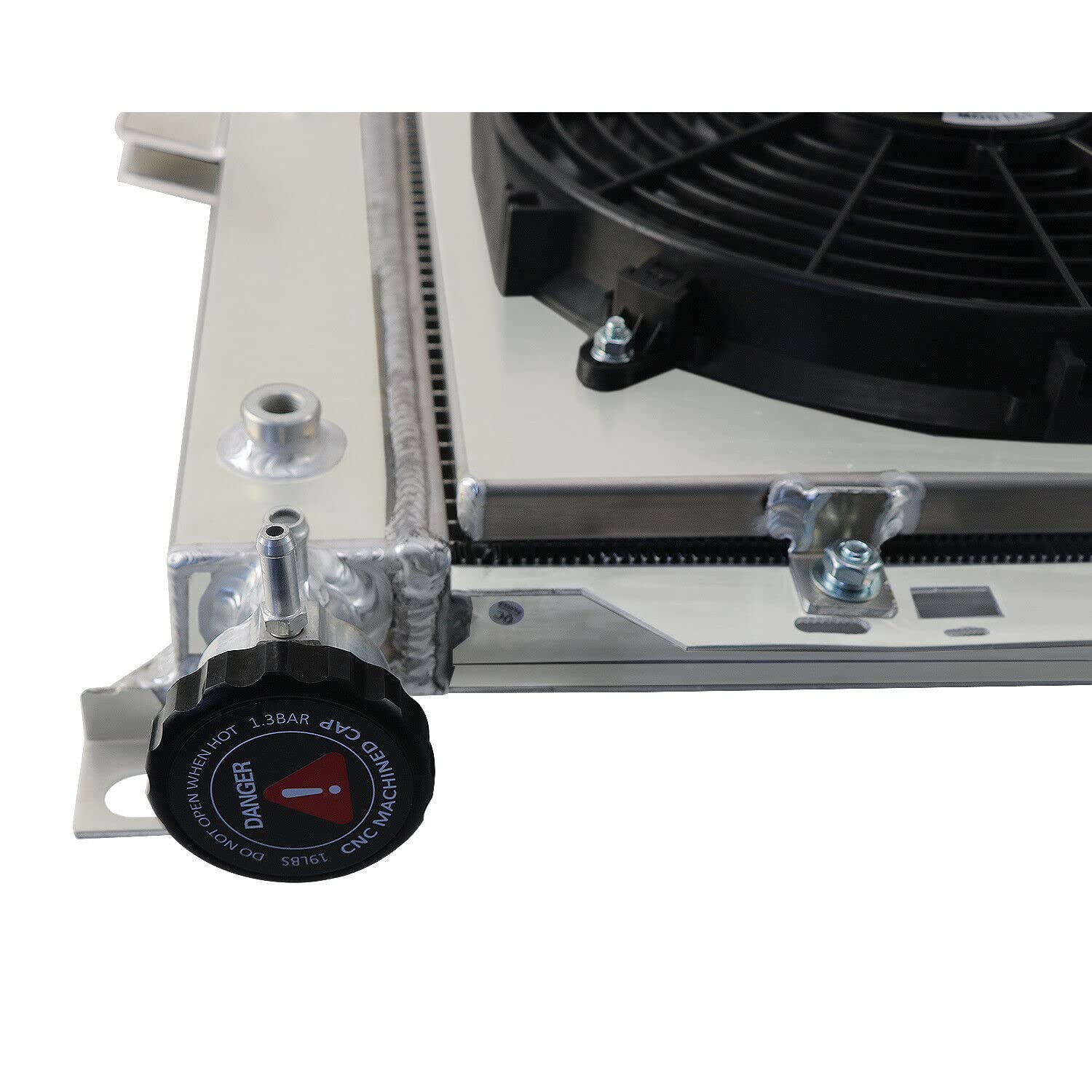

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications AA5052 Aluminum Shroud and Fans: The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine This Radiator Compatible with: 1985-1992 Ford Bronco 4.9L L6 1985-1997 Ford F-150 4.9L L6 1985-1996 Ford F-250 4.9L V8 1985-1996 Ford F-350 4.9L L6 Radiator Specs: Condition:New High Performance Racing Spec. 4-Row of tubes Core Racing Design Inlet: located in driver side Top Left Outlet: located on passenger side Bottom Right Core Material: Full Aluminum Tank Material: All Aluminum Flow Type: Crossflow Radiator Cap: Included Transmission Oil Cooler: Included Fitment Type: Direct Replacement Crafts:100% Tig Welded,No Epoxy Performance: Up to 30%~45% more cooling Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Please Check the Size Before You Buy! Fan Details: Maximum Fan CFM: 2300±200 FAN Diameter(inch): 12.05 X 12.05 X 2.5 Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order Pls Note: If need 4-row radiator without fan ASIN is B0B31ND35Q If need 3-row radiator without fan ASIN is B0B3DDJ7L3 If need 3-row radiator with fan ASIN is B0B3DG55YG
