High-Performance 2-Row Full Aluminum Radiator with Fan Shroud & Thermostat Relay Kit - Compatible with 92-00 Honda Civic, 93-97 Civic del Sol, 94-01 Acura Integra - Perfect for Engine Cooling & Performance Upgrades

Product Description

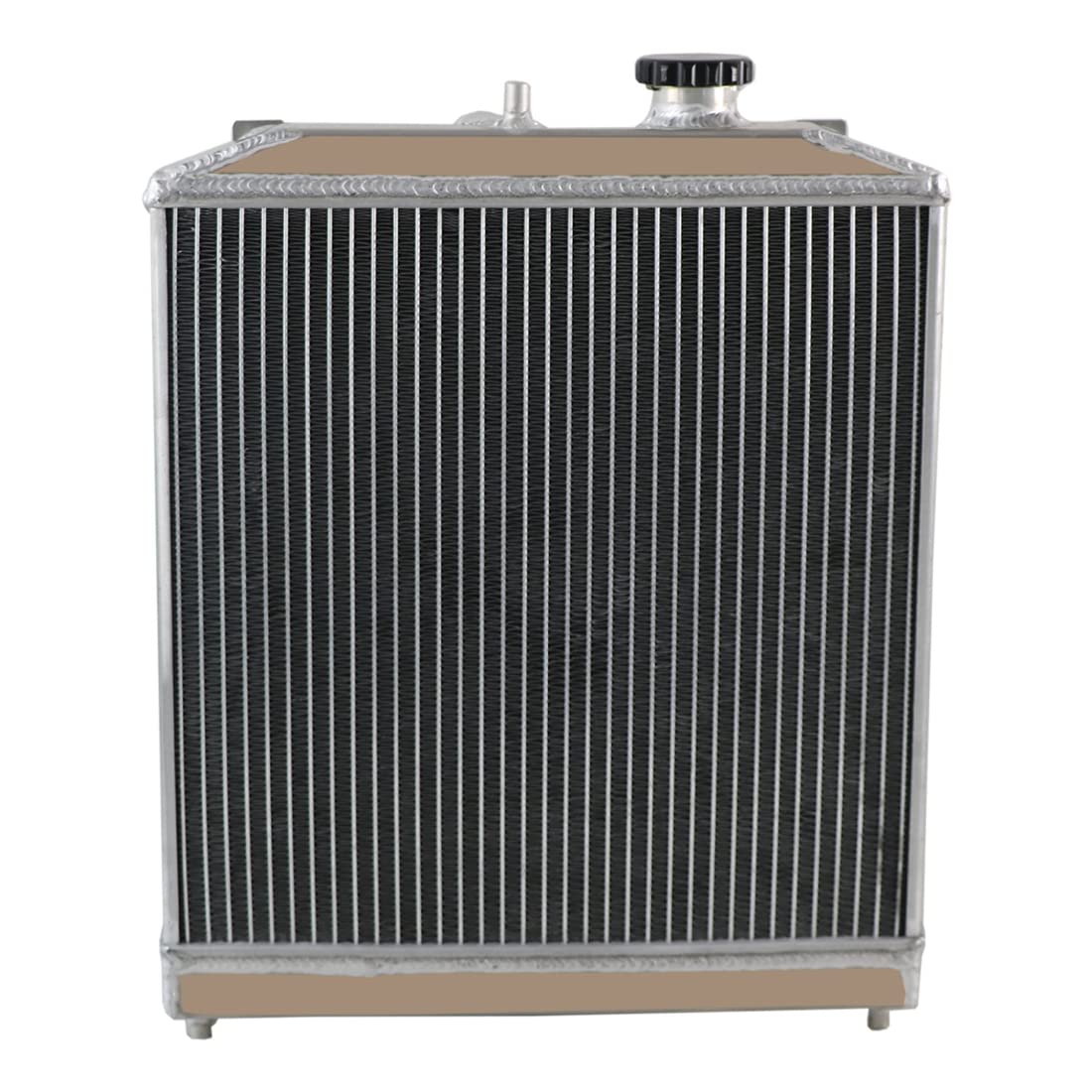

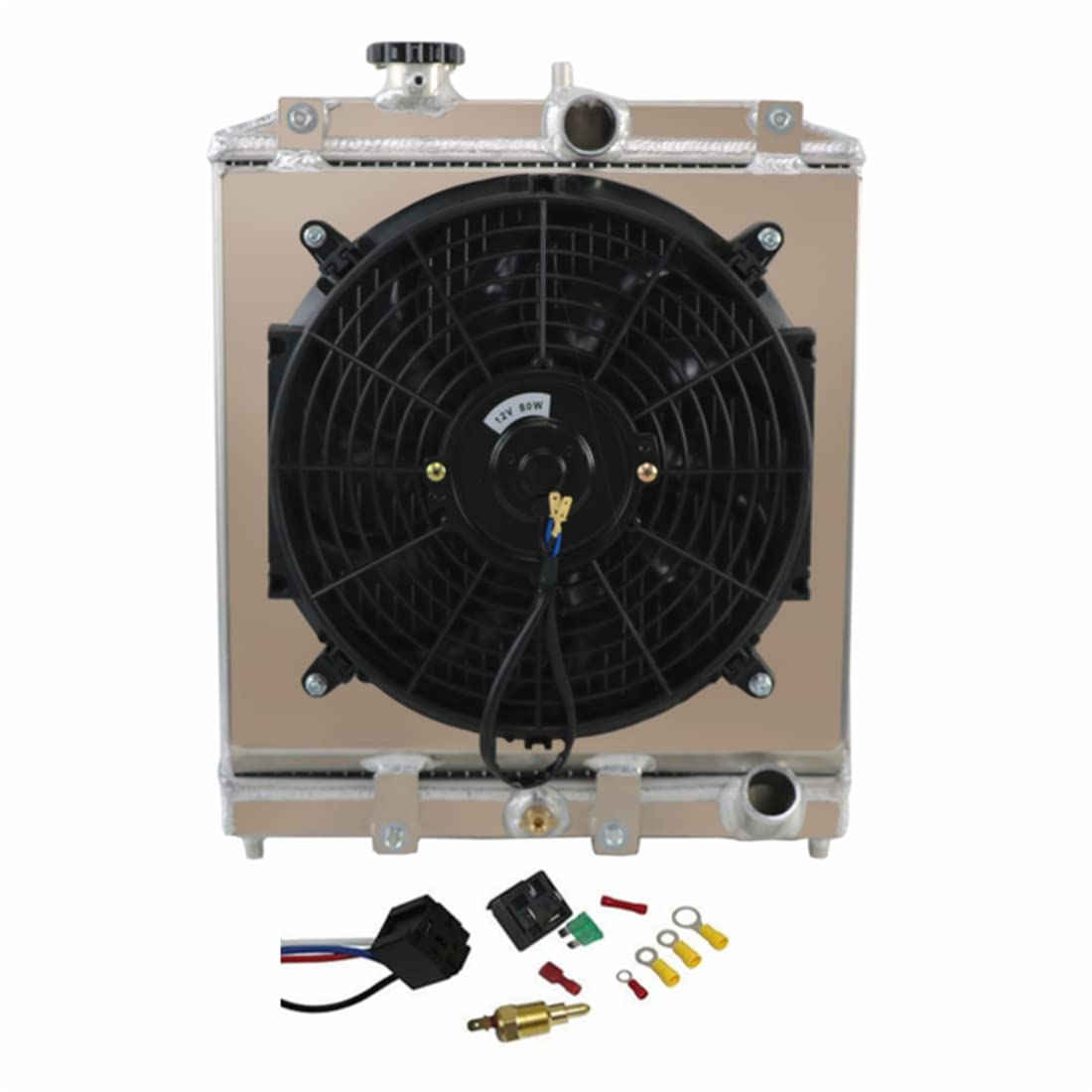

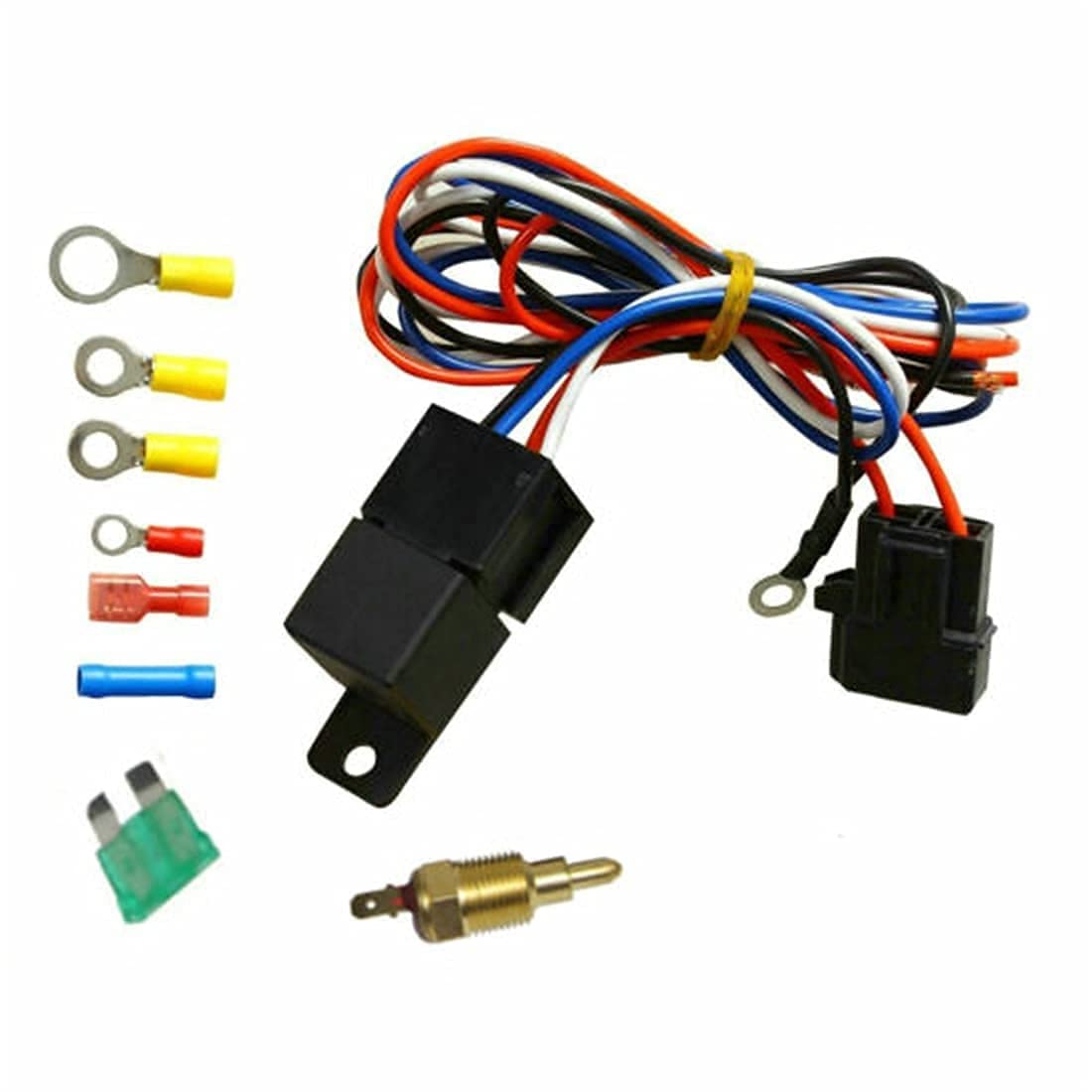

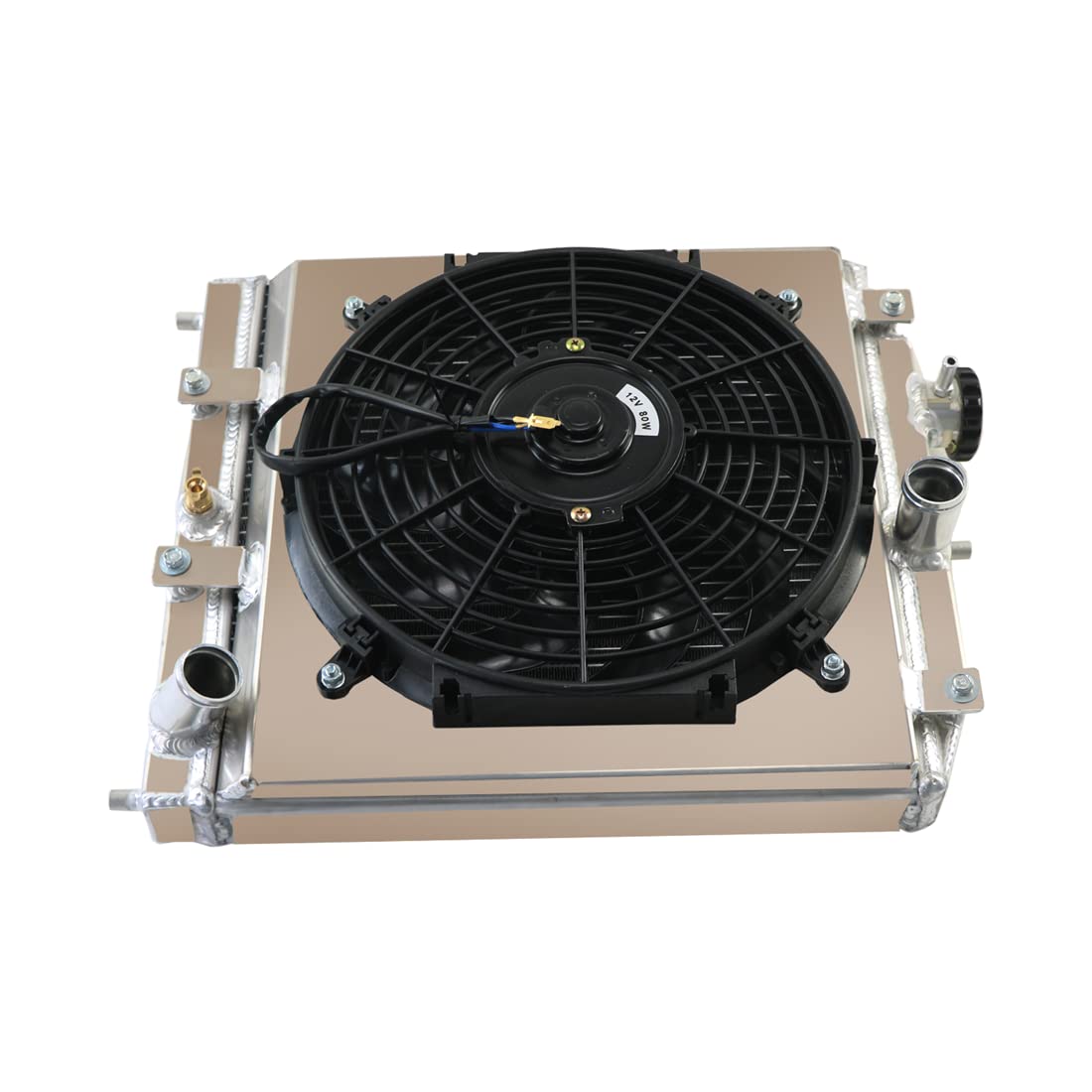

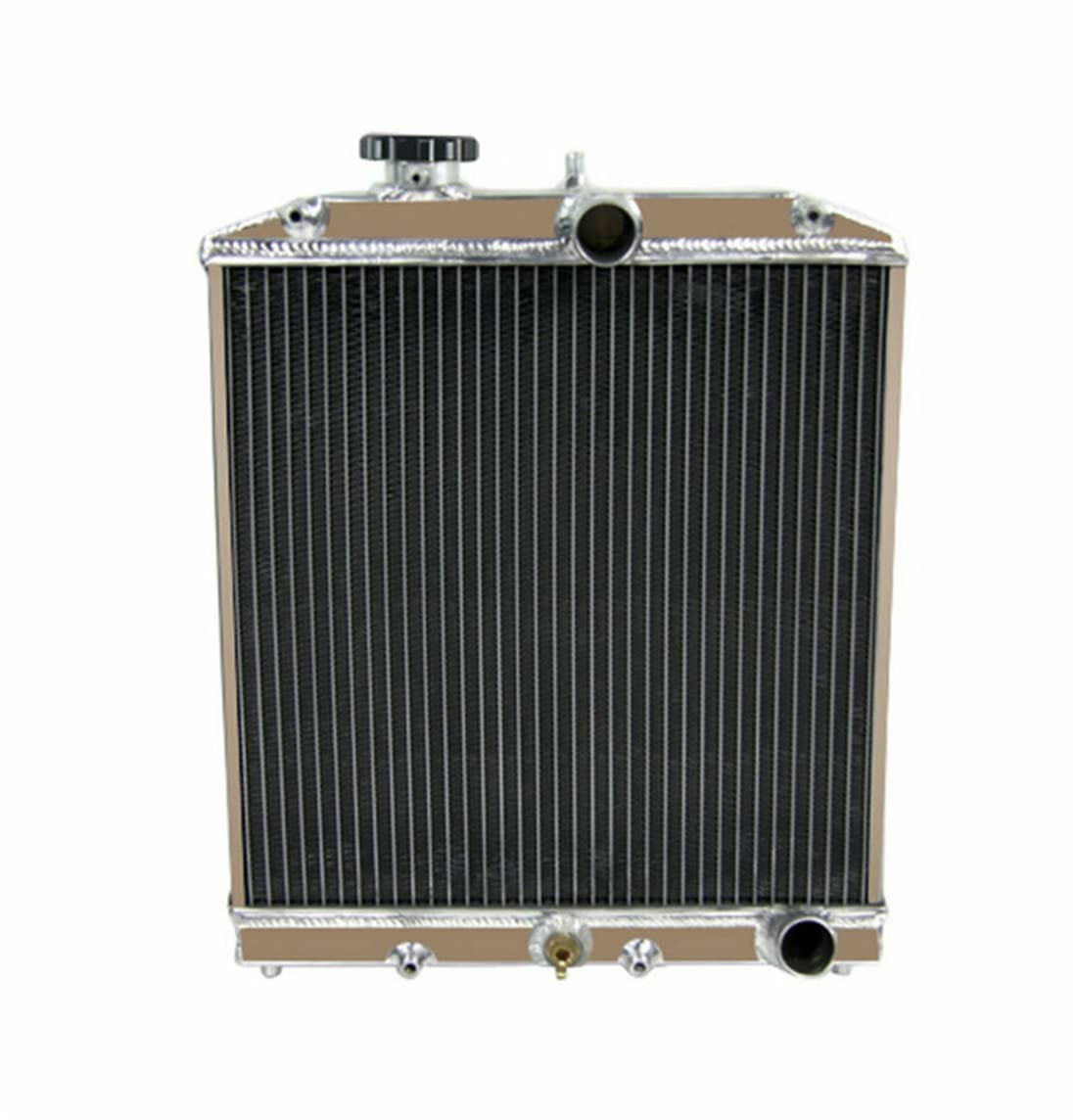

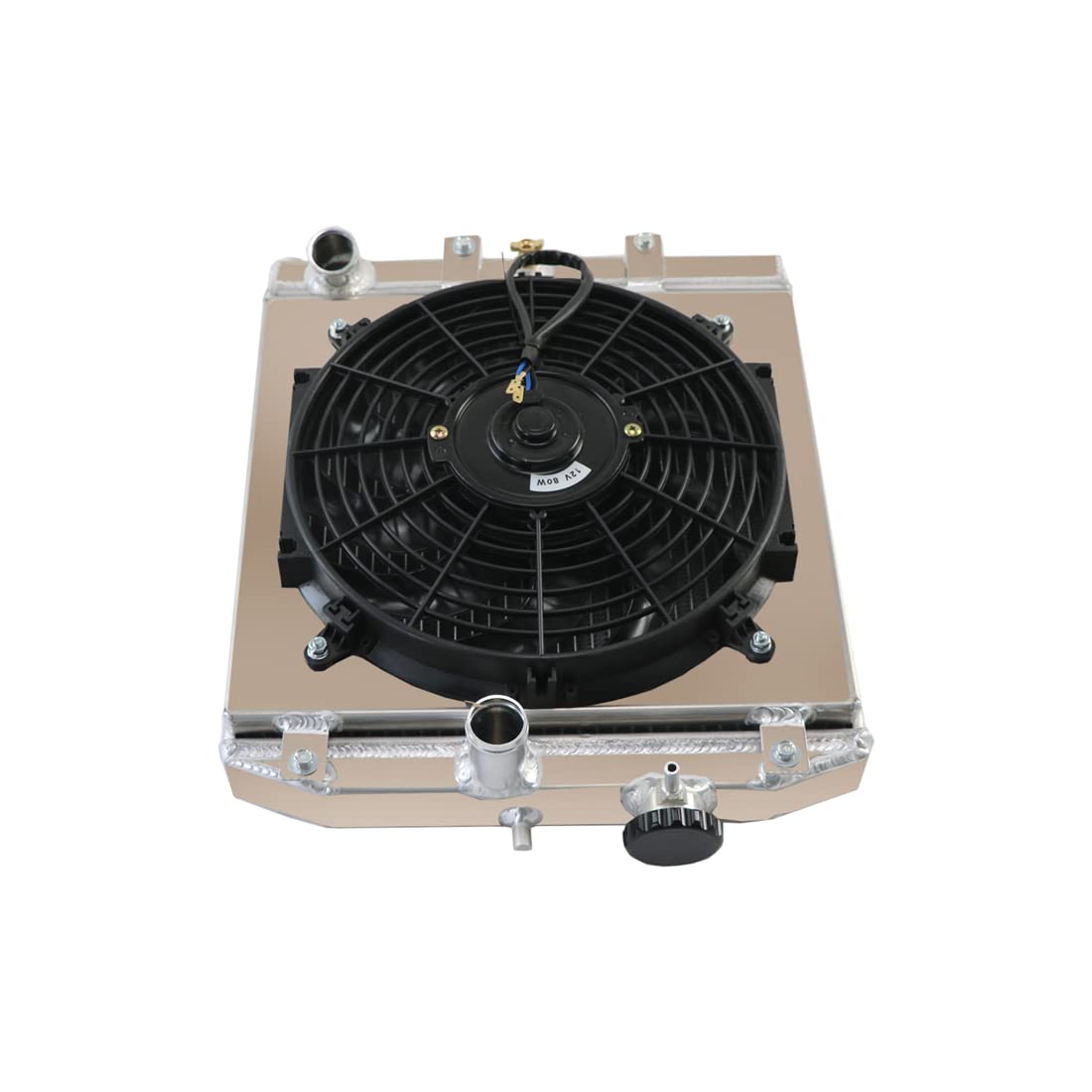

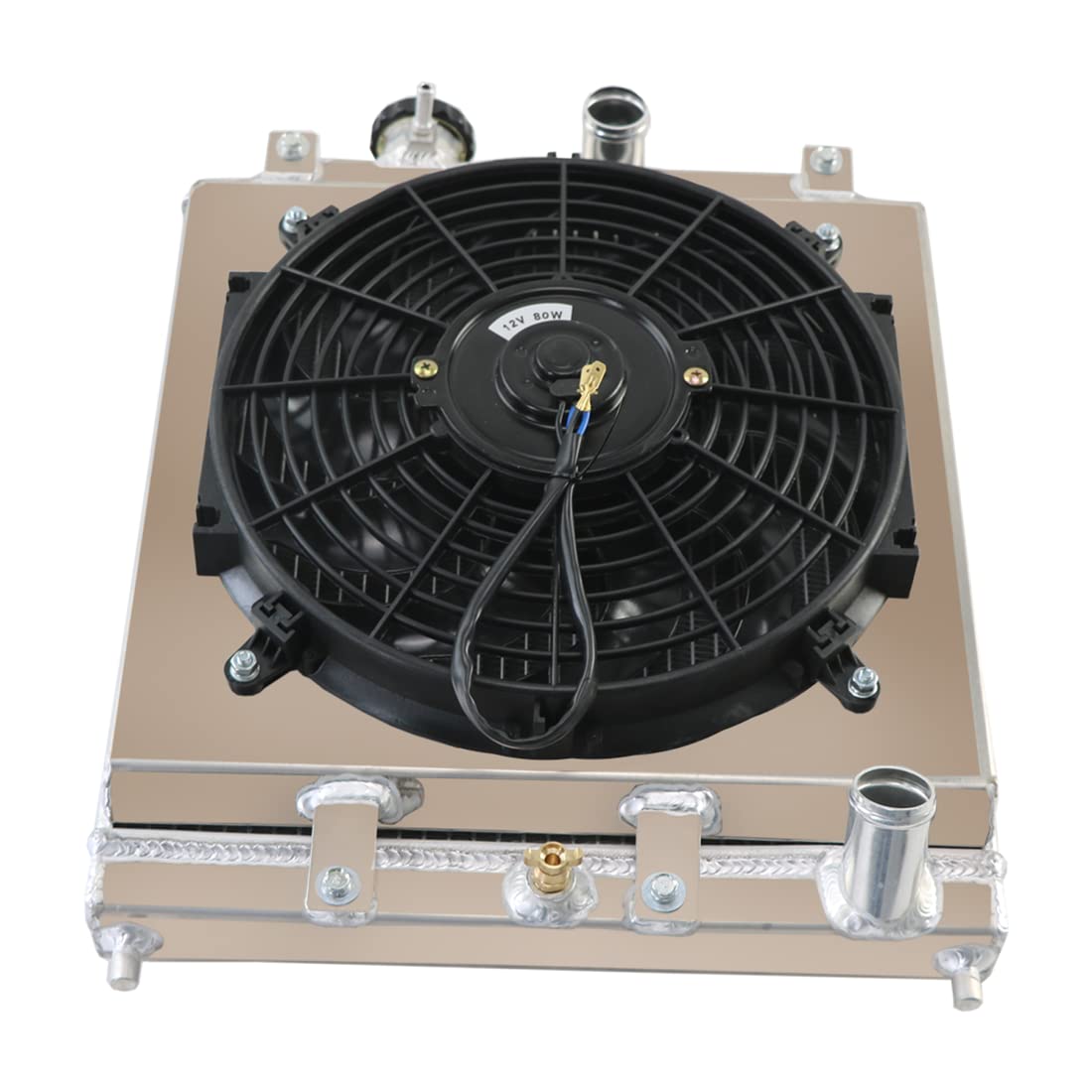

Radiator Specifics: Condition: 100% Brand New Material: Aircraft T-5052 grade aluminum tank & core Row: 2 Row Core Size: 13.8'' H x 14.1'' W x 1.42'' Thickness Overall Size: 18.3''H x 14.4''W x 5.1'' T Upper Inlet: 1.26 inch located on the center Lower Outlet: 1.26 inch located on passenger side OEM Style Brass Petcock Drain CNC machined filler neck and cap Fan Spec: Maximum Fan CFM: 2300±200 FAN Diameter: 12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1992-2000 Honda Civic D15 D16 EK EG 1993-1997 Honda Civic EK EG 92-00 DEL SOL 1992-2001 Honda Acura Integra GS LS HX L4 L6 OEM Part Number: 17111728908 17111469179 17112241912 Other Part Number: HO3010123 HO3010125 19010P07014 19010P07024 Please check the connector and the size with the original part & OEM number with the original part. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
