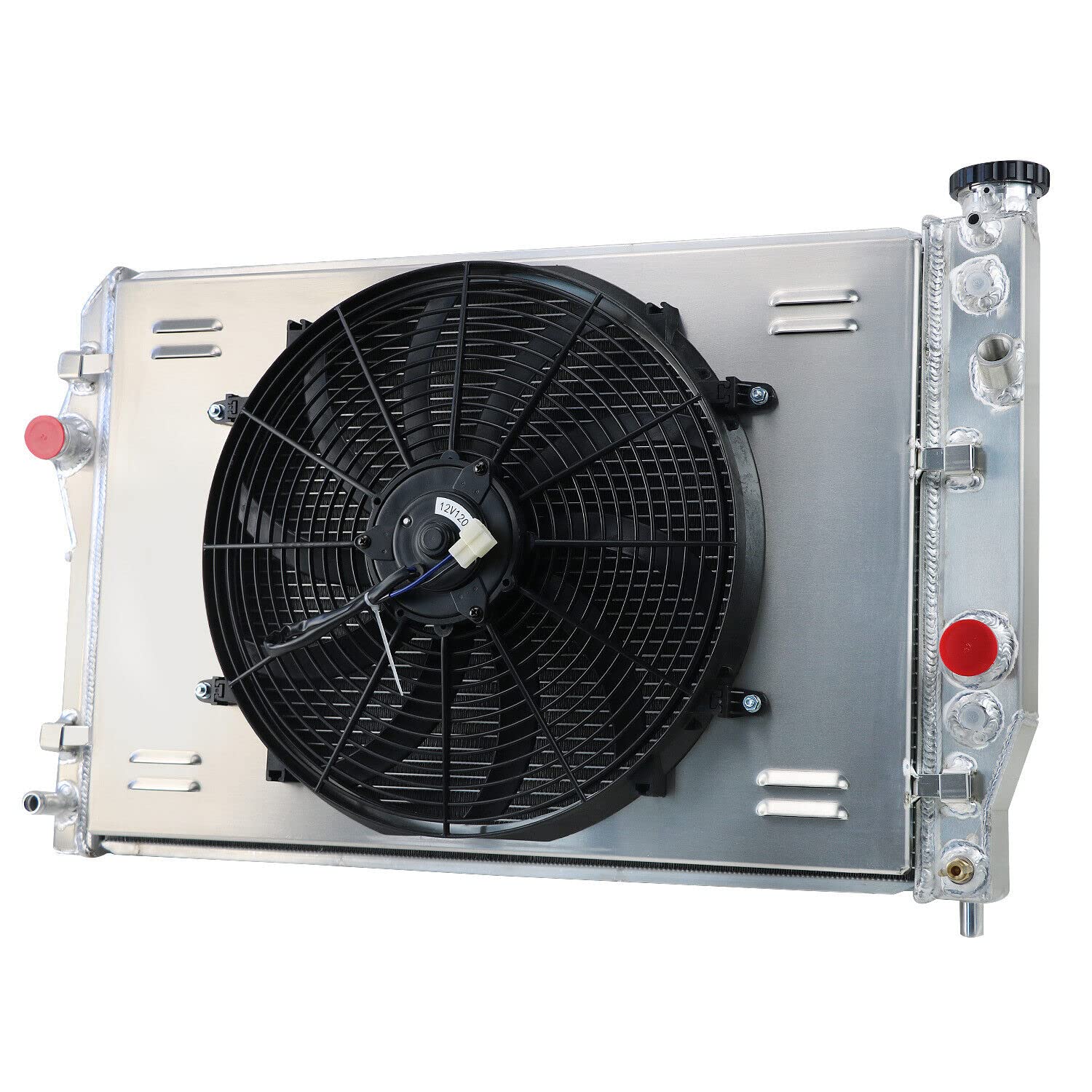

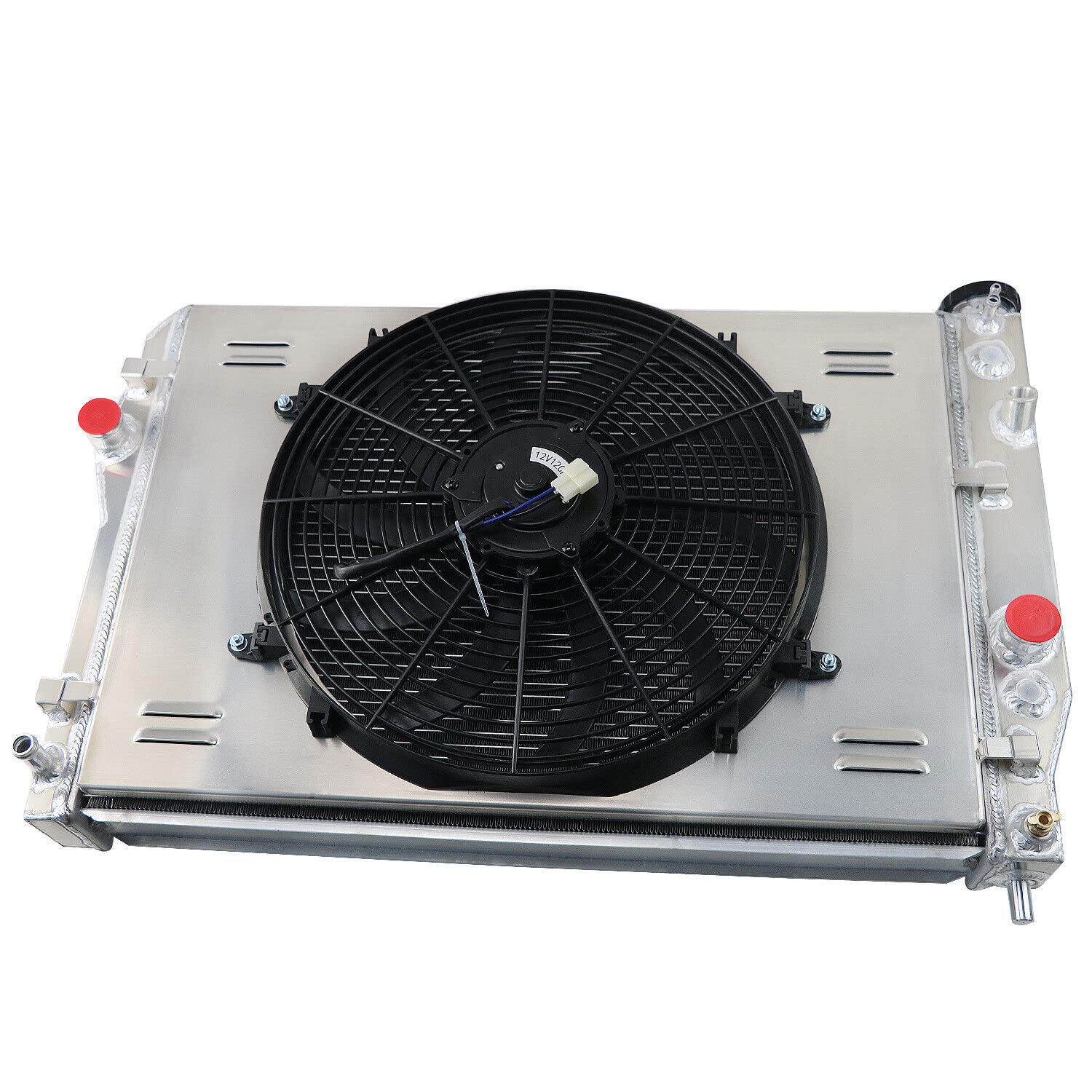

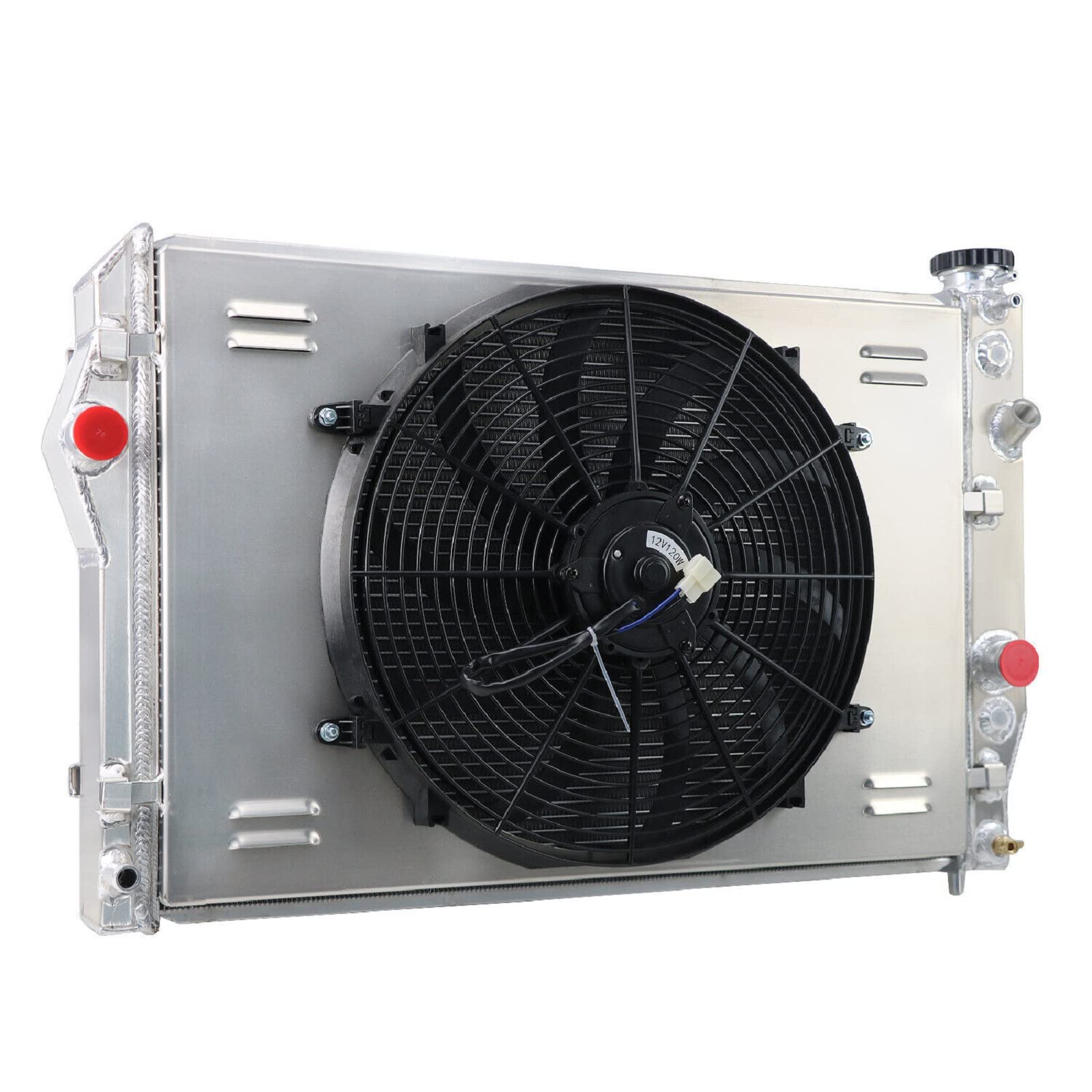

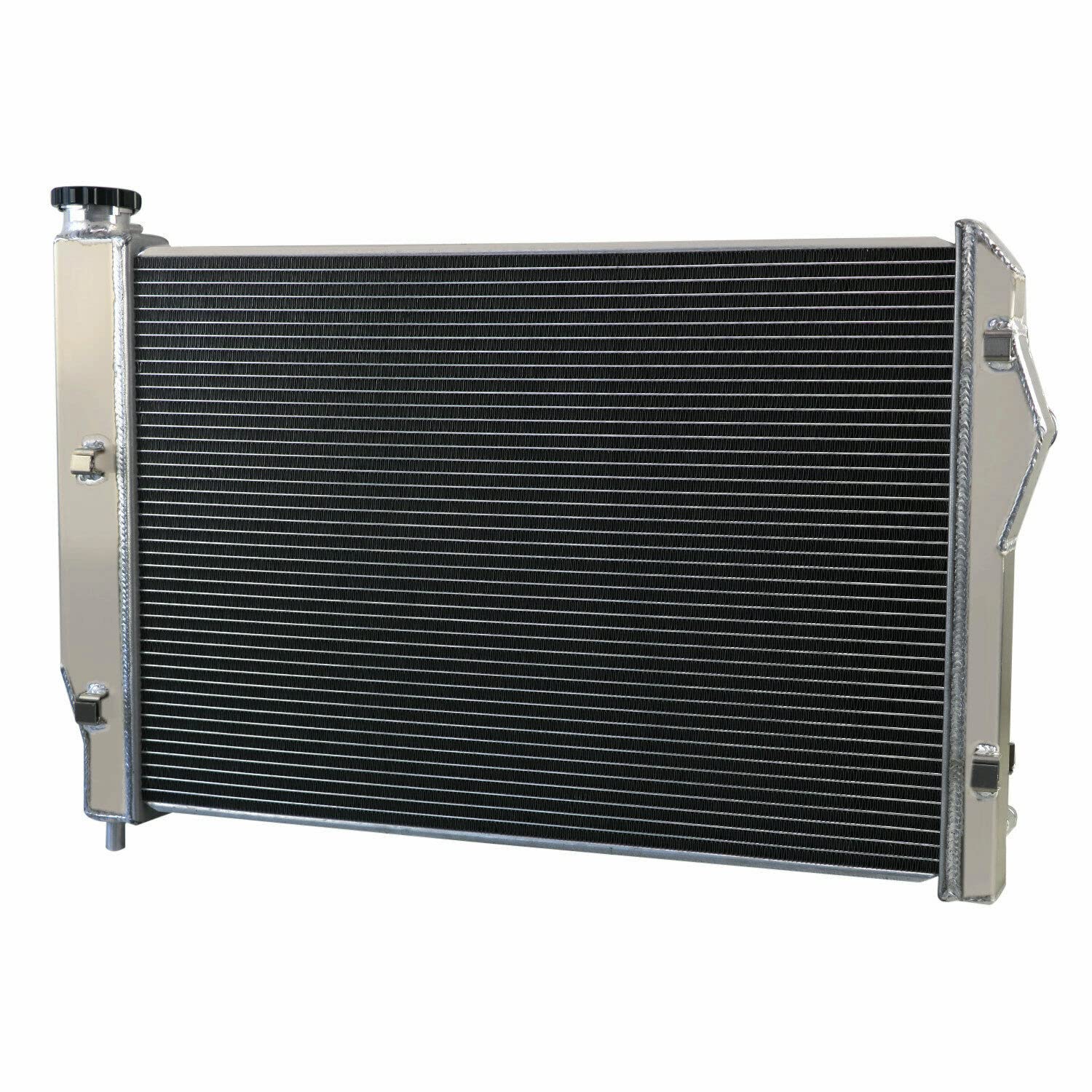

High Performance 4-Row Full Aluminum Radiator for 1993-2002 Chevrolet Camaro Z28 & Pontiac Firebird 5.7L V8 - Includes Cooling Fan Shroud & Relay Kit - Perfect for Street Racing, Off-Roading & Hot Weather Driving

Product Description

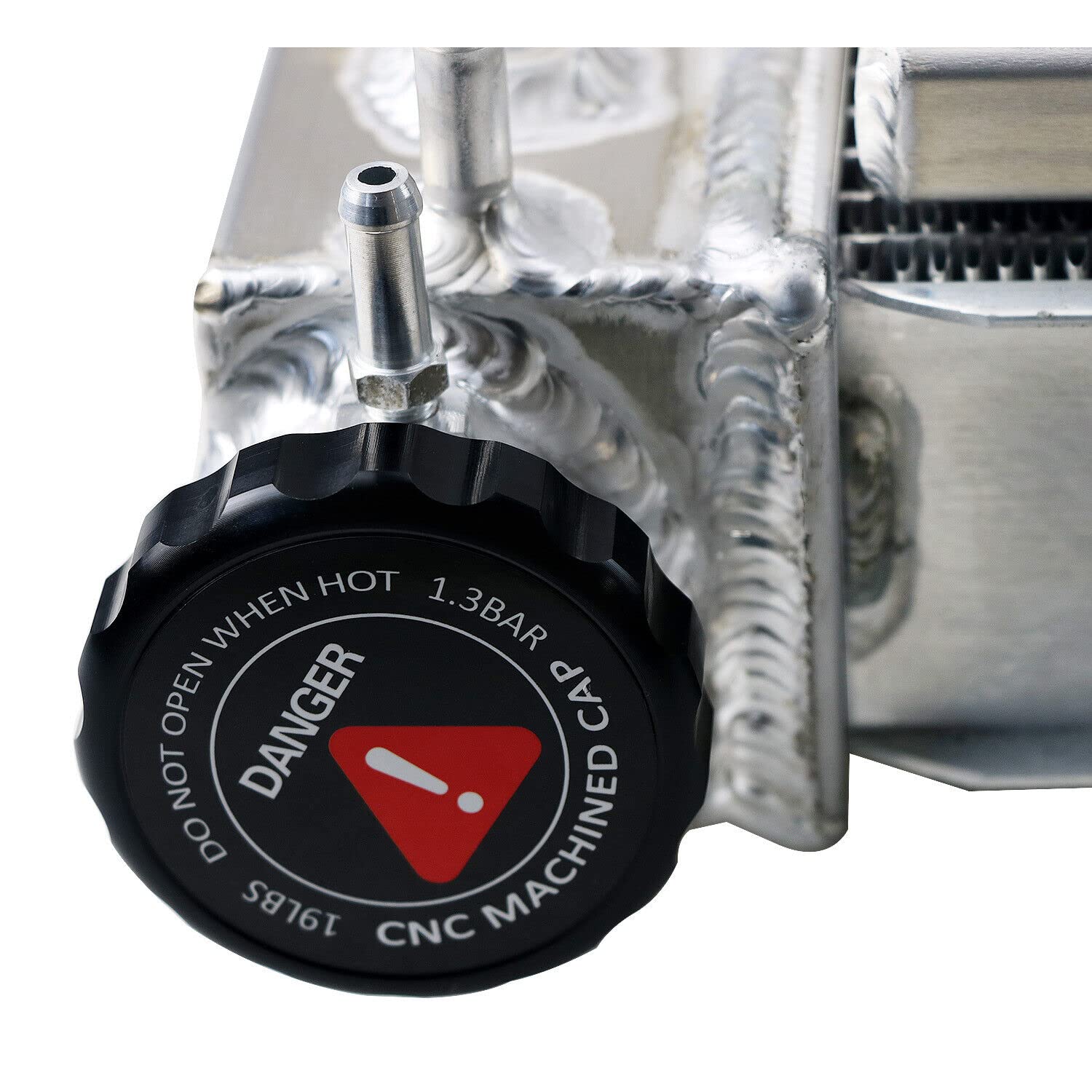

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND ONE 16" FAN AND THERMOSTAT KITS! Vehicle Fitment: Compatible For Pontiac Firebird/Trans AM/Camaro 1993-2002 1994 1995 1996 1997 1998 1999 2000 2001 Compatible For Chevy Camaro Firebird 1993-2002 1994 1995 1996 1997 1998 1999 2000 2001 Radiator Size: Material:Full Aluminium High Performance Racing Spec. 4-Row of tubes Core Racing Design Core and Tank: All Aluminum Radiator Cap: included Core and Tank: All Aluminum Radiator Flow: Cross Flow Core Dimension (H x W): 17 3/4" x 25" Overall Dimension (H x W): 20 1/2" x 29 5/8" Hose Locations: IN: Passenger / OUT: Driver Hose Fittings: IN: 1 1/4 - OUT: 1 3/8 Trans Cooler: YES Mounting Type: Pin Mount Transmission: Automatic and Manual. FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050" Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold. Why Choose Cubauto Radiator? 1. Covers vast selection of import and domestic applications 2. Stringently tested to guarantee optimum performance and dependability 3. Straightforward installation guaranteed 4. Carefully crafted to exceptional OE standards for precise fit,Aircraft AA5052 grade aluminum and with raw aluminum finish 5. Made from high-grade materials for prolonged lifespan 6. CNC machined filler neck and cap 7. OEM style brass petcock drain
