High-Performance 3-Row Aluminum Radiator for 1982-2002 Chevy S10 Blazer Corvette 5.7L V8 - Includes Cooling Fan, Shroud & Relay Kit - Perfect for Off-Roading, Towing & Hot Weather Driving
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:17 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:26085565
Product Description

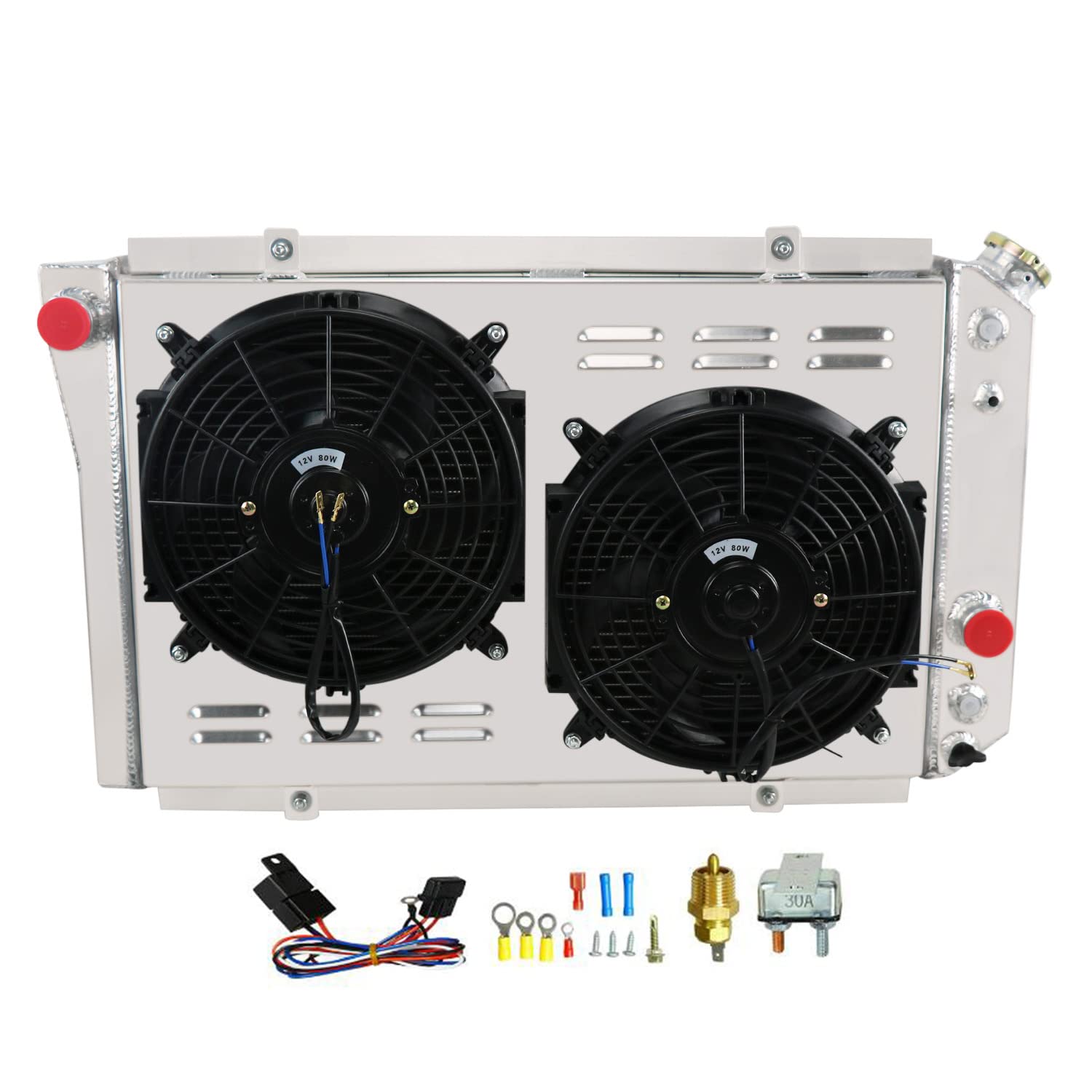

Product Includes: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 10inch Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Specs: Transmission Oil Cooler Fitting Type: M12x1.25 Upper Inlets: Located on the driver side Lower Outlets: Located on the passenger side Core Material: Full Aluminum Tank Material: All Aluminum Surface Finish: Aircraft Grade Raw Aluminum Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Transmission Oil Cooler: Included Flow Type: Crossflow Delivery: local delivery Fitment Type: Direct Replacement Fan Details: Maximum Fan CFM: 1730 cfm Fan Diameter (inch): 10.050 Thickness (inch): 2.500 Number of Blades: 6 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature 180'F/165'F turn on/off temperature RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans OEM/Substitute Numbers: KKS829,SBR829,SPTCU829,Q829,29,CC829,CU829,DPI829,MC829,AE829,EC829,3052025,3052026,3053501,3055309 This Radiator Compatible with: 1982-2002 Chevrolet S10/S-10 Blazer V8 Conversion 1984-1990 Chevrolet Corvette 5.7 V8 PLS check core/overall/inlet/outlet SIZE carefully before you order
Product Features
Core Size(inch) 23.7 x 14.88 / Overall Size(inch) 28.85 x 17.15 x 3.45 Thickness
Inlet(inch) 1.37 / Outlet(inch) 1.37 / Core Thickness(inch) 1.75 / Rows 3
Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
All aluminum disign for greater heat and pressure tolerance and better heat dissipation
Good After-sales Service & Easy Free Return,If you have any Issues, Email Us
