3 Row Aluminum Radiator & Shroud Fan for 1955-1959 Chevy Truck Pickup 3100 3200 3400 3500 3600 3700 3800 & Suburban Apache/GMC 100 150 - Perfect Cooling Upgrade for Classic Trucks & Restoration Projects

Product Description

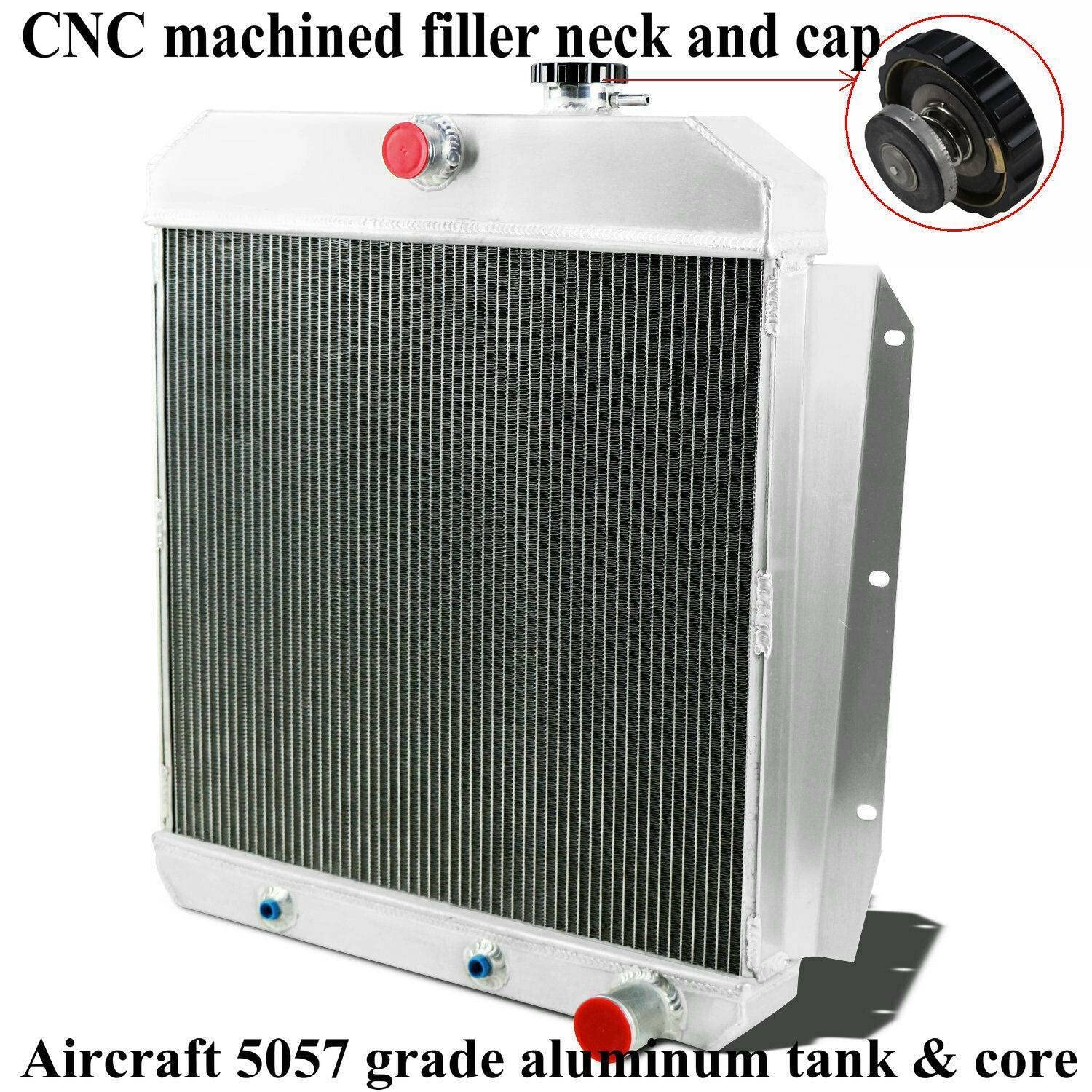

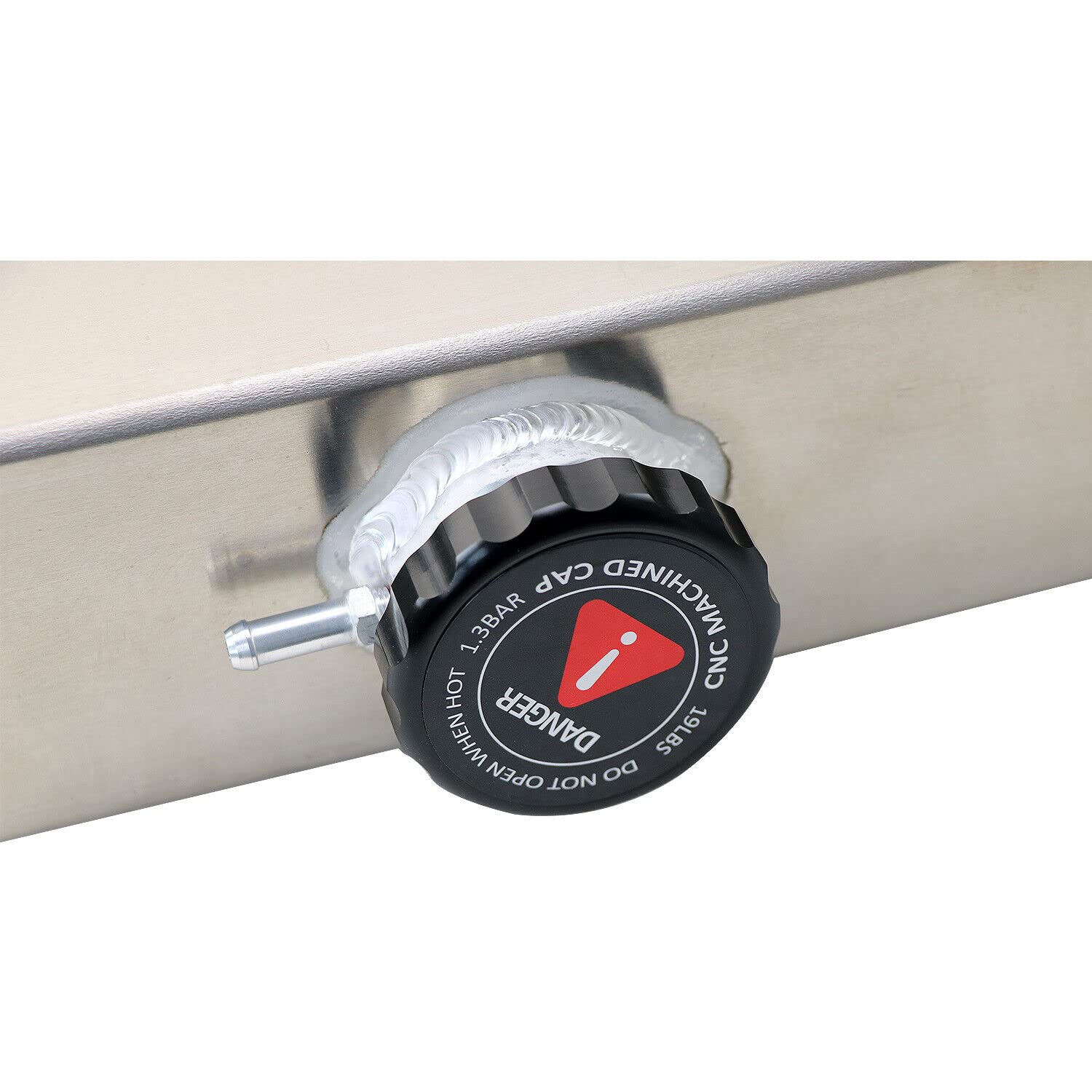

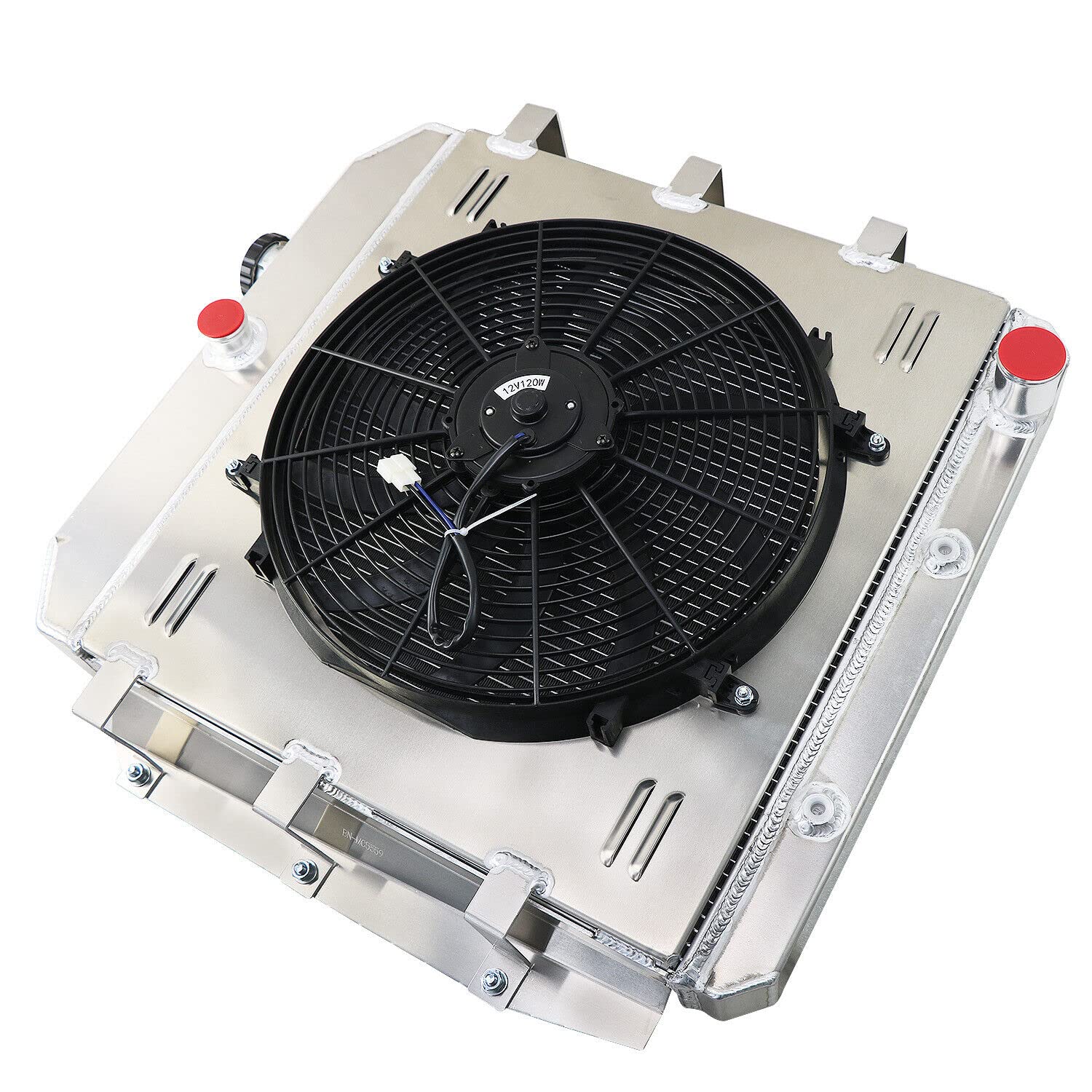

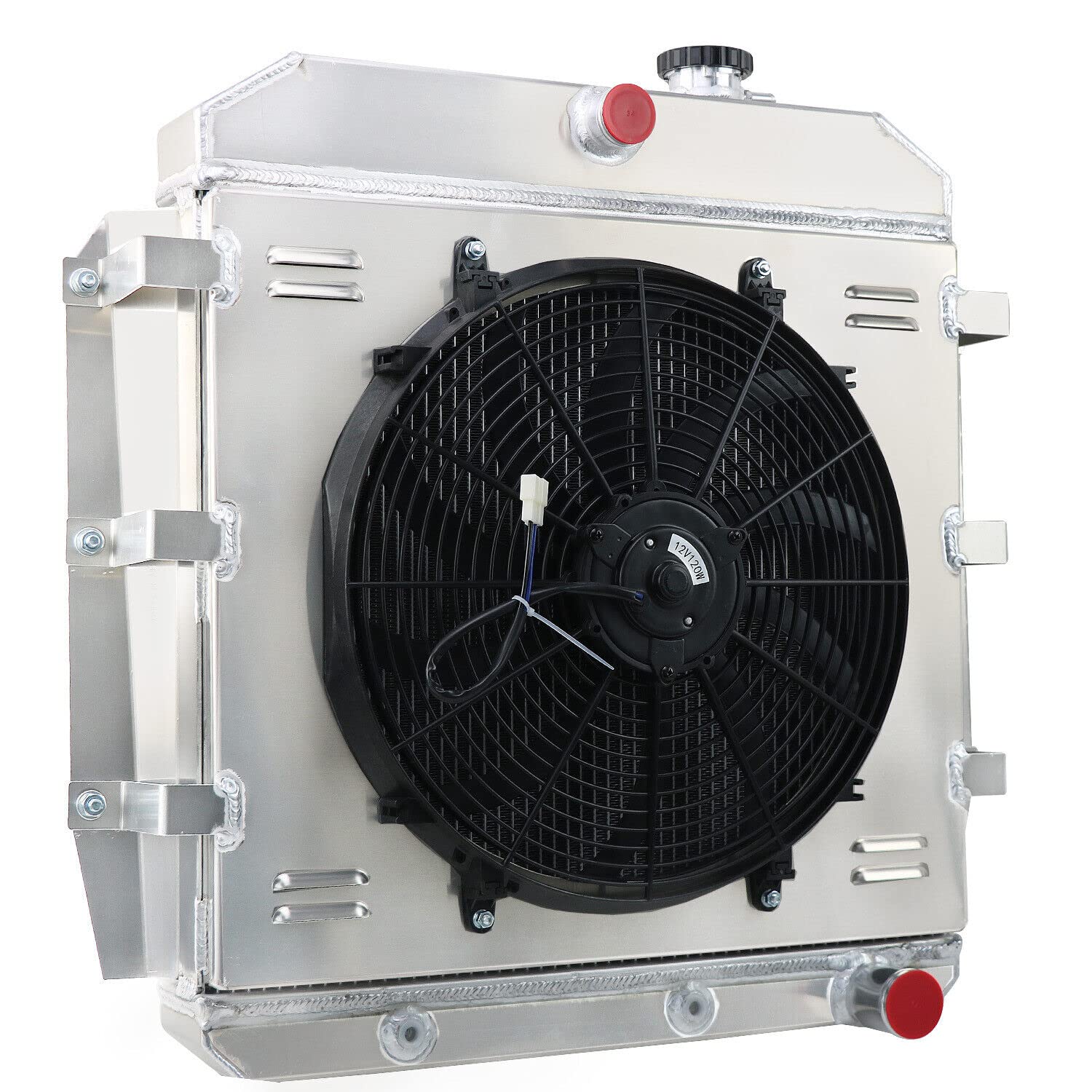

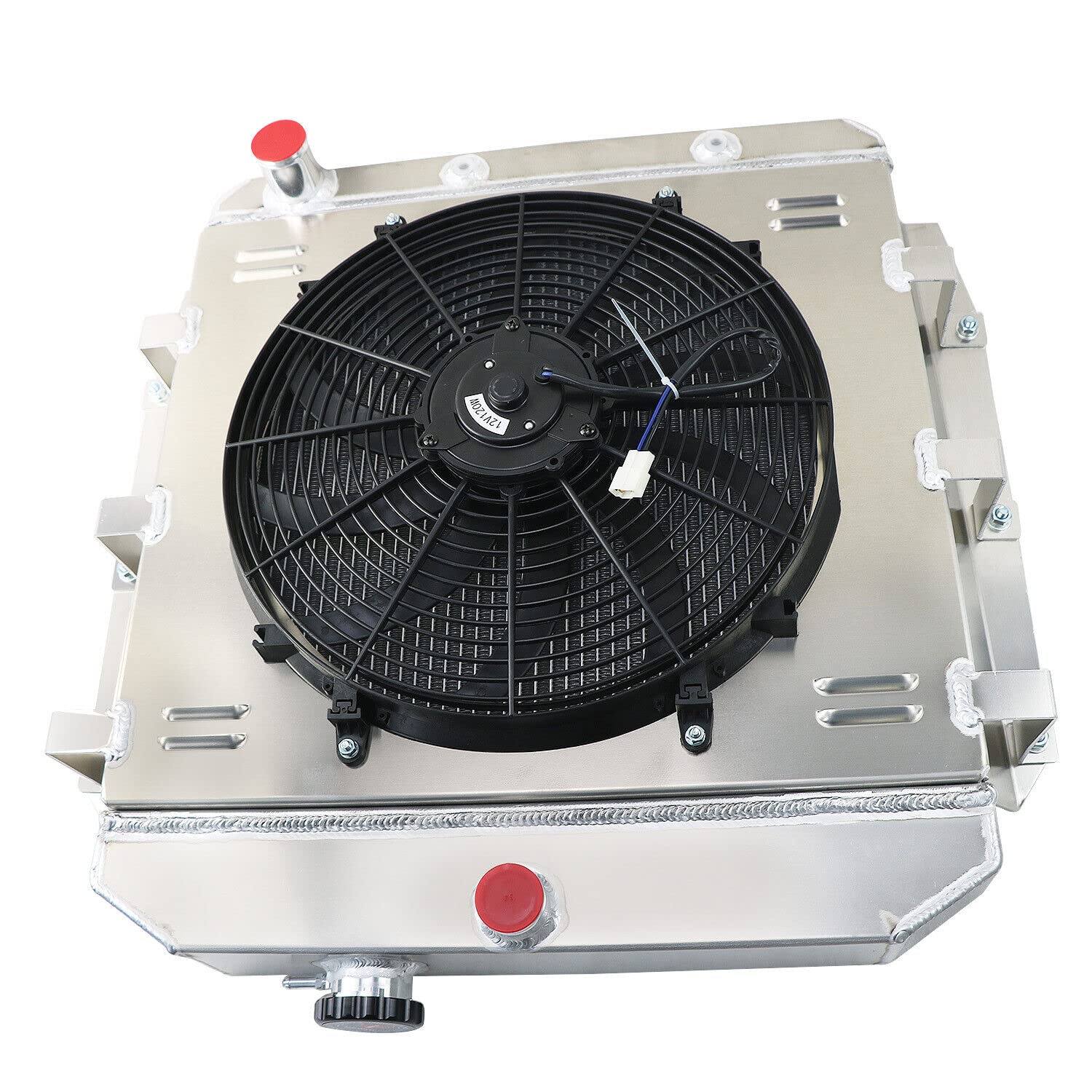

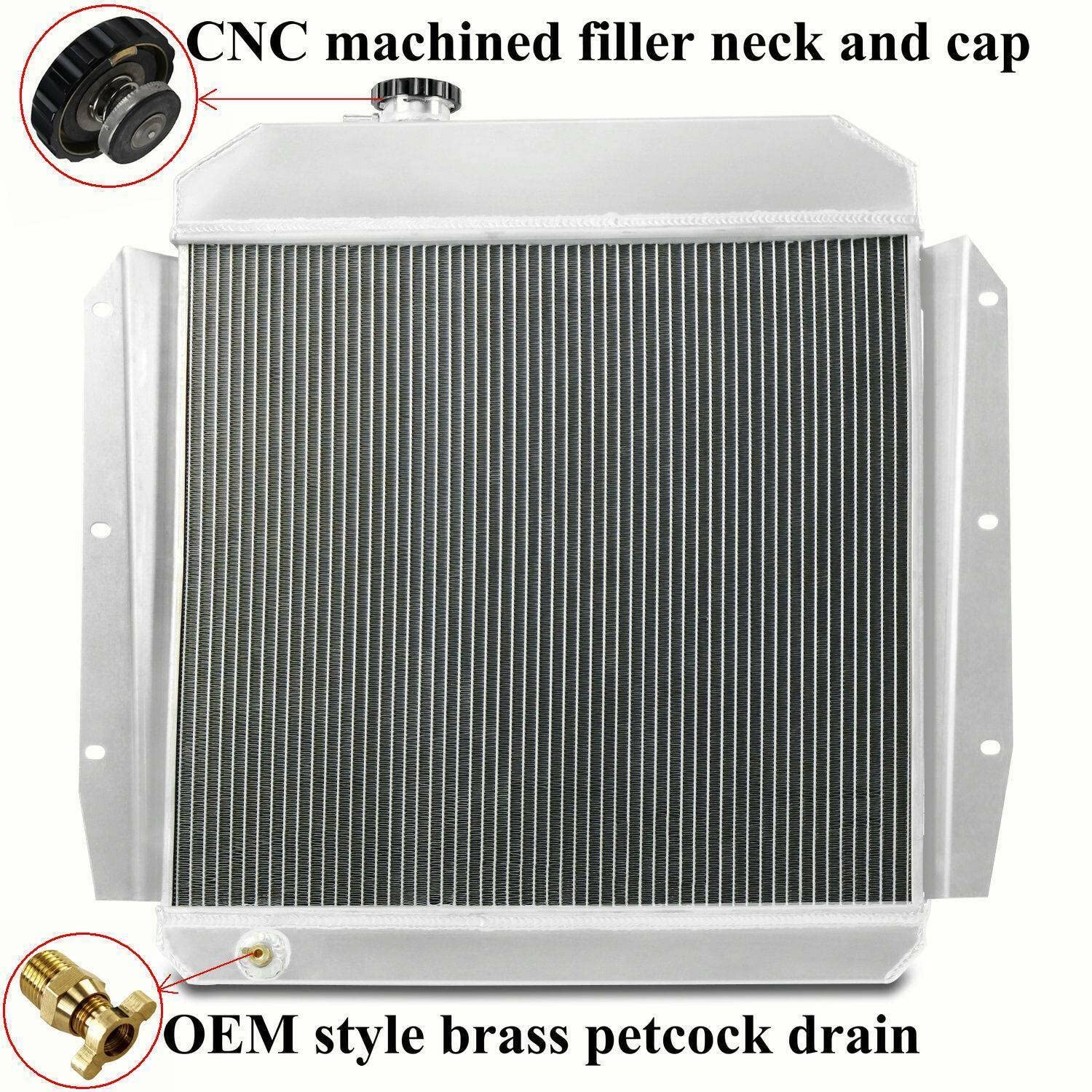

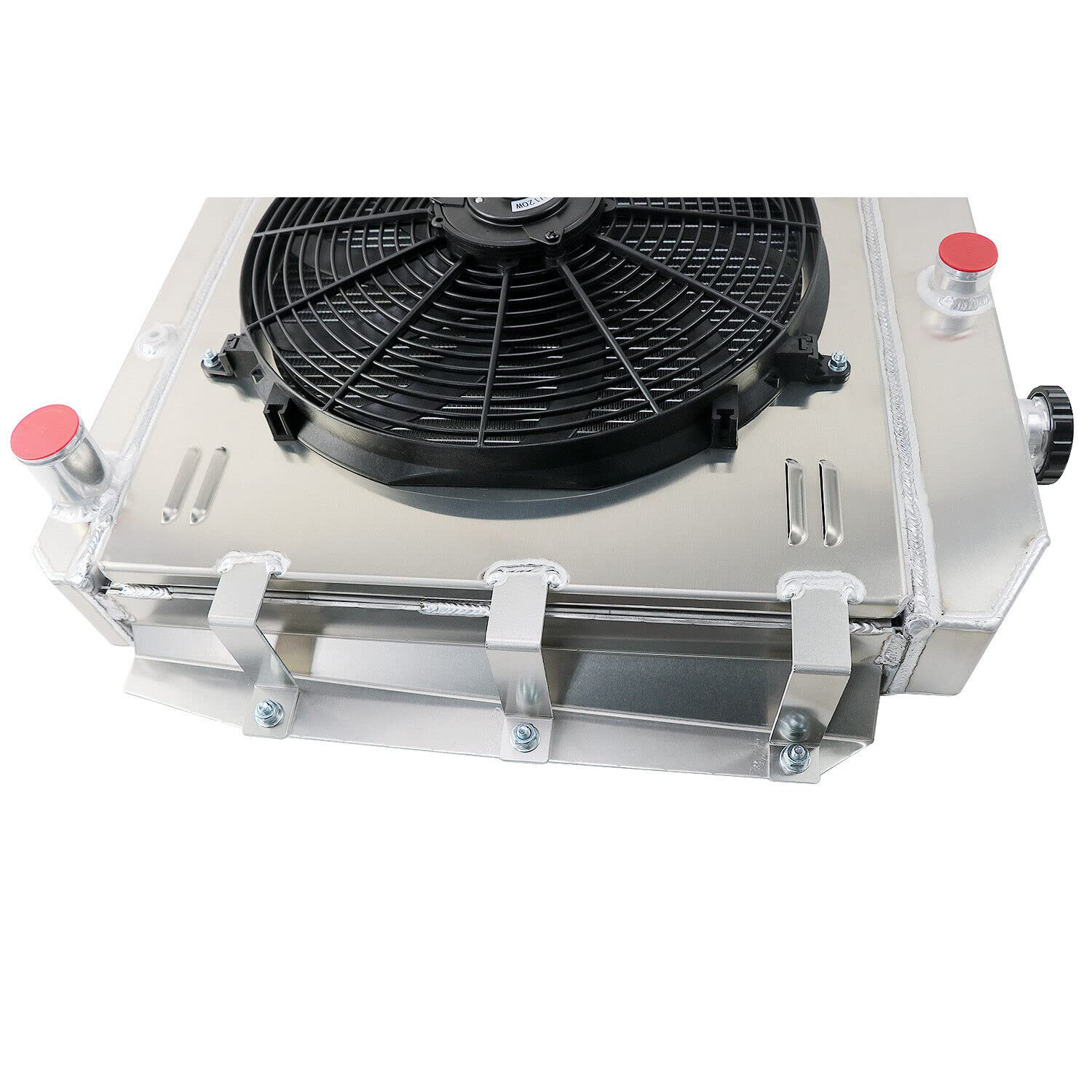

This Listing Is Including: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16" Fan (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Size: Material: Full Aliuminum Row: 3 Row Core Core Dimensions: 19 3/8"H x 21 3/4"W Overall Dimensions: 26 3/4"H x 26 1/2"W Upper inlet: 1 1/2" located in center. Lower outlet: 1 3/4" located on passenger side. Auto trans cooler: yes OEM mount system OEM Style Brass Petcoke Drain CNC machined filler neck and cap Shroud and Fans: The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. FANS: Fan Diameter (in): 16.050" Maximum Fan CFM: 1730 cfm Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Vehicle Fitment: For 1955 1956 1957 1958 Chevy C/K-Series Truck/ Pickup/Suburban For 1955 1956 1957 1958 1959 Chevy 3100 3200 3400 3500 3700 3800 For 1955 1956 1957 1958 1959 GMC 100 For 1955 1956 1957 1958 1959 GMC 150 For 1955 - 1959 Chevy Pickup Truck For 1955-1959 GMC Truck For 55 56 57 58 59 Chevy Apache Truck For 55 56 57 58 59 Chevy Truck pickup For 55-59 GMC Pickup Truck For 55-59 Chevy 3100 Pickup Truck For 1955-1959 CHEVY TRUCK PICKUP SUBURBAN PANEL For CHEVY TRUCK GMC 55-59 For CHEVY 3100 3200 3400 3500 3600 3800 55-59
