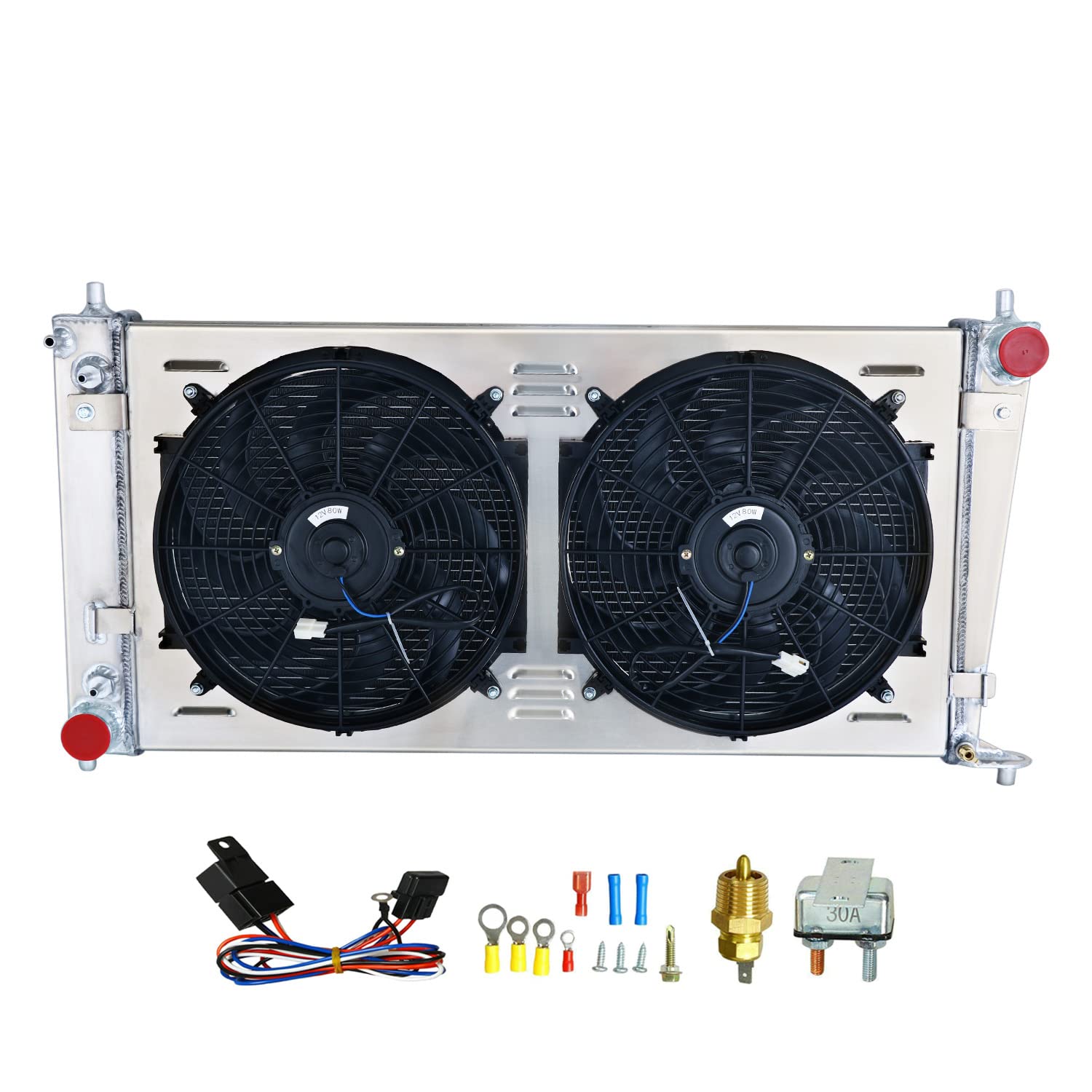

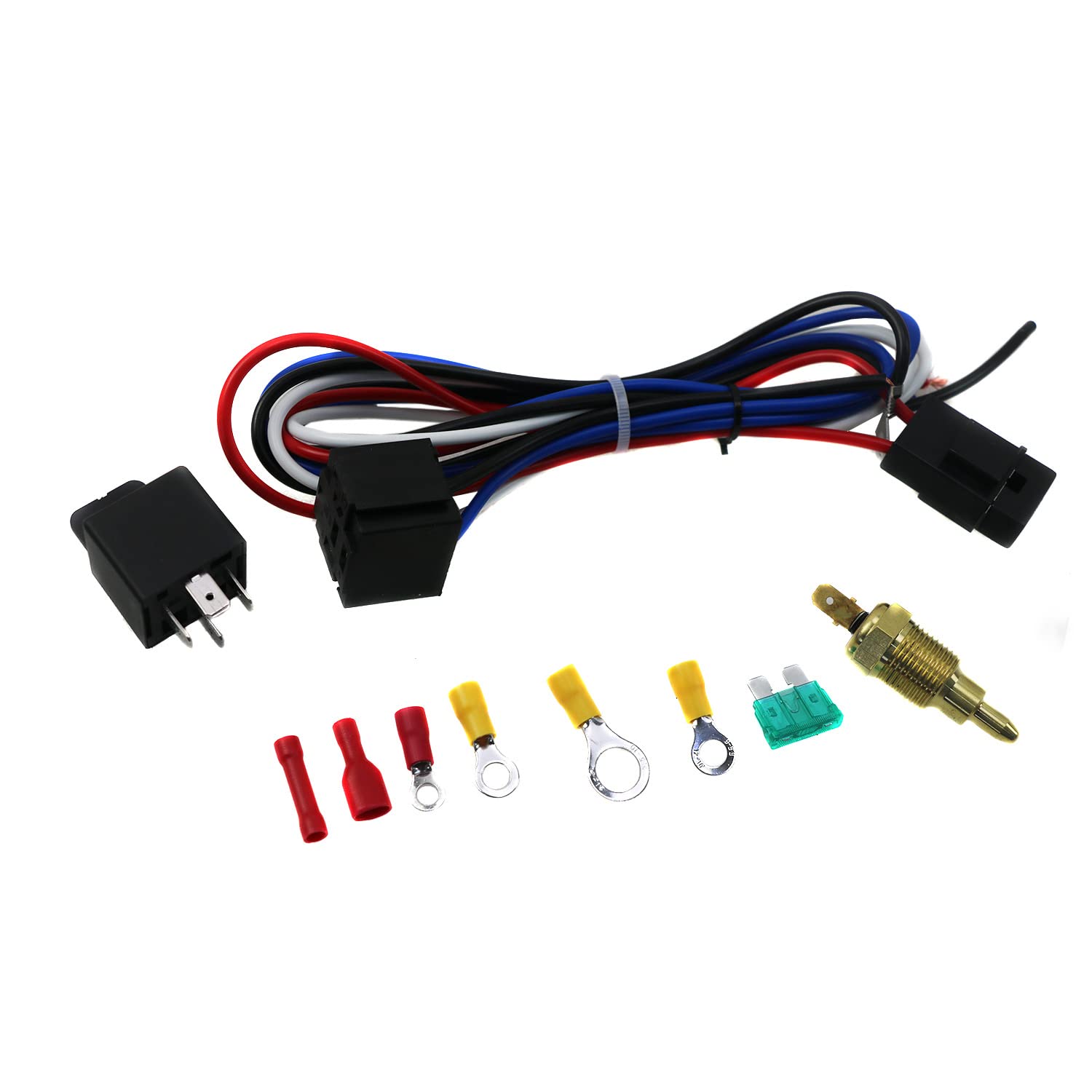

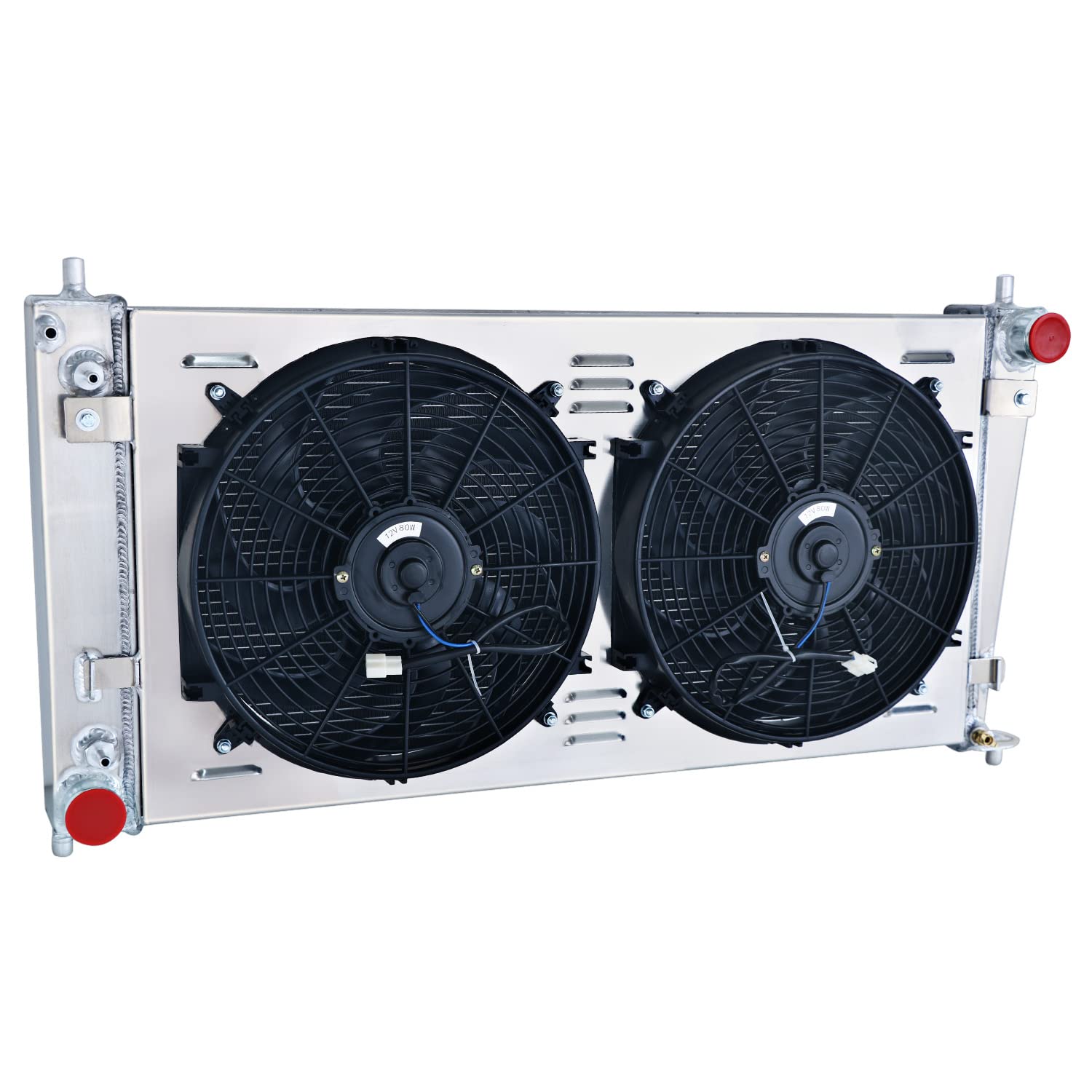

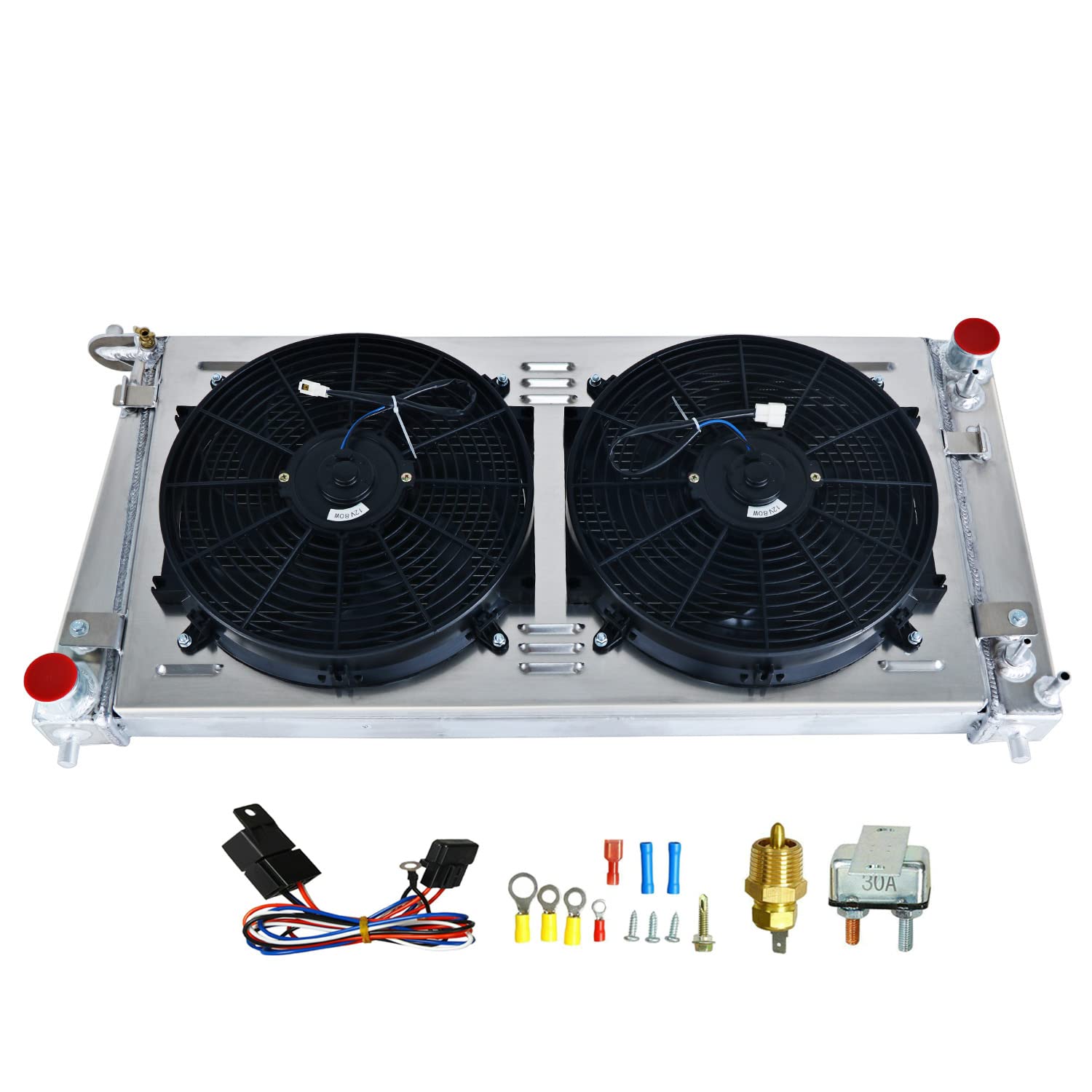

1999-2004 Ford Expedition F150 F250 F350 V8 Aluminum Radiator - 3 Row Heavy Duty Cooling System with Fan Shroud & Relay Kit - Perfect for Off-Roading, Towing & High-Performance Driving
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:20029750
Product Description

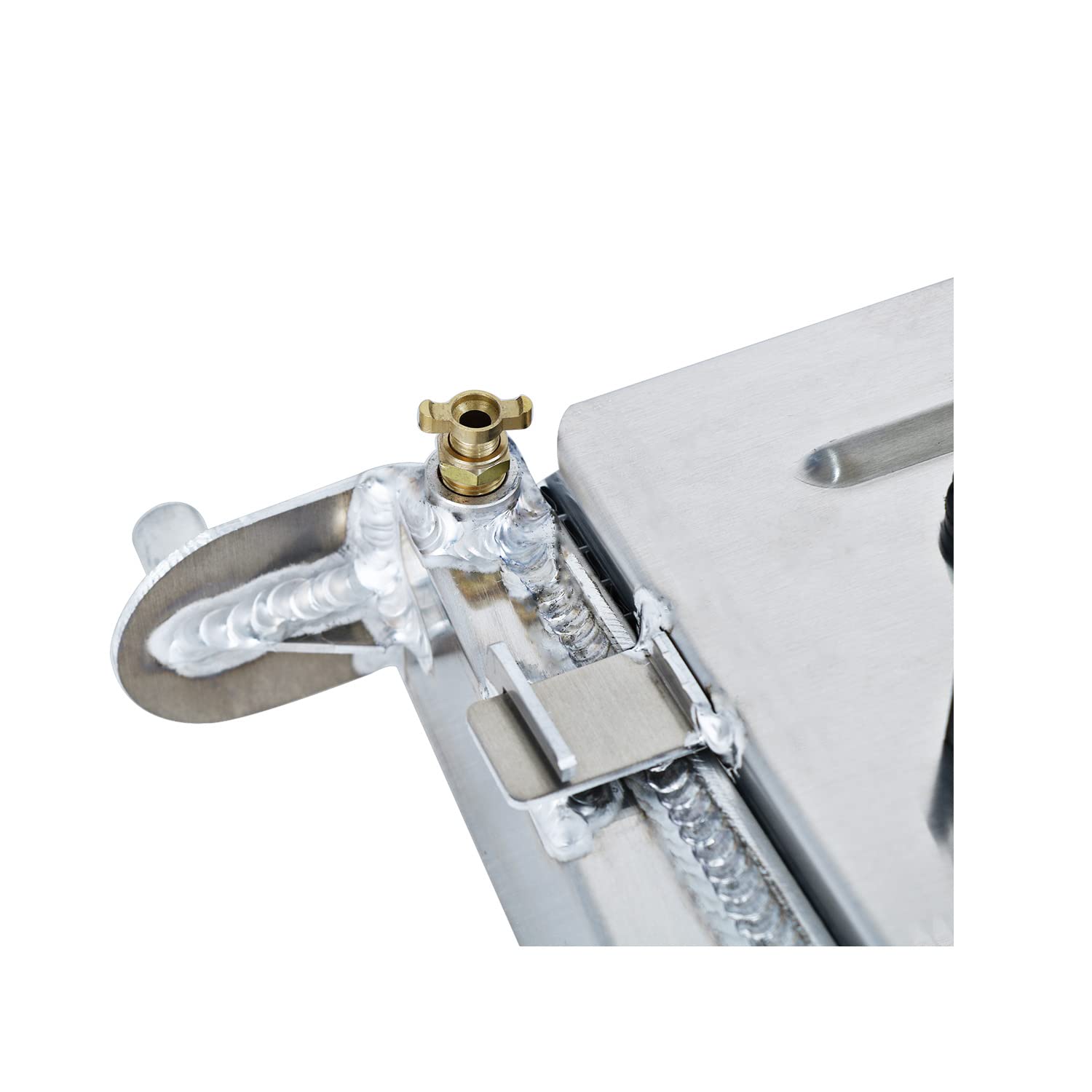

This Radiator Compatible with: FOR 1999-2002 Ford Expedition 4.6L 5.4L V8 FOR 1999-2010 Ford F-150 4.2L 4.6L 5.4L V8 FOR 2004 Ford F-150 Heritage 4.2L 4.6L V8 FOR 1999-2003 Ford F-250 F-350 4.6L 5.4L V8 FOR 1999-2003 Ford F-250 F-350 Super Duty 5.4L V8 Please Notice: To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Size, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part Radiator Specs: High Performance Racing Spec. 3-Row of tubes Core Racing Design Core Material: Full Aluminum Tank Material: All Aluminum Flow Type: Crossflow Mounting Type: bracket Transmission Fits: Automatic & Manual Radiator Crafts: 100% welded by TIG, no epoxy Radiator Performance: Improves Cooling by 35-45% Temp Radiator Drain Plug: OEM Style Brass Petcock Drain PLS check core/overall/inlet/outlet SIZE carefully before you order Fan Details: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050 Thickness (in): 2.500 Number of Blades: 8 S-Type blades Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator About product shipping: This aluminum radiator is big and easy got damaged during shipping, if the radiator or packing box arrived damaged, pls contact us and offer us pics of damage details, we offer a full refund or replacement Warranty: 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order, If you have a problem, we will take every step to assist you, contact us for a replacement Contact us: If you have any question or need any help from us, please feel free to contact us We will try our best to reply all e-mails within 24 hours, there might be some delay during weekends and holidays Any Doubts, Email Us, Have a nice shopping!!! Note: If need 3 row radiator ASIN is: B0B2DV7CSC
Product Features
Core Size(inch) 31.7 H x 16.45 W / Overall Size(inch) 37.8 L x 19.69 W / Rows 3
Inlet(inch) 1.77 (Passenger Side) / Outlet(inch) 1.77 (Driver Side) / Core Thickness(inch) 1.74
Build-in Transmission Oil Cooler 11/16-20UNS
Our T-5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure
Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently
This Aluminum Radiator is at least 30%-45% more efficient than stock ones
It has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications
Manufacturer Part Number USAutoPart-0598
