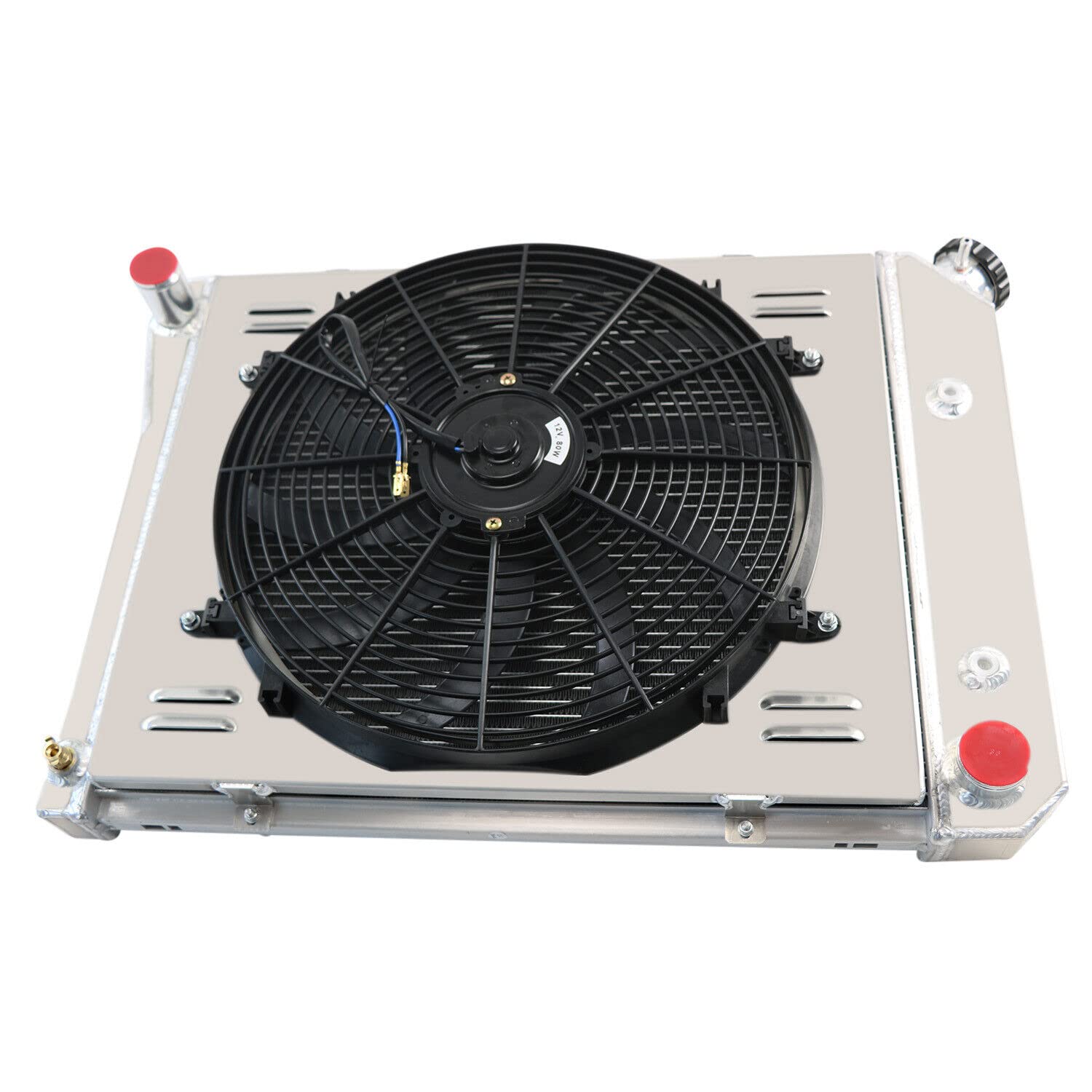

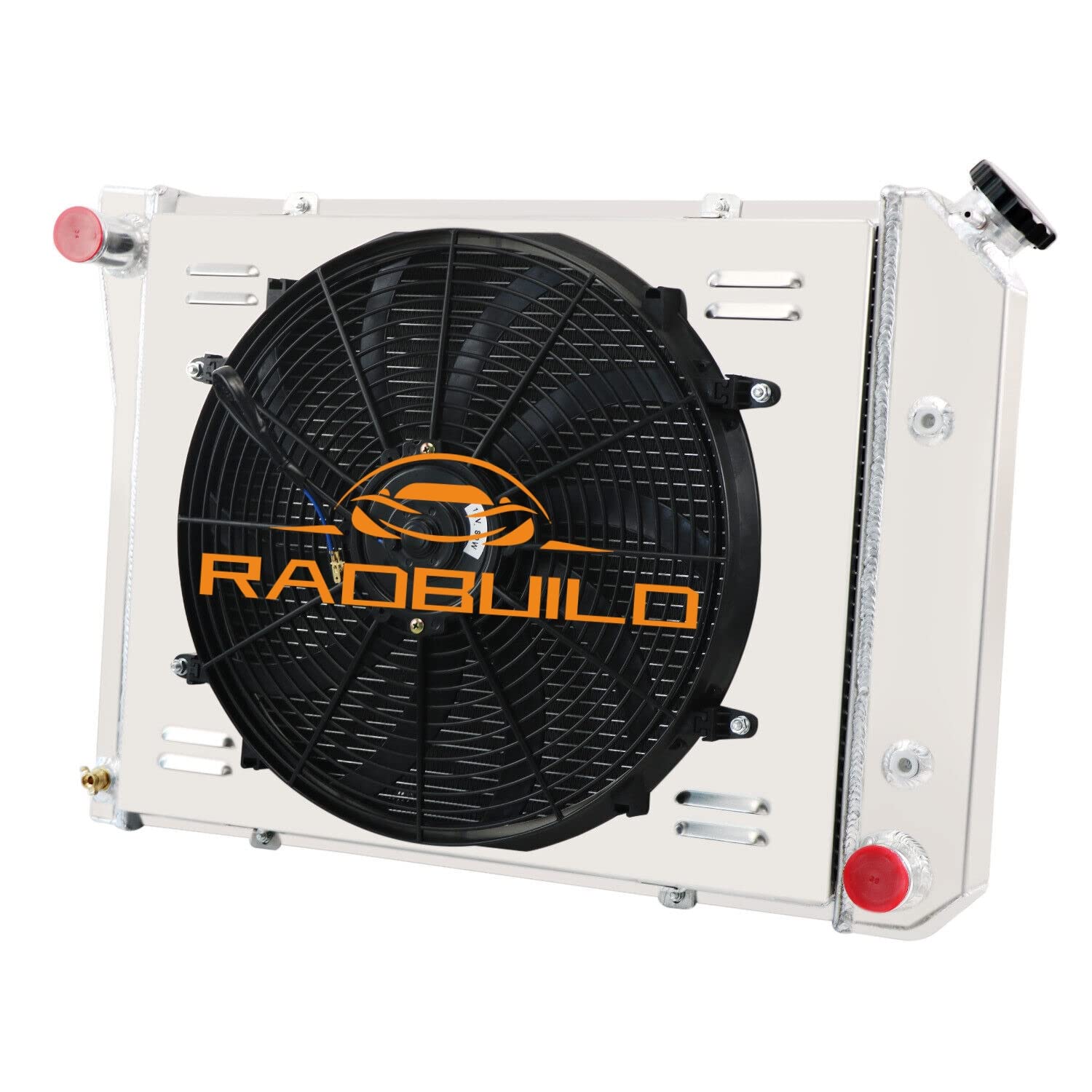

High-Performance 3-Row Aluminum Radiator with Shroud & Fan Kit - Compatible with 64-87 Buick, 68-87 Chevy Chevelle/Pontiac & 73-87 Oldsmobile (Fits 3.8L/4.3L V6 GAS, 3.8L/4.1L V6, 5.0L V8 GAS) - Perfect for Cooling System Upgrades & Engine Performance Enhancement
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:25 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:16787055
Product Description

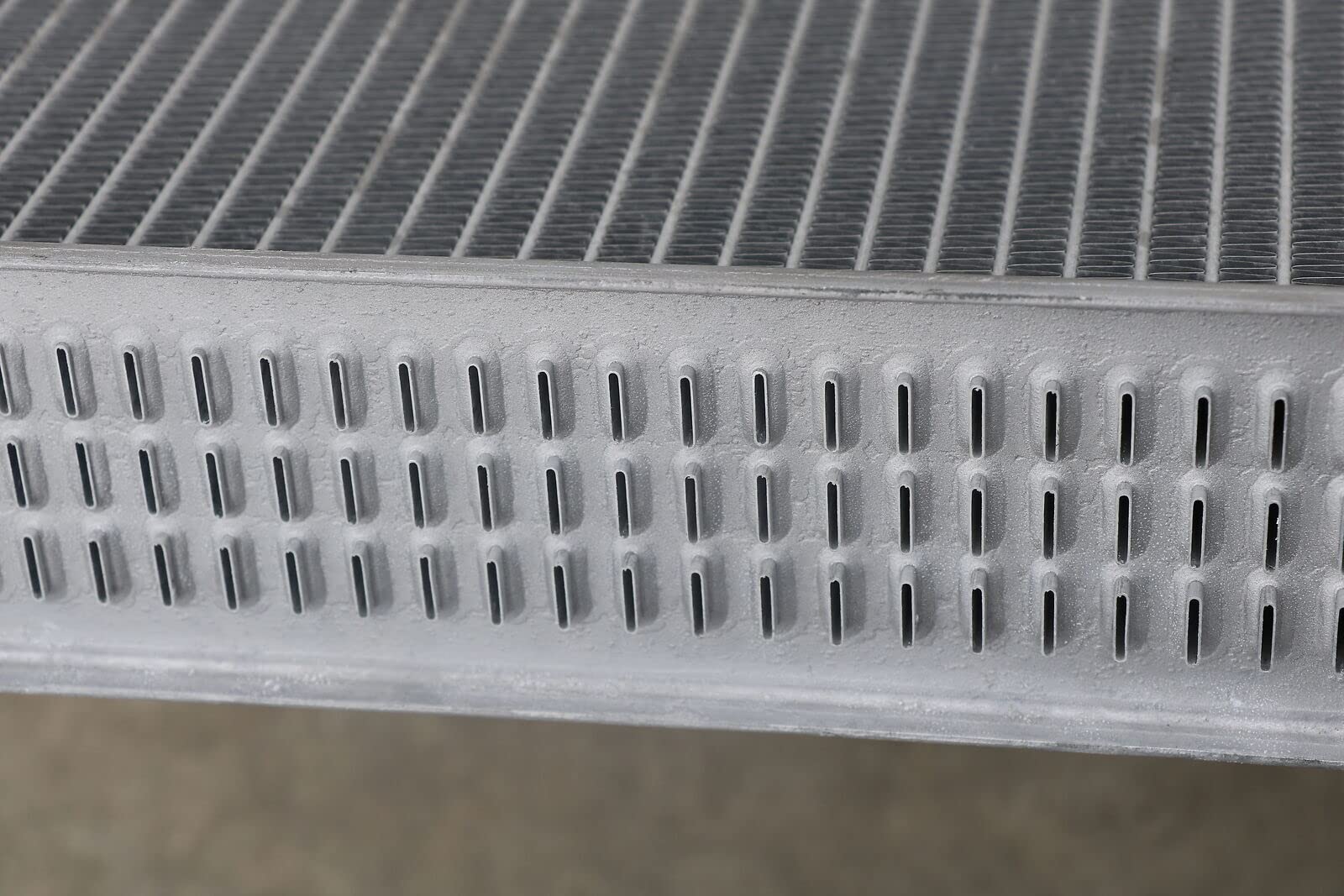

Fitment For 1964-1987 Buick Regal/Electra/LeSabre/Century 3.2L 3.7L 3.8L 4.1L 4.3L V6/4.9L 5.0L V8For 1968-1987 Chevy Bel Air/Camaro/Caprice/Chevelle/Impala 3.3L 3.8L 4.3 V6/4.1L L6/5.0L 5.7L V8 For 1973-1987 Oldsmobile Cutlass Supreme/Delta 88/Omega 4.1L L6/4.1L 4.3L V6/5.0L V8 For 19768-1987 Pontiac LeMans/Ventura 3.8L 4.3L V6/4.1L L6/4.3L 5.0L 5.7L V8 Radiator Details Row Count: 3 Row Upper Inlet: 1.57in located on driver side Lower Outlet: 1.5in located on passenger side Surface Finish: Aircraft Grade Raw Aluminum OEM style brass petcock drain CNC machined filler neck and cap Fans Size Maximum Fan CFM: 2000±200 cfm Fan Diameter (in): 16.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Part Number Manufacturer Part Number: DHR571,CC571, DPI571, MC571, EC571, AE571 Interchange Part Number: CU571,PR0571,899571,21369,A571,REA41-571A Other Part Number:8010571, REA41569A, CU571, 331, 433331, SPTCU571
Product Features
Core Size 21.2inH x 16.85inW x 1.73inT Overall Size 19inH x 27inW
Inlet/Outlet Diameter1.57in/1.5in

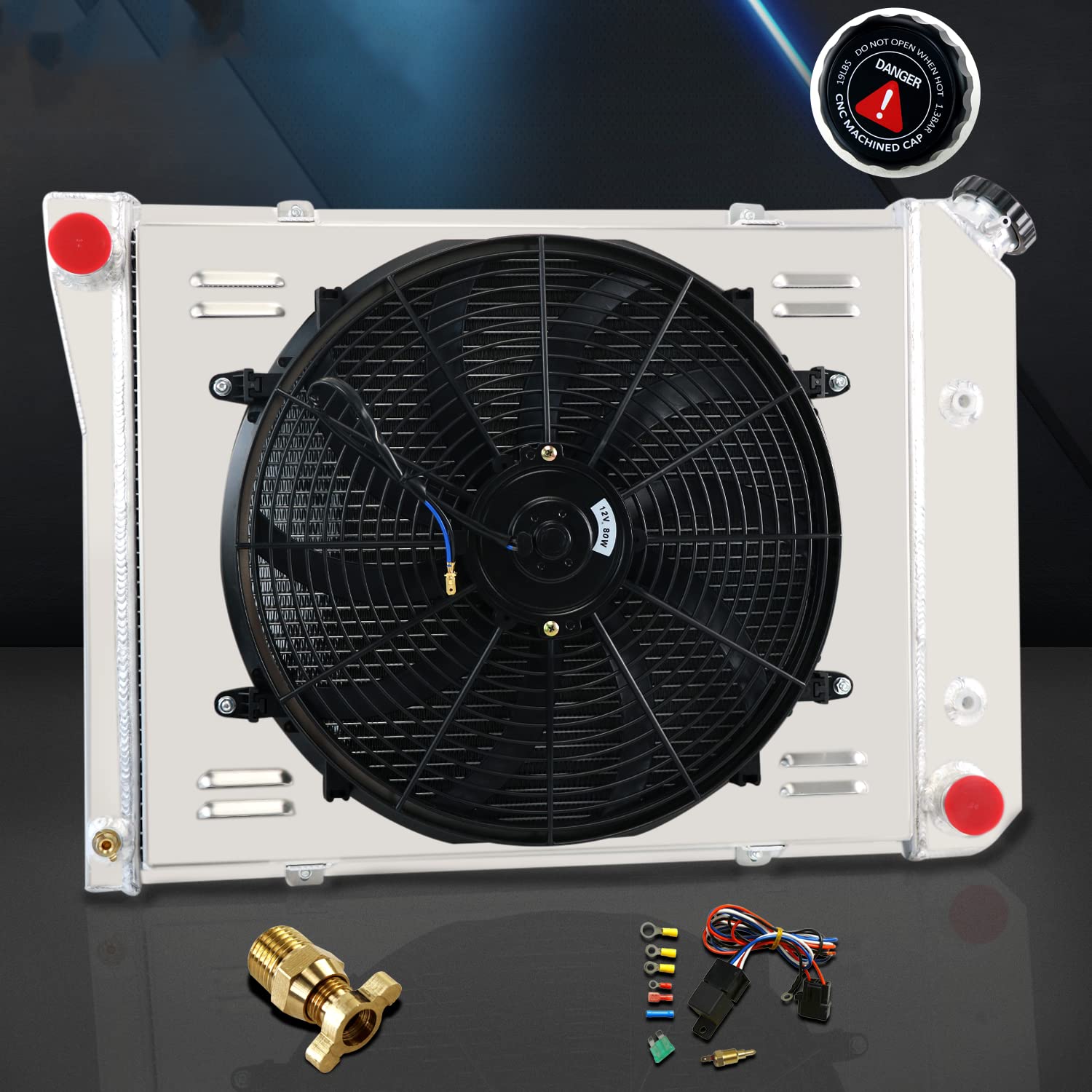

Package IncludeCome with 1x3Row New Radiator. 1x Aluminum Shroud.1x16”Fans.1x Thermostat Relay Kit
Drop in fit for easy installation; no modifications required.
Subject to aging and endurance testing to validate performance under extreme weather conditions
