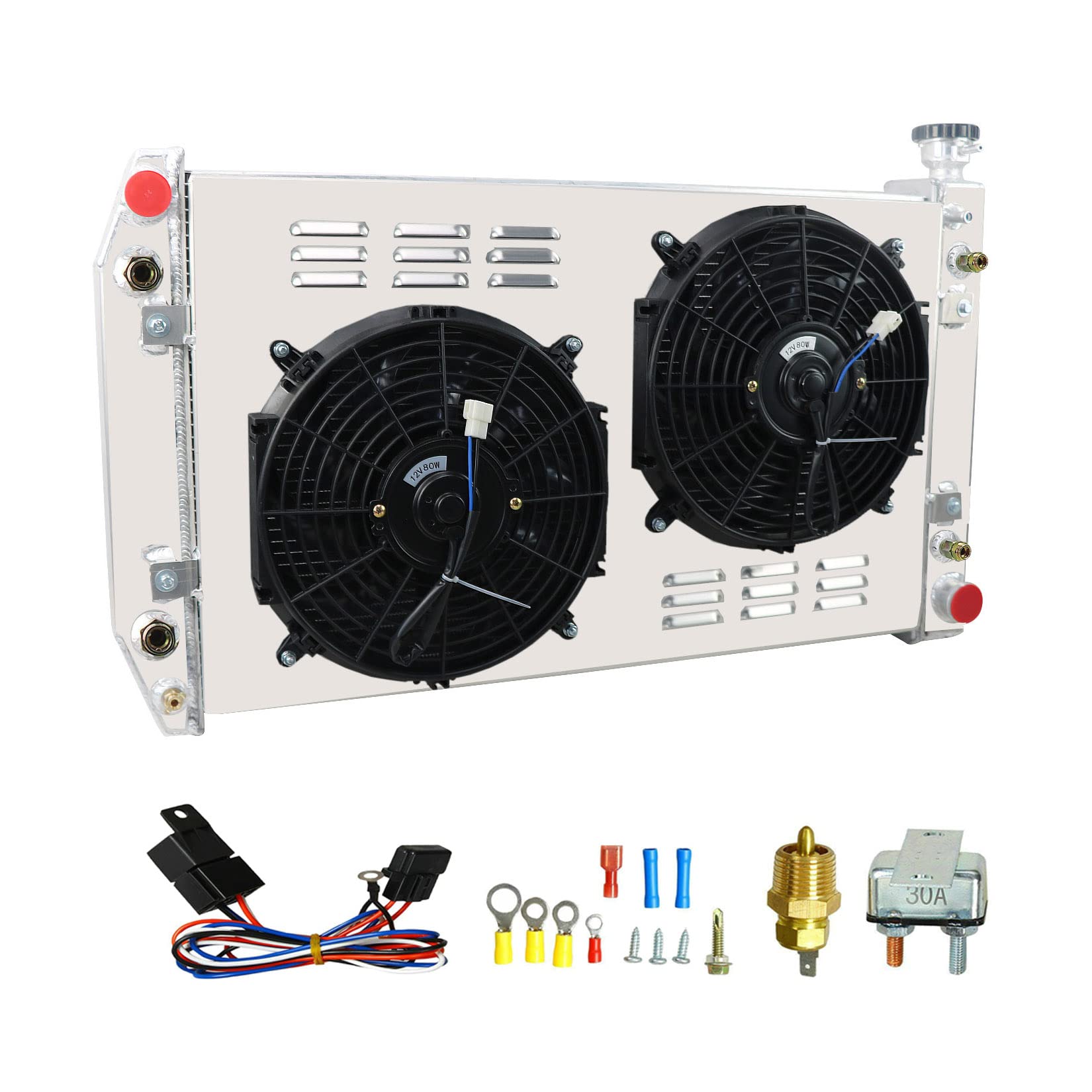

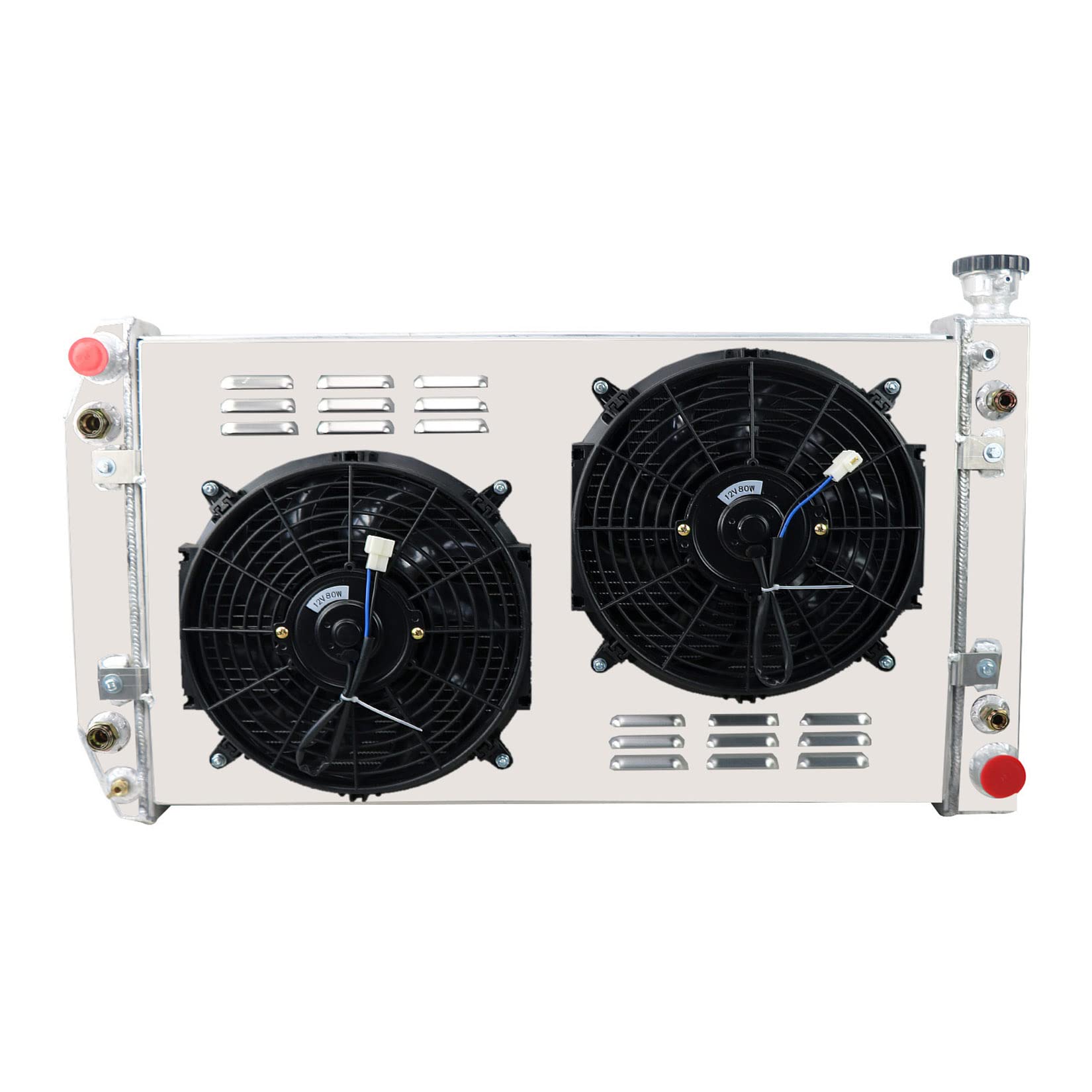

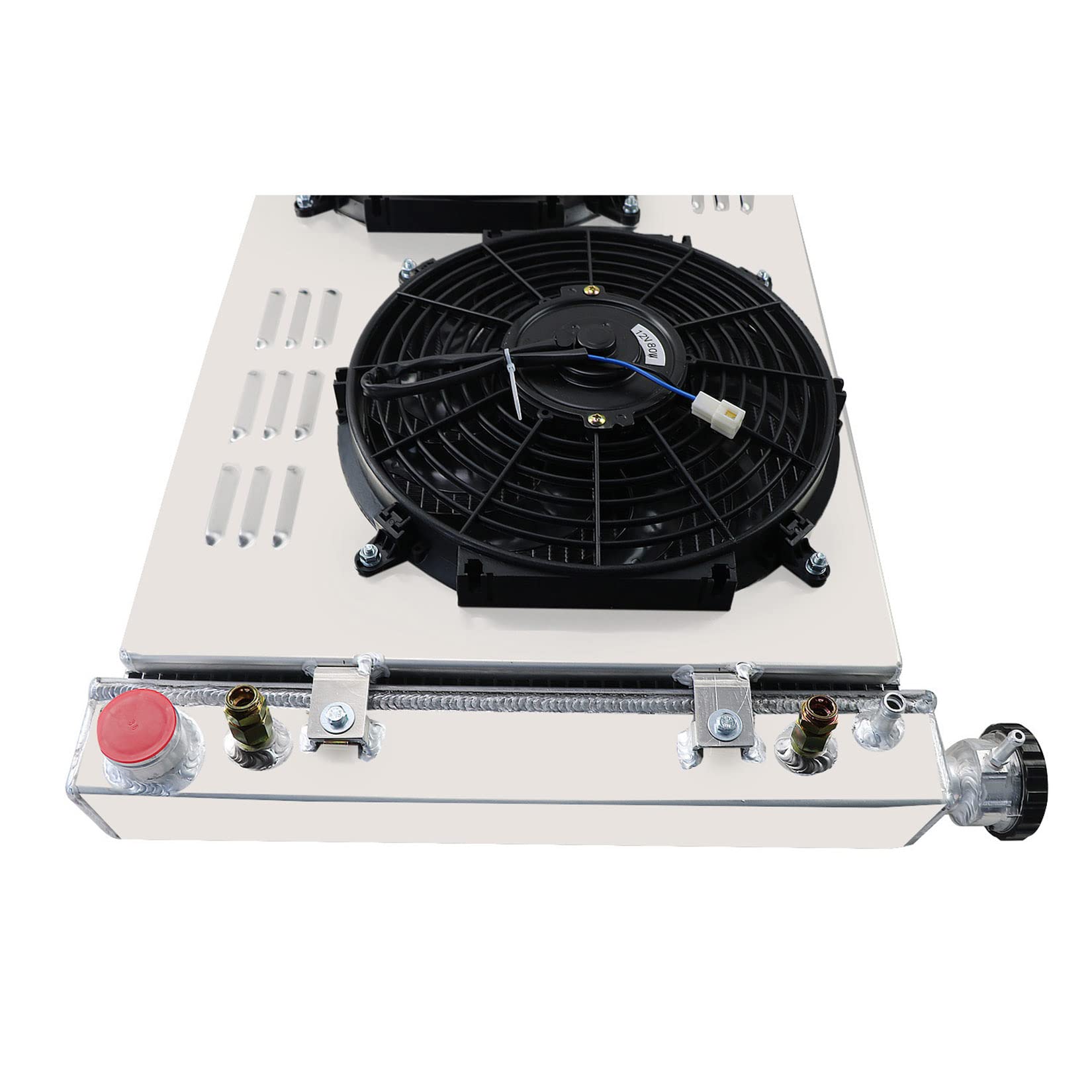

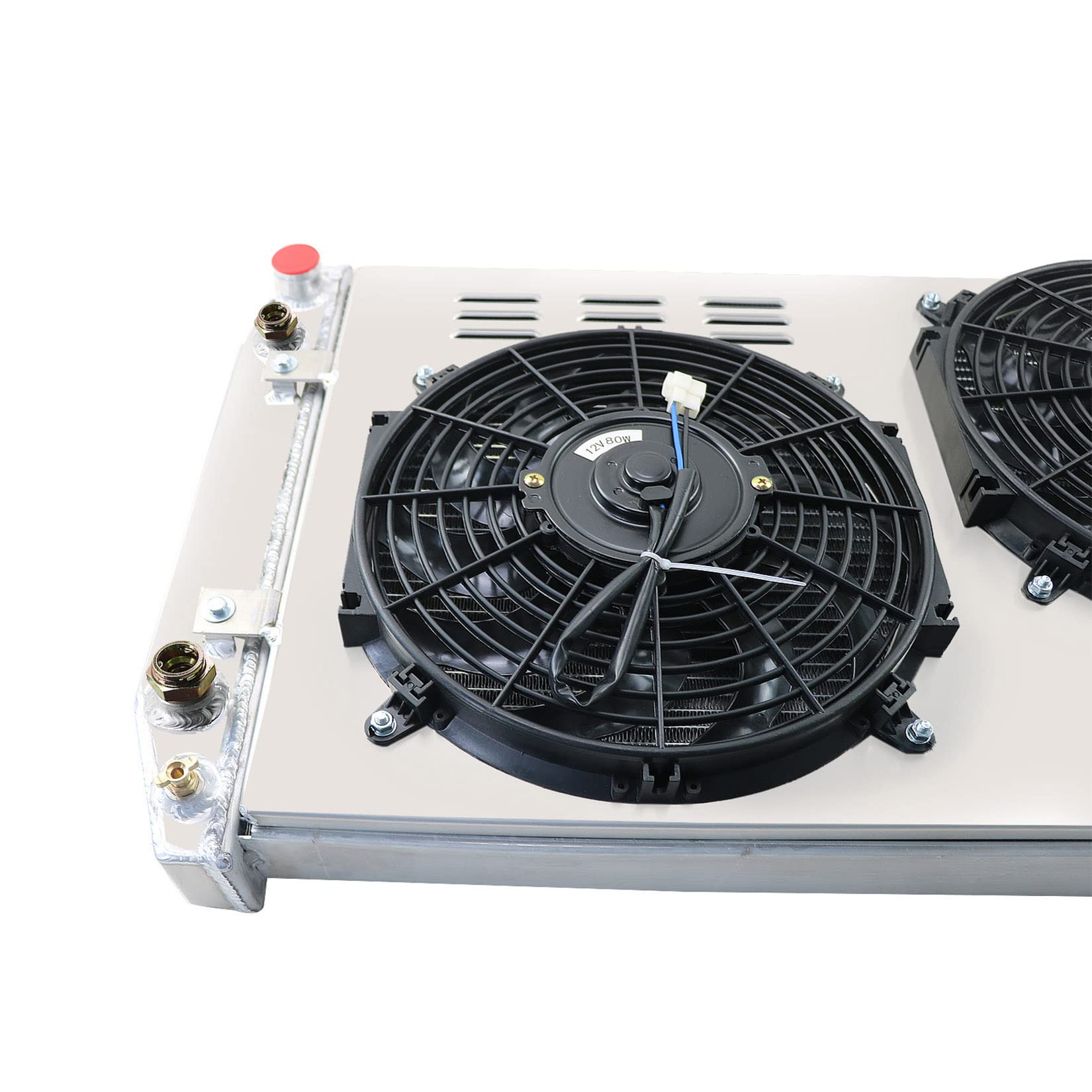

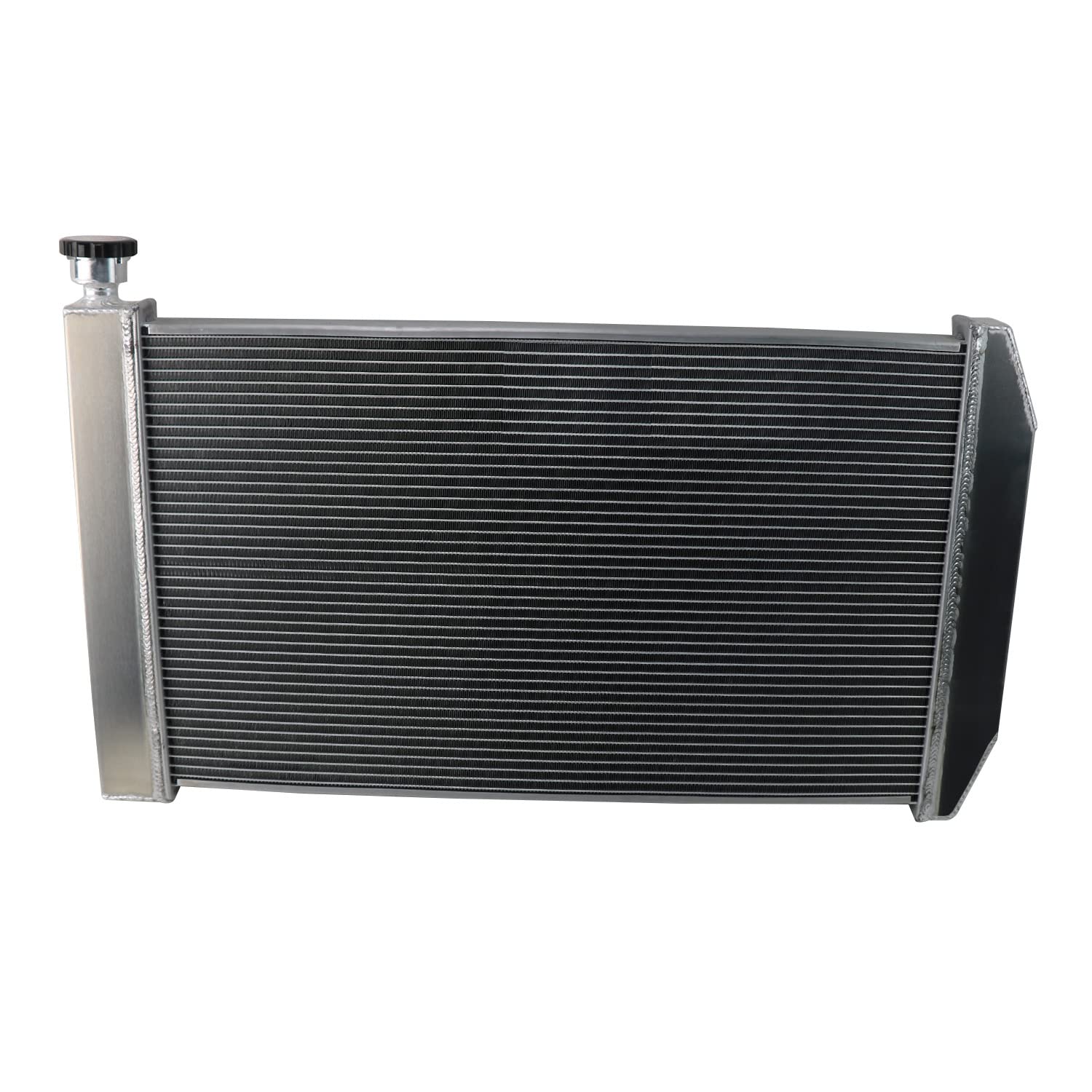

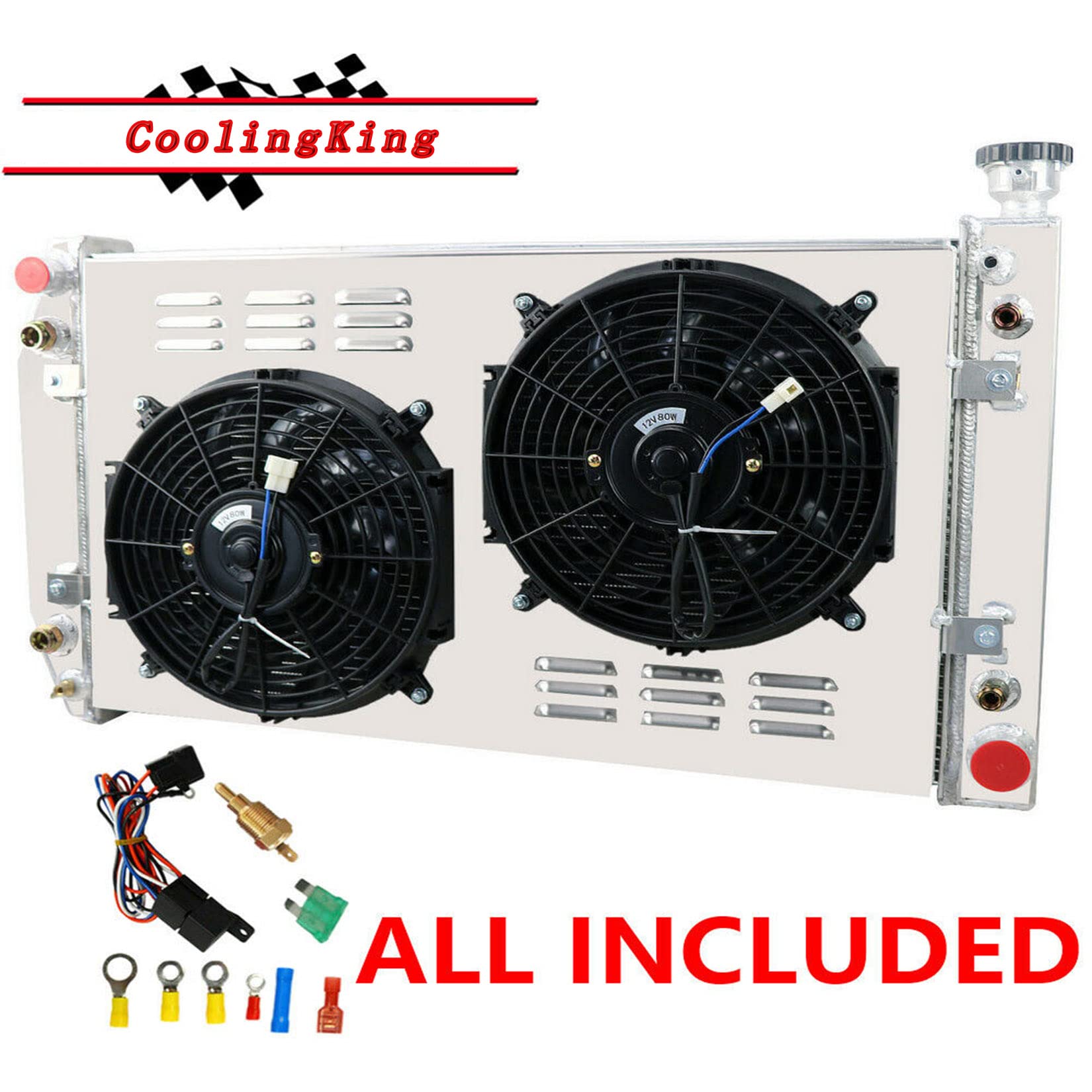

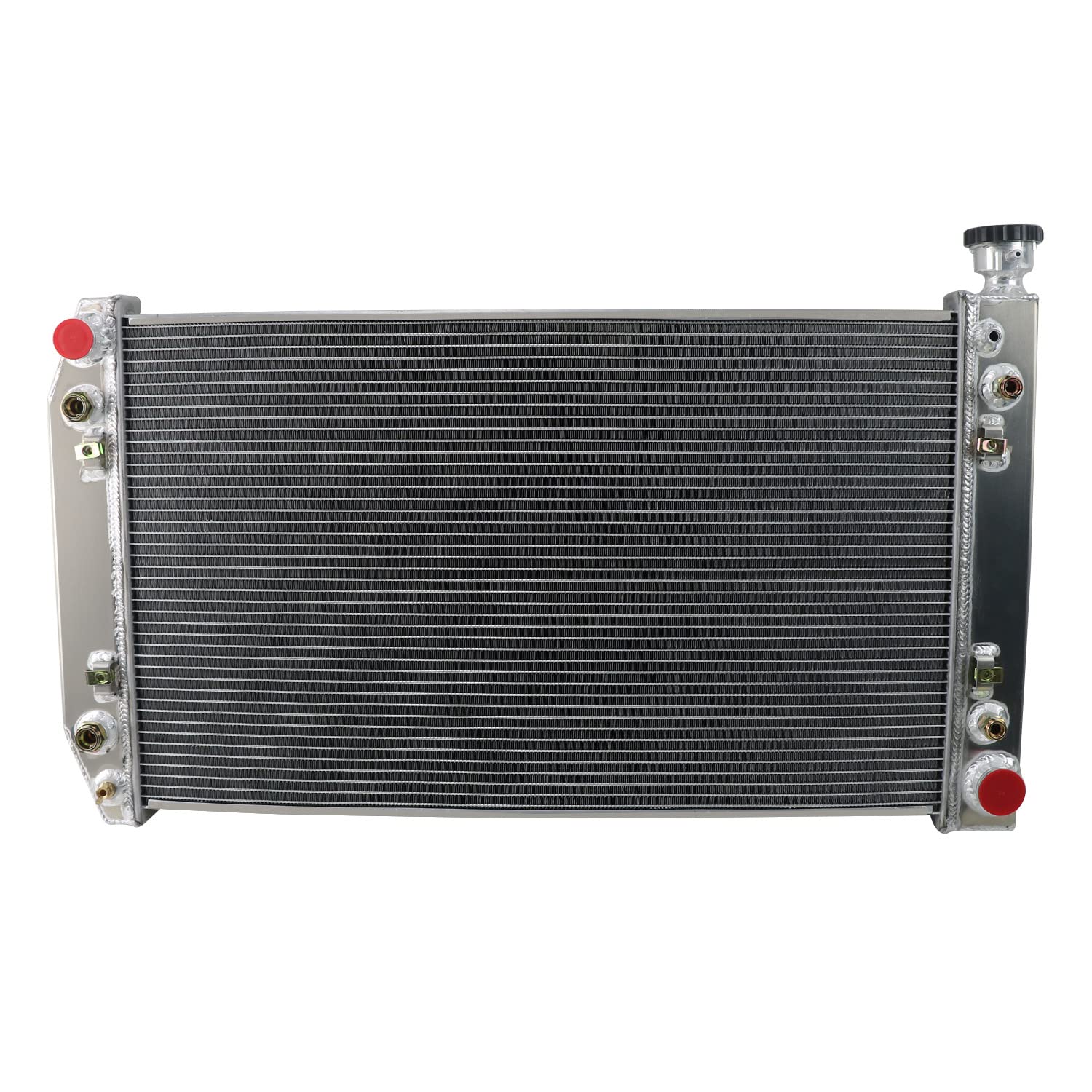

3 Row Core Aluminum Radiator with 12" Fan & Shroud, Thermostat Relay Kit for 1988-1997 Chevy C1500 C2500 K1500 GMC 5.0L 5.7L V8 - Heavy Duty Cooling Upgrade for Towing & Off-Road Use

Product Description

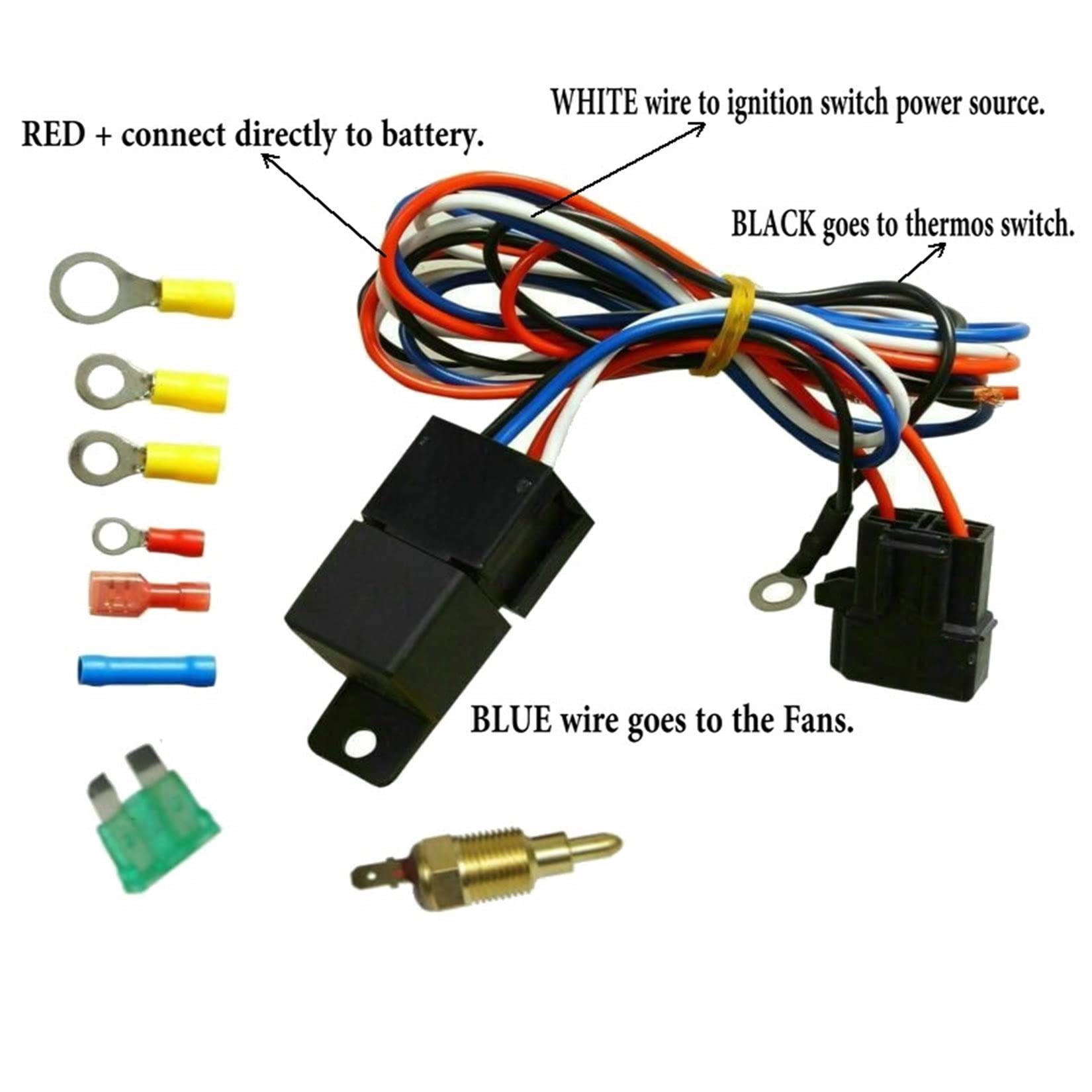

* [12 Months Warranty! Full refund or resend for fitting or quality problem] * Full Aluminum Radiator, 100% Welded By TIG. * Use of Nitrogen during welding in the furnace for maximum strength. * The internal trans cooler to provide optimal fluid temp for auto transmission. 12" Fan Spec: Maximum Fan CFM: 2300±200 FAN Diameter: 12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit: * Activates by grounding electric fans at preset temperature. * 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Radiator Arrived Damaged? All aluminum radiator is easy got damage during shipping, we offer full refund or replacement if your order arrived damaged. (clear pics of damaged radiator and packing box is required before we resend or refund) Radiator Leaking/Not Working after Installed?12 Months warranty.(clear pics of leaking details is required before we offer solution) Contact us if you have any question!(/br)Vital Important:1, PLS use AmazonConfirmedFit to confirm this radiator fit your vehicle.2, Vital Important: PLS verify sizes & inlet/outlet locations before you order.
