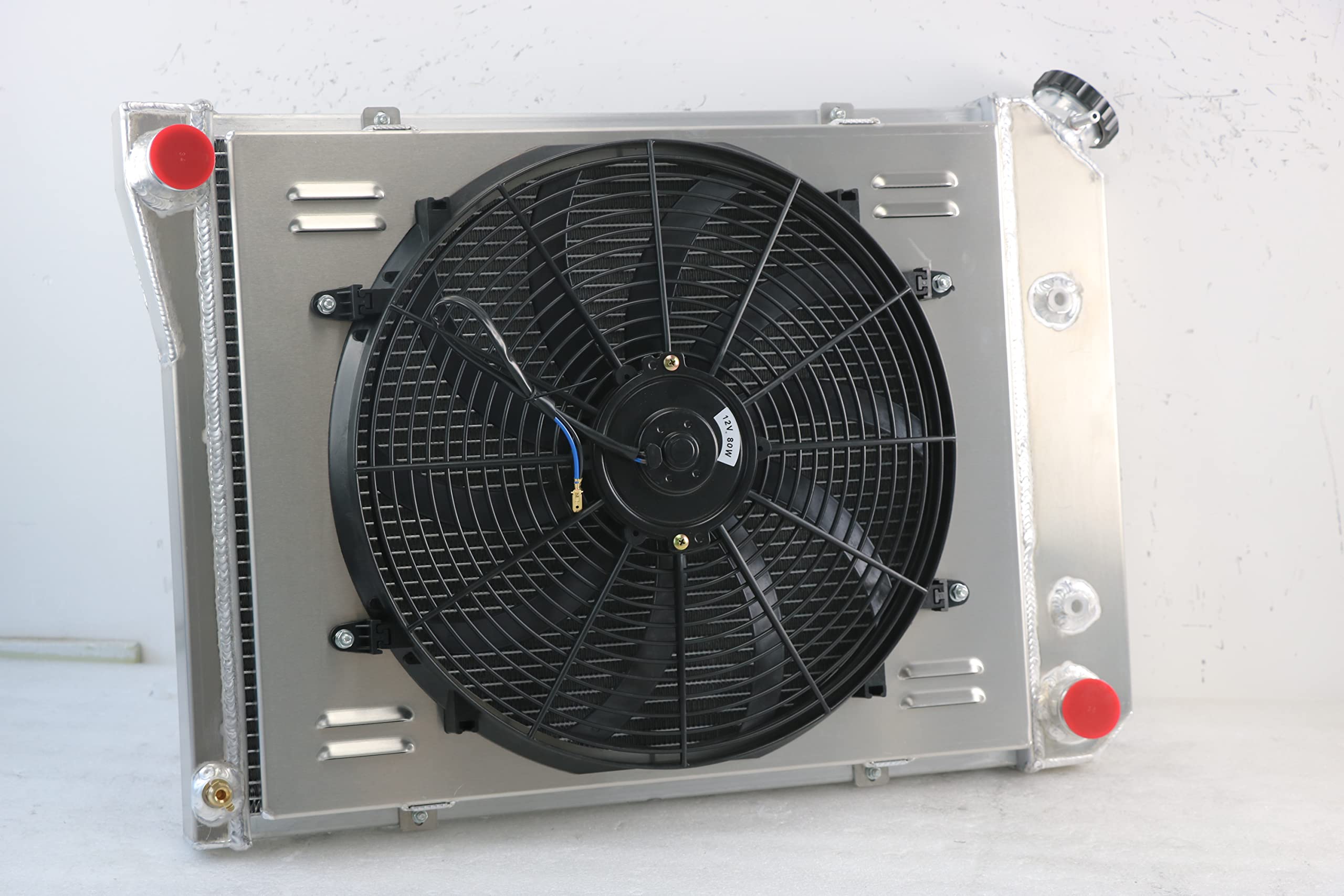

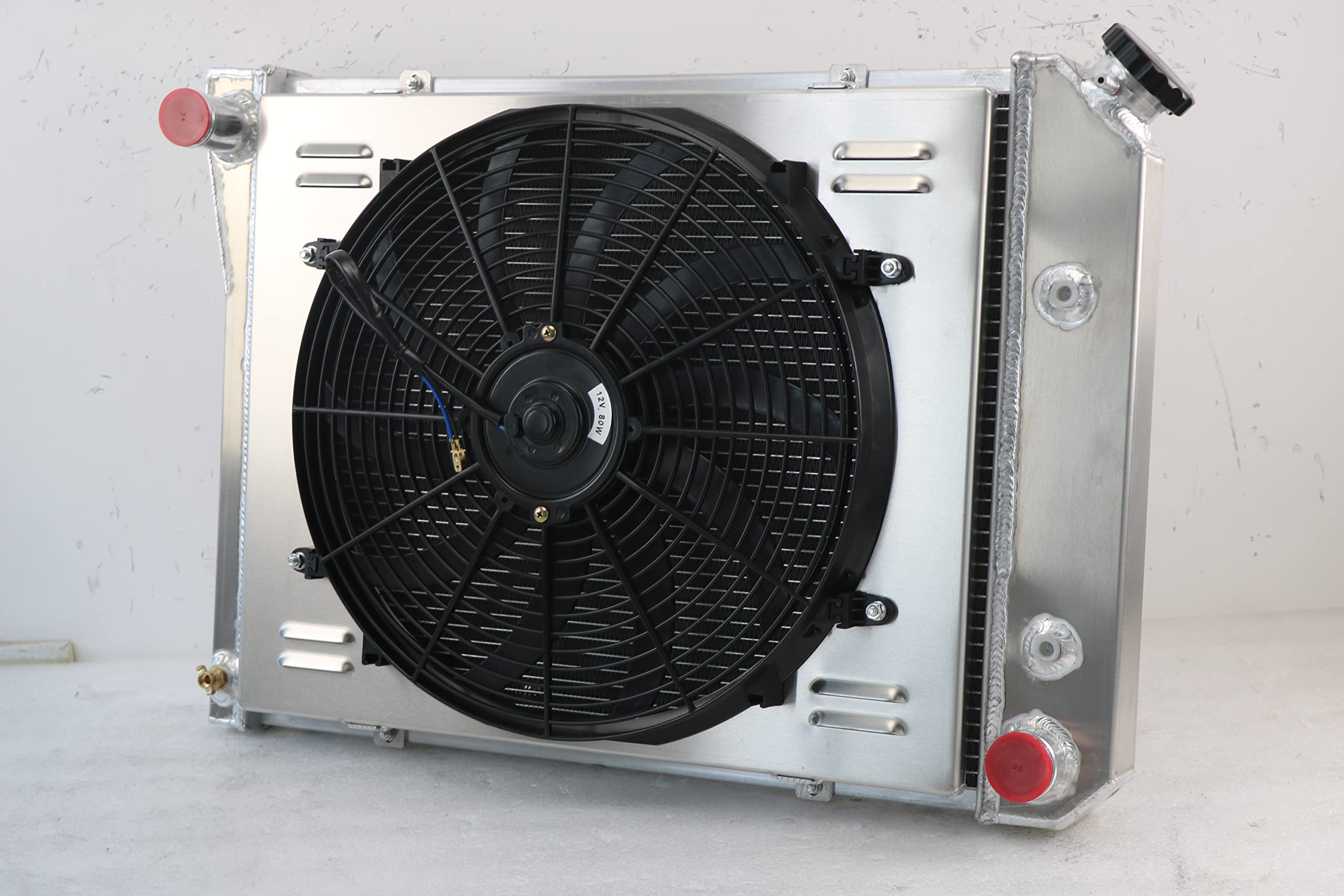

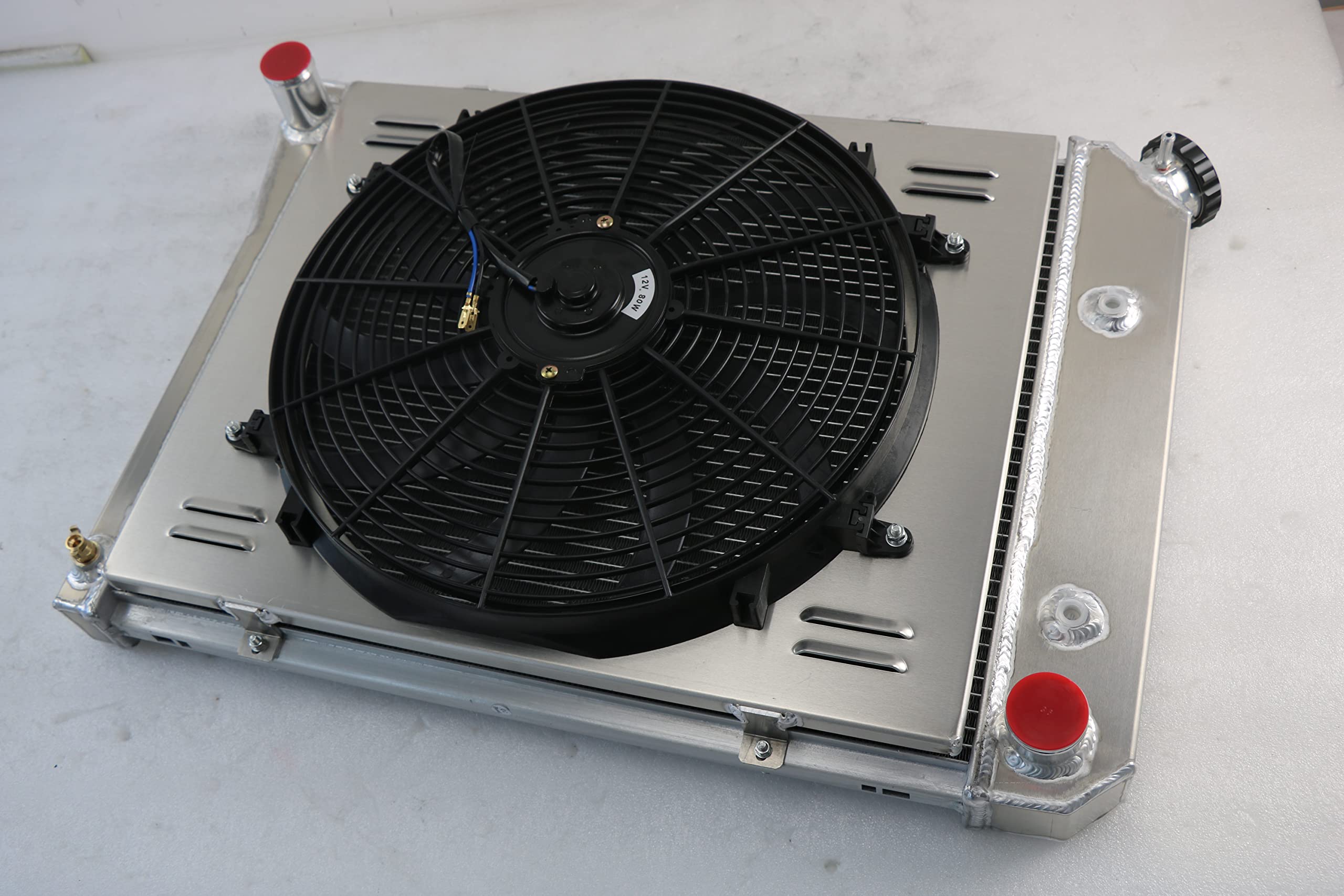

High-Performance Aluminum Radiator for 1974-1979 Chevy Nova, 1975-1984 El Camino, 1974-1981 Camaro & Impala Skylark - 3 Row Cooling System with 16" Fan Shroud & Relay Kit - Perfect for Classic Car Restoration & Hot Rod Upgrades

Product Description

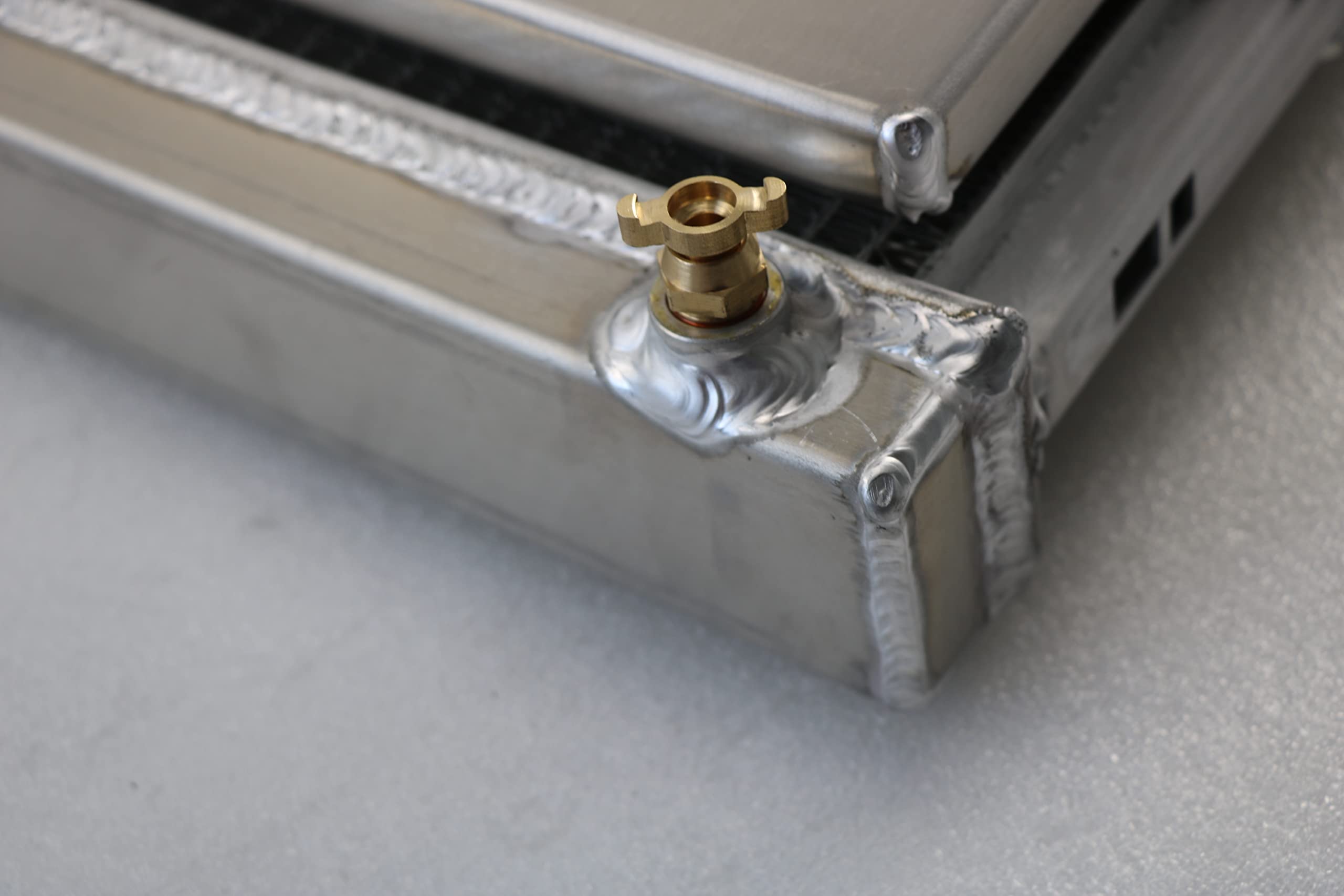

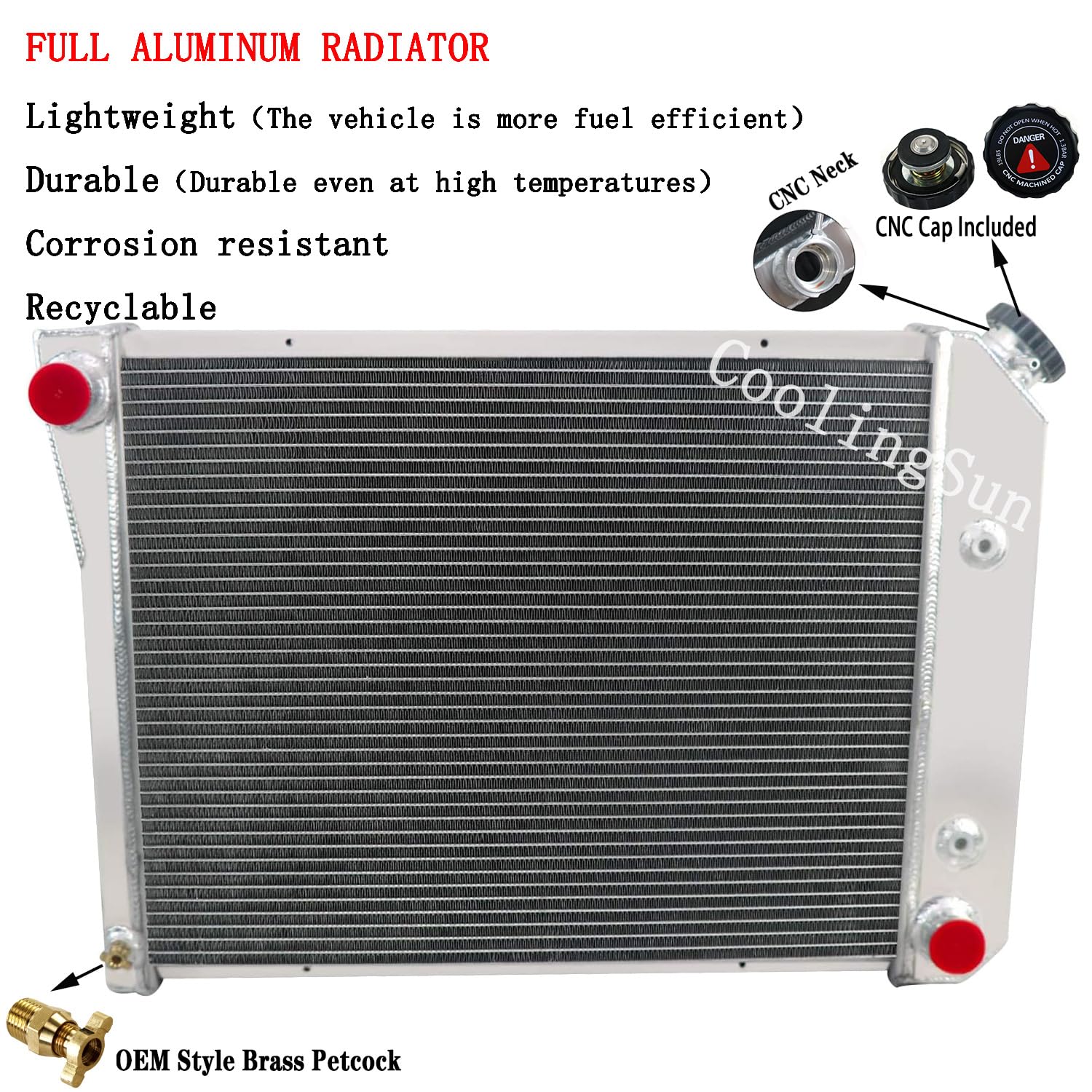

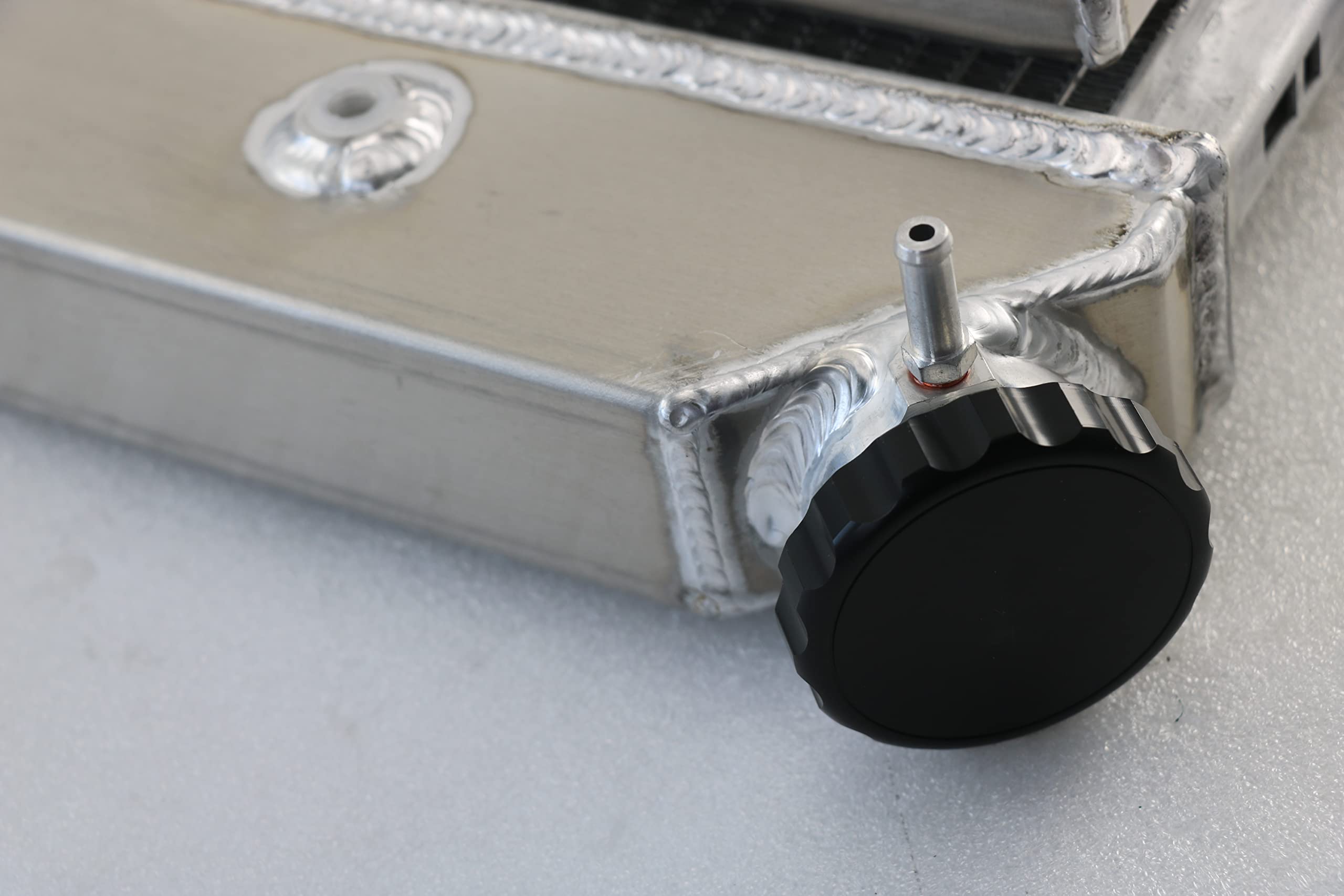

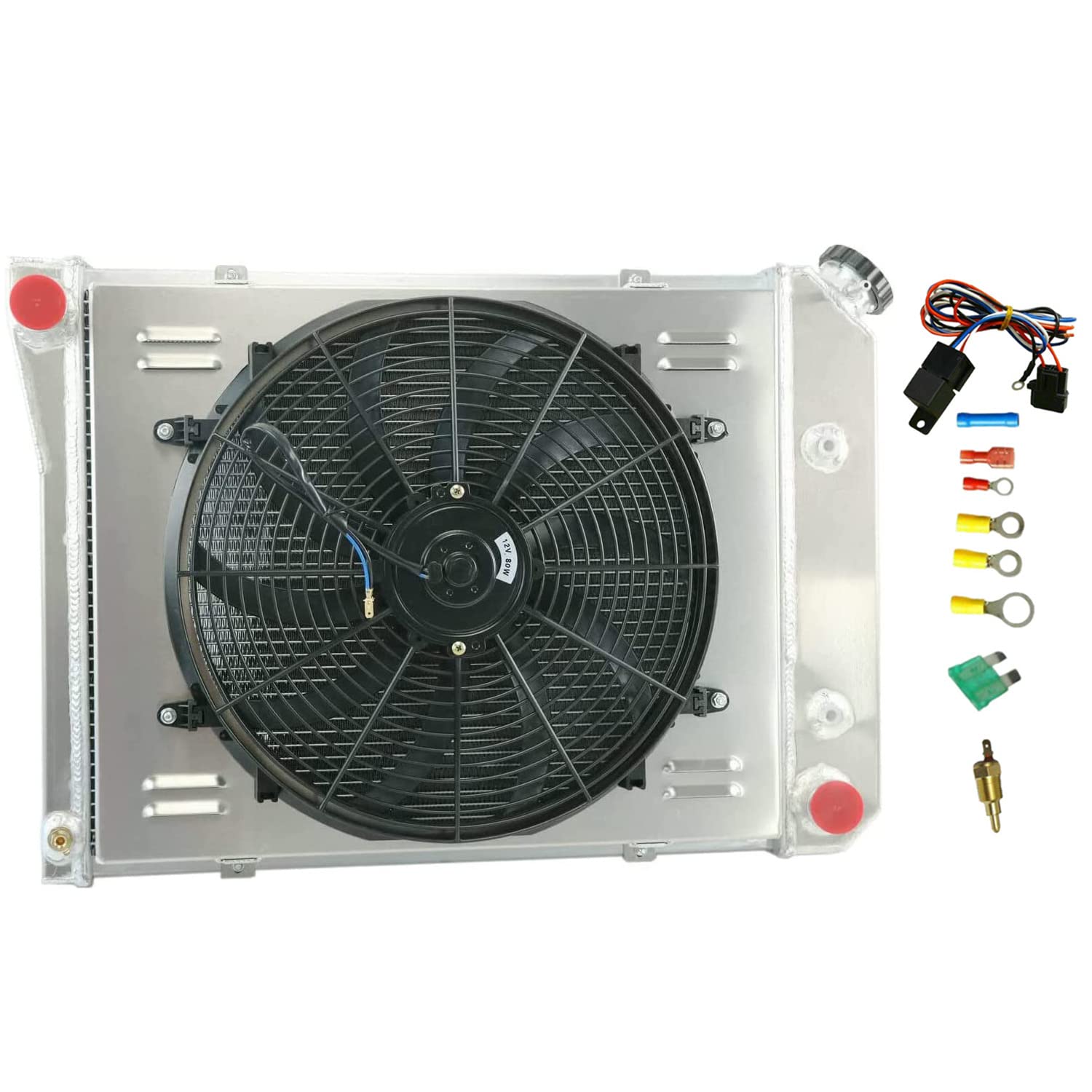

Compatible with: 73-75 Buick Apollo L6 GAS 77-81 Buick Century V6 GAS 80-84 Buick Electra V6 GAS 78-85 Buick LeSabre V6 GAS 80-87 Buick Regal V6 64-79 Buick Skylark 71-73 Chevy Bel Air L6 GAS 71-72 ChevyBiscayne/ Brookwood L6 GAS 74-81 Chevy Camaro 72-80 Chevy Caprice 68-73 Chevy Chevelle L6 V8 GAS 75-84 ChevyEl Camino 71-85 Chevy Impala 75-83 Chevy Malibu 72-87 Chevy Monte Carlo 74-79 Chevy Nova L6 V8 GAS 73-87 Olds, 68-87 Pontiac Radiator Details: Type: 3 Core Core Thickness: 1.73" Upgraded Cap: CNC Machined Filler Neck and Cap Upgraded Drain Plug: OEM Style Brass Petcock Drain FAN SPEC: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 16"Fan (Includes mounting kits) 1 X Thermostat Relay KitMotoCooling Radiador: 1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently. Make your engine bay perfect! 2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material. 3. Additional with thermostat
