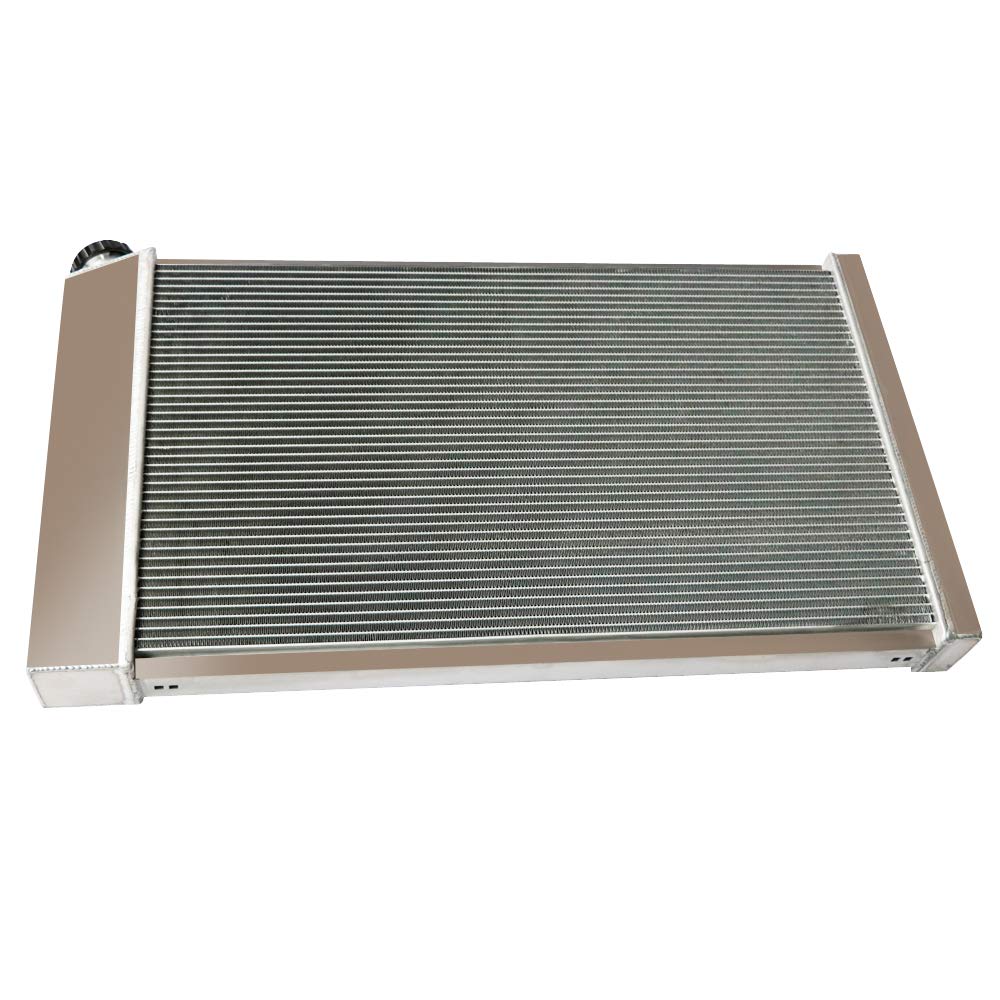

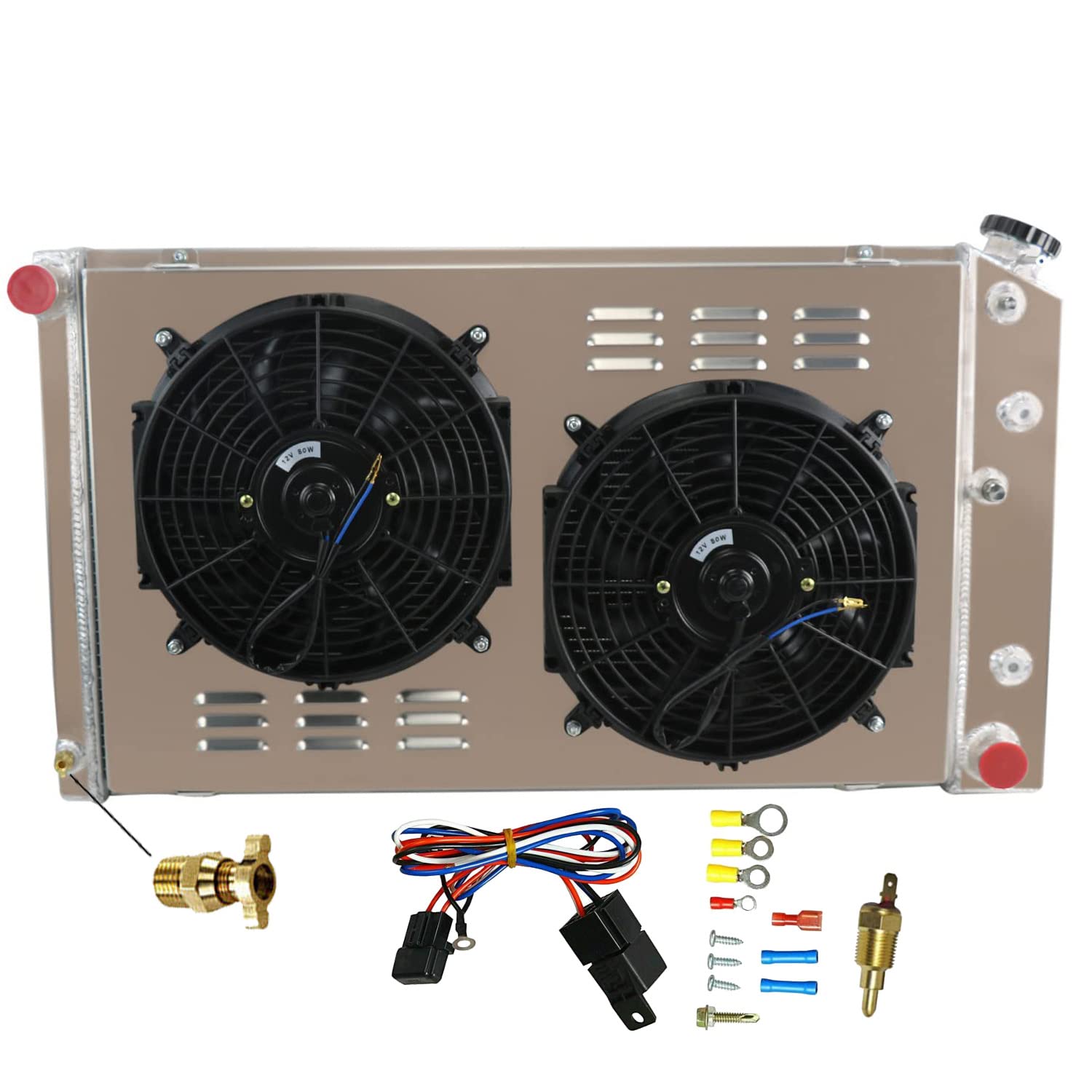

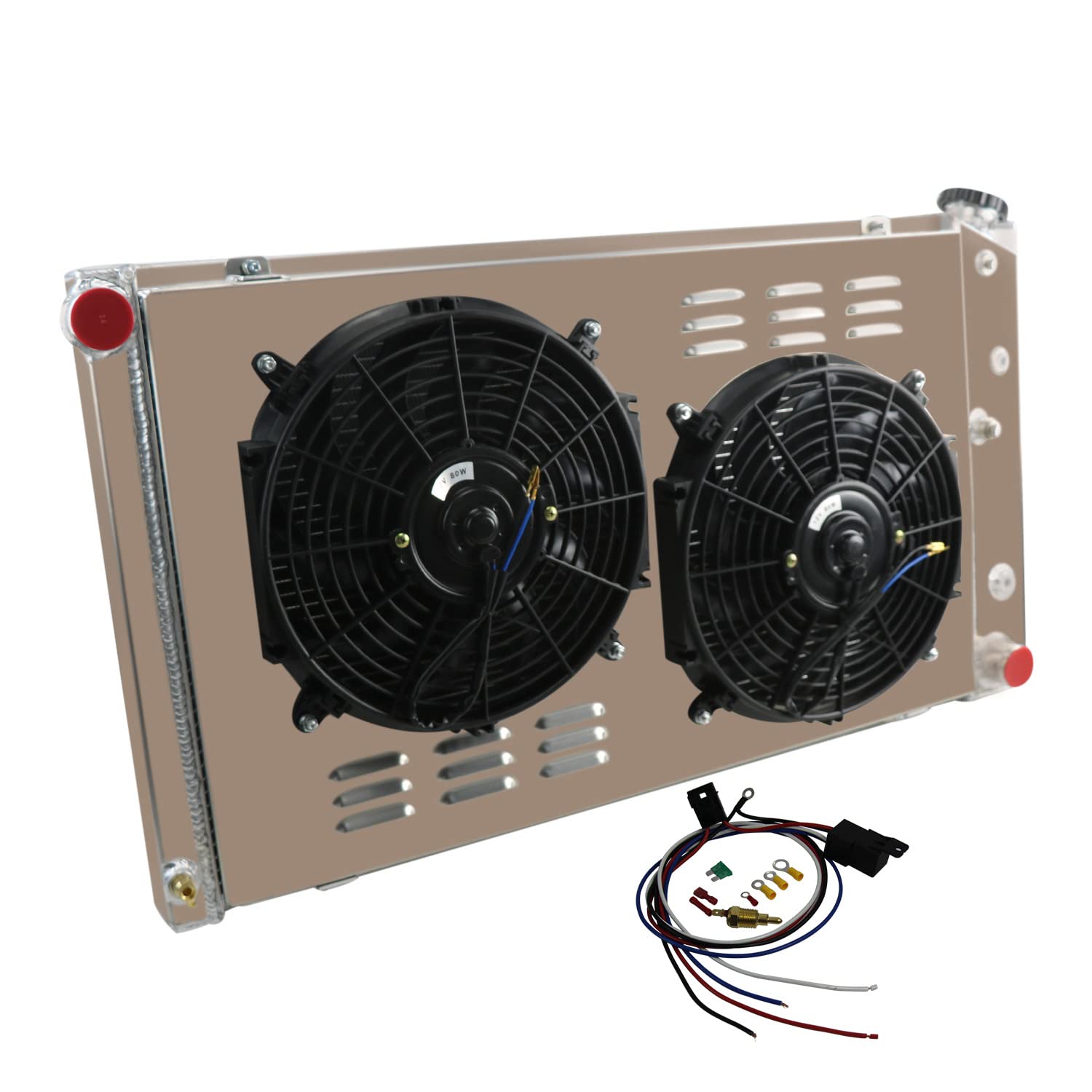

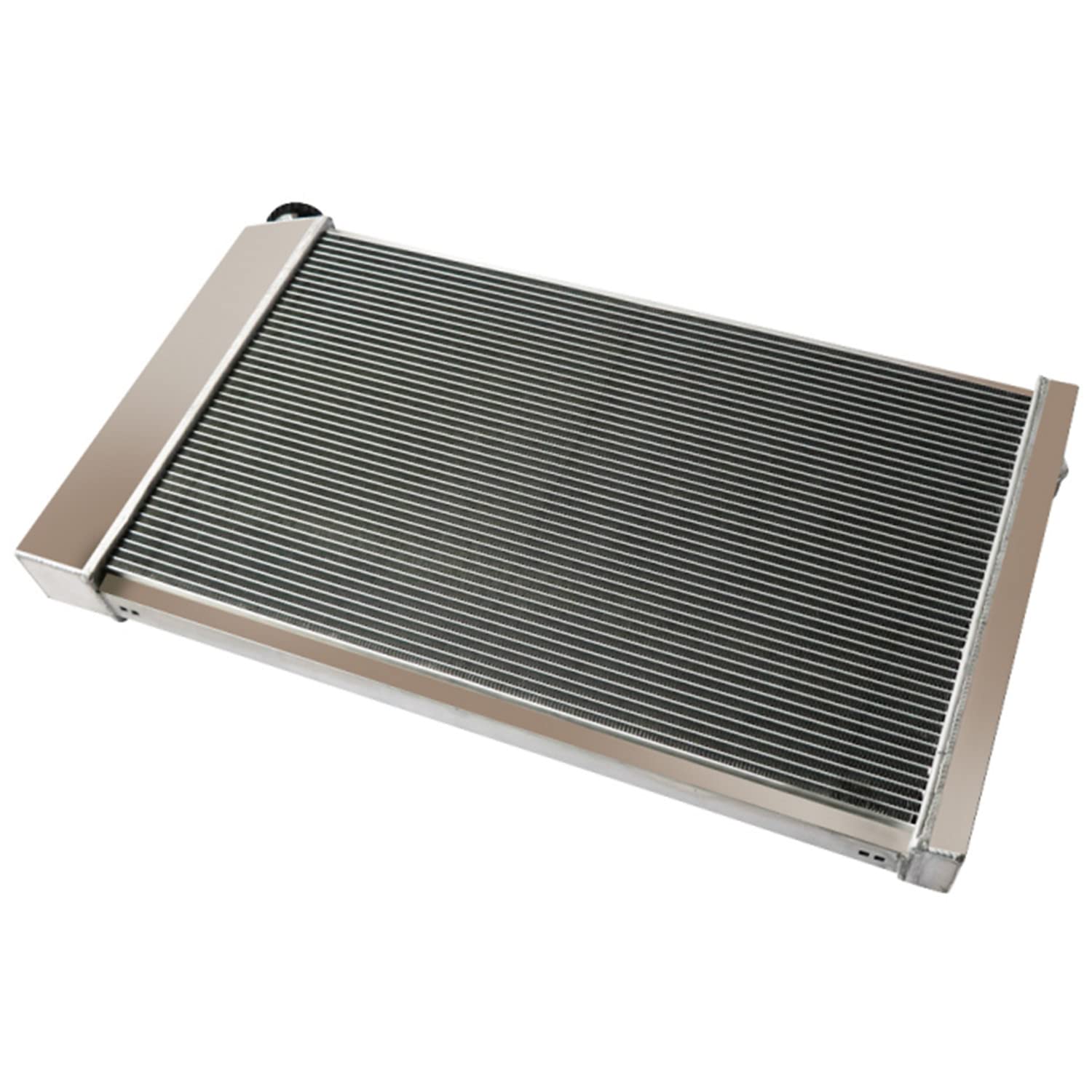

High Performance 3 Row Aluminum Radiator for 1971-1990 Chevy Chevelle Impala C/K/G Series (C10 C20 C30 K10 K20 K30 G10 G20 G30) & GMC/Buick Pontiac - Includes Fan Shroud & Relay - Perfect for Pickup Trucks and Surburban SUVs - Heavy Duty Cooling Solution for Hot Weather & Towing

Product Description

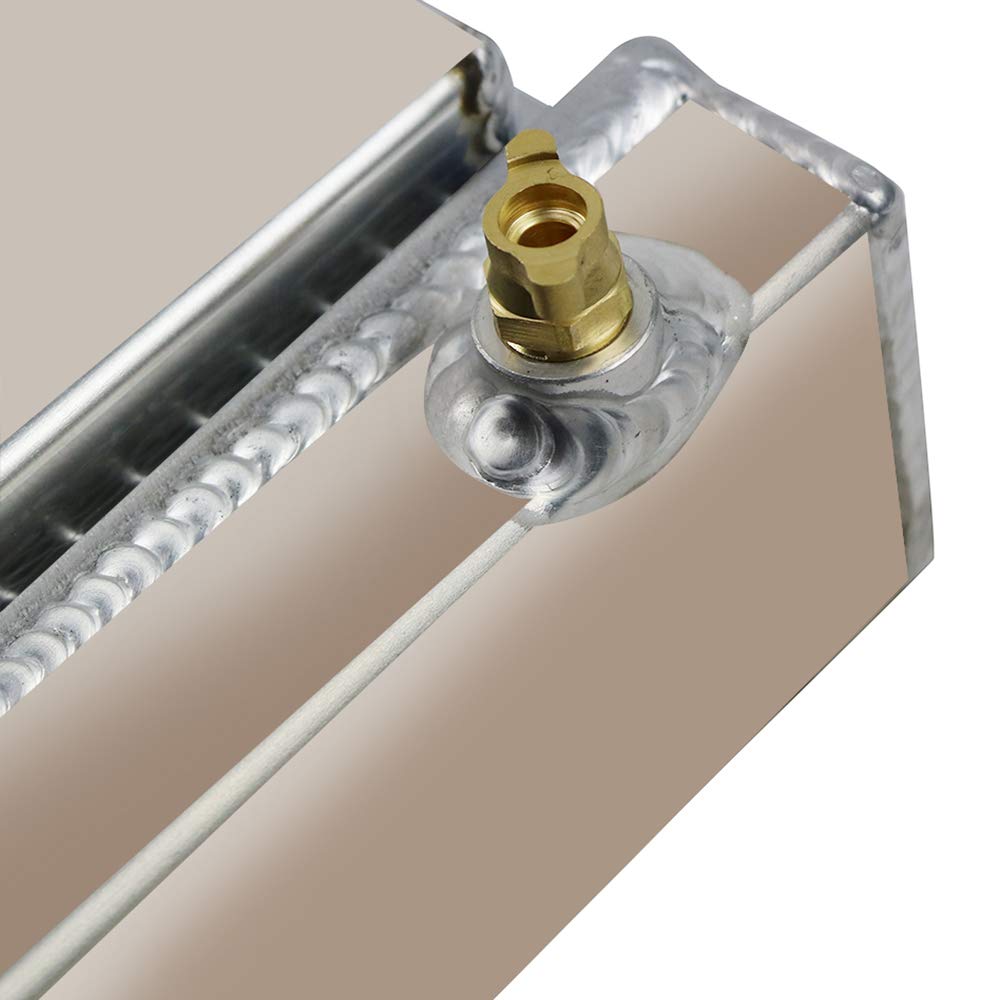

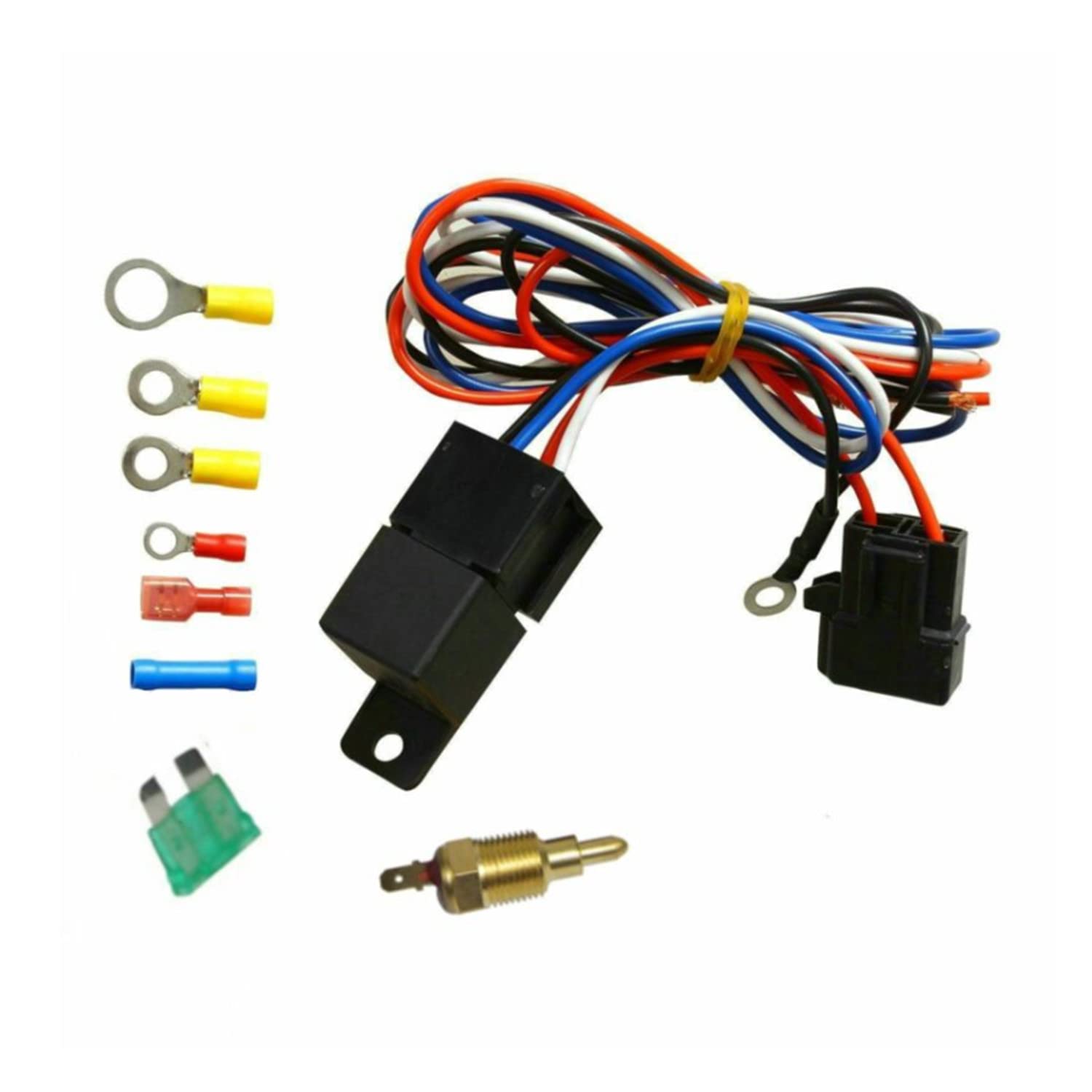

This Radiator Compatible With For Chevy Impala Blazer GMC Jimmy 1973-1980 For Chevy Monte Carlo 1970-77/Chevy Impala 1971-1979 For Chevy K5 K10 Blazer 75-80/Cutlass Supreme 74-77 For Chevy Caprice 1971-1990/Chevelle/GM 28" 66-80 For Cadillac Fleetwood/Brougham 1965-1974 For Chevy Chevelle 1968-1973/Chevy El Camino 1968-1977 For Oldsmobile Delta 1968-1988/Pontiac 1968-1970 For Cadillac Olds Cars / Buick Skylark 67-72 For Olds Cutlass and Cutlass Supreme 66-77 Radiator Specification High Performance Racing Spec. 3-Row Racing Design Stronger & Higher Capacity for Coolant than Stock Units Light Weight Direct Bolt-On OEM Fitment or Replacement Surface finish: Aircraft 5057 grade aluminum tank & core Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Transmission Oil Cooler: Include Mounting Type: Saddle Transmission: Automatic and Manual. Fans Details Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 Blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12" Fans (Includes mounting kits) Part Number Manufacturer Part Number: CC161,MC161,DPI161,161,CU161,AE161,SBR161 Interchange Part Number: GM3010319,3027896,3028147,3029602,3030094,3030095 OE/OEM Part Number: CC161,MC161,DPI161,161,CU161,RAD161 Superseded Part Number: 3005745,52453863,3005749,3005823 Other Part Number: 3026032, 3027015, 3027144, 3027147, 3027448, 3027544, 3027705
