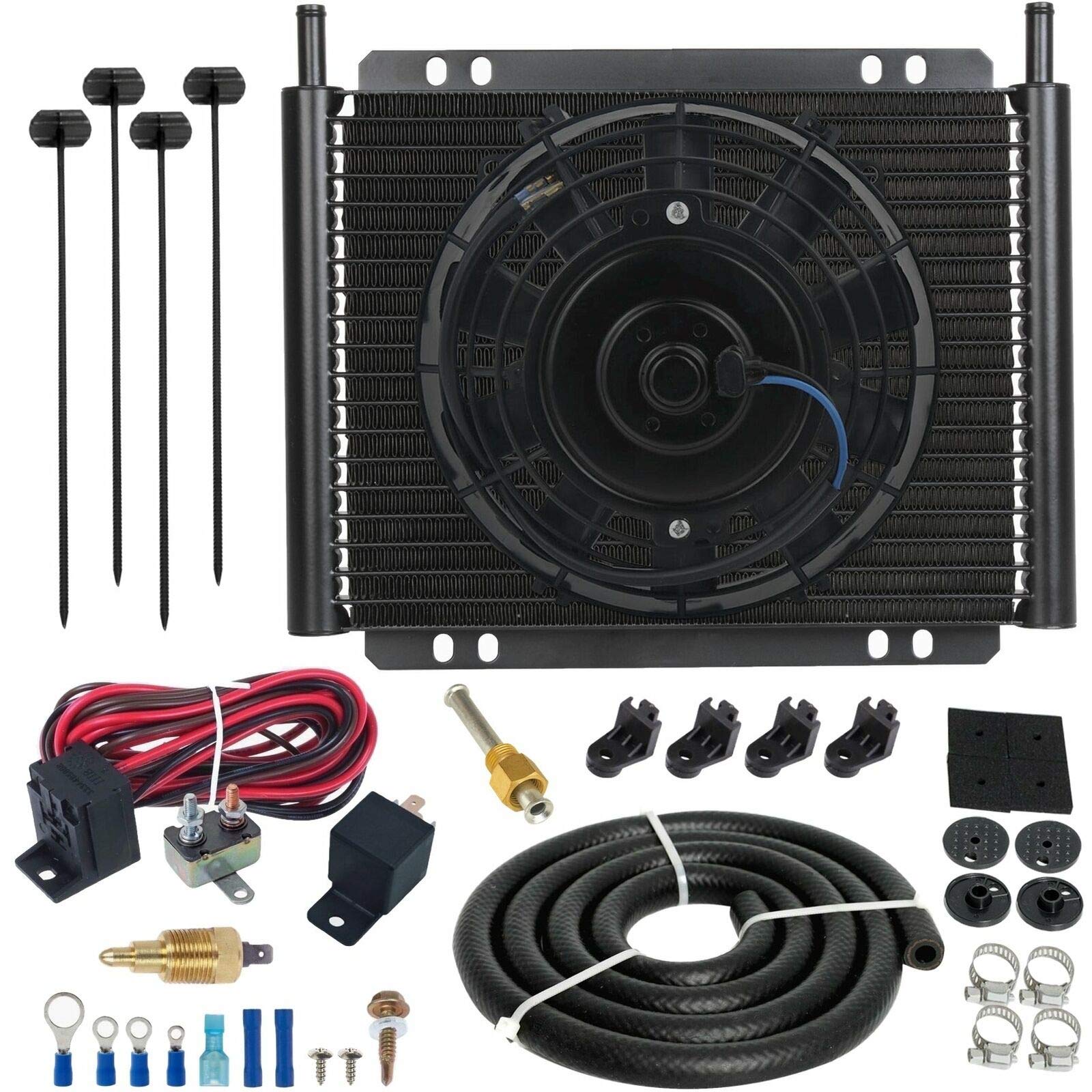

23 Row Black Aluminum Engine Oil Cooler with 12V Electric Fan - Universal Fit for Cars & Trucks - 3/8" NPT Ports - Includes Thermo Switch & Complete Wiring Kit - Ideal for Towing, Performance & High-Temperature Protection

Product Description

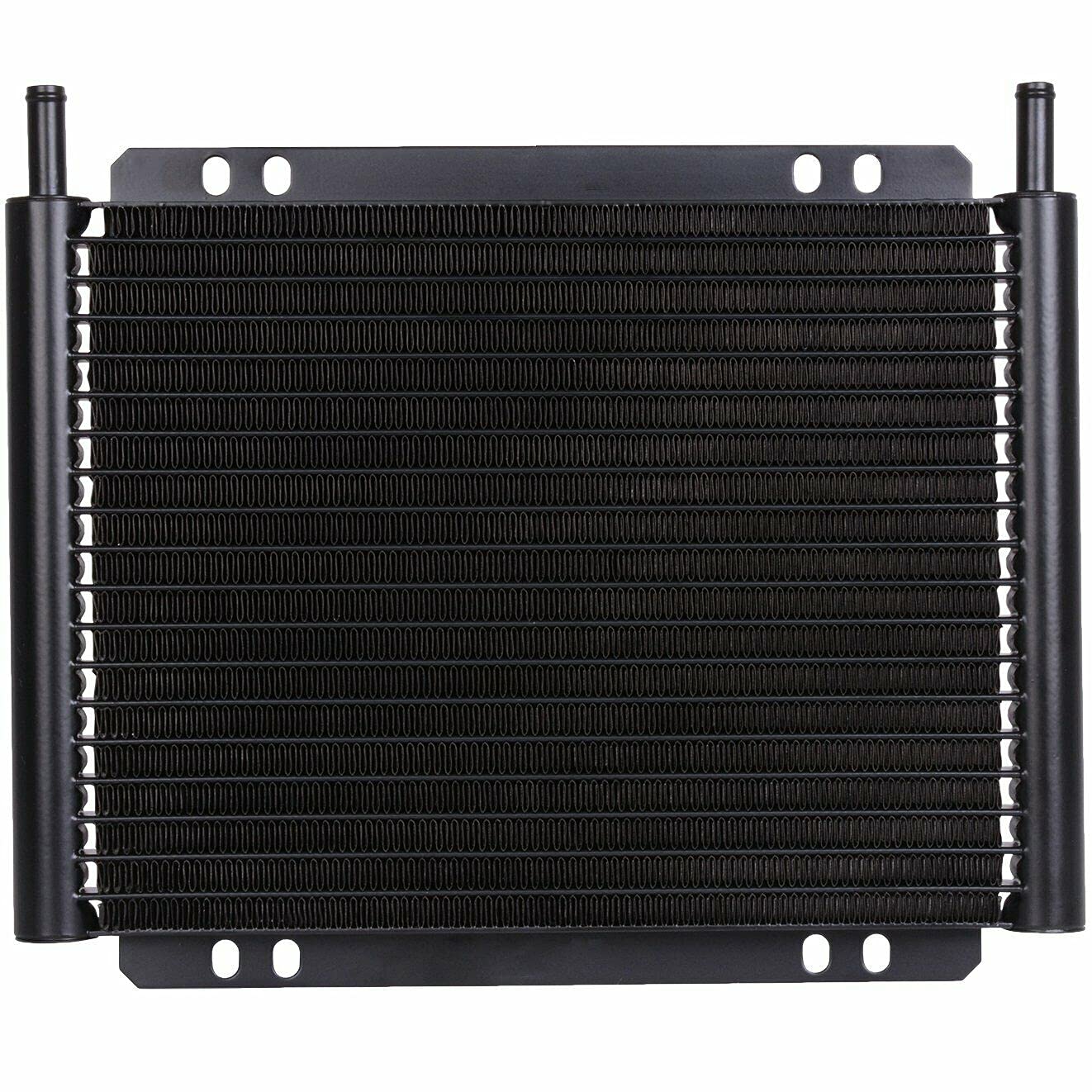

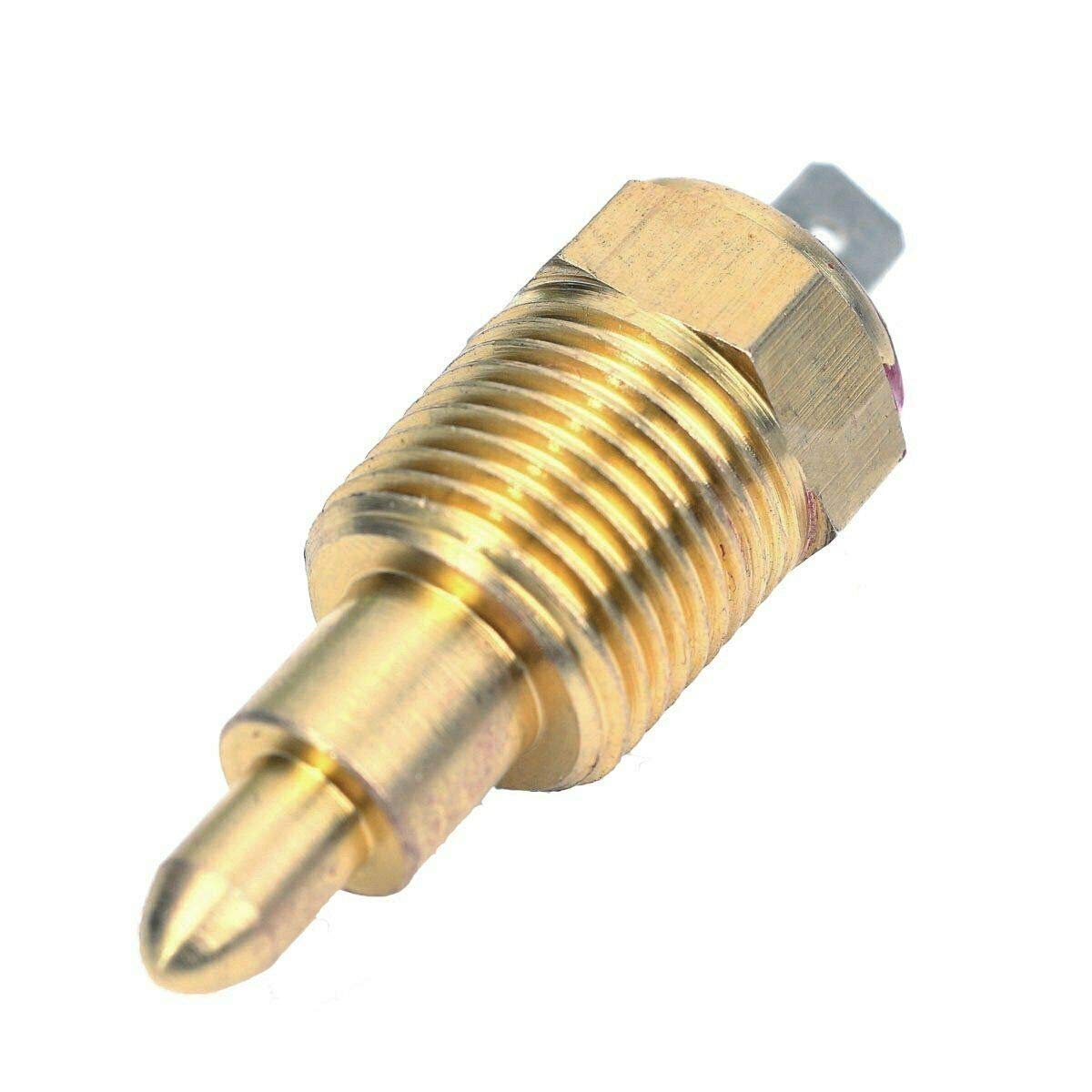

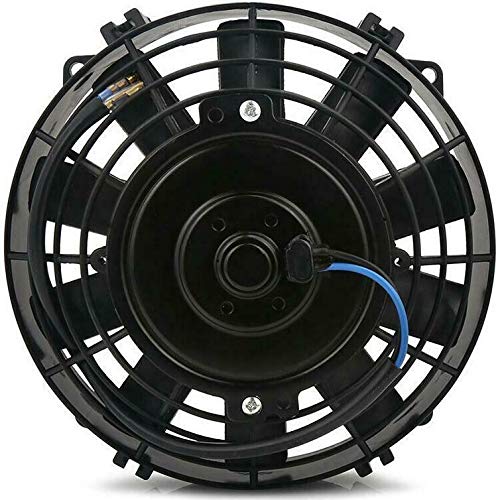

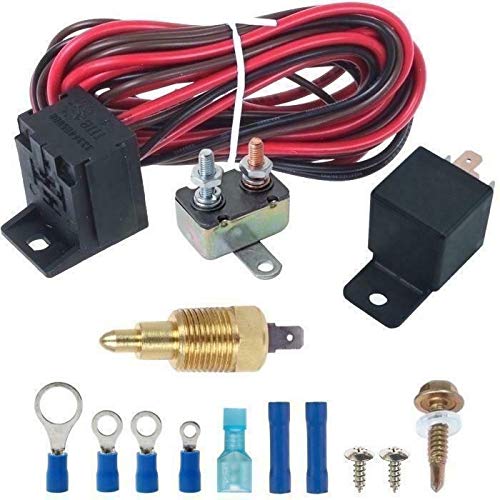

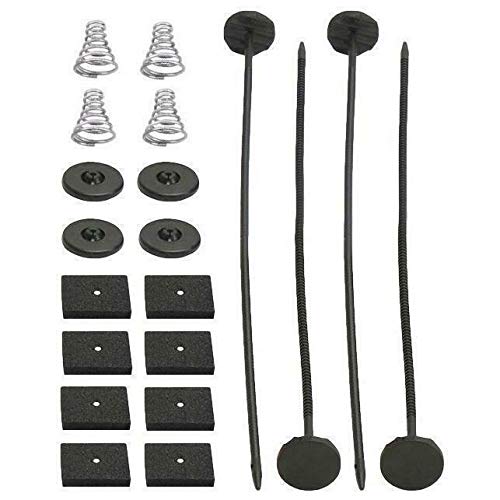

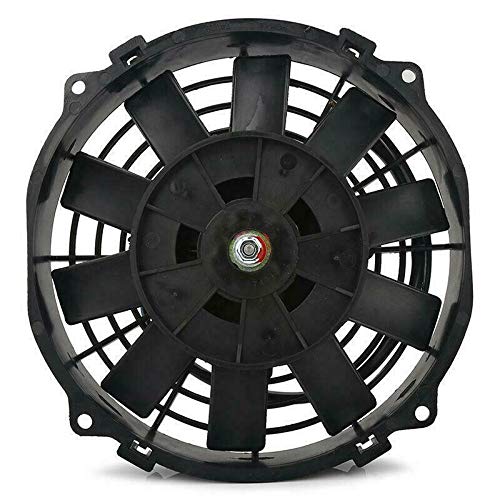

Fluid Cooler:Universal 23 row plate and fin aluminum heavy duty transmission cooler kit.Extend transmission life by helping prevent heat-related transmission failures.Perfect for medium to full-size cars, trucks and SUVs with occasional towing.7/8" wide plates, 3/4" embossed turbulators which maximizes heat transfer.Dimensions: 0.75" x 9.5" x 11" with 3/8" hose barb inlets, GVW 24000 lbs.Electric Fan:Universal 12 volt high performance 8" inch small electric cooling fan.Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.Configured as an air puller to be on the inside and pull air through.Includes mounting bracket feet and complete install fin tie strap kit.Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.Wiring Kit:Universal automotive 12 volt electric fan switch relay wire harness.Safely powers one 12 volt cooling fan or accessory without splicing.Maximum continuous draw with 40 amp circuit breaker protection.Simple 4 pin relay 40A and 6 feet of 14AWG wiring allows flexibility.Installation wiring diagram and all pictured components included.Thermostat:Universal single pin electric cooling fan grounding thermostat switch.Standard 3/8" NPT solid brass thread-in temperature probe sensor.Preset to power fan at 180'F turn-on and 165'F turn-off temperature.Threads into block port, radiator, engine cooler or tapped hose line.Measures temp of any liquid including oil, water and coolant fluid.
