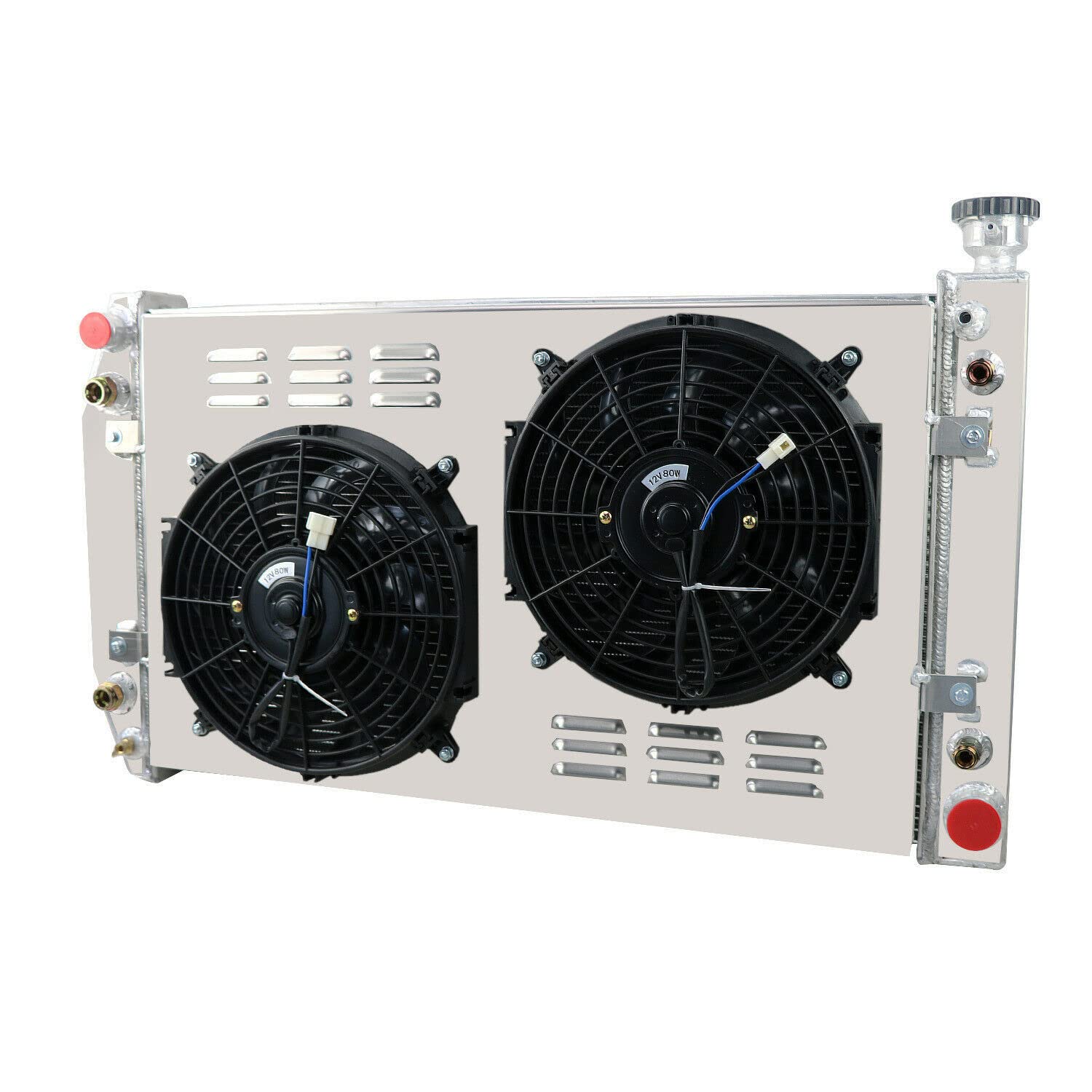

CU622 Aluminum Radiator for 1988-1999 Chevy GMC C/K 1500 2500 3500 V6 V8 GAS CNG DIESEL - 3 Row Core Radiator with Shroud & Fan Relay Kit - Heavy Duty Cooling Solution for Trucks, Towing & Off-Road Use
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:16 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:11063563
Product Description

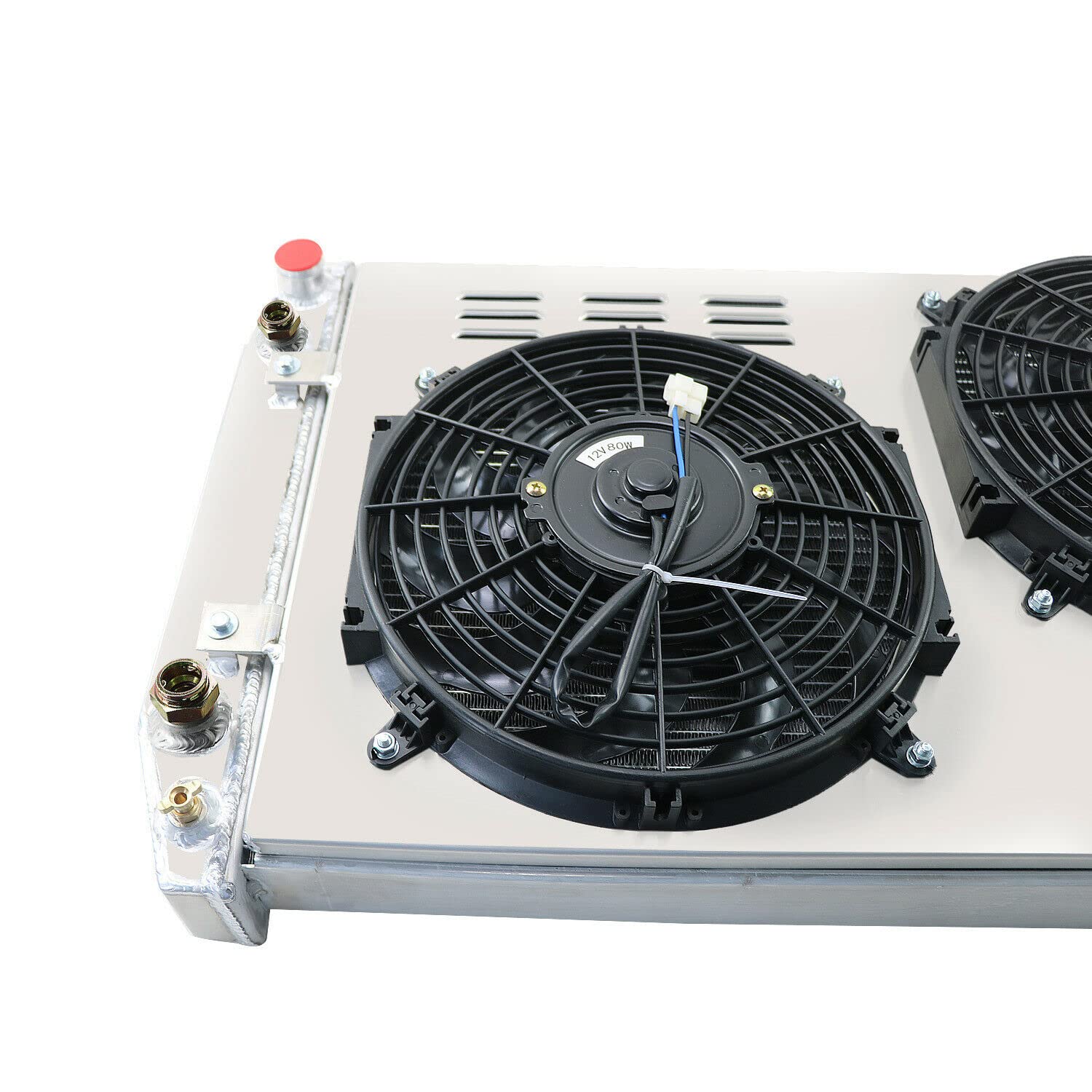

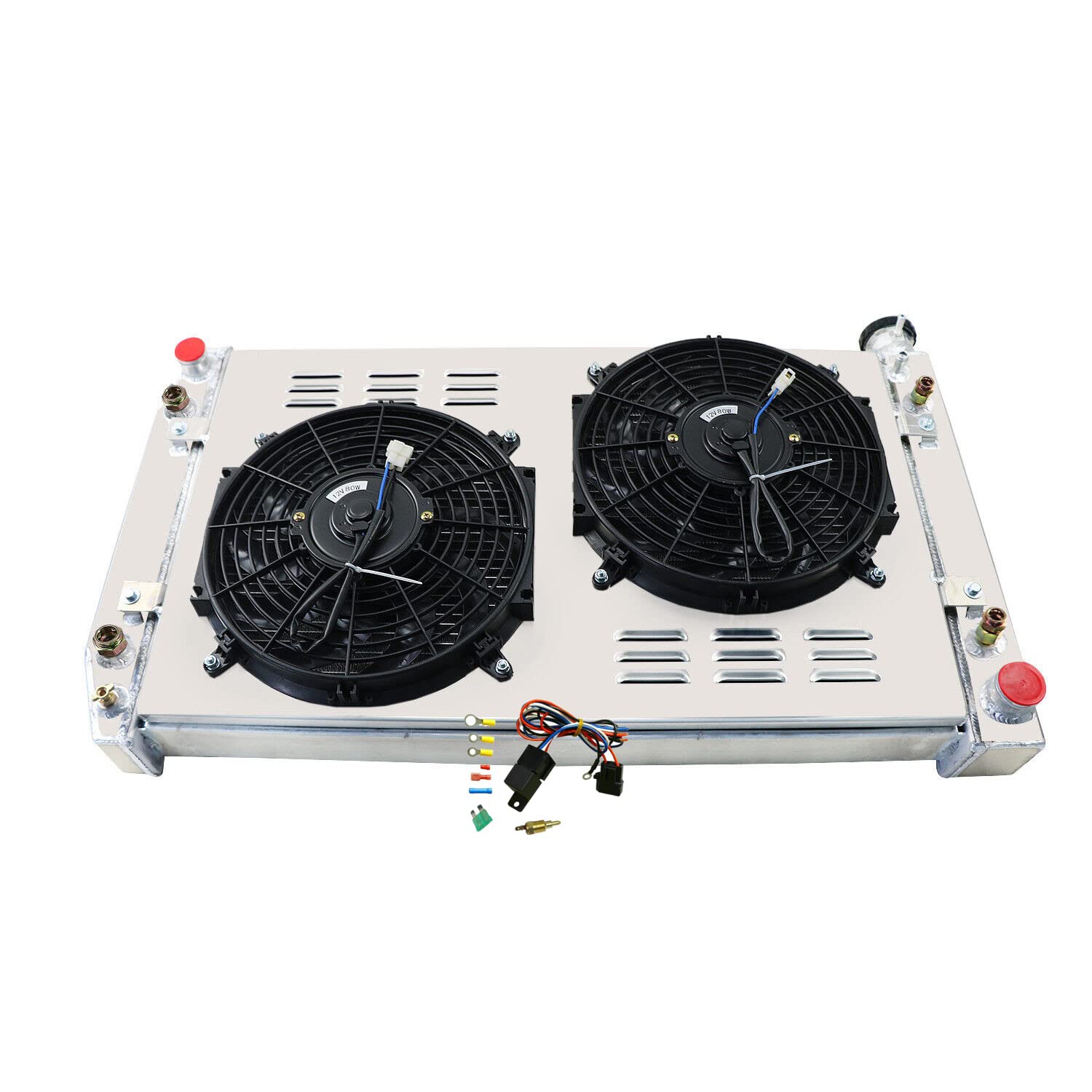

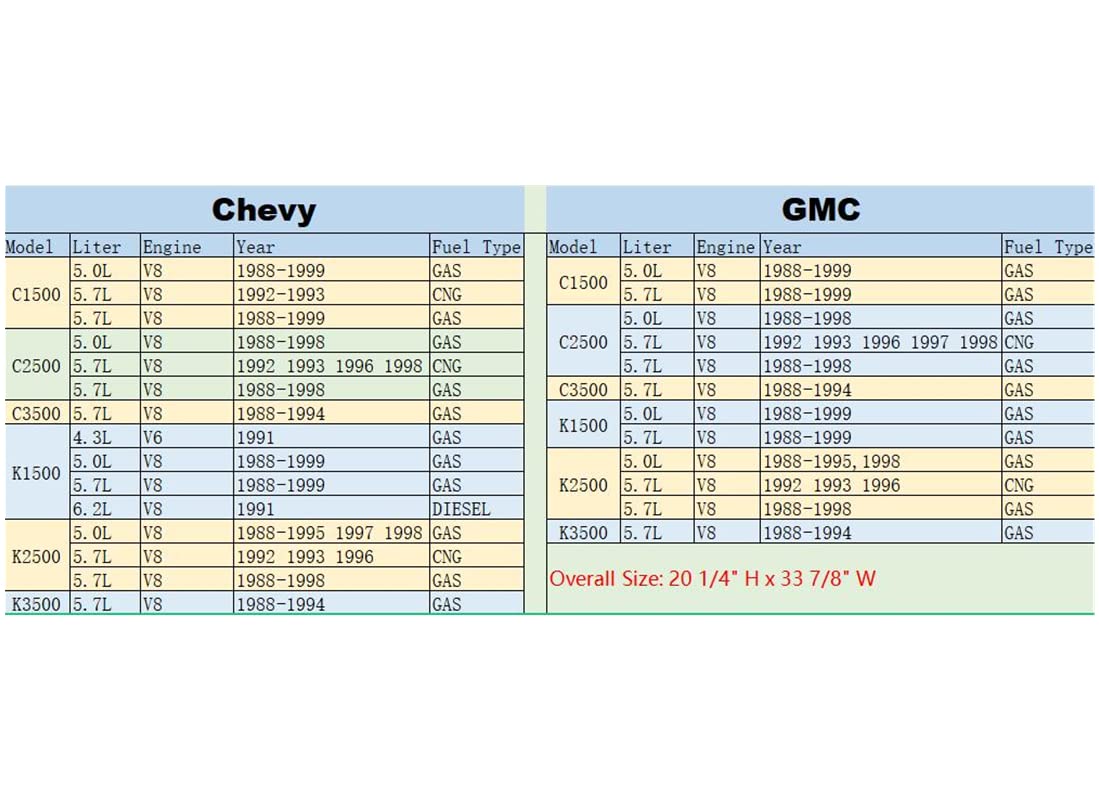

Fitment:1996-1997 Chevy P30 / GMC P3500 4.3L V61992-1995 Chevy/GMC Suburban 5.7L V81988-1995 Chevy/GMC C/K Pick Up 5.0 / 5.7L V81994-1995 Chevy/GMC C/K Pick Up 4.3L V61989-1991 Chevy R/V Series 5.7L V81994 Chevy Blazer - Full Size 5.7L V8OE/OEM Part Number: 622 CU622 8010622 A622 TYC 622 DPI 622 622,1605-370188,1804,20807,2383,43-2057,432057,731889,8010622CR622, RA1217, RA1217-11B1, REA41622A, SPTCU622Pakage Include:1 X 3-Row Aluminum Radiator (Includes Radiator Cap)1 X Aluminum Shroud2 X 12" Fans (Includes mounting kits)1 X Thermostat Relay KitFAN SPEC:Maximum Fan CFM: 2300±200Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5"Number of Blades: 10 blades (Plastic)Amp Draw: 12.70 ampsMaximum Fan RPM: 2,250 rpmRelay Kit Instructions:RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Thermostat Relay Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.About Us:If you have any questions, please feel free to contact us, we will solve it for you
Product Features

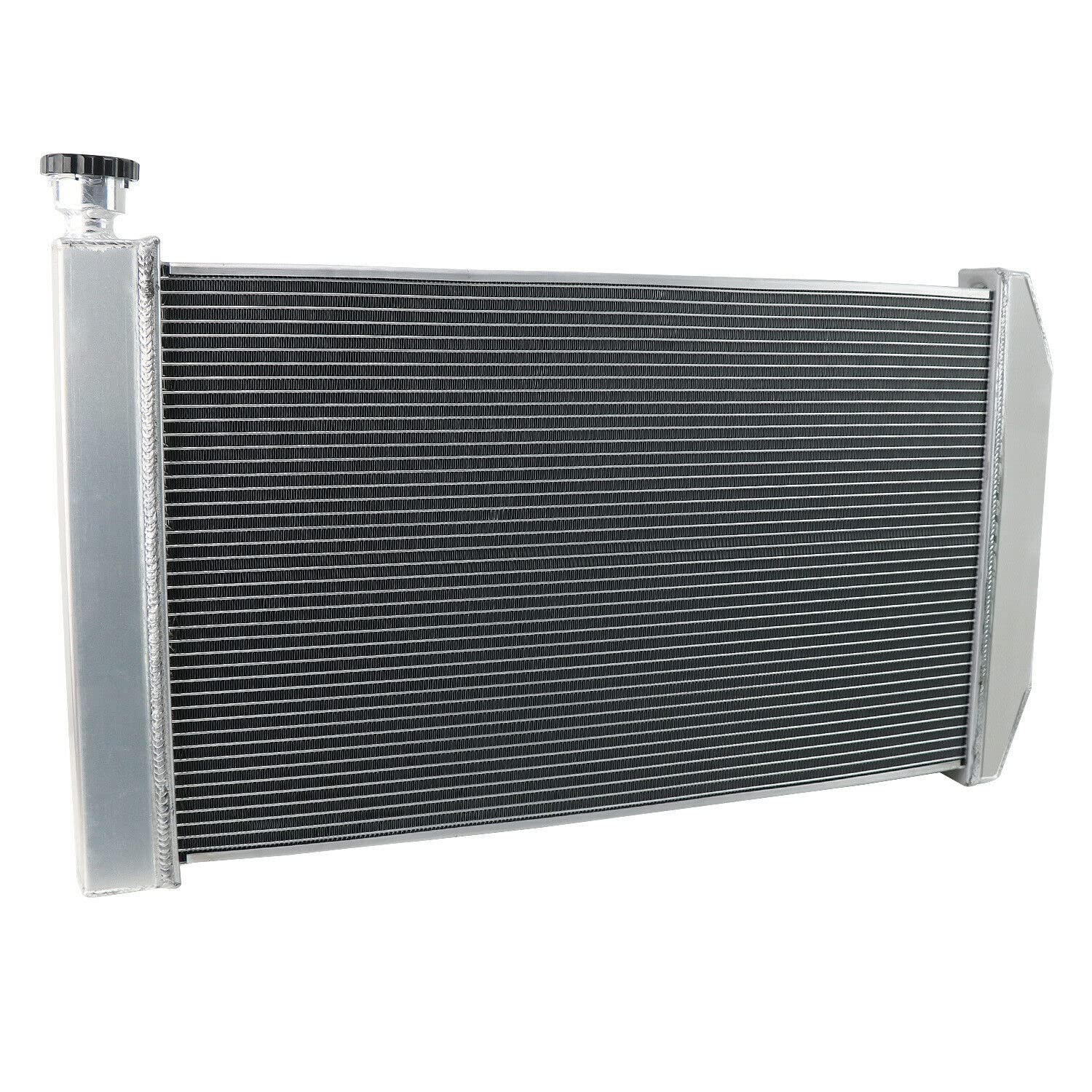

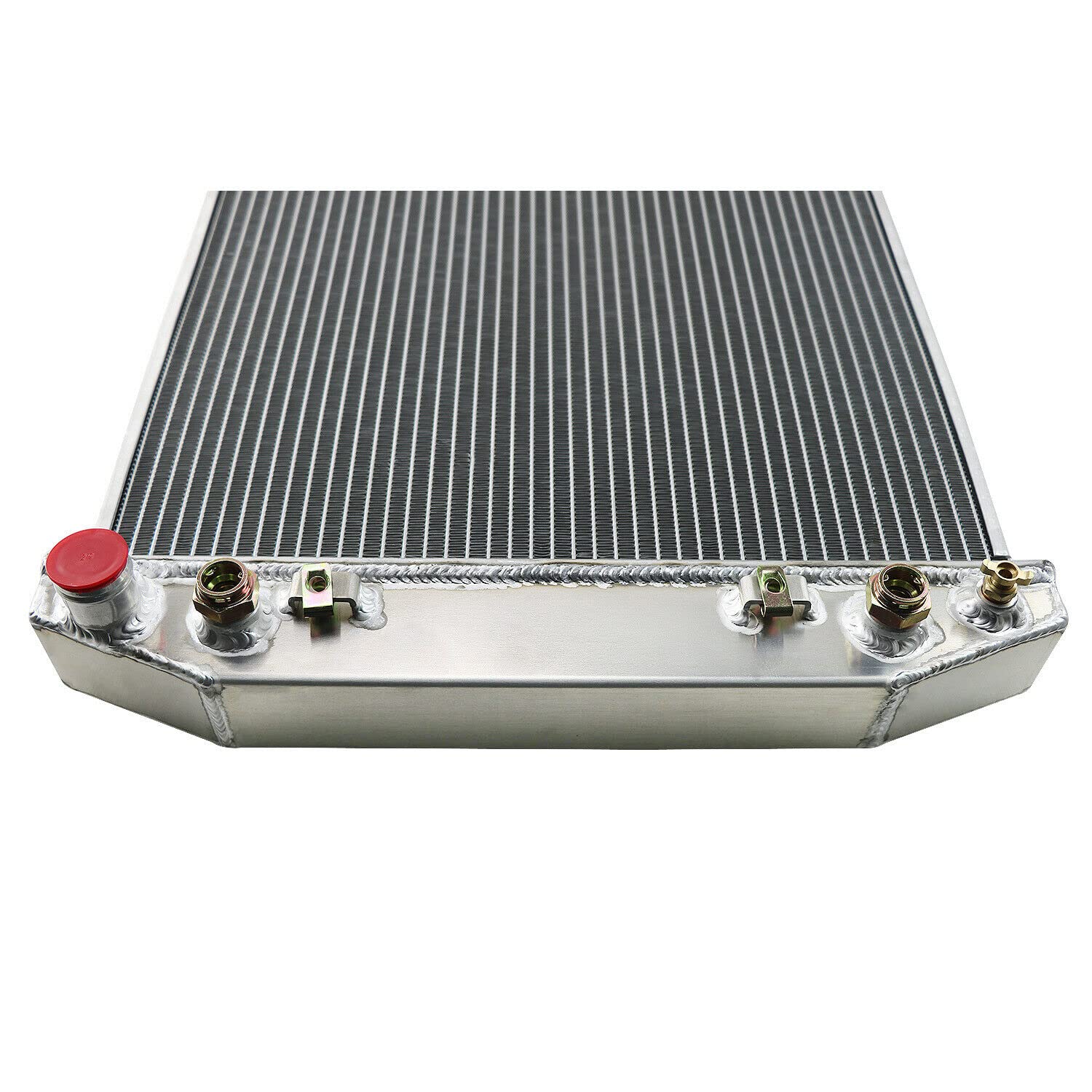

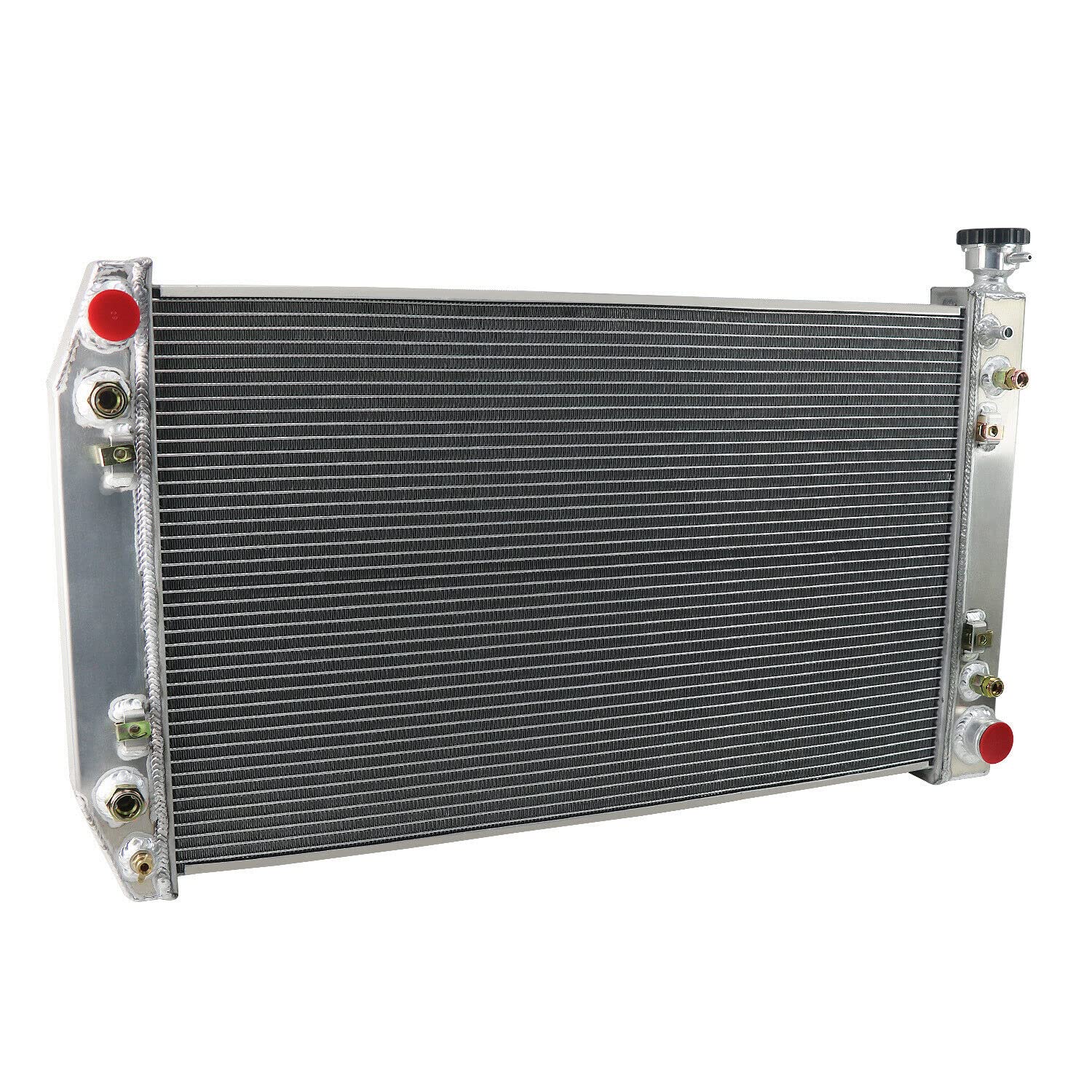

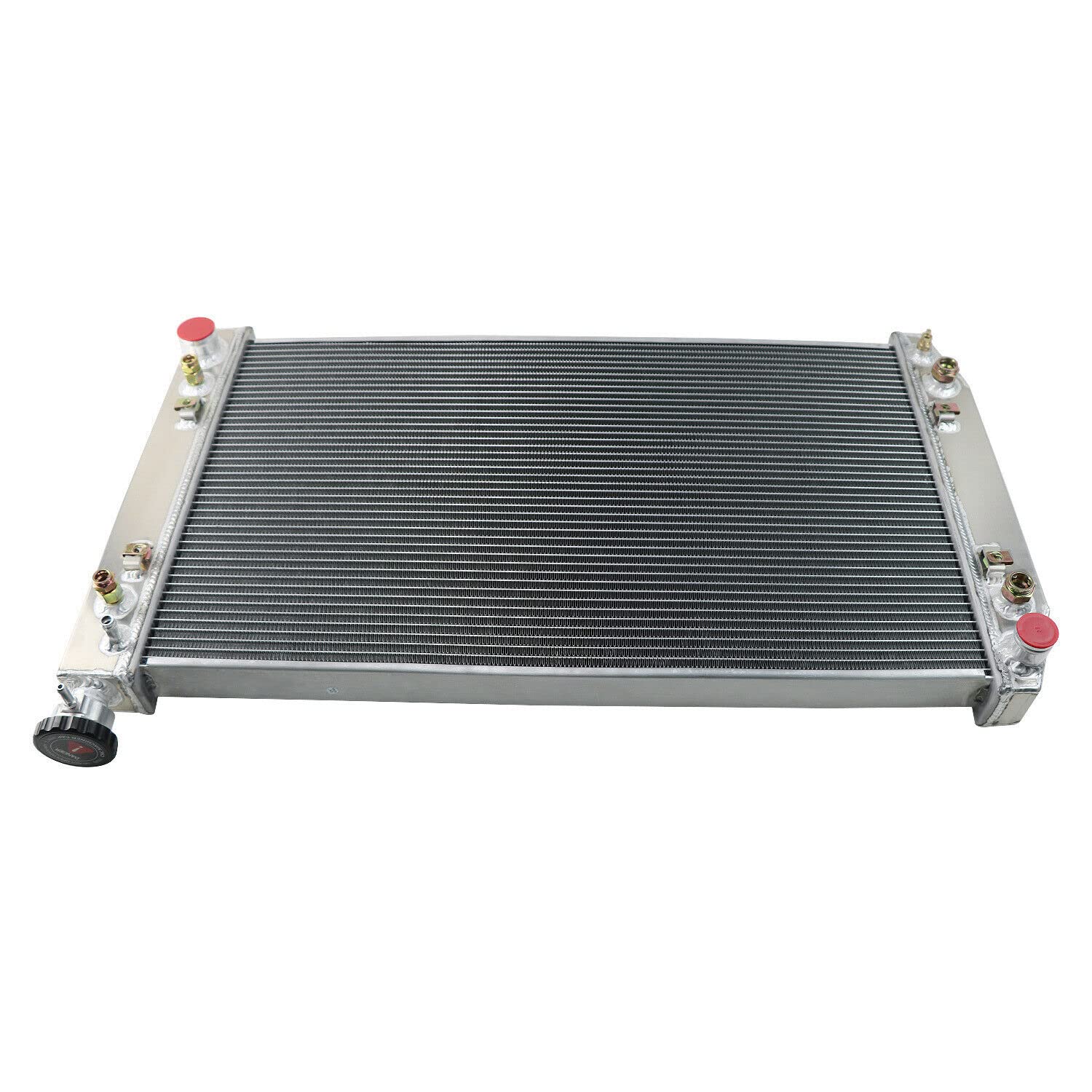

Core Size 28.27" H x 17.24" W x 1.73" T; Overall Size 33.94" H x 18.78" W ; Inlet Diameter 1.25" On Driver Side ; Outlet Diameter 1.57" On Passenger Side ; Transmission Oil Cooler：φ26*292*1/2-20UNF(Z) ; Engine Oil Cooler φ32*292*M20*1.5(P)
OE/OEM Part Number 622 CU622 8010622 A622 TYC 622 DPI 622 622,1605-370188,1804,20807,2383,43-2057,432057,731889,8010622,CR622, RA1217, RA1217-11B1, REA41622A, SPTCU622
Features 100% Leak Tested, 3 Rows, Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation ; Placement on Vehicle Engine Compartment, front ; Mounting Style Bolt-On
Warranty 12 months!!! local delivery!!! ; Easy To Install Light weight direct bolt-on replacement, stronger & higher capacity for coolant

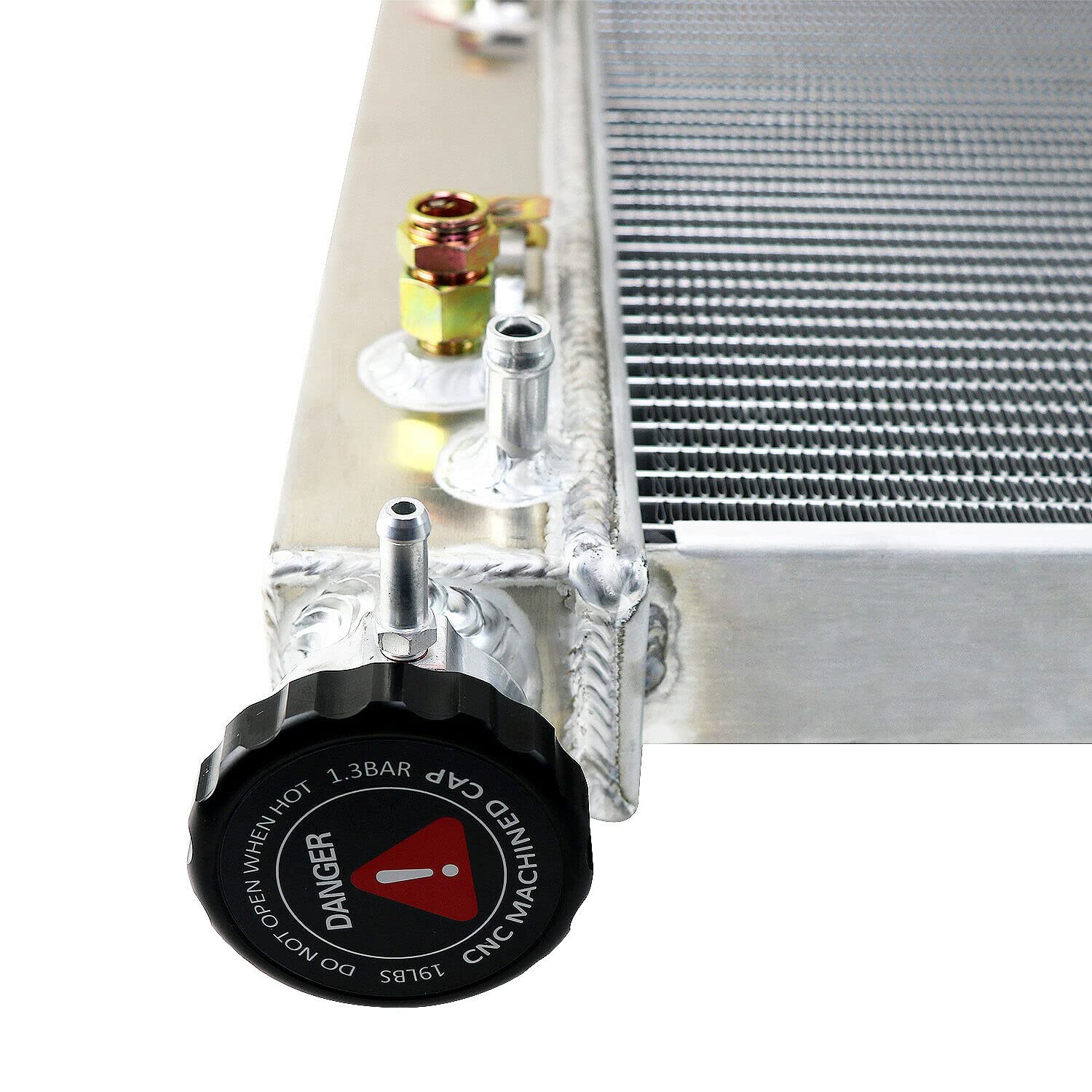

Billet Aluminum CNC machined fill neck rugged and durable ; CNC machined cap with Engraved craftsmanship, anodized treatment.
