Aluminum Radiator for 2001-2005 GMC Chevy Silverado Sierra 3500 2500 HD 6.6L - 44MM 3 Row Core Cooling System with Electric Fan & Relay Kit - Perfect for Off-Roading, Towing & Heavy-Duty Performance
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:10409113
Product Description

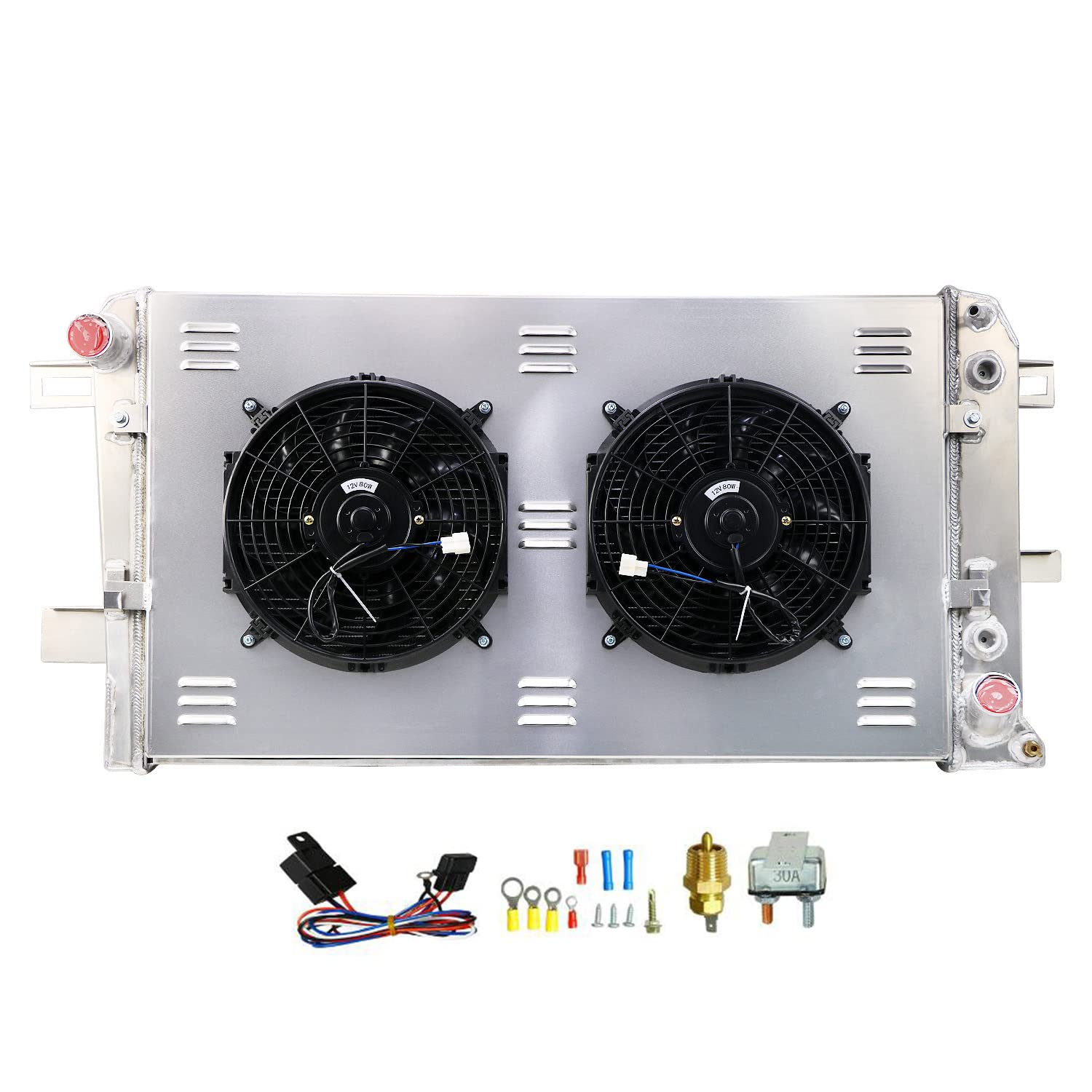

Product Includes: 1 X Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12inch Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Specs: Core Material: All Aluminum Tank Material: T-5057 Aircraft Grade Aluminum Surface Finish: Raw Aluminum Unpainted Including OEM Style Brass Petcock Drain Down Flow Or Cross Flow Type: Cross Flow Fitment Type: Direct Replacement Delivery: Local Delivery Crafts: 100% Tig welded Please Check the Size Before You Buy! Fan Specification: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050 Thickness (in): 2.500 Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature Comes on at 185º AND Turns off at 165º Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans OEM/Substitute Numbers: CU2757, 8012498, 16014332, 8012512, SPTCU2510, 8012757, 2510, 2757, 432350, 2986, CU2510, 438084, DPI2510 This Radiator Compatible with: 2001-2005 Chevy Silverado 2500 HD w/ 6.6L Duramax LB7/LLY 2001-2005 Chevy Silverado 3500 HD w/ 6.6L Duramax LB7/LLY 2001-2005 GMC Sierra 2500 HD w/ 6.6L Duramax LB7/LLY 2001-2005 GMC Sierra 3500 HD w/ 6.6L Duramax LB7/LLY PLS check core/overall/inlet/outlet SIZE carefully before you order
Product Features
One New Radiator Fan Direct fit for 2001-2005 Chevy Silverado HD 6.6L Duramax LB7 2500 3500 / GMC
Core Size(inch) 34" W x 19 3/5" H x 1.74'' Thickness ; Overall Size(inch) 45 3/7" W x 20 7/9" H ; Inlet 1.81'' On Driver Side ; Outlet 1.81'' On Passenger Side ; Trans Oil Cooler：7/8-14 UNF ; OEM Style Brass Petcock Drain ; Rows 3
T-5057 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure
Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently
Local Delivery, Please check compatibility before purchasing.Any Issues, Email Us
Customer Reviews
Was a little skeptical about the radiator possibly not fitting but it's a complete drop in kit all you have to do is pretty much wire up the fans and eliminate the viscous fan unless you replace the fan clutch or fan blades with shallow kit. Makes the a/c colder regardless of the a/c not being filled to specs
