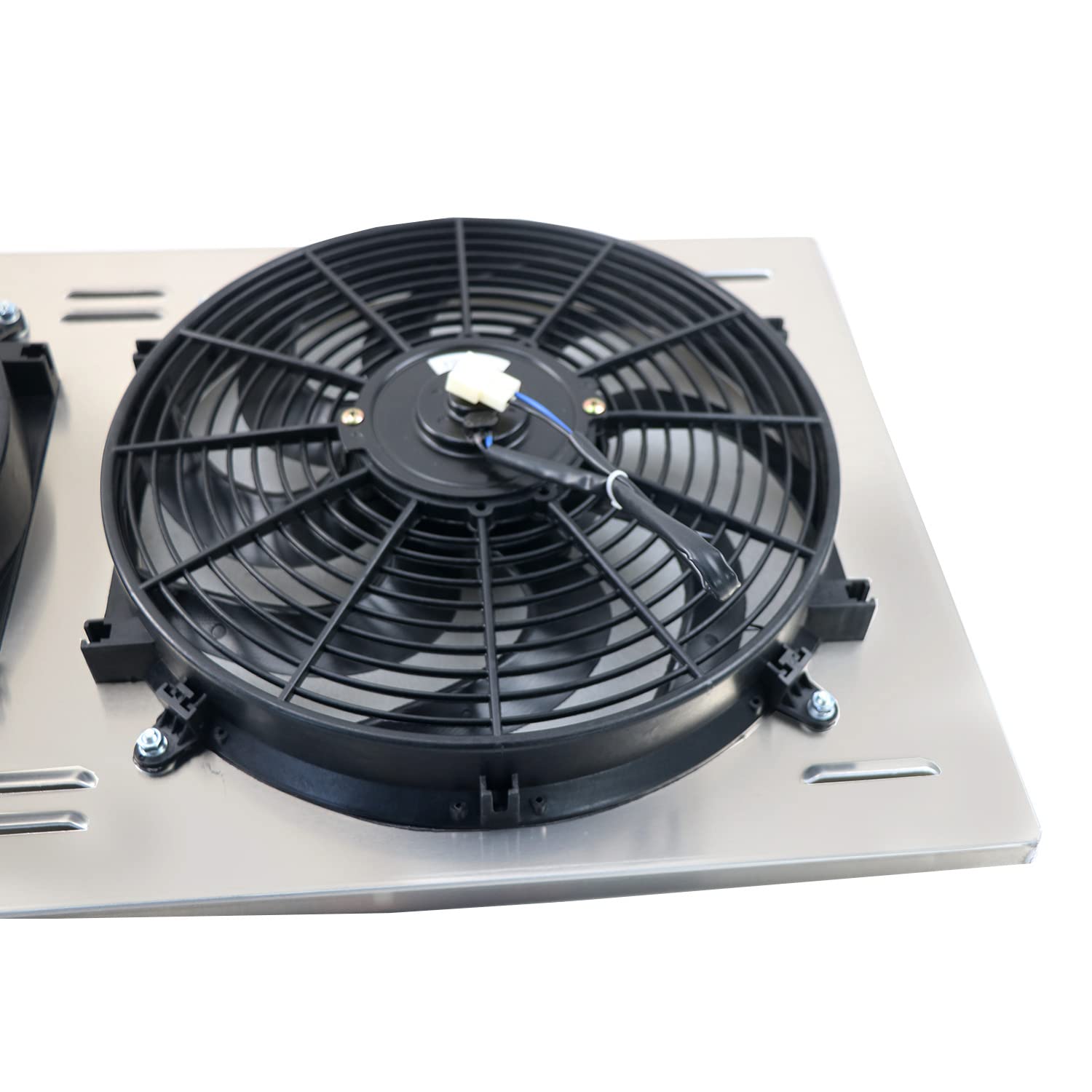

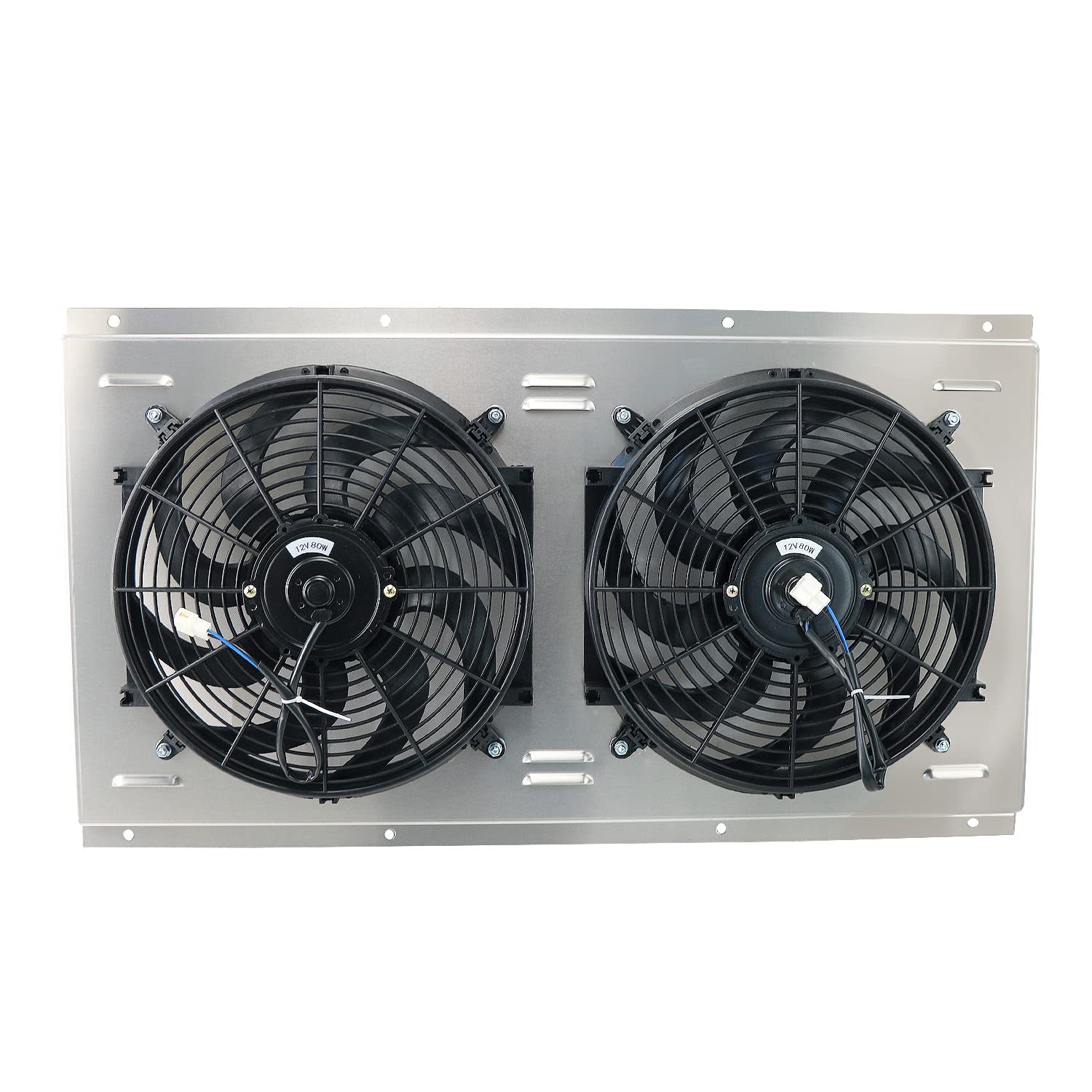

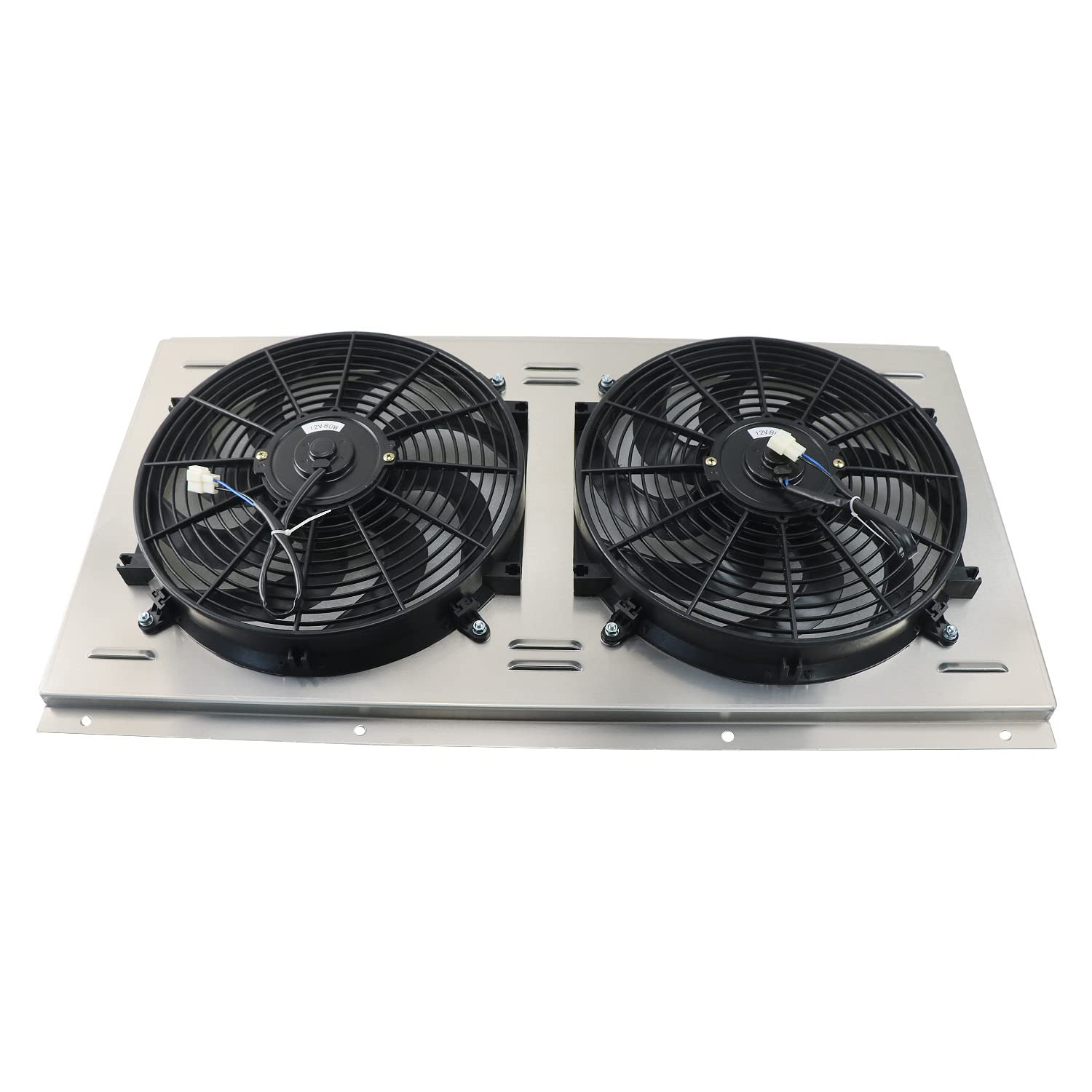

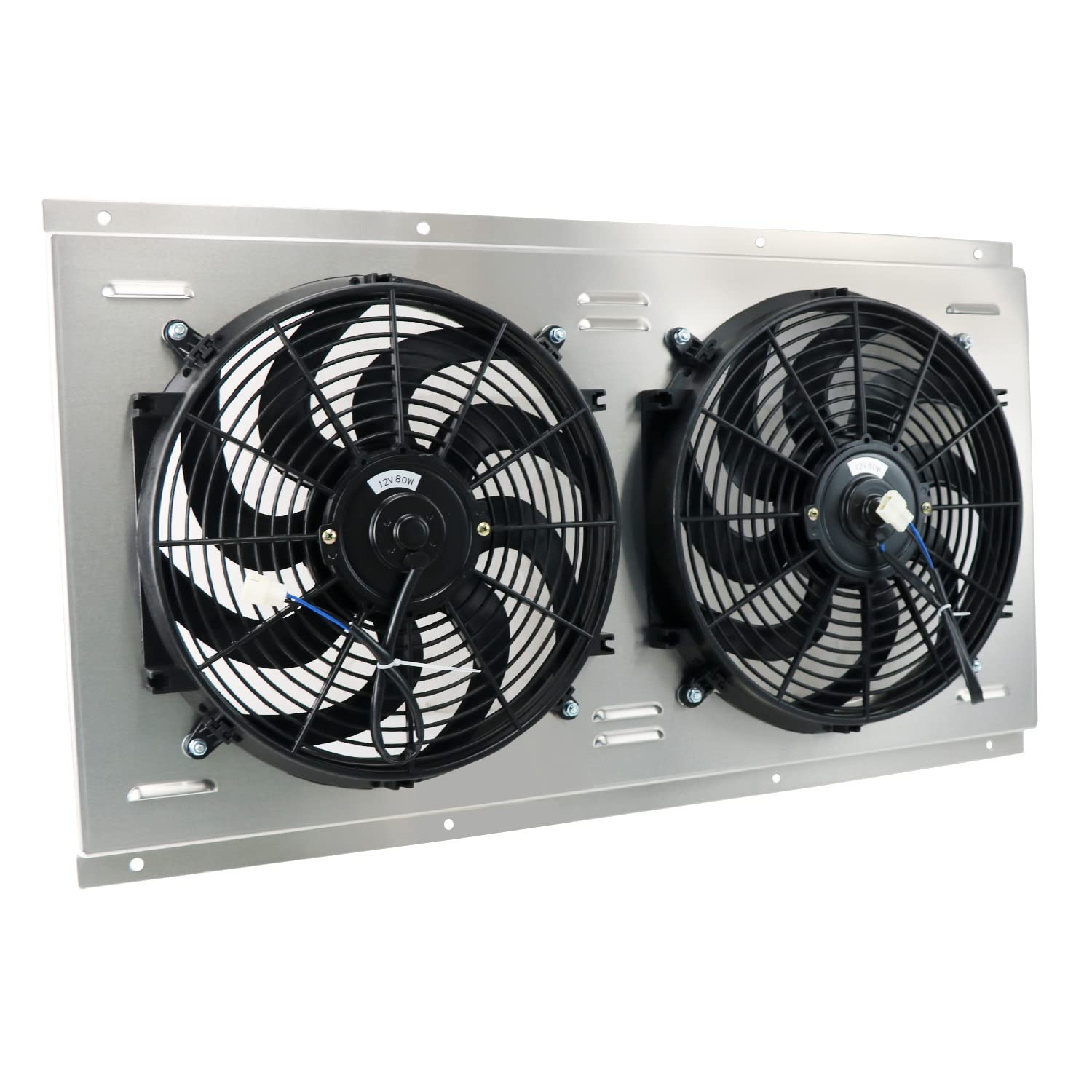

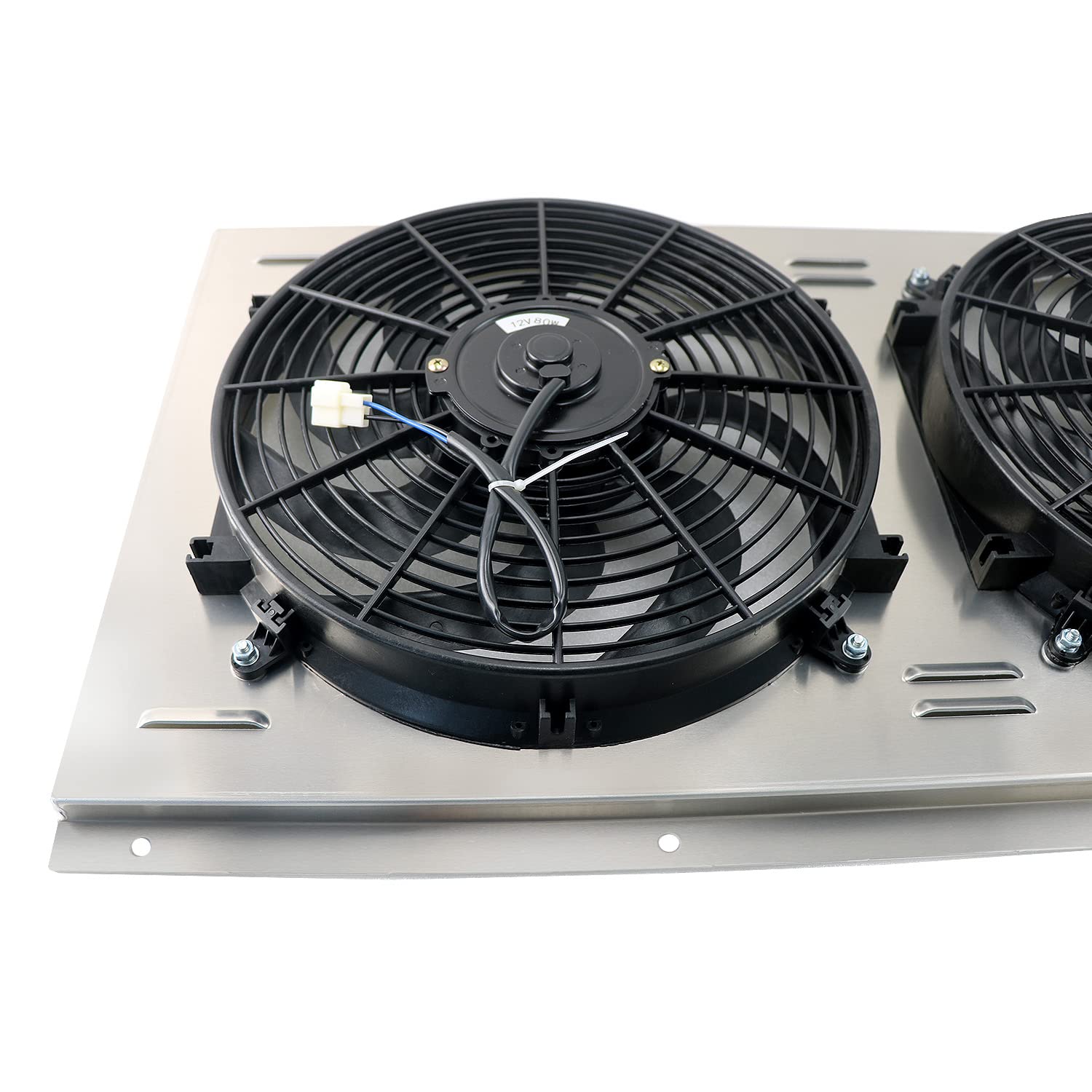

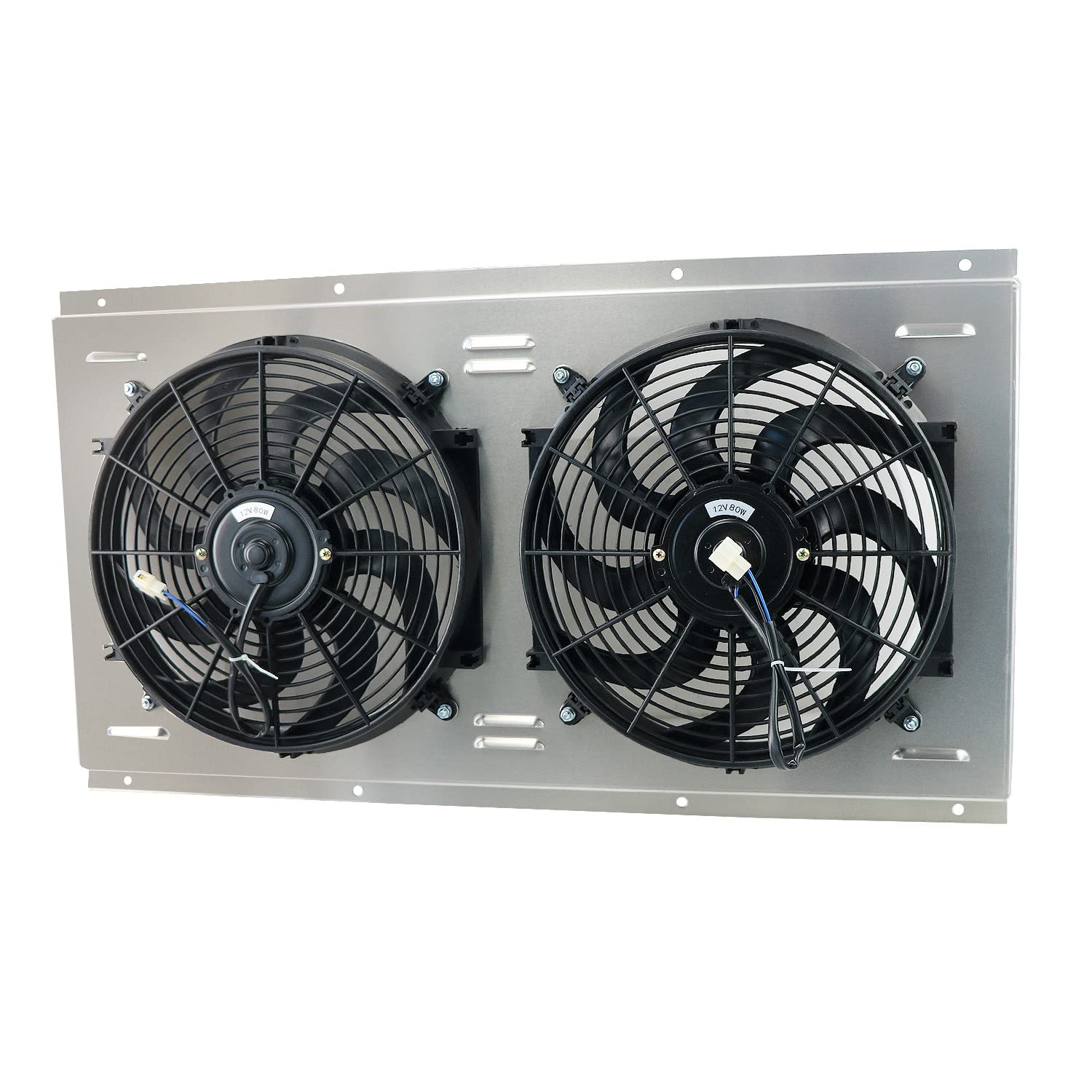

Aluminum Radiator Shroud with Electric Fan Relay Kit for 1988-2000 Chevy GMC C/K 1500 2500 3500 5.7L-7.4L V8 Trucks - Cooling System Upgrade for Off-Road & Towing Performance

Product Description

This Shroud Fan Compatible with: Fits 1988-1999 Chevy C/K Truck 5.7L - 7.4L V8 Engines Fits 2000 Chevy C/K Truck 5.7L V8 Engines Fits 1992-1994 Chevy Suburban/Blazer 5.7L-7.4L V8 Engines Fits 1995-2000 Chevy Tahoe/1992-2000 GMC Yukon 5.7L V8 Engines Fits 1999-2000 Cadillac Escalade/Escalade EXT 5.7L V8 Engines ONLY FIT 34 INCH WIDE CORE,17 INCH HIGH CORE OE/OEM Part Number: SC1520, RAD1520, RA1520, RK1520, DPI1520, DPI1522, DPI1693, 1520, 1522, 1693 Superseded Part Number: SBR1693, YTC1693, KKS1693, SBR1522, KKS1522, TYC1522 Interchange Part Number: AE1520, EC1520, KKS1520, SBR1520, SPTCU1520, TYC1520 FAN Specification: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050 Thickness (in): 2.500 Number of Blades: 8 S-Type blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator
