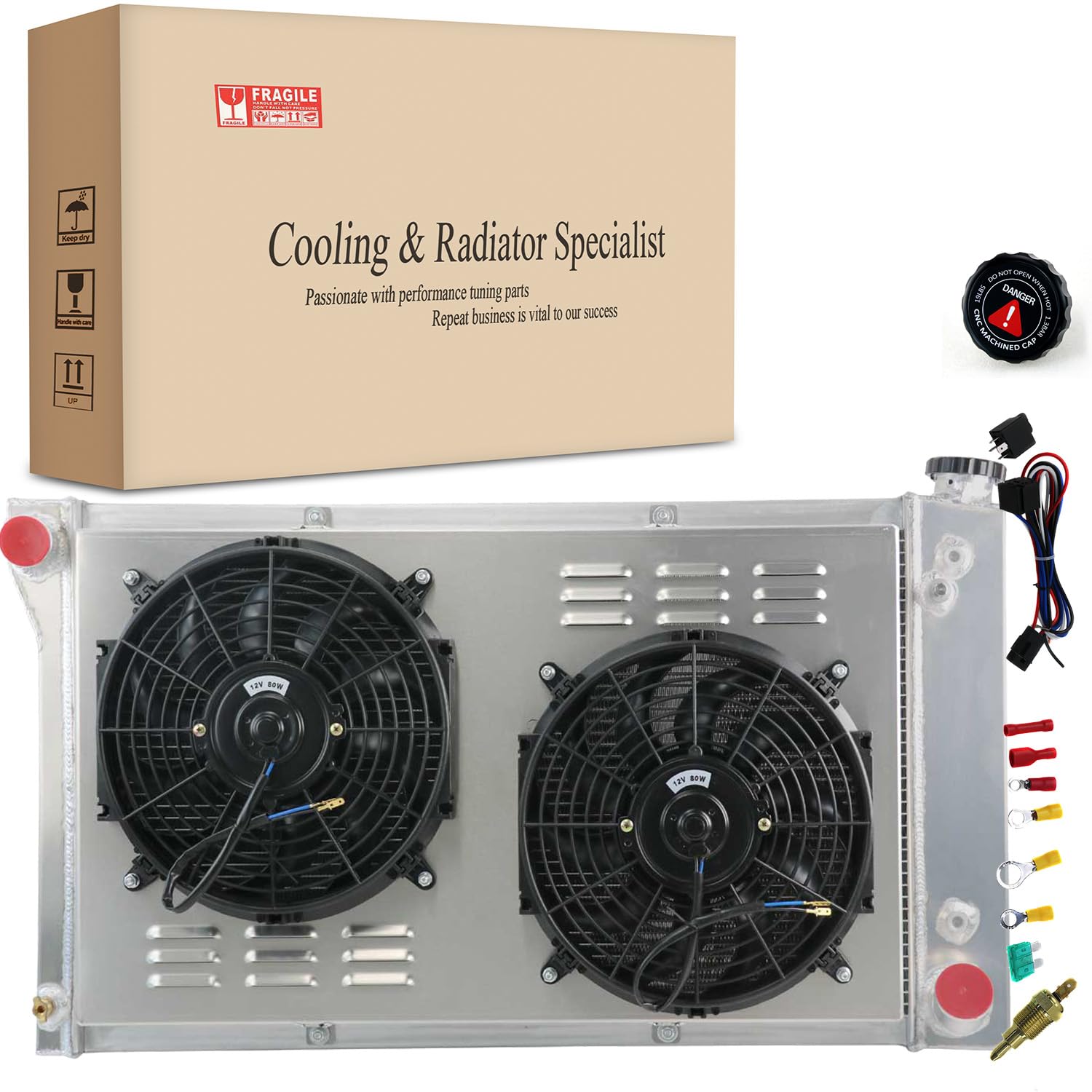

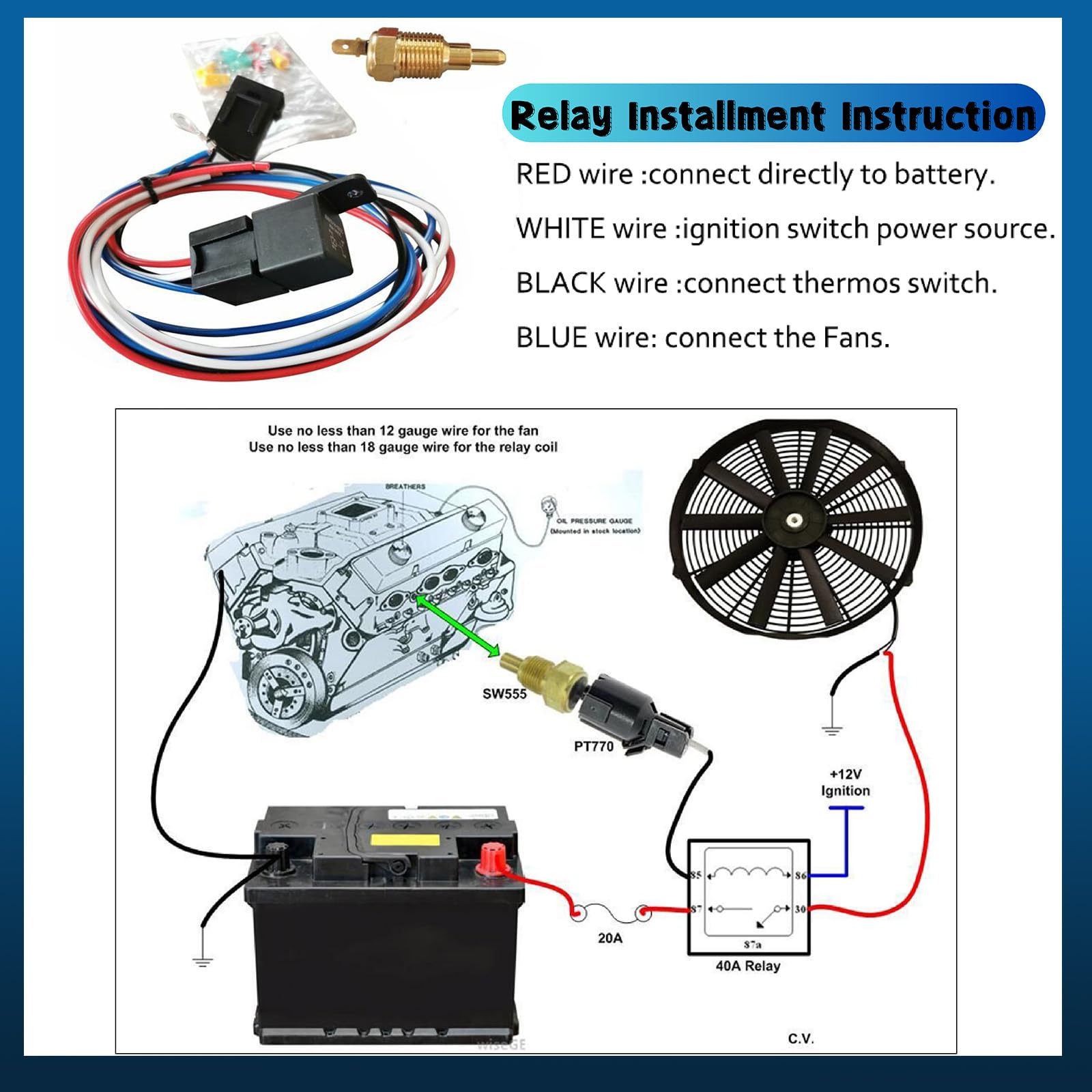

High-Performance 3-Row Aluminum Radiator with Dual 12" Fans & Shroud + Relay Kit for 1967-1972 Chevy C/K/G/P Series (C10, C20, C30, K10, K20, K30) & GMC Trucks - Perfect for Off-Roading, Towing & Hot Weather Driving

Product Description

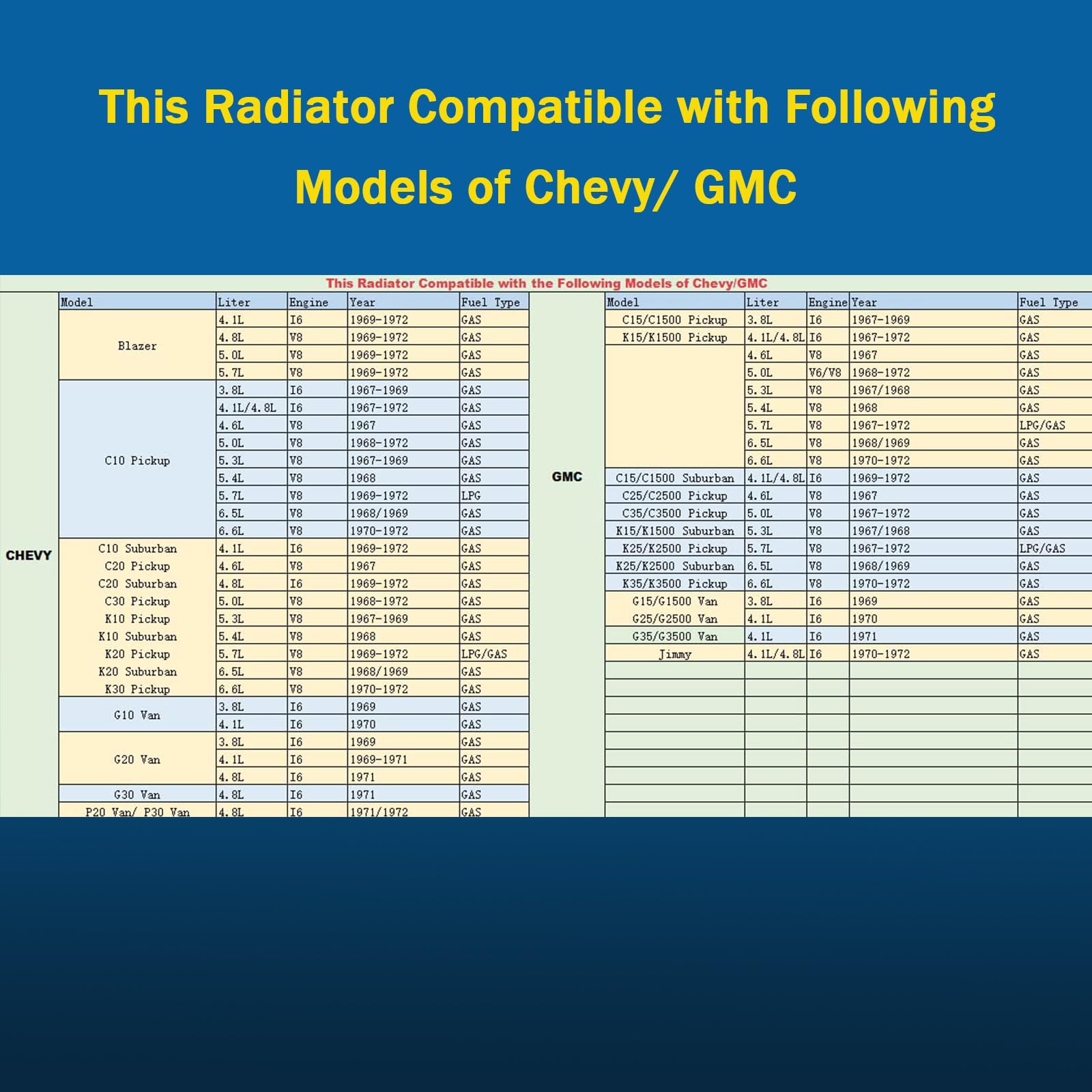

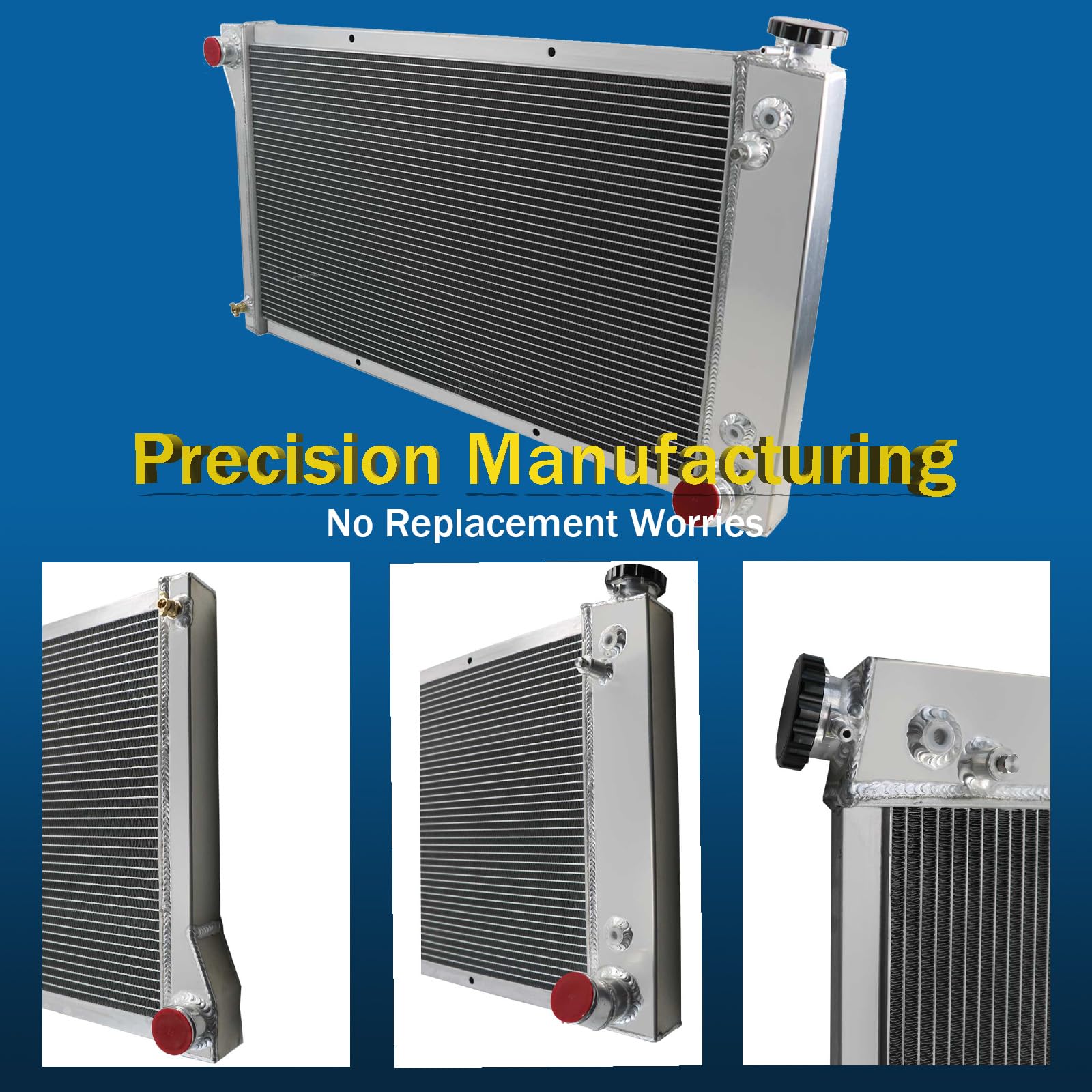

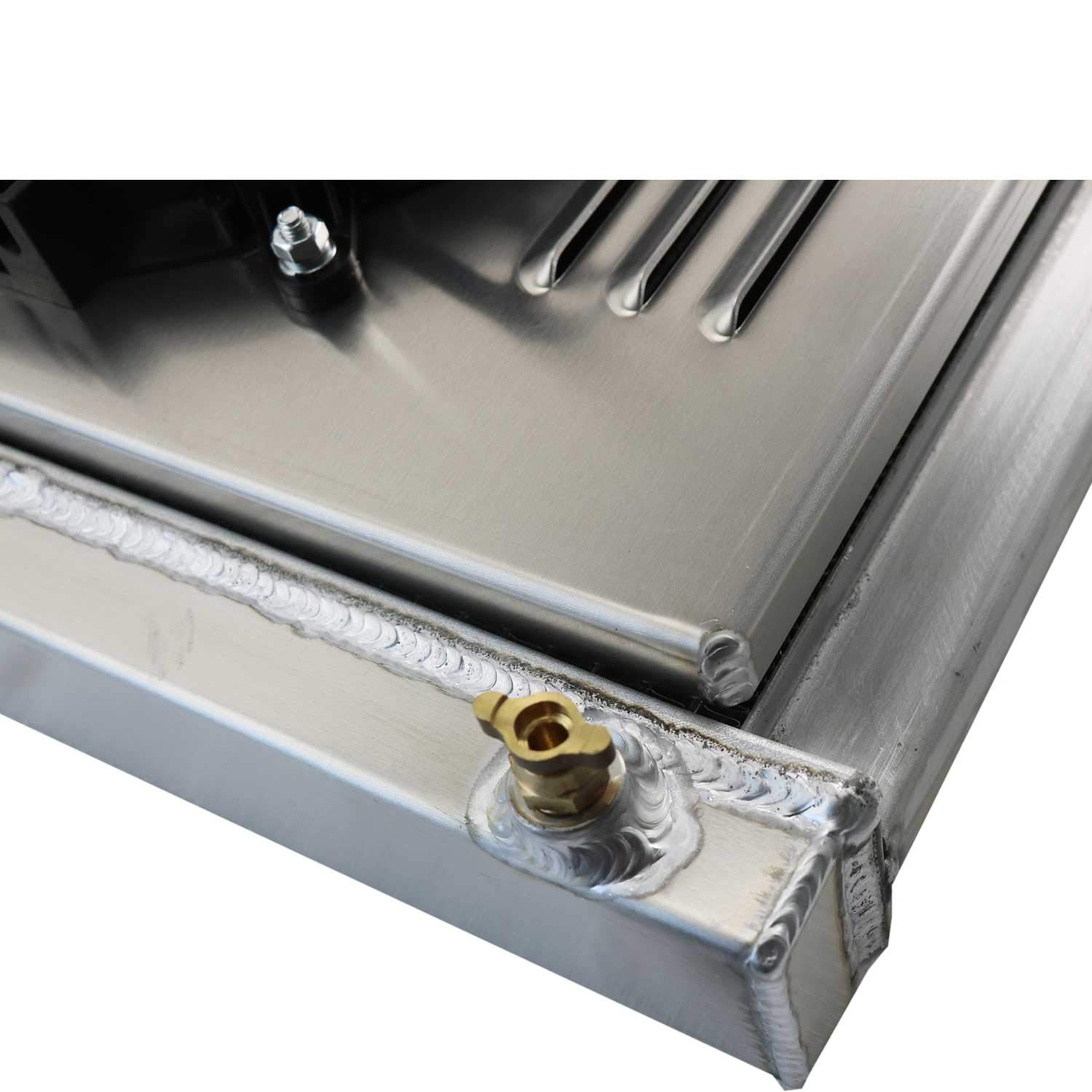

This Radiator For 1967-1972 Chevrolet C/K Series 10 20 30 Pickup Suburban V8 For 1969-1972 Chevrolet Blazer 5.0L 5.7L V8 For 1967-1979 G/P Series P10 P20 P30 G10 G20 G30 Van For 1970 1971 1972 GMC Jimmy I6 V8 For 1967-1972 GMC C/K Series K25/K2500 K35/K3500 C15/C1500 Pickup Suburban For 1967-1979 G/P Series P15 P25 P35 G15 G25 G35 Van Part Number: DPI369, CC369, CU369, 0369AA, 369, MC369, CC369, DPI369, MC369, EC369, CU369, RA-CK67-3, RA-CK67-2, 8010369, 433366 Radiator Specification Row of tubes Core Racing Design 3-Core Material: All Aluminum Tank Material: AA5052 Aircraft Grade Aluminum Includes CNC machined filler neck and cap OEM style brass petcock drain Fans Details Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 Blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation PLS NOTE: FIT 28 1/4" WIDE CORES Only, some radiator have 26 1/4 " WIDE CORE Direct Fit for Easy Installation Direct Bolt-On OE Fitment or Replacement. Notes: Installation instruction is not included. Professional installer is highly recommended!
