High-Performance Aluminum Radiator for 1992-2001 Acura Honda Integra Civic Del Sol | D15 EK EG DB DC L4 Engine | 4-Row Cooling System with Shroud & Fan Relay | Perfect for Street Racing & Daily Driving

Product Description

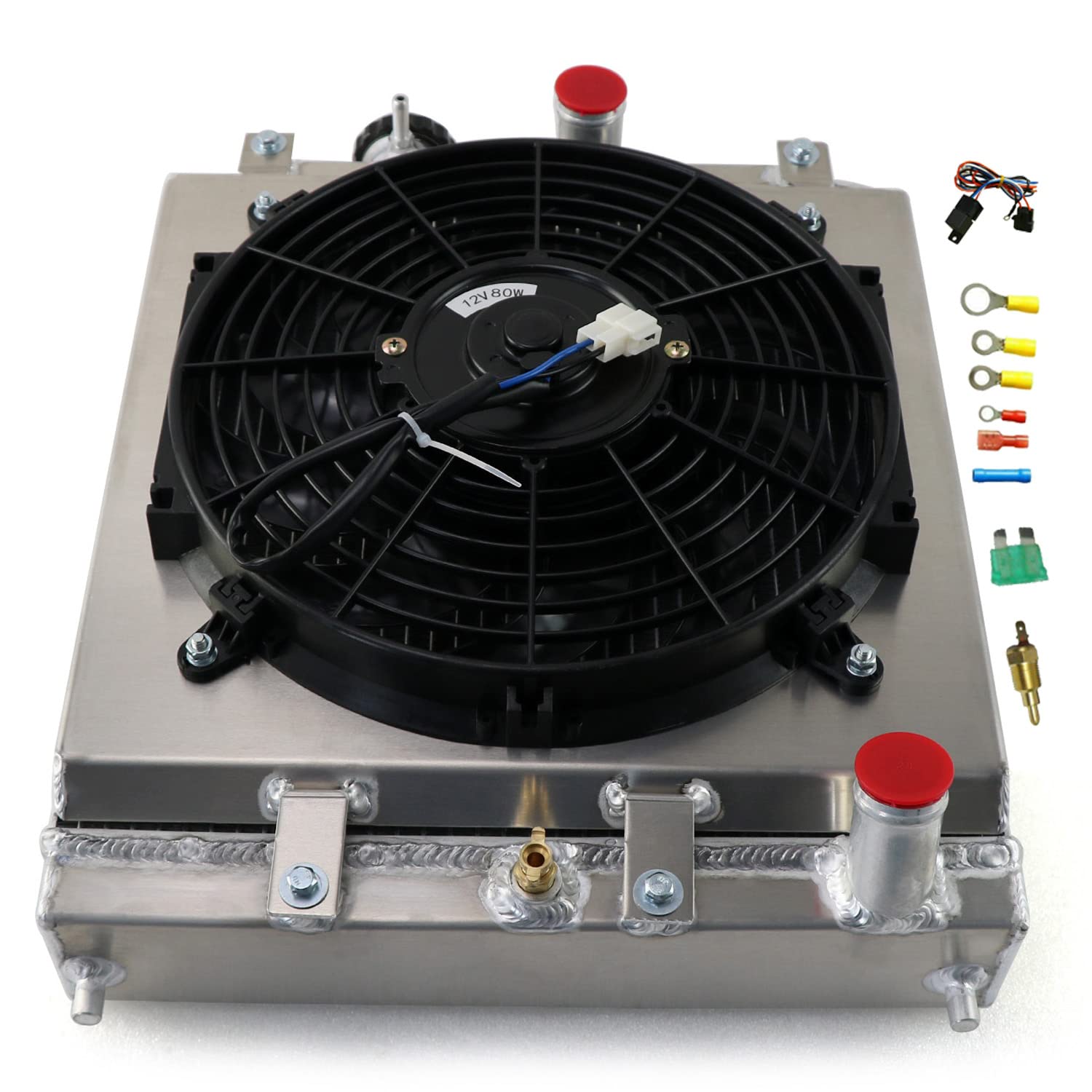

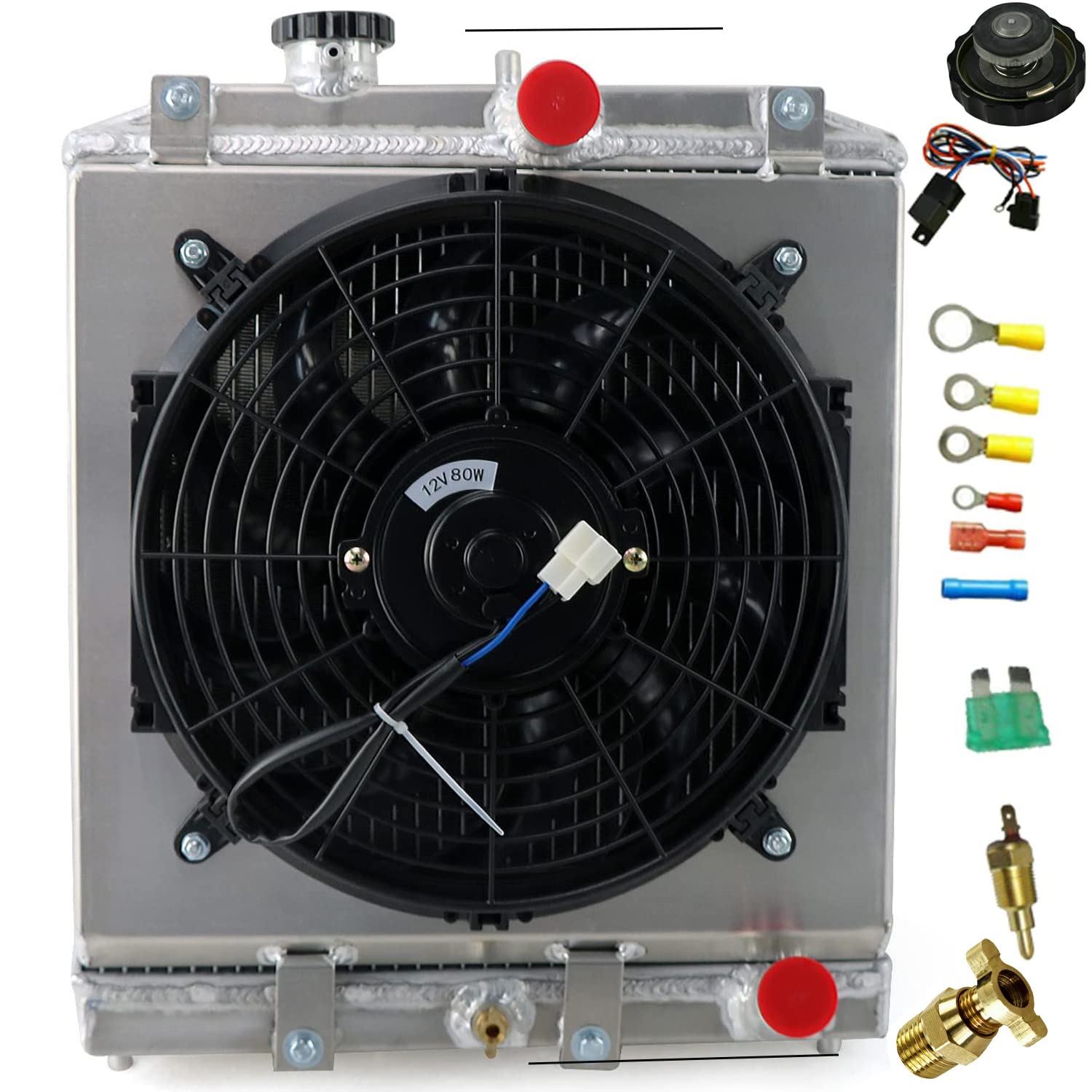

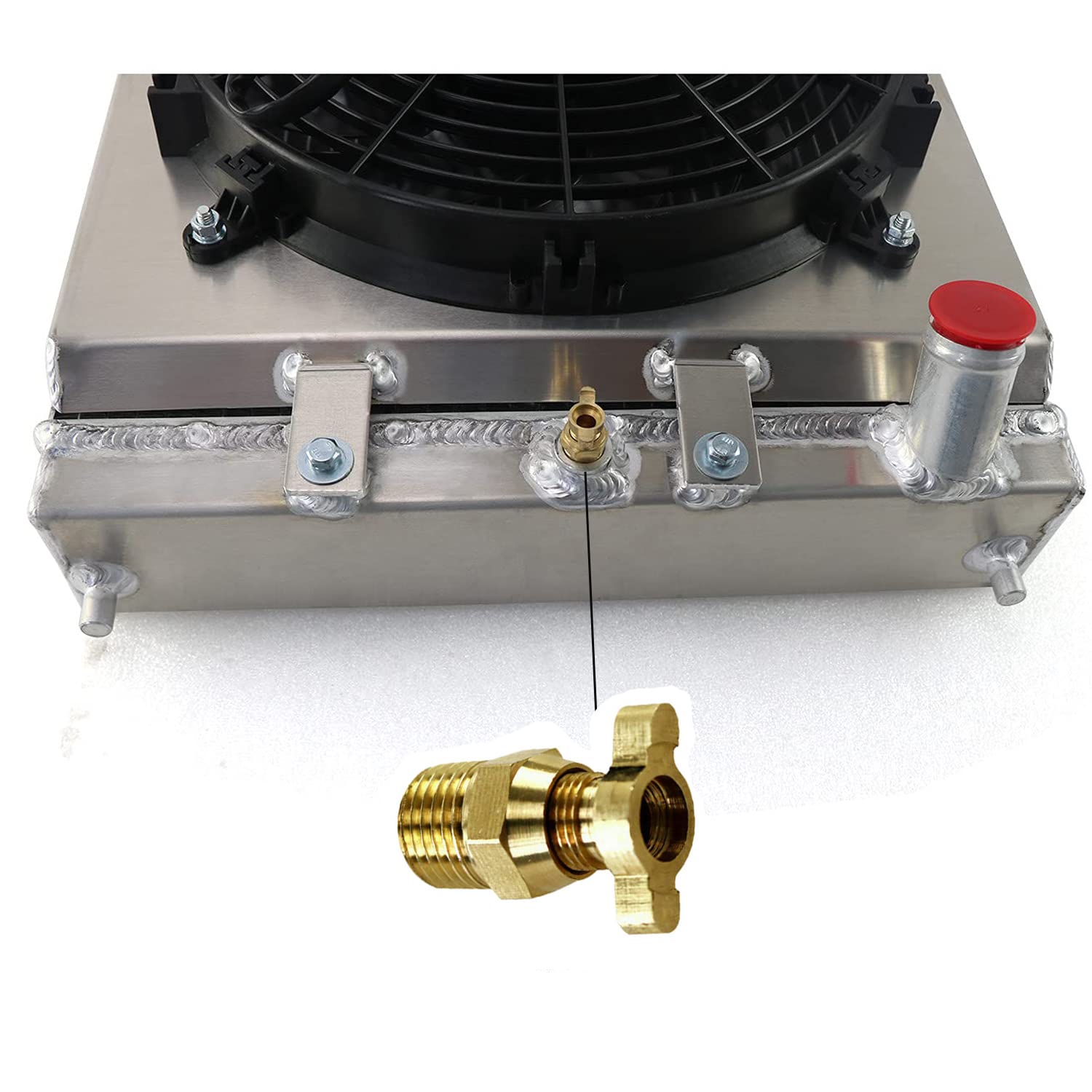

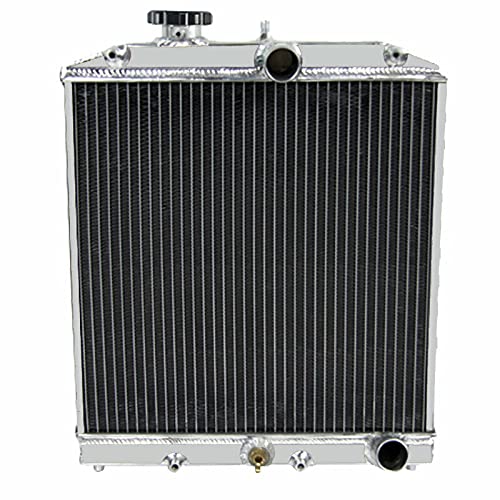

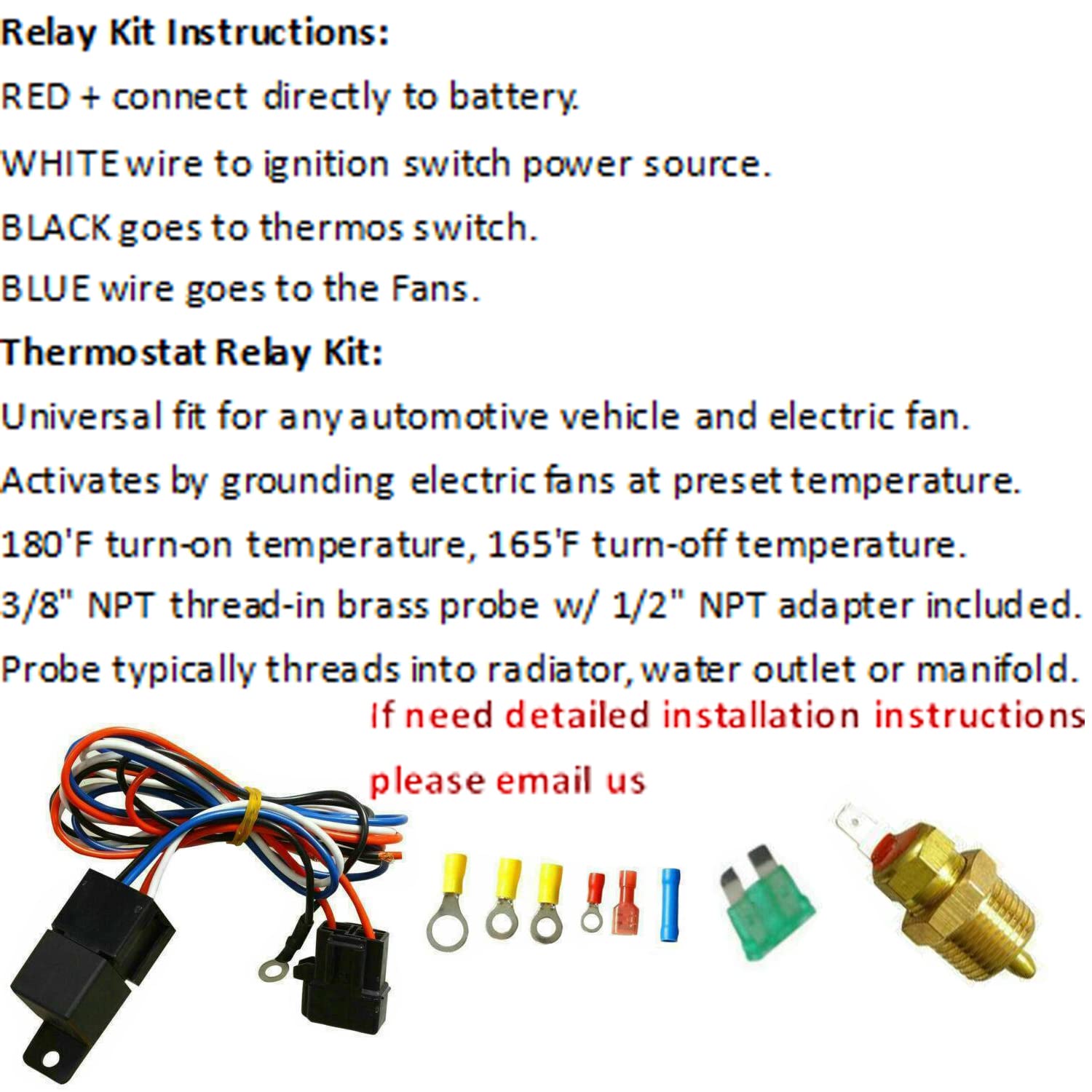

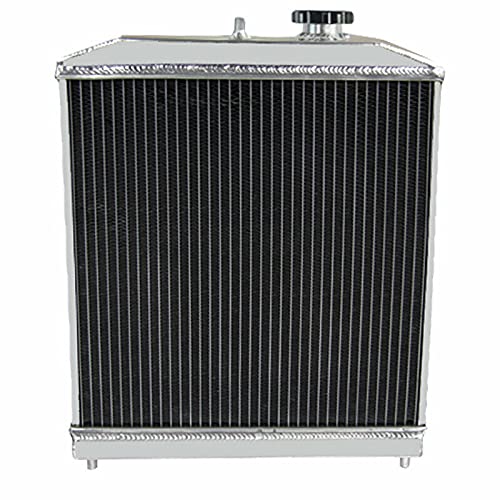

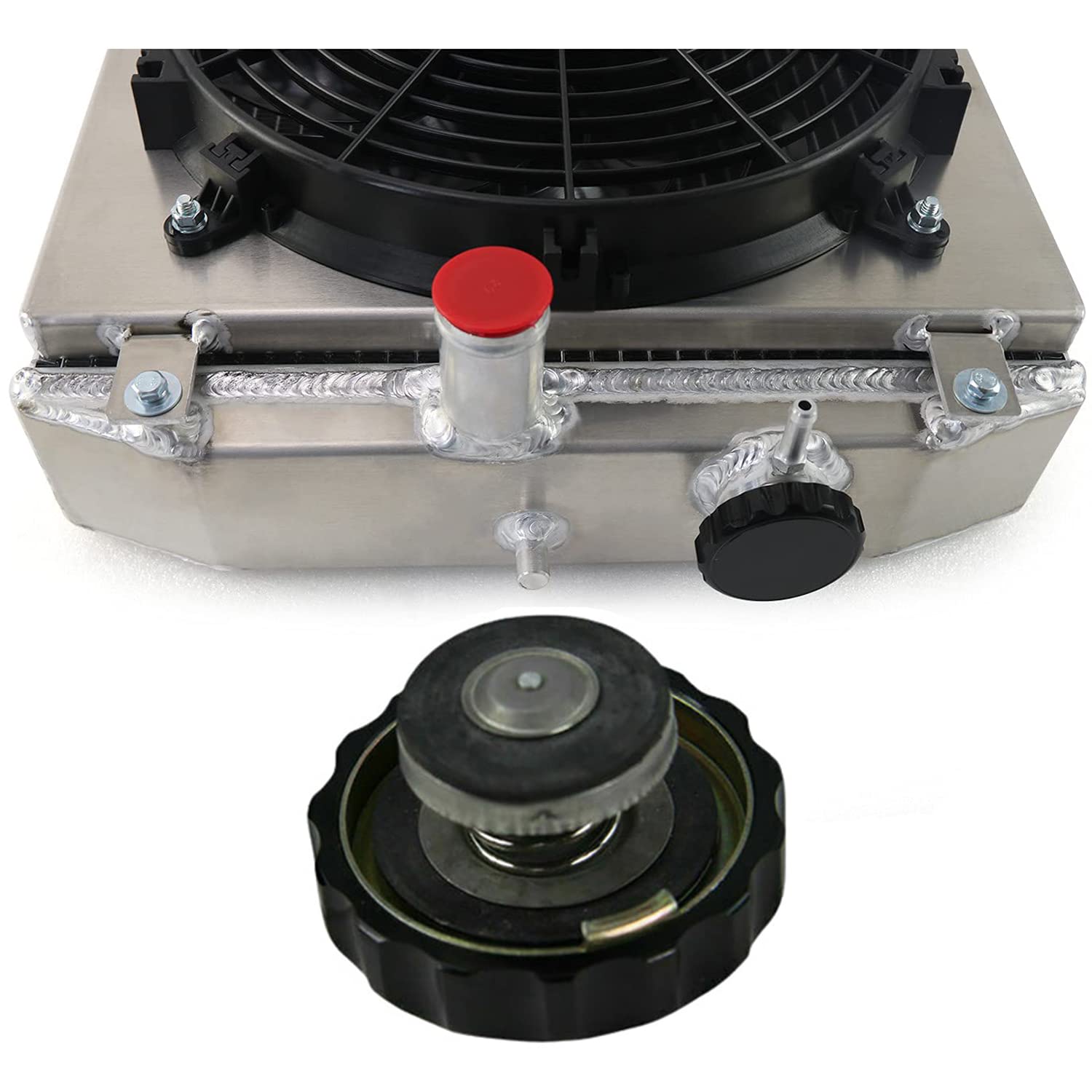

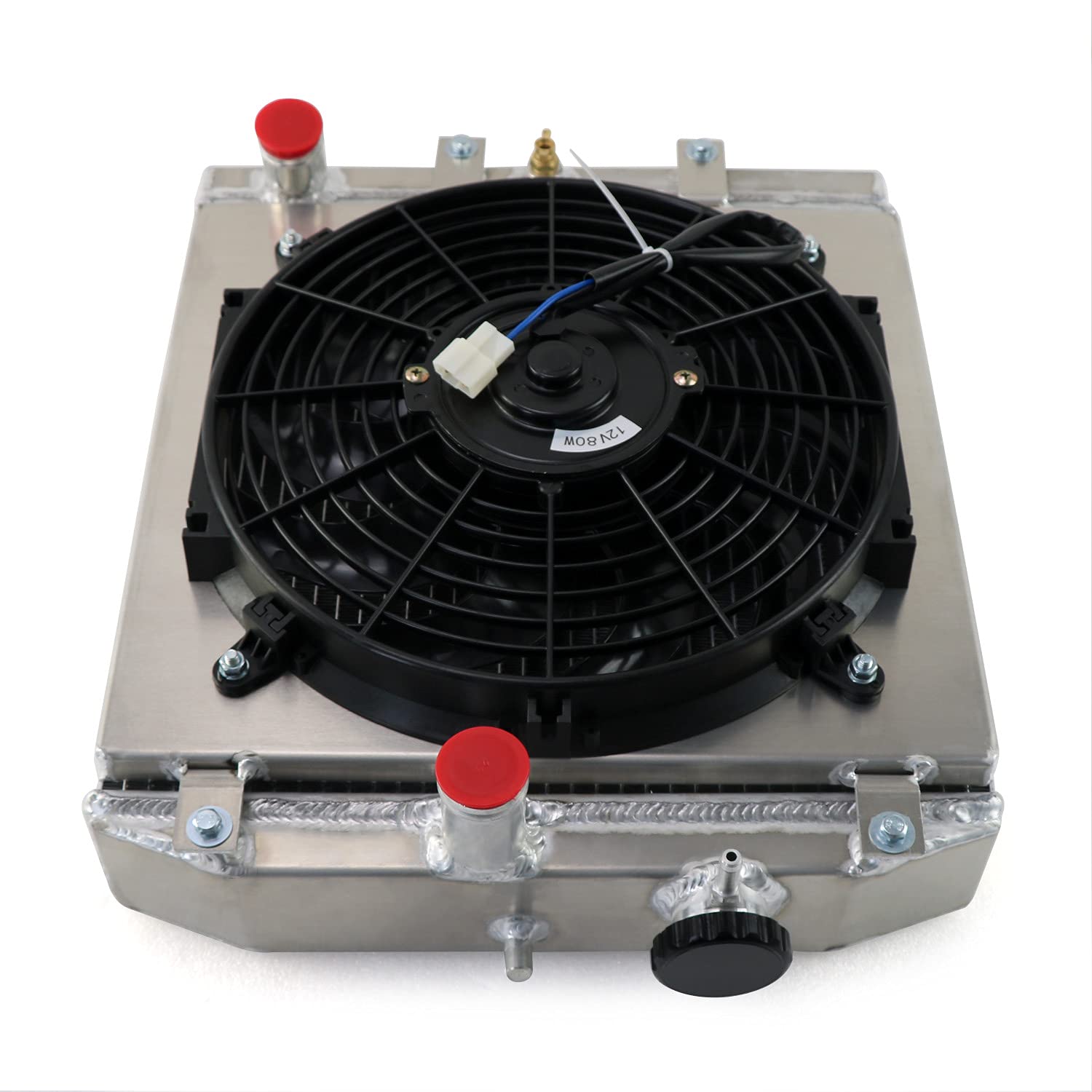

Fitment： Compatible with Acura 1994-2001 Integra 1.8L l4 GAS Compatible with Honda 1992-1995 Civic 1.5L l4 GAS 1996-2000 Civic 1.6L l4 GAS 1993-1995 Civic del Sol 1.5L l4 GAS 1996-1997 Civic del Sol 1.6L l4 GAS Package Include: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 12"" Fan (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Details: High Performance Racing Spec. 4-Row of tubes Core Racing Design Core Material: All Aluminum Fitment Type: Direct Replacement Crafts: 100% Tig welded Delivery: Local Delivery Placement on Vehicle: Engine Compartment Part Number: 02ARA8303ASL,HO3010123,HO3010125,19010P07014,19010P07024, 17111728908;17111469179;17112241912 Fan Specification: 12"" Fan Voltage: DC 12 Volts Maximum Fan CFM: 2150 cfm Wattage: 80 Wattage Thickness (in): 2.500"" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Amp Draw: 12.70 amps Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.
